Lexus GS250 2012 Owner's Manual

8307-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
If your vehicle overheats
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine. Carefully lift the hood after the steam subsides
and then restart the engine.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the instru-
ment panel) begins to fall and then stop the engine.
If the fan is not operating:
Stop the engine immediately and call any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
After the engine has cooled
down sufficiently, check the
engine coolant level and
inspect the radiator core (radi-
ator) for any leaks.
If the engine compartment cover
needs to be removed: P. 6 6 1
1
2
3
4

8317-2. Steps to take in an emergency
7
When trouble arises

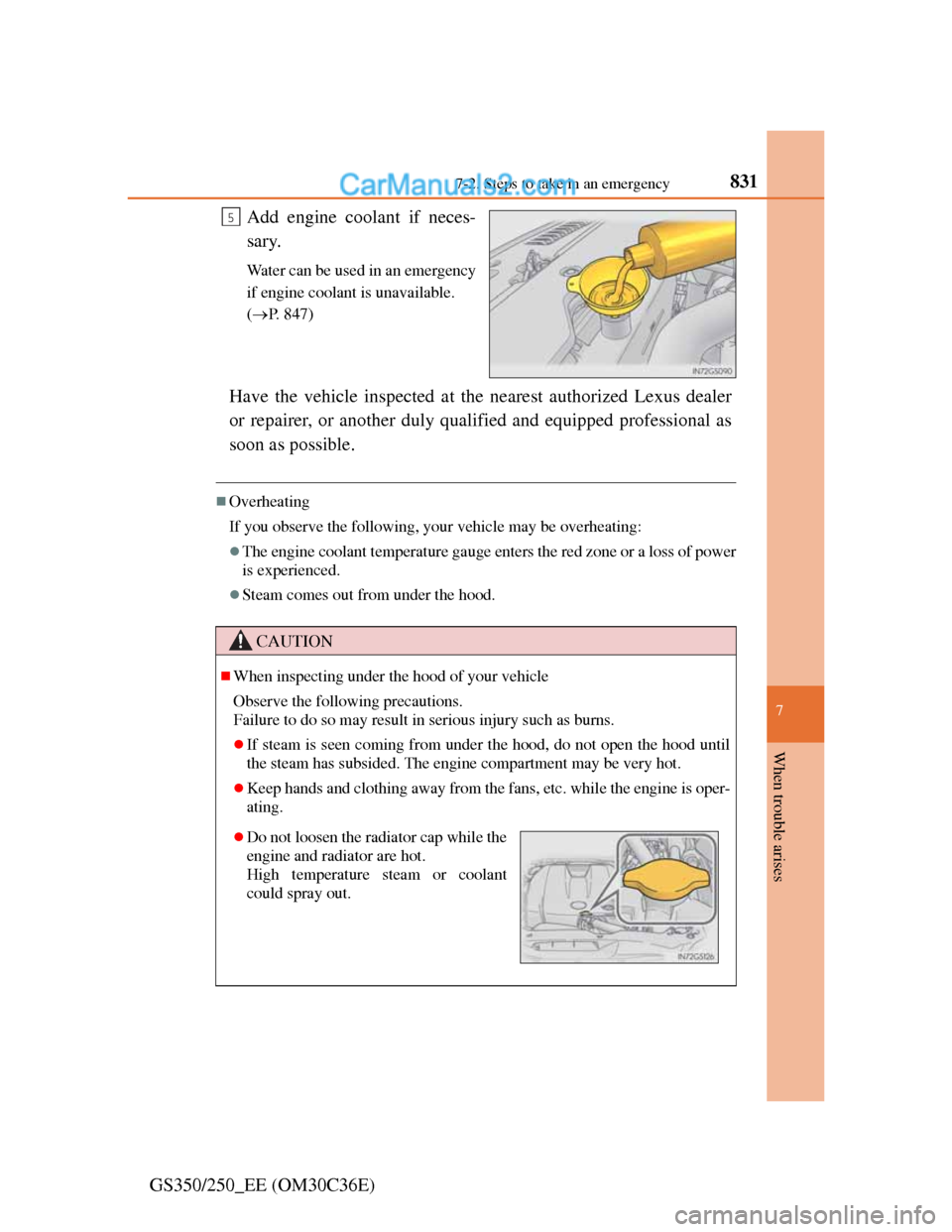

GS350/250_EE (OM30C36E)Add engine coolant if neces-
sary.
Water can be used in an emergency
if engine coolant is unavailable.
(P. 847)
Have the vehicle inspected at the nearest authorized Lexus dealer
or repairer, or another duly qualified and equipped professional as
soon as possible.
Overheating
If you observe the following, your vehicle may be overheating:
The engine coolant temperature gauge enters the red zone or a loss of power
is experienced.
Steam comes out from under the hood.
5
CAUTION
When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
Keep hands and clothing away from the fans, etc. while the engine is oper-
ating.
Do not loosen the radiator cap while the
engine and radiator are hot.
High temperature steam or coolant
could spray out.

8327-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)

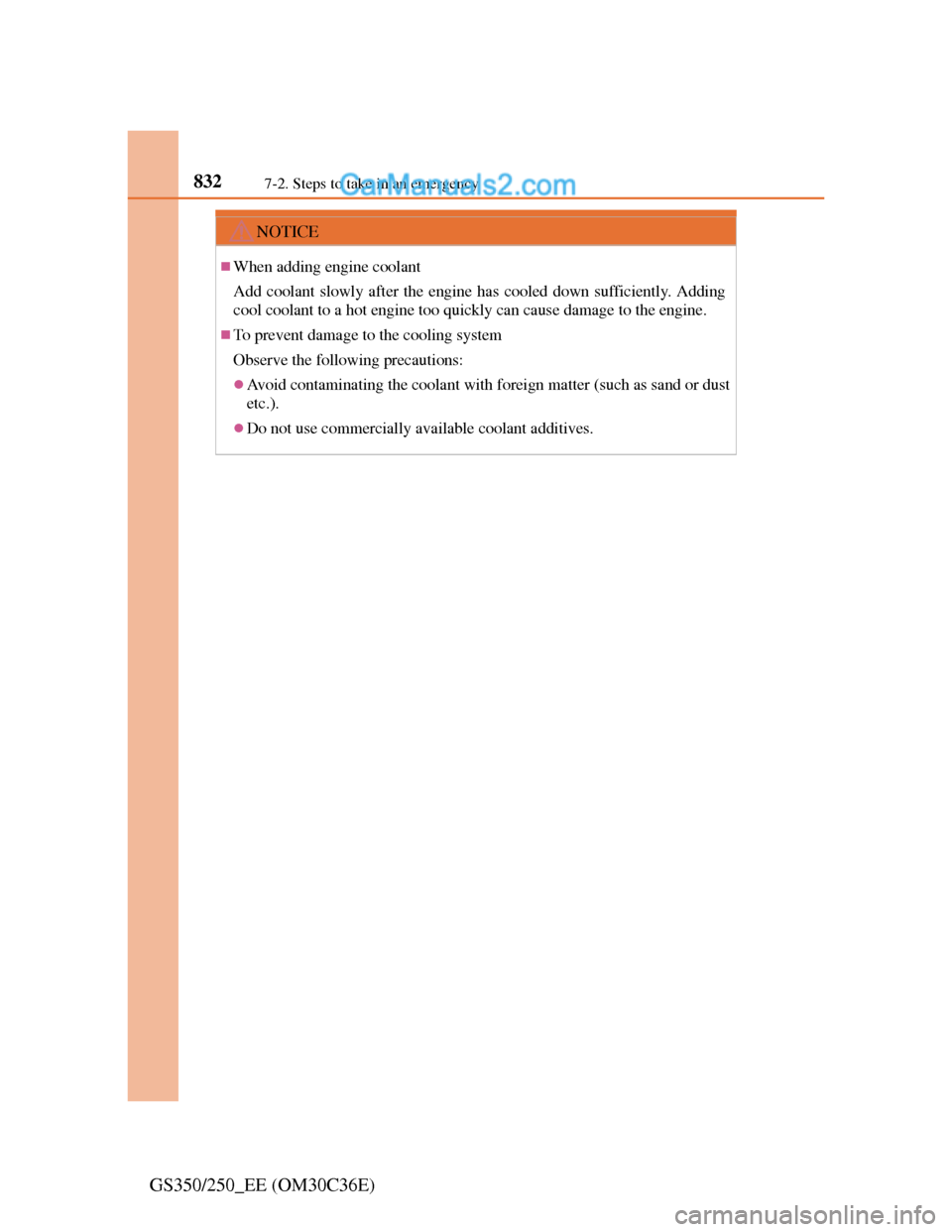

NOTICE
When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use commercially available coolant additives.

8337-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)

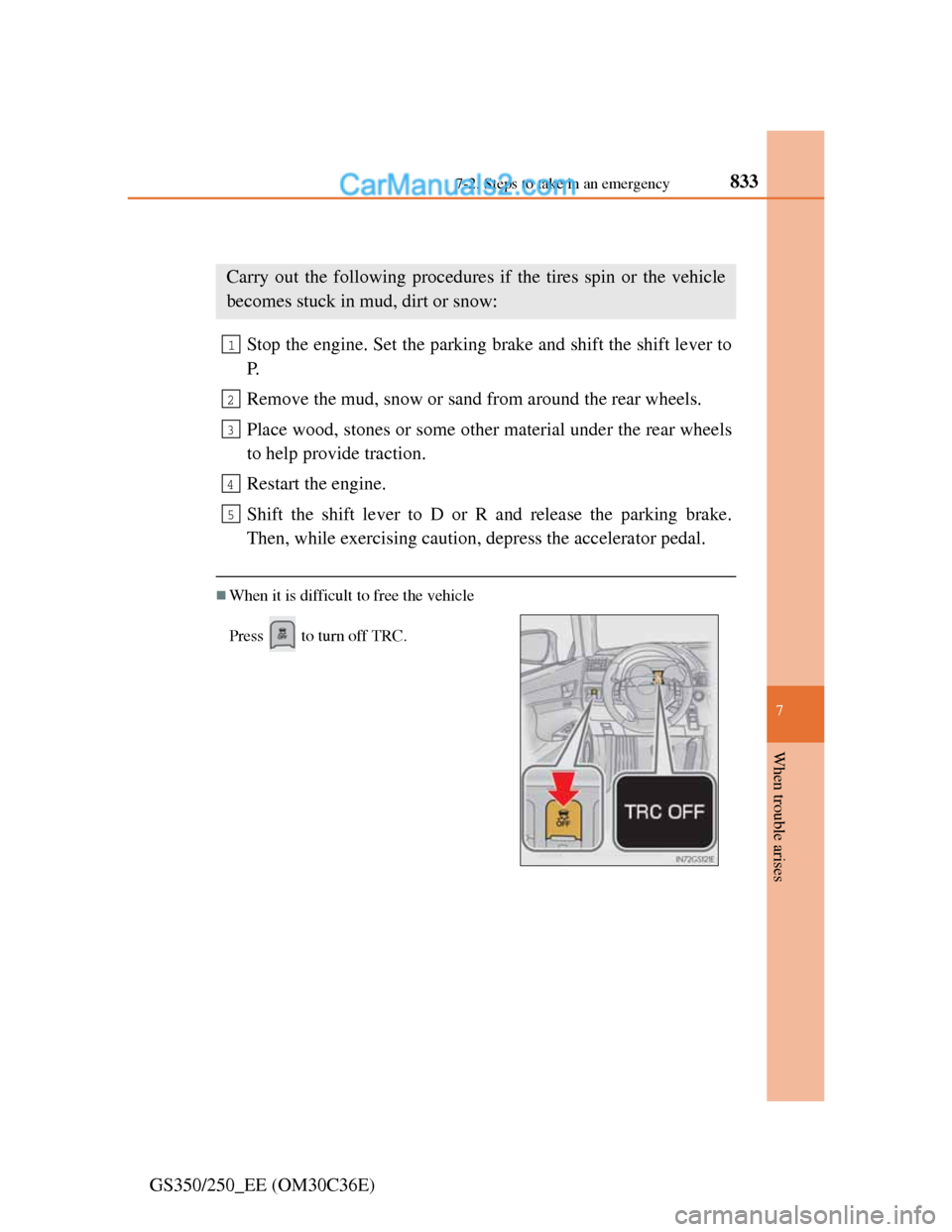

If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to
P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

8347-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)

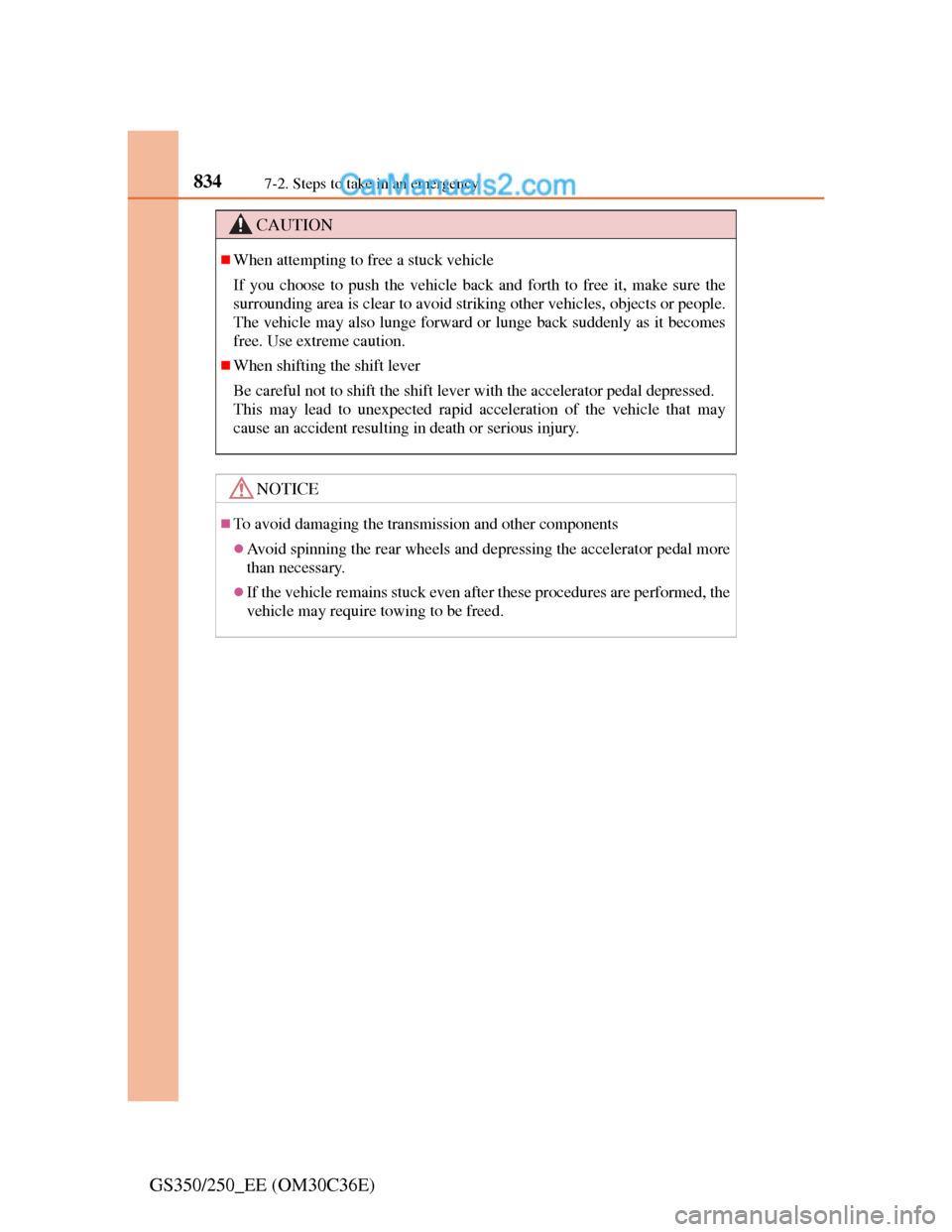

CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
If the vehicle remains stuck even after these procedures are performed, the
vehicle may require towing to be freed.

835

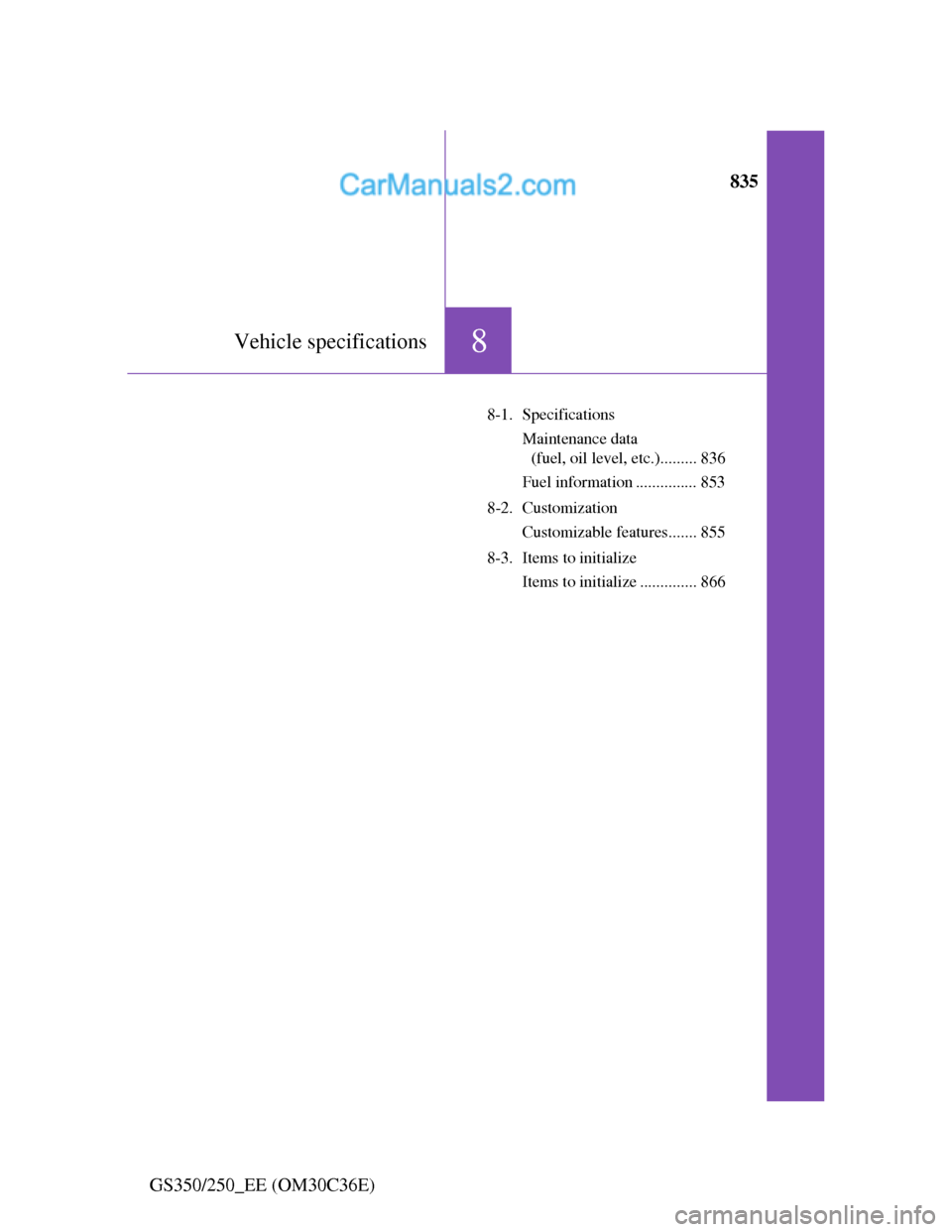

8Vehicle specifications
GS350/250_EE (OM30C36E)
8-1. Specifications
Maintenance data
(fuel, oil level, etc.)......... 836
Fuel information ............... 853
8-2. Customization
Customizable features....... 855
8-3. Items to initialize
Items to initialize .............. 866

8368-1. Specifications
GS350/250_EE (OM30C36E)
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
*3:AWD models
Dimensions and weights
Overall length 4850mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height*12WD 1455 mm (57.3 in.)
AWD 1470 mm (57.9 in.)
Wheelbase 2850 mm (112.2 in.)
Tread*1
Front 1575 mm (62.0 in.)
Rear1590 mm (62.6 in.)
1560 mm (61.4 in.)*2
Gross vehicle
mass2WD 2170 kg (4784 lb.)
AWD 2250 kg (4960 lb.)
Maximum per-
missible axle
capacityFront 1120 kg (2469 lb.)
Rear 1205 kg (2657 lb.)
Drawbar load 80 kg (176 lb.)
Towing capacityWith brake1600 kg (3527 lb.)
1000 kg (2205 lb.)*3
Without brake 750 kg (1653 lb.)

837
8 8-1. Specifications
Vehicle specifications
GS350/250_EE (OM30C36E)

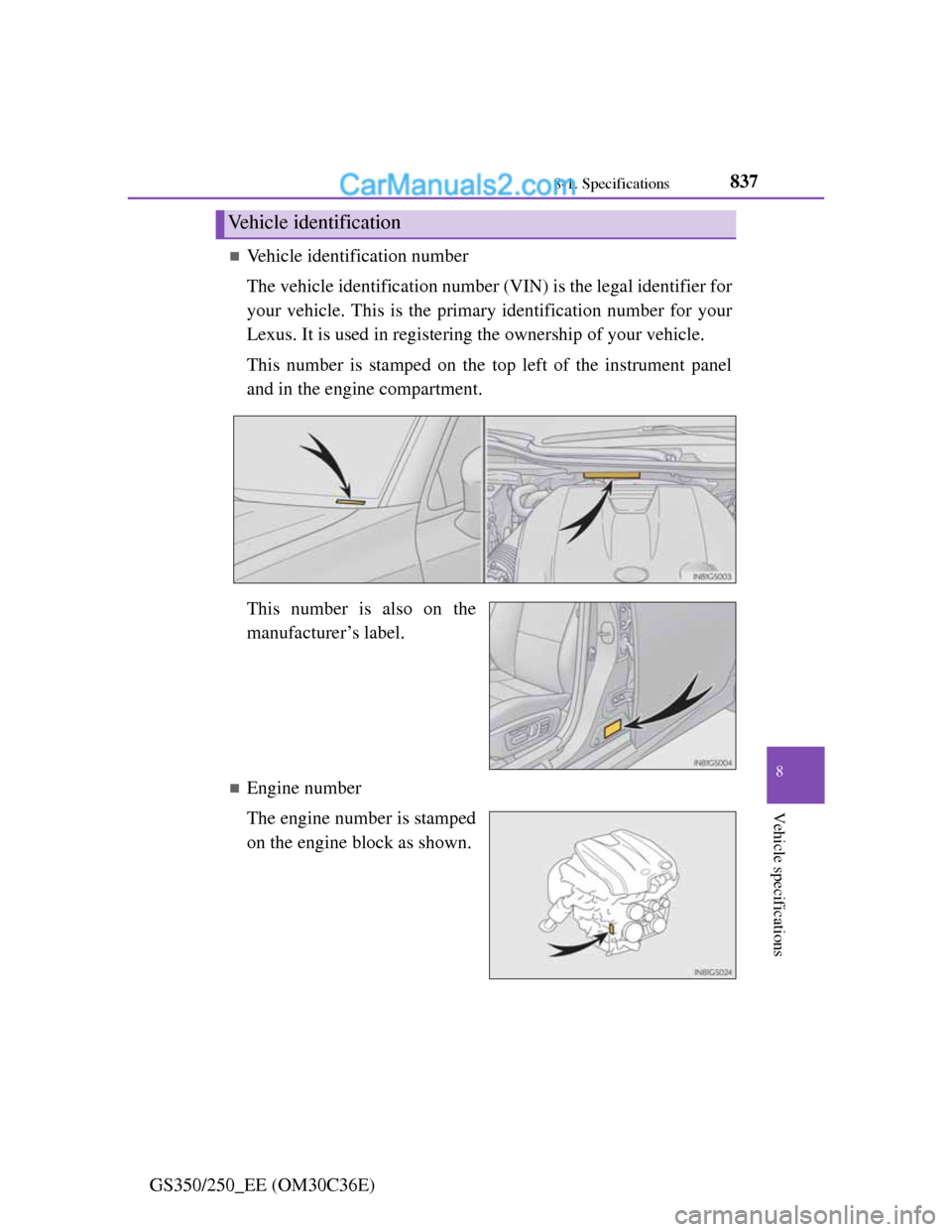

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Lexus. It is used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel
and in the engine compartment.
This number is also on the
manufacturer’s label.
Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

8388-1. Specifications
GS350/250_EE (OM30C36E)

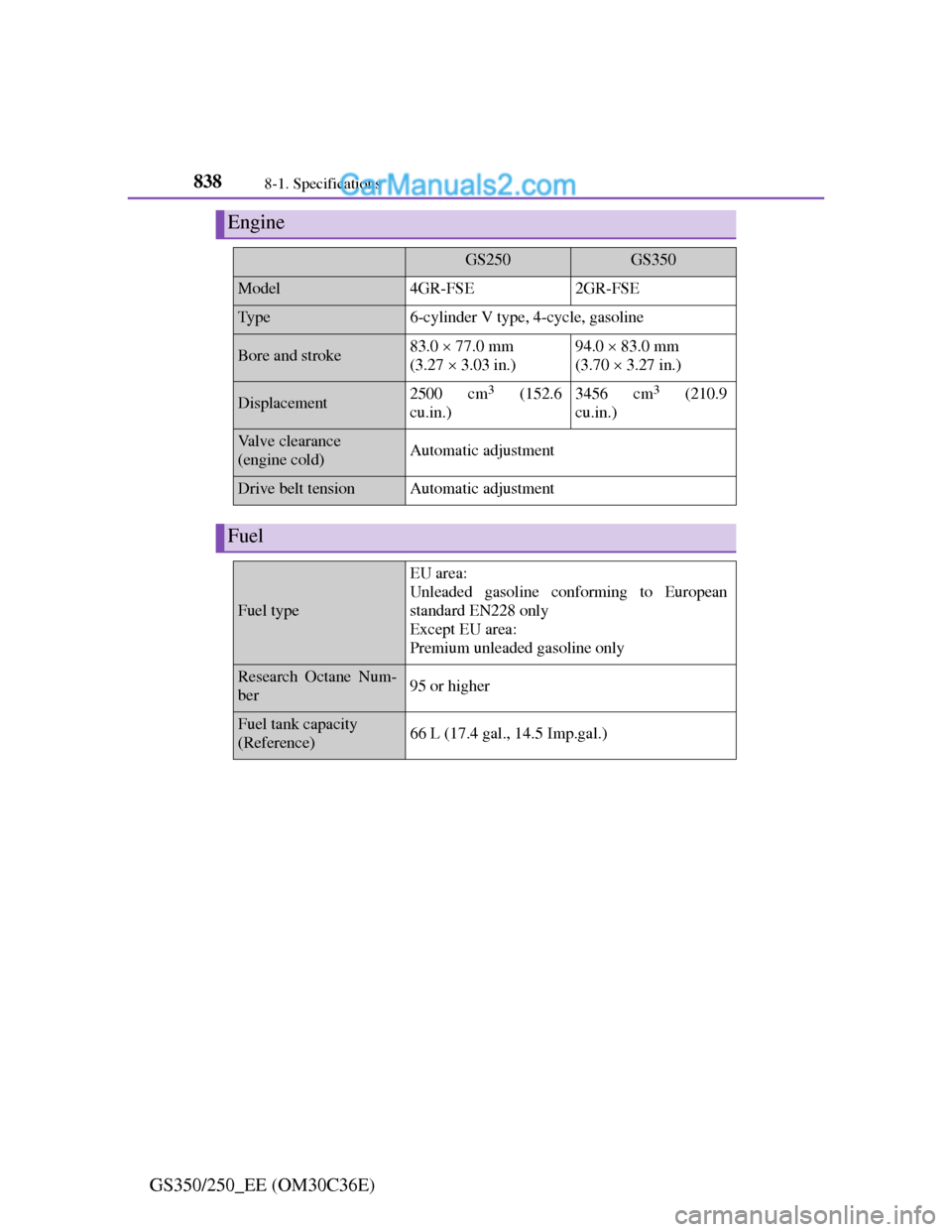

Engine
GS250GS350
Model4GR-FSE2GR-FSE
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke83.0  77.0 mm
(3.27  3.03 in.)94.0  83.0 mm
(3.70  3.27 in.)
Displacement2500 cm3 (152.6
cu.in.)3456 cm3 (210.9
cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Premium unleaded gasoline only
Research Octane Num-
ber95 or higher
Fuel tank capacity
(Reference)66 L (17.4 gal., 14.5 Imp.gal.)

839
8 8-1. Specifications
Vehicle specifications
GS350/250_EE (OM30C36E)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection (GS250)
EU area, Nordic countries, Russia, Ukraine, Croatia, Macedo-
nia, Israel
“Toyota Genuine Motor Oil” is used in your Lexus vehicle.
Lexus recommends the use of approved “Toyota Genuine Motor
Oil”. Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”,
SN “Resource-Conserving” or ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL, SM or SN multigrade engine oil
Lubrication system
GS250GS350
Oil capacity
Drain and refill
(Reference
*)
With filter
Without filter
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)6.4 L (6.8 qt., 5.6 Imp.qt.)
6.0 L (6.3 qt., 5.3 Imp.qt.)
