Lexus GS250 2012 Owner's Manual

8107-2. Steps to take in an emergency

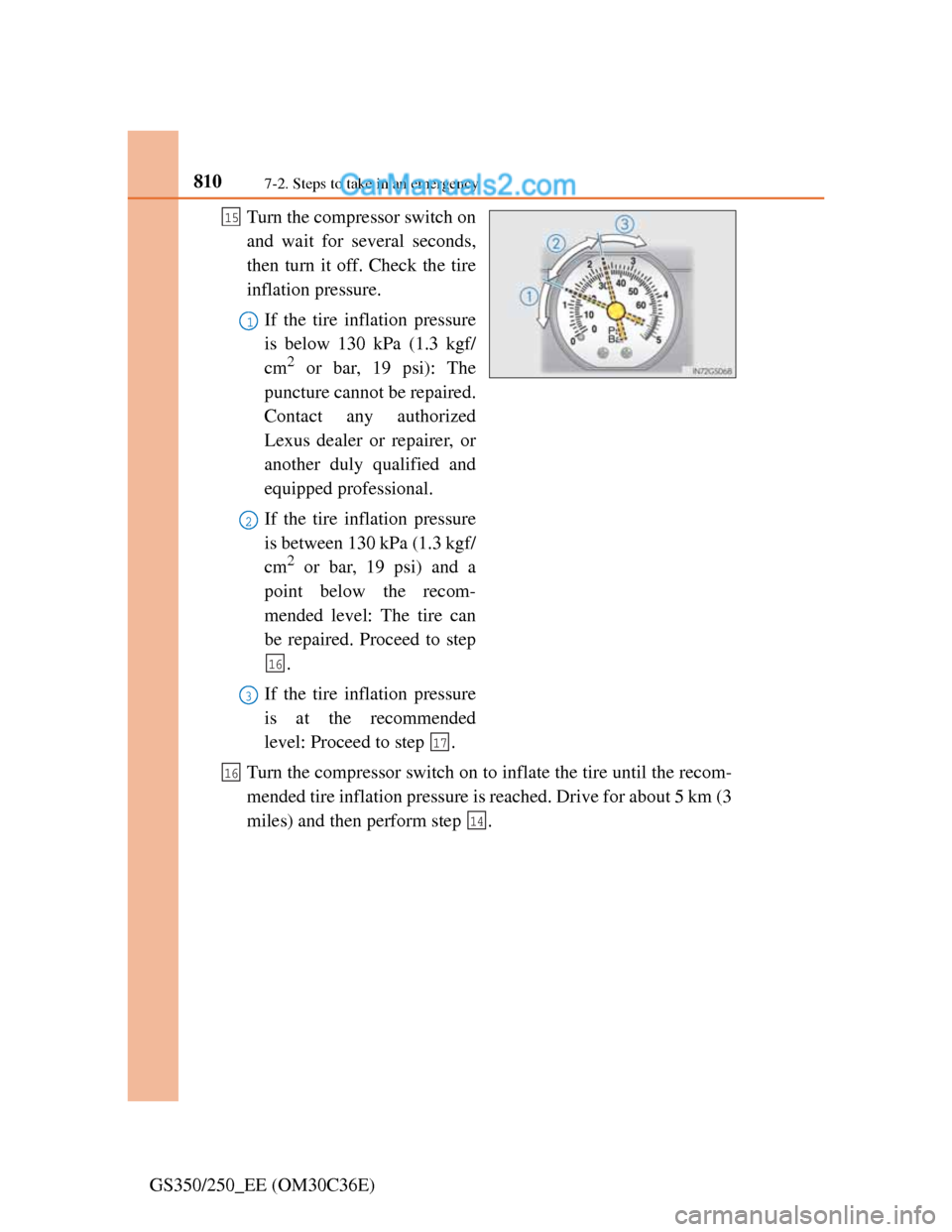

GS350/250_EE (OM30C36E)Turn the compressor switch on
and wait for several seconds,
then turn it off. Check the tire
inflation pressure.
If the tire inflation pressure
is below 130 kPa (1.3 kgf/
cm
2 or bar, 19 psi): The
puncture cannot be repaired.
Contact any authorized
Lexus dealer or repairer, or
another duly qualified and
equipped professional.
If the tire inflation pressure
is between 130 kPa (1.3 kgf/
cm
2 or bar, 19 psi) and a
point below the recom-
mended level: The tire can
be repaired. Proceed to step
.
If the tire inflation pressure
is at the recommended
level: Proceed to step .
Turn the compressor switch on to inflate the tire until the recom-
mended tire inflation pressure is reached. Drive for about 5 km (3
miles) and then perform step .
15
1
2
16
3
17
16
14

8117-2. Steps to take in an emergency
7
When trouble arises

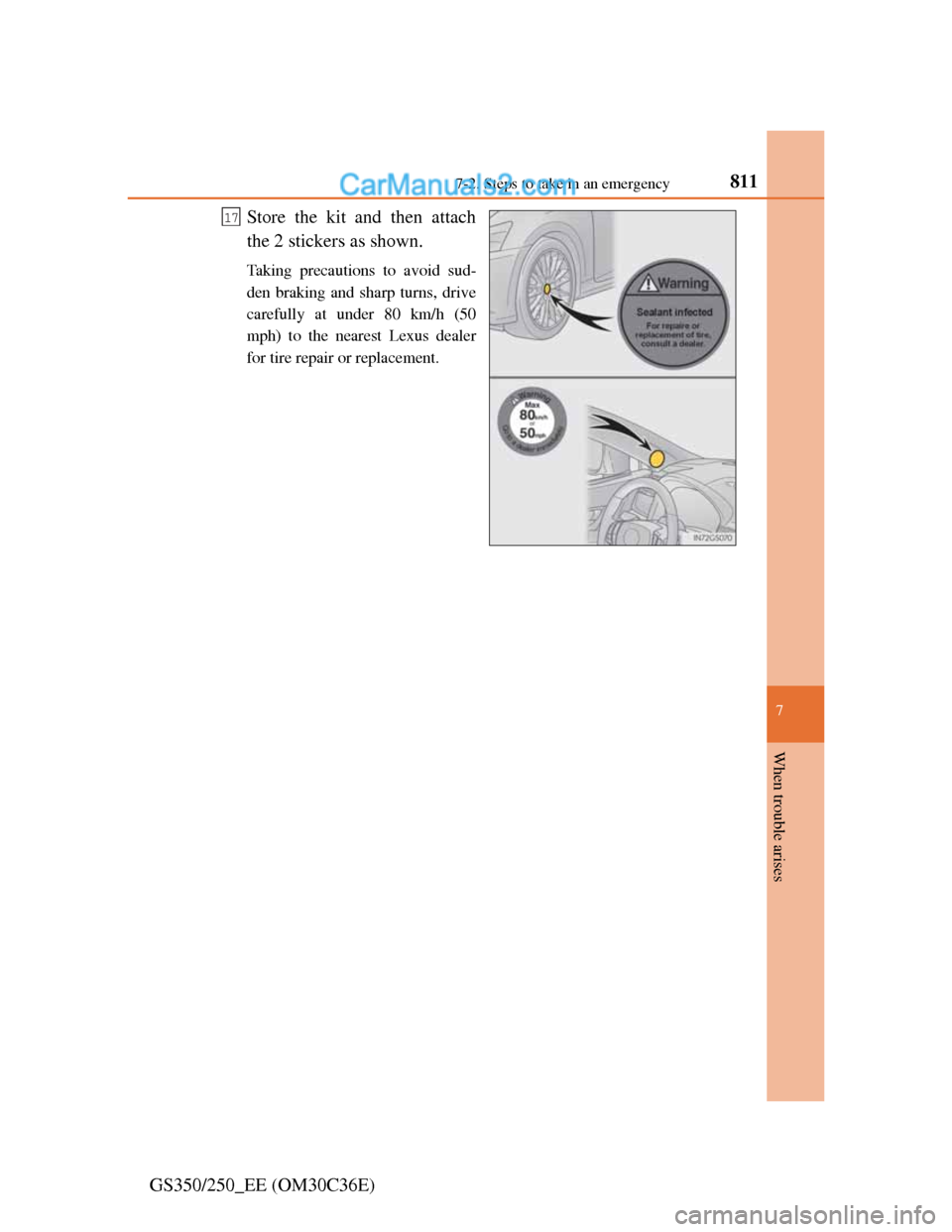

GS350/250_EE (OM30C36E)Store the kit and then attach
the 2 stickers as shown.
Taking precautions to avoid sud-
den braking and sharp turns, drive
carefully at under 80 km/h (50
mph) to the nearest Lexus dealer
for tire repair or replacement.
17

8127-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
In the following cases, the tire cannot be repaired with the emergency tire
puncture repair kit. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When the tire is damaged due to driving without sufficient air pressure
When the tire lost air pressure due to a crack or damage in the tire sidewall
When the tire is visibly separated from the wheel
When the cut or damage to the tread is 4 mm (0.16 in.) long or more
When the wheel is damaged
When two or more tires have been punctured
When there is more than one hole or cut in the damaged tire
Emergency tire puncture repair kit
The sealant has a limited lifespan. The expiry date is marked on the bottle.
The sealant should be replaced before the expiry date. Contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional for replacement.
The sealant stored in the emergency tire puncture repair kit can be used only
once to temporarily repair a single tire. If the sealant in the bottle and other
parts of the kit have been used and need to be purchased, contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
The sealant can be used when the outside temperature is from -30 C (-22
F) to 60 C (140 F).
The kit is exclusively designed for size and type of tires originally installed
on your vehicle. Do not use it for tires that a different size than the original
ones, or for any other purposes.
If the sealant gets on your clothes, it may stain.
If the sealant adheres to a wheel or the surface of the vehicle body, the stain
may not be removable if it is not cleaned at once. Immediately wipe away
the sealant with a wet cloth.
During operation of the kit, a loud operation noise is produced. This does
not indicate a malfunction.

8137-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)

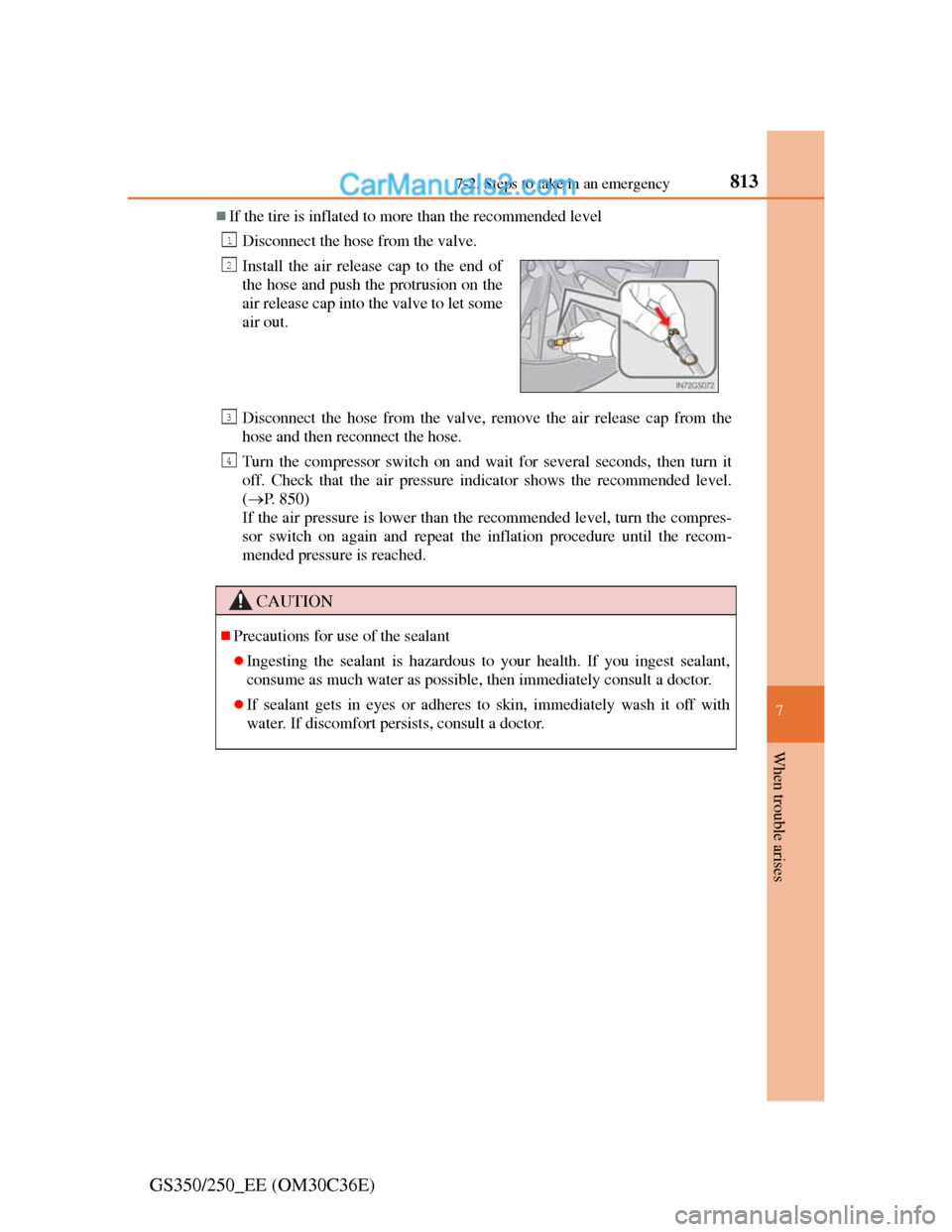

If the tire is inflated to more than the recommended level
Disconnect the hose from the valve.
Disconnect the hose from the valve, remove the air release cap from the
hose and then reconnect the hose.
Turn the compressor switch on and wait for several seconds, then turn it
off. Check that the air pressure indicator shows the recommended level.
(P. 850)
If the air pressure is lower than the recommended level, turn the compres-
sor switch on again and repeat the inflation procedure until the recom-
mended pressure is reached. Install the air release cap to the end of
the hose and push the protrusion on the
air release cap into the valve to let some
air out.
CAUTION
Precautions for use of the sealant
Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, then immediately consult a doctor.
If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
1
2
3
4

8147-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)

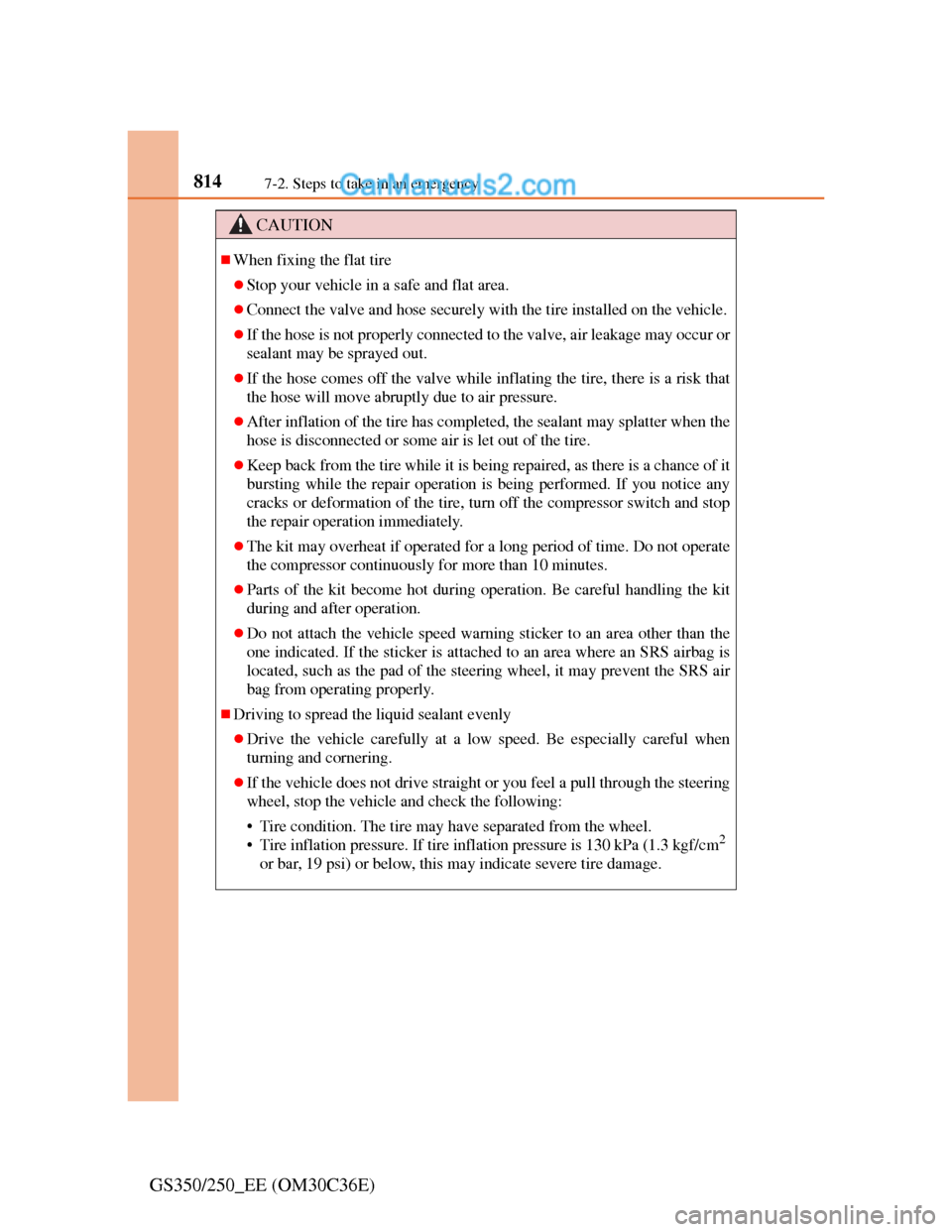

CAUTION
When fixing the flat tire
Stop your vehicle in a safe and flat area.
Connect the valve and hose securely with the tire installed on the vehicle.
If the hose is not properly connected to the valve, air leakage may occur or
sealant may be sprayed out.
If the hose comes off the valve while inflating the tire, there is a risk that
the hose will move abruptly due to air pressure.
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The kit may overheat if operated for a long period of time. Do not operate
the compressor continuously for more than 10 minutes.
Parts of the kit become hot during operation. Be careful handling the kit
during and after operation.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air
bag from operating properly.
Driving to spread the liquid sealant evenly
Drive the vehicle carefully at a low speed. Be especially careful when
turning and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm
2
or bar, 19 psi) or below, this may indicate severe tire damage.

815
7 7-2. Steps to take in an emergency
When trouble arises
GS350/250_EE (OM30C36E)

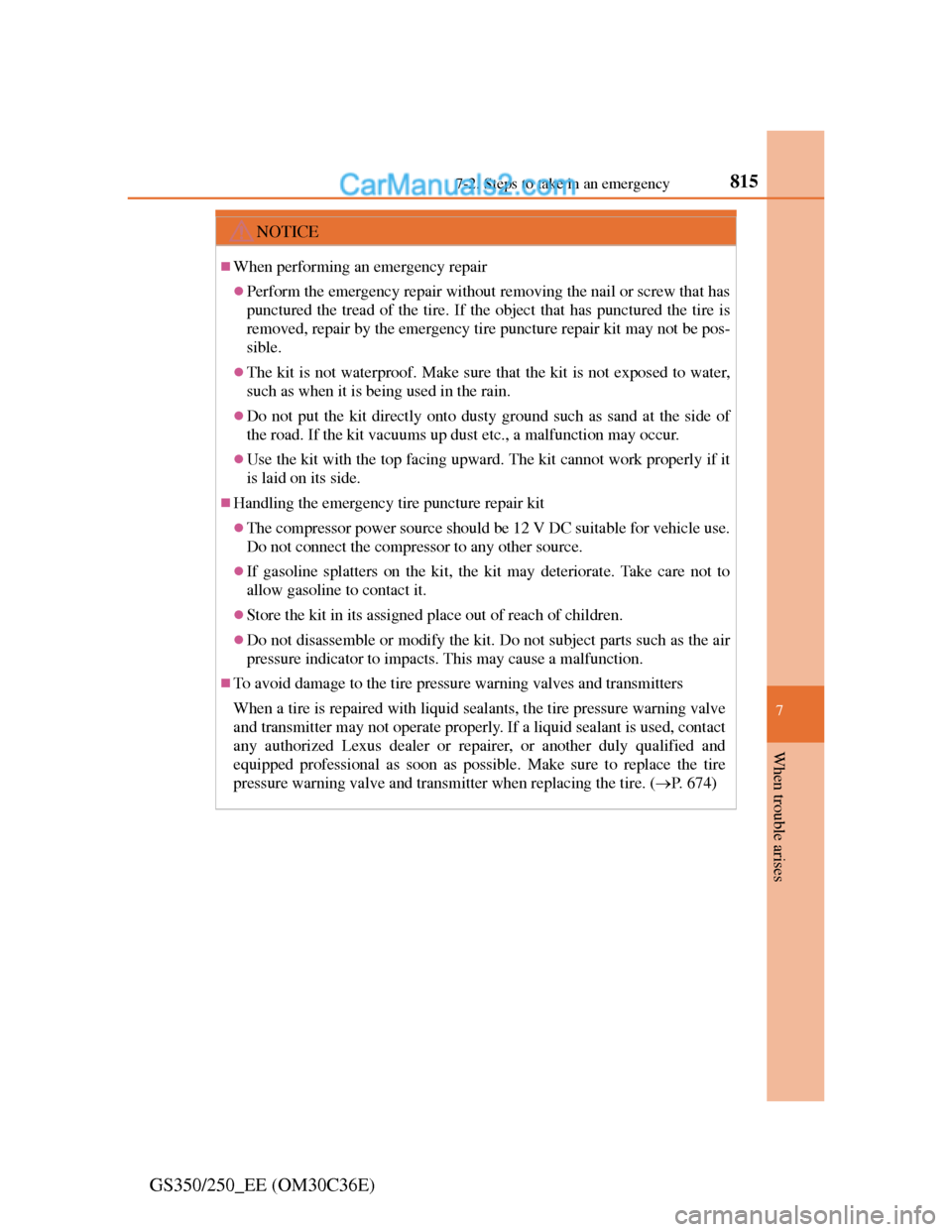

NOTICE
When performing an emergency repair
Perform the emergency repair without removing the nail or screw that has
punctured the tread of the tire. If the object that has punctured the tire is
removed, repair by the emergency tire puncture repair kit may not be pos-
sible.
The kit is not waterproof. Make sure that the kit is not exposed to water,
such as when it is being used in the rain.
Do not put the kit directly onto dusty ground such as sand at the side of
the road. If the kit vacuums up dust etc., a malfunction may occur.
Use the kit with the top facing upward. The kit cannot work properly if it
is laid on its side.
Handling the emergency tire puncture repair kit
The compressor power source should be 12 V DC suitable for vehicle use.
Do not connect the compressor to any other source.
If gasoline splatters on the kit, the kit may deteriorate. Take care not to
allow gasoline to contact it.
Store the kit in its assigned place out of reach of children.
Do not disassemble or modify the kit. Do not subject parts such as the air
pressure indicator to impacts. This may cause a malfunction.
To avoid damage to the tire pressure warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve
and transmitter may not operate properly. If a liquid sealant is used, contact
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional as soon as possible. Make sure to replace the tire
pressure warning valve and transmitter when replacing the tire. (P. 674)

8167-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)
If the engine will not start
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine again following correct starting proce-
dures. (P. 207)
There may be a malfunction in the engine immobilizer system.
(P. 80)
One of the following may be the cause of the problem:
The battery may be discharged. (P. 825)
The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an elec-
trical problem such as electronic key battery depletion or a blown
fuse. However, an interim measure is available to start the engine.
(P. 817)
If the engine will not start even though correct starting procedures
are being followed (P. 207), consider each of the following
points:
The engine will not start even though the starter motor oper-
ates normally.
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at a
low volume.
The starter motor does not turn over

817
7 7-2. Steps to take in an emergency
When trouble arises
GS350/250_EE (OM30C36E)One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 825)
There may be a malfunction in the steering lock system.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional if the problem cannot be repaired, or if repair
procedures are unknown.
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the engine switch is func-
tioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any autho-
rized Lexus dealer or repairer, or another duly qualified and
equipped professional.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

8187-2. Steps to take in an emergency
GS350/250_EE (OM30C36E)

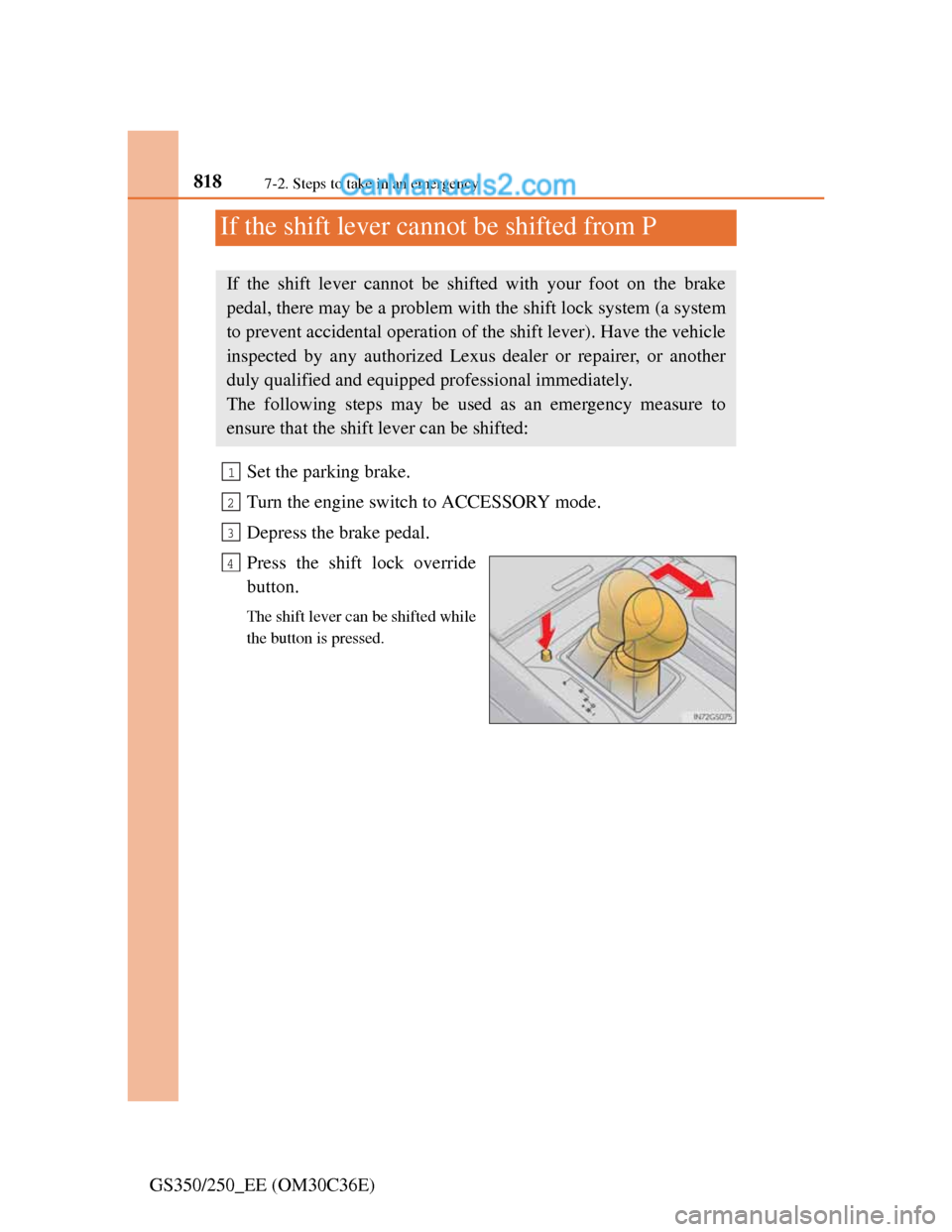

If the shift lever cannot be shifted from P
Set the parking brake.
Turn the engine switch to ACCESSORY mode.
Depress the brake pedal.
Press the shift lock override
button.
The shift lever can be shifted while
the button is pressed.
If the shift lever cannot be shifted with your foot on the brake
pedal, there may be a problem with the shift lock system (a system
to prevent accidental operation of the shift lever). Have the vehicle
inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
1
2
3
4

8197-2. Steps to take in an emergency
7
When trouble arises
GS350/250_EE (OM30C36E)
If the parking brake cannot be released
Shift the shift lever to P.
Turn the engine switch off.
Check that the parking brake indicator is off.
Chock the tires.
In the event that the battery is discharged or switch operation does
not release the parking brake, the parking brake can be released
manually using the procedure below. This procedure should be
performed only if necessary, such as in an emergency.
If the switch cannot be operated even when the battery is normal,
the parking brake system may be malfunctioning. Have the vehicle
inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional immediately.
Before releasing the parking brake manually
