509 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
11DOOR RR30Power window (rear right-hand)
12RAD NO.230Audio system
13AM27. 5Smart entry & start system
14MULTIMEDIA10Navigation system, Remote Touch
15RAD NO.130Audio system
16AIR BAG10SRS airbag system
17OBD7. 5On-board diagnosis system
18ACC7. 5
Body ECU, DCM, head-up display, RR
CTRL, Remote Touch screen, navigation sys-
tem, clock, transmission
FuseAmpereCircuit
GS350_250_OM_OM30E16E_(EE).book Page 509 Tuesday, July 8, 2014 7:11 PM

5106-3. Do-it-yourself maintenance
GS350_250_OM_OM30E16E_(EE)
XRight-hand drive vehicles
FuseAmpereCircuit
1STOP7. 5Stop lights, high mounted stoplight
2P/ S E AT 1 F/ R30Po w e r s e a t s
3FR P/OUTLET15Po w e r o u t l e t ( f r o n t )
4P/ W- B5Power window master switch
5RR P/OUTLET15Power outlet (rear)
6P/ S E AT 2 F/ R25Po w e r s e a t s
7AV S20AV S
8WIPER30Windshield wipers
9WA S H20Windshield washer
10RH ECU-IG10Navigation system, VDIM, D-SW MODULE
(Blind Spot Monitor, heated steering wheel)
11RH-IG10
Tension reducer, AWD system, power seats,
head-up display, front right-hand door ECU,
“nanoe™”, shift lock system, electric tilt and
telescopic steering column, seat heater/ven-
tilator switches, smart entry & start system
antennas, tire pressure warning system
receiver, driver monitor system
12DOOR FR30
Front right-hand door control system (out-
side rear view mirror defoggers, power win-
dow)
GS350_250_OM_OM30E16E_(EE).book Page 510 Tuesday, July 8, 2014 7:11 PM

511 6-3. Do-it-yourself maintenance
6
Maintenance and care
GS350_250_OM_OM30E16E_(EE)
13DOOR RR30Power window (rear right-hand)
14RAD NO.230Audio system
15STRG LOCK15Steering lock system
16MULTIMEDIA10Navigation system, Remote Touch
17RAD NO.130Audio system
18AIR BAG10SRS airbag system
19OBD7. 5On-board diagnosis system
20TI & TE20Electric tilt and telescopic steering column
21ACC7. 5
Body ECU, DCM, head-up display, RR
CTRL, Remote Touch screen, navigation sys-
tem, clock, transmission
FuseAmpereCircuit
GS350_250_OM_OM30E16E_(EE).book Page 511 Tuesday, July 8, 2014 7:11 PM

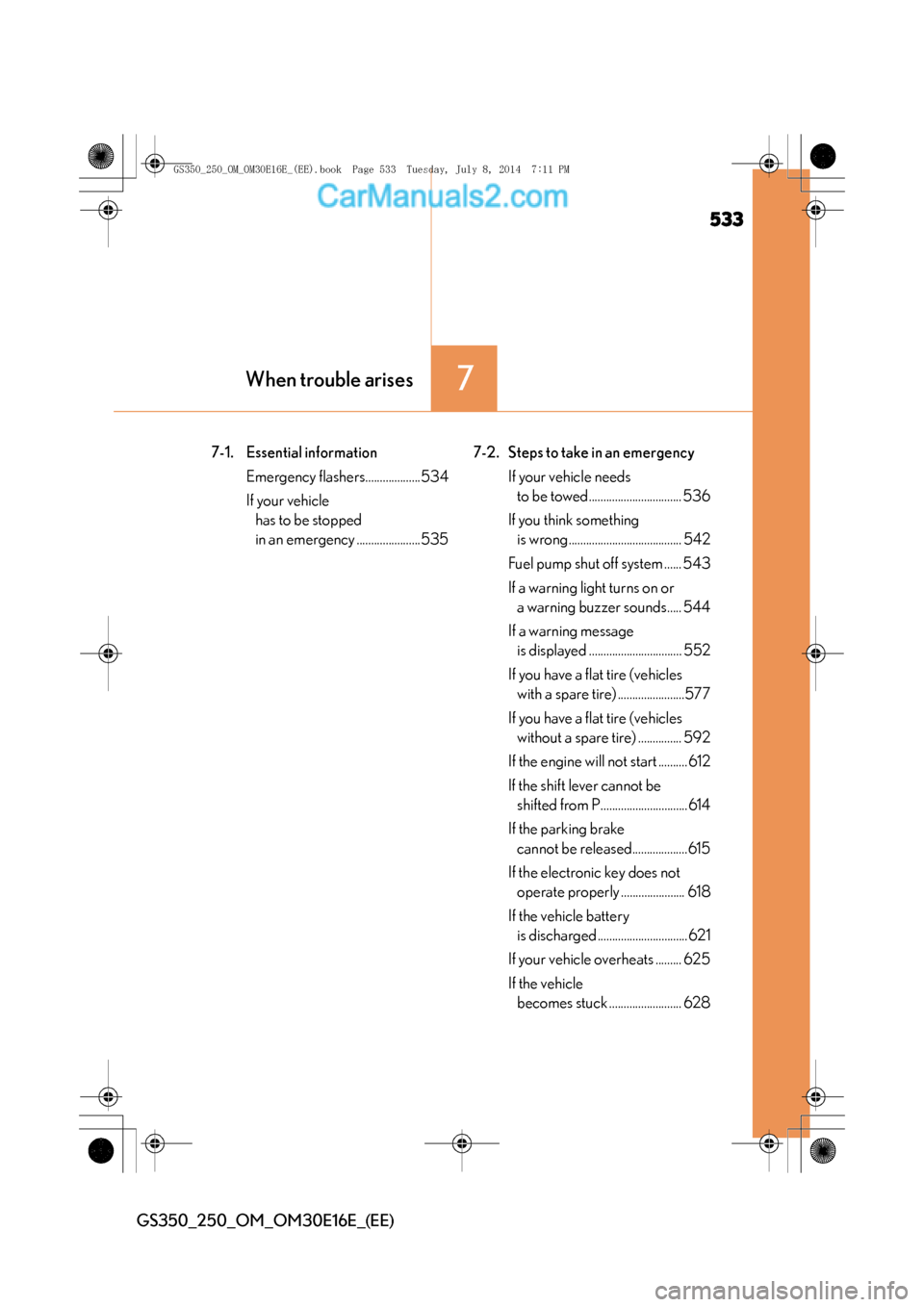

533
7When trouble arises
GS350_250_OM_OM30E16E_(EE)
7-1. Essential informationEmergency flashers...................534
If your vehicle has to be stopped
in an emergency ......................535 7-2. Steps to take in an emergency
If your vehicle needs to be towed................................ 536
If you think something is wrong....................................... 542
Fuel pump shut off system ...... 543
If a warning light turns on or a warning buzzer sounds..... 544
If a warning message is displayed ................................ 552
If you have a flat tire (vehicles with a spare tire) .......................577
If you have a flat tire (vehicles without a spare tire) ............... 592
If the engine will not start .......... 612
If the shift lever cannot be shifted from P..............................614
If the parking brake cannot be released...................615
If the electronic key does not operate properly ...................... 618
If the vehicle battery is discharged ...............................621
If your vehicle overheats ......... 625
If the vehicle becomes stuck ......................... 628
GS350_250_OM_OM30E16E_(EE).book Page 533 Tuesday, July 8, 201 4 7:11 PM

5527-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
If a warning message is displayed
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning light comes on again after the following actions have
been performed, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
1
2
Stop the vehicle immediately. Continuing to drive the vehicle may
be dangerous.
Wa r n i n g m e s s a g eDetails
Indicates the following: • The brake fluid level is low; or,
• The brake booster system is malfunctioning.A buzzer also sounds.
GS350_250_OM_OM30E16E_(EE).book Page 552 Tuesday, July 8, 201 4 7:11 PM

5537-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warning indicates the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Stop the vehicle immediately.
Wa r n i n g m e s s a g eDetails
Indicates abnormal engine oil pressureThe warning light may come on if the engine oil
pressure is too low.
GS350_250_OM_OM30E16E_(EE).book Page 553 Tuesday, July 8, 201 4 7:11 PM

5547-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnorm ally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Have the vehicle inspected immediately.
Wa r n i n g m e s s a g eDetails
(AWD models)
Indicates a malfunction in the AWD system
Indicates that the automatic transmission fluid tem-
perature is too high
(If equipped)
Indicates a malfunction in the pre-crash safety system(Flashes)
GS350_250_OM_OM30E16E_(EE).book Page 554 Tuesday, July 8, 201 4 7:11 PM

5597-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the specified steps to correct the suspected
problem, check that the warning message goes off.
Follow the correction procedures.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closedThe system also indi-
cates which doors are
not fully closed.
If the vehicle reaches a
speed of 5 km/h
(3 mph), flashes
and a buzzer sounds to
indicate that the
door(s) are not yet fully
closed.
Make sure that all the
doors are closed.
Indicates that the hood is
not fully closedIf the vehicle reaches a
speed of 5 km/h
(3 mph), flashes
and a buzzer sounds to
indicate that the hood
is not yet fully closed.
Close the hood.
GS350_250_OM_OM30E16E_(EE).book Page 559 Tuesday, July 8, 201 4 7:11 PM

5637-2. Steps to take in an emergency
7
When trouble arises
GS350_250_OM_OM30E16E_(EE)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)At the same time,
will appear on the
head-up display (the
image flashes).
Slow the vehicle by
applying the brakes.
(If equipped)
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
crash braking function is
operatingAt the same time,
will appear
on the head-up display.
Slow the vehicle by
applying the brakes.
(If equipped)
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes
rapidly)
GS350_250_OM_OM30E16E_(EE).book Page 563 Tuesday, July 8, 201 4 7:11 PM

5647-2. Steps to take in an emergency
GS350_250_OM_OM30E16E_(EE)
(If equipped)
Alerts the driver that the
vehicle is out of the lanes
(while the LKA [Lane-
Keeping Assist] system is
operating)The warning buzzer
sounds continuously.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear
on the head-up display
(part of the image
flashes).
Check around the vehi-
cle and back to inside of
the lane markings.
(If equipped)
Indicates that the LKA
(Lane-Keeping Assist)
system detects no-
handed driving (while the
lane keeping assist func-
tion is operating) The warning buzzer
sounds twice.
Grip the steering wheel
firmly.
(If equipped)
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Wa r n i n g m e s s a g eDetailsCorrection procedure
GS350_250_OM_OM30E16E_(EE).book Page 564 Tuesday, July 8, 201 4 7:11 PM
