Lexus GS250 2014 Owner's Manual

171
3
3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS350_250_OM_OM30E16E_(EE)

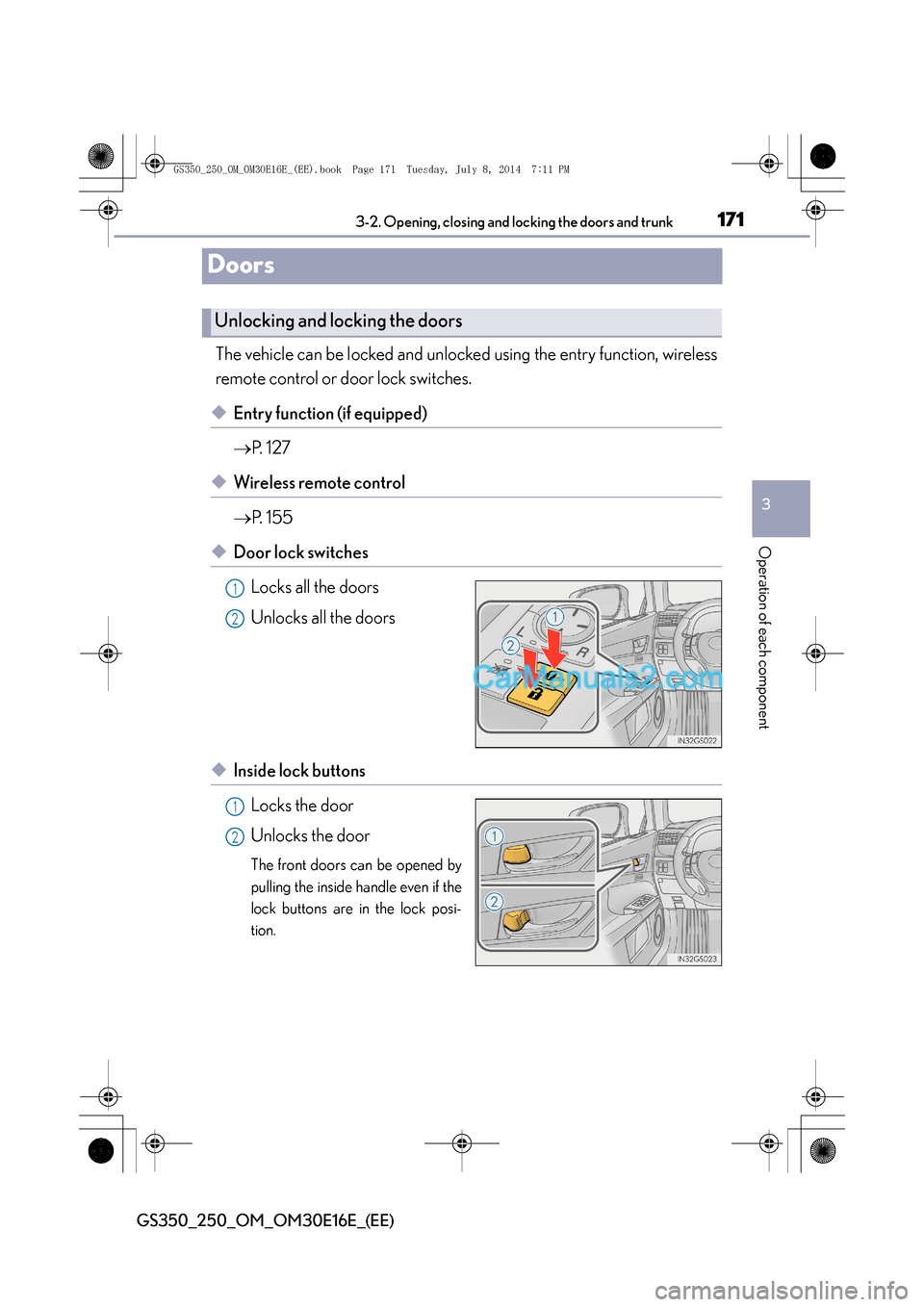

Doors
The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switches.
◆Entry function (if equipped)
→
P. 1 2 7
◆Wireless remote control
→P. 1 5 5
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock posi-
tion.
Unlocking and locking the doors
1
2
1
2
GS350_250_OM_OM30E16E_(EE).book Page 171 Tuesday, July 8, 201 4 7:11 PM

1723-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
The door cannot be opened from
inside the vehicle when the lock is
set. Unlock
Lock
These locks can be set to prevent chil-
dren from opening the rear doors.
Push down on each rear door switch
to lock both rear doors.
Locking the front doors from the outside without a key
Rear door child-protector lock
1
2
1
2
GS350_250_OM_OM30E16E_(EE).book Page 172 Tuesday, July 8, 201 4 7:11 PM

1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
The following functions can be set or canceled:
For instructions on customizing, refer to P. 650.
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (→P. 6 1 8 )
■If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 650)
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door unlock-
ing functionAll doors are automatically unlocked when
shifting the shift lever to P.
Driver’s door linked door unlock-
ing functionAll the doors are unlocked when the driver’s
door is opened within approximately 45 sec-
onds after turning the engine switch off.
GS350_250_OM_OM30E16E_(EE).book Page 173 Tuesday, July 8, 201 4 7:11 PM

1743-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)

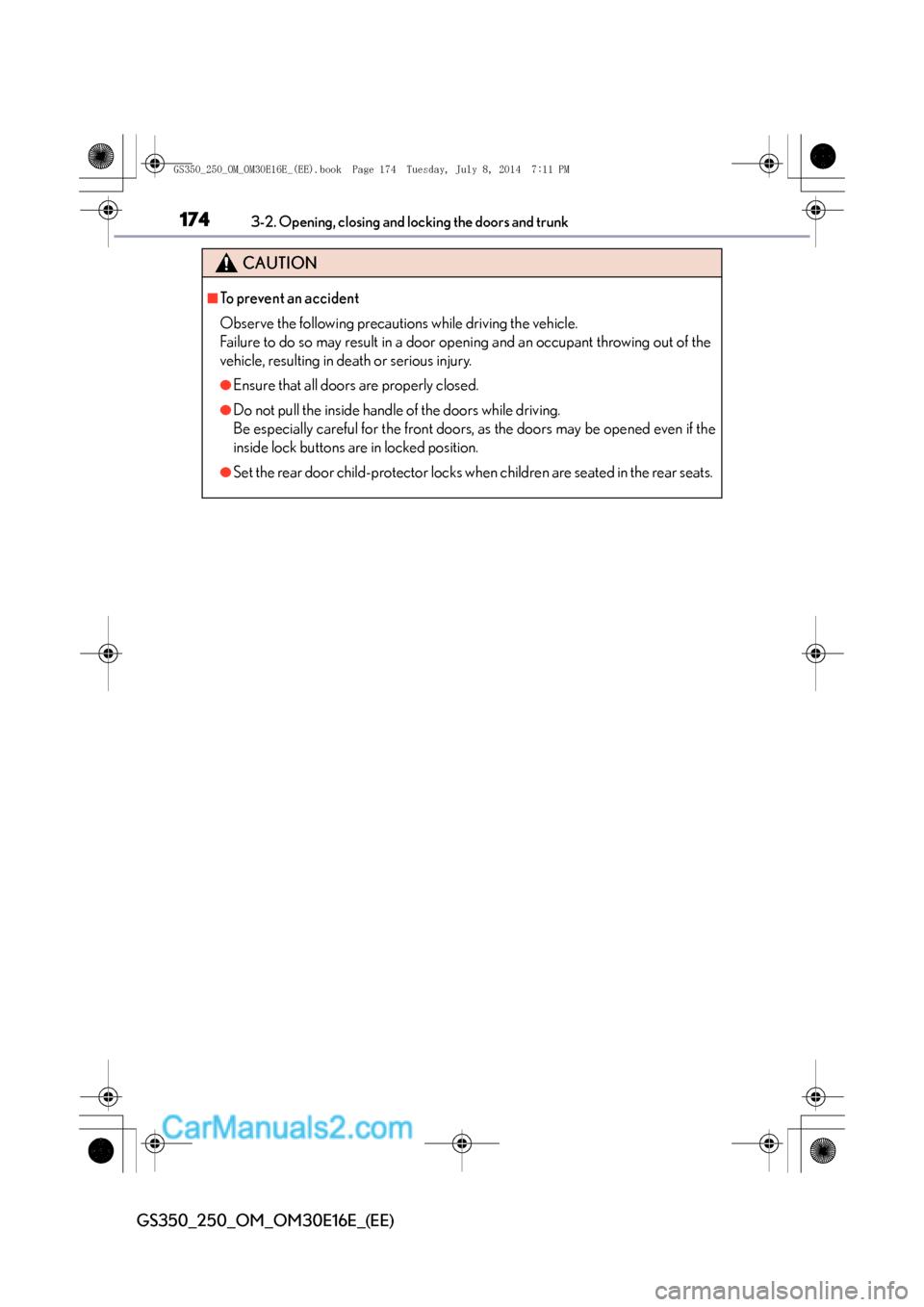

CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
GS350_250_OM_OM30E16E_(EE).book Page 174 Tuesday, July 8, 2014 7:11 PM

175
3
3-2. Opening, closing and locking the doors and trunk
Operation of each component
GS350_250_OM_OM30E16E_(EE)
Trunk
Press the opener switch.
If the vehicle is equipped with a power
trunk lid, the trunk lid automatically
opens fully.
■Trunk release button
While carrying the electronic key,
press the button on the trunk lid.
When all the doors are unlocked
with the power door lock system,
the trunk can be opened without
carrying the electronic key.
■Wireless remote control
→
P. 1 5 5
The trunk can be opened using the trunk opener, trunk release button
or wireless remote control.
If the vehicle is equipped with a powe r trunk lid, the trunk can be closed
using the trunk closer.
Opening the trunk from inside the vehicle
Opening the trunk from outside the vehicle
GS350_250_OM_OM30E16E_(EE).book Page 175 Tuesday, July 8, 201 4 7:11 PM

1763-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
Pressing the switch closes the trunk
lid automatically. (A buzzer sounds.)
Pressing the switch while the trunk lid
is closing opens the trunk lid again.
The trunk opener switch can be temporarily disabled to protect luggage
stored in the trunk against theft.
Turn the main switch in the glove
box off to disable the trunk opener.On
Off
The trunk lid cannot be opened even
with the wireless remote control or the
trunk release button.
Trunk closer switch (vehicles with power trunk lid)
Luggage security system
1
2
GS350_250_OM_OM30E16E_(EE).book Page 176 Tuesday, July 8, 201 4 7:11 PM

1773-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Trunk light
The trunk light turns on when the trunk is opened.
■When closing the trunk
■Trunk easy closer (vehicles with power trunk lid)
In the event that the trunk lid is left slightly open, the trunk easy closer will automati-
cally close it to the fully closed position.
■Function to prevent the trunk being locked with the electronic key inside
●When all doors are being locked, closing the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened pressing the trunk release button on the
trunk lid.
●Even when the spare electronic key is put in the trunk with all the doors locked, the
key confinement prevention function can be activated so the trunk can be opened.
In order to prevent theft, take all electronic keys with you when leaving the vehicle.
●Even when the electronic key is put in the trunk with all the doors are locked, the
key may not be detected depending on the places and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be acti-
vated, causing the doors to lock when the trunk is closed. Make sure to check
where the key is before closing the trunk.
●The key confinement prevention function cannot be activated if any one of the
doors is unlocked. In this case, open the trunk using the trunk opener.
Using the trunk grip, lower the trunk without
applying force to the side and push the trunk
down from the outside to close it.
GS350_250_OM_OM30E16E_(EE).book Page 177 Tuesday, July 8, 201
4 7:11 PM

1783-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
■Overload protection function (vehicles with power trunk lid)
The trunk lid will not operate when excessive load is present on the top of the trunk
lid.
■Fall-down protection function (vehicles with power trunk lid)
While the trunk lid is opening automatically, applying excessive force to it will stop
the opening operation to prevent the trunk lid from rapidly falling down.
■Jam protection function (vehicles with power trunk lid)
While the trunk lid is closing automatically, the trunk lid will stop closing and open if
something gets caught.
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 6 1 9 )
■When leaving a key to the vehicle with a parking attendant
→P. 1 2 4
■Customization
The trunk unlocking operation can be changed. (Customizable features: →P. 6 5 3 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the trunk lid is fully closed. If the trunk lid is not fully closed, it may
open unexpectedly while driving and hit near-by objects or luggage in the trunk
may be thrown out, causing an accident.
●Do not allow children to play in the trunk.
If a child is accidentally locked in the trunk, they could suffer from heat exhaus-
tion, suffocation or other injuries.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to open unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.
■Important points while driving
Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.
GS350_250_OM_OM30E16E_(EE).book Page 178 Tuesday, July 8, 201 4 7:11 PM

1793-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)

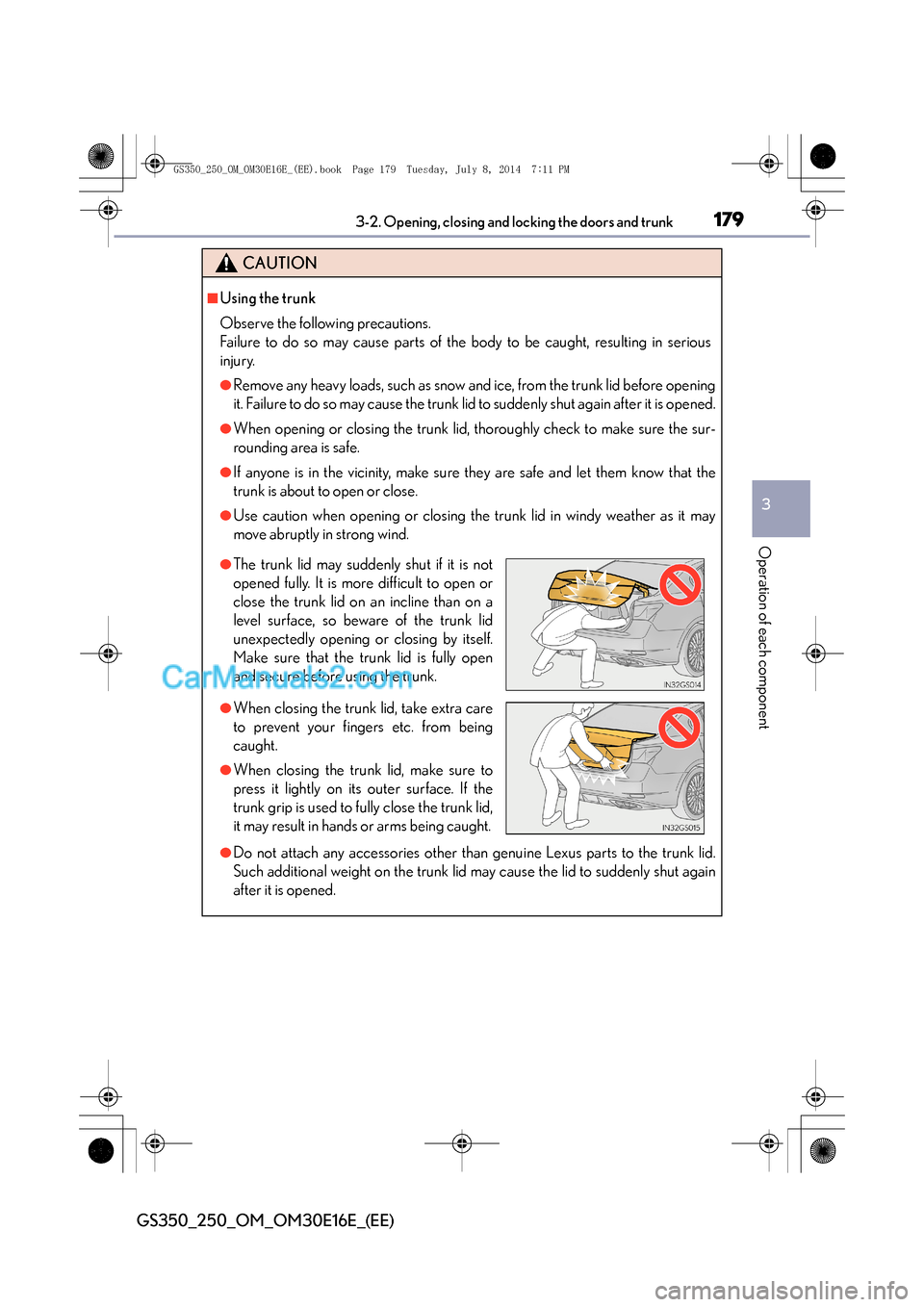

CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious
injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to suddenly shut again
after it is opened.
●The trunk lid may suddenly shut if it is not
opened fully. It is more difficult to open or
close the trunk lid on an incline than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by itself.
Make sure that the trunk lid is fully open
and secure before using the trunk.
●When closing the trunk lid, take extra care
to prevent your fingers etc. from being
caught.
●When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk grip is used to fully close the trunk lid,
it may result in hands or arms being caught.
GS350_250_OM_OM30E16E_(EE).book Page 179 Tuesday, July 8, 2014 7:11 PM

1803-2. Opening, closing and locking the doors and trunk
GS350_250_OM_OM30E16E_(EE)
CAUTION
■Trunk easy closer (vehicles with power trunk lid)
■Power trunk lid (if equipped)
Observe the following precautions when operating the power trunk lid.
Failure to do so may cause serious injury.
●Check the safety of the surrounding area to make sure there are no obstacles or
anything that could cause any of your belongings to get caught.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●If the trunk closer switch is pressed while the trunk lid is opening during automatic
operation, the trunk lid stops opening. Take extra care when on an incline, as the
trunk lid may open or close suddenly.
●On an incline, the trunk lid may suddenly shut after it opens automatically. Make
sure the trunk lid is fully open and secure before using the trunk.
●In the following situations, the power trunk lid may detect an abnormality and
automatic operation may be stopped. In this case, the trunk lid has to be operated
manually. Take extra care in this situation, as the stopped trunk lid may suddenly
shut, causing an accident.
• When the trunk lid contacts an obstacle
• When the battery voltage suddenly drops, such as when the engine switch isturned to IGNITION ON mode or the engine is started during automatic
operation
●Do not attach any accessories other than genuine Lexus parts to the trunk lid. The
power trunk lid may not operate, causing itself to malfunction, or the trunk lid may
suddenly shut again after it is opened.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.
GS350_250_OM_OM30E16E_(EE).book Page 180 Tuesday, July 8, 201 4 7:11 PM
