2113-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the engine switch is turned off and the driver’s door is
opened with the moon roof open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 650)
CAUTION
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a child
operate the moon roof. It is possible for children and other passengers to have
body parts caught in the moon roof.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●When using the wireless remote control or mechanical key and operating the
moon roof, operate the moon roof after checking to make sure that there is no
possibility of any passenger having any of their body parts caught in the moon
roof. Also, do not let a child operate moon roof by the wireless remote control or
mechanical key. It is possible for children and other passengers to get caught in
the moon roof.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the
vehicle along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.
GS350_250_OM_OM30E16E_(EE).book Page 211 Tuesday, July 8, 201 4 7:11 PM

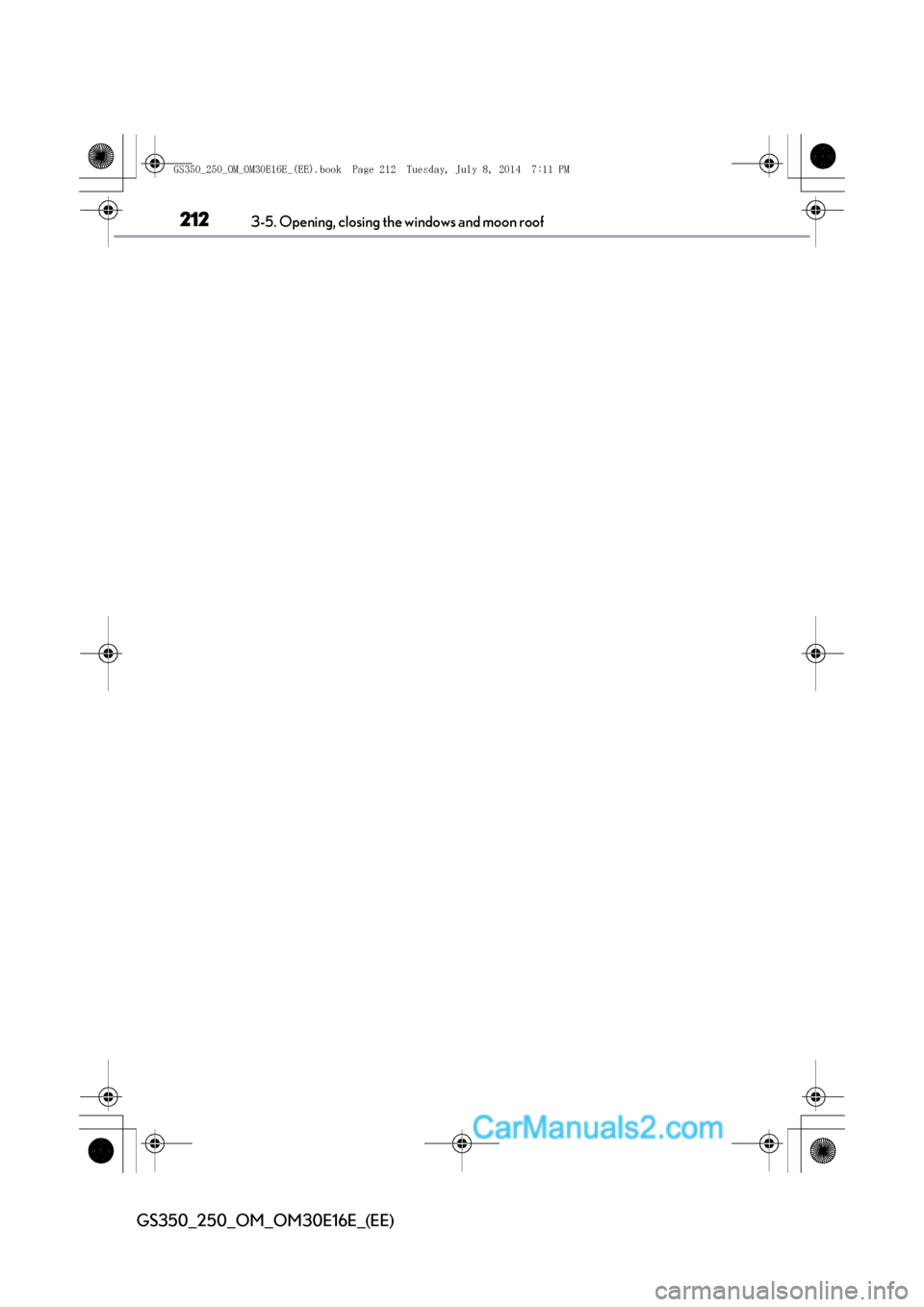

2123-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
GS350_250_OM_OM30E16E_(EE).book Page 212 Tuesday, July 8, 2014 7:11 PM

213
4Driving
GS350_250_OM_OM30E16E_(EE)
4-1. Before drivingDriving the vehicle ...................... 214
Cargo and luggage ................... 225
Trailer towing (vehicles without towing package) ..... 226
Trailer towing (vehicles with towing package)...................... 227
4-2. Driving procedures Engine (ignition) switch ........... 237
Automatic transmission ........... 244
Turn signal lever ..........................253
Parking brake...............................255
Horn................................................ 258
4-3. Operating the lights and wipers
Headlight switch ......................... 259
Automatic High Beam ............. 264
Fog light switch............................ 270
Windshield w ipers and washer................................. 272
Headlight cleaner switch ........ 279 4-4. Refueling
Opening the fuel tank cap .....280
4-5. Using the driving support systems
Cruise control ............................. 285
Dynamic radar cruise control ......................................... 289
LKA (Lane-Keeping Assist) ..........305
Driving mode select switch .... 315
Driving assist systems...............320
Hill-start assist control ............. 328
PCS (Pre-Crash Safety system) ........................................330
BSM (Blind Spot Monitor) ...... 341 •The Blind Spot Monitor function ....................................348
• The Rear Crossing Traffic Alert function...........................351
4-6. Driving tips Winter driving tips ..................... 354
GS350_250_OM_OM30E16E_(EE).book Page 213 Tuesday, July 8, 201 4 7:11 PM

2144-1. Before driving
GS350_250_OM_OM30E16E_(EE)

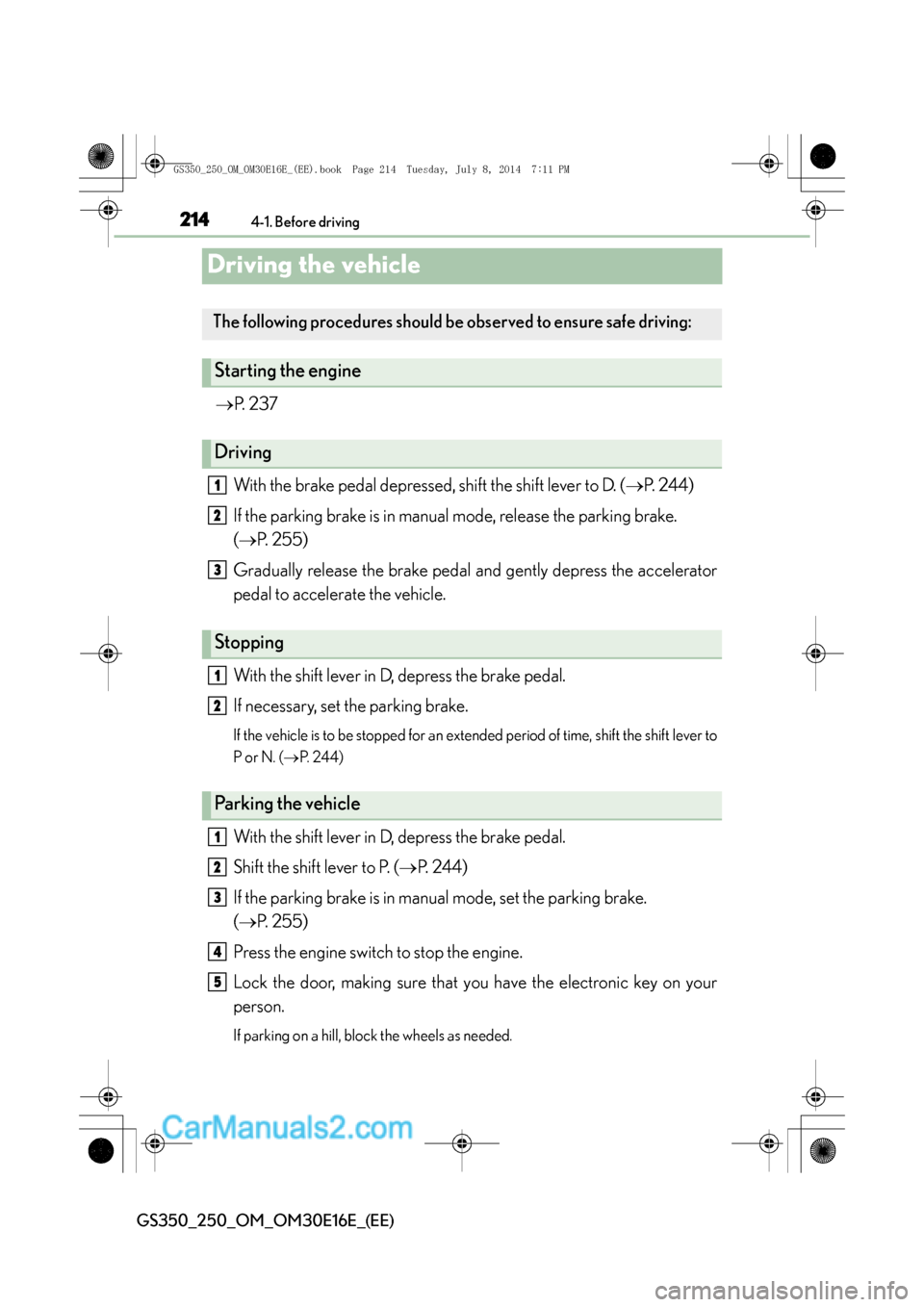

Driving the vehicle
→P. 2 3 7
With the brake pedal depressed, shift the shift lever to D. ( →P. 2 4 4 )
If the parking brake is in manual mode, release the parking brake.
( → P. 255)
Gradually release the brake pedal and gently depress the accelerator
pedal to accelerate the vehicle.
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift the shift lever to
P or N. ( →P. 2 4 4 )
With the shift lever in D, depress the brake pedal.
Shift the shift lever to P. ( →P. 244)
If the parking brake is in manual mode, set the parking brake.
( → P. 255)
Press the engine switch to stop the engine.
Lock the door, making sure that you have the electronic key on your
person.
If parking on a hill, block the wheels as needed.
The following procedures should be observed to ensure safe driving:
Starting the engine
Driving
Stopping
Pa r k i n g t h e ve h i c l e
1
2
3
1
2
1
2
3
4
5
GS350_250_OM_OM30E16E_(EE).book Page 214 Tuesday, July 8, 201 4 7:11 PM

2154-1. Before driving
4
Driving
GS350_250_OM_OM30E16E_(EE)

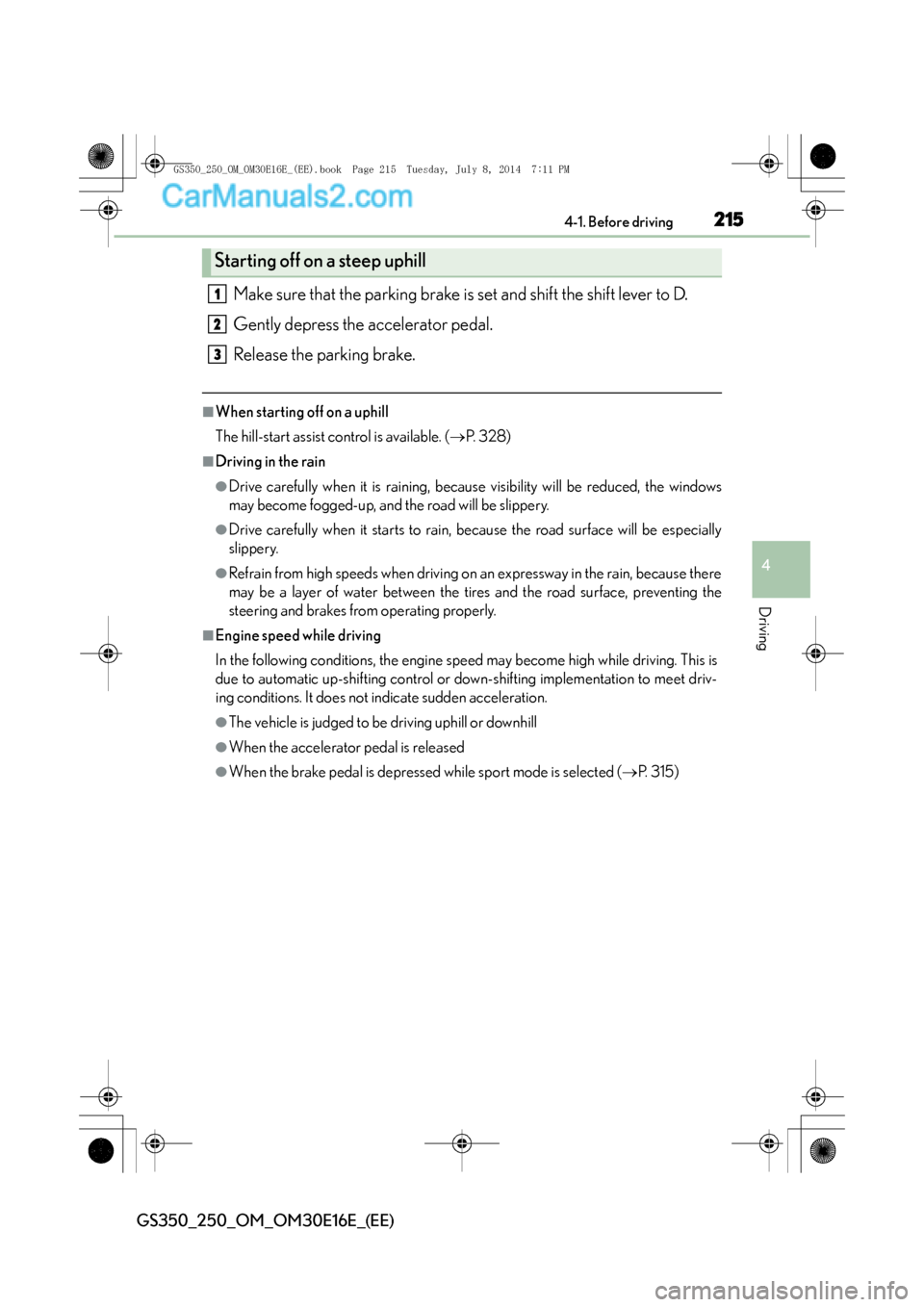

Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
■When starting off on a uphill
The hill-start assist control is available. (→P. 3 2 8 )
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because there
may be a layer of water between the tires and the road surface, preventing the
steering and brakes from operating properly.
■Engine speed while driving
In the following conditions, the engine speed may become high while driving. This is
due to automatic up-shifting control or down-shifting implementation to meet driv-
ing conditions. It does not indicate sudden acceleration.
●The vehicle is judged to be driving uphill or downhill
●When the accelerator pedal is released
●When the brake pedal is depressed while sport mode is selected ( →P. 3 1 5 )
Starting off on a steep uphill
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 215 Tuesday, July 8, 201 4 7:11 PM

2164-1. Before driving
GS350_250_OM_OM30E16E_(EE)

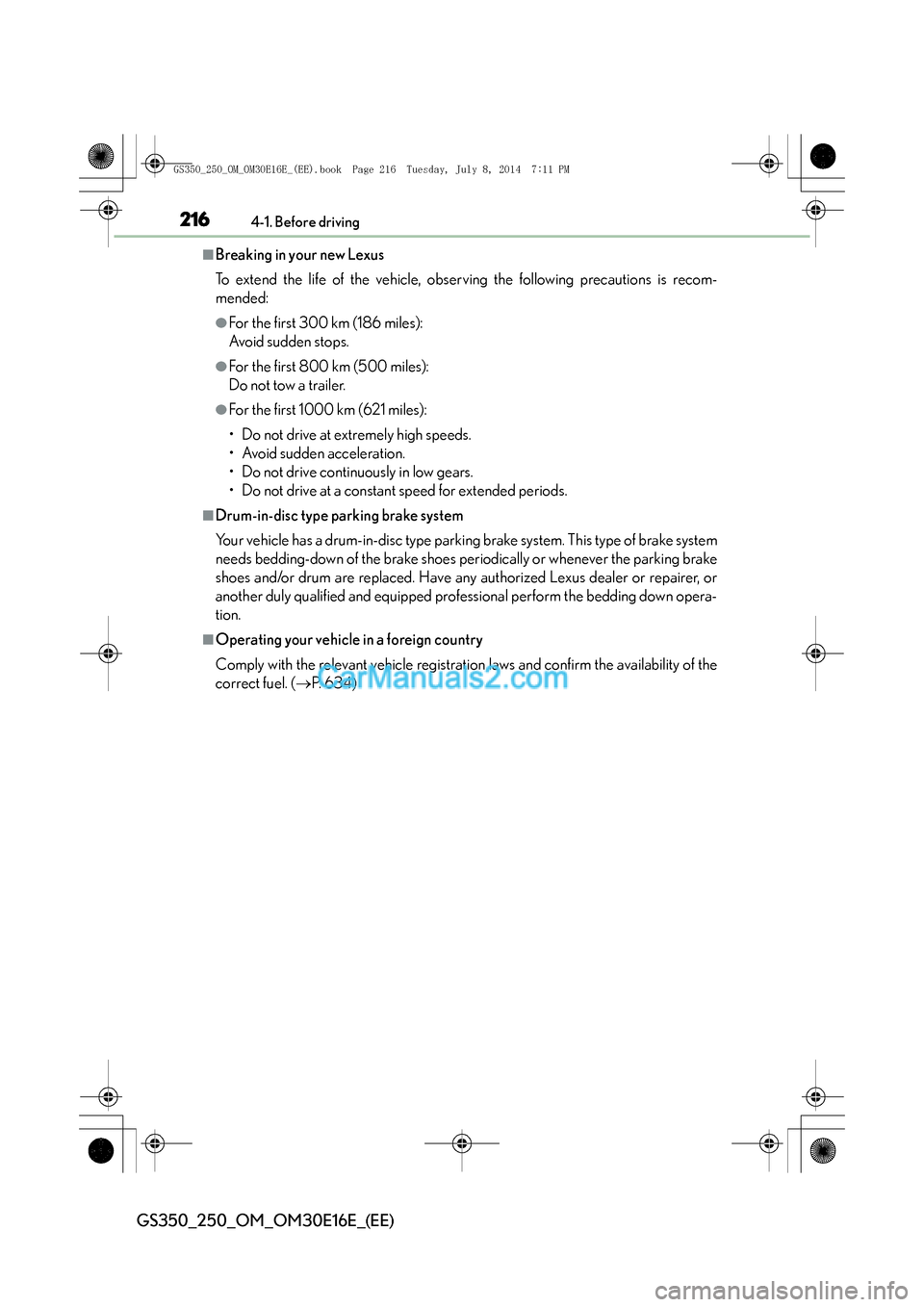

■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 300 km (186 miles):
Avoid sudden stops.
●For the first 800 km (500 miles):
Do not tow a trailer.
●For the first 1000 km (621 miles):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in low gears.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake system
needs bedding-down of the brake shoes periodically or whenever the parking brake
shoes and/or drum are replaced. Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional perform the bedding down opera-
tion.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 6 3 4 )
GS350_250_OM_OM30E16E_(EE).book Page 216 Tuesday, July 8, 201 4 7:11 PM

2174-1. Before driving
4
Driving
GS350_250_OM_OM30E16E_(EE)

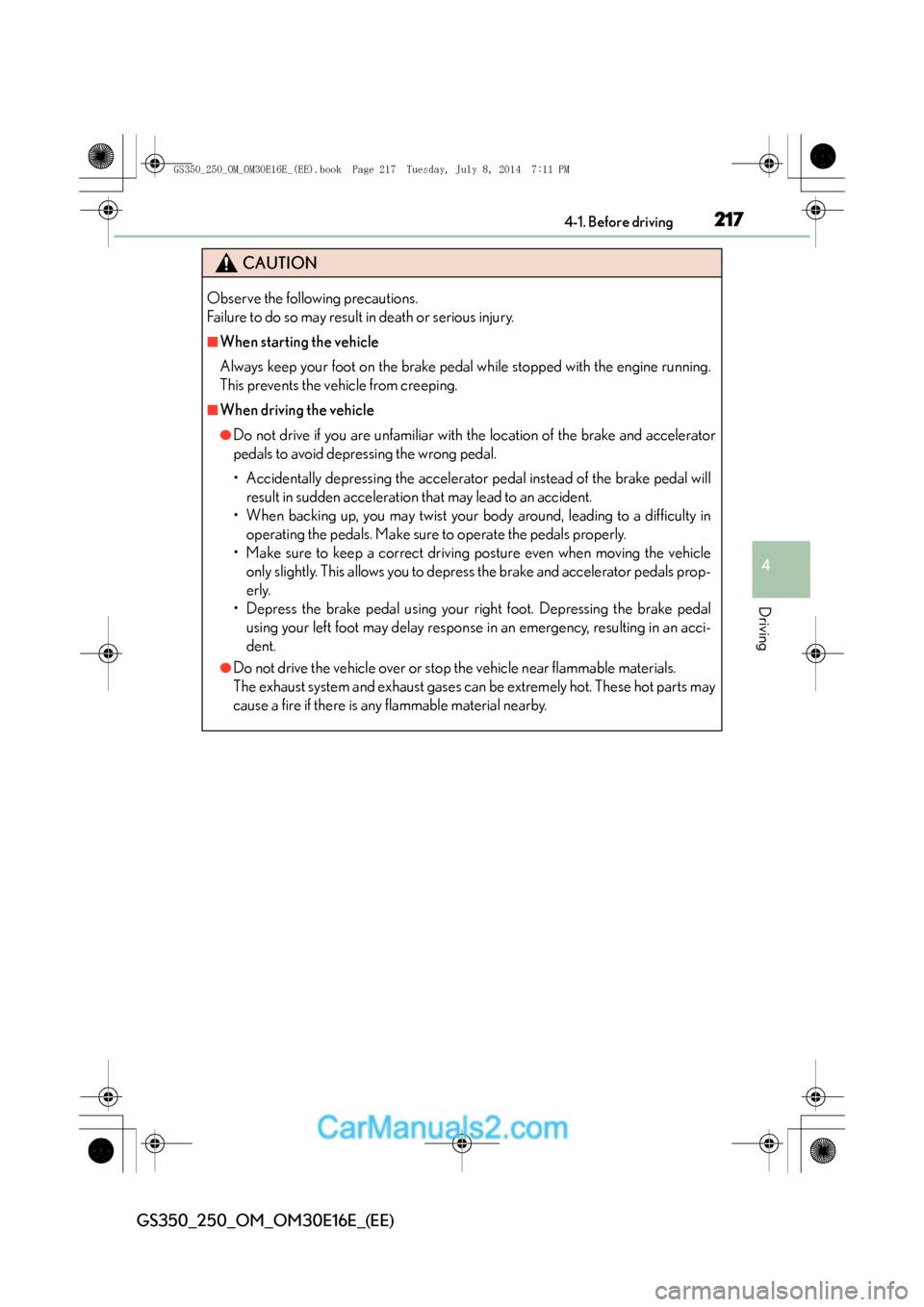

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running.
This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal willresult in sudden acceleration that may lead to an accident.
• When backing up, you may twist your body around, leading to a difficulty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals prop-
erly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, resulting in an acci-
dent.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may
cause a fire if there is any flammable material nearby.
GS350_250_OM_OM30E16E_(EE).book Page 217 Tuesday, July 8, 201 4 7:11 PM

2184-1. Before driving
GS350_250_OM_OM30E16E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When driving the vehicle
●During normal driving, do not turn off the engine. Turning the engine off while
driving will not cause loss of steering or braking control, but the power assist to
these systems will be lost. This will make it more difficult to steer and brake, so you
should pull over and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop
the vehicle in the normal way: →P. 5 3 5
●Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effec-
tiveness. ( →P. 2 4 4 )
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle.
●Sudden acceleration, engine braking due to shifting, or changes in engine speed
could cause the vehicle to skid.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected.
GS350_250_OM_OM30E16E_(EE).book Page 218 Tuesday, July 8, 201 4 7:11 PM

2194-1. Before driving
4
Driving
GS350_250_OM_OM30E16E_(EE)

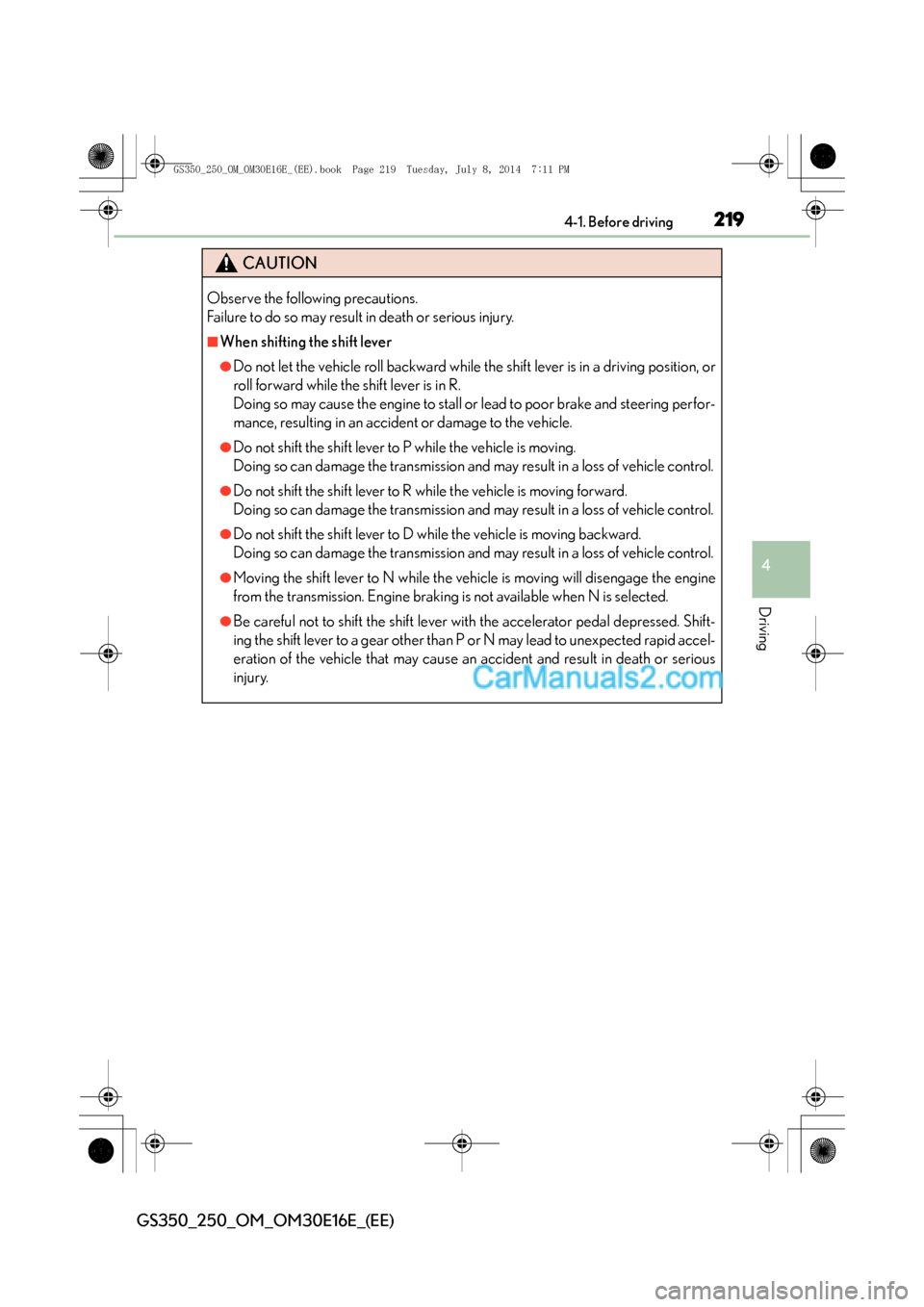

CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When shifting the shift lever
●Do not let the vehicle roll backward while the shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering perfor-
mance, resulting in an accident or damage to the vehicle.
●Do not shift the shift lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Do not shift the shift lever to D while the vehicle is moving backward.
Doing so can damage the transmission and may result in a loss of vehicle control.
●Moving the shift lever to N while the vehicle is moving will disengage the engine
from the transmission. Engine braking is not available when N is selected.
●Be careful not to shift the shift lever with the accelerator pedal depressed. Shift-
ing the shift lever to a gear other than P or N may lead to unexpected rapid accel-
eration of the vehicle that may cause an accident and result in death or serious
injury.
GS350_250_OM_OM30E16E_(EE).book Page 219 Tuesday, July 8, 2014 7:11 PM

2204-1. Before driving
GS350_250_OM_OM30E16E_(EE)
CAUTION
■If you hear a squealing or scraping noise (brake pad wear indicators)
Have the brake pads checked and replaced by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
Moderate levels of brake pad and disc wear allow enhanced front braking power.
As a result, the discs may wear more quickly than conventional brake discs. There-
fore, when replacing the brake pads, Lexus recommends that you also have the
thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
those of the brake discs are exceeded.
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly
and unexpectedly, causing an accident.
●In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the engine is running, and apply the parking
brake as necessary.
●If the vehicle is stopped on an incline, in order to prevent accidents caused by the
vehicle rolling forward or backward, always depress the brake pedal and securely
apply the parking brake as needed.
●Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause the
exhaust system to overheat, which could result in a fire if combustible material is
nearby.
GS350_250_OM_OM30E16E_(EE).book Page 220 Tuesday, July 8, 201 4 7:11 PM
