Lexus GS250 2014 Owner's Manual

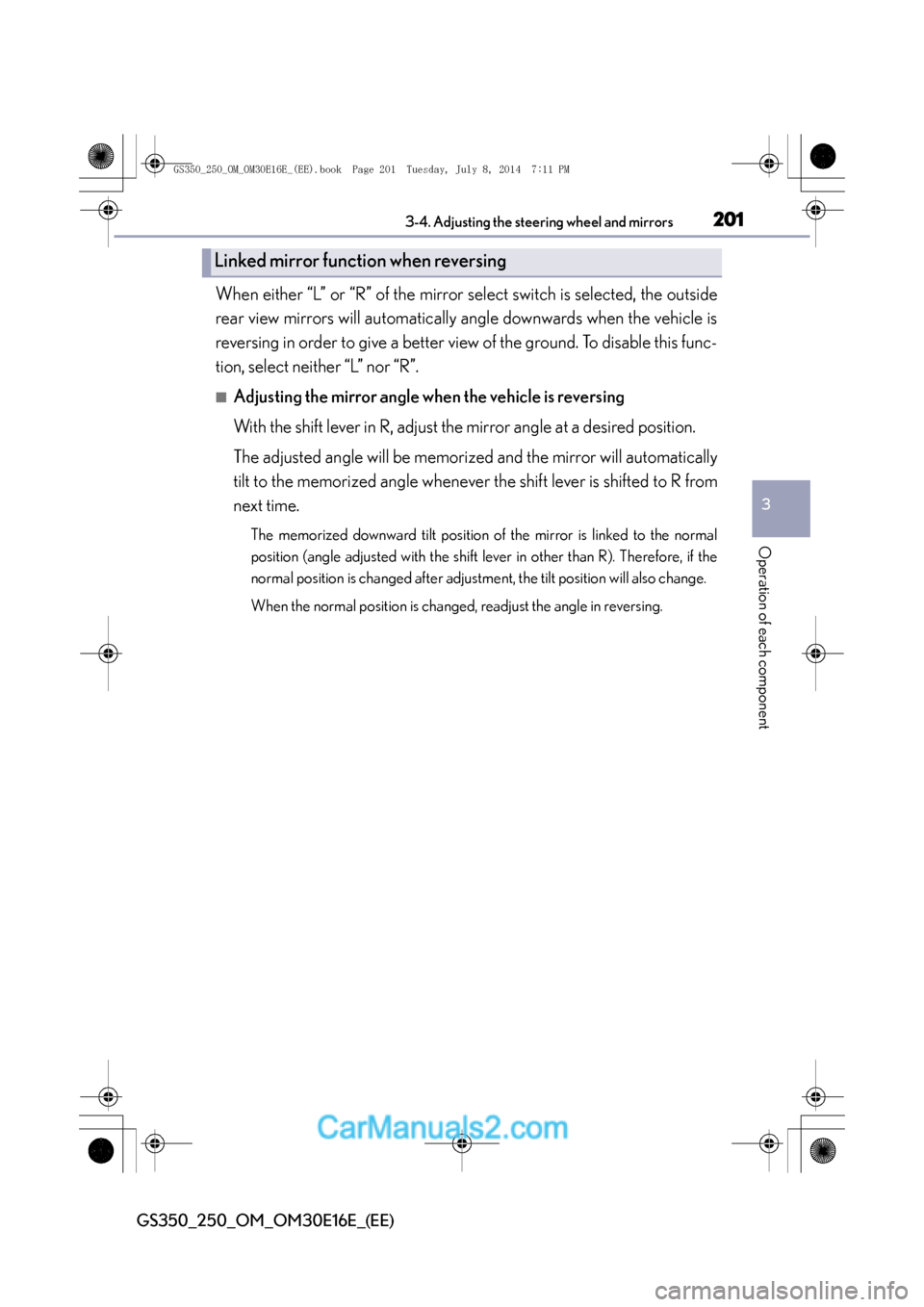

2013-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
When either “L” or “R” of the mirror select switch is selected, the outside
rear view mirrors will automatically angle downwards when the vehicle is
reversing in order to give a better view of the ground. To disable this func-
tion, select neither “L” nor “R”.
■Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired position.
The adjusted angle will be memorized and the mirror will automatically
tilt to the memorized angle whenever the shift lever is shifted to R from
next time.
The memorized downward tilt position of the mirror is linked to the normal
position (angle adjusted with the shift lever in other than R). Therefore, if the
normal position is changed after adjustme nt, the tilt position will also change.
When the normal position is changed, readjust the angle in reversing.
Linked mirror function when reversing
GS350_250_OM_OM30E16E_(EE).book Page 201 Tuesday, July 8, 201 4 7:11 PM

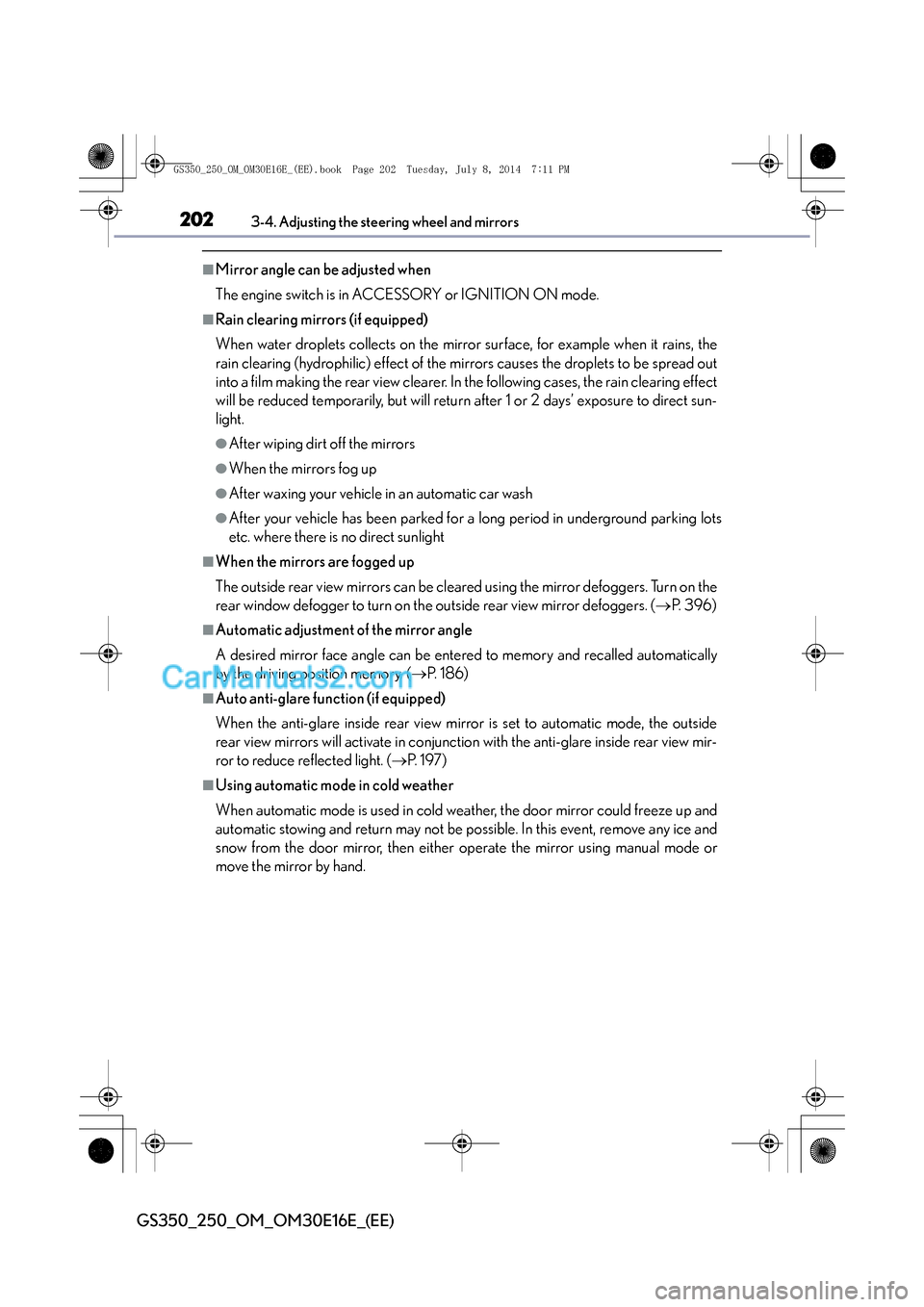

2023-4. Adjusting the steering wheel and mirrors
GS350_250_OM_OM30E16E_(EE)
■Mirror angle can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode.
■Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing effect
will be reduced temporarily, but will return after 1 or 2 days’ exposure to direct sun-
light.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking lots
etc. where there is no direct sunlight
■When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the
rear window defogger to turn on the outside rear view mirror defoggers. (→P. 3 9 6 )
■Automatic adjustment of the mirror angle
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 1 8 6 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 1 9 7 )
■Using automatic mode in cold weather
When automatic mode is used in cold weather, the door mirror could freeze up and
automatic stowing and return may not be possible. In this event, remove any ice and
snow from the door mirror, then either operate the mirror using manual mode or
move the mirror by hand.
GS350_250_OM_OM30E16E_(EE).book Page 202 Tuesday, July 8, 201 4 7:11 PM

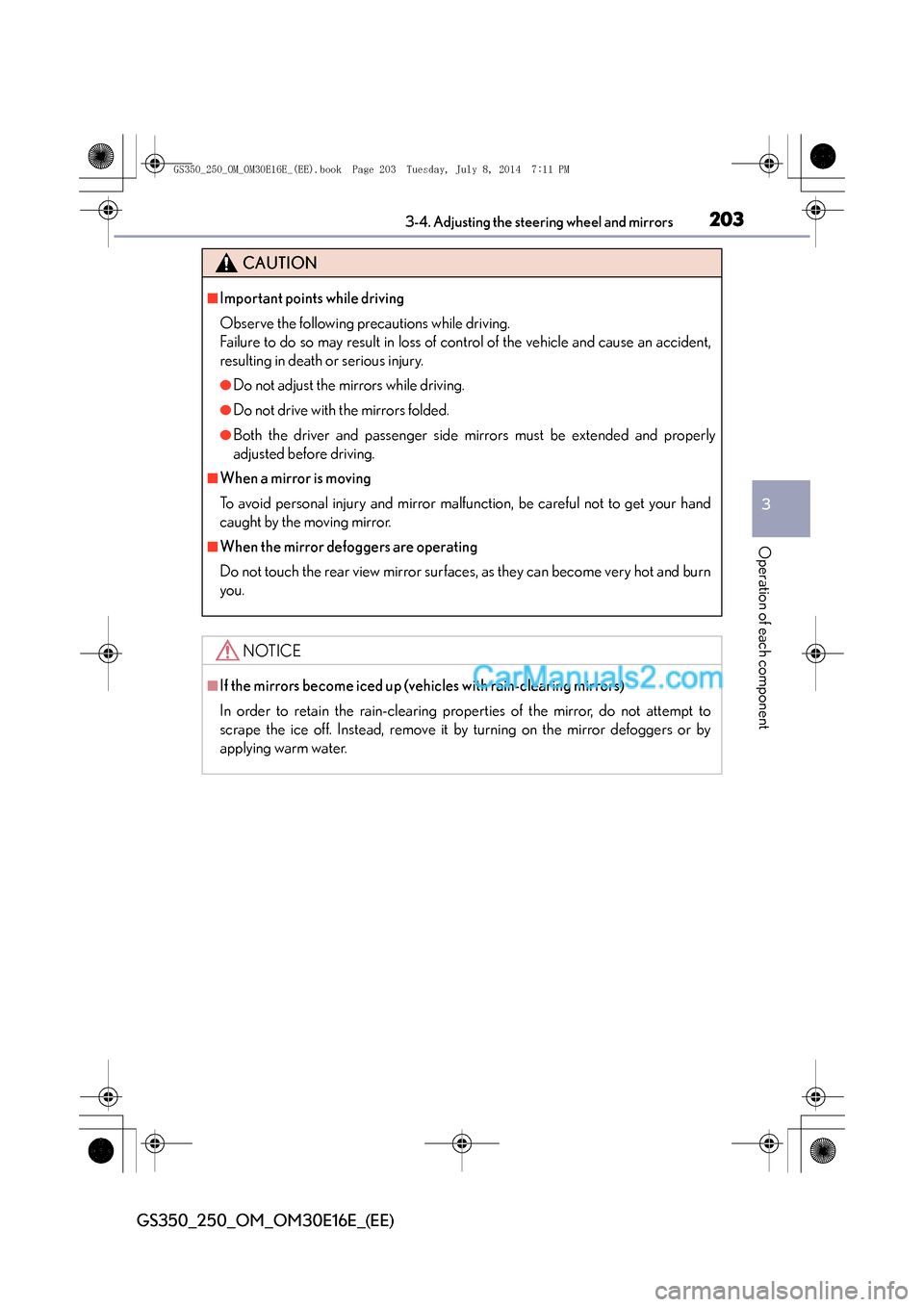

2033-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
CAUTION
■Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■If the mirrors become iced up (vehicles with rain-clearing mirrors)
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or by
applying warm water.
GS350_250_OM_OM30E16E_(EE).book Page 203 Tuesday, July 8, 2014 7:11 PM

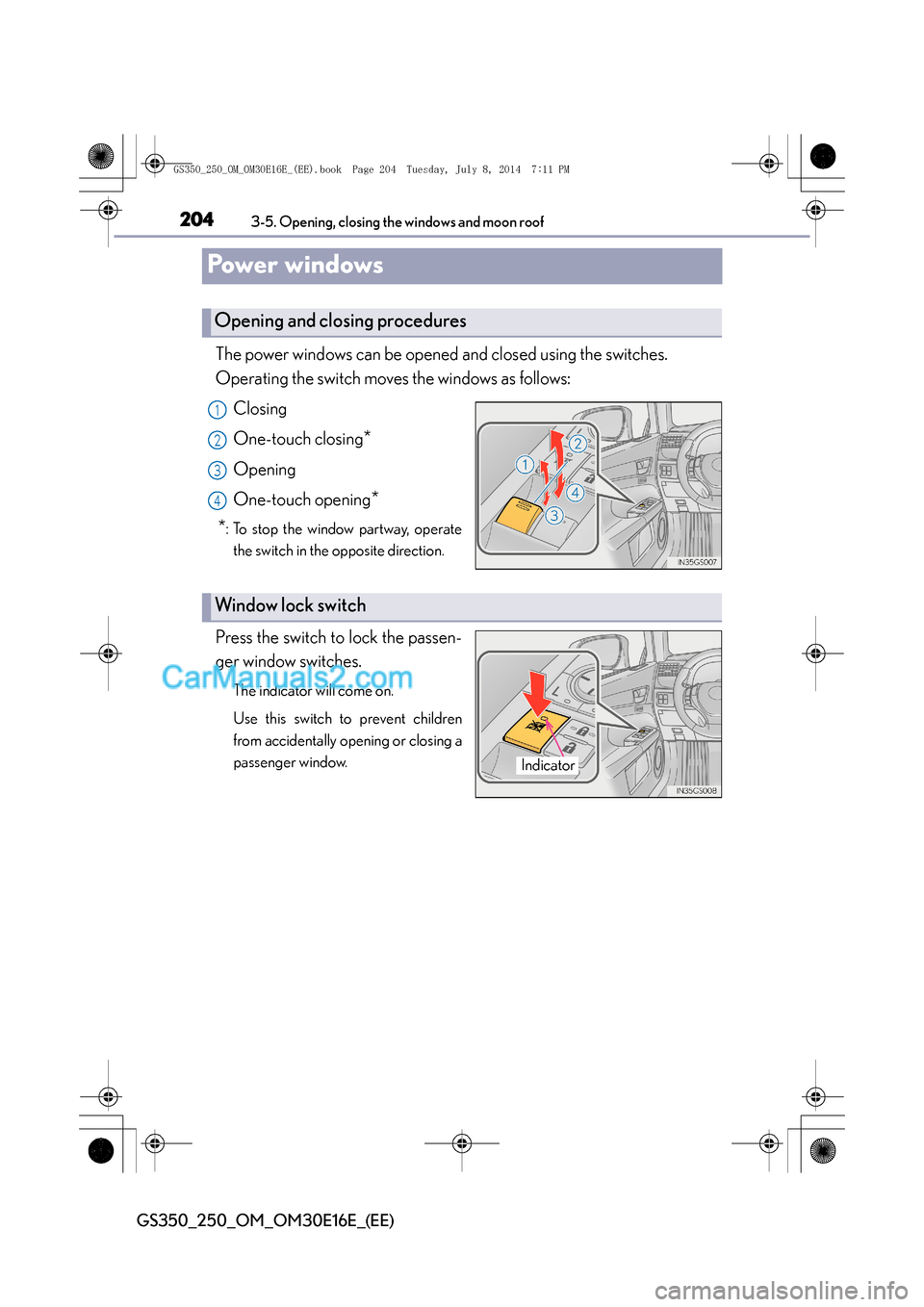

2043-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
Power windows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, operate the switch in the opposite direction.
Press the switch to lock the passen-
ger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally op ening or closing a
passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch
Indicator
GS350_250_OM_OM30E16E_(EE).book Page 204 Tuesday, July 8, 201 4 7:11 PM

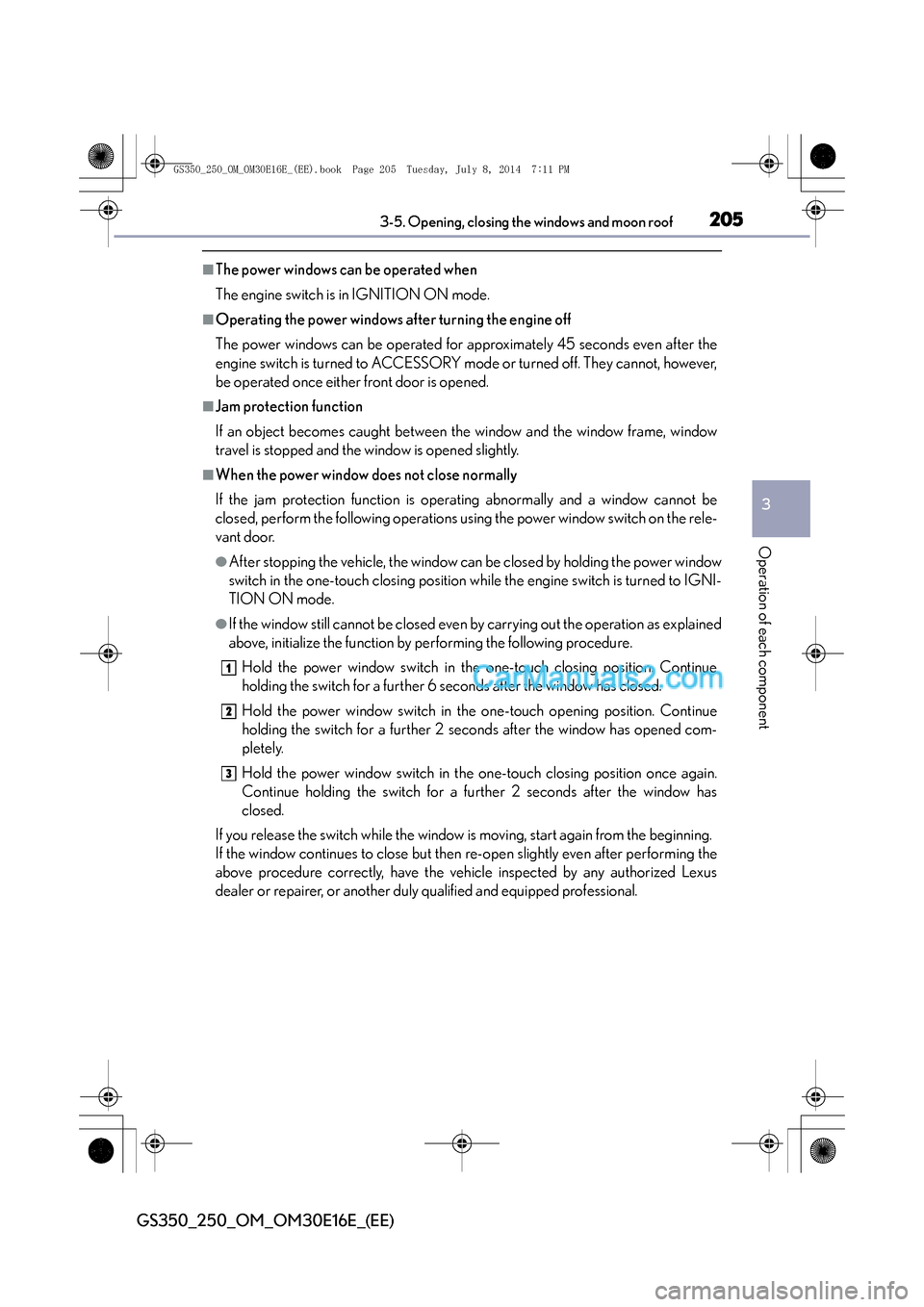

2053-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■The power windows can be operated when
The engine switch is in IGNITION ON mode.
■Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even after the
engine switch is turned to ACCESSORY mode or turned off. They cannot, however,
be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rele-
vant door.
●After stopping the vehicle, the window can be closed by holding the power window
switch in the one-touch closing position while the engine switch is turned to IGNI-
TION ON mode.
●If the window still cannot be closed even by carrying out the operation as explained
above, initialize the function by performing the following procedure.Hold the power window switch in the one-touch closing position. Continue
holding the switch for a further 6 seconds after the window has closed.
Hold the power window switch in the one-touch opening position. Continue
holding the switch for a further 2 seconds after the window has opened com-
pletely.
Hold the power window switch in the one-touch closing position once again.
Continue holding the switch for a further 2 seconds after the window has
closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 205 Tuesday, July 8, 201 4 7:11 PM

2063-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
( → P. 6 1 8 )
●The power windows can be opened and closed using the wireless remote control.*
(→ P. 1 5 5 )
*: These settings must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the engine switch is turned off and the driver’s door is
opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 650)
GS350_250_OM_OM30E16E_(EE).book Page 206 Tuesday, July 8, 201 4 7:11 PM

2073-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●The driver is responsible for all the power window operations, including the oper-
ation for the passengers. In order to prevent accidental operation, especially by a
child, do not let a child operate the power windows. It is possible for children and
other passengers to have body parts caught in the power window. Also, when
riding with a child, it is recommended to use the window lock switch. (→P. 2 0 4 )
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●When using the wireless remote control or mechanical key and operating the
power windows, operate the power window after checking to make sure that
there is no possibility of any passenger having any of their body parts caught in
the window. Also do not let a child oper ate window by the wireless remote con-
trol or mechanical key. It is possible for children and other passengers to get
caught in the power window.
●When exiting the vehicle, turn the engine switch off, carry the key and exit the
vehicle along with the child. There may be accidental operation, due to mischief,
etc., that may possibly lead to an accident.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.
GS350_250_OM_OM30E16E_(EE).book Page 207 Tuesday, July 8, 201 4 7:11 PM

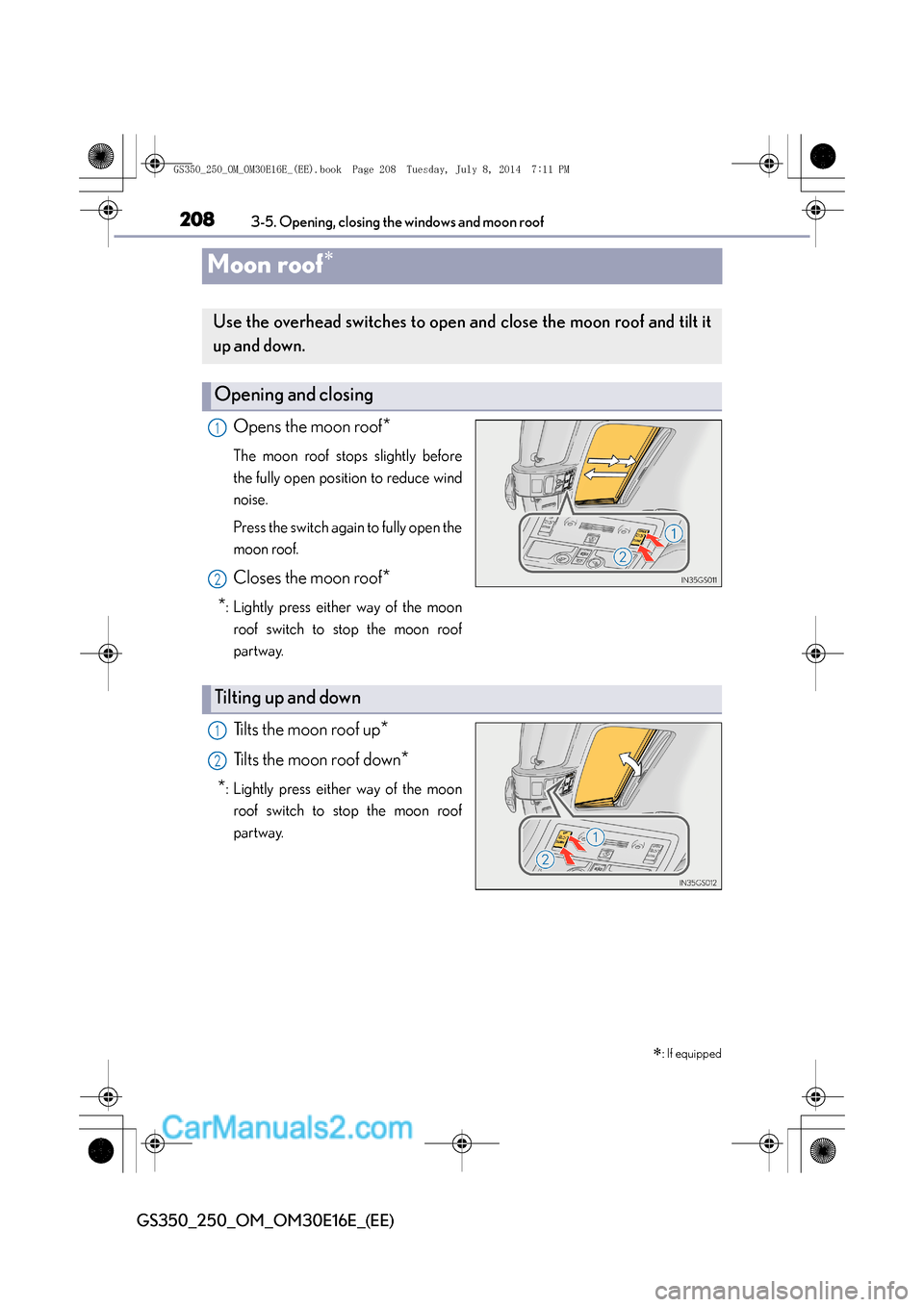

2083-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
Moon roof∗
Opens the moon roof*
The moon roof stops slightly before
the fully open position to reduce wind
noise.
Press the switch again to fully open the
moon roof.
Closes the moon roof*
*
: Lightly press either way of the moon roof switch to stop the moon roof
partway.
Tilts the moon roof up*
Tilts the moon roof down*
*
: Lightly press either way of the moon roof switch to stop the moon roof
partway.
∗: If equipped
Use the overhead switches to open and close the moon roof and tilt it
up and down.
Opening and closing
1
2
Tilting up and down
1
2
GS350_250_OM_OM30E16E_(EE).book Page 208 Tuesday, July 8, 201 4 7:11 PM

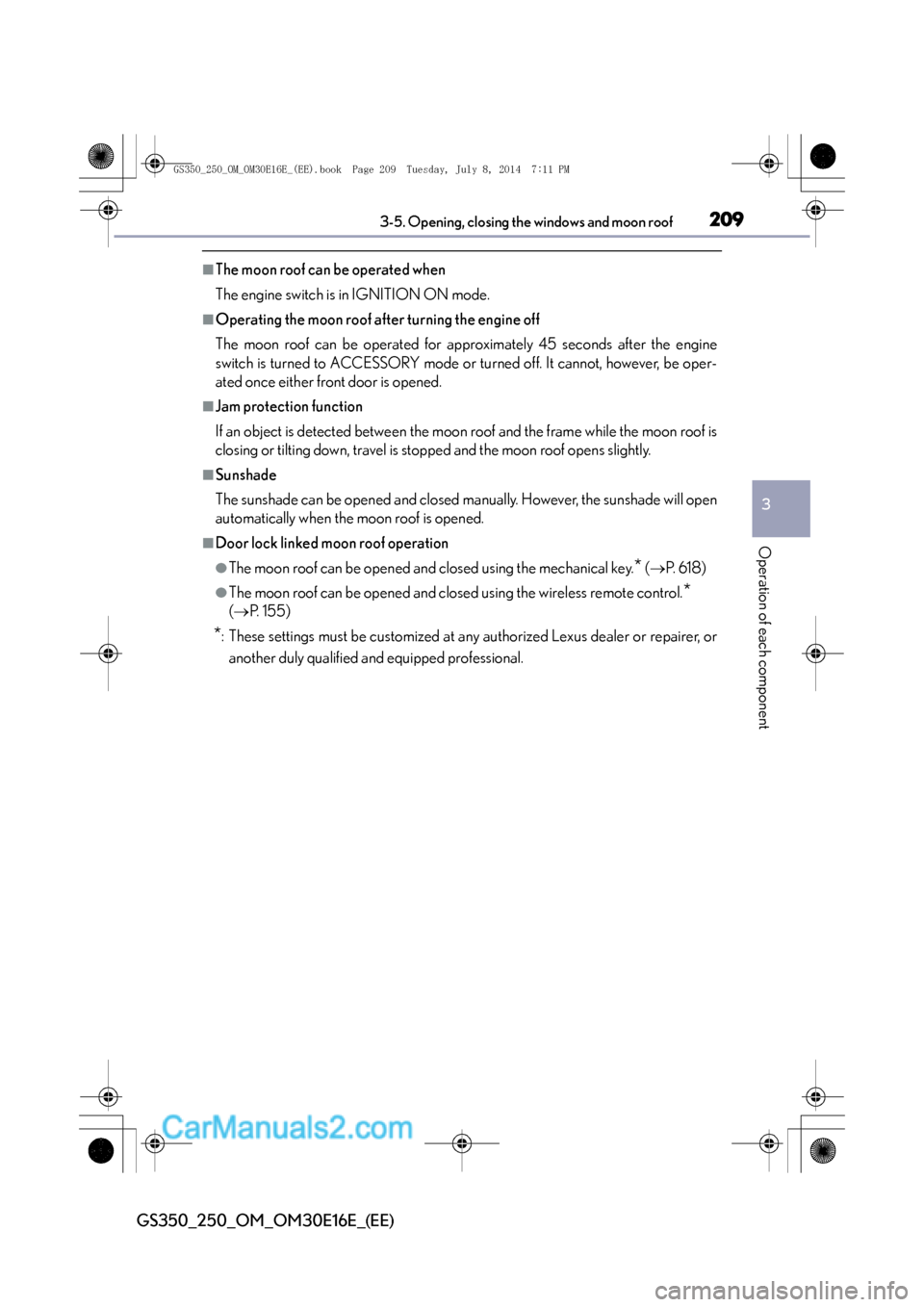

2093-5. Opening, closing the windows and moon roof
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■The moon roof can be operated when
The engine switch is in IGNITION ON mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the engine
switch is turned to ACCESSORY mode or turned off. It cannot, however, be oper-
ated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* (→ P. 6 1 8 )
●The moon roof can be opened and closed using the wireless remote control.*
( → P. 1 5 5 )
*: These settings must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
GS350_250_OM_OM30E16E_(EE).book Page 209 Tuesday, July 8, 201 4 7:11 PM

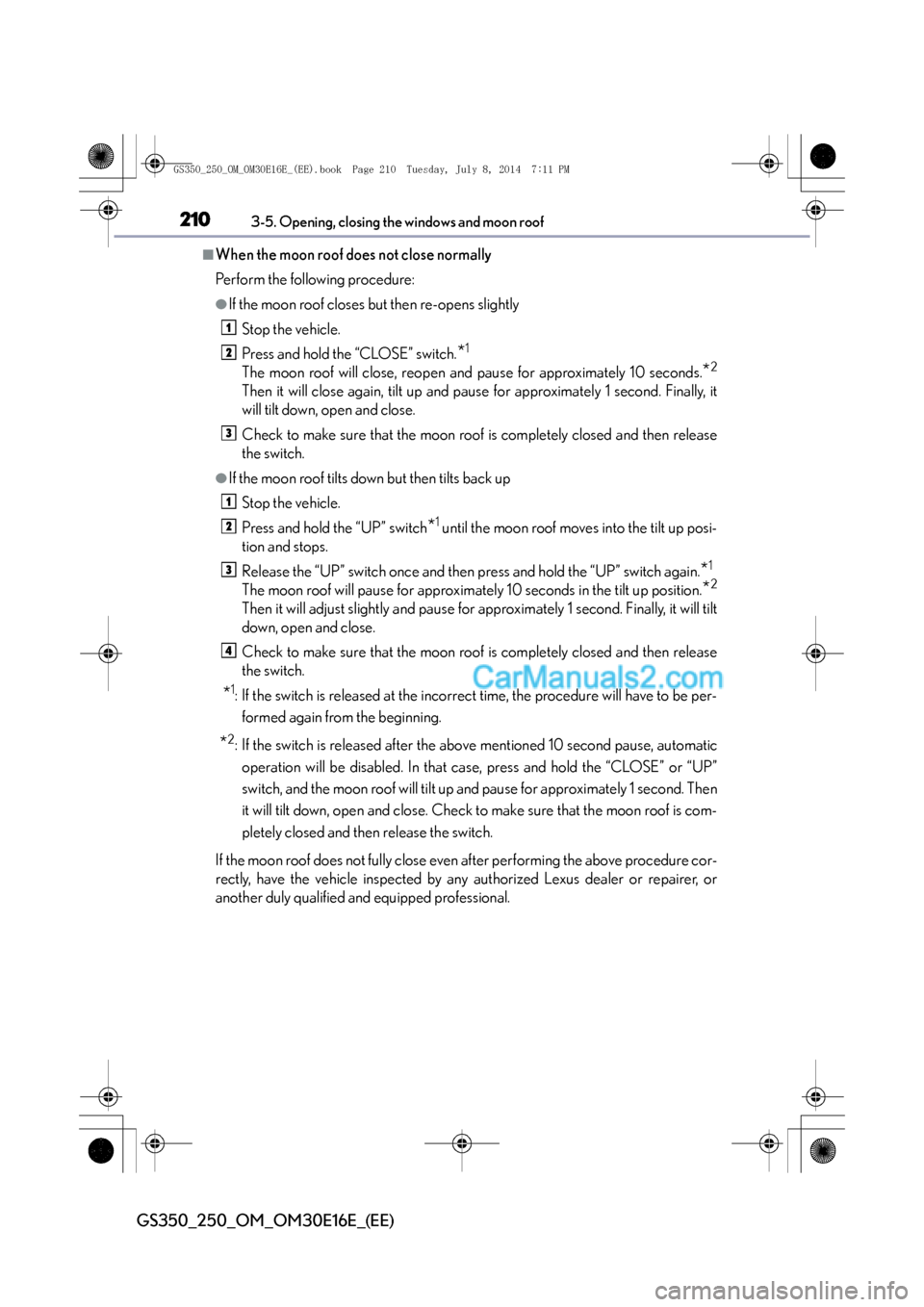

2103-5. Opening, closing the windows and moon roof
GS350_250_OM_OM30E16E_(EE)
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightlyStop the vehicle.
Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 seconds.*2
Then it will close again, tilt up and pause for approximately 1 second. Finally, it
will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
●If the moon roof tilts down but then tilts back upStop the vehicle.
Press and hold the “UP” switch
*1 until the moon roof moves into the tilt up posi-
tion and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.
*1
The moon roof will pause for approximately 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt
down, open and close.
Check to make sure that the moon roof is completely closed and then release
the switch.
*1: If the switch is released at the incorrect time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automaticoperation will be disabled. In that case, press and hold the “CLOSE” or “UP”
switch, and the moon roof will tilt up and pause for approximately 1 second. Then
it will tilt down, open and close. Check to make sure that the moon roof is com-
pletely closed and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor-
rectly, have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
1
2
3
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 210 Tuesday, July 8, 201 4 7:11 PM
