Lexus GS250 2014 Owner's Manual

371
5
5-2. Using the air conditioning system and defogger
Interior features
GS350_250_OM_OM30E16E_(EE)
Front automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Press the “MENU” button on the Remote Touch, then select to
display the air conditio
ning operation screen.
Vehicles with a 12.3-inc h display: The air conditioning system can be
displayed and operated on the side display. ( →P. 3 6 7 )
The illustrations below are for left-hand drive vehicles.
The button positions and sh apes will differ for right-hand drive vehicles.
Also, the display and button positions will differ depending on the type
of the system.
GS350_250_OM_OM30E16E_(EE).book Page 371 Tuesday, July 8, 201 4 7:11 PM

3725-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

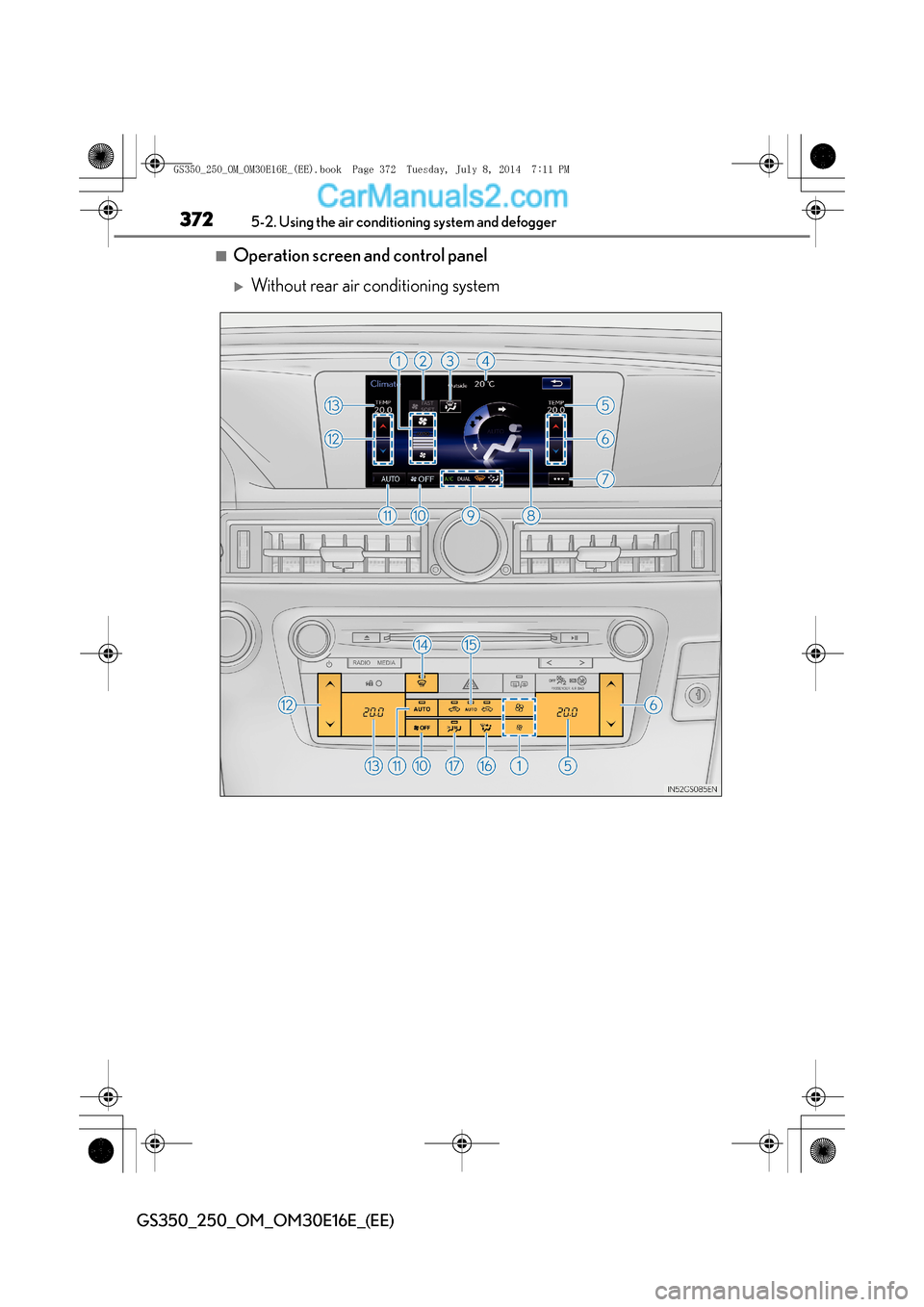

■Operation screen and control panel
XWithout rear air conditioning system
GS350_250_OM_OM30E16E_(EE).book Page 372 Tuesday, July 8, 201 4 7:11 PM

3735-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)

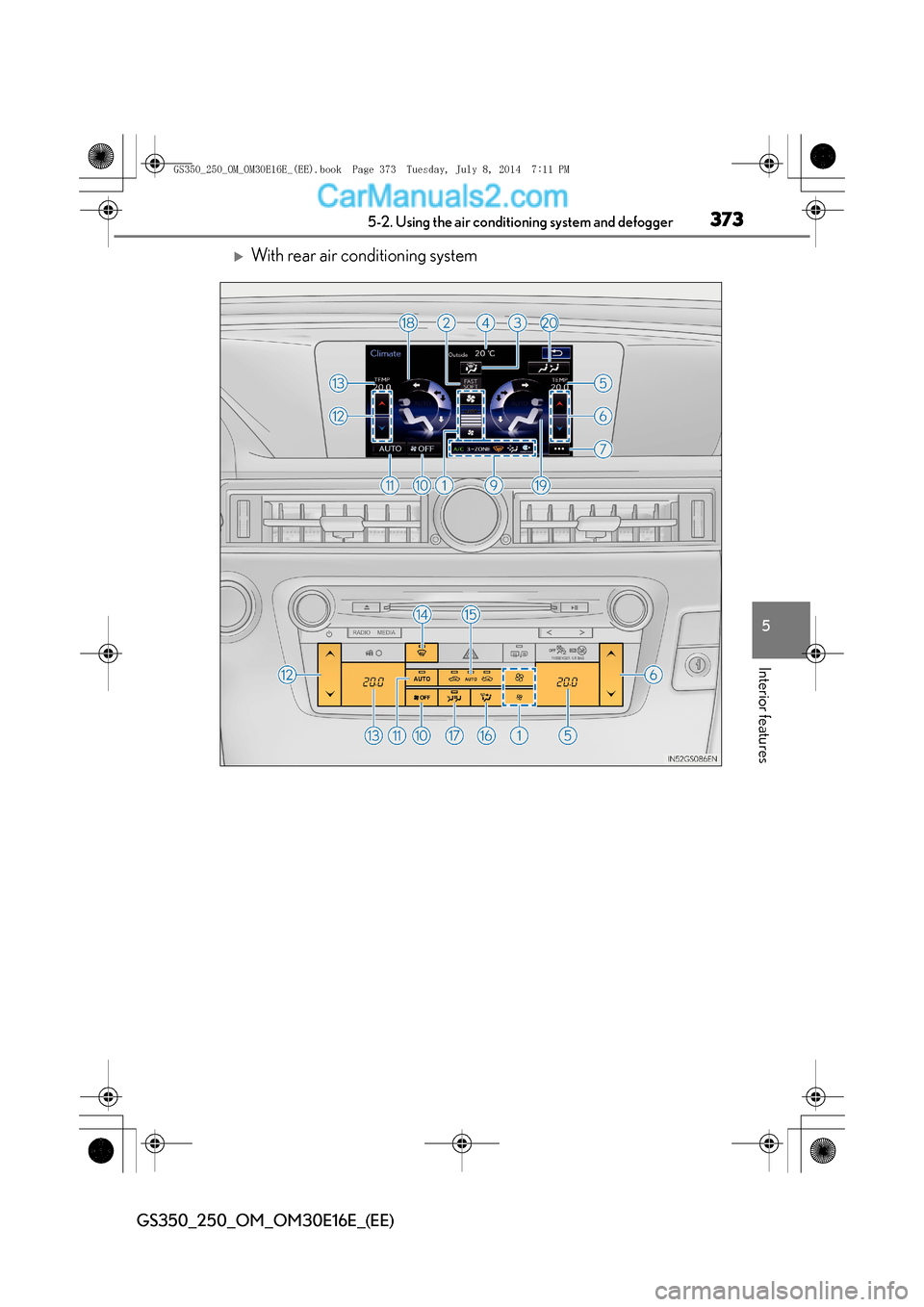

XWith rear air conditioning system
GS350_250_OM_OM30E16E_(EE).book Page 373 Tuesday, July 8, 2014 7:11 PM

3745-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

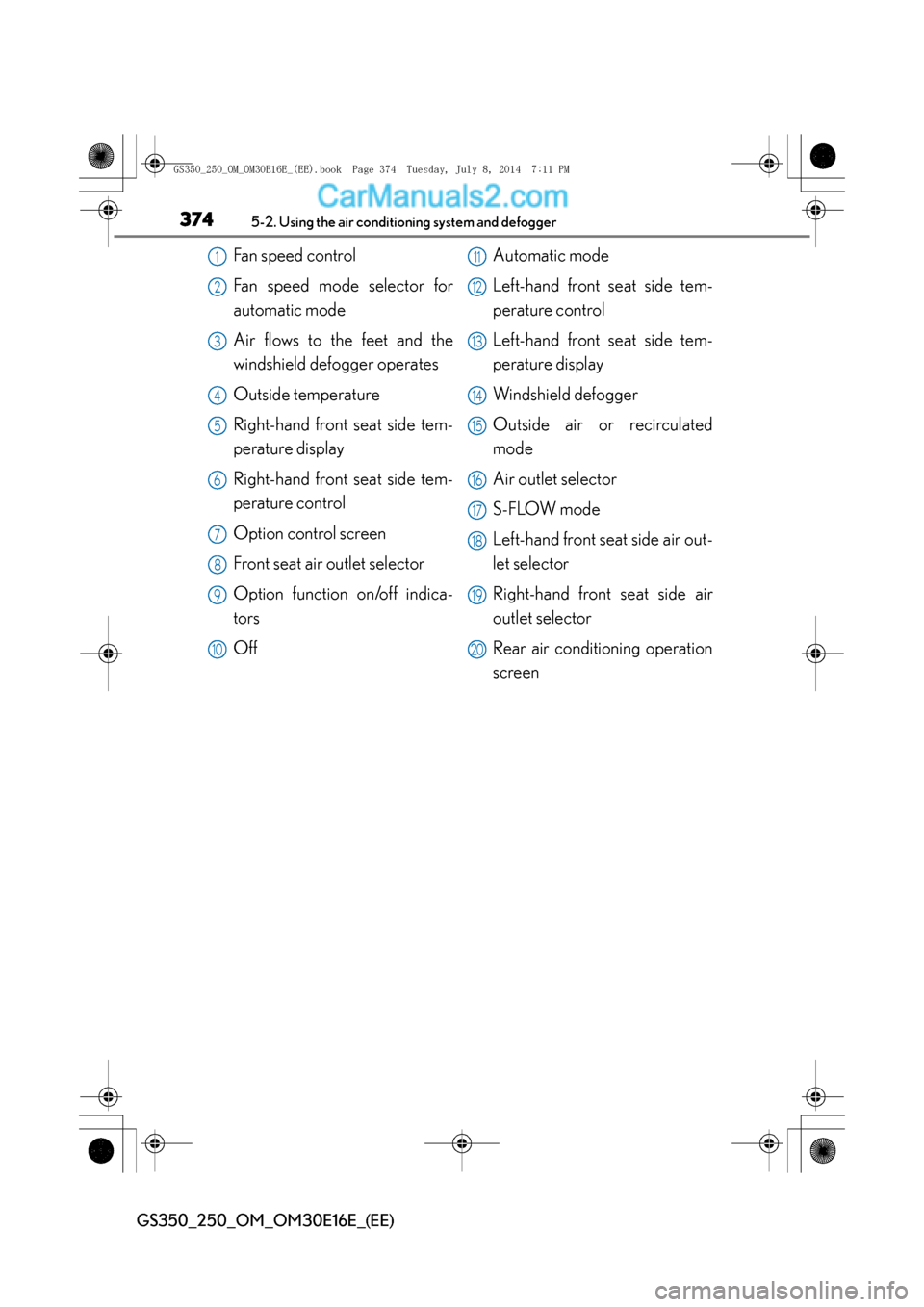

Fan speed control
Fan speed mode selector for
automatic mode
Air flows to the feet and the
windshield defogger operates
Outside temperature
Right-hand front seat side tem-
perature display
Right-hand front seat side tem-
perature control
Option control screen
Front seat air outlet selector
Option function on/off indica-
tors
Off Automatic mode
Left-hand front seat side tem-
perature control
Left-hand front seat side tem-
perature display
Windshield defogger
Outside air or recirculated
mode
Air outlet selector
S-FLOW mode
Left-hand front seat side air out-
let selector
Right-hand front seat side air
outlet selector
Rear air conditioning operation
screen1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GS350_250_OM_OM30E16E_(EE).book Page 374 Tuesday, July 8, 201
4 7:11 PM

3755-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)

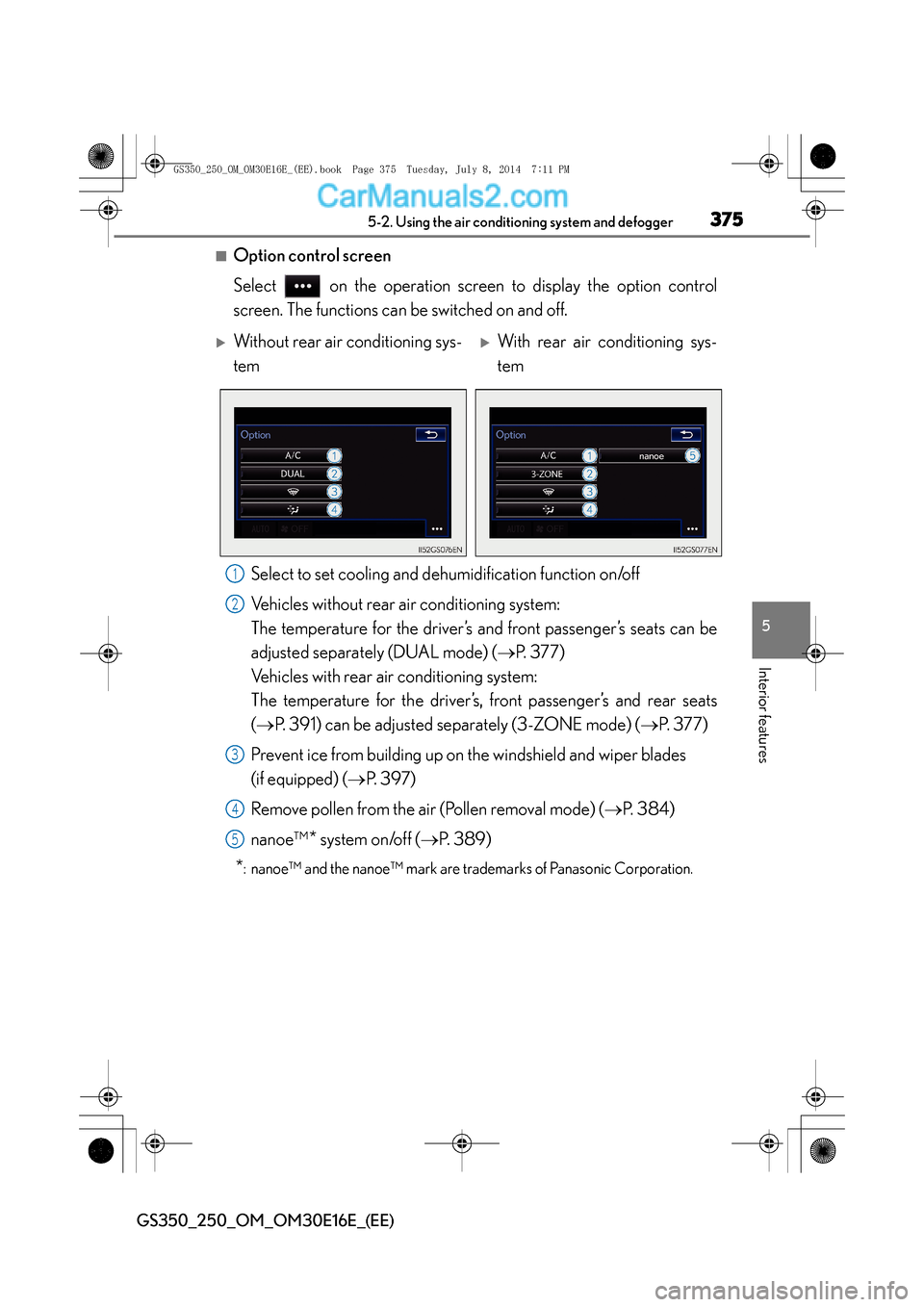

■Option control screen
Select on the operation screen to display the option control
screen. The functions can be switched on and off.Select to set cooling and dehumidification function on/off
Vehicles without rear air conditioning system:
The temperature for the driver’s and front passenger’s seats can be
adjusted separate ly (DUAL mode) ( →P. 3 7 7 )
Vehicles with rear air conditioning system:
The temperature for the driver’s, front passenger’s and rear seats
( → P. 391) can be adjusted separately (3-ZONE mode) ( →P. 377)
Prevent ice from building up on the windshield and wiper blades
(if equipped) ( →P. 397)
Remove pollen from the air (Pollen removal mode) ( →P. 384)
nanoe™
* system on/off ( →P. 389)
*: nanoe™ and the nanoe™ mark are trademarks of Panasonic Corporation.
XWithout rear air conditioning sys-
temXWith rear air conditioning sys-
tem
1
2
3
4
5
GS350_250_OM_OM30E16E_(EE).book Page 375 Tuesday, July 8, 201 4 7:11 PM

3765-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

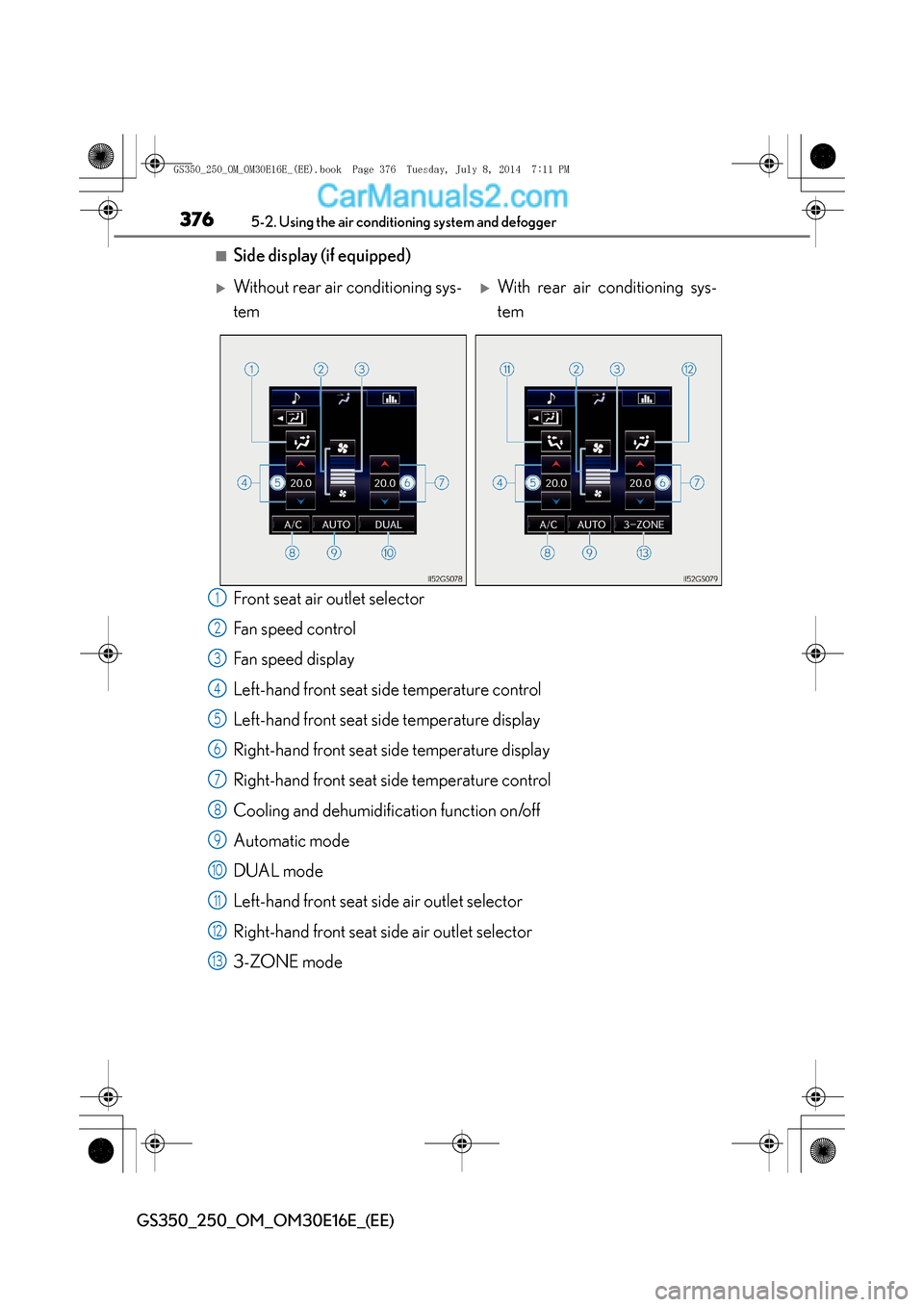

■Side display (if equipped)
Front seat air outlet selector
Fan speed control
Fan speed display
Left-hand front seat side temperature control
Left-hand front seat side temperature display
Right-hand front seat side temperature display
Right-hand front seat side temperature control
Cooling and dehumidification function on/off
Automatic mode
DUAL mode
Left-hand front seat side air outlet selector
Right-hand front seat side air outlet selector
3-ZONE mode
XWithout rear air conditioning sys-
temXWith rear air conditioning sys-
tem
1
2
3
4
5
6
7
8
9
10
11
12
13
GS350_250_OM_OM30E16E_(EE).book Page 376 Tuesday, July 8, 201 4 7:11 PM

3775-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)
Press or select “AUTO” on the operation screen.
The dehumidification function begins to operate. Air outlets and fan speed are
automatically adjusted according to the temperature setting and humidity.
Also, when selecting each time, the fan speed mode will be changed as fol-
lows:
“MEDIUM” → “SOFT” → “FAST”
Press to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air and recir-
culated air modes.
Press “ ∧” on or select on the screen to increase the tempera-
ture and “ ∨” or to decrease the temperature.
XWithout rear air conditioning system
When “DUAL” on the option control screen is selected (the indicator will be on)
or the passenger’s side temperature control button is pressed, the temperature
for the driver and passenger seats can be adjusted separately.
XWith rear air conditioning system
When “3-ZONE” on the option control screen is selected (the indicator will be
on) or the passenger’s side temperature control button is pressed, the tempera-
ture for the driver’s, front passenger’s and rear seats ( →P. 391) can be adjusted
separately.
Air outlets and fan speed for the driver and passenger seats may be adjusted sep-
arately depending on the temperature setting.
When the front seat heaters and ventilators/rear seat heaters are set to AUTO
mode, the system is operated automatically according to the set temperature,
outside temperature, etc.
Using the automatic air conditioning system
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 377 Tuesday, July 8, 201 4 7:11 PM

3785-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

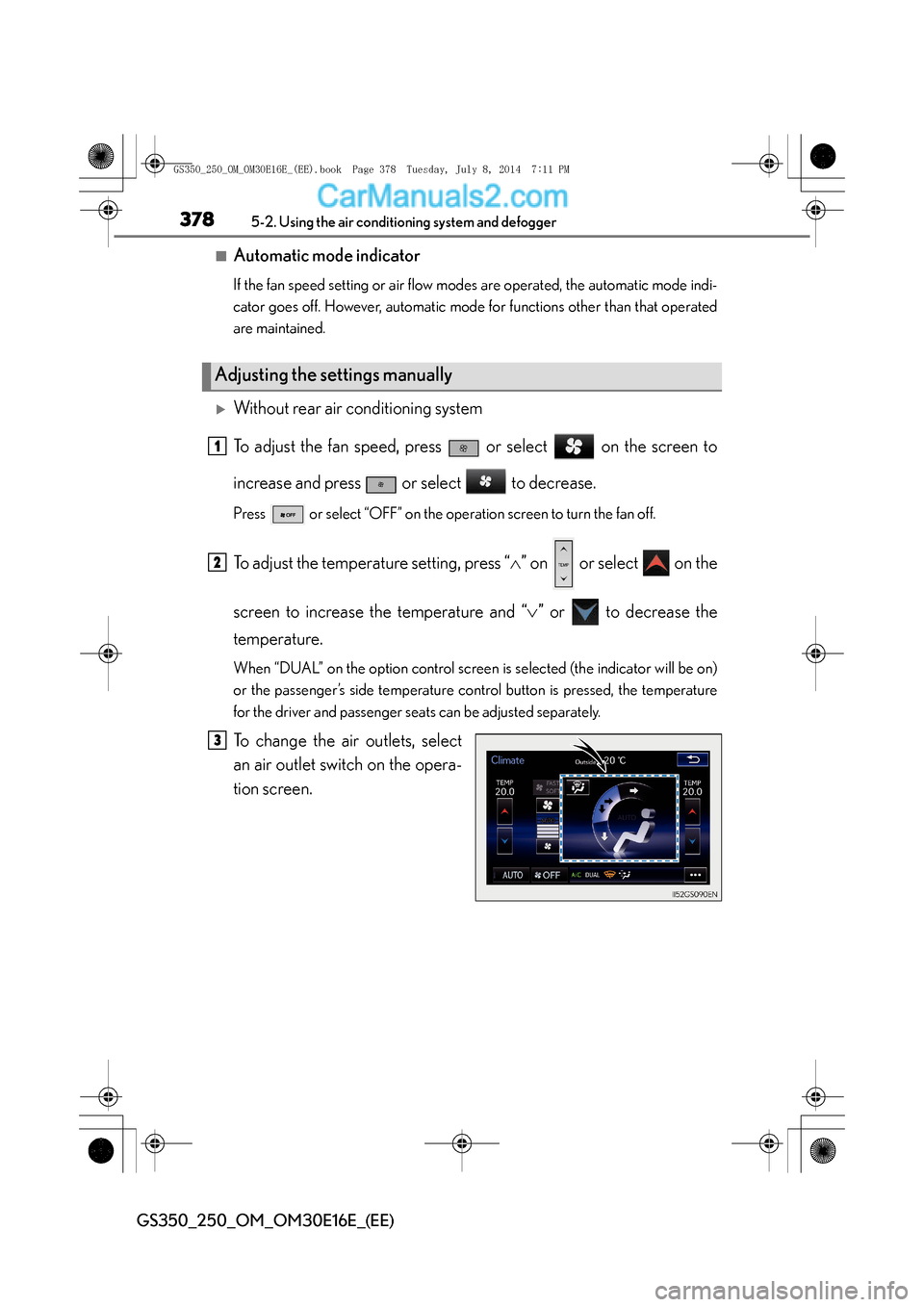

■Automatic mode indicator
If the fan speed setting or air flow modes are operated, the automatic mode indi-
cator goes off. However, automatic mode for functions other than that operated
are maintained.
XWithout rear air conditioning system
To adjust the fan speed, press or select on the screen to
increase and press or select to decrease.
Press or select “OFF” on the operation screen to turn the fan off.
To adjust the temperature setting, press “ ∧” on or select on the
screen to increase the temperature and “ ∨” or to decrease the
temperature.
When “DUAL” on the option control screen is selected (the indicator will be on)
or the passenger’s side temperature control button is pressed, the temperature
for the driver and passenger seats can be adjusted separately.
To change the air outlets, select
an air outlet switch on the opera-
tion screen.
Adjusting the settings manually
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 378 Tuesday, July 8, 201 4 7:11 PM

3795-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)

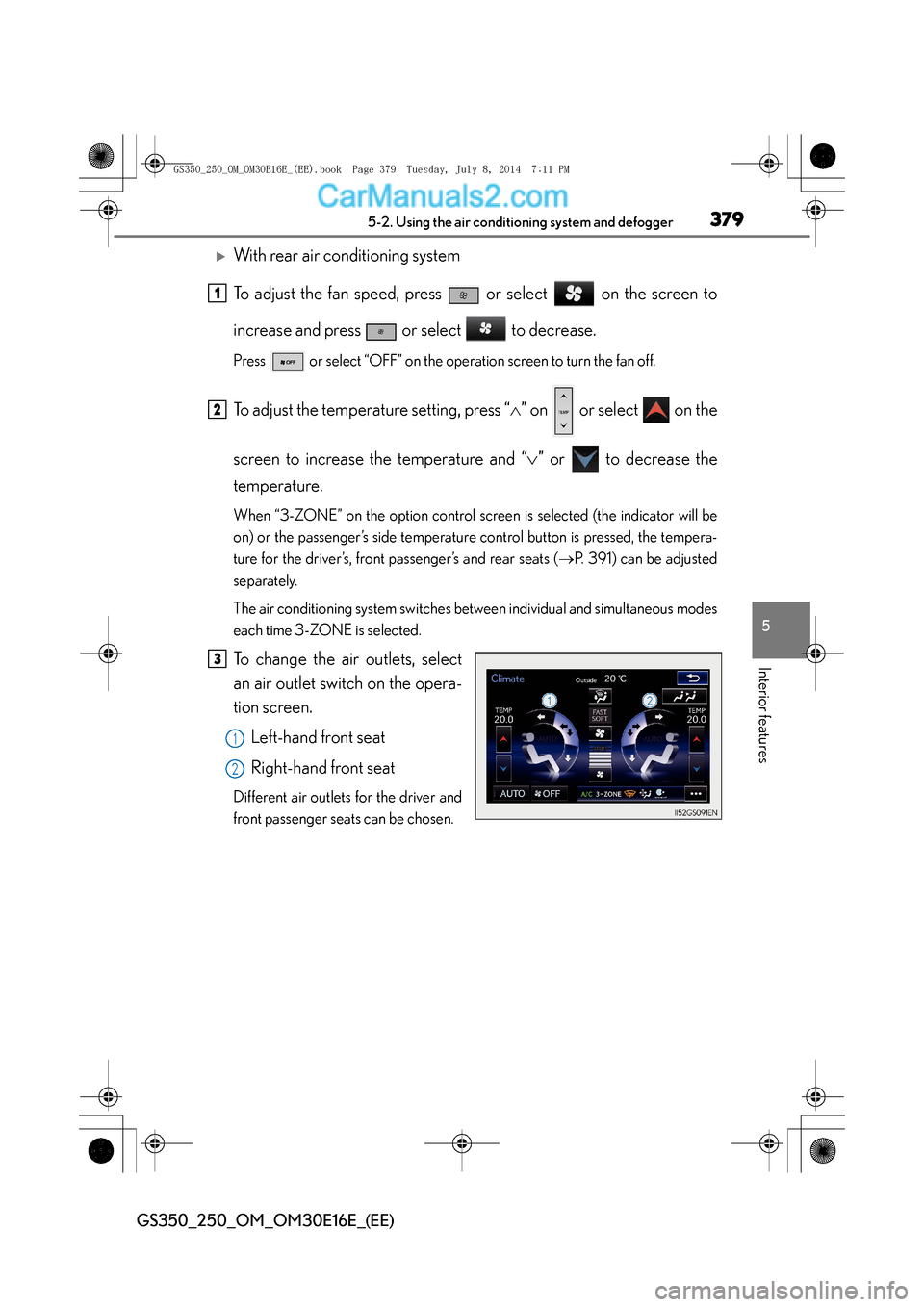

XWith rear air conditioning system
To adjust the fan speed, press or select on the screen to
increase and press or select to decrease.
Press or select “OFF” on the operation screen to turn the fan off.
To adjust the temperature setting, press “∧” on or select on the
screen to increase the temperature and “ ∨” or to decrease the
temperature.
When “3-ZONE” on the option control screen is selected (the indicator will be
on) or the passenger’s side temperature control button is pressed, the tempera-
ture for the driver’s, front passenger’s and rear seats ( →P. 391) can be adjusted
separately.
The air conditioning system switches be tween individual and simultaneous modes
each time 3-ZONE is selected.
To change the air outlets, select
an air outlet switch on the opera-
tion screen.
Left-hand front seat
Right-hand front seat
Different air outlets for the driver and
front passenger seats can be chosen.
1
2
3
1
2
GS350_250_OM_OM30E16E_(EE).book Page 379 Tuesday, July 8, 201 4 7:11 PM

3805-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

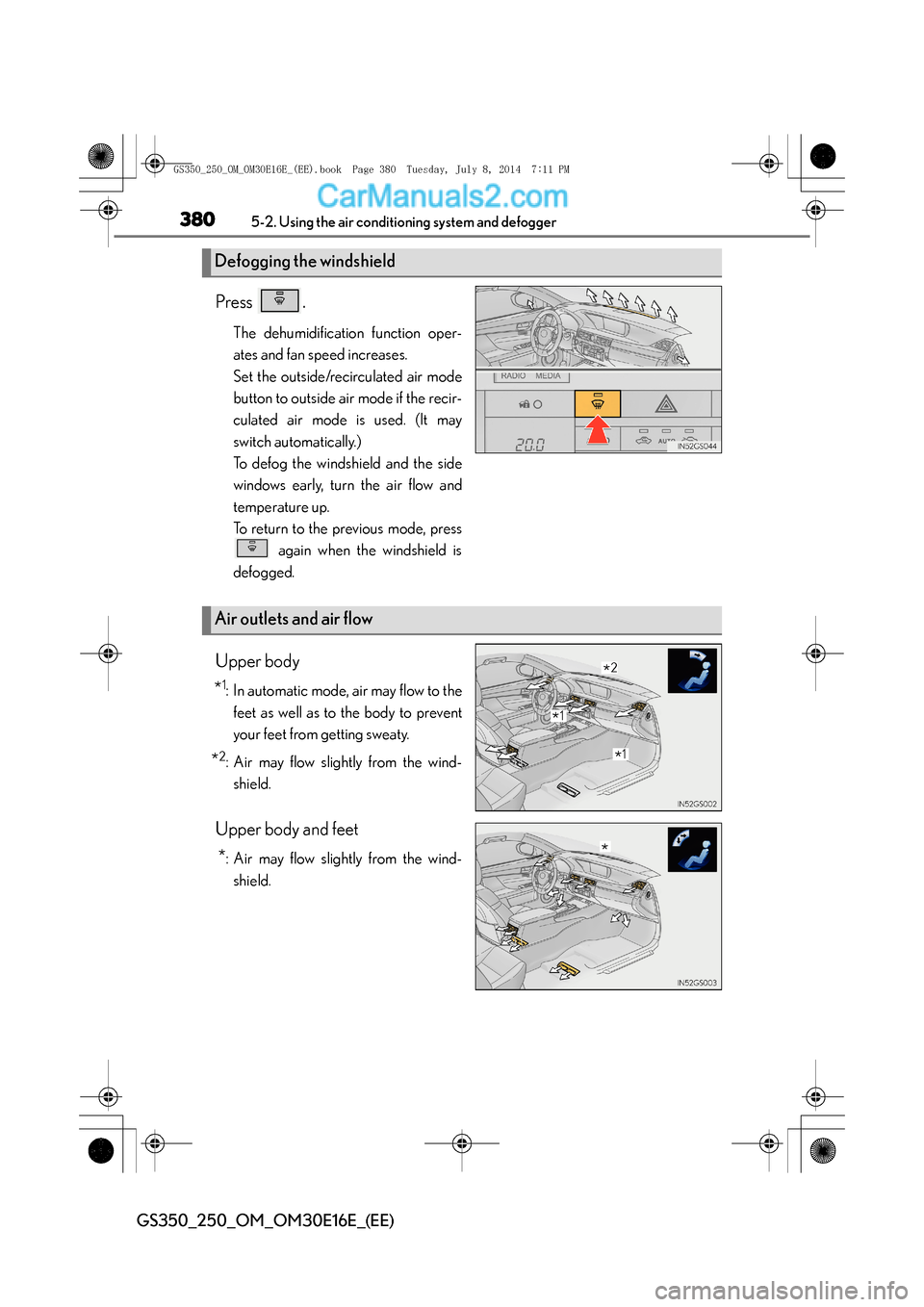

Press .
The dehumidification function oper-
ates and fan speed increases.
Set the outside/recirculated air mode
button to outside air mode if the recir-
culated air mode is used. (It may
switch automatically.)
To defog the windshield and the side
windows early, turn the air flow and
temperature up.
To return to the previous mode, press
again when the windshield is
defogged.
Upper body
*1: In automatic mode, air may flow to the feet as well as to the body to prevent
your feet from getting sweaty.
*2: Air may flow slightly from the wind-shield.
Upper body and feet
*: Air may flow slightly from the wind-
shield.
Defogging the windshield
Air outlets and air flow
*1
*1
*2
*
