Lexus GS250 2014 Owner's Manual

391
5
5-2. Using the air conditioning system and defogger
Interior features
GS350_250_OM_OM30E16E_(EE)

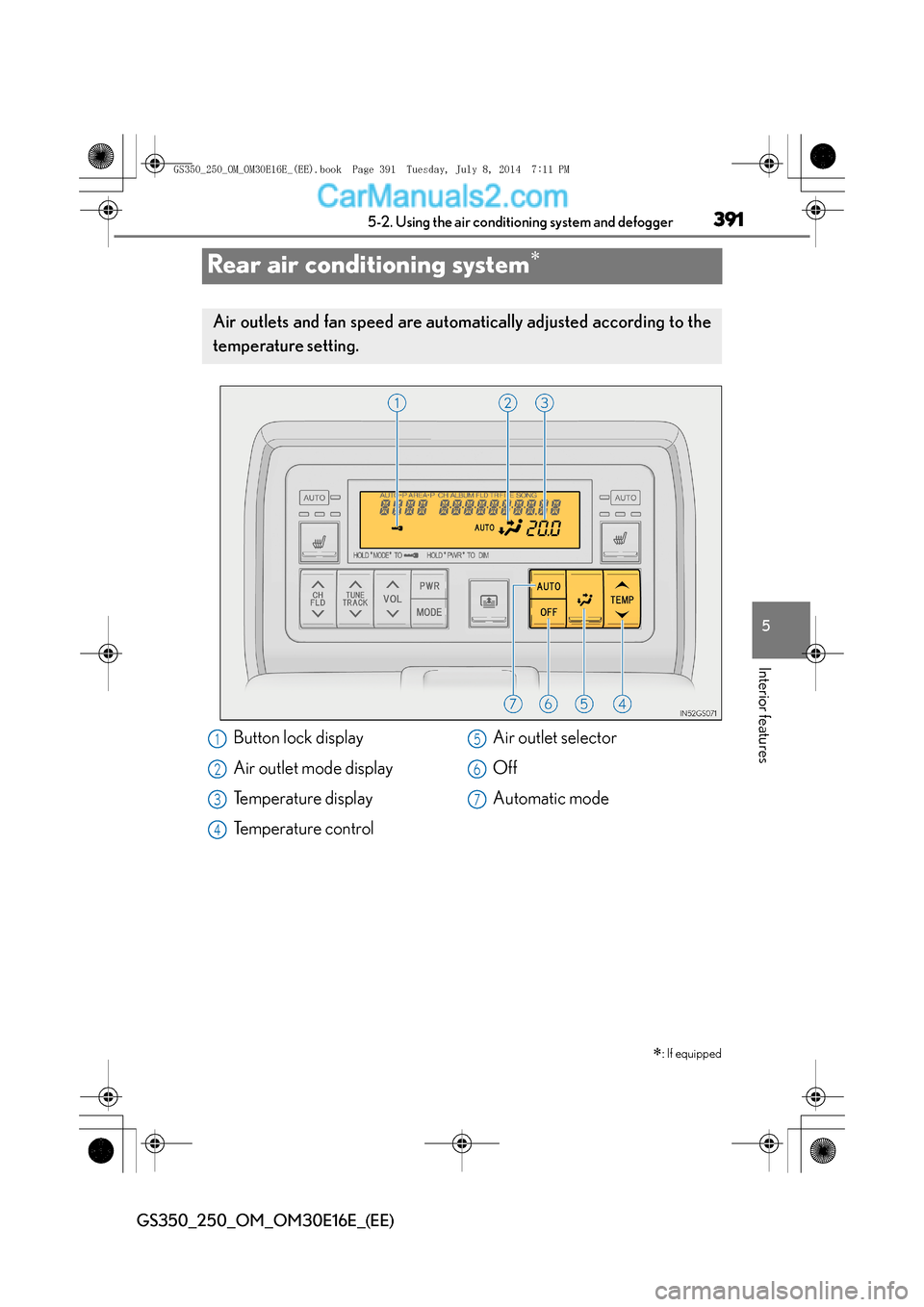

Rear air conditioning system∗
∗: If equipped
Air outlets and fan speed are automatically adjusted according to the
temperature setting.
Button lock display
Air outlet mode display
Temperature display
Temperature control
Air outlet selector
Off
Automatic mode1
2
3
4
5
6
7
GS350_250_OM_OM30E16E_(EE).book Page 391 Tuesday, July 8, 201
4 7:11 PM

3925-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)
Press .
The air conditioning system will operate, and air outlets and fan speed will be
adjusted automatically.
“AUTO” will be displayed on the control panel.
Press “∧” on to increase the temperature and “ ∨” to decrease
the temperature.
When the rear seat heaters are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tem-
perature, etc.
■Adjusting the temperature setting
Press “ ∧” on to increase the temperature and “ ∨” to decrease
the temperature.
Using automatic air conditioning system
Adjusting the settings manually
1
2
GS350_250_OM_OM30E16E_(EE).book Page 392 Tuesday, July 8, 201 4 7:11 PM

3935-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)

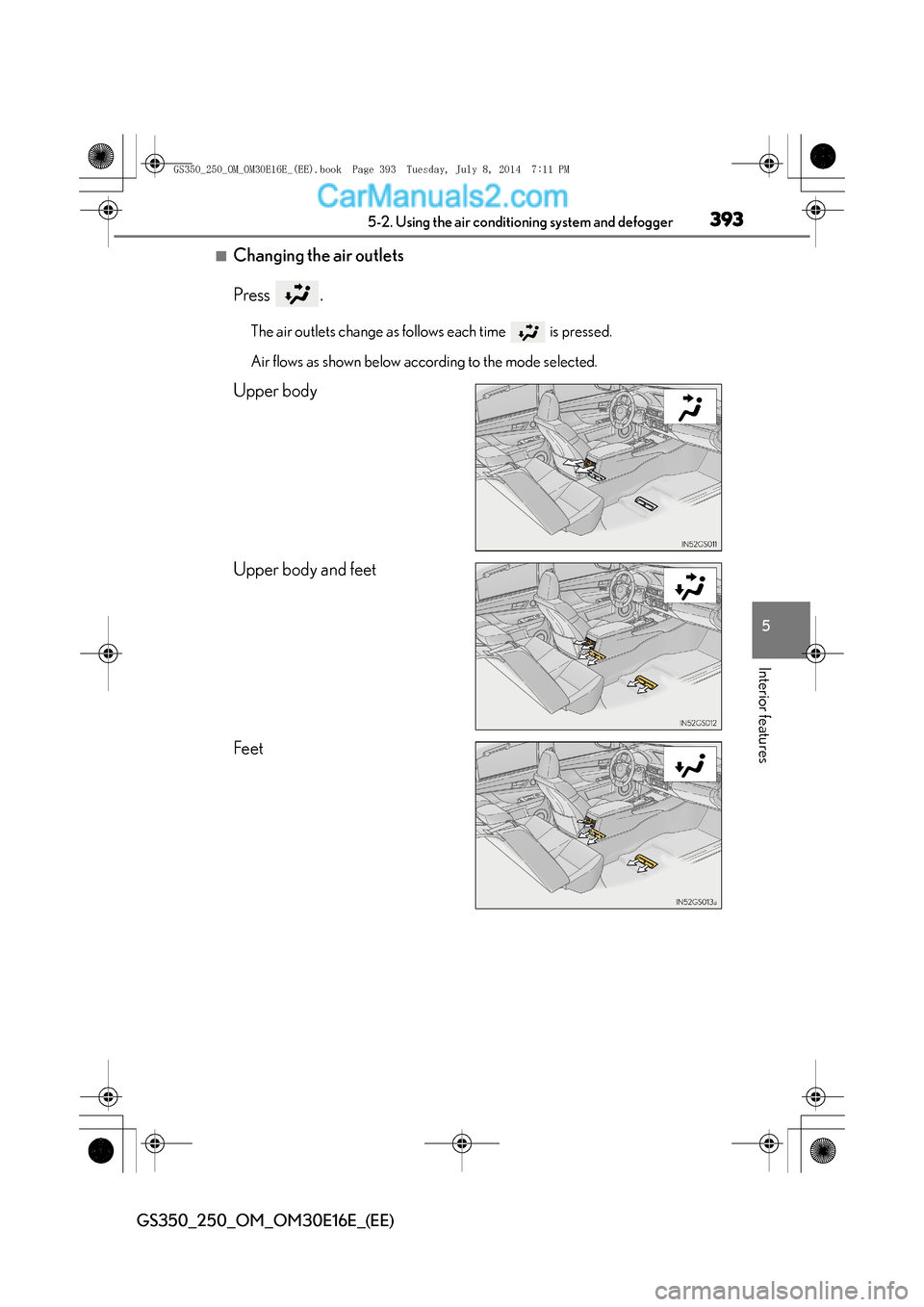

■Changing the air outlets
Press .
The air outlets change as follows each time is pressed.
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet
Feet
GS350_250_OM_OM30E16E_(EE).book Page 393 Tuesday, July 8, 2014 7:11 PM

3945-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)
Direct air flow to the left or right,
up or down.
Turn the knob to open or close
the vent.

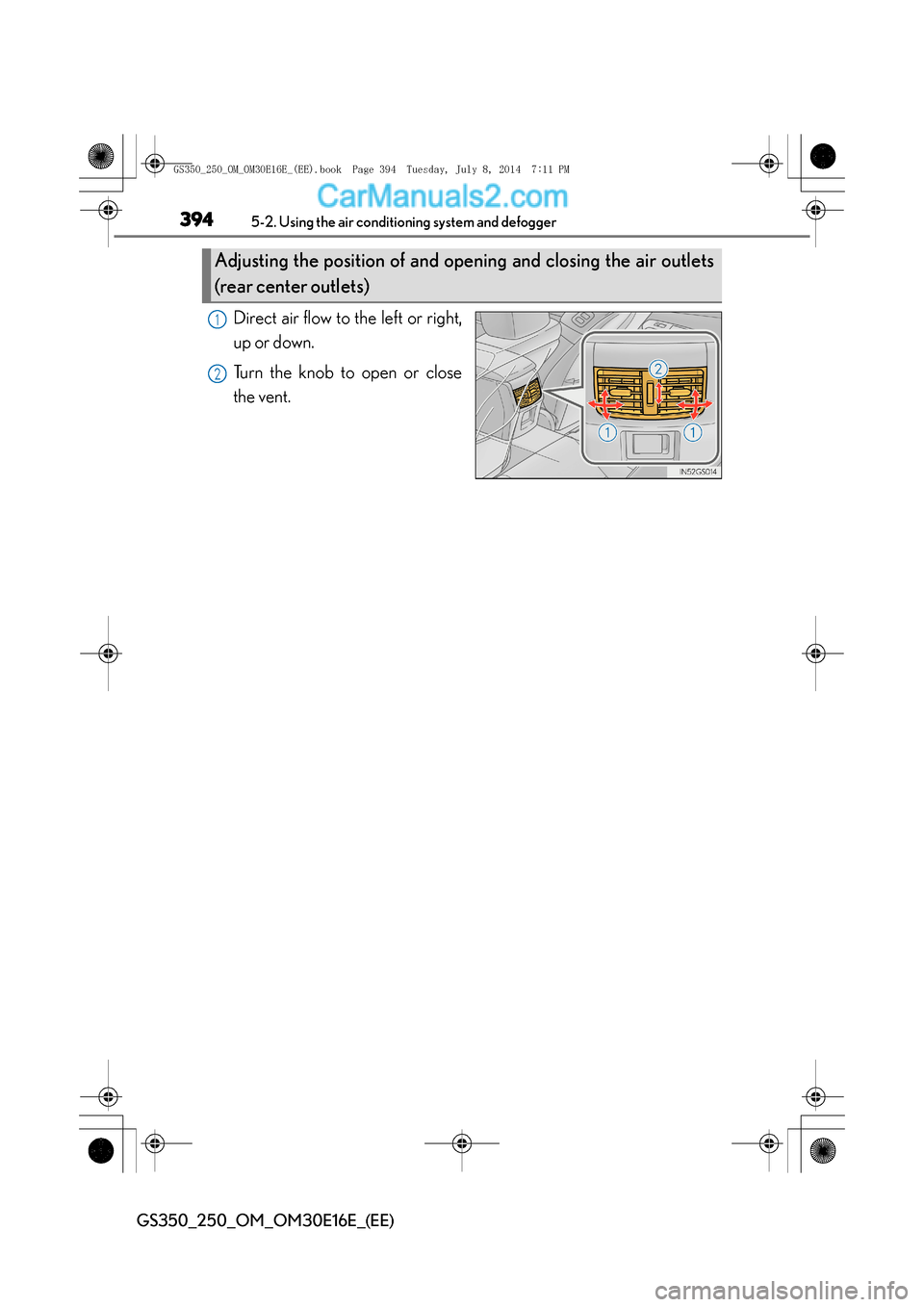

Adjusting the position of and opening and closing the air outlets
(rear center outlets)
1
2
GS350_250_OM_OM30E16E_(EE).book Page 394 Tuesday, July 8, 201 4 7:11 PM

3955-2. Using the air conditioning system and defogger
5
Interior features
GS350_250_OM_OM30E16E_(EE)

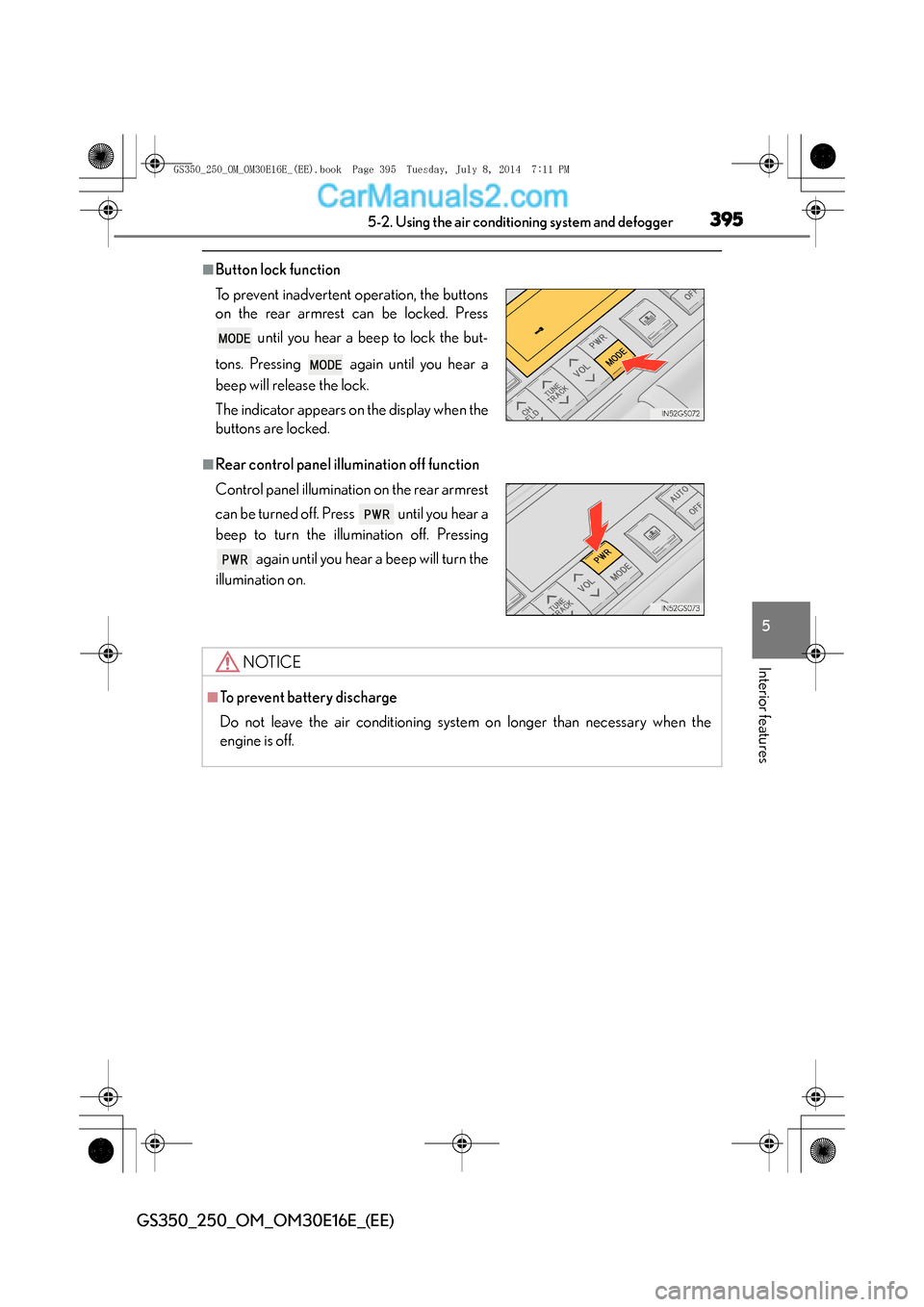

■Button lock function
■Rear control panel illumination off function To prevent inadvertent operation, the buttons
on the rear armrest can be locked. Press until you hear a beep to lock the but-
tons. Pressing again until you hear a
beep will release the lock.
The indicator appears on the display when the
buttons are locked.
Control panel illumination on the rear armrest
can be turned off. Press until you hear a
beep to turn the illumination off. Pressing again until you hear a beep will turn the
illumination on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
GS350_250_OM_OM30E16E_(EE).book Page 395 Tuesday, July 8, 201 4 7:11 PM

3965-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

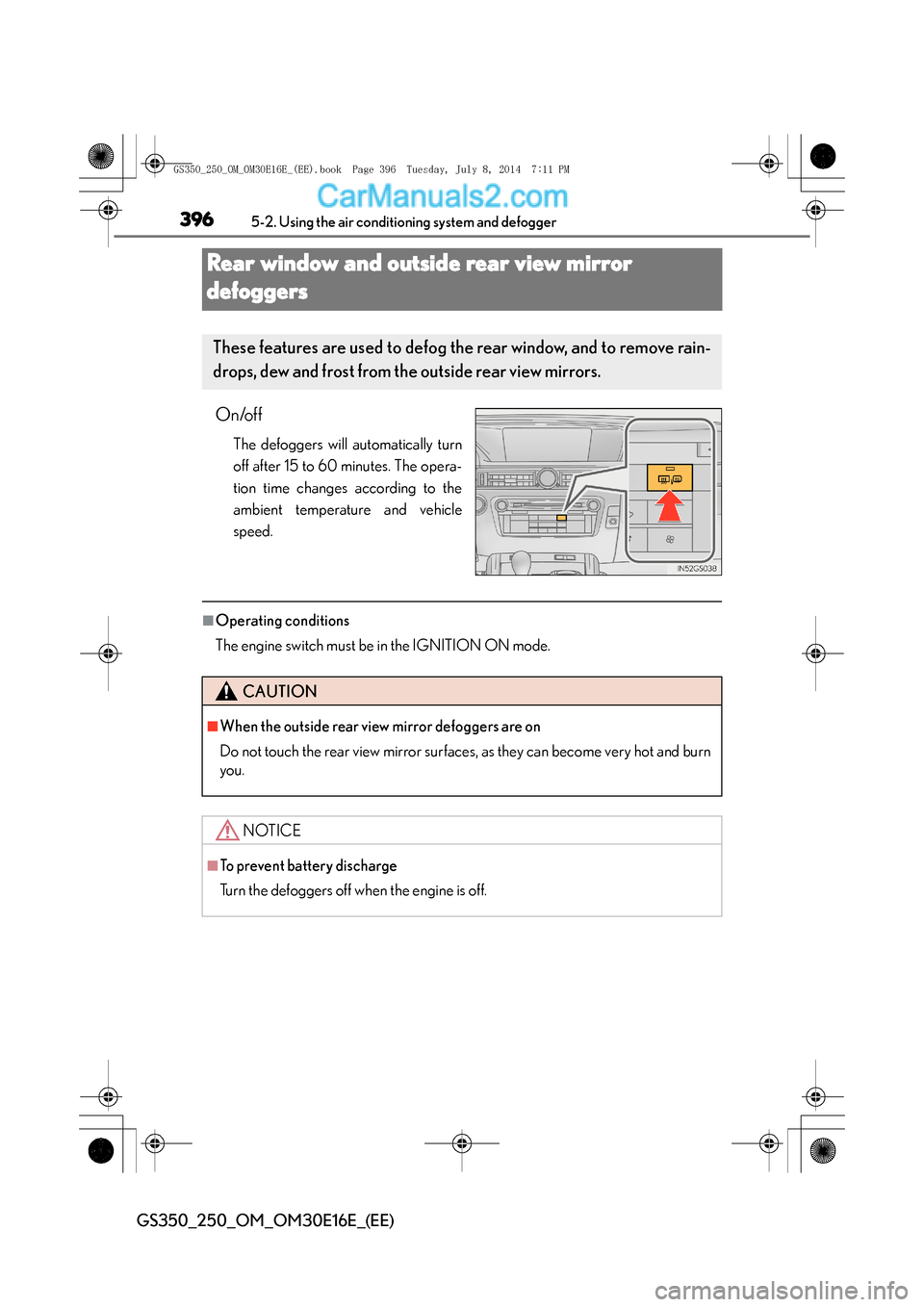

Rear window and outside rear view mirror
defoggers
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
These features are used to defog th e rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.
GS350_250_OM_OM30E16E_(EE).book Page 396 Tuesday, July 8, 201 4 7:11 PM

397
5
5-2. Using the air conditioning system and defogger
Interior features
GS350_250_OM_OM30E16E_(EE)

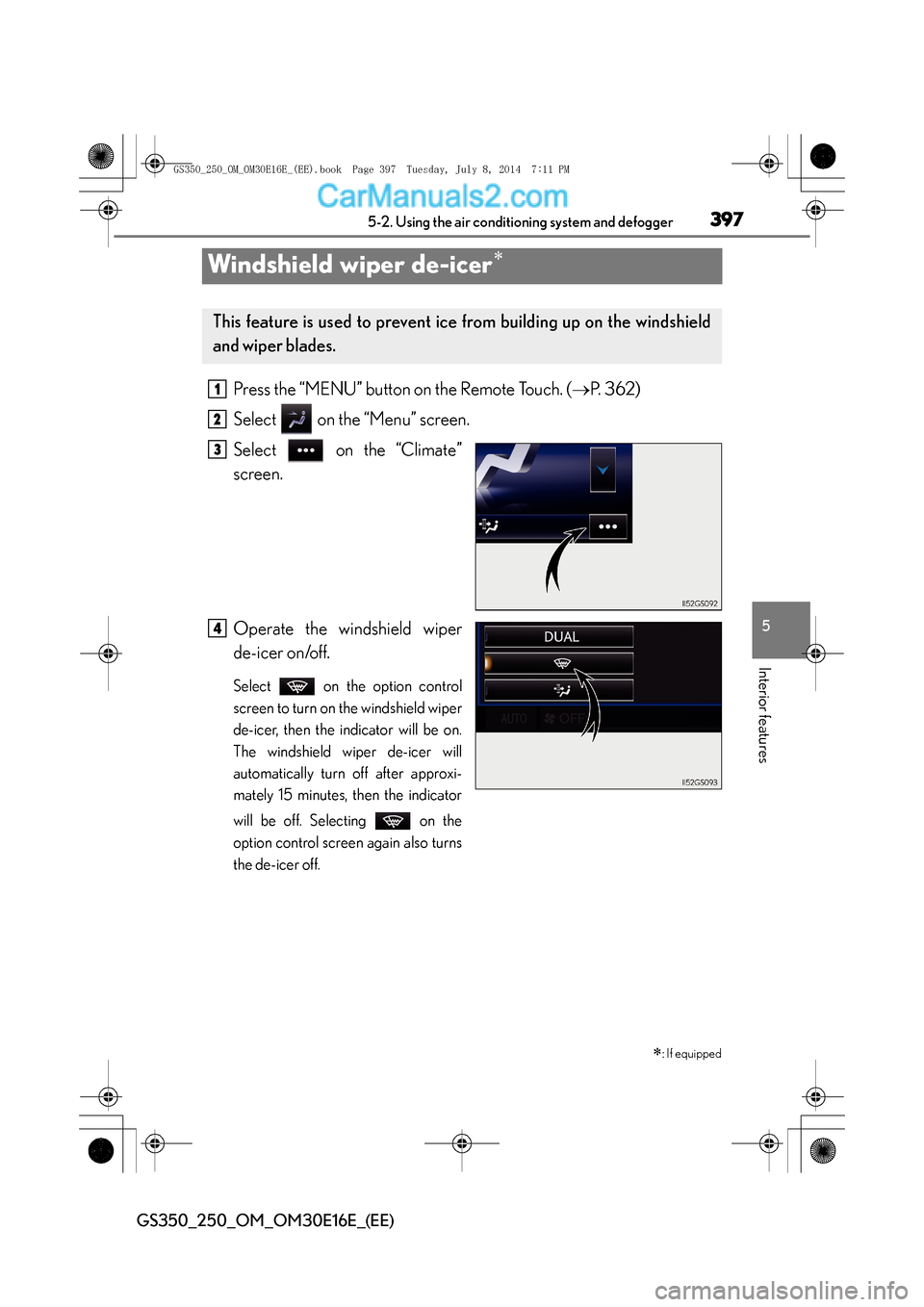

Windshield wiper de-icer∗
Press the “MENU” button on the Remote Touch. (
→P. 362)
Select on the “Menu” screen.
Select on the “Climate”
screen.
Operate the windshield wiper
de-icer on/off.
Select on the option control
screen to turn on the windshield wiper
de-icer, then the indicator will be on.
The windshield wiper de-icer will
automatically turn off after approxi-
mately 15 minutes, then the indicator
will be off. Selecting on the
option control screen again also turns
the de-icer off.
∗: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2
3
4
GS350_250_OM_OM30E16E_(EE).book Page 397 Tuesday, July 8, 201 4 7:11 PM

3985-2. Using the air conditioning system and defogger
GS350_250_OM_OM30E16E_(EE)

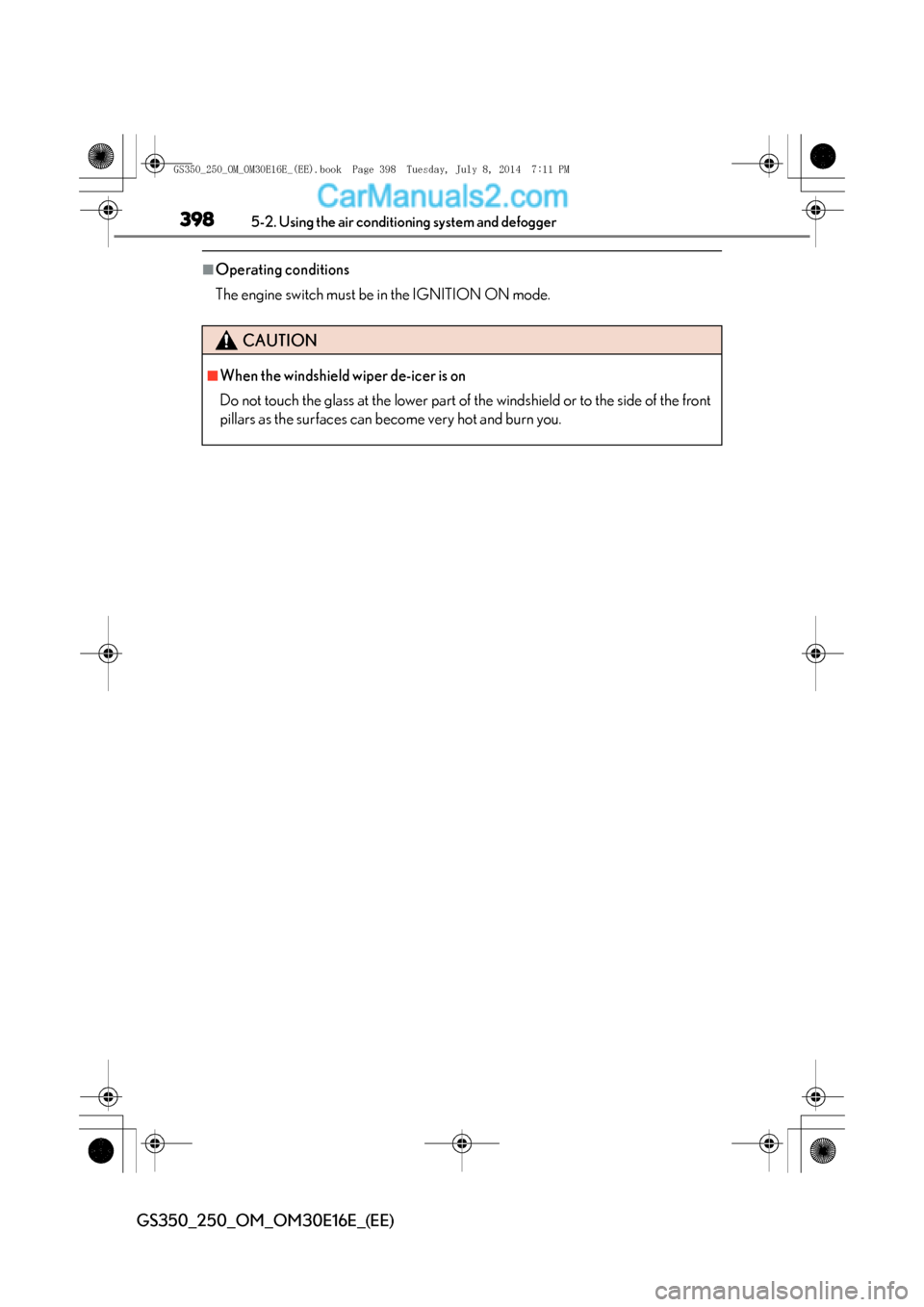

■Operating conditions
The engine switch must be in the IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.
GS350_250_OM_OM30E16E_(EE).book Page 398 Tuesday, July 8, 201 4 7:11 PM

399
5
5-3. Using the interior lights
Interior features
GS350_250_OM_OM30E16E_(EE)

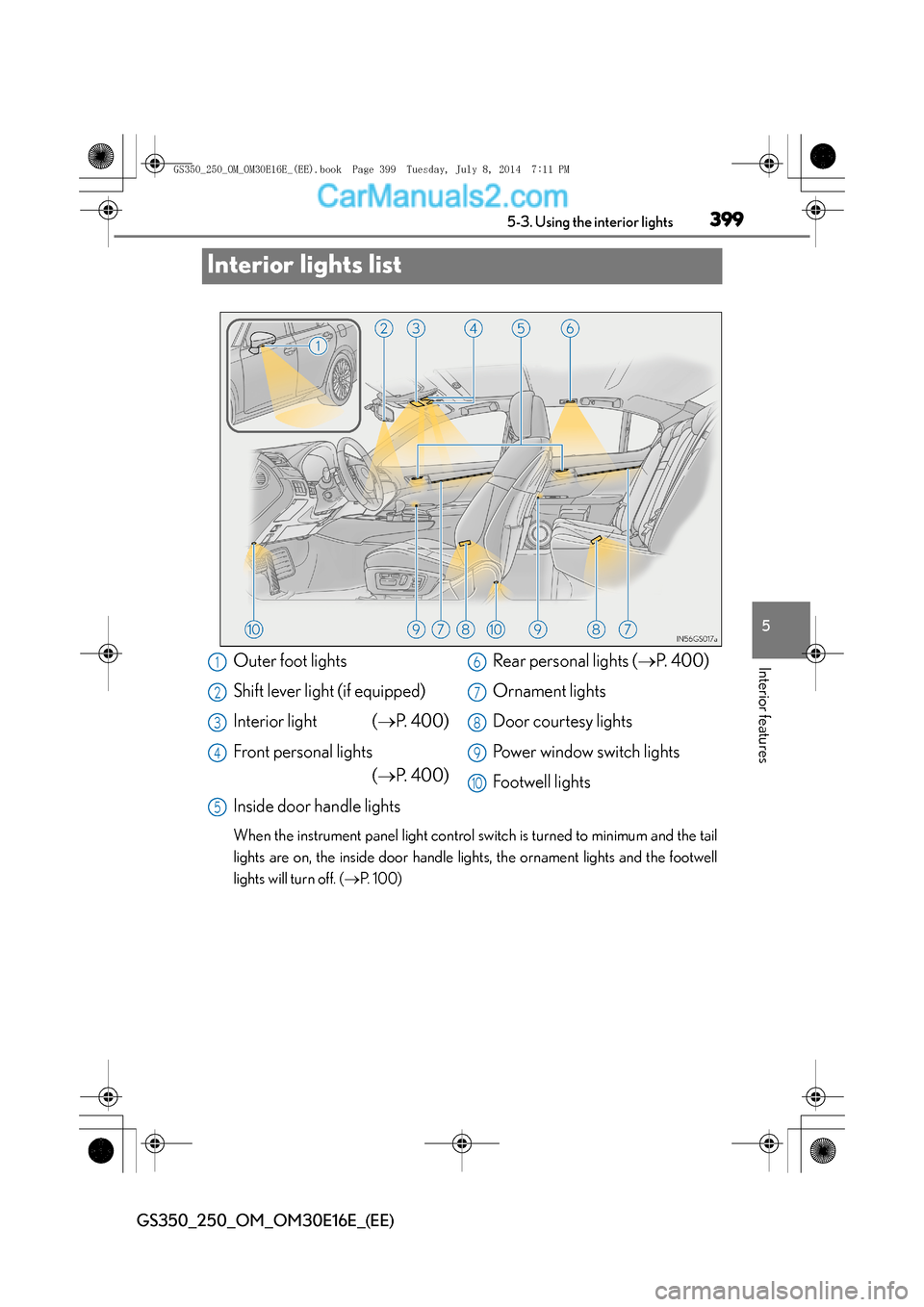

Interior lights list
When the instrument panel light control sw
itch is turned to minimum and the tail
lights are on, the inside door handle ligh ts, the ornament lights and the footwell
lights will turn off. ( →P. 100)
Outer foot lights
Shift lever light (if equipped)
Interior light ( →P. 4 0 0 )
Front personal lights (→ P. 4 0 0 )
Inside door handle lights Rear personal lights (
→P. 4 0 0 )
Ornament lights
Door courtesy lights
Power window switch lights
Footwell lights1
2
3
4
5
6
7
8
9
10
GS350_250_OM_OM30E16E_(EE).book Page 399 Tuesday, July 8, 201 4 7:11 PM

4005-3. Using the interior lights
GS350_250_OM_OM30E16E_(EE)
Turns the light on/off
The rear personal lights are also
turned on/off by the interior light
operation. However, if the interior light
is turned off after being turned on
while the rear personal lights are
turned on, the rear personal lights will
not turn off simultaneously.
Turns the door position on
■Front
Turns the light on/off
■Rear
Turns the light on/off
If the lights are turned on by interior
light operation, the lights cannot
turn off by pressing the switch.
Interior light
1
2
Pe rs o n a l l i g h t s
GS350_250_OM_OM30E16E_(EE).book Page 400 Tuesday, July 8, 2014 7:11 PM
