Page 2 of 688
TABLE OF CONTENTS2
GS350_250_OM_OM30E16E_(EE)
For your information ...................................8
Reading this manual .................................. 12
How to search.............................................. 13
Pictorial index .............................................. 14
1-1. For safe useBefore driving .................................34
For safety drive ............................... 36
Seat belts ..........................................38
SRS airbags ..................................... 44
Airbag manual on-off system .............................................56
Safety information for children................................... 58
Child restraint systems................ 59
Installing child restraints ............. 70
Exhaust gas precautions ............ 79
1-2. Theft deterrent system Engine immobilizer system ...... 80
Double locking system............... 85
Alarm .................................................86 2. Instrument cluster
Warning lights and indicators .............................. 94
Gauges and meters ..................... 99
Multi-information display......... 102
Head-up display ........................... 110
Fuel consumption information.................................... 117
3-1. Key information Keys................................................... 122
3-2. Opening, closing and locking the doors and trunk
Smart entry & start system .......127
Wireless remote control .......... 155
Doors ................................................. 171
Trunk ..................................................175
3-3. Adjusting the seats Front seats ...................................... 182
Driving position memory ......... 186
Head restraints............................. 192
1For safety and security
2Instrument cluster
3Operation of each
component
GS350_250_OM_OM30E16E_(EE).book Page 2 Tuesday, July 8, 2014 7:11 PM
Page 9 of 688
9
GS350_250_OM_OM30E16E_(EE)
The installation of an RF-transmitter system in your vehicle could affect electronic
systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Dynamic radar cruise control system
●Cruise control system
●Anti-lock brake system
●Vehicle dynamics integrated management
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional for precautionary measures or special instructions
regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna positions and
installation provisions for the installation of RF-transmitters, is available on request at
any authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Installation of an RF-transmitter system
GS350_250_OM_OM30E16E_(EE).book Page 9 Tuesday, July 8, 2014 7:11 PM
Page 10 of 688
10
GS350_250_OM_OM30E16E_(EE)
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional before you scrap your vehicle.
Scrapping of your Lexus
Your vehicle contains batteries and/or accumulators. Do not discard them into
the environment but cooperate with separate collection
(Directive 2006/66/EC).
GS350_250_OM_OM30E16E_(EE).book Page 10 Tuesday, July 8, 2014 7:11 PM
Page 22 of 688

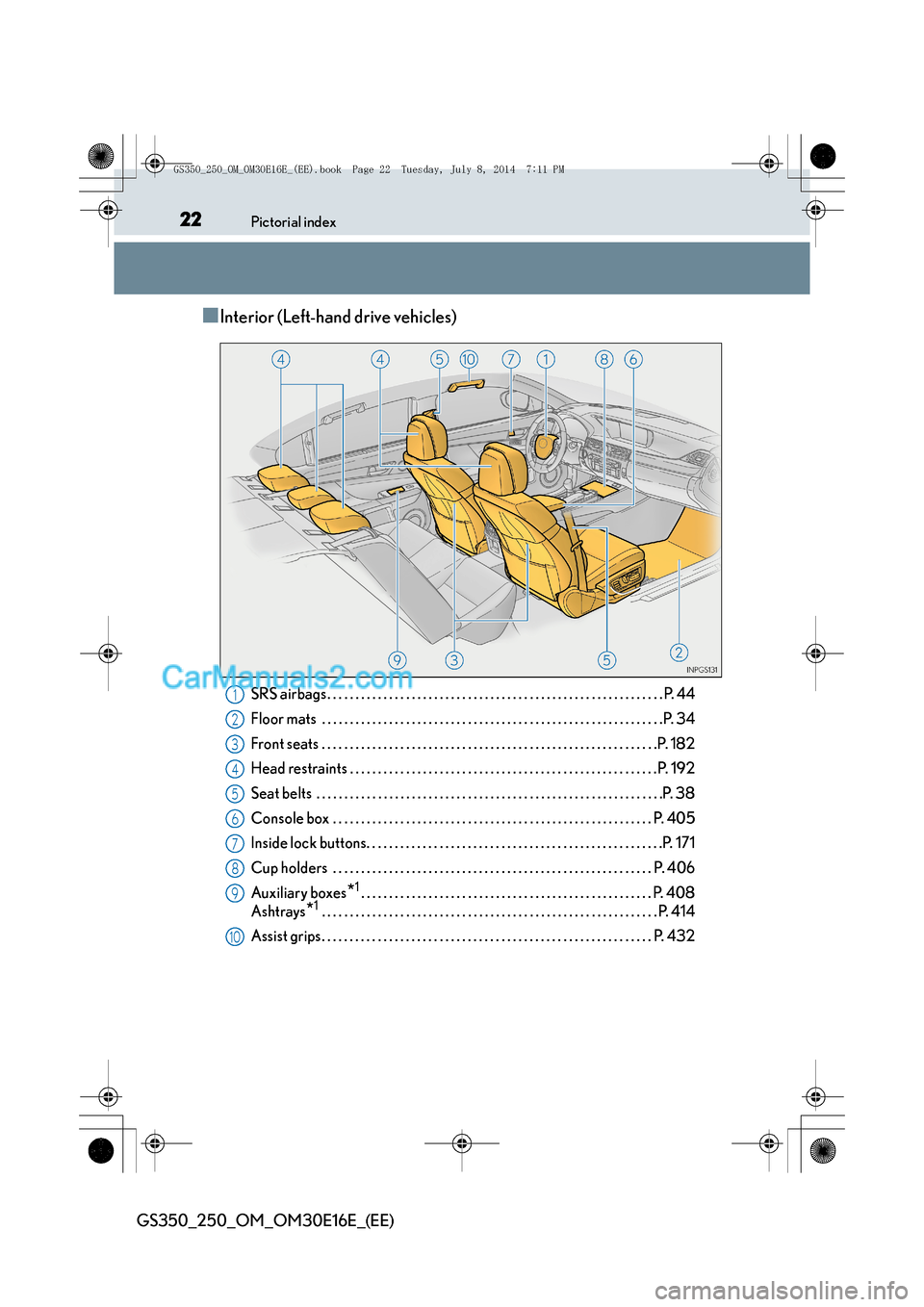

22Pictorial index
GS350_250_OM_OM30E16E_(EE)
■Interior (Left-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 44
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 34
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 182
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 38
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 171
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 406
Auxiliary boxes
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Ashtrays
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
1
2
3
4
5
6
7
8
9
10
GS350_250_OM_OM30E16E_(EE).book Page 22 Tuesday, July 8, 2014 7:11 PM
Page 30 of 688

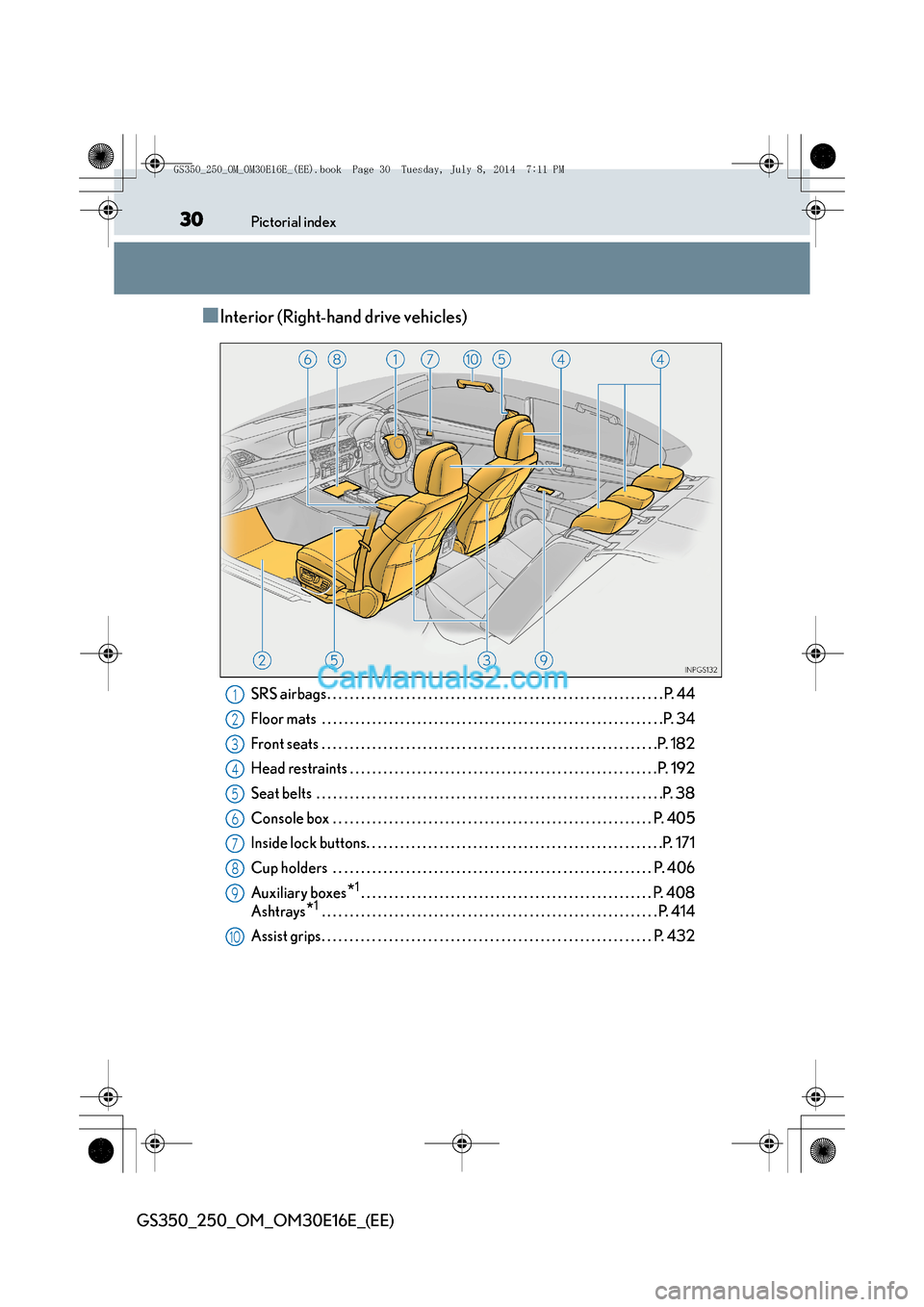

30Pictorial index
GS350_250_OM_OM30E16E_(EE)
■Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 44
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 34
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 182
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 38
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 405
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 171
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 406
Auxiliary boxes
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Ashtrays
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 414
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
1
2
3
4
5
6
7
8
9
10
GS350_250_OM_OM30E16E_(EE).book Page 30 Tuesday, July 8, 2014 7:11 PM
Page 33 of 688
33
1For safety and security
GS350_250_OM_OM30E16E_(EE)
1-1. For safe useBefore driving................................. 34
For safety drive............................... 36
Seat belts .......................................... 38
SRS airbags ..................................... 44
Airbag manual on-off system ............................................. 56
Safety information for children ...................................58
Child restraint systems ............... 59
Installing child restraints ............. 70
Exhaust gas precautions ............ 79
1-2. Theft deterrent system Engine immobilizer system .......80
Double locking system ...............85
Alarm ................................................. 86
GS350_250_OM_OM30E16E_(EE).book Page 33 Tuesday, July 8, 2014 7:11 PM
Page 36 of 688
361-1. For safe use
GS350_250_OM_OM30E16E_(EE)
For safety drive
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. (→P. 182)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at the
elbow when gripping the steering
wheel. ( →P. 182)
Lock the head restraint in place
with the center of the head
restraint closest to the top of your
ears. ( →P. 1 9 2 )
Wear the seat belt correctly.
( → P. 38)
Make sure that all occupants are wearing their seat belts before driving
the vehicle. ( →P. 38)
Use a child restraint system approp riate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt. ( →P. 5 9 )
For safe driving, adjust the seat and mirror to an appropriate position
before driving.
Correct driving posture
1
2
3
4
Correct use of the seat belts
GS350_250_OM_OM30E16E_(EE).book Page 36 Tuesday, July 8, 2014 7:11 PM
Page 37 of 688
371-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Make sure that you can see backward clearly by adjusting the inside and
outside rear view mirrors properly. (→P. 196, 199)
Adjusting the mirrors
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident and the adjust-
ment mechanism may also be damaged.
●When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue
driving and take a break immediately.
GS350_250_OM_OM30E16E_(EE).book Page 37 Tuesday, July 8, 2014 7:11 PM

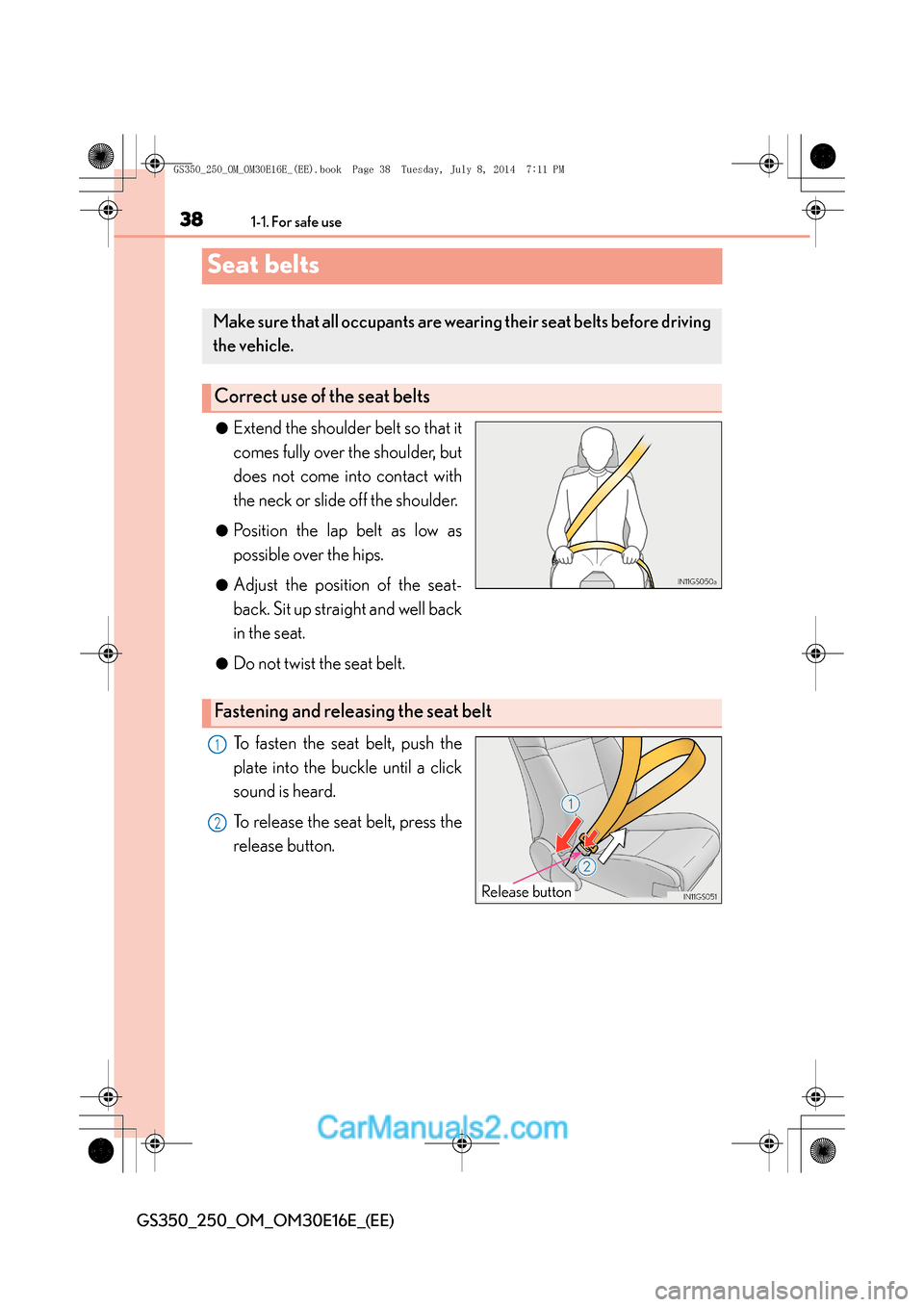

Page 38 of 688
381-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Seat belts
●Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with
the neck or slide off the shoulder.
●Position the lap belt as low as
possible over the hips.
●Adjust the position of the seat-
back. Sit up straight and well back
in the seat.
●Do not twist the seat belt.
To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
To release the seat belt, press the
release button.
Make sure that all occupants are wearing their seat belts before driving
the vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button
1
2
GS350_250_OM_OM30E16E_(EE).book Page 38 Tuesday, July 8, 2014 7:11 PM

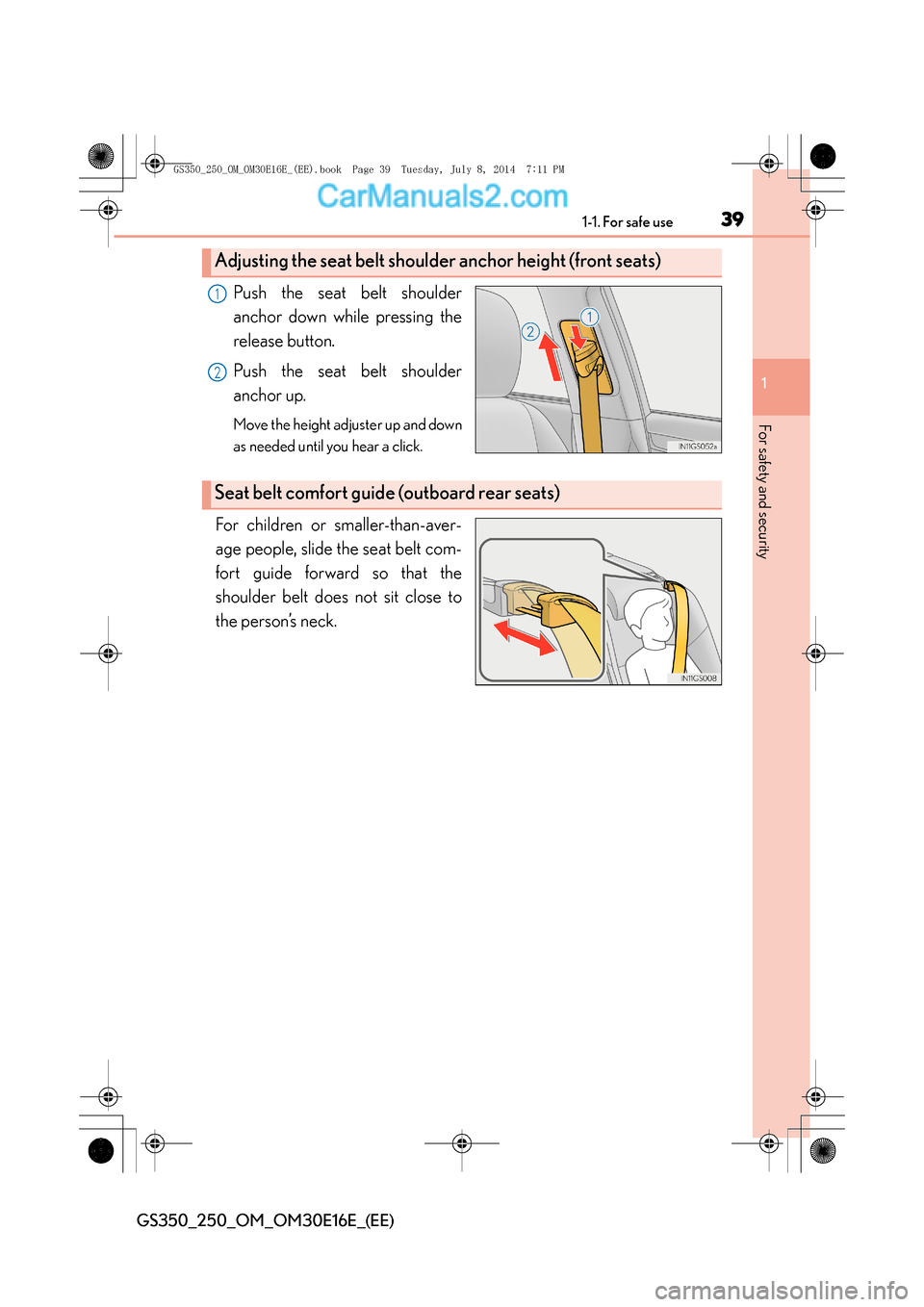

Page 39 of 688
391-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Push the seat belt shoulder
anchor down while pressing the
release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up and down
as needed until you hear a click.
For children or smaller-than-aver-
age people, slide the seat belt com-
fort guide forward so that the
shoulder belt does not sit close to
the person’s neck.
Adjusting the seat belt shoulder anchor height (front seats)
1
2
Seat belt comfort guide (outboard rear seats)
GS350_250_OM_OM30E16E_(EE).book Page 39 Tuesday, July 8, 2014 7:11 PM
