Lexus GS300 1999 Comfort Adjustment

COMFORT ADJUSTMENT
190
16G061a

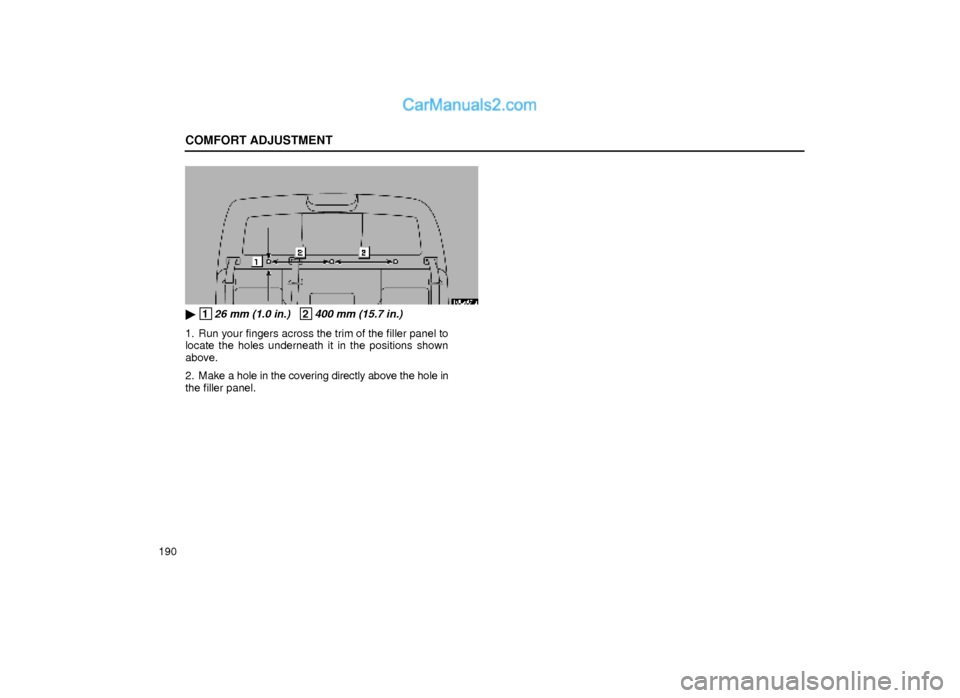

126 mm (1.0 in.) 2400 mm (15.7 in.)
1. Run your fingers across the trim of the filler panel to
locate the holes underneath it in the positions shown
above.
2. Make a hole in the covering directly above the hole in
the filler panel.

COMFORT ADJUSTMENT
191
16G062

1Bolt 2Anchor bracket 3Spacer
3. Insert a 15 mm (0.6 in.) spacer, and tighten down the
anchor bracket for your child restraint system with a bolt.
Torque the bolt to 16.5 ± 24.7 N´m (1.68 ±2.52 kgf´m,
12.2 ± 18.2 ft´lbf.).
To comply with Canadian Motor Vehicle Safety
Standards, this model sold in Canada is provided with a
bracket set in the glove box, designed for use with any
of the 3 anchor locations shown in the illustration.
DRIVING POSITION MEMORY
SYSTEM
The micro computer can memorize the position of the
driver's seat, and the positions of the tilt and telescopic
steering, and outside rear view mirrors. Two different
driving position profiles can be entered into the
computer's memory.
Recording a driving position in the computer's memory
can only be done when the ignition key is in the ºONº
position and the selector lever is in the ºPº position.
Setting a driving position
16G064a

COMFORT ADJUSTMENT

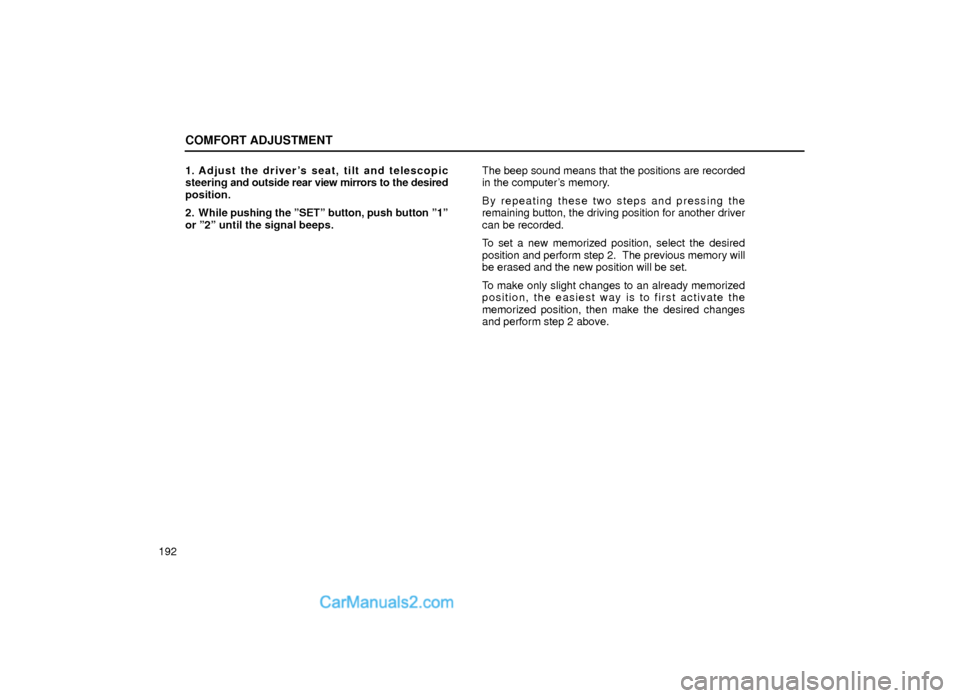

1921. Adjust the driver's seat, tilt and telescopic
steering and outside rear view mirrors to the desired
position.
2. While pushing the ºSETº button, push button º1º
or º2º until the signal beeps.The beep sound means that the positions are recorded
in the computer's memory.
By repeating these two steps and pressing the
remaining button, the driving position for another driver
can be recorded.
To set a new memorized position, select the desired
position and perform step 2. The previous memory will
be erased and the new position will be set.
To make only slight changes to an already memorized
position, the easiest way is to first activate the
memorized position, then make the desired changes
and perform step 2 above.

COMFORT ADJUSTMENT
193

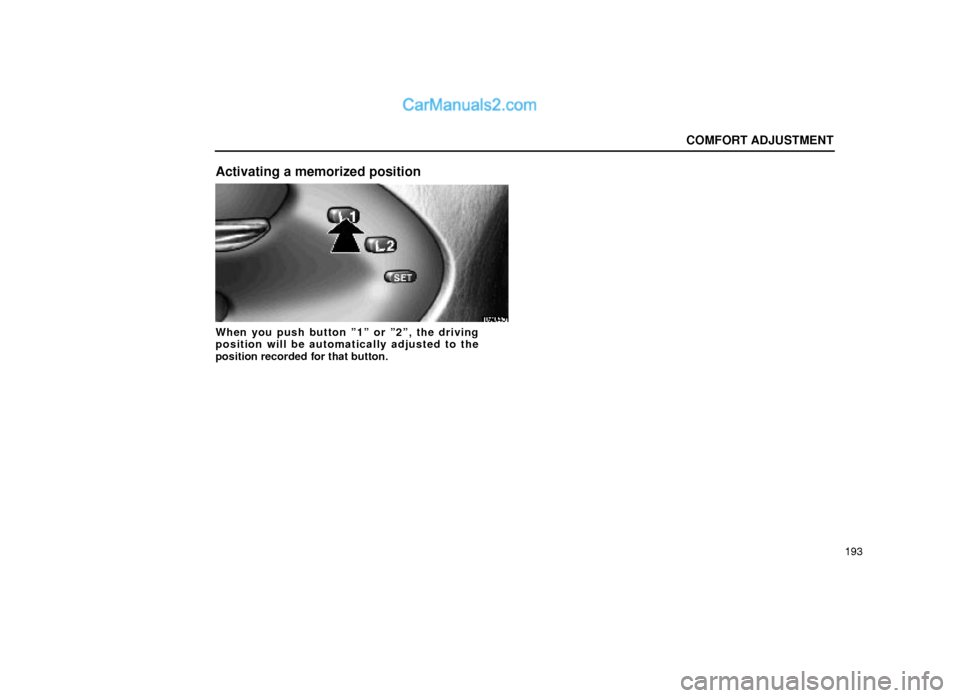

Activating a memorized position
16G065a
When you push button º1º or º2º, the driving
position will be automatically adjusted to the
position recorded for that button.

COMFORT ADJUSTMENT

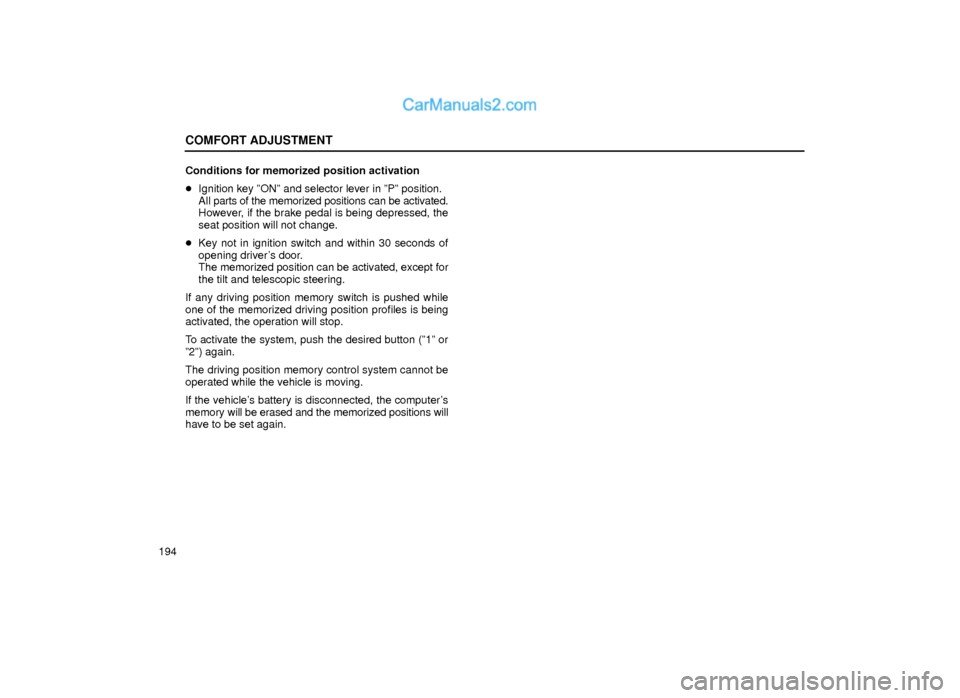

194Conditions for memorized position activation
Ignition key ºONº and selector lever in ºPº position.
All parts of the memorized positions can be activated.
However, if the brake pedal is being depressed, the
seat position will not change.
Key not in ignition switch and within 30 seconds of
opening driver's door.
The memorized position can be activated, except for
the tilt and telescopic steering.
If any driving position memory switch is pushed while
one of the memorized driving position profiles is being
activated, the operation will stop.
To activate the system, push the desired button (º1º or
º2º) again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will
have to be set again.

COMFORT ADJUSTMENT
195

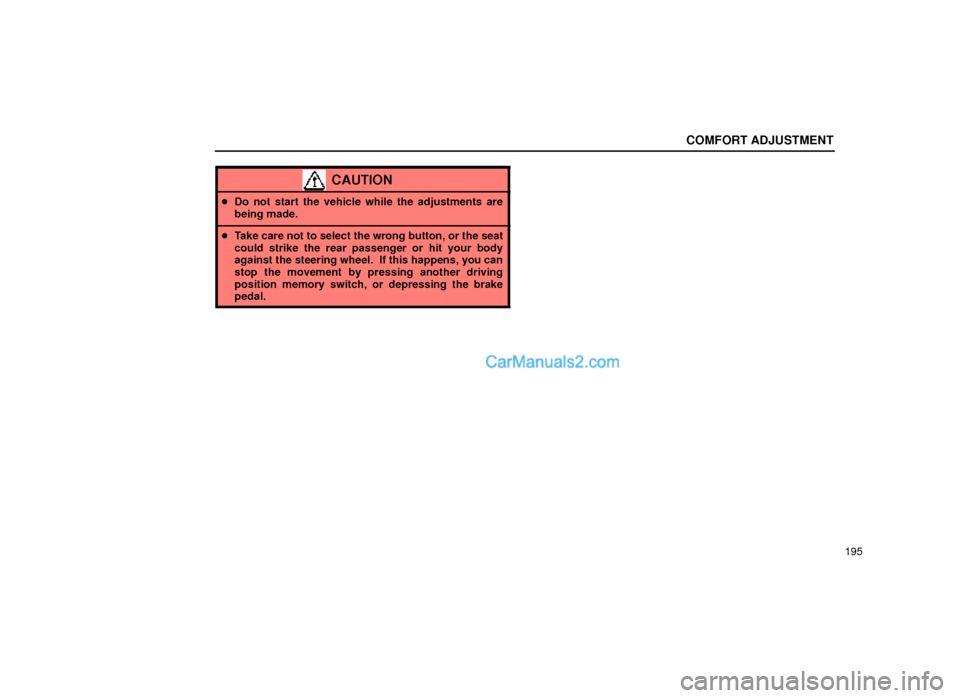

CAUTION
Do not start the vehicle while the adjustments are
being made.
Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch, or depressing the brake
pedal.

COMFORT ADJUSTMENT
