Lexus GS300 1999 Comfort Adjustment

COMFORT ADJUSTMENT
180
16G059±2

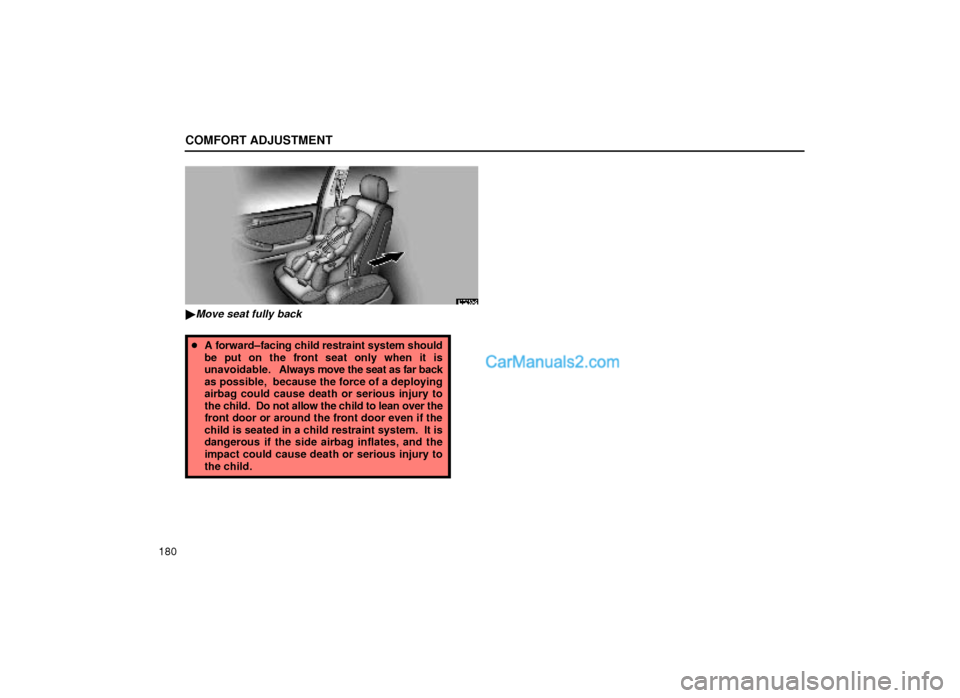

Move seat fully back
A forward±facing child restraint system should
be put on the front seat only when it is
unavoidable. Always move the seat as far back
as possible, because the force of a deploying
airbag could cause death or serious injury to
the child. Do not allow the child to lean over the
front door or around the front door even if the
child is seated in a child restraint system. It is
dangerous if the side airbag inflates, and the
impact could cause death or serious injury to
the child.

COMFORT ADJUSTMENT
181
16G046

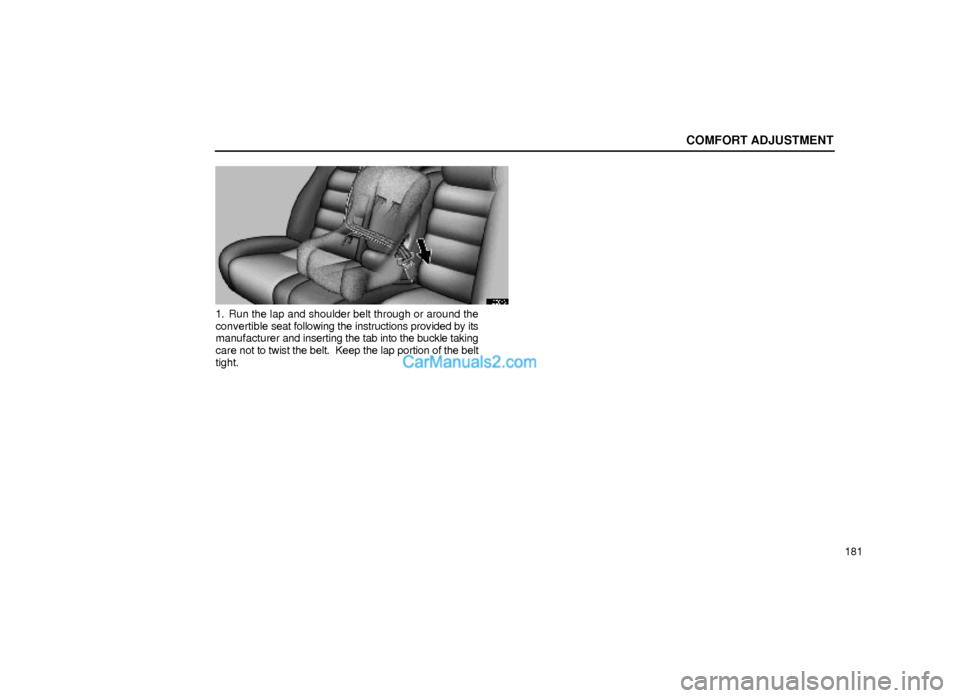

1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and inserting the tab into the buckle taking
care not to twist the belt. Keep the lap portion of the belt
tight.

COMFORT ADJUSTMENT
182

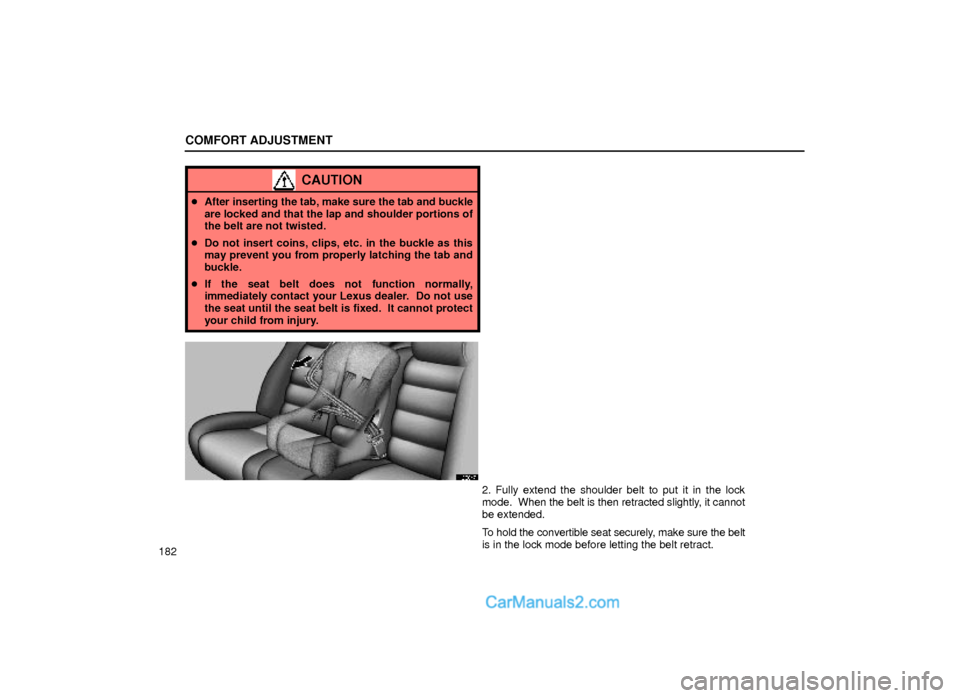

CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
your child from injury.
16G047
2. Fully extend the shoulder belt to put it in the lock
mode. When the belt is then retracted slightly, it cannot
be extended.
To hold the convertible seat securely, make sure the belt
is in the lock mode before letting the belt retract.

COMFORT ADJUSTMENT
183
16G048

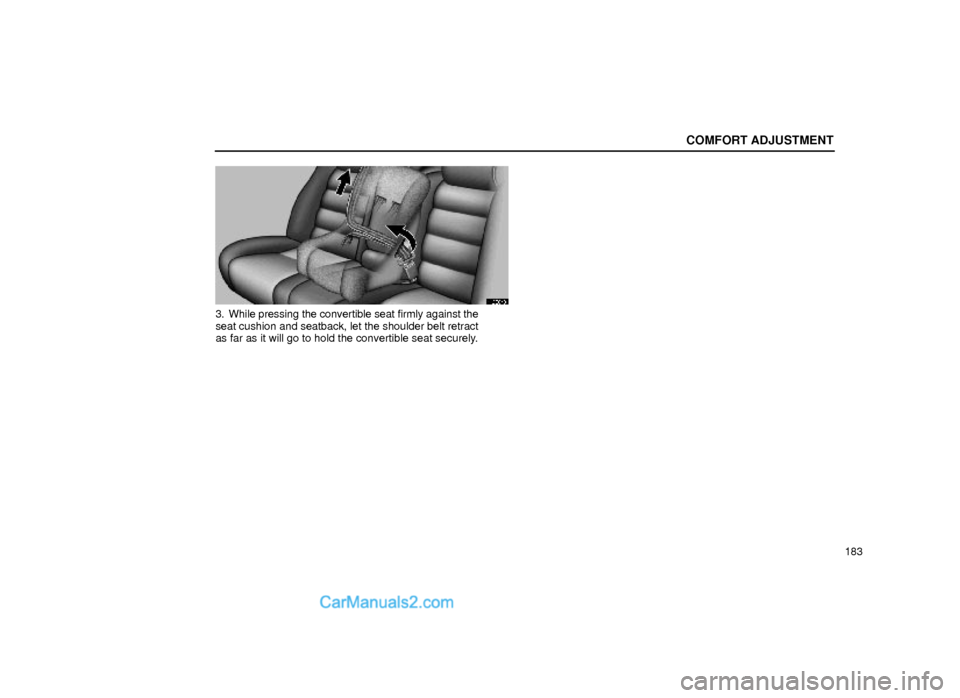

3. While pressing the convertible seat firmly against the
seat cushion and seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.

COMFORT ADJUSTMENT
184
16G049

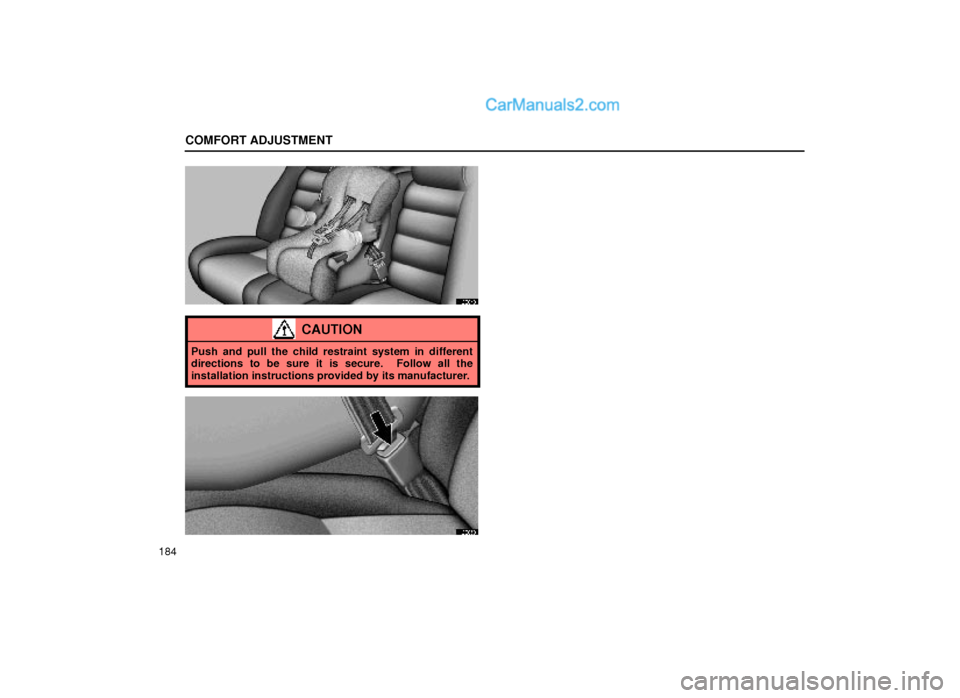

CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
16G050

COMFORT ADJUSTMENT

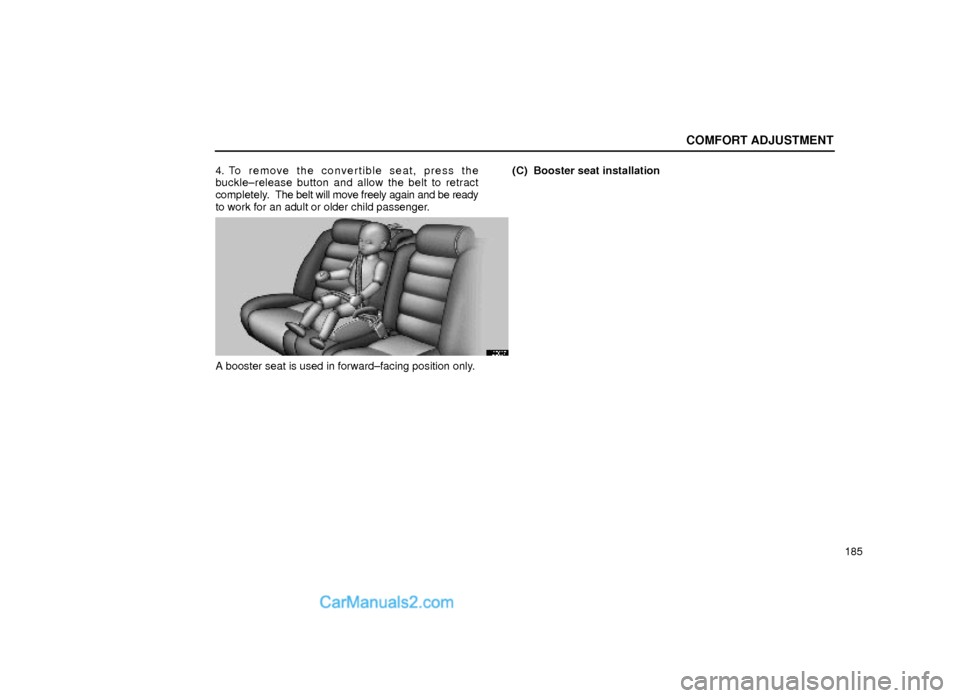

185 4. To remove the convertible seat, press the
buckle±release button and allow the belt to retract
completely. The belt will move freely again and be ready
to work for an adult or older child passenger.(C) Booster seat installation
16G037
A booster seat is used in forward±facing position only.

COMFORT ADJUSTMENT
186
16G052

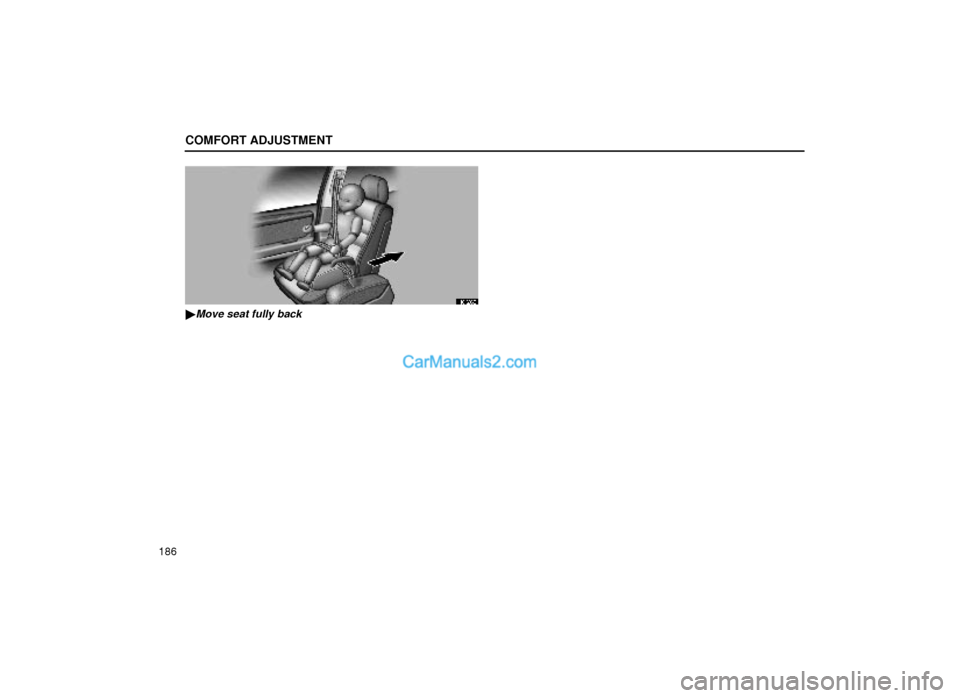

Move seat fully back

COMFORT ADJUSTMENT
187

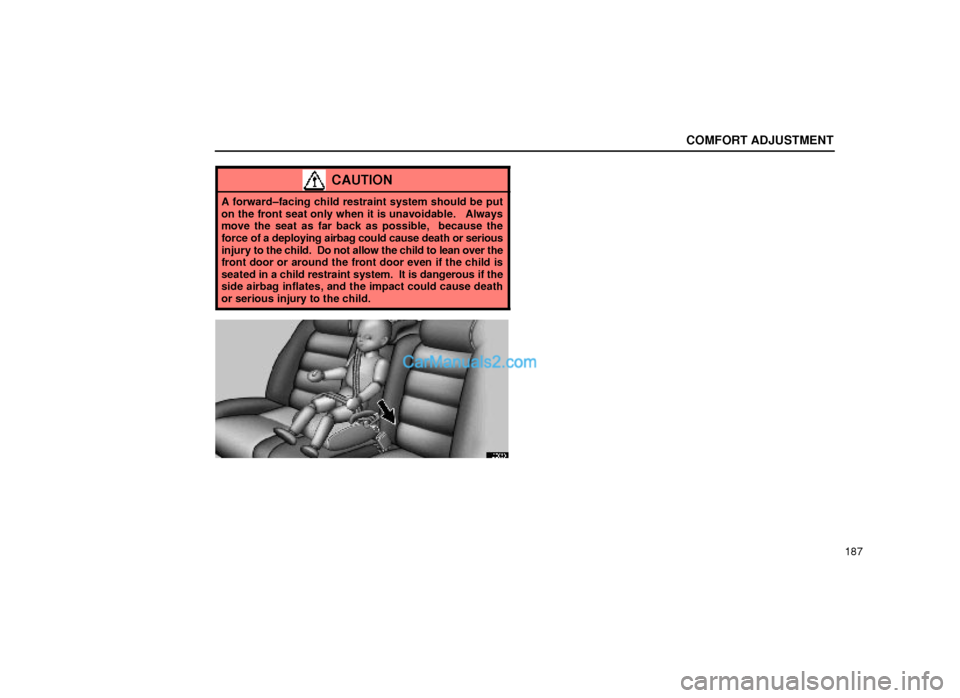

CAUTION
A forward±facing child restraint system should be put
on the front seat only when it is unavoidable. Always
move the seat as far back as possible, because the
force of a deploying airbag could cause death or serious
injury to the child. Do not allow the child to lean over the
front door or around the front door even if the child is
seated in a child restraint system. It is dangerous if the
side airbag inflates, and the impact could cause death
or serious injury to the child.
16G053

COMFORT ADJUSTMENT

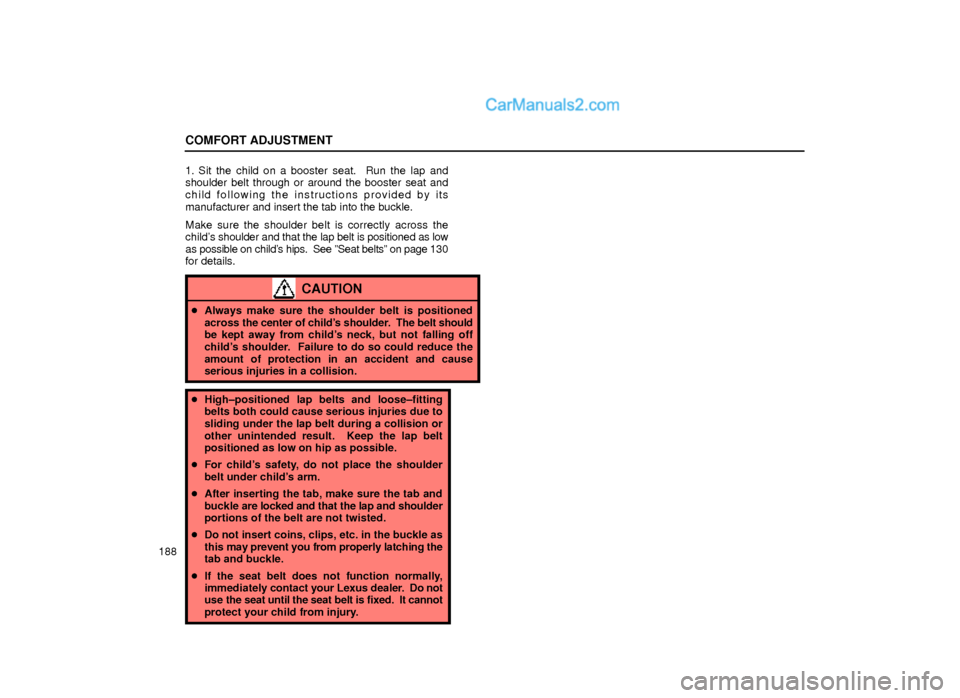

1881. Sit the child on a booster seat. Run the lap and
shoulder belt through or around the booster seat and
child following the instructions provided by its
manufacturer and insert the tab into the buckle.
Make sure the shoulder belt is correctly across the
child's shoulder and that the lap belt is positioned as low
as possible on child's hips. See ºSeat beltsº on page 130
for details.
CAUTION
Always make sure the shoulder belt is positioned
across the center of child's shoulder. The belt should
be kept away from child's neck, but not falling off
child's shoulder. Failure to do so could reduce the
amount of protection in an accident and cause
serious injuries in a collision.
High±positioned lap belts and loose±fitting
belts both could cause serious injuries due to
sliding under the lap belt during a collision or
other unintended result. Keep the lap belt
positioned as low on hip as possible.
For child's safety, do not place the shoulder
belt under child's arm.
After inserting the tab, make sure the tab and
buckle are locked and that the lap and shoulder
portions of the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as
this may prevent you from properly latching the
tab and buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not
use the seat until the seat belt is fixed. It cannot
protect your child from injury.

COMFORT ADJUSTMENT
189
16G054

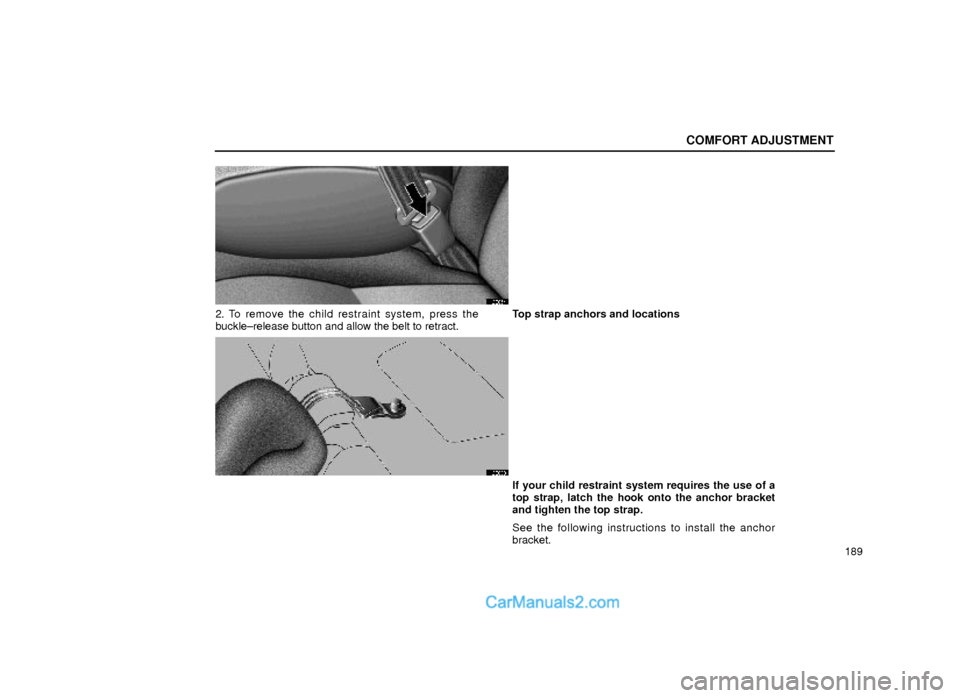

2. To remove the child restraint system, press the
buckle±release button and allow the belt to retract.Top strap anchors and locations
16G060
If your child restraint system requires the use of a
top strap, latch the hook onto the anchor bracket
and tighten the top strap.
See the following instructions to install the anchor
bracket.
