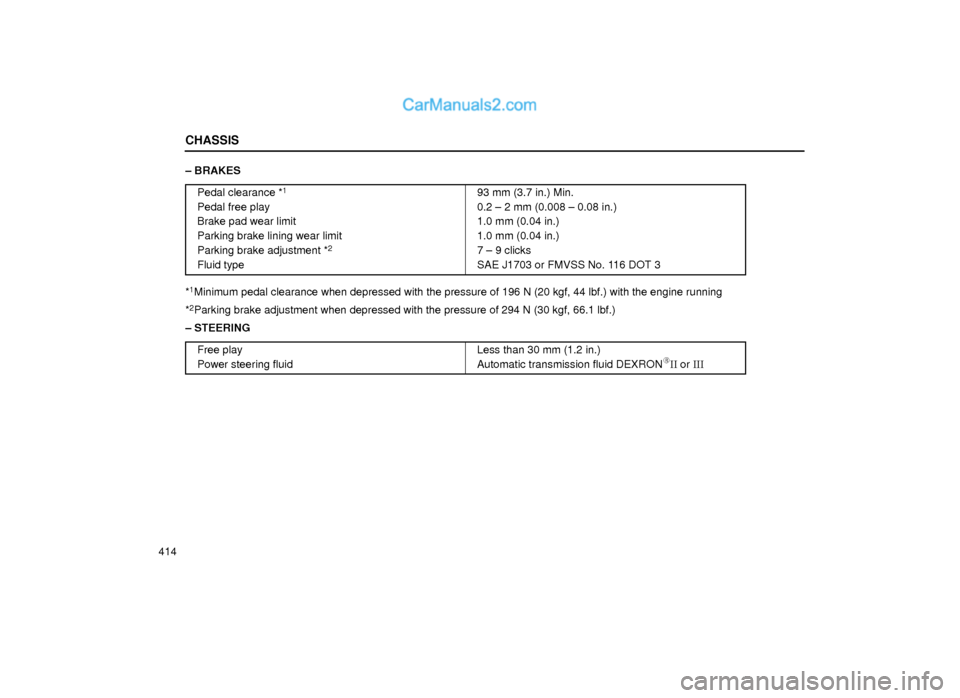

CHASSIS
414± BRAKES
Pedal clearance *
1
Pedal free play
Brake pad wear limit
Parking brake lining wear limit
Parking brake adjustment *
2
Fluid type
93 mm (3.7 in.) Min.
0.2 ± 2 mm (0.008 ± 0.08 in.)
1.0 mm (0.04 in.)
1.0 mm (0.04 in.)
7 ± 9 clicks
SAE J1703 or FMVSS No. 116 DOT 3
*1Minimum pedal clearance when depressed with the pressure of 196 N (20 kgf, 44 lbf.) with the engine running
*
2Parking brake adjustment when depressed with the pressure of 294 N (30 kgf, 66.1 lbf.)
± STEERING
Free play
Power steering fluid
Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRONII or III

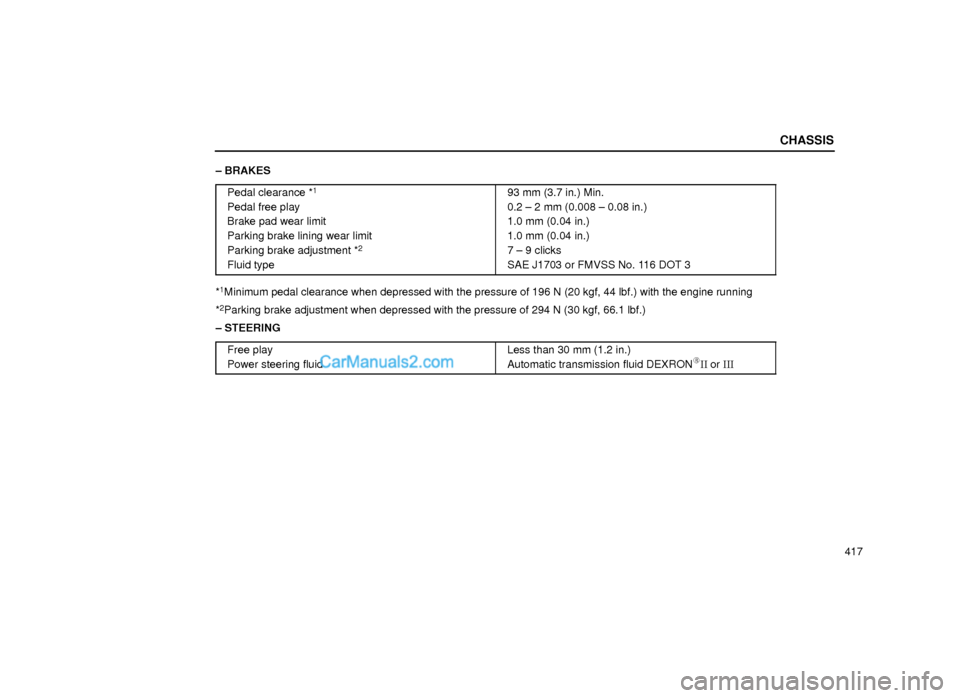

CHASSIS
417 ± BRAKES
Pedal clearance *
1
Pedal free play
Brake pad wear limit
Parking brake lining wear limit
Parking brake adjustment *
2
Fluid type
93 mm (3.7 in.) Min.
0.2 ± 2 mm (0.008 ± 0.08 in.)
1.0 mm (0.04 in.)
1.0 mm (0.04 in.)
7 ± 9 clicks
SAE J1703 or FMVSS No. 116 DOT 3
*1Minimum pedal clearance when depressed with the pressure of 196 N (20 kgf, 44 lbf.) with the engine running
*
2Parking brake adjustment when depressed with the pressure of 294 N (30 kgf, 66.1 lbf.)
± STEERING
Free play
Power steering fluid
Less than 30 mm (1.2 in.)
Automatic transmission fluid DEXRONII or III

CHASSIS
423
63G003±1

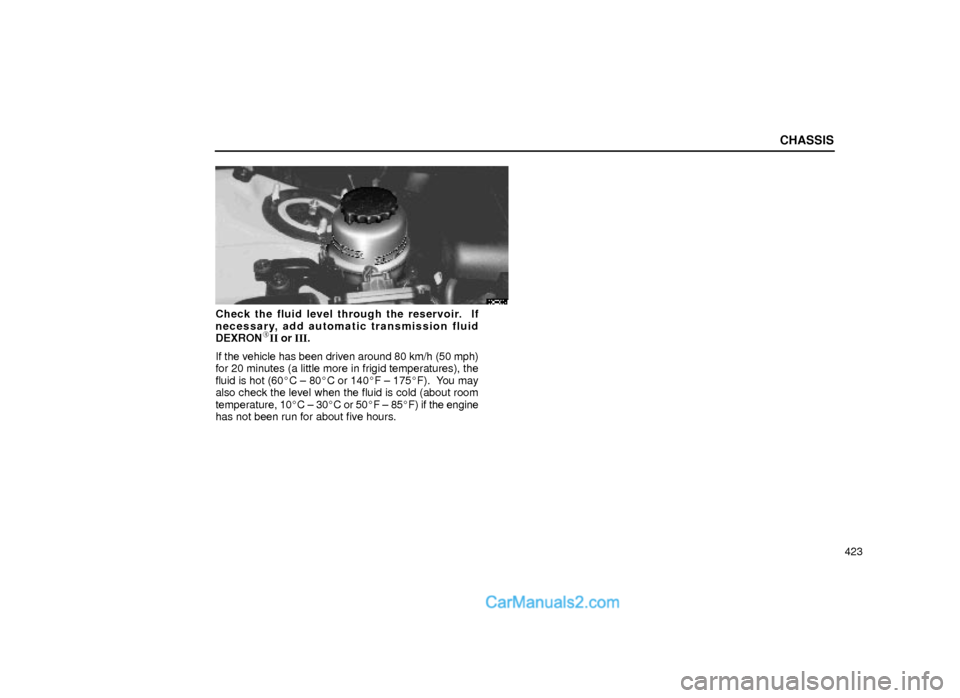

Check the fluid level through the reservoir. If
necessary, add automatic transmission fluid
DEXRON
II or III.
If the vehicle has been driven around 80 km/h (50 mph)
for 20 minutes (a little more in frigid temperatures), the
fluid is hot (60C ± 80C or 140F ± 175F). You may
also check the level when the fluid is cold (about room
temperature, 10C ± 30C or 50F ± 85F) if the engine
has not been run for about five hours.

CHASSIS
427
63G004±1

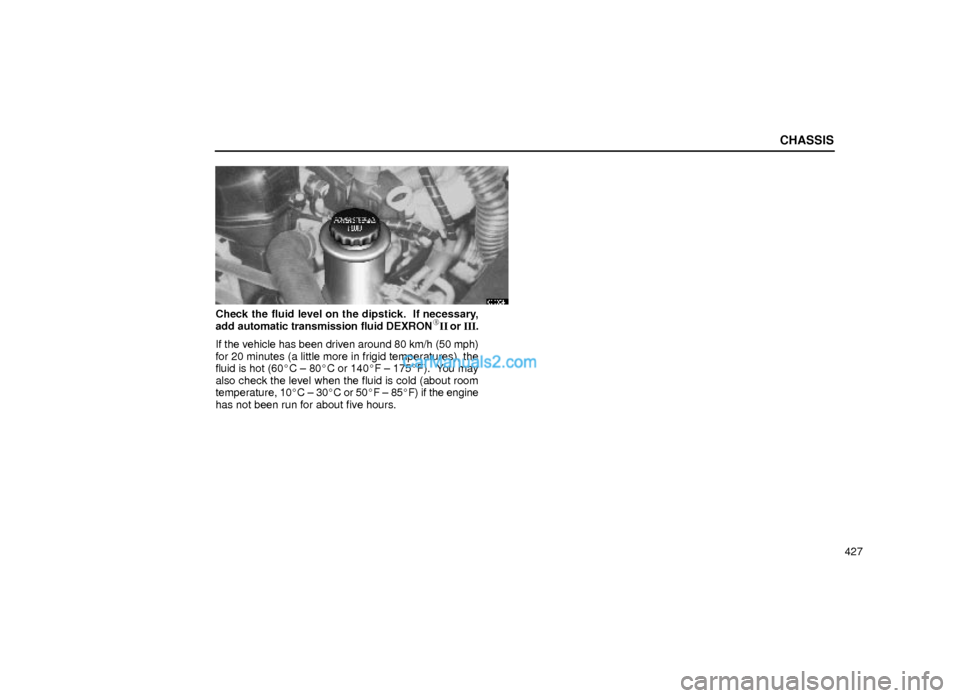

Check the fluid level on the dipstick. If necessary,
add automatic transmission fluid DEXRONII or III.
If the vehicle has been driven around 80 km/h (50 mph)
for 20 minutes (a little more in frigid temperatures), the
fluid is hot (60C ± 80C or 140F ± 175F). You may
also check the level when the fluid is cold (about room
temperature, 10C ± 30C or 50F ± 85F) if the engine
has not been run for about five hours.
