Page 1 of 34
SECTION 6 ± 4
440
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications 441. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 450. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 454. . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 455. . . . .
Checking the cartridge type fuses 461. . . . . . . . . . . . . . .
Adding washer fluid 462. . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the headlight aim 463. . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 467. . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2 of 34
ELECTRICAL COMPONENTS
441
SPECIFICATIONS
± FUSE LOCATION
64G004±1
1Engine compartment
2Passenger's side kick panel
3Driver's side kick panel
4Engine compartment (Canada only)
± FUSES
Page 3 of 34
ELECTRICAL COMPONENTS
442
64G015
Driver's side kick panel
64G014
Passenger's side kick panel
Page 4 of 34
64G013
ELECTRICAL COMPONENTS
443
Engine compartment
64G026
Page 5 of 34
ELECTRICAL COMPONENTS
444
Engine compartment (Canada only)
Page 6 of 34
ELECTRICAL COMPONENTS
445
No.FUSEAMPERECIRCUIT
1 WASHER20Windshield washer
2 FR FOG15Fog lights
3 TAIL10Tail lights, Side marker lights,
License plate lights,
Parking lights
4 SRS±ACC15SRS
5 GAUGE10Back±up lights, Gauges and
meters, service reminder
indicators and buzzers
6 FUEL OPN10Fuel filler door opener
7 D FR
DOOR20Power window system,
Door lock system,
Wireless remote control
8 PANEL7.5Emergency flashers,
Headlight cleaner
9 HEATER10Air conditioning
10 SRS±B5Gauges and meters, service
reminder indicators and
warning buzzers
11 D P/SEAT30Power seat system
12 RADIO
NO.215Audio, Shift lock system
13 WIPER25Windshield wipers
14 OBD7.5On±board diagnosis
Page 7 of 34
ELECTRICAL COMPONENTS
446
No.FUSEAMPERECIRCUIT
15 STOP15Stop lights,
Anti±lock brake system,
Traction control system
16 CIG15Cigarette lighter, Power outlet
17 ECU±IG15Power window, Door lock
system, Wireless remote
control, Theft deterrent system
18 STARTER5Starting system
19 IGN5
Multiport fuel injection
system/sequential multiport fuel
injection system, SRS,
Anti±lock brake system,
Vehicle skid control system,
Cruise control system
20 D RR
DOOR20Power window system,
Door lock system,
Wireless remote control
21 RR FOG10No circuit
22 M/R HTR10Outside rear view mirror
23 S/ROOF25Moon roof
24 P FR
DOOR20Power window system,
Door lock system,
Wireless remote control
25 P P/SEAT30Power seat system,
Tilt and telescopic steering
Page 8 of 34
ELECTRICAL COMPONENTS
447
26 DOME10Interior lights, Personal lights,
Vanity lights, Trunk light, Clock
27 SEAT HTR20Seat heater
No.FUSEAMPERECIRCUIT
28 4WS25No circuit
29 TV15No circuit
30 ECU±B25Power seat system
31 P RR
DOOR20Power window system,
Door lock system,
Wireless remote control
32 ECU±B120
Power window system,
Door lock system,
Wireless remote control,
Theft deterrent system, Trunk
lid opener, Interior lights,
Personal lights, Clock,
Headlight cleaner
33 MPX±B10
Power window system,
Door lock system,
Wireless remote control,
Theft deterrent system,
Trunk lid opener
34 HORN10Horn
35 ETCS15Electronic throttle control
system
36 AM215Starting system, Multiport fuel
injection system/sequential
multiport fuel injection system
Page 9 of 34
ELECTRICAL COMPONENTS
448
37 TEL15No circuit
38 TURN±HAZ10Turn signal lights
No.FUSEAMPERECIRCUIT
39 EFI25
Multiport fuel injection
system/sequential multiport fuel
injection system, Emission
control system
40 ALT±S5Charging system
41 RADIO
NO.120Audio
42 DRL NO.230Vehicles with daytime
running light system:
Daytime running light system
43 H±LP L
UPR10
Vehicles without daytime
running light system:
Left±hand headlight (high
beam)
44
H±LP R
UPR10
Vehicles without daytime
running light system:
Right±hand headlight (high
beam)
44
DRL NO.130Vehicles with daytime
running light system:
Daytime running light system
45 H±LP L
LW R15Left±hand headlight (low beam)
46 H±LP R
LW R15Right±hand headlight (low
beam)
Page 10 of 34
ELECTRICAL COMPONENTS
449

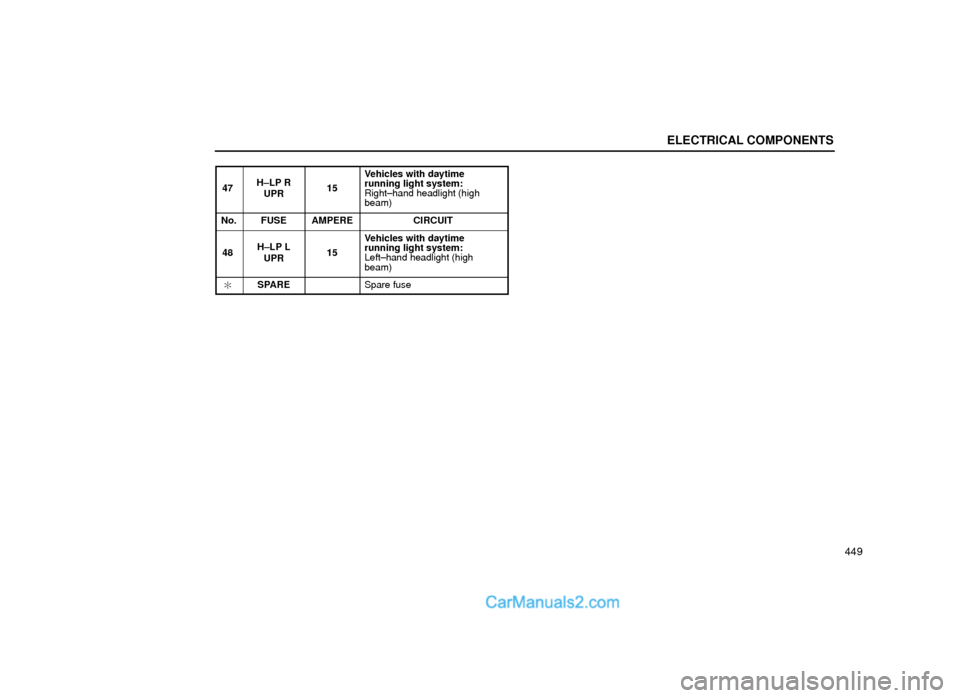

47 H±LP R
UPR15
Vehicles with daytime
running light system:
Right±hand headlight (high
beam)
No.FUSEAMPERECIRCUIT
48 H±LP L
UPR15
Vehicles with daytime
running light system:
Left±hand headlight (high
beam)
SPARESpare fuse
