Lexus GS300 2000 Comfort Adjustment

COMFORT ADJUSTMENT
123

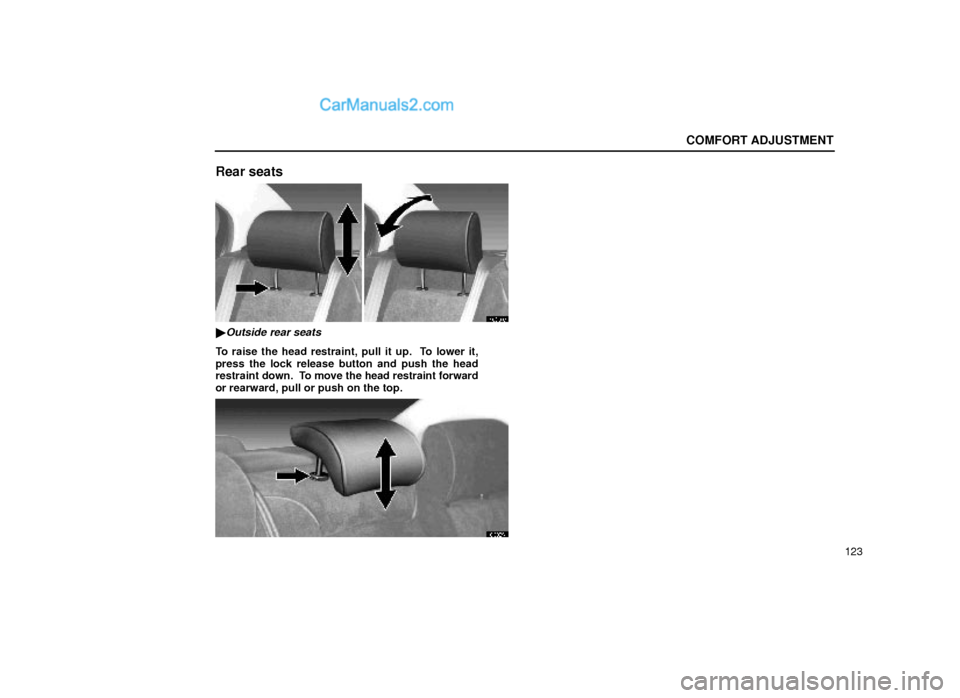

Rear seats
16G007

Outside rear seats
To raise the head restraint, pull it up. To lower it,
press the lock release button and push the head
restraint down. To move the head restraint forward
or rearward, pull or push on the top.
16G009±1

COMFORT ADJUSTMENT
124

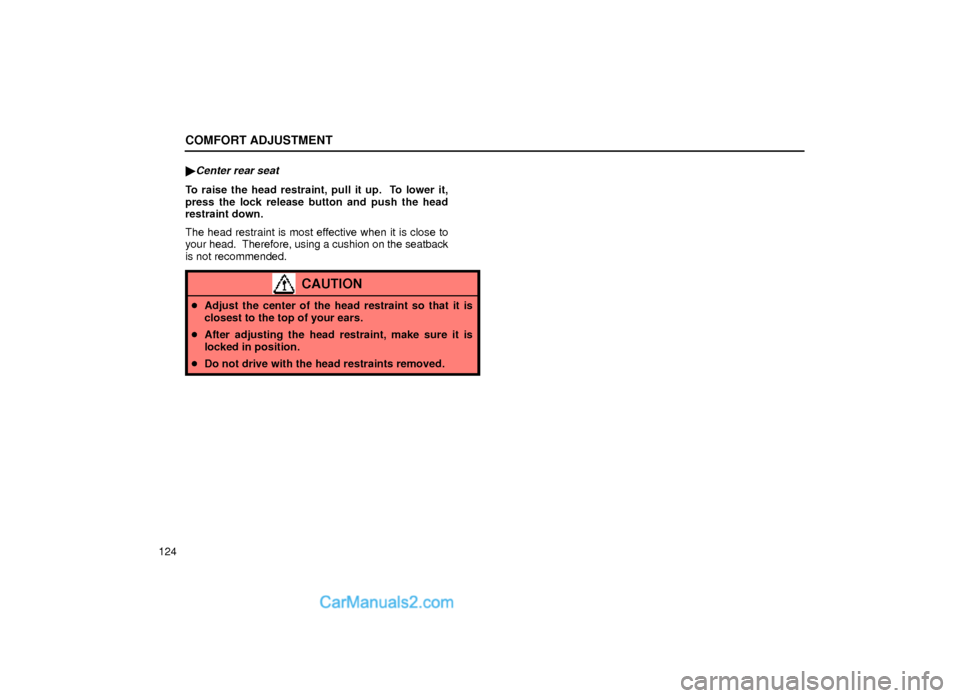

Center rear seat
To raise the head restraint, pull it up. To lower it,
press the lock release button and push the head
restraint down.
The head restraint is most effective when it is close to
your head. Therefore, using a cushion on the seatback
is not recommended.
CAUTION
Adjust the center of the head restraint so that it is
closest to the top of your ears.
After adjusting the head restraint, make sure it is
locked in position.
Do not drive with the head restraints removed.

COMFORT ADJUSTMENT
125

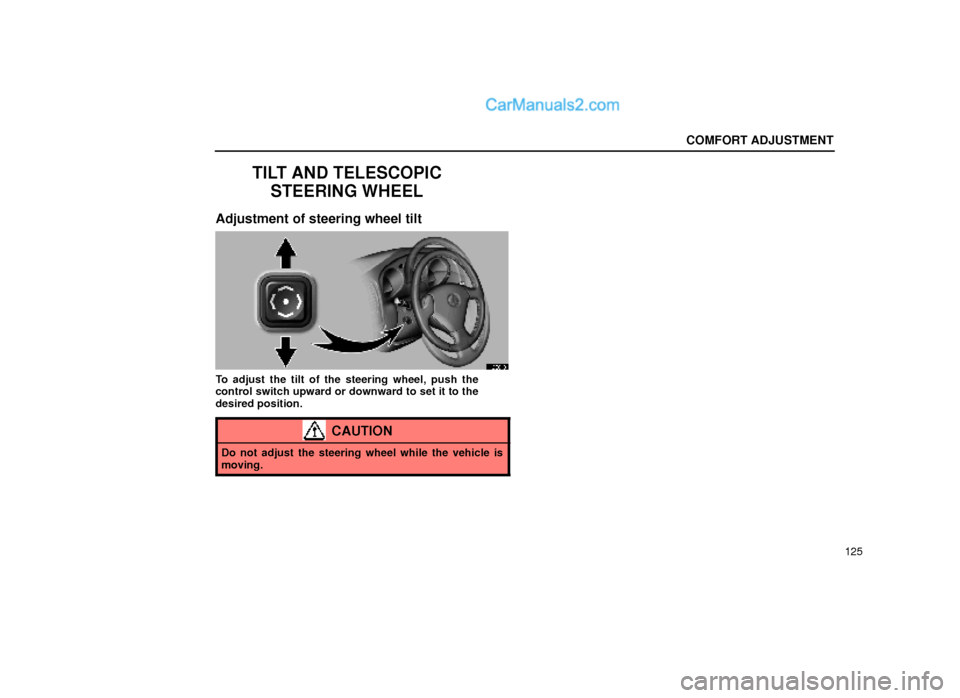

TILT AND TELESCOPIC
STEERING WHEEL
Adjustment of steering wheel tilt
16G010
To adjust the tilt of the steering wheel, push the
control switch upward or downward to set it to the
desired position.
CAUTION
Do not adjust the steering wheel while the vehicle is
moving.

COMFORT ADJUSTMENT
126

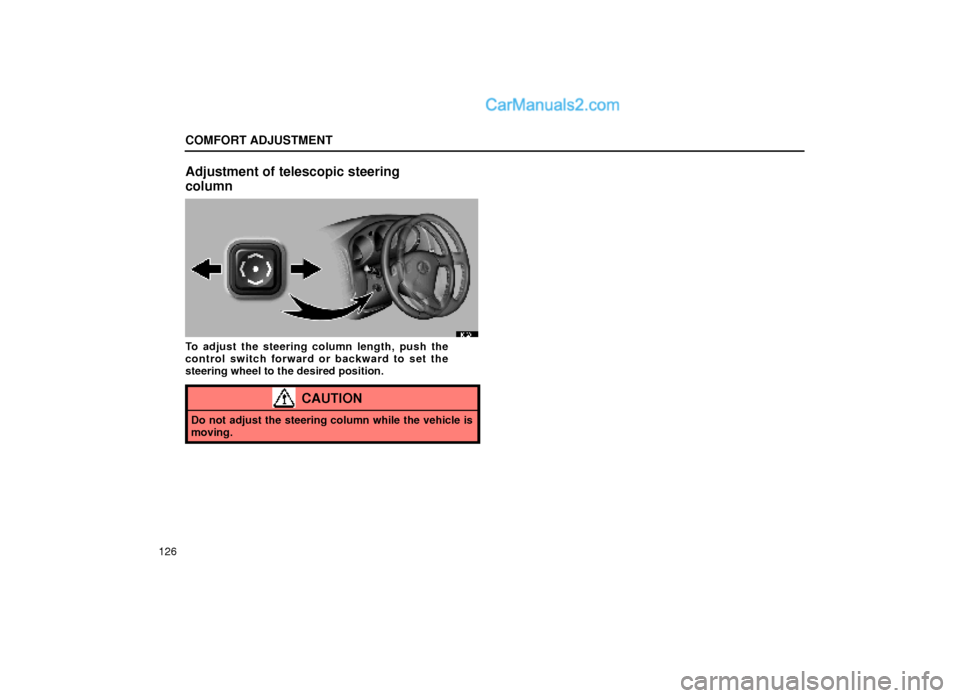

Adjustment of telescopic steering
column
16G011
To adjust the steering column length, push the
control switch forward or backward to set the
steering wheel to the desired position.
CAUTION
Do not adjust the steering column while the vehicle is
moving.

COMFORT ADJUSTMENT
127

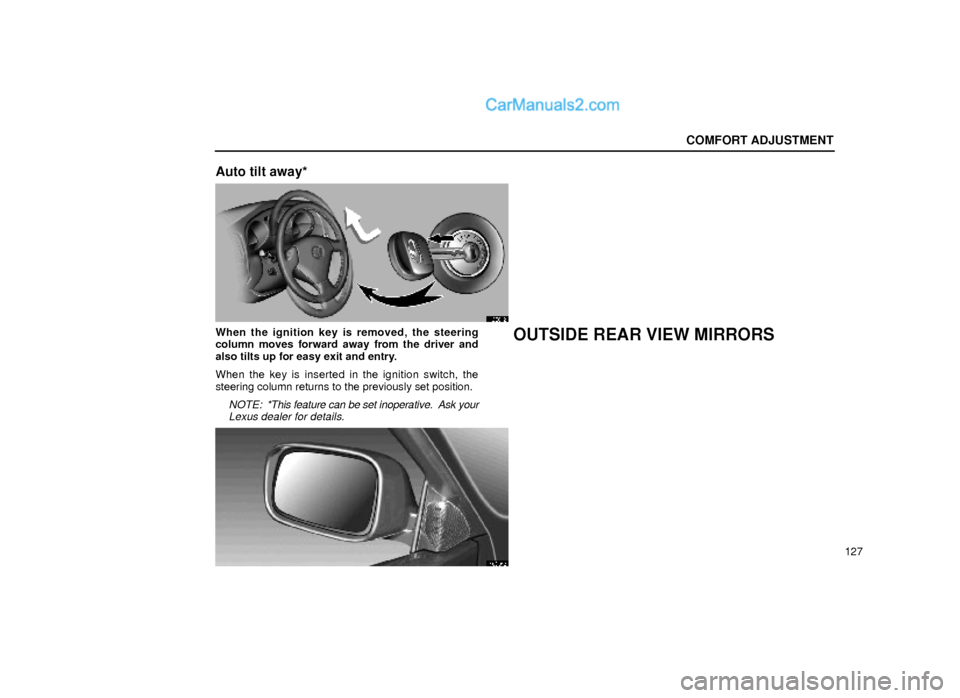

Auto tilt away*
16G012
When the ignition key is removed, the steering
column moves forward away from the driver and
also tilts up for easy exit and entry.
When the key is inserted in the ignition switch, the
steering column returns to the previously set position.
NOTE: *This feature can be set inoperative. Ask your
Lexus dealer for details.
OUTSIDE REAR VIEW MIRRORS
16G013

COMFORT ADJUSTMENT
128Adjust the mirror so that you can just see the side of
your vehicle in the mirror.
When the inside rear view mirror darkens in ºAUTOº
mode, the outside rear view mirrors also darken to
reduce the reflection of the headlights of the following
vehicle. For details, see ºInside rear view mirrorº on
page 131.
When you push the rear window defogger switch, the
heater panels in the outside rear view mirrors will quickly
clear the mirror surface.
CAUTION
Do not adjust the mirror while the vehicle is moving.
It may cause the driver to mishandle the vehicle and
an accident may occur, resulting in personal injuries.
Since the mirror surfaces can get hot, keep your
hands off them when the rear window and outside
rear view mirror defogger switch is on.

COMFORT ADJUSTMENT
129
Power rear view mirror control
16L017-1

1Master switch 2Control switch
To adjust the power rear view mirror, first place the
master switch at ºLº (left) or ºRº (right), and push
the control switch on the desired side.
The power rear view mirror can be adjusted when the
key is in the ºACCº or ºONº position.NOTICE
If ice should jam the mirror, do not operate the
control or scrape the mirror face. Use a spray
de±icer to free the mirror.
Folding rear view mirrors

COMFORT ADJUSTMENT
130
16G014
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for
parking in restricted areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.

COMFORT ADJUSTMENT
131

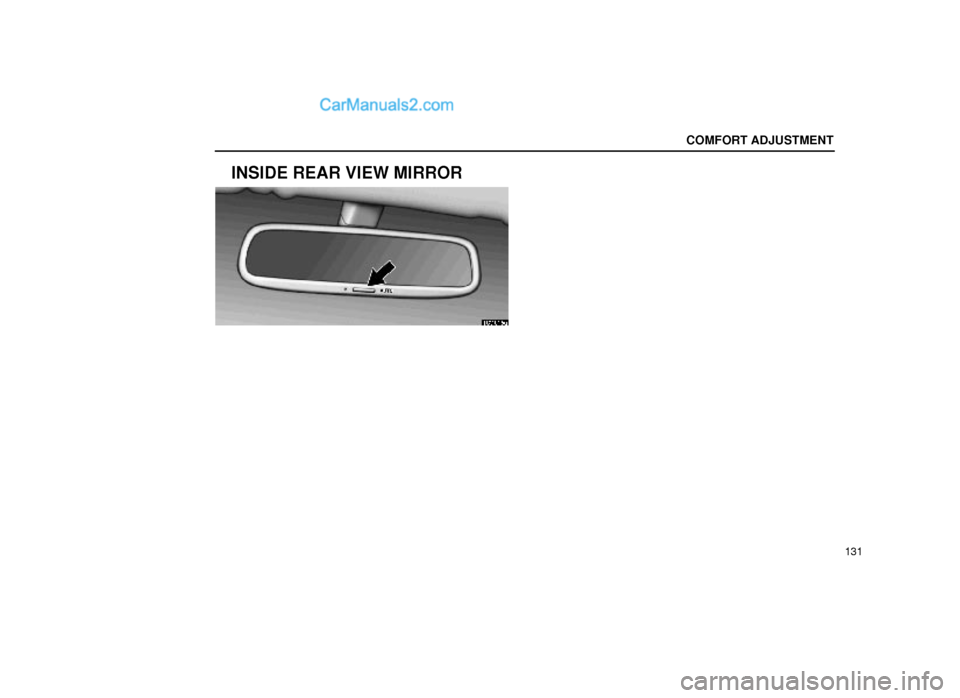

INSIDE REAR VIEW MIRROR
16G015a

COMFORT ADJUSTMENT

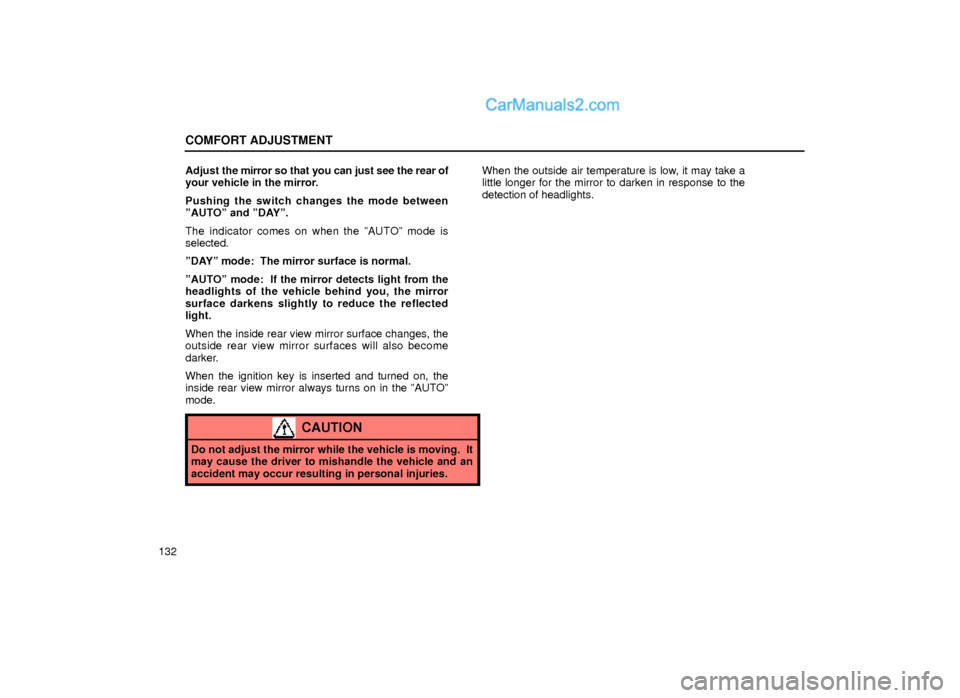

132Adjust the mirror so that you can just see the rear of
your vehicle in the mirror.
Pushing the switch changes the mode between
ºAUTOº and ºDAYº.
The indicator comes on when the ºAUTOº mode is
selected.
ºDAYº mode: The mirror surface is normal.
ºAUTOº mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror
surface darkens slightly to reduce the reflected
light.
When the inside rear view mirror surface changes, the
outside rear view mirror surfaces will also become
darker.
When the ignition key is inserted and turned on, the
inside rear view mirror always turns on in the ºAUTOº
mode.When the outside air temperature is low, it may take a
little longer for the mirror to darken in response to the
detection of headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving. It
may cause the driver to mishandle the vehicle and an
accident may occur resulting in personal injuries.
