Lexus GS300 2000 Comfort Adjustment

COMFORT ADJUSTMENT
183

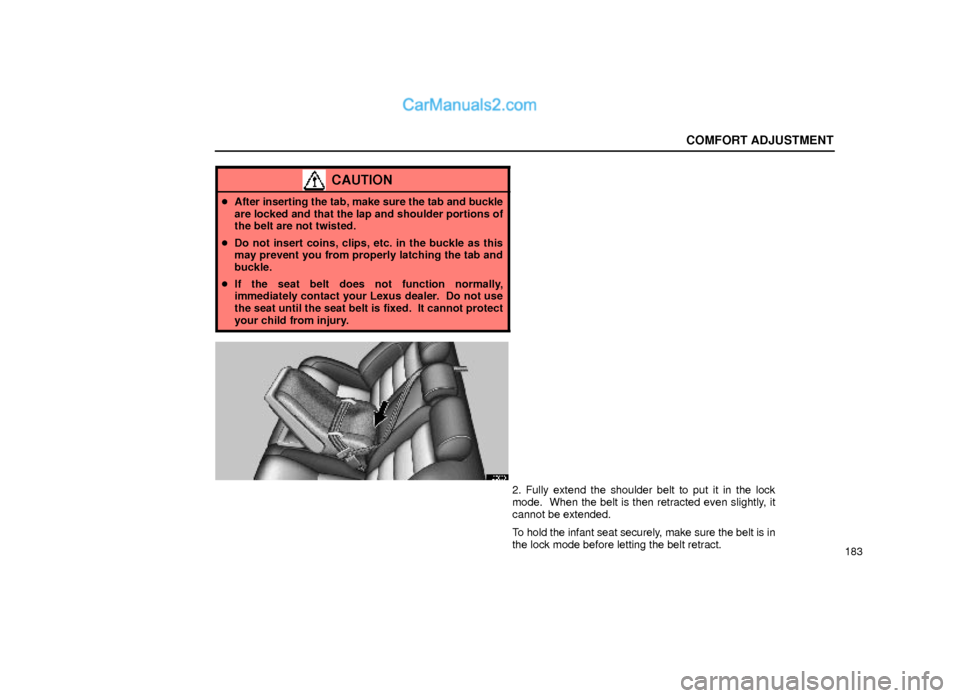

CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
your child from injury.
16G068
2. Fully extend the shoulder belt to put it in the lock
mode. When the belt is then retracted even slightly, it
cannot be extended.
To hold the infant seat securely, make sure the belt is in
the lock mode before letting the belt retract.

COMFORT ADJUSTMENT
184
16G069

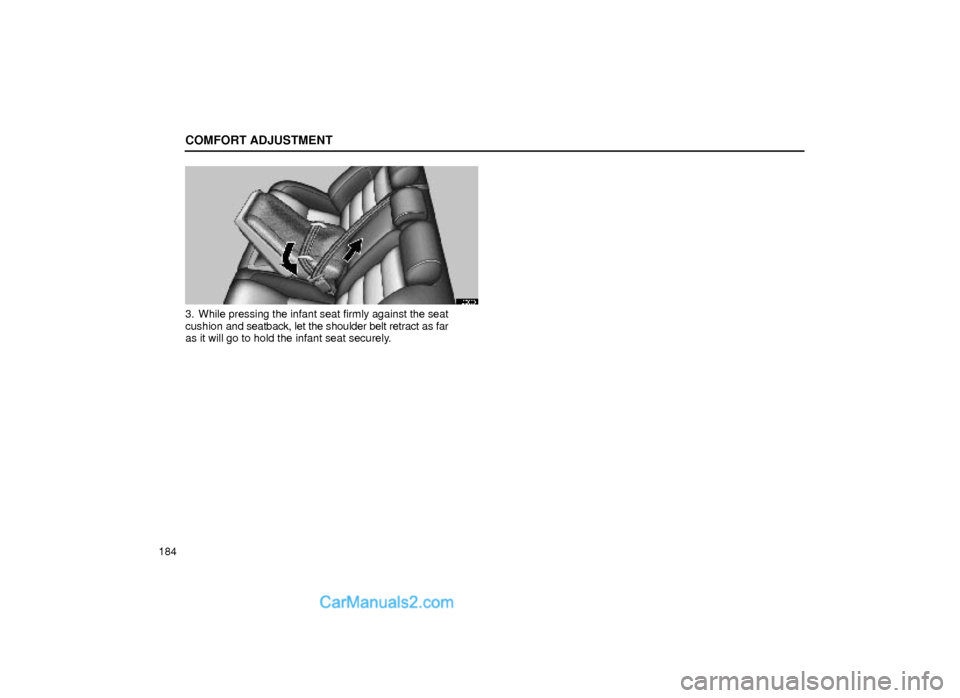

3. While pressing the infant seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far
as it will go to hold the infant seat securely.

COMFORT ADJUSTMENT
185
16G070

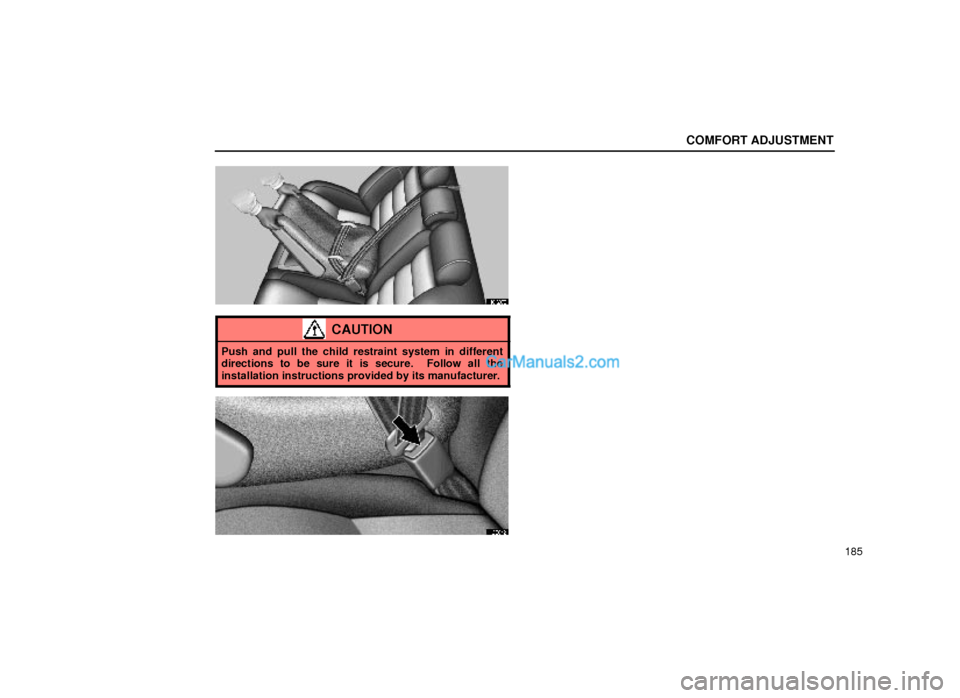

CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
16G042

COMFORT ADJUSTMENT

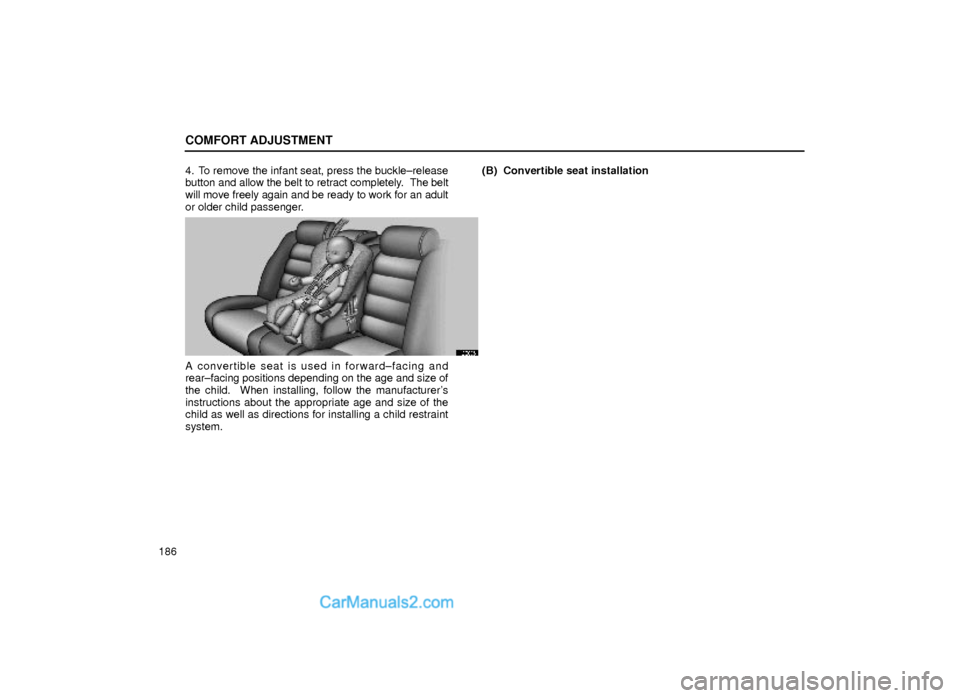

1864. To remove the infant seat, press the buckle±release
button and allow the belt to retract completely. The belt
will move freely again and be ready to work for an adult
or older child passenger.(B) Convertible seat installation
16G035
A convertible seat is used in forward±facing and
rear±facing positions depending on the age and size of
the child. When installing, follow the manufacturer's
instructions about the appropriate age and size of the
child as well as directions for installing a child restraint
system.

COMFORT ADJUSTMENT
187
16G058±2

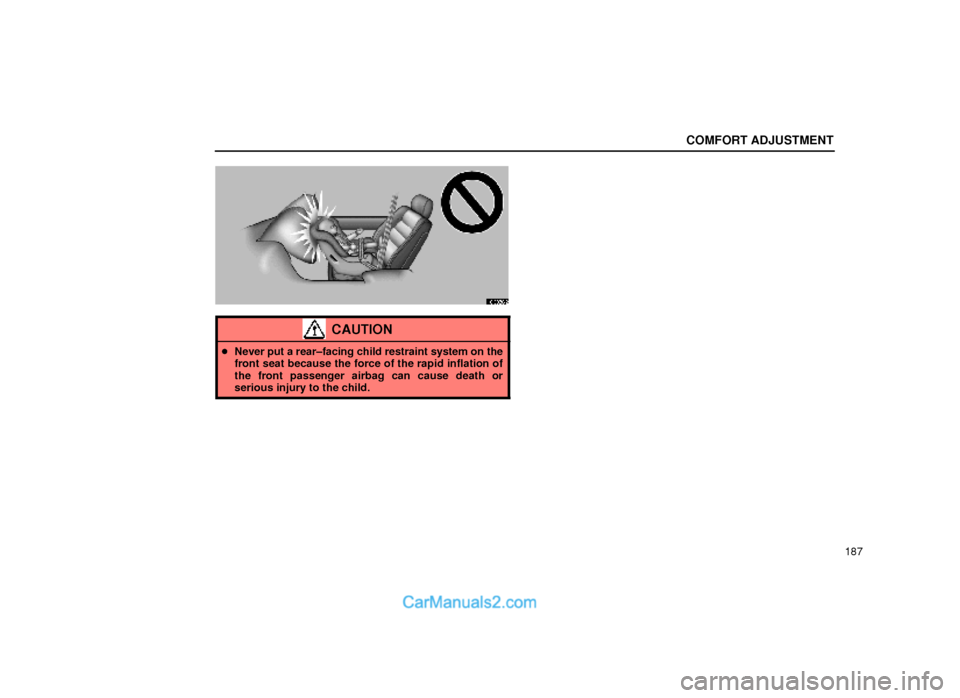

CAUTION
Never put a rear±facing child restraint system on the
front seat because the force of the rapid inflation of
the front passenger airbag can cause death or
serious injury to the child.

COMFORT ADJUSTMENT
188
16G059±2

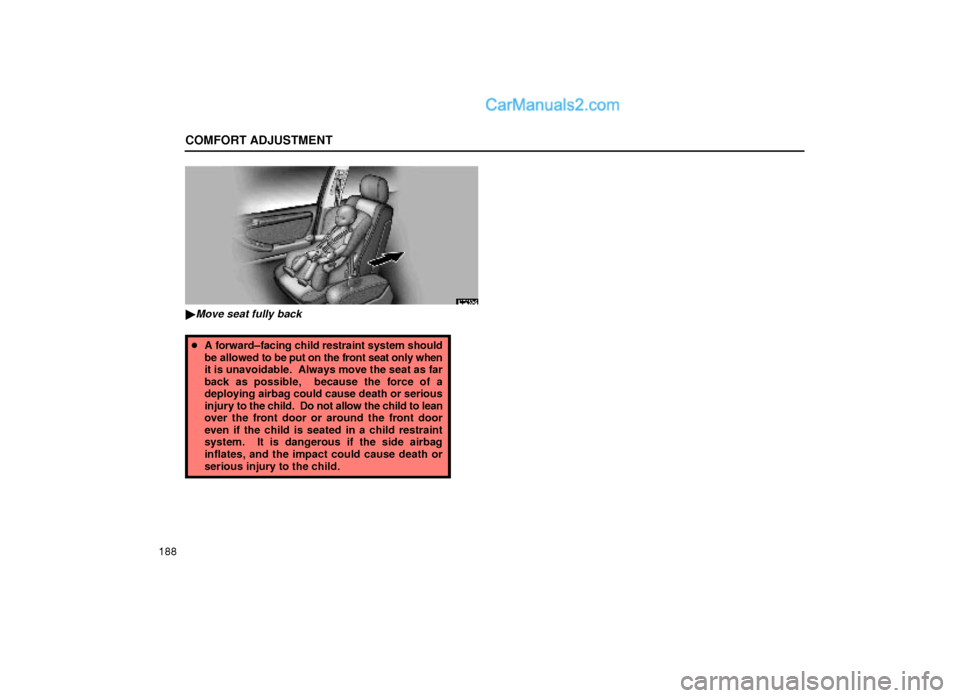

Move seat fully back
A forward±facing child restraint system should
be allowed to be put on the front seat only when
it is unavoidable. Always move the seat as far
back as possible, because the force of a
deploying airbag could cause death or serious
injury to the child. Do not allow the child to lean
over the front door or around the front door
even if the child is seated in a child restraint
system. It is dangerous if the side airbag
inflates, and the impact could cause death or
serious injury to the child.

COMFORT ADJUSTMENT
189
16G046

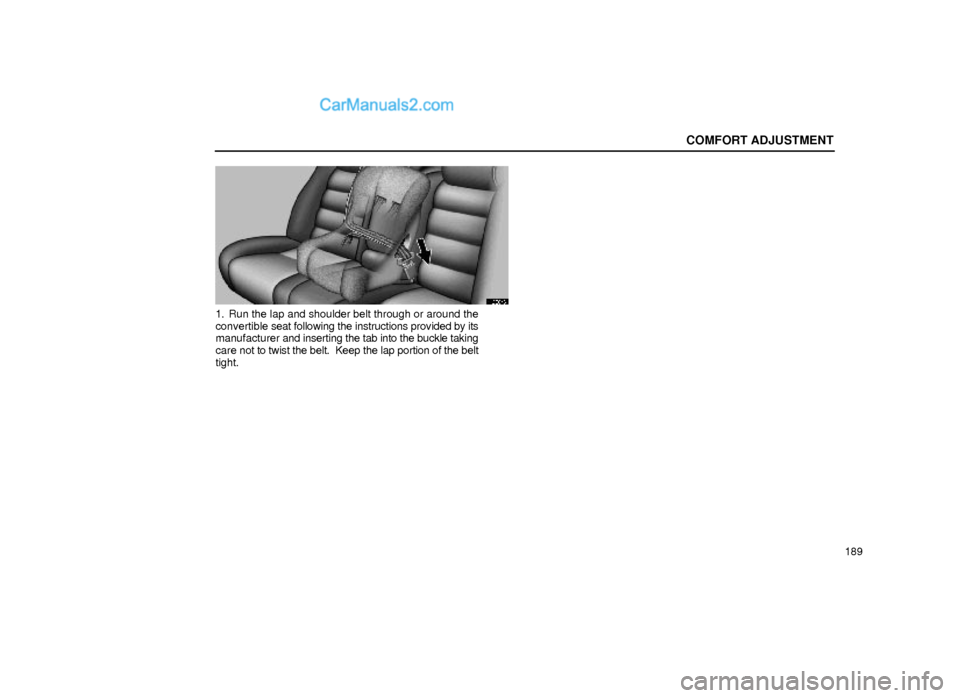

1. Run the lap and shoulder belt through or around the
convertible seat following the instructions provided by its
manufacturer and inserting the tab into the buckle taking
care not to twist the belt. Keep the lap portion of the belt
tight.

COMFORT ADJUSTMENT
190

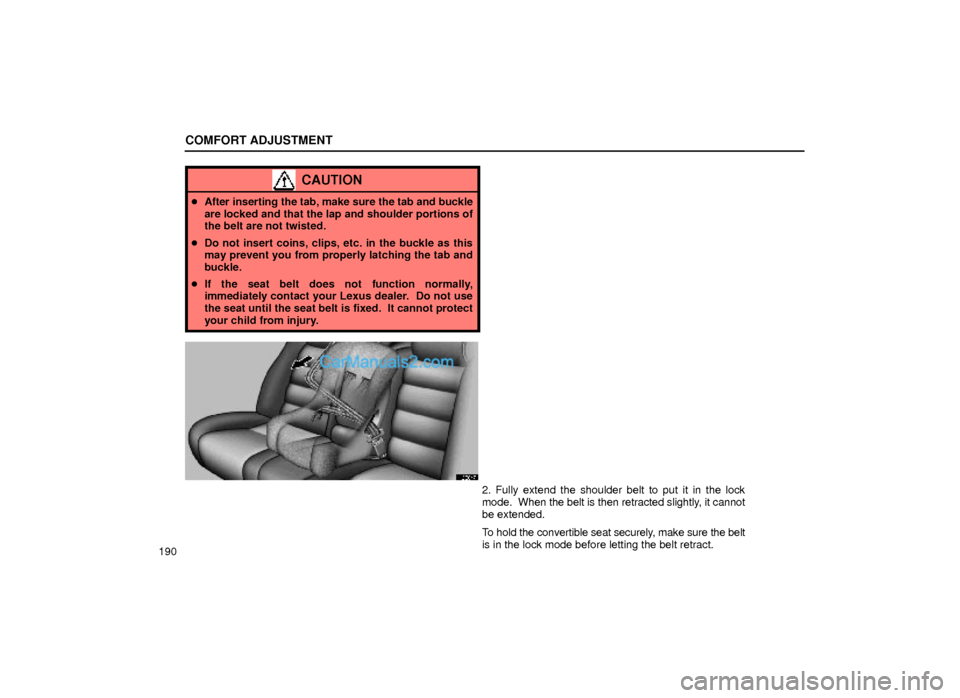

CAUTION
After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
Do not insert coins, clips, etc. in the buckle as this
may prevent you from properly latching the tab and
buckle.
If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not use
the seat until the seat belt is fixed. It cannot protect
your child from injury.
16G047
2. Fully extend the shoulder belt to put it in the lock
mode. When the belt is then retracted slightly, it cannot
be extended.
To hold the convertible seat securely, make sure the belt
is in the lock mode before letting the belt retract.

COMFORT ADJUSTMENT
191
16G048

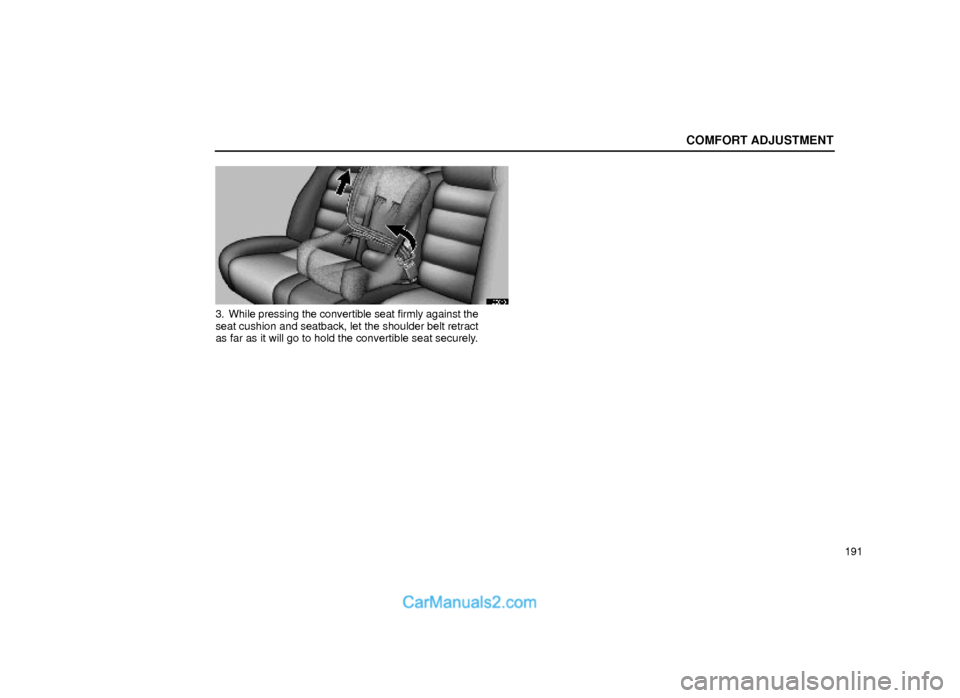

3. While pressing the convertible seat firmly against the
seat cushion and seatback, let the shoulder belt retract
as far as it will go to hold the convertible seat securely.

COMFORT ADJUSTMENT
192
16G049

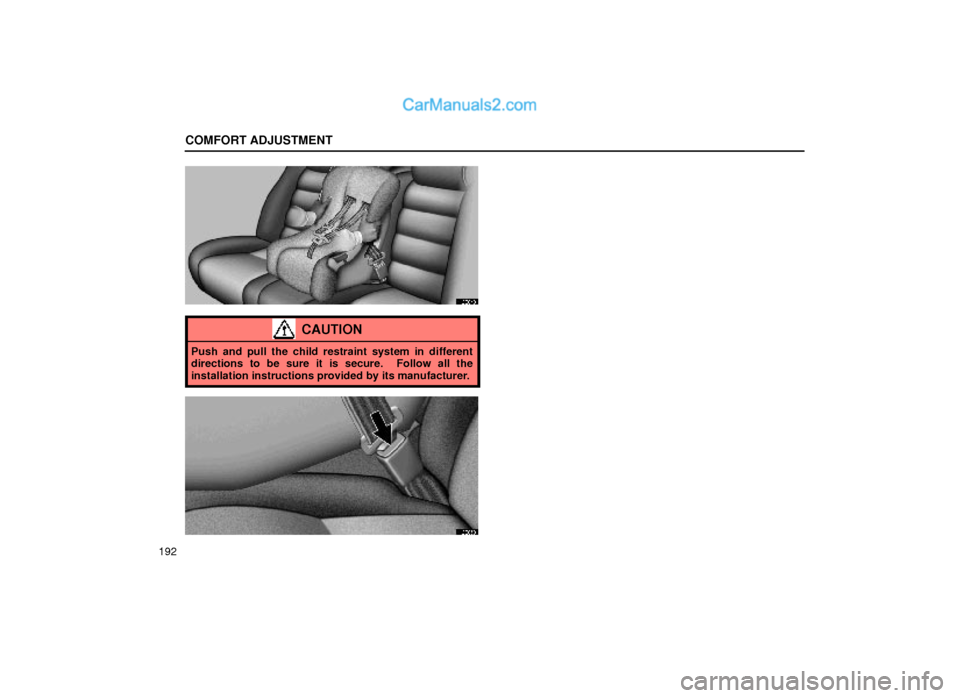

CAUTION
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its manufacturer.
16G050
