ELECTRICAL COMPONENTS
460
CAUTION

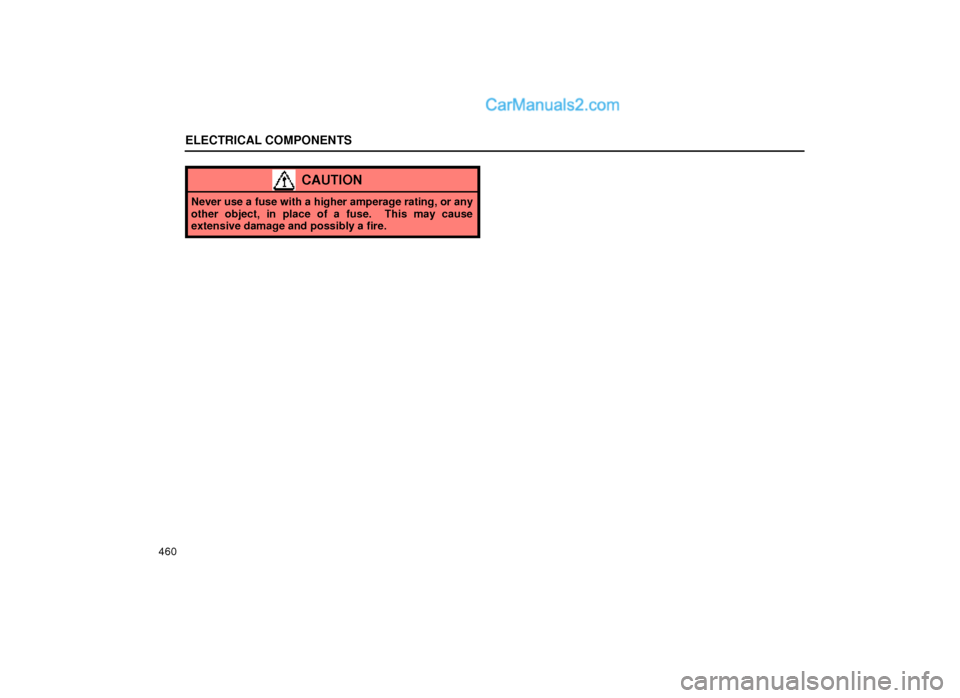

Never use a fuse with a higher amperage rating, or any
other object, in place of a fuse. This may cause
extensive damage and possibly a fire.

ELECTRICAL COMPONENTS
461
CHECKING THE CARTRIDGE
TYPE FUSES
64G019±1

1Good 2Melted

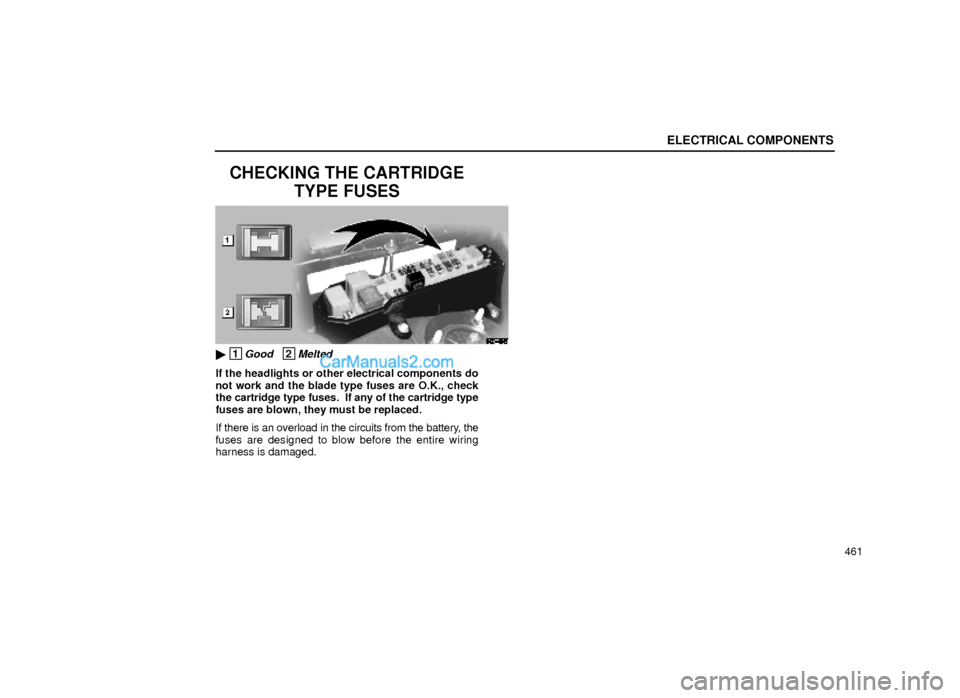

If the headlights or other electrical components do
not work and the blade type fuses are O.K., check
the cartridge type fuses. If any of the cartridge type
fuses are blown, they must be replaced.
If there is an overload in the circuits from the battery, the
fuses are designed to blow before the entire wiring
harness is damaged.

ELECTRICAL COMPONENTS
462
CAUTION

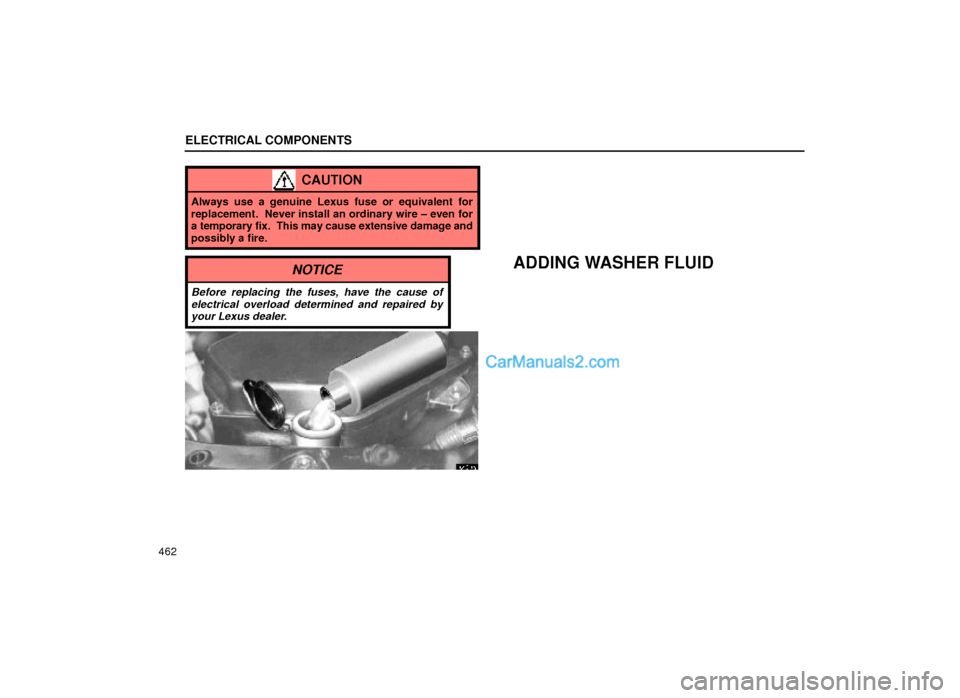

Always use a genuine Lexus fuse or equivalent for
replacement. Never install an ordinary wire ± even for
a temporary fix. This may cause extensive damage and
possibly a fire.
NOTICE
Before replacing the fuses, have the cause of
electrical overload determined and repaired by
your Lexus dealer.
ADDING WASHER FLUID
64G009

ELECTRICAL COMPONENTS
463 If the washer tank becomes nearly empty, add
washer fluid.
You may use plain water as washer fluid. However, in
cold areas where temperatures range below the
freezing point, use washer fluid containing antifreeze.
This product is available at your Lexus dealer and most
auto parts stores. Follow the manufacturer's directions
for how much to mix with water.
NOTICE
Do not use engine antifreeze or any other
substitute because it may damage your vehicle's
paint.
CHECKING THE HEADLIGHT
AIM

ELECTRICAL COMPONENTS
464
64G020b

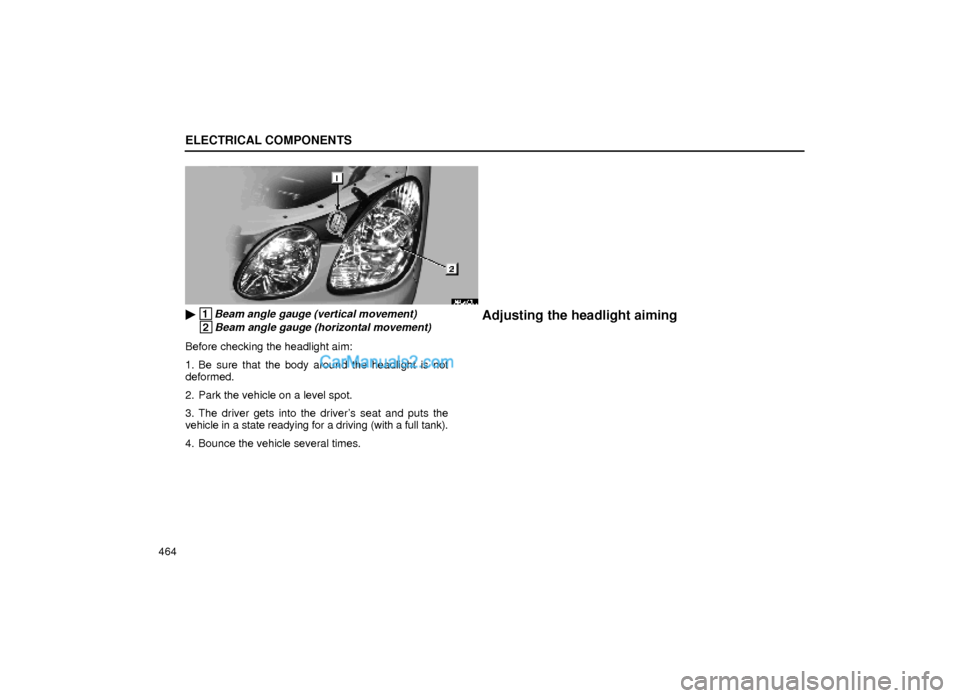

1Beam angle gauge (vertical movement)
2Beam angle gauge (horizontal movement)
Before checking the headlight aim:
1. Be sure that the body around the headlight is not
deformed.
2. Park the vehicle on a level spot.
3. The driver gets into the driver's seat and puts the
vehicle in a state readying for a driving (with a full tank).
4. Bounce the vehicle several times.
Adjusting the headlight aiming

ELECTRICAL COMPONENTS
465
64g059

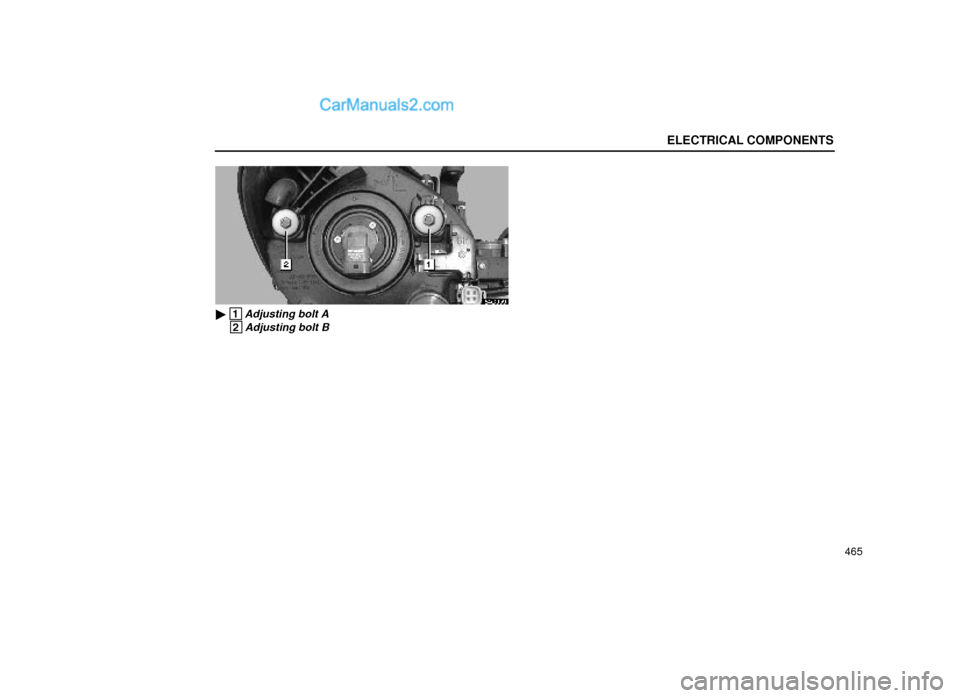

1Adjusting bolt A
2Adjusting bolt B

ELECTRICAL COMPONENTS
466

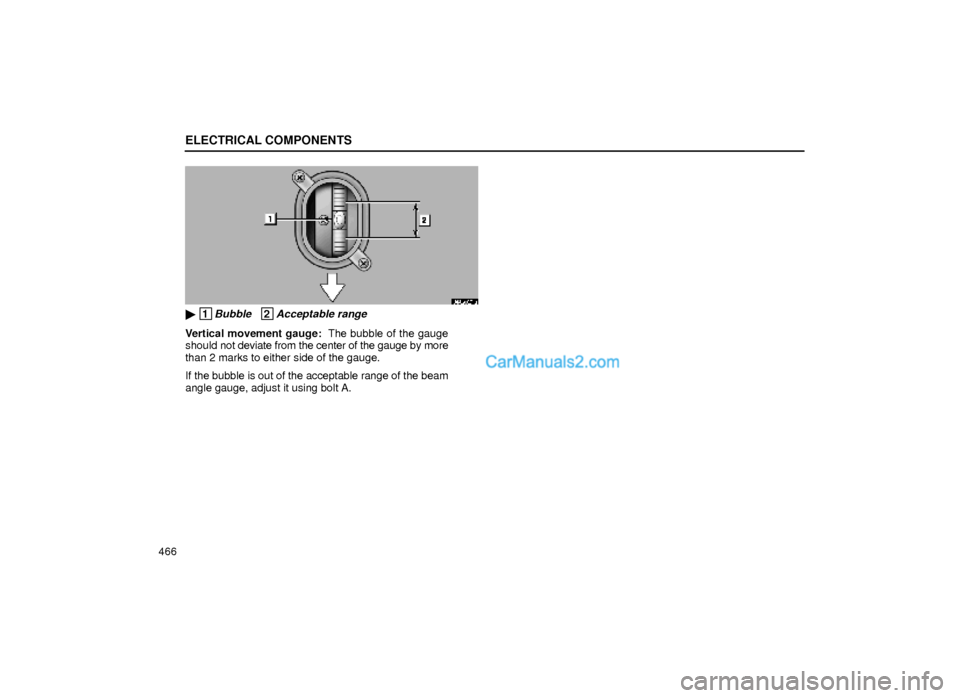

64G021a

1Bubble 2Acceptable range
Vertical movement gauge: The bubble of the gauge
should not deviate from the center of the gauge by more
than 2 marks to either side of the gauge.
If the bubble is out of the acceptable range of the beam
angle gauge, adjust it using bolt A.

ELECTRICAL COMPONENTS
467
64G022a

1Mark 2Acceptable range

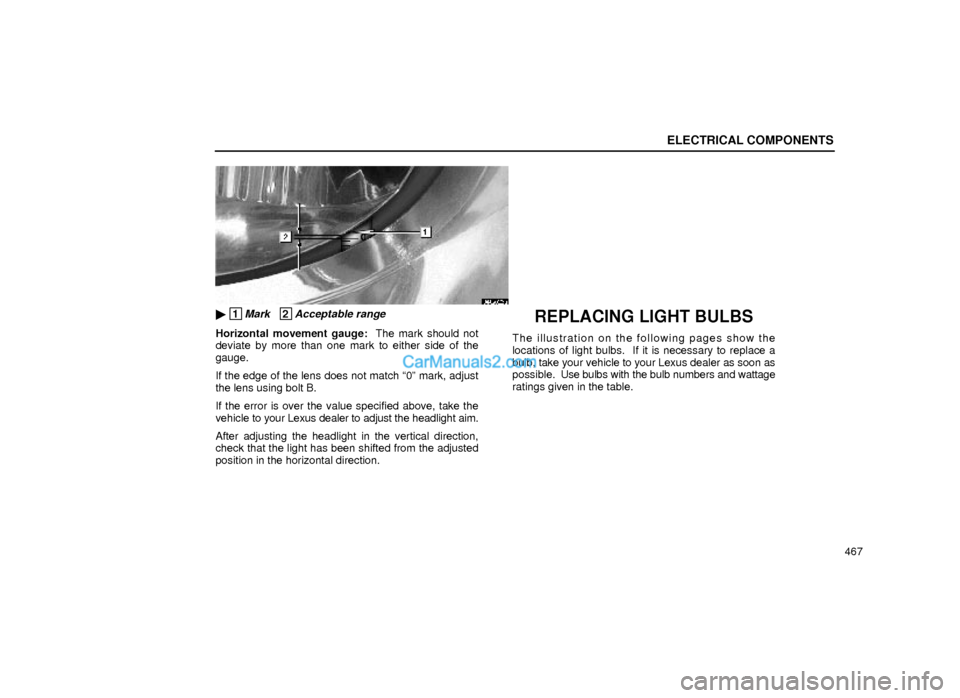

Horizontal movement gauge: The mark should not
deviate by more than one mark to either side of the
gauge.
If the edge of the lens does not match ª0º mark, adjust
the lens using bolt B.
If the error is over the value specified above, take the
vehicle to your Lexus dealer to adjust the headlight aim.
After adjusting the headlight in the vertical direction,
check that the light has been shifted from the adjusted
position in the horizontal direction.
REPLACING LIGHT BULBS
The illustration on the following pages show the
locations of light bulbs. If it is necessary to replace a
bulb, take your vehicle to your Lexus dealer as soon as
possible. Use bulbs with the bulb numbers and wattage
ratings given in the table.

ELECTRICAL COMPONENTS
468

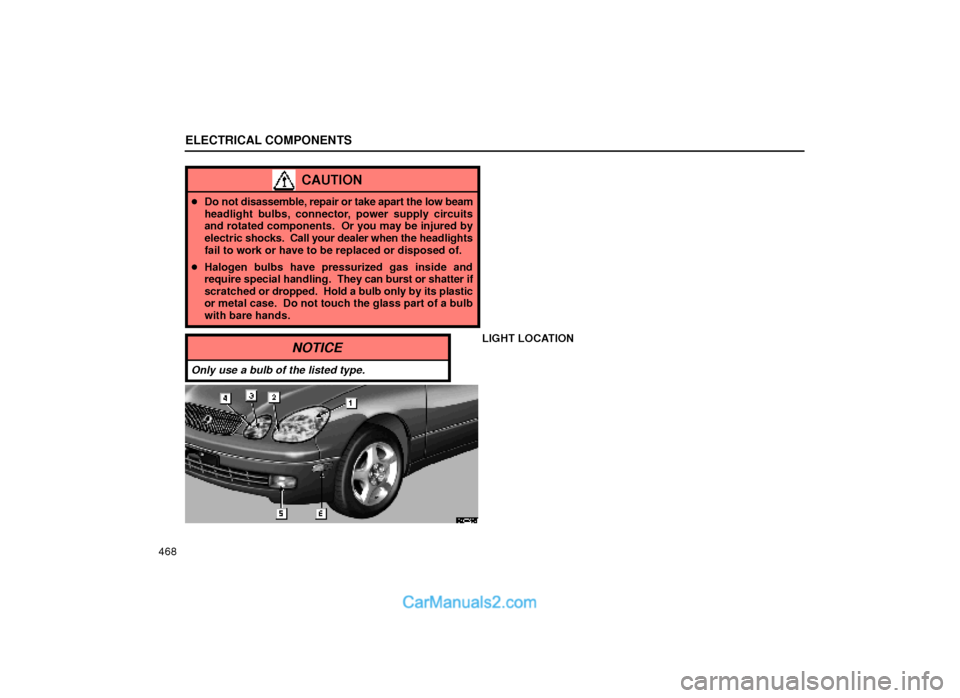

CAUTION
Do not disassemble, repair or take apart the low beam
headlight bulbs, connector, power supply circuits
and rotated components. Or you may be injured by
electric shocks. Call your dealer when the headlights
fail to work or have to be replaced or disposed of.
Halogen bulbs have pressurized gas inside and
require special handling. They can burst or shatter if
scratched or dropped. Hold a bulb only by its plastic
or metal case. Do not touch the glass part of a bulb
with bare hands.
NOTICE
Only use a bulb of the listed type.
LIGHT LOCATION
64G023±1

ELECTRICAL COMPONENTS

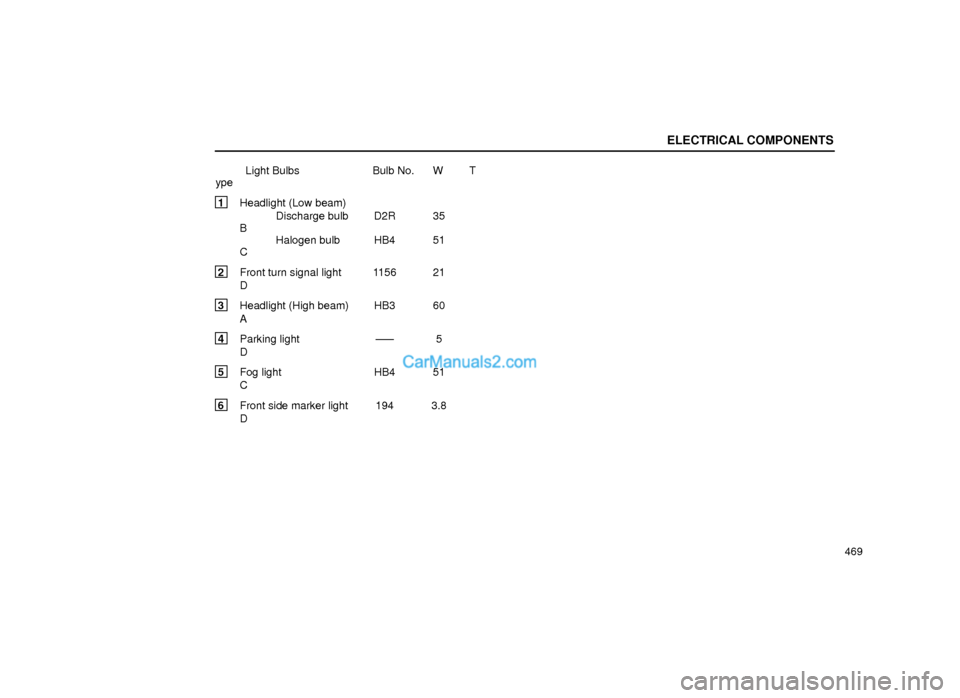

469 Light Bulbs Bulb No. W T
ype
1 Headlight (Low beam)
Discharge bulb D2R 35
B
Halogen bulb HB4 51
C
2 Front turn signal light 1156 21
D
3 Headlight (High beam) HB3 60
A
4 Parking light ±±± 5
D
5 Fog light HB4 51
C
6 Front side marker light 194 3.8
D
