Lexus GS300 2006 Audio
Manufacturer: LEXUS, Model Year: 2006, Model line: GS300, Model: Lexus GS300 2006Pages: 66, PDF Size: 1.75 MB
Page 11 of 66
AUDIO
283 If a Mark Levinson brand audio system is installed:
G22066
Automatic sound levelizer (ASL):
When the audio sound becomes difficult to be heard due to
road noise, wind noise, etc. during driving, touch the “ASL”
switch. The system adjusts to the optimum volume and tone
quality according to the noise level.
When the system is on, the sound adjustment level is
displayed on the screen.
SURROUND:
If you touch “SURROUND”, surround sound will be enabled.(d) Your radio antenna
The wire antenna is mounted inside the rear window.
NOTICE
When cleaning the inside of the rear window, be
careful not to scratch or damage the wire antenna.
Putting a window tint (especially, conductive or
metallic type) on the rear window may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(e) Your cassette player
When you insert a cassette, the exposed tape should be to the
right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.
Page 12 of 66
AUDIO
284(f) Your automatic changer
G22046
This vehicle is equipped with an automatic changer which can
store up to 6 discs, and play selected discs or continuously play
all the discs set in the player.
When you insert discs into the player, make sure their labels
face upward. If the disc is inserted incorrectly, the player will
display “CD CHECK” or “DISC CHECK”.
NOTICE
Never try to disassemble or oil any part of the CD
player or DVD player. Do not insert anything except
a disc into the slot.
Do not insert a disc upon another one, or it will
damage to the automatic changer. Insert only one
disc into the slot at a time.
Your CD player or DVD player is intended for use with 12 cm
(4.7 in.) discs only.
Radio operation
(a) Listening to the radio
G22009
Push “AM (AM·SAT)” or “FM” button to choose either an
AM or FM band.
The “AM”, “FM1” or “FM2” screen appears on the display.
If your vehicle is equipped with satellite radio broadcast
system, when you push the “AM·SAT” button, “AM”,
“SAT1”, “SAT2” or “SAT3” station appears on the display. For
details about satellite radio broadcast, see “Radio operation
(XM satellite radio broadcast)” on page 289

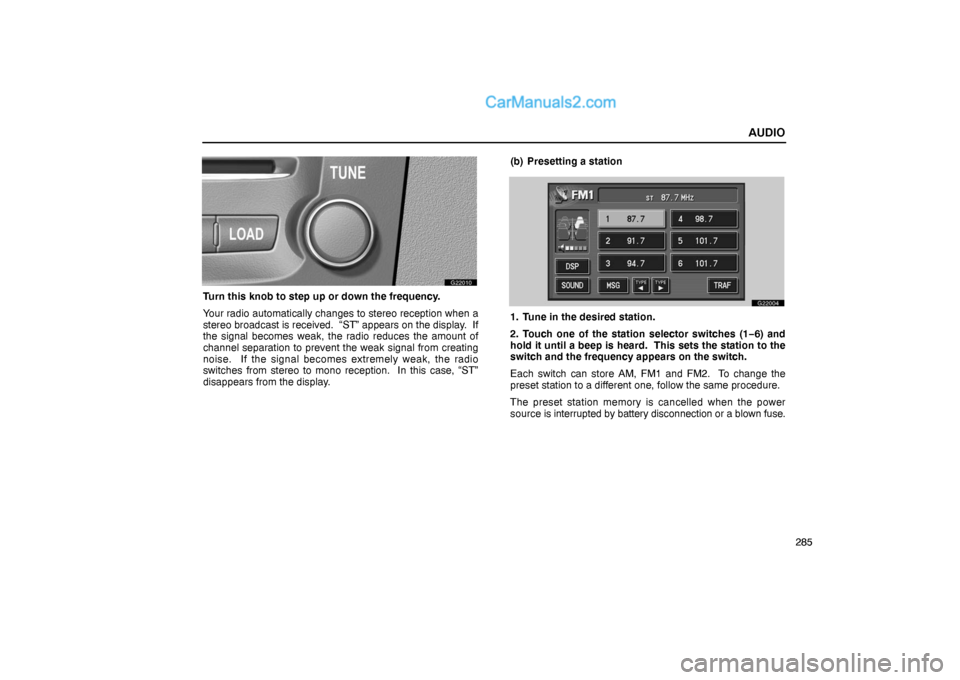

Page 13 of 66
AUDIO
285
G22010
Turn this knob to step up or down the frequency.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.(b) Presetting a station
G22004
1. Tune in the desired station.
2. Touch one of the station selector switches (1−6) and
hold it until a beep is heard. This sets the station to the
switch and the frequency appears on the switch.
Each switch can store AM, FM1 and FM2. To change the
preset station to a different one, follow the same procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.

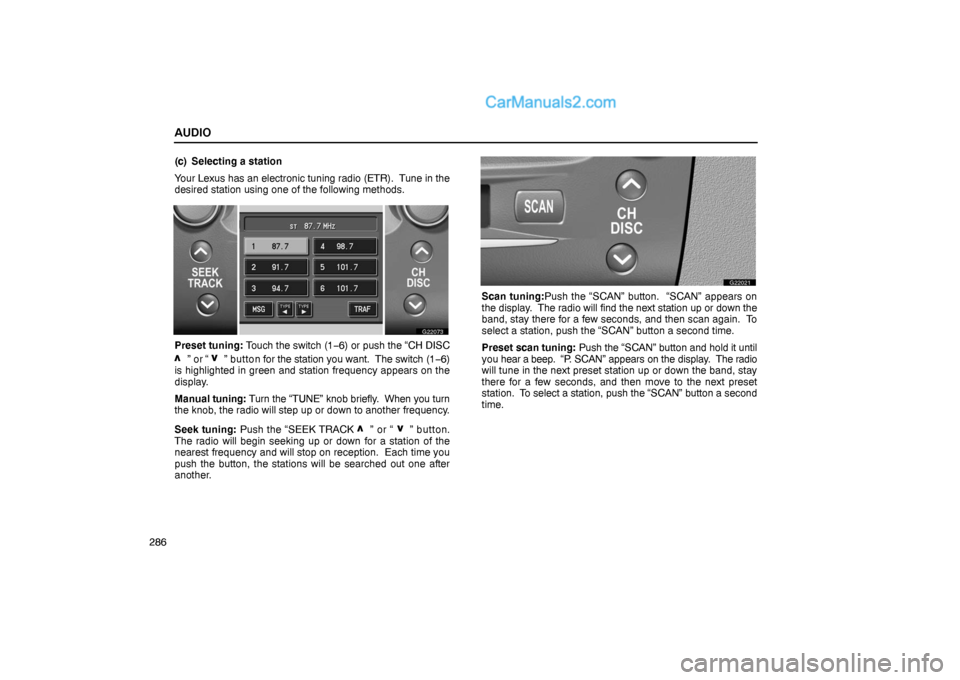

Page 14 of 66
AUDIO
286(c) Selecting a station
Your Lexus has an electronic tuning radio (ETR). Tune in the
desired station using one of the following methods.
G22073
Preset tuning: Touch the switch (1−6) or push the “CH DISC
” or “ ” button for the station you want. The switch (1−6)
is highlighted in green and station frequency appears on the
display.
Manual tuning: Turn the “TUNE” knob briefly. When you turn
the knob, the radio will step up or down to another frequency.
Seek tuning: Push the “SEEK TRACK
” or “ ” button.
The radio will begin seeking up or down for a station of the
nearest frequency and will stop on reception. Each time you
push the button, the stations will be searched out one after
another.
G22021
Scan tuning:Push the “SCAN” button. “SCAN” appears on
the display. The radio will find the next station up or down the
band, stay there for a few seconds, and then scan again. To
select a station, push the “SCAN” button a second time.
Preset scan tuning: Push the “SCAN” button and hold it until
you hear a beep. “P. SCAN” appears on the display. The radio
will tune in the next preset station up or down the band, stay
there for a few seconds, and then move to the next preset
station. To select a station, push the “SCAN” button a second
time.

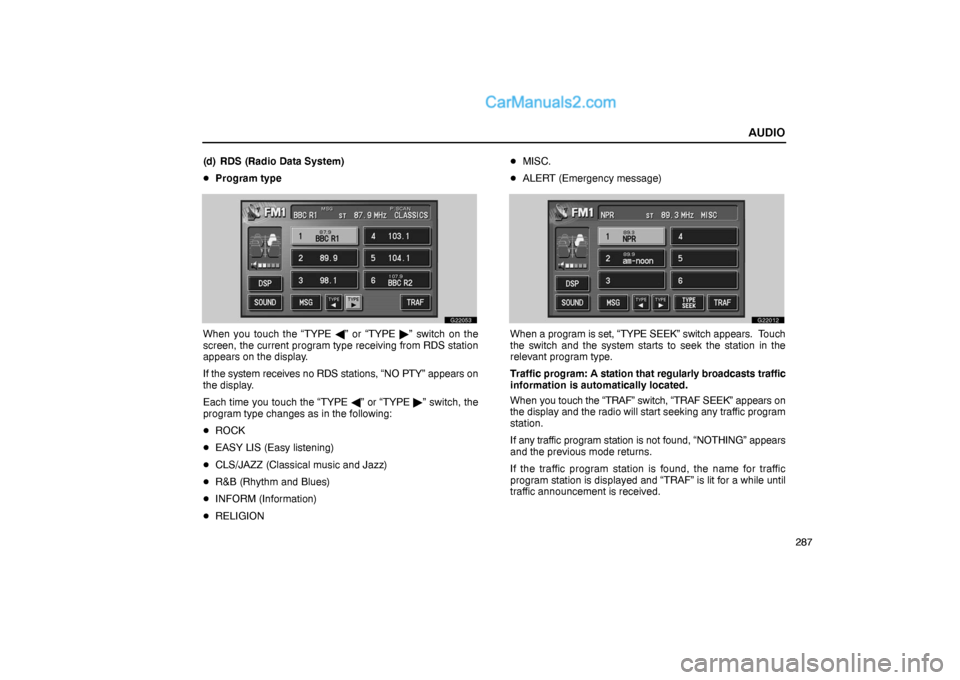

Page 15 of 66
AUDIO
287 (d) RDS (Radio Data System)
Program type
G22053
When you touch the “TYPE ” or “TYPE ” switch on the
screen, the current program type receiving from RDS station
appears on the display.
If the system receives no RDS stations, “NO PTY” appears on
the display.
Each time you touch the “TYPE ” or “TYPE ” switch, the
program type changes as in the following:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGIONMISC.
ALERT (Emergency message)
G22012
When a program is set, “TYPE SEEK” switch appears. Touch
the switch and the system starts to seek the station in the
relevant program type.
Traffic program: A station that regularly broadcasts traffic
information is automatically located.
When you touch the “TRAF” switch, “TRAF SEEK” appears on
the display and the radio will start seeking any traffic program
station.
If any traffic program station is not found, “NOTHING” appears
and the previous mode returns.
If the traffic program station is found, the name for traffic
program station is displayed and “TRAF” is lit for a while until
traffic announcement is received.

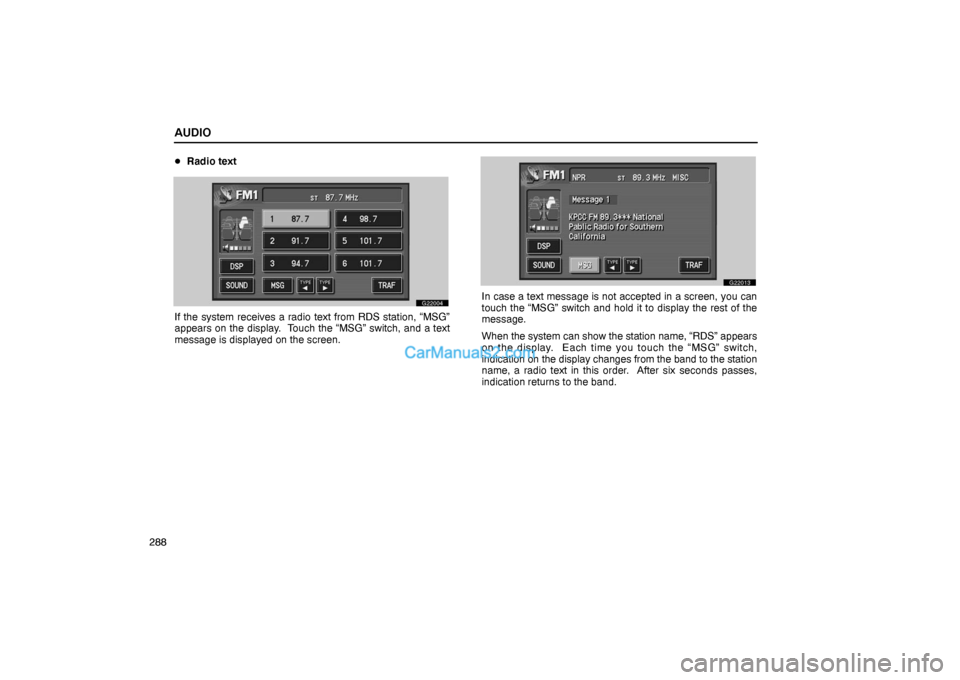

Page 16 of 66
AUDIO
288Radio text
G22004
If the system receives a radio text from RDS station, “MSG”
appears on the display. Touch the “MSG” switch, and a text
message is displayed on the screen.
G22013
In case a text message is not accepted in a screen, you can
touch the “MSG” switch and hold it to display the rest of the
message.
When the system can show the station name, “RDS” appears
on the display. Each time you touch the “MSG” switch,
indication on the display changes from the band to the station
name, a radio text in this order. After six seconds passes,
indication returns to the band.
Page 17 of 66
AUDIO
289
Radio operation (XM satellite radio broadcast)
To listen to a satellite radio broadcast in your vehicle, an
additional genuine Lexus satellite receiver and antenna must
be purchased and installed, and the subscription to the XM
satellite radio is necessary.
(a) How to subscribe to an XM satellite radio
An XM satellite radio is a tuner designed exclusively to receive
broadcasts provided under a separate subscription.
Availability is limited to the 48 contiguous states.
How to subscribe:
You must enter into a separate service agreement with the XM
radio in order to receive satellite broadcast programming in the
vehicle. Additional activation and service subscription fees
apply that are not included in the purchase price of the vehicle
and optional digital satellite tuner. For complete information on
subscription rates and terms, or to subscribe to the XM radio,
visit XM on the web at www.xmradio.com
or call an XM’s
Listener Care at (800) 852−9696. The XM radio is solely
responsible for the quality, availability and content of the
satellite radio services provided, which are subject to the terms
and conditions of the XM radio customer service agreement.Customers should have their radio ID ready; the radio ID can
be found by selecting the “channel 000” on the radio. For
details, see the “Displaying the radio ID” that follows.
All fees and programming are the responsibility of the XM
satellite radio and are subject to change.
Satellite tuner technology notice:
Lexus satellite radio tuners are awarded Type Approval
Certificates from XM Satellite Radio Inc. on “October 14, 2004”
as proof of compatibility with the services offered by the XM
satellite radio.
(b) Displaying the radio ID
Each XM tuner is identified with a unique radio ID. You will
need the radio ID when activating XM service or when
reporting a problem.
If you select the “CH 000” using the “TUNE” knob, the ID code
of 8 alphanumeric characters appears. If you select another
channel, display of the ID code is canceled. The channel (000)
alternates the display between the radio ID and the specific
radio ID code.

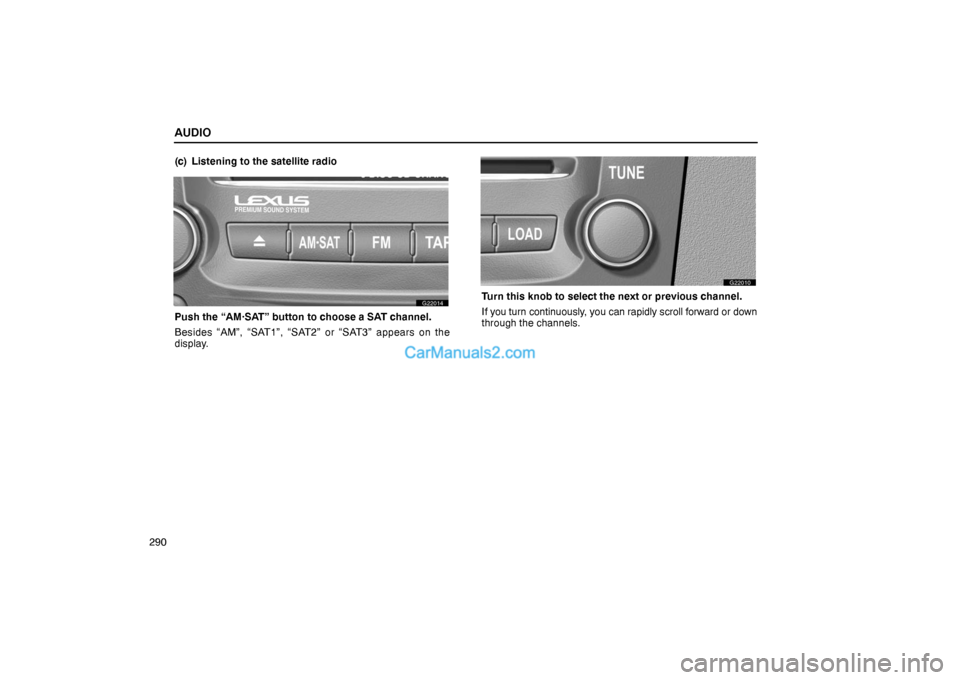

Page 18 of 66
AUDIO
290(c) Listening to the satellite radio
G22014
Push the “AM·SAT” button to choose a SAT channel.
Besides “AM”, “SAT1”, “SAT2” or “SAT3” appears on the
display.
G22010
Turn this knob to select the next or previous channel.
If you turn continuously, you can rapidly scroll forward or down
through the channels.

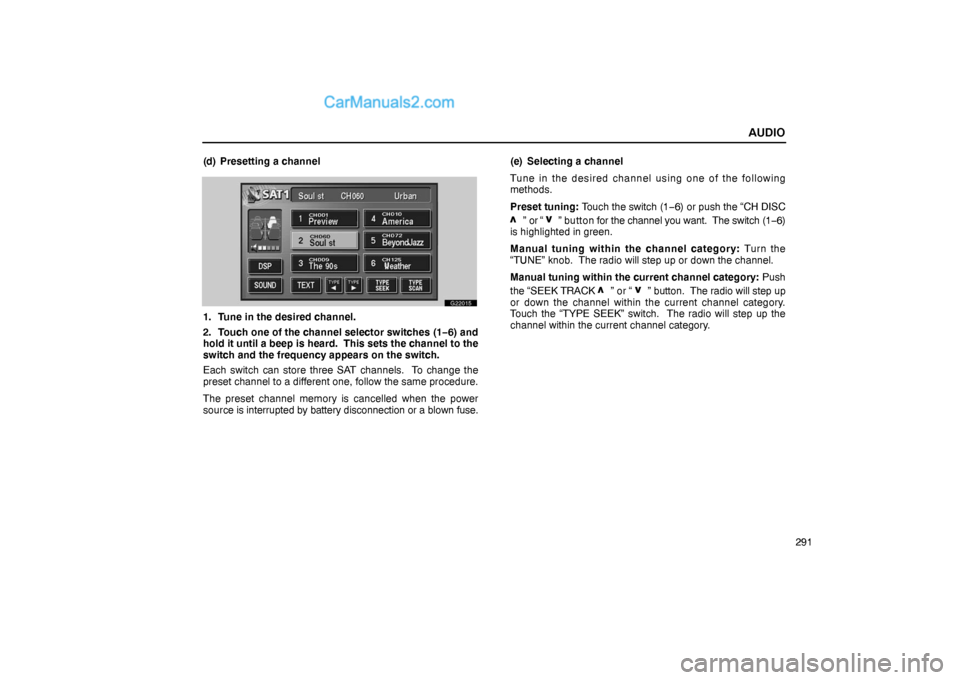

Page 19 of 66
AUDIO
291 (d) Presetting a channel
G22015
1. Tune in the desired channel.
2. Touch one of the channel selector switches (1−6) and
hold it until a beep is heard. This sets the channel to the
switch and the frequency appears on the switch.
Each switch can store three SAT channels. To change the
preset channel to a different one, follow the same procedure.
The preset channel memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse.(e) Selecting a channel
Tune in the desired channel using one of the following
methods.
Preset tuning: Touch the switch (1−6) or push the “CH DISC
” or “ ” bu t t o n for the channel you want. The switch (1−6)
is highlighted in green.
Manual tuning within the channel category: Turn the
“TUNE” knob. The radio will step up or down the channel.
Manual tuning within the current channel category: Push
the “SEEK TRACK
” or “ ” button. The radio will step up
or down the channel within the current channel category.
Touch the “TYPE SEEK” switch. The radio will step up the
channel within the current channel category.

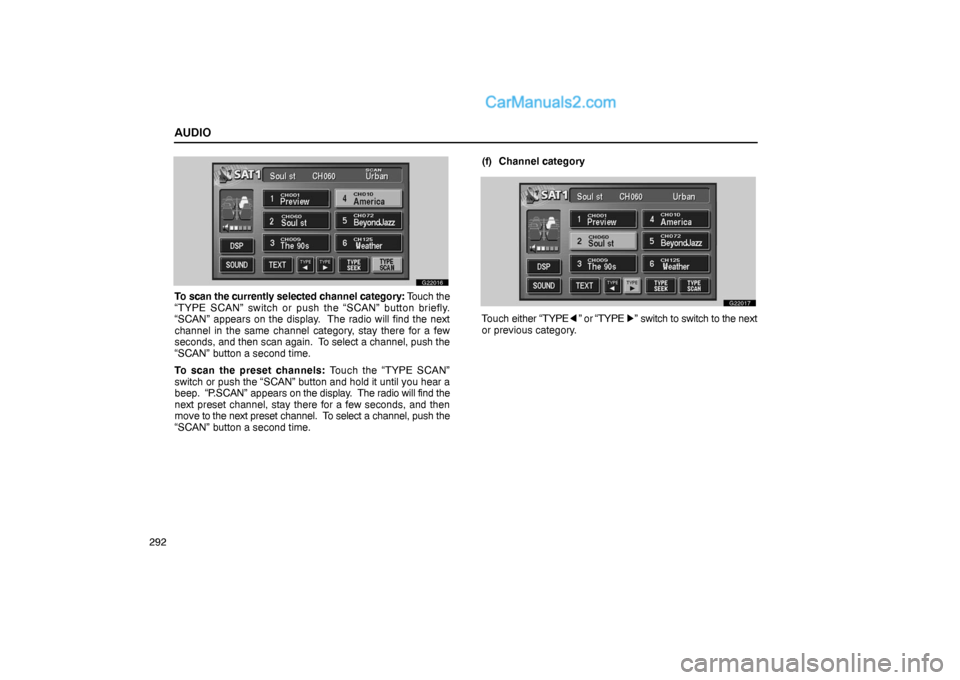

Page 20 of 66
AUDIO
292
G22016
To scan the currently selected channel category: Touch the
“TYPE SCAN” switch or push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
channel in the same channel category, stay there for a few
seconds, and then scan again. To select a channel, push the
“SCAN” button a second time.
To scan the preset channels: Touch the “TYPE SCAN”
switch or push the “SCAN” button and hold it until you hear a
beep. “P.SCAN” appears on the display. The radio will find the
next preset channel, stay there for a few seconds, and then
move to the next preset channel. To select a channel, push the
“SCAN” button a second time.(f) Channel category
G22017
Touch either “TYPE” or “TYPE ” switch to switch to the next
or previous category.
