Page 21 of 26
INTERIOR EQUIPMENT
11 7
G14034
Under the lid of the rear console box
To use the coin box, slide the rear console box as shown.
OVERHEAD CONSOLE BOX
G14020
To use the overhead console box, push the lid as shown.
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the overhead console
box closed while driving.
Do not place any object heavier than 100 g (0.22 lb.)
in it. Heavier objects may cause the box to open and
the contents to fly out resulting in injuries.

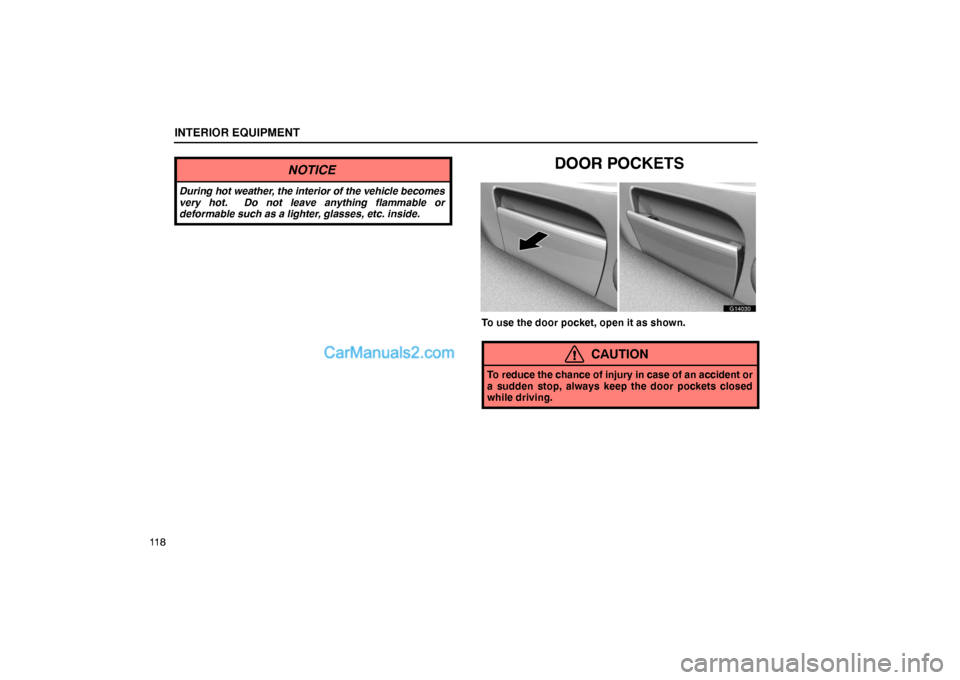

Page 22 of 26
INTERIOR EQUIPMENT
11 8
NOTICE
During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.
DOOR POCKETS
G14030
To use the door pocket, open it as shown.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the door pockets closed
while driving.

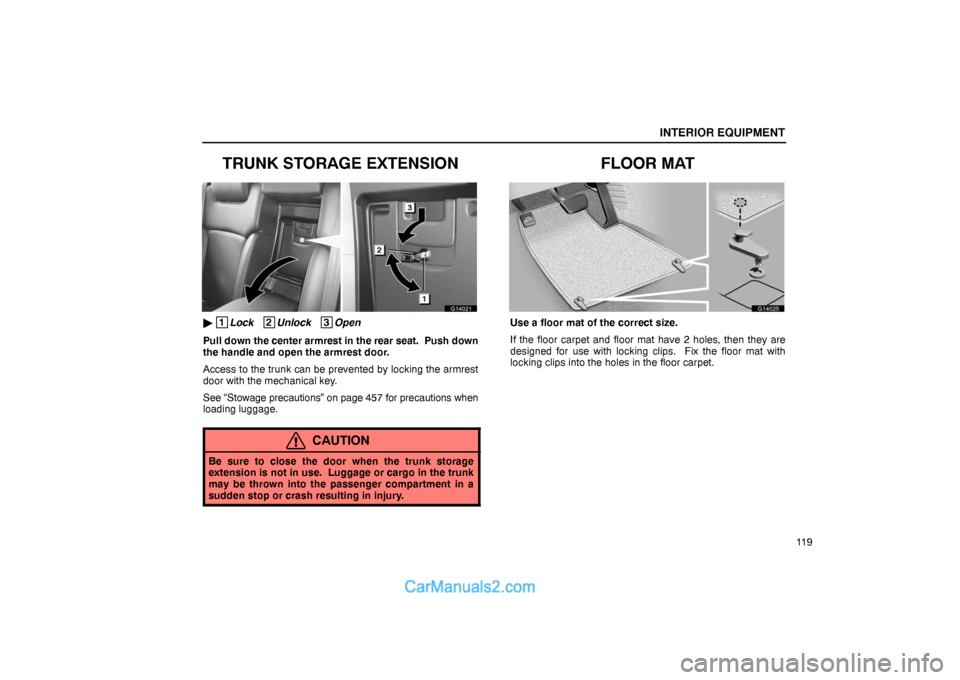

Page 23 of 26
INTERIOR EQUIPMENT
11 9
TRUNK STORAGE EXTENSION
G14021
1
Lock 2
Unlock 3
Open
Pull down the center armrest in the rear seat. Push down
the handle and open the armrest door.
Access to the trunk can be prevented by locking the armrest
door with the mechanical key.
See “Stowage precautions” on page 457 for precautions when
loading luggage.
CAUTION
Be sure to close the door when the trunk storage
extension is not in use. Luggage or cargo in the trunk
may be thrown into the passenger compartment in a
sudden stop or crash resulting in injury.
FLOOR MAT
G14025
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2 holes, then they are
designed for use with locking clips. Fix the floor mat with
locking clips into the holes in the floor carpet.

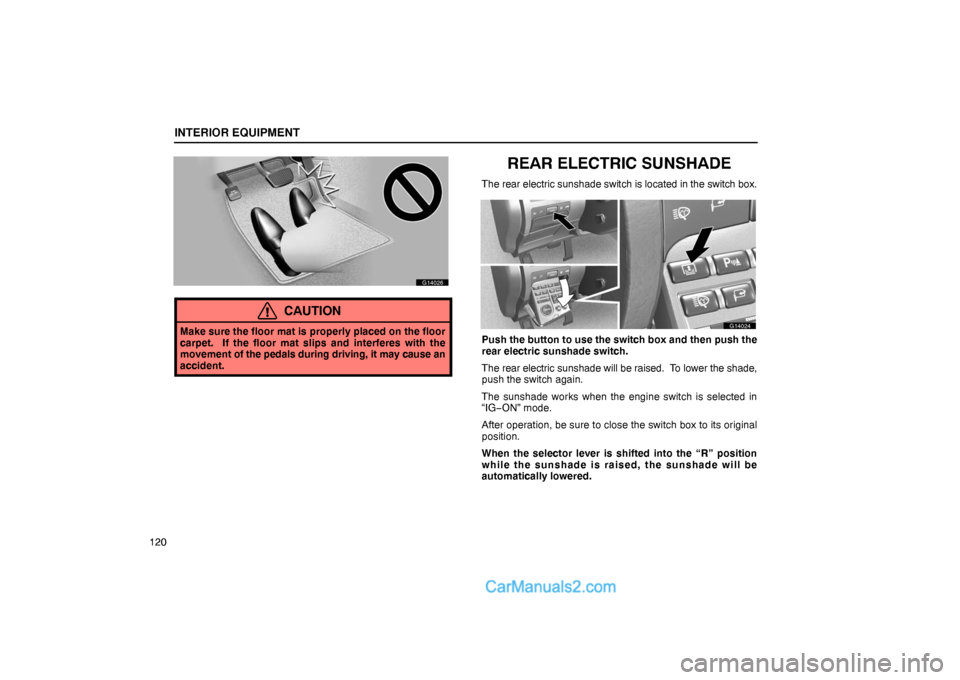

Page 24 of 26
INTERIOR EQUIPMENT
120
G14026
CAUTION
Make sure the floor mat is properly placed on the floor
carpet. If the floor mat slips and interferes with the
movement of the pedals during driving, it may cause an
accident.
REAR ELECTRIC SUNSHADE
The rear electric sunshade switch is located in the switch box.
G14024
Push the button to use the switch box and then push the
rear electric sunshade switch.
The rear electric sunshade will be raised. To lower the shade,
push the switch again.
The sunshade works when the engine switch is selected in
“IG−ON” mode.
After operation, be sure to close the switch box to its original
position.
When the selector lever is shifted into the “R” position
while the sunshade is raised, the sunshade will be
automatically lowered.

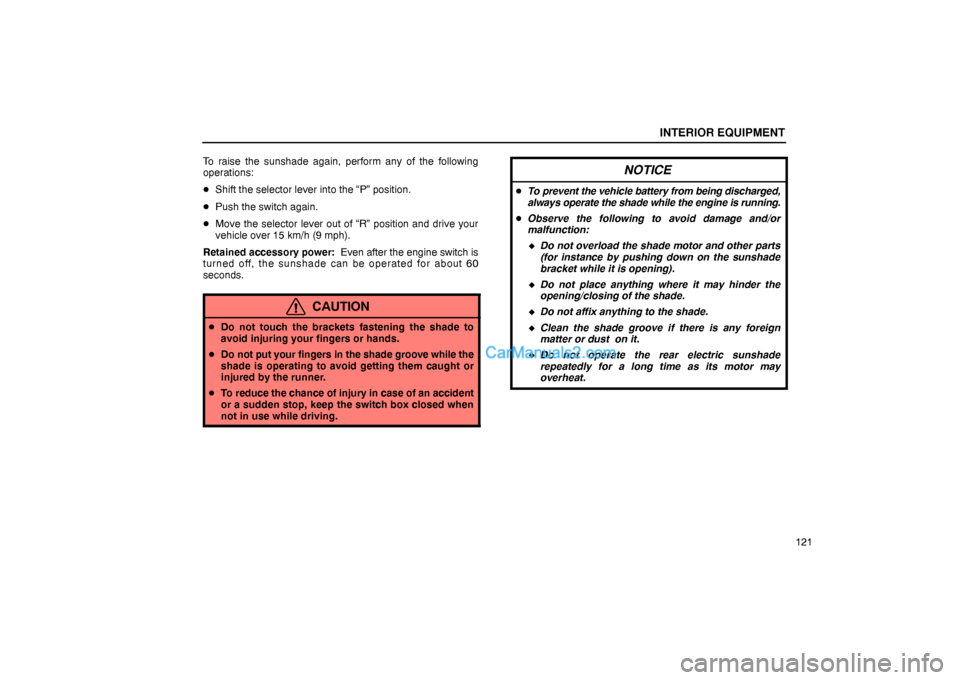

Page 25 of 26
INTERIOR EQUIPMENT
121 To raise the sunshade again, perform any of the following
operations:
Shift the selector lever into the “P” position.
Push the switch again.
Move the selector lever out of “R” position and drive your
vehicle over 15 km/h (9 mph).
Retained accessory power: Even after the engine switch is
turned off, the sunshade can be operated for about 60
seconds.
CAUTION
Do not touch the brackets fastening the shade to
avoid injuring your fingers or hands.
Do not put your fingers in the shade groove while the
shade is operating to avoid getting them caught or
injured by the runner.
To reduce the chance of injury in case of an accident
or a sudden stop, keep the switch box closed when
not in use while driving.
NOTICE
To prevent the vehicle battery from being discharged,
always operate the shade while the engine is running.
Observe the following to avoid damage and/or
malfunction:
Do not overload the shade motor and other parts
(for instance by pushing down on the sunshade
bracket while it is opening).
Do not place anything where it may hinder the
opening/closing of the shade.
Do not affix anything to the shade.
Clean the shade groove if there is any foreign
matter or dust on it.
Do not operate the rear electric sunshade
repeatedly for a long time as its motor may
overheat.

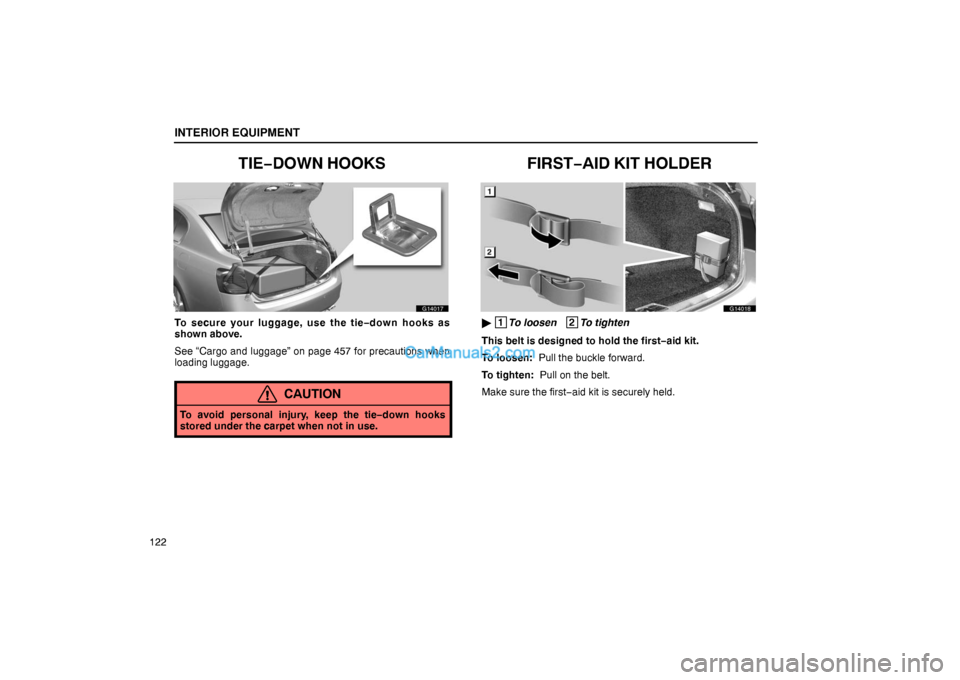

Page 26 of 26
INTERIOR EQUIPMENT
122
TIE−DOWN HOOKS
G14017
To secure your luggage, use the tie−down hooks as
shown above.
See “Cargo and luggage” on page 457 for precautions when
loading luggage.
CAUTION
To avoid personal injury, keep the tie−down hooks
stored under the carpet when not in use.
FIRST−AID KIT HOLDER
G14018
1
To loosen 2
To tighten
This belt is designed to hold the first−aid kit.
To loosen: Pull the buckle forward.
To tighten: Pull on the belt.
Make sure the first−aid kit is securely held.
