Lexus GS300 2006 Interior Equipment
Manufacturer: LEXUS, Model Year: 2006, Model line: GS300, Model: Lexus GS300 2006Pages: 26, PDF Size: 0.77 MB
Page 11 of 26

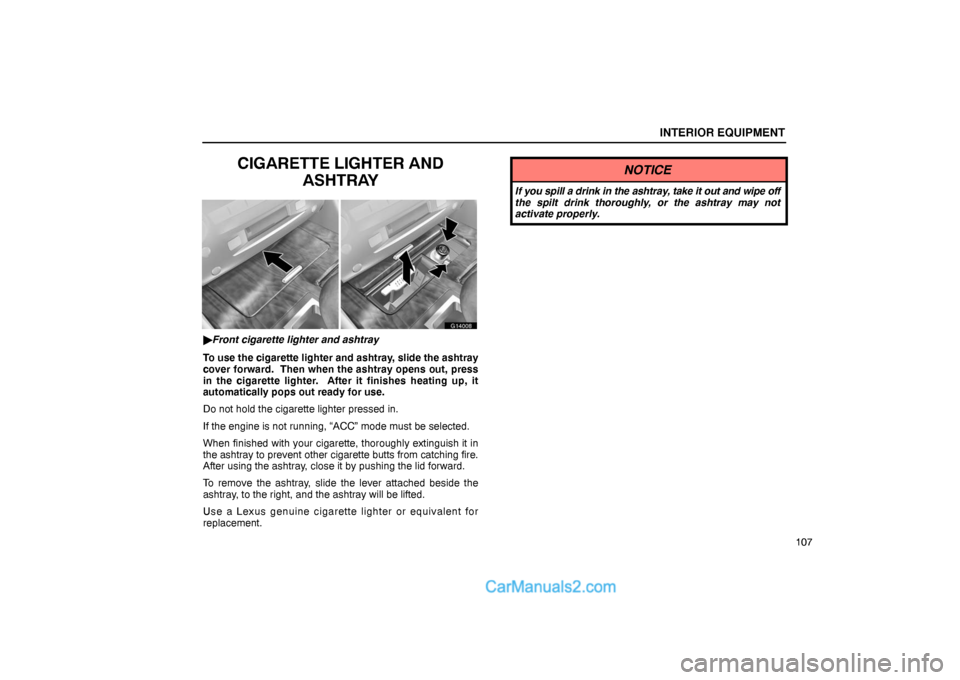

INTERIOR EQUIPMENT
107
CIGARETTE LIGHTER AND
ASHTRAY
G14008
Front cigarette lighter and ashtray
To use the cigarette lighter and ashtray, slide the ashtray
cover forward. Then when the ashtray opens out, press
in the cigarette lighter. After it finishes heating up, it
automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, “ACC” mode must be selected.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close it by pushing the lid forward.
To remove the ashtray, slide the lever attached beside the
ashtray, to the right, and the ashtray will be lifted.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
NOTICE
If you spill a drink in the ashtray, take it out and wipe off
the spilt drink thoroughly, or the ashtray may not
activate properly.
Page 12 of 26

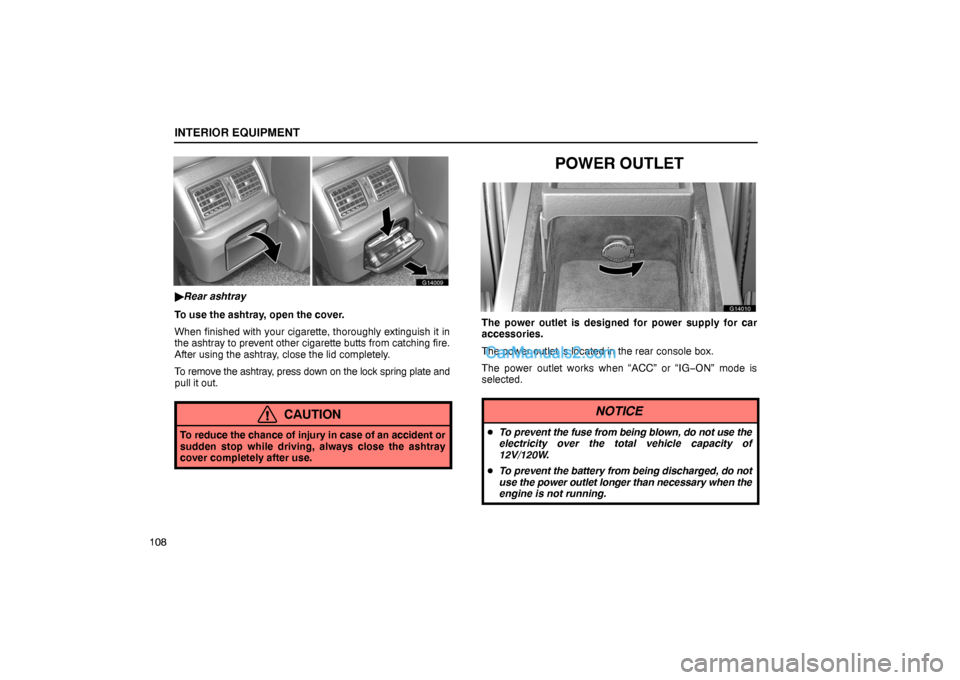

INTERIOR EQUIPMENT
108
G14009
Rear ashtray
To use the ashtray, open the cover.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the lid completely.
To remove the ashtray, press down on the lock spring plate and
pull it out.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always close the ashtray
cover completely after use.
POWER OUTLET
G14010
The power outlet is designed for power supply for car
accessories.
The power outlet is located in the rear console box.
The power outlet works when “ACC” or “IG−ON” mode is
selected.
NOTICE
To prevent the fuse from being blown, do not use the
electricity over the total vehicle capacity of
12V/120W.
To prevent the battery from being discharged, do not
use the power outlet longer than necessary when the
engine is not running.
Page 13 of 26

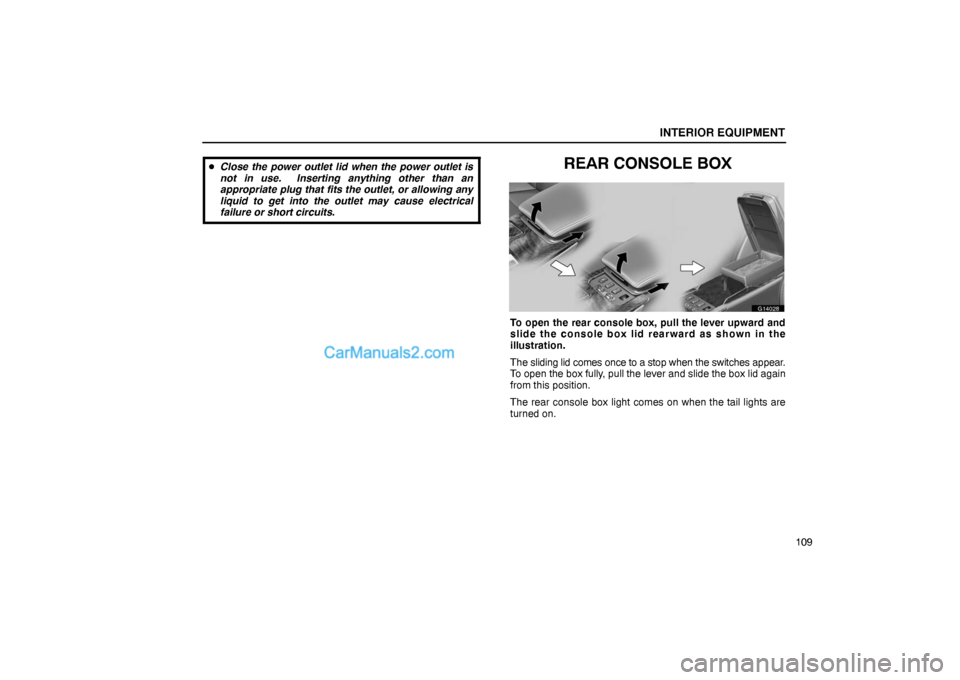

INTERIOR EQUIPMENT
109 Close the power outlet lid when the power outlet is
not in use. Inserting anything other than an
appropriate plug that fits the outlet, or allowing any
liquid to get into the outlet may cause electrical
failure or short circuits.
REAR CONSOLE BOX
G14028
To open the rear console box, pull the lever upward and
slide the console box lid rearward as shown in the
illustration.
The sliding lid comes once to a stop when the switches appear.
To open the box fully, pull the lever and slide the box lid again
from this position.
The rear console box light comes on when the tail lights are
turned on.
Page 14 of 26

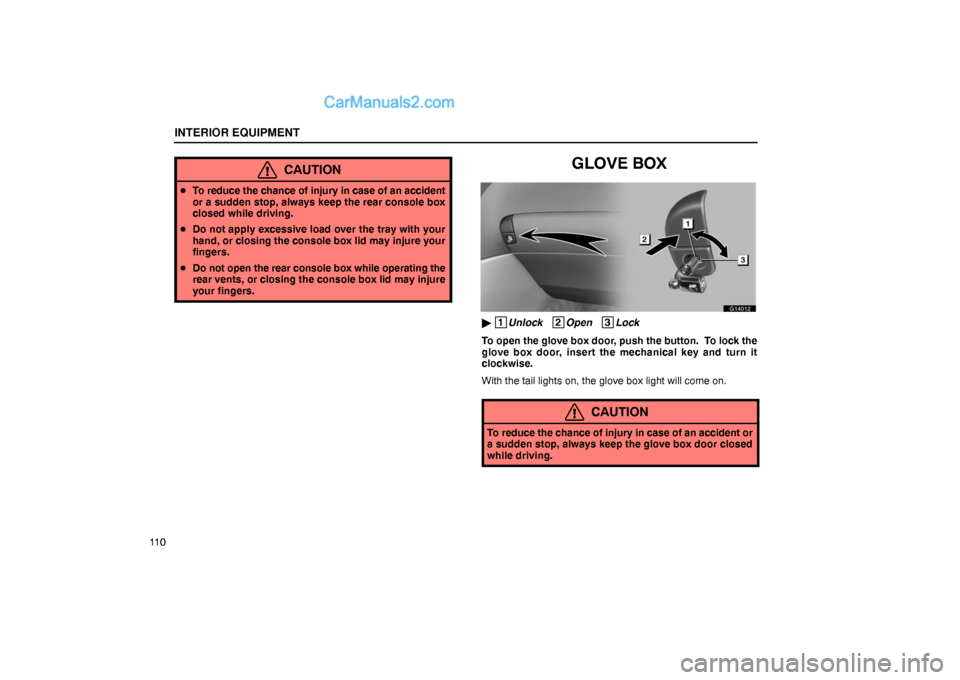

INTERIOR EQUIPMENT
11 0
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the rear console box
closed while driving.
Do not apply excessive load over the tray with your
hand, or closing the console box lid may injure your
fingers.
Do not open the rear console box while operating the
rear vents, or closing the console box lid may injure
your fingers.
GLOVE BOX
G14012
1
Unlock 2
Open 3
Lock
To open the glove box door, push the button. To lock the
glove box door, insert the mechanical key and turn it
clockwise.
With the tail lights on, the glove box light will come on.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
Page 15 of 26

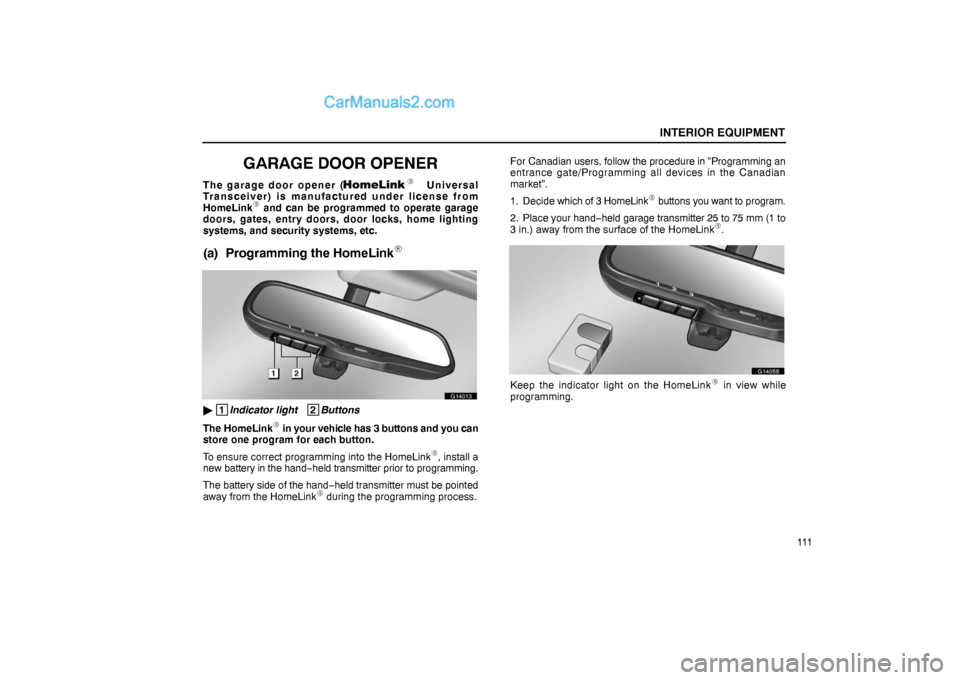

INTERIOR EQUIPMENT
111
GARAGE DOOR OPENER
The garage door opener (
Universal
Transceiver) is manufactured under license from
HomeLink
and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
(a) Programming the HomeLink
G14013
1
Indicator light 2
Buttons
The HomeLink
in your vehicle has 3 buttons and you can
store one program for each button.
To ensure correct programming into the HomeLink
, install a
new battery in the hand−held transmitter prior to programming.
The battery side of the hand−held transmitter must be pointed
away from the HomeLink
during the programming process.For Canadian users, follow the procedure in “Programming an
entrance gate/Programming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
buttons you want to program.
2. Place your hand−held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink
.
G14058
Keep the indicator light on the HomeLink in view while
programming.
Page 16 of 26
INTERIOR EQUIPMENT

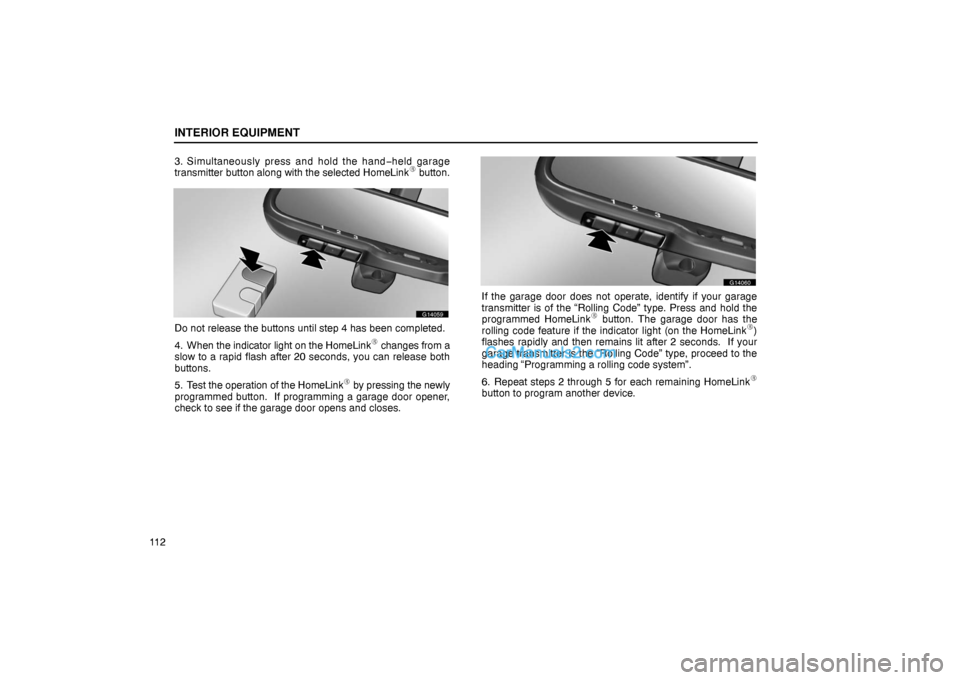

11 23. Simultaneously press and hold the hand−held garage
transmitter button along with the selected HomeLink
button.
G14059
Do not release the buttons until step 4 has been completed.
4. When the indicator light on the HomeLink
changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
G14060
If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink
button. The garage door has the
rolling code feature if the indicator light (on the HomeLink)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”.
6. Repeat steps 2 through 5 for each remaining HomeLink
button to program another device.
Page 17 of 26

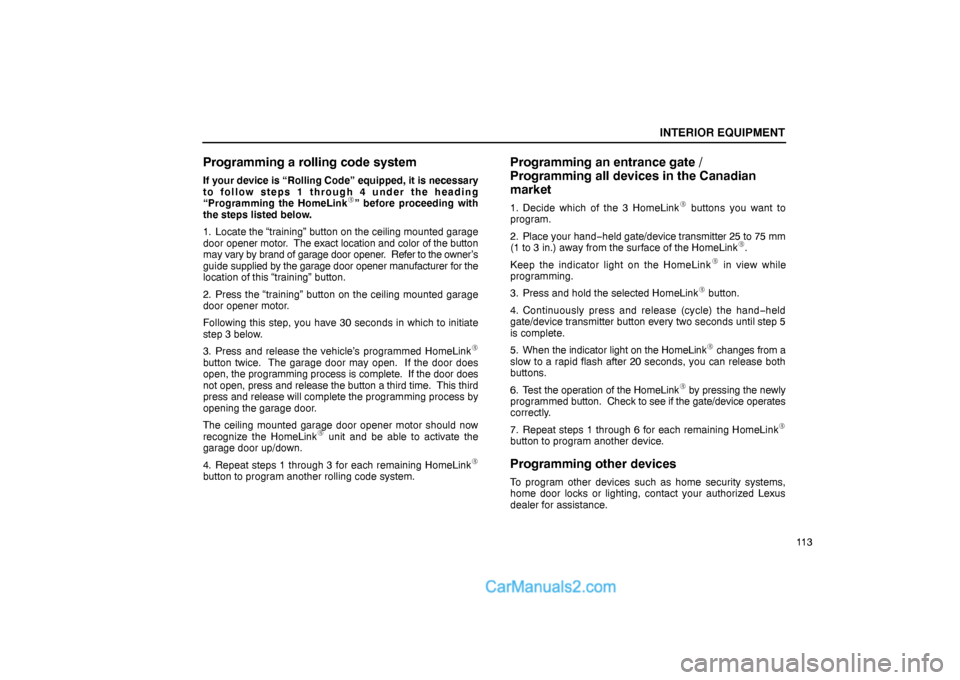

INTERIOR EQUIPMENT
11 3
Programming a rolling code system
If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink
” before proceeding with
the steps listed below.
1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.
2. Press the “training” button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
3. Press and release the vehicle’s programmed HomeLink
button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize the HomeLink
unit and be able to activate the
garage door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink
button to program another rolling code system.
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink buttons you want to
program.
2. Place your hand−held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
.
Keep the indicator light on the HomeLink
in view while
programming.
3. Press and hold the selected HomeLink
button.
4. Continuously press and release (cycle) the hand−held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
6. Test the operation of the HomeLink
by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink
button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Page 18 of 26
INTERIOR EQUIPMENT
11 4

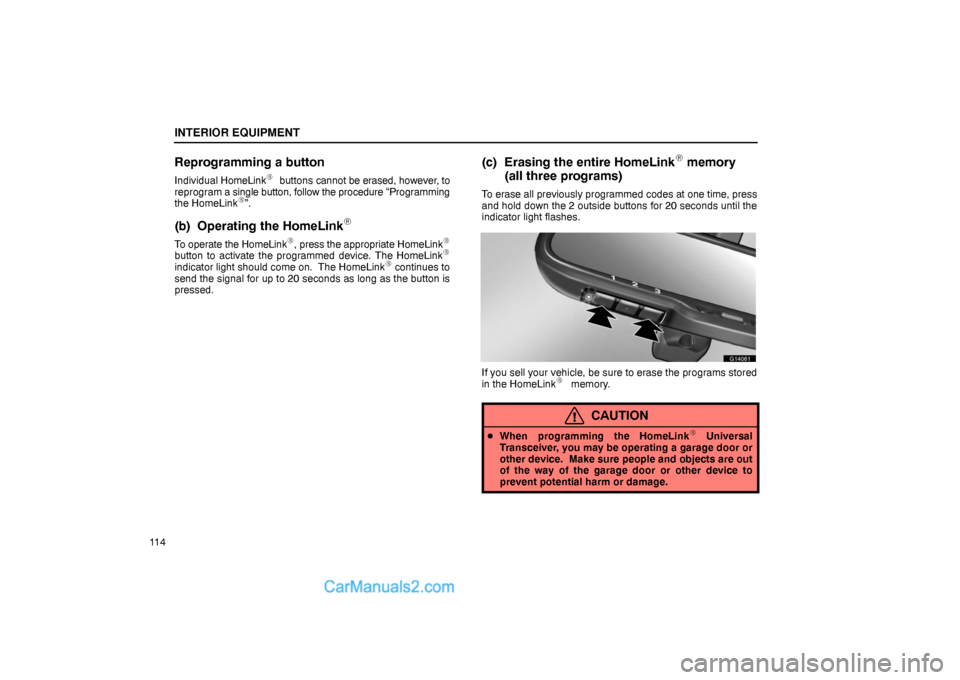

Reprogramming a button
Individual HomeLink
buttons cannot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink
”.
(b) Operating the HomeLink
To operate the HomeLink, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLink continues to
send the signal for up to 20 seconds as long as the button is
pressed.
(c) Erasing the entire HomeLink memory
(all three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
G14061
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
memory.
CAUTION
When programming the HomeLink Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
Page 19 of 26

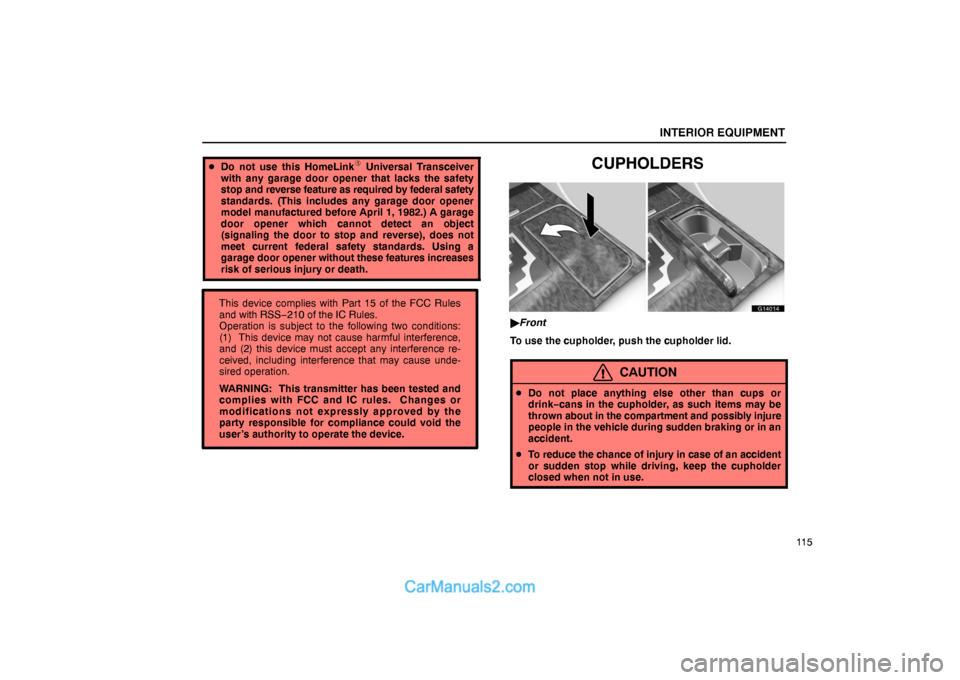

This device complies with Part 15 of the FCC Rules
and with RSS−210 of the IC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference re-
ceived, including interference that may cause unde-
sired operation.
WARNING: This transmitter has been tested and
complies with FCC and IC rules. Changes or
modifications not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the device.
INTERIOR EQUIPMENT
11 5
Do not use this HomeLink Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object
(signaling the door to stop and reverse), does not
meet current federal safety standards. Using a
garage door opener without these features increases
risk of serious injury or death.CUPHOLDERS
G14014
Front
To use the cupholder, push the cupholder lid.
CAUTION
Do not place anything else other than cups or
drink−cans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
Page 20 of 26

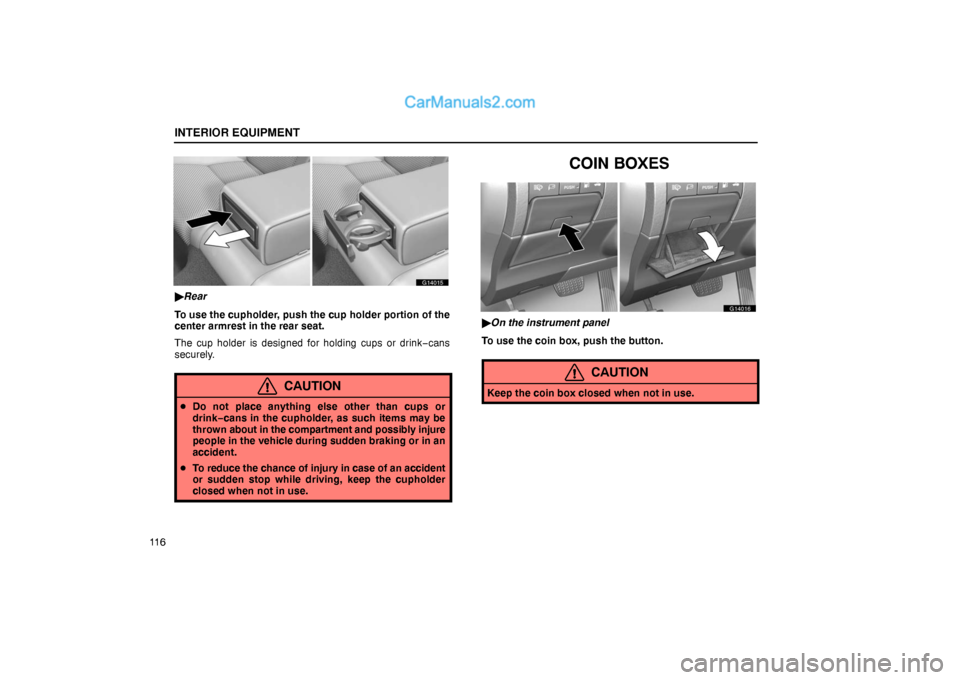

INTERIOR EQUIPMENT
11 6
G14015
Rear
To use the cupholder, push the cup holder portion of the
center armrest in the rear seat.
The cup holder is designed for holding cups or drink−cans
securely.
CAUTION
Do not place anything else other than cups or
drink−cans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
COIN BOXES
G14016
On the instrument panel
To use the coin box, push the button.
CAUTION
Keep the coin box closed when not in use.
