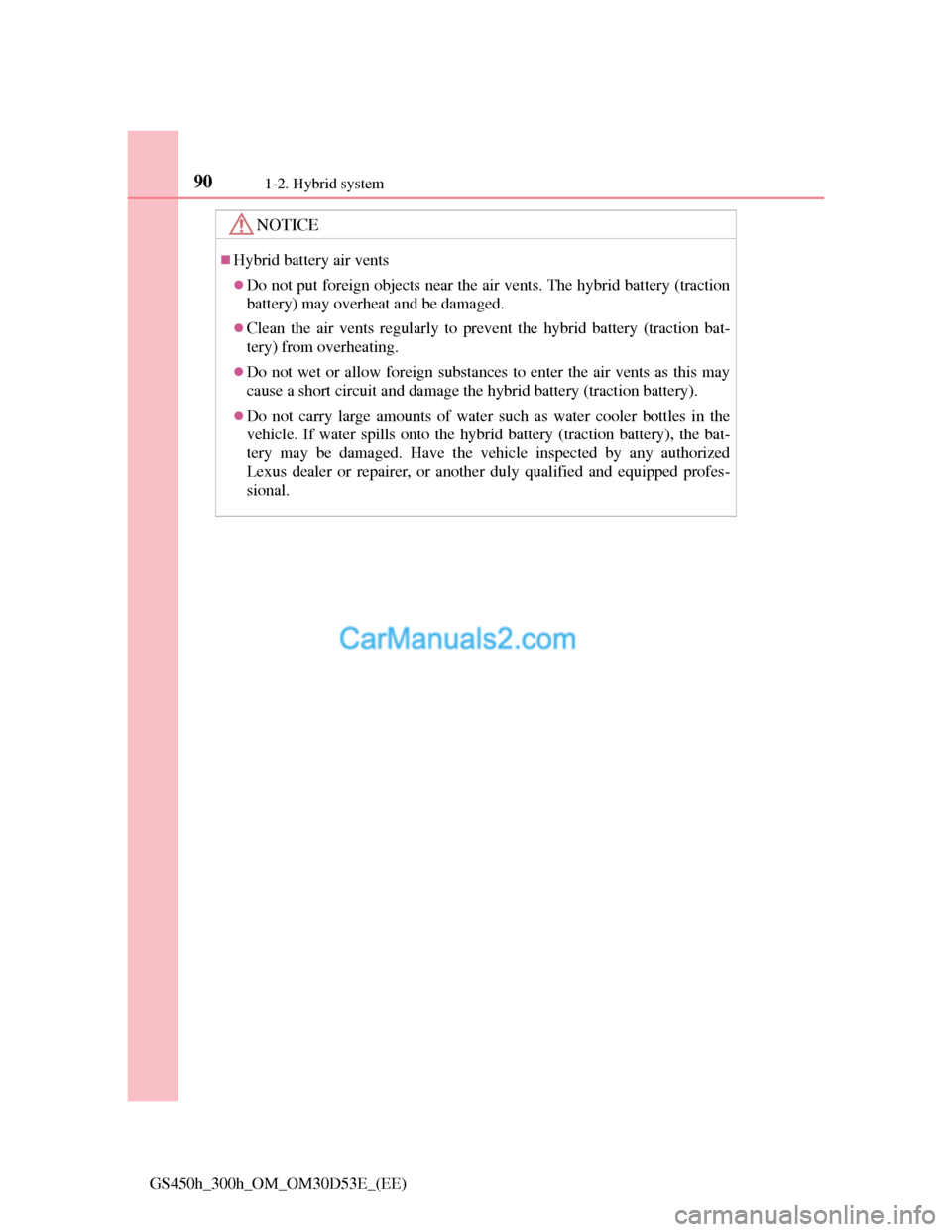

901-2. Hybrid system
GS450h_300h_OM_OM30D53E_(EE)
NOTICE
Hybrid battery air vents
Do not put foreign objects near the air vents. The hybrid battery (traction
battery) may overheat and be damaged.
Clean the air vents regularly to prevent the hybrid battery (traction bat-
tery) from overheating.
Do not wet or allow foreign substances to enter the air vents as this may
cause a short circuit and damage the hybrid battery (traction battery).
Do not carry large amounts of water such as water cooler bottles in the
vehicle. If water spills onto the hybrid battery (traction battery), the bat-
tery may be damaged. Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly qualified and equipped profes-
sional.

91
1 1-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

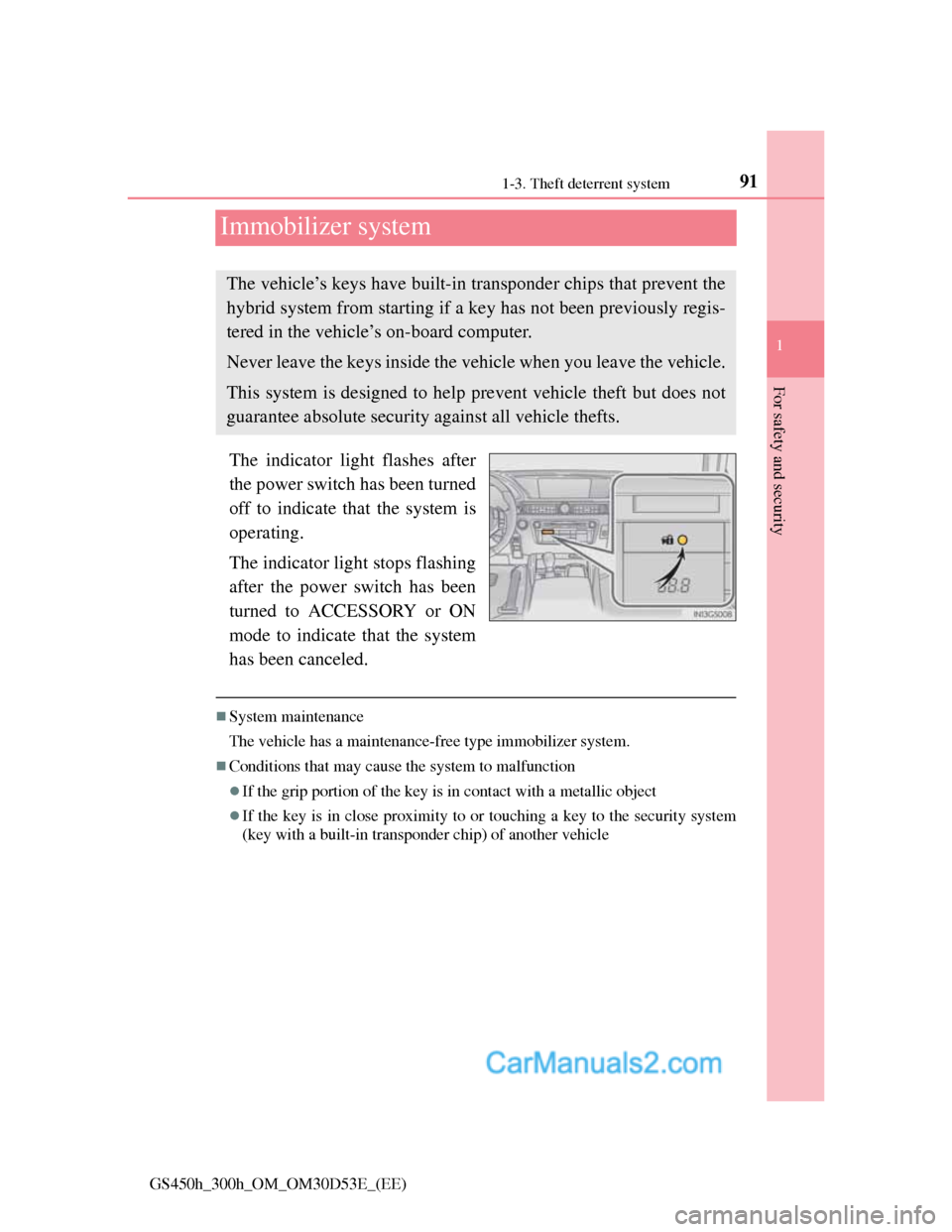

Immobilizer system
The indicator light flashes after
the power switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the power switch has been
turned to ACCESSORY or ON
mode to indicate that the system
has been canceled.
System maintenance
The vehicle has a maintenance-free type immobilizer system.
Conditions that may cause the system to malfunction
If the grip portion of the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
hybrid system from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.

921-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)

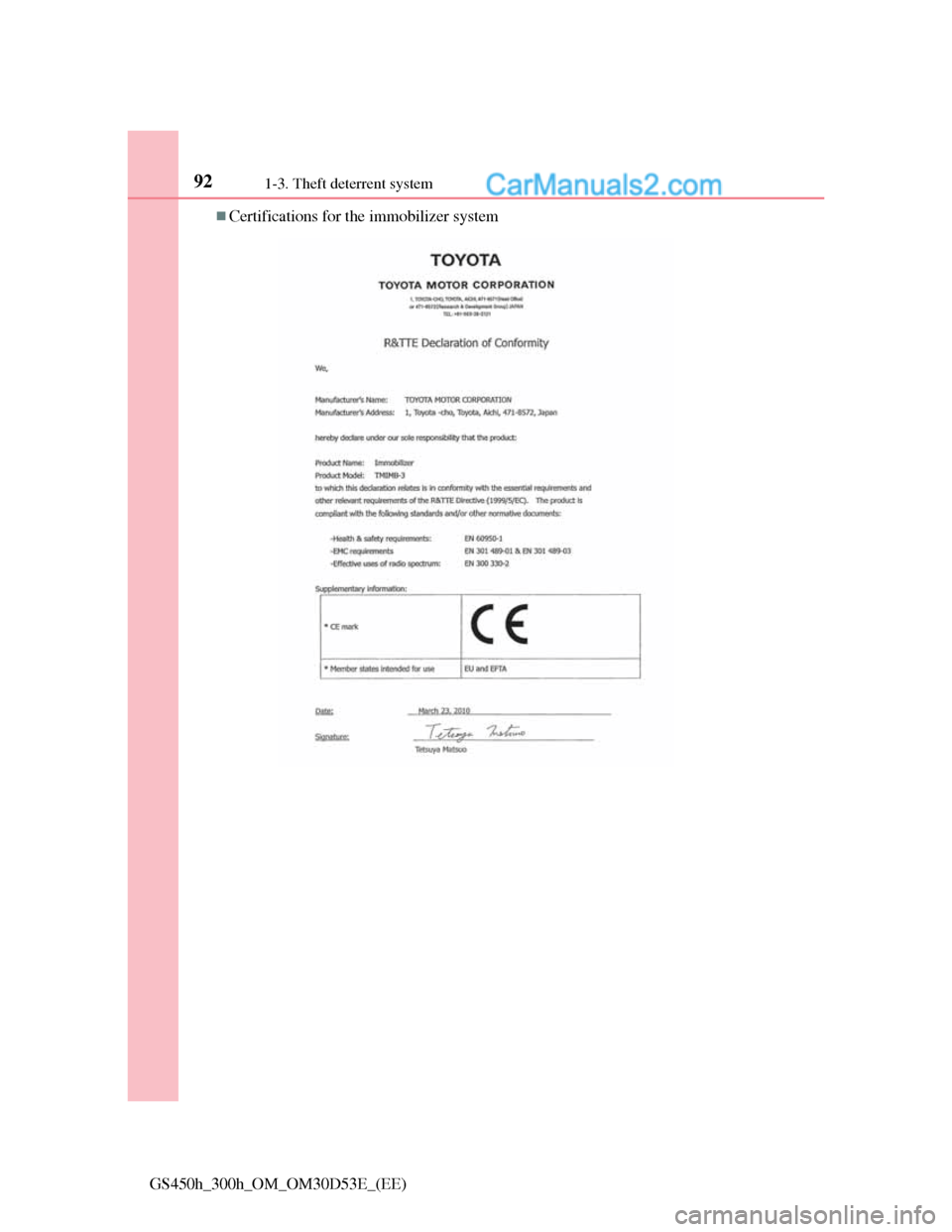

Certifications for the immobilizer system

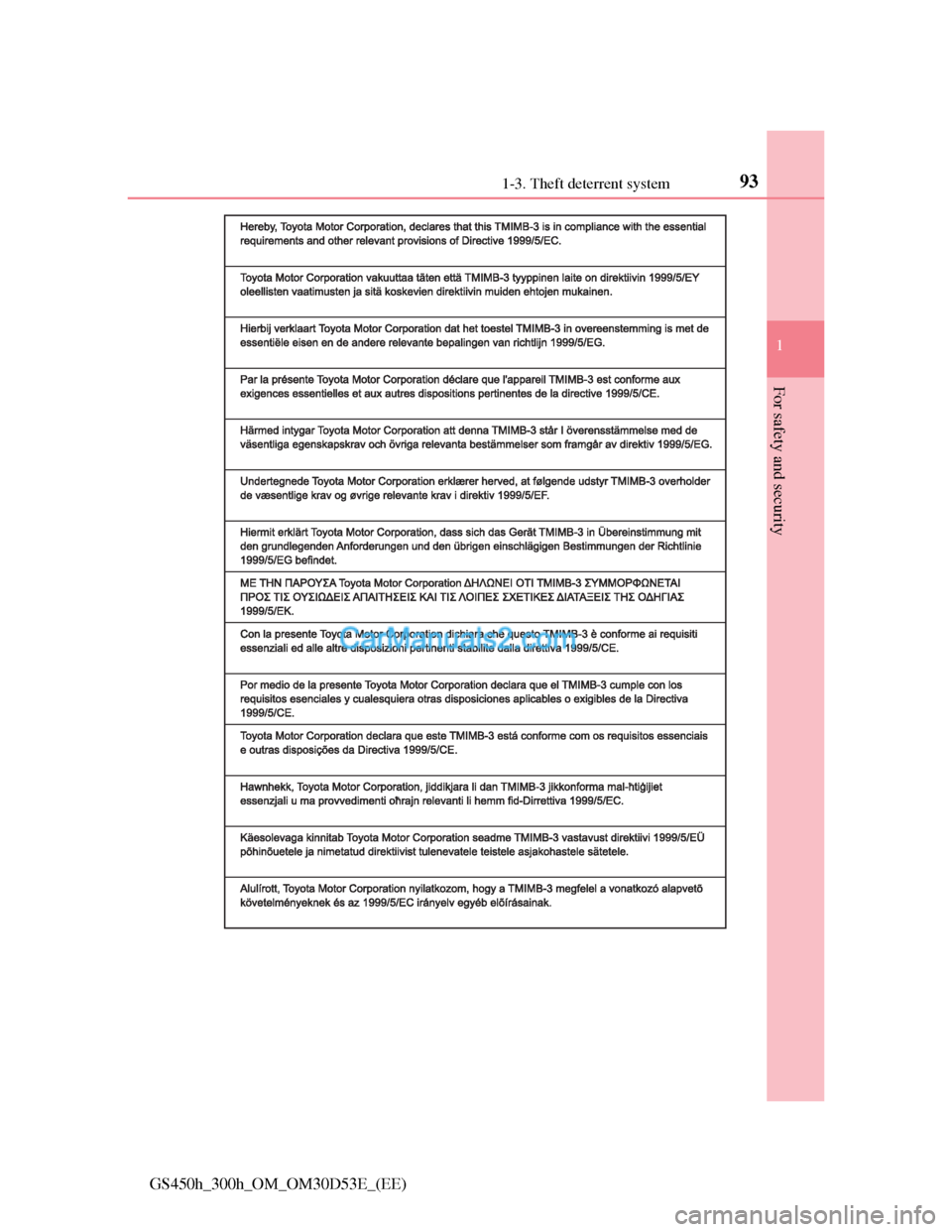

931-3. Theft deterrent system
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

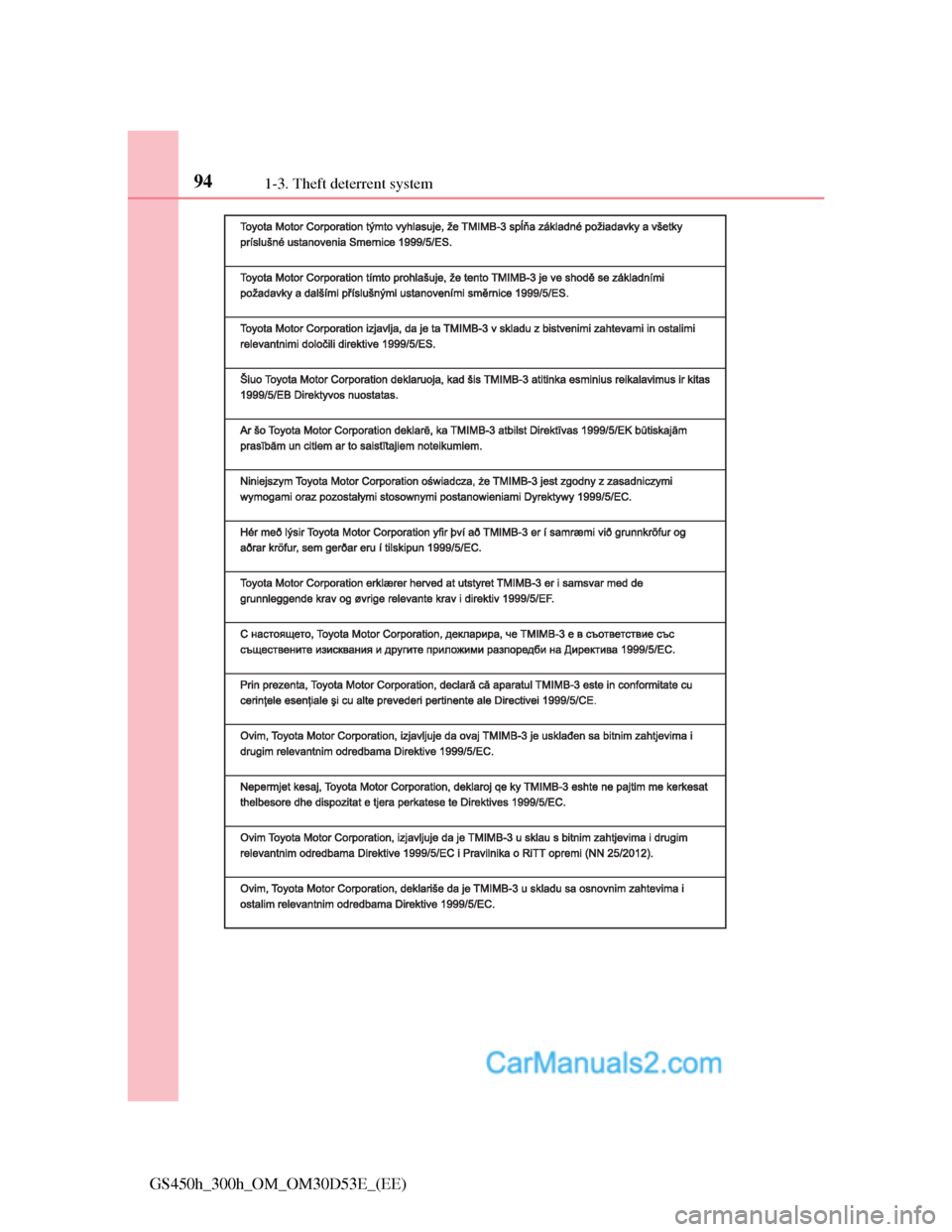

941-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)

951-3. Theft deterrent system
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

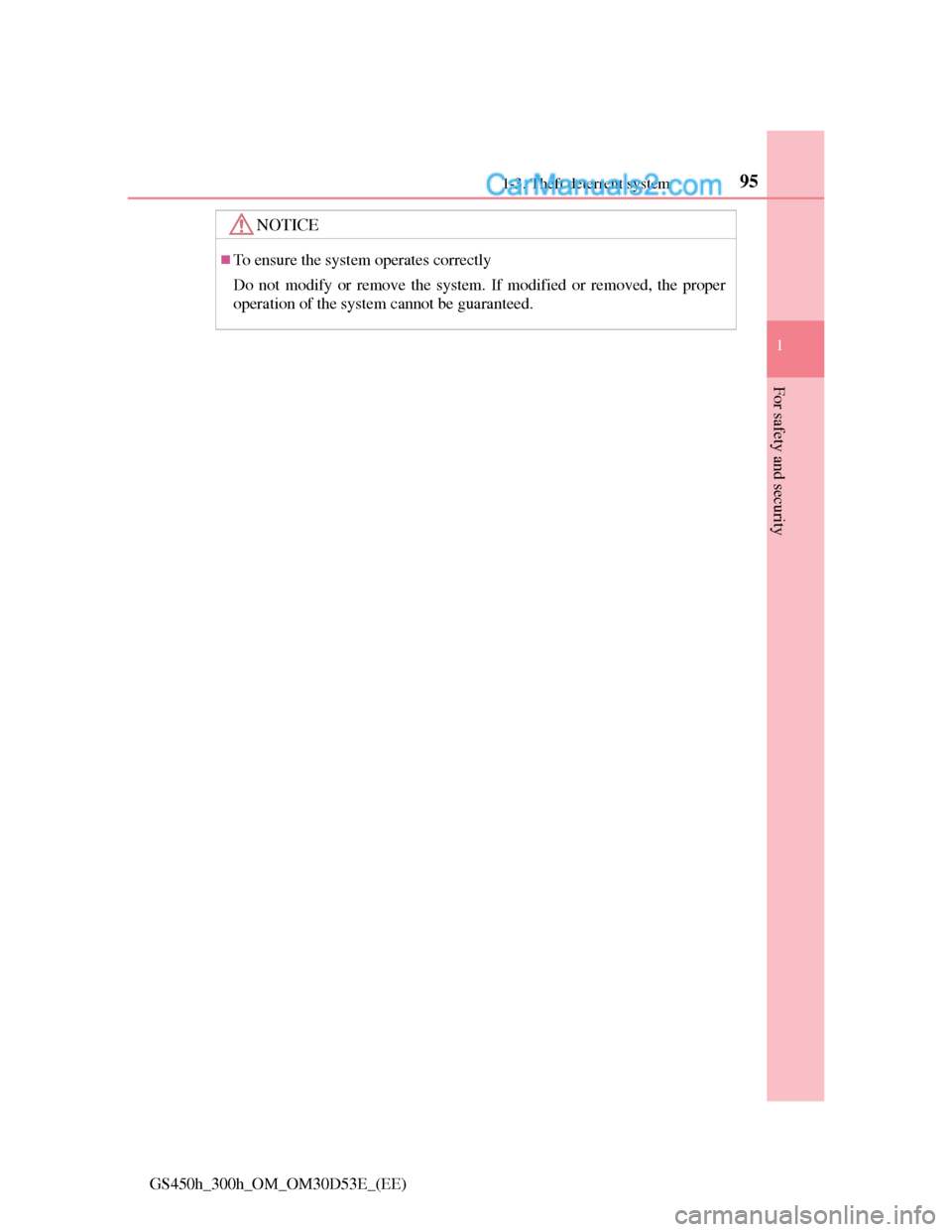

NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

961-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)

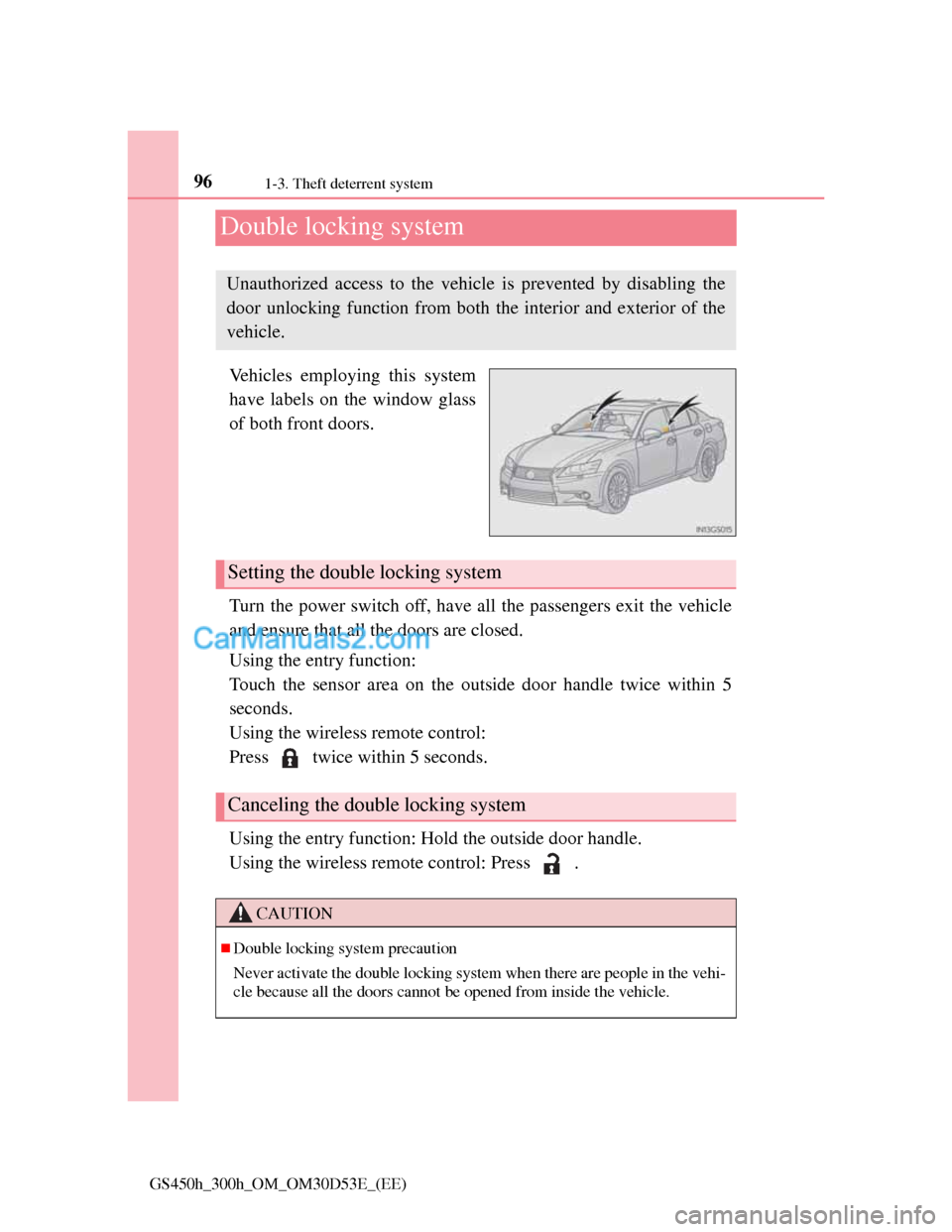

Double locking system
Vehicles employing this system
have labels on the window glass
of both front doors.
Turn the power switch off, have all the passengers exit the vehicle
and ensure that all the doors are closed.
Using the entry function:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Setting the double locking system
Canceling the double locking system
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle because all the doors cannot be opened from inside the vehicle.

97
1 1-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

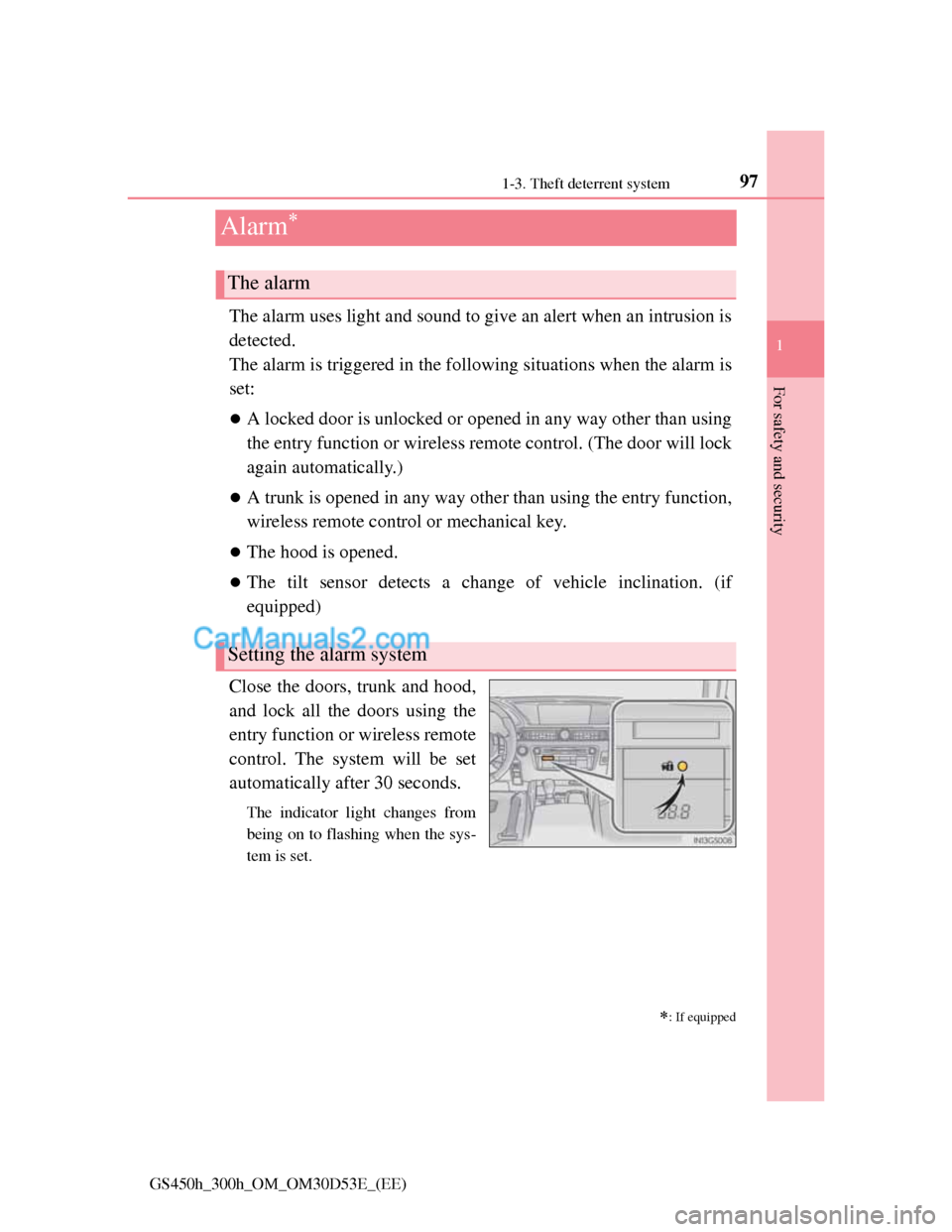

Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
A locked door is unlocked or opened in any way other than using
the entry function or wireless remote control. (The door will lock
again automatically.)
A trunk is opened in any way other than using the entry function,
wireless remote control or mechanical key.
The hood is opened.
The tilt sensor detects a change of vehicle inclination. (if
equipped)
Close the doors, trunk and hood,
and lock all the doors using the
entry function or wireless remote
control. The system will be set
automatically after 30 seconds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
: If equipped
The alarm
Setting the alarm system

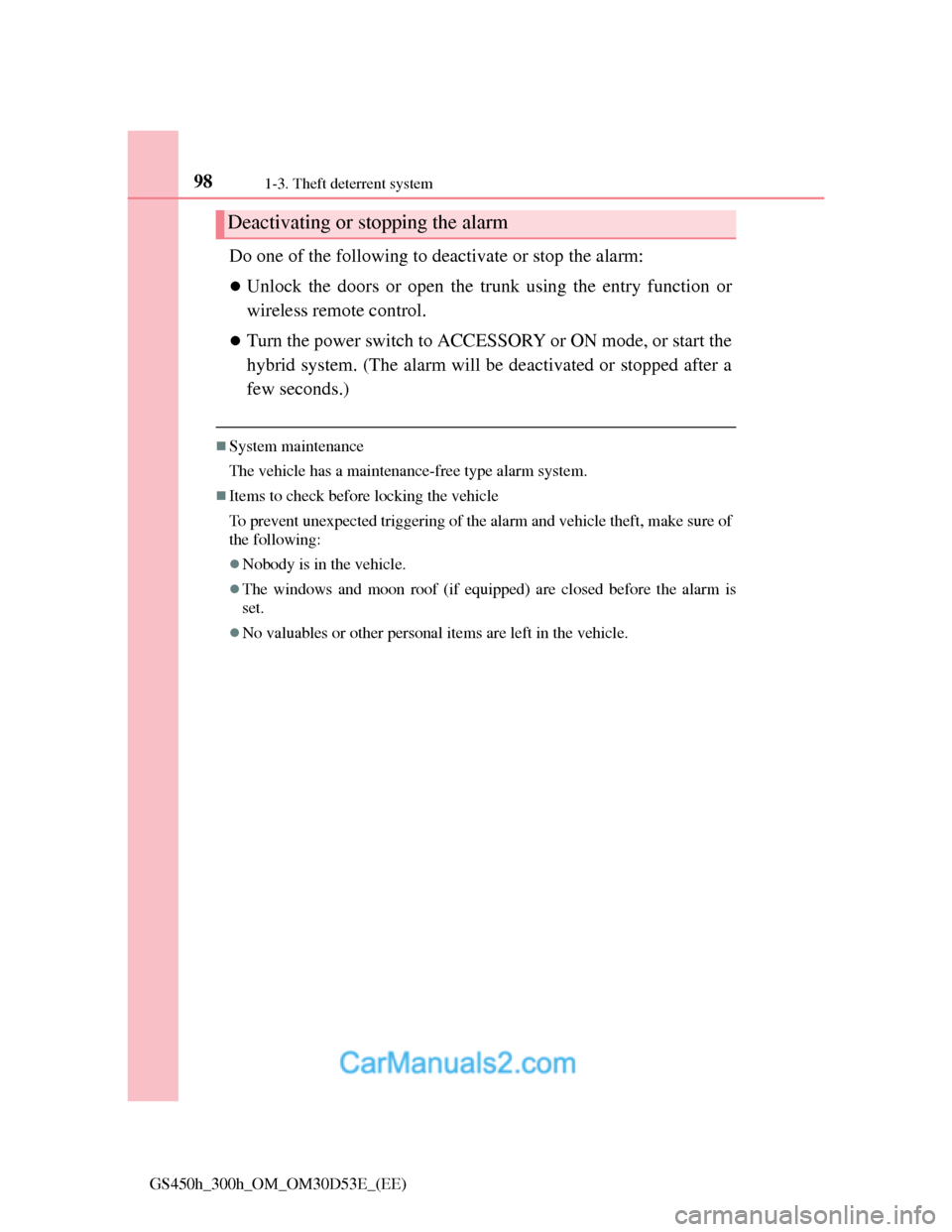

981-3. Theft deterrent system
GS450h_300h_OM_OM30D53E_(EE)
Do one of the following to deactivate or stop the alarm:
Unlock the doors or open the trunk using the entry function or
wireless remote control.
Turn the power switch to ACCESSORY or ON mode, or start the
hybrid system. (The alarm will be deactivated or stopped after a
few seconds.)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
Nobody is in the vehicle.
The windows and moon roof (if equipped) are closed before the alarm is
set.
No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

991-3. Theft deterrent system
1
GS450h_300h_OM_OM30D53E_(EE)
For safety and security

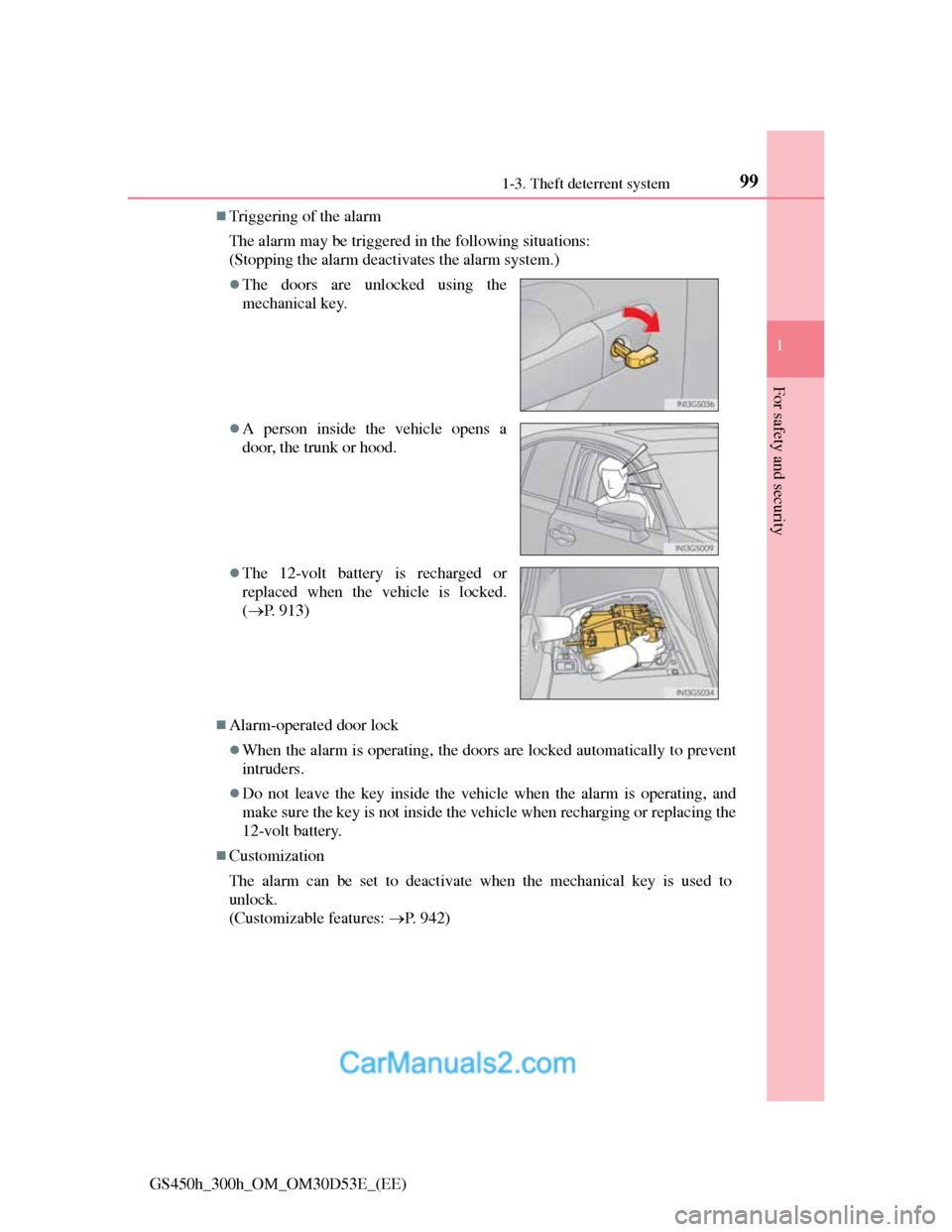

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to prevent
intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing the
12-volt battery.
Customization
The alarm can be set to deactivate when the mechanical key is used to
unlock.
(Customizable features: P. 942)
The doors are unlocked using the
mechanical key.
A person inside the vehicle opens a
door, the trunk or hood.
The 12-volt battery is recharged or
replaced when the vehicle is locked.
(P. 913)
