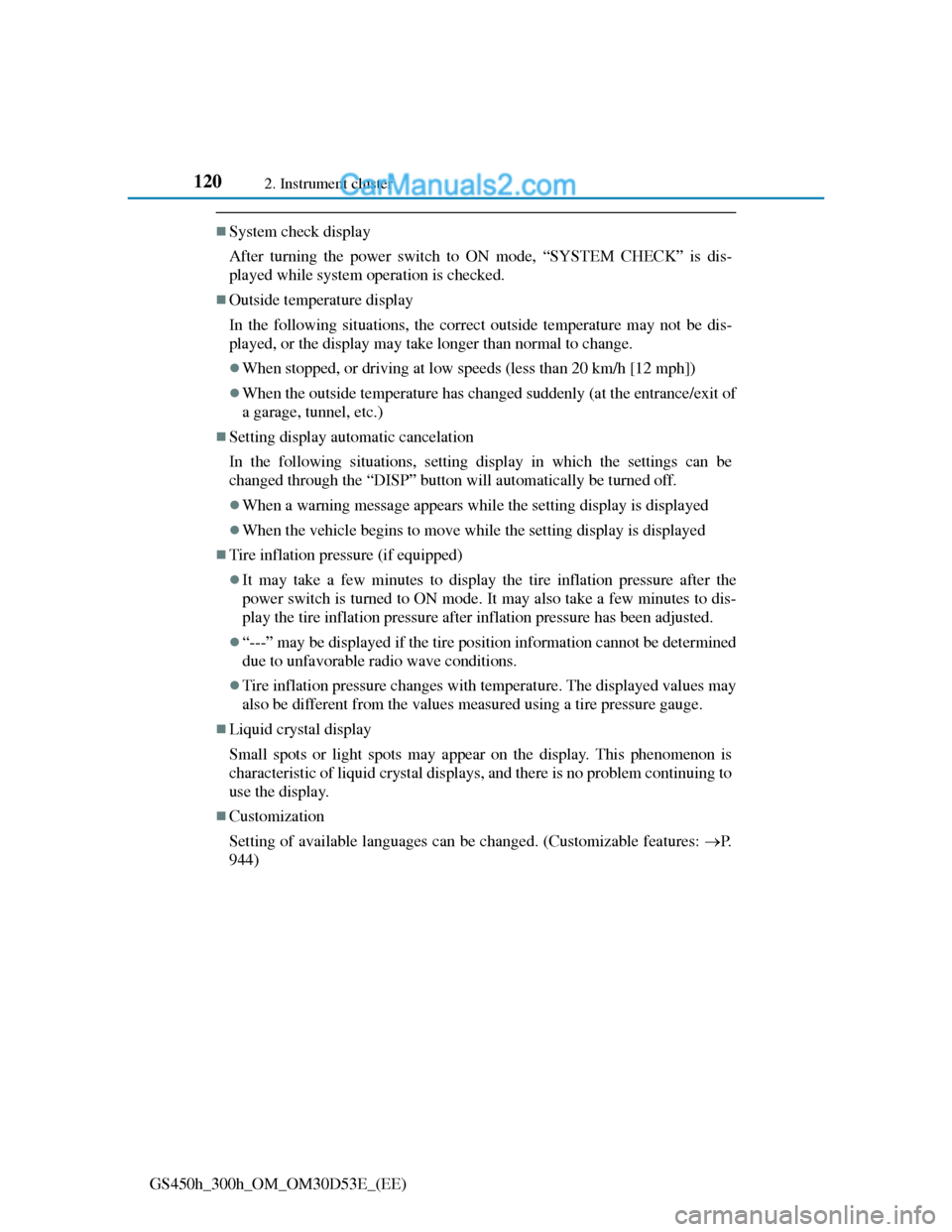

System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is dis-
played while system operation is checked.
Outside temperature display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
Setting display automatic cancelation
In the following situations, setting display in which the settings can be
changed through the “DISP” button will automatically be turned off.
When a warning message appears while the setting display is displayed
When the vehicle begins to move while the setting display is displayed
Tire inflation pressure (if equipped)
It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to dis-
play the tire inflation pressure after inflation pressure has been adjusted.
“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Customization
Setting of available languages can be changed. (Customizable features: P.
944)

1212. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

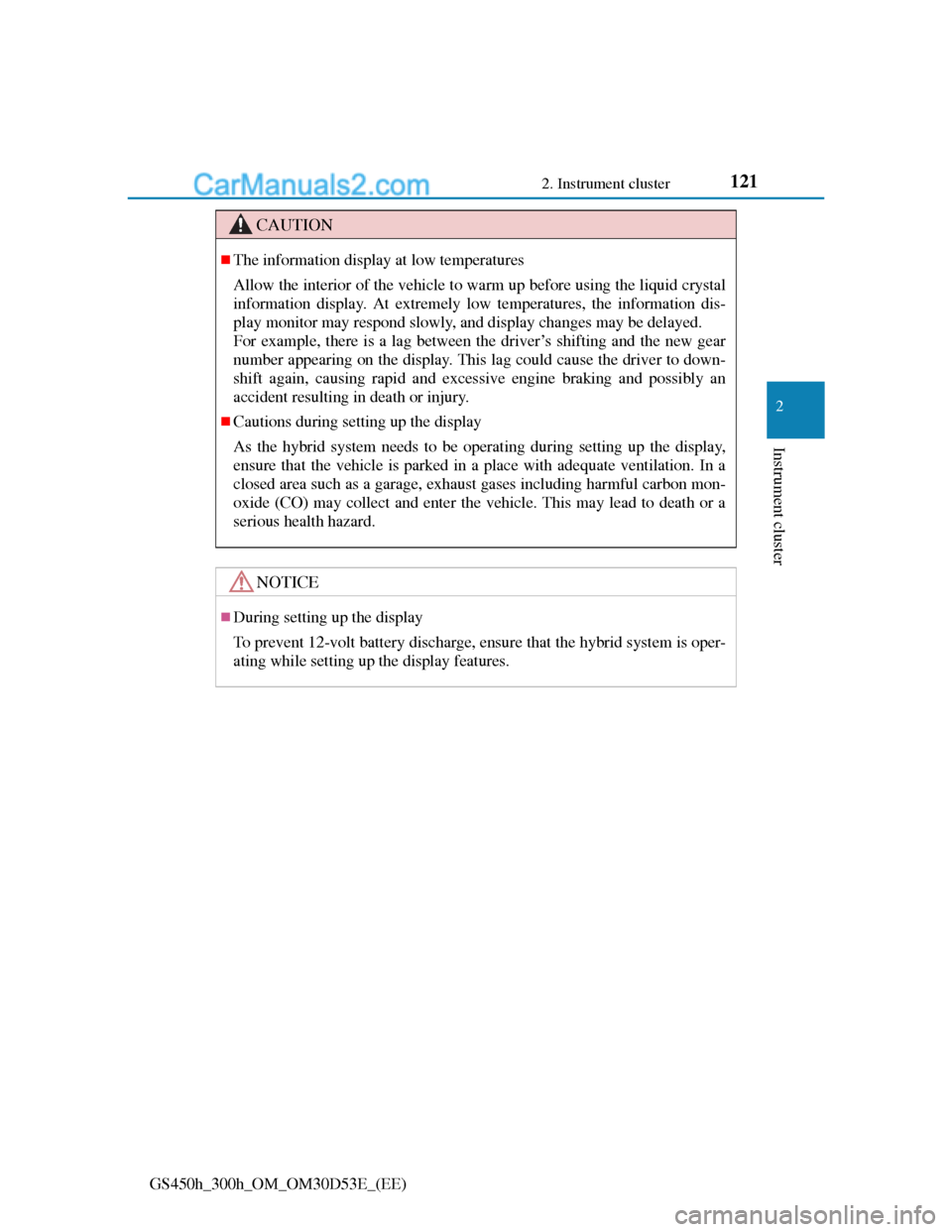

CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information dis-
play monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon mon-
oxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1222. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

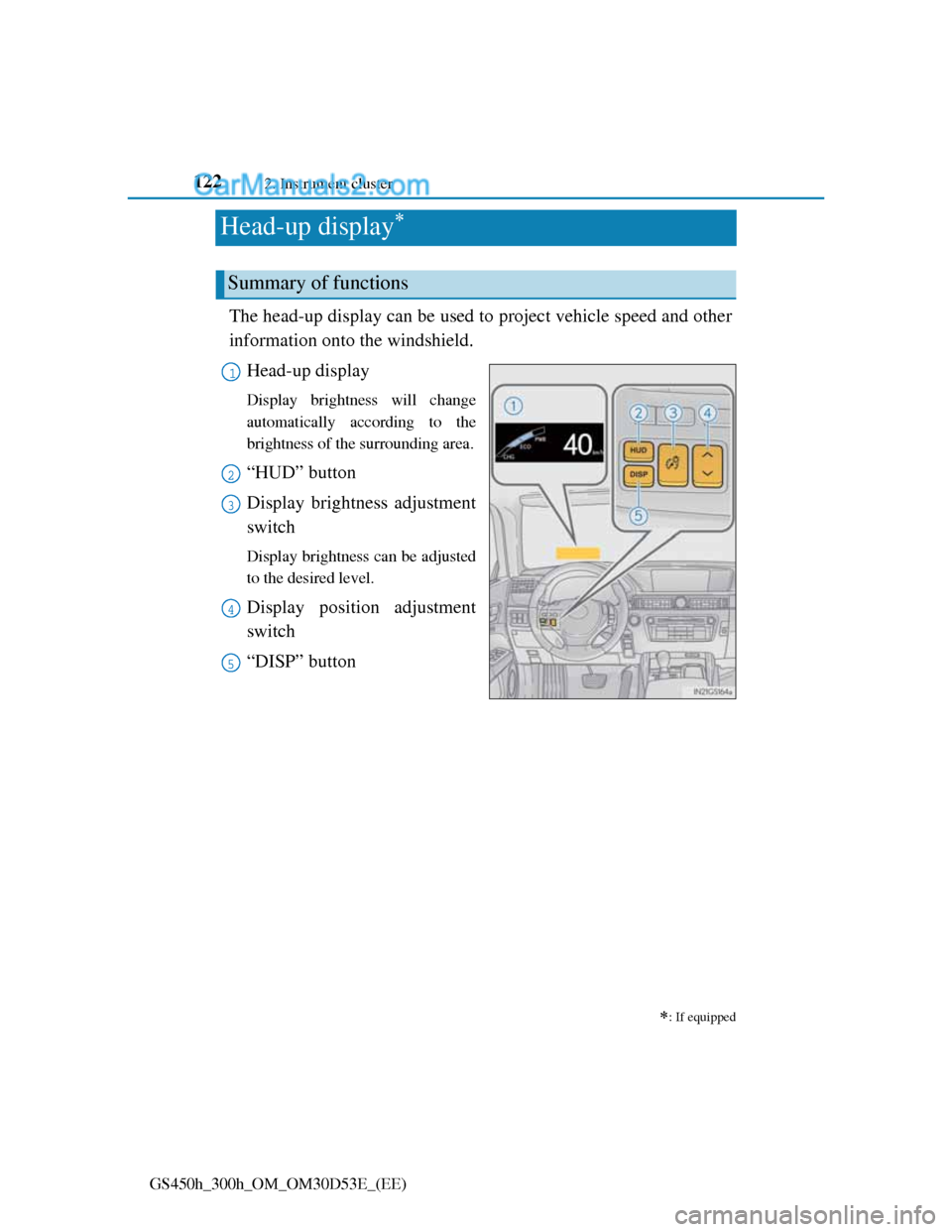

Head-up display
The head-up display can be used to project vehicle speed and other
information onto the windshield.
Head-up display
Display brightness will change
automatically according to the
brightness of the surrounding area.
“HUD” button
Display brightness adjustment
switch
Display brightness can be adjusted
to the desired level.
Display position adjustment
switch
“DISP” button

: If equipped
Summary of functions
1
2
3
4
5

1232. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Vehicle speed
Hybrid System Indicator (P. 126)
Tachometer
Shift position and shift range
Displays the selected shift position or selected shift range (P. 256)

Audio display
Displays audio information for approximately 3 seconds when the audio
system is operated

Route guidance display (vehicles with navigation system)
(P. 127)
When approaching an intersection while the navigation system is giving
route guidance, an arrow will automatically be displayed to indicate the
direction of travel.

Lane departure warning display (LKA [Lane-Keeping Assist])
(if equipped) (P. 854)
Approach warning display (dynamic radar cruise control,
dynamic radar cruise control with full-speed range) (if equipped)
(P. 853)
Pre-crash braking warning message (pre-crash safety system)
(if equipped) (P. 854)

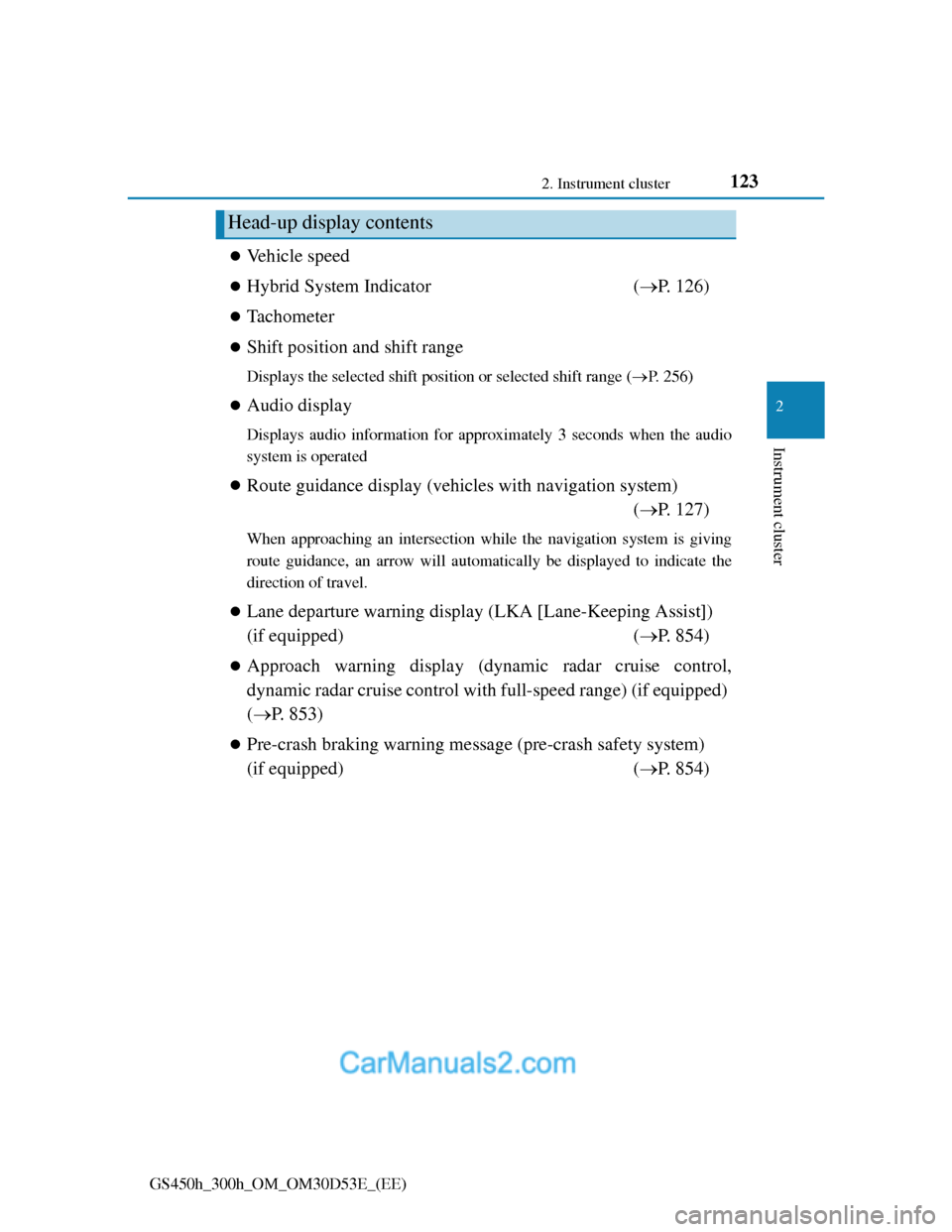

Head-up display contents

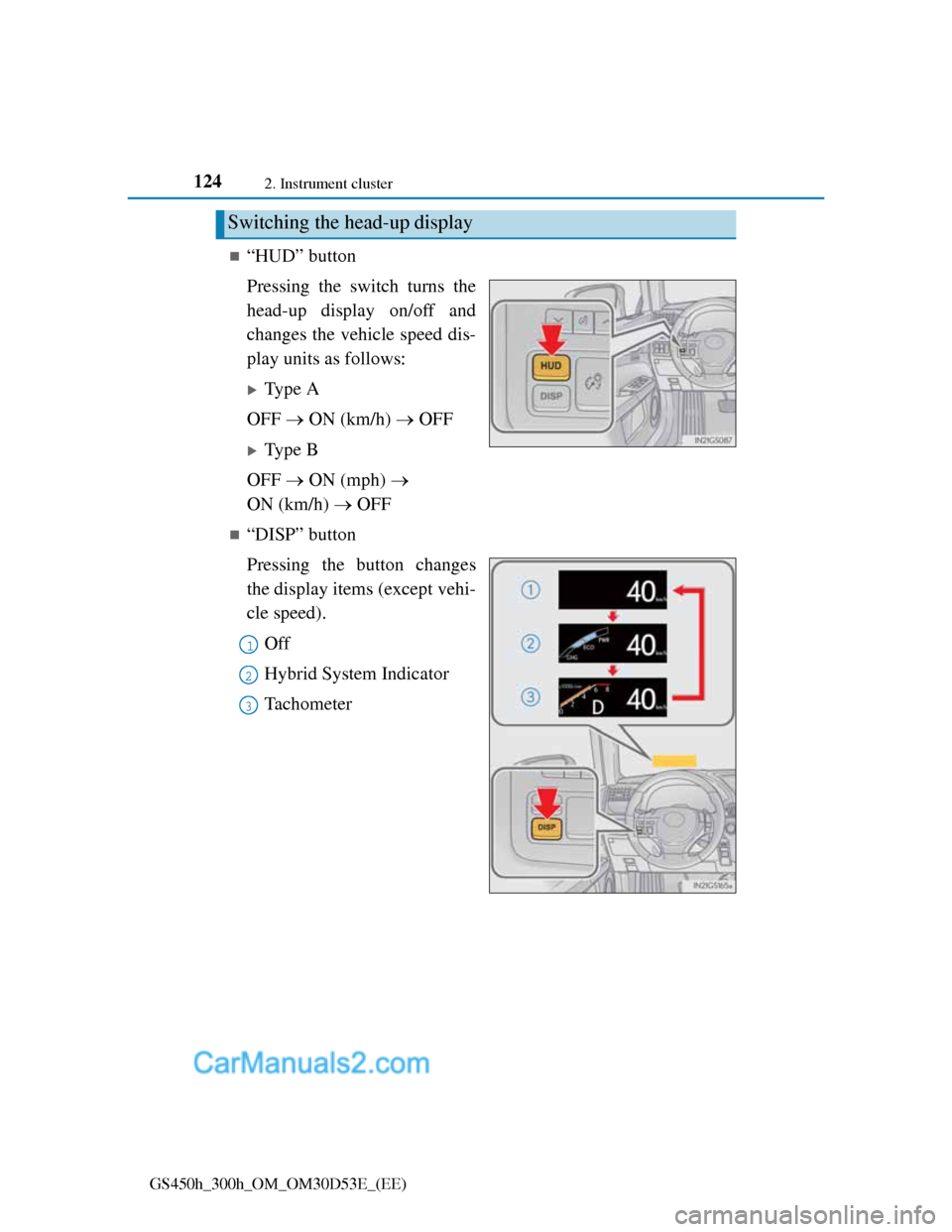

1242. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
“HUD” button
Pressing the switch turns the
head-up display on/off and
changes the vehicle speed dis-
play units as follows:
Type A
OFF  ON (km/h)  OFF
Type B
OFF  ON (mph) 
ON (km/h)  OFF
“DISP” button
Pressing the button changes
the display items (except vehi-
cle speed).
Off
Hybrid System Indicator
Tachometer
Switching the head-up display
1
2
3

1252. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

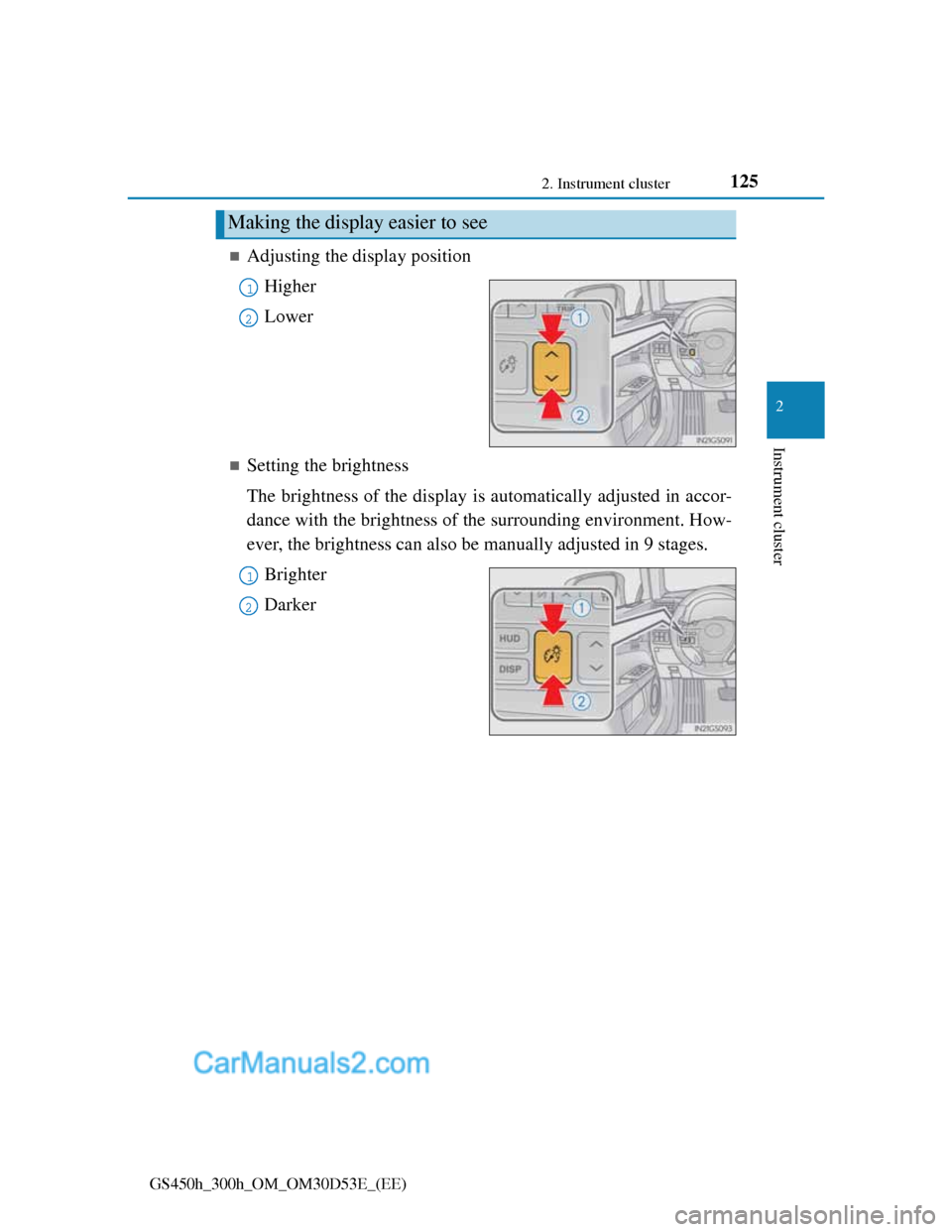

Adjusting the display position
Higher
Lower
Setting the brightness
The brightness of the display is automatically adjusted in accor-
dance with the brightness of the surrounding environment. How-
ever, the brightness can also be manually adjusted in 9 stages.
Brighter
Darker
Making the display easier to see
1
2
1
2

1262. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
Charge area
Shows regenerative charging.
Hybrid Eco area
Shows that gasoline engine power
is not being used very often.
The gasoline engine will automati-
cally stop and restart under various
conditions.
Eco area
Shows that the vehicle is being
driven in an Eco-friendly manner.
Power area
Shows that an Eco-friendly driving
range is being exceeded (during
full power driving etc.)

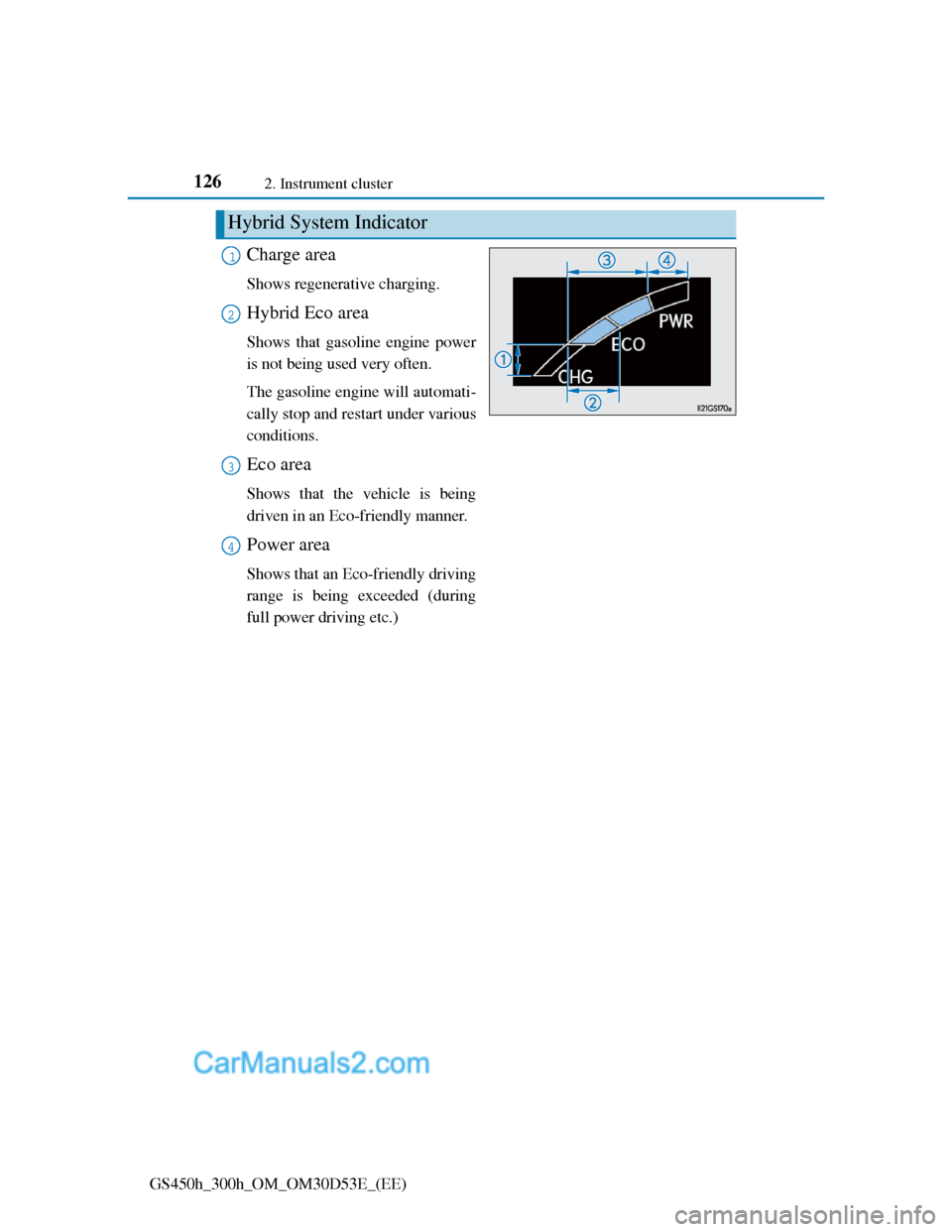

Hybrid System Indicator
1
2
3
4

1272. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
When the vehicle approaches an
intersection, the direction the
vehicle should go is guided by
the arrow.
When the vehicle approaches an
intersection, the route guidance
will start and the distance
* to the
intersection will also be dis-
played.
*: The distance decreases in incre-
ments of 50 m (164 ft.) and the dis-
tance indication will disappear
when the vehicle passes through
the intersection.

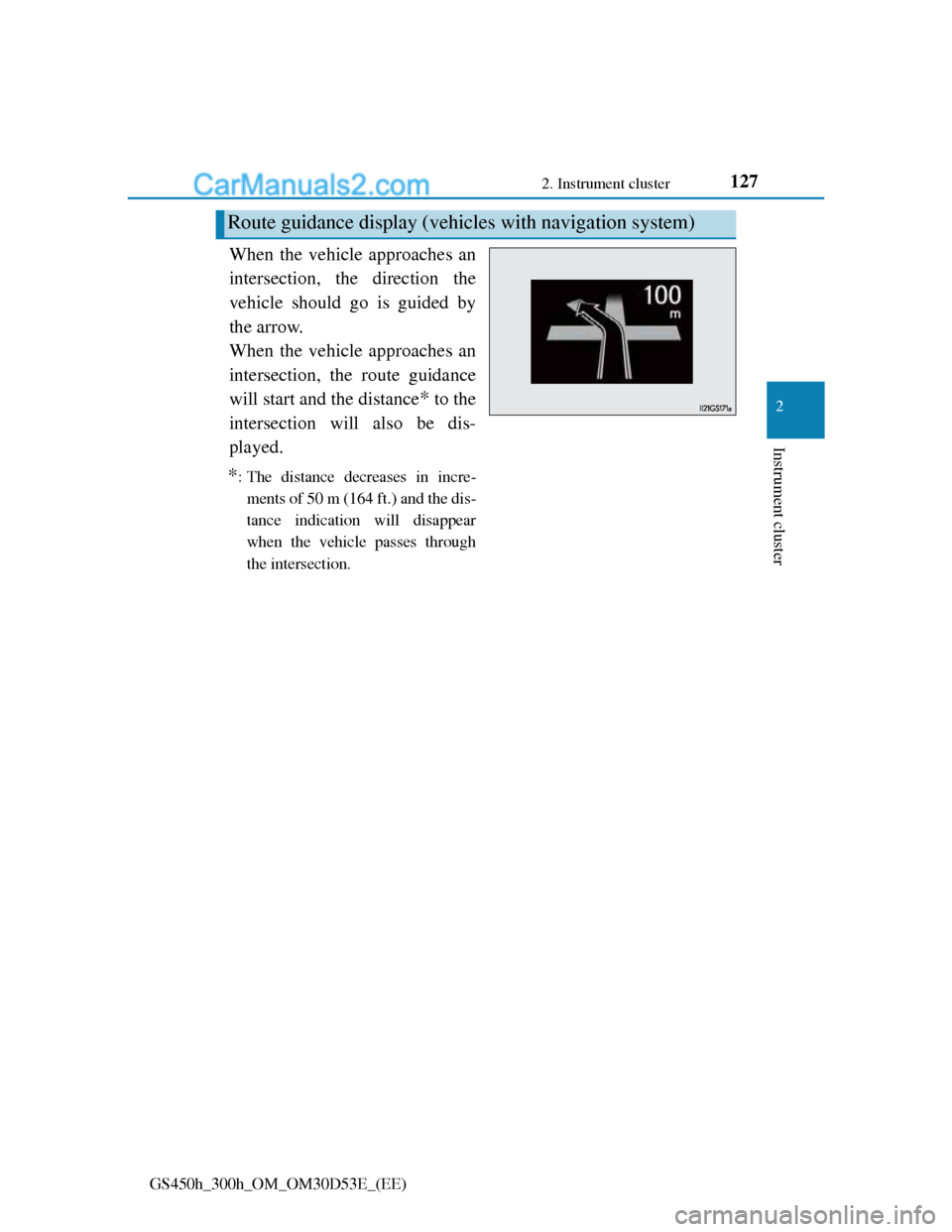

Route guidance display (vehicles with navigation system)

1282. Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)
The audio display can be shown or hidden.
Press and hold the “DISP”
button until the screen
changes.
Customization can be performed
when the head-up display is on and
the vehicle is traveling at less than
8 km/h (5 mph).
Press the “DISP” button to
switch between on and off.
On and off will be switched
between each time the button is
pressed.
If the button is left alone without
being operated for a short time,
setting will be finished automati-
cally.

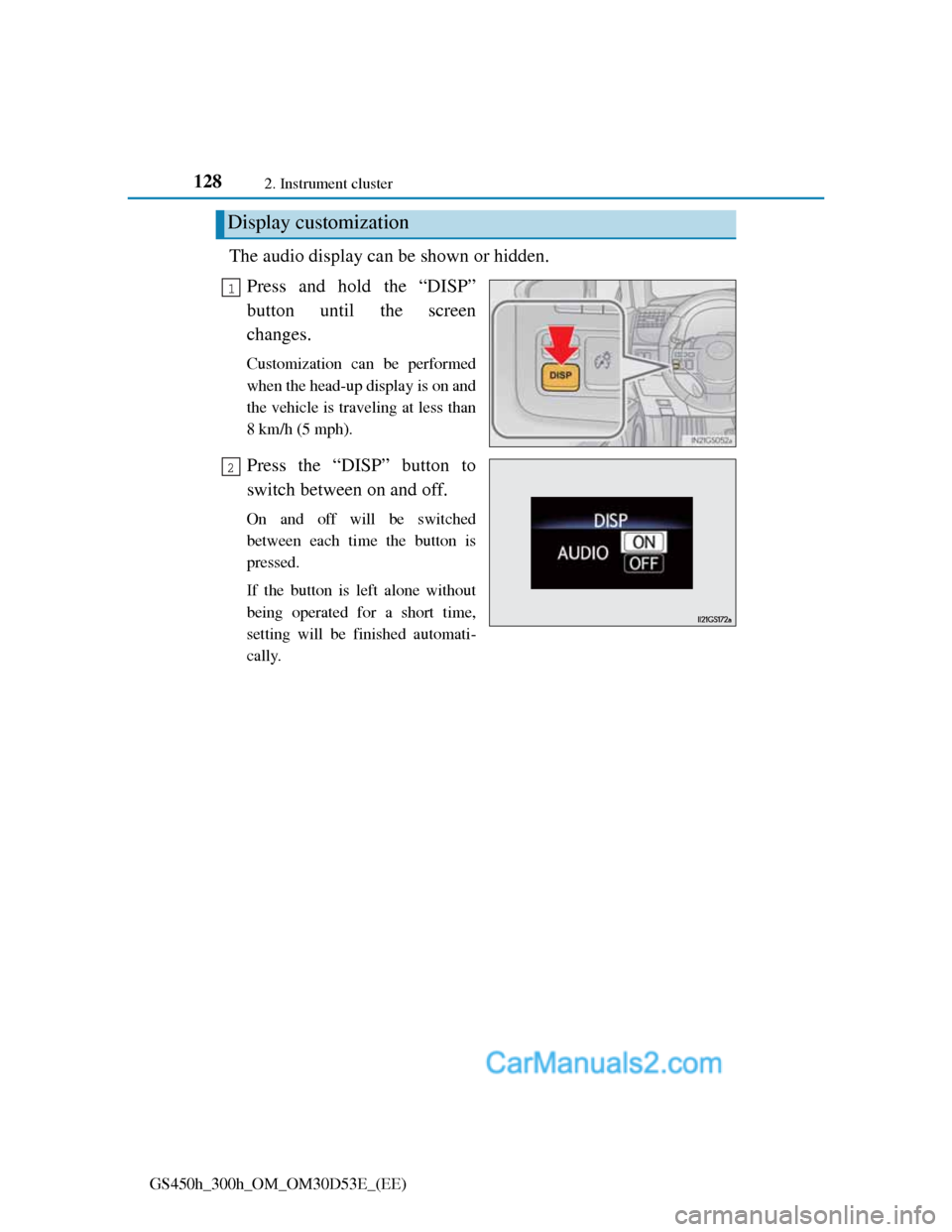

Display customization
1
2

1292. Instrument cluster
2
Instrument cluster
GS450h_300h_OM_OM30D53E_(EE)

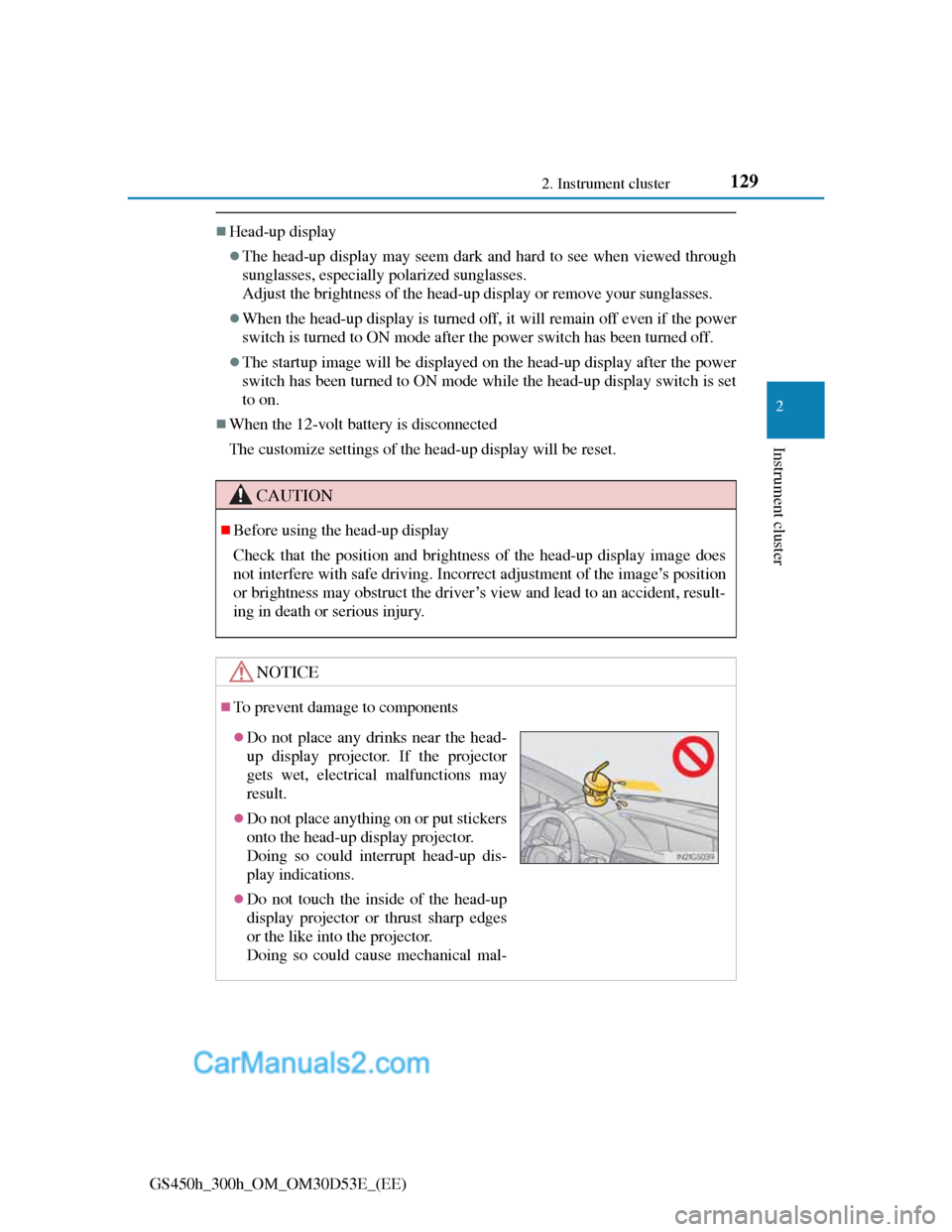

Head-up display
The head-up display may seem dark and hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.
When the head-up display is turned off, it will remain off even if the power
switch is turned to ON mode after the power switch has been turned off.
The startup image will be displayed on the head-up display after the power
switch has been turned to ON mode while the head-up display switch is set
to on.
When the 12-volt battery is disconnected
The customize settings of the head-up display will be reset.
CAUTION
Before using the head-up display
Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident, result-
ing in death or serious injury.
NOTICE
To prevent damage to components
Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.
Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
