Lexus GS300h 2013 Owner's Manual

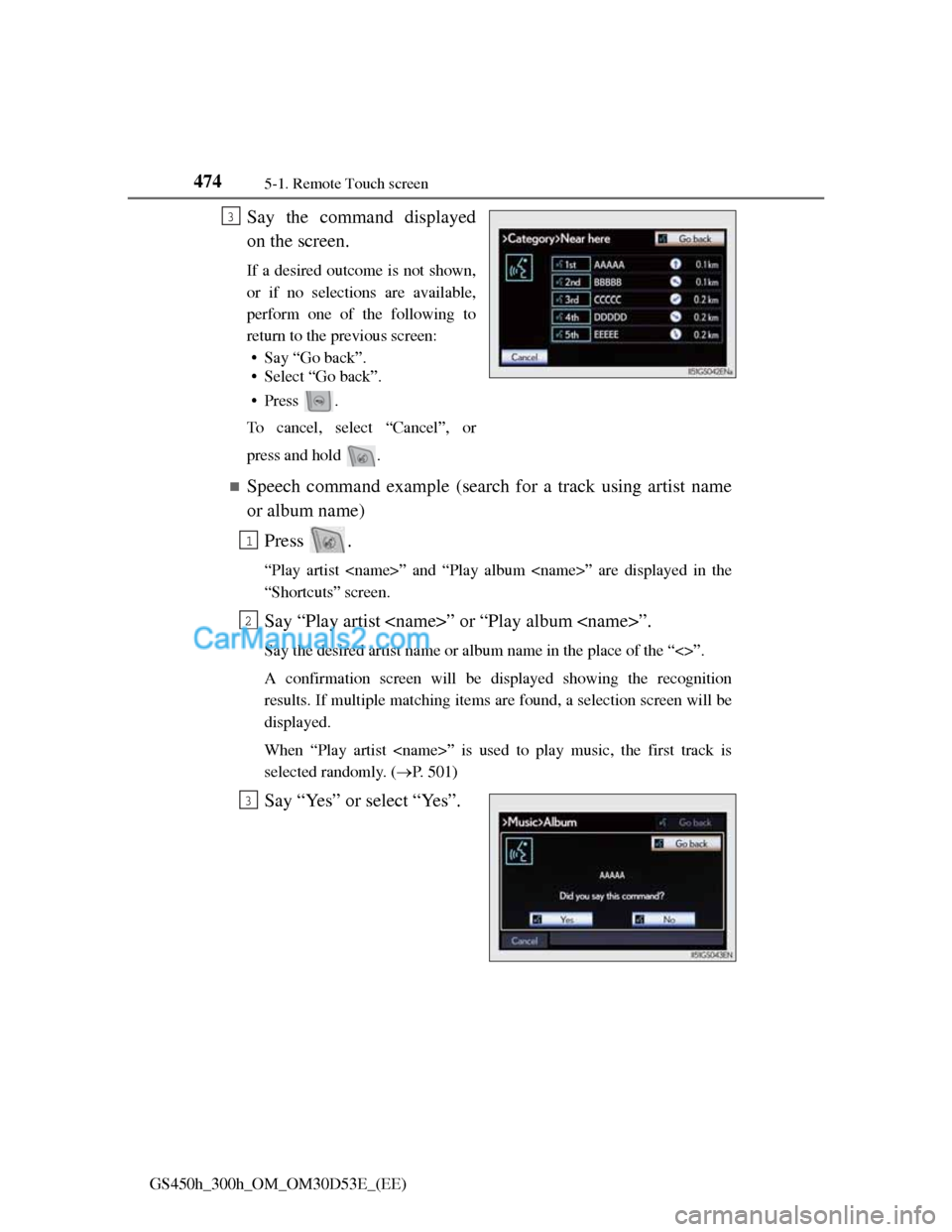

4745-1. Remote Touch screen
GS450h_300h_OM_OM30D53E_(EE)
Say the command displayed
on the screen.
If a desired outcome is not shown,
or if no selections are available,
perform one of the following to
return to the previous screen:
• Say “Go back”.
• Select “Go back”.
•Press .
To cancel, select “Cancel”, or
press and hold .
Speech command example (search for a track using artist name
or album name)
Press .
“Play artist ” and “Play album ” are displayed in the
“Shortcuts” screen.
Say “Play artist ” or “Play album ”.
Say the desired artist name or album name in the place of the “<>”.
A confirmation screen will be displayed showing the recognition
results. If multiple matching items are found, a selection screen will be
displayed.
When “Play artist ” is used to play music, the first track is
selected randomly. (P. 501)
Say “Yes” or select “Yes”.
3
1
2
3

4755-1. Remote Touch screen
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

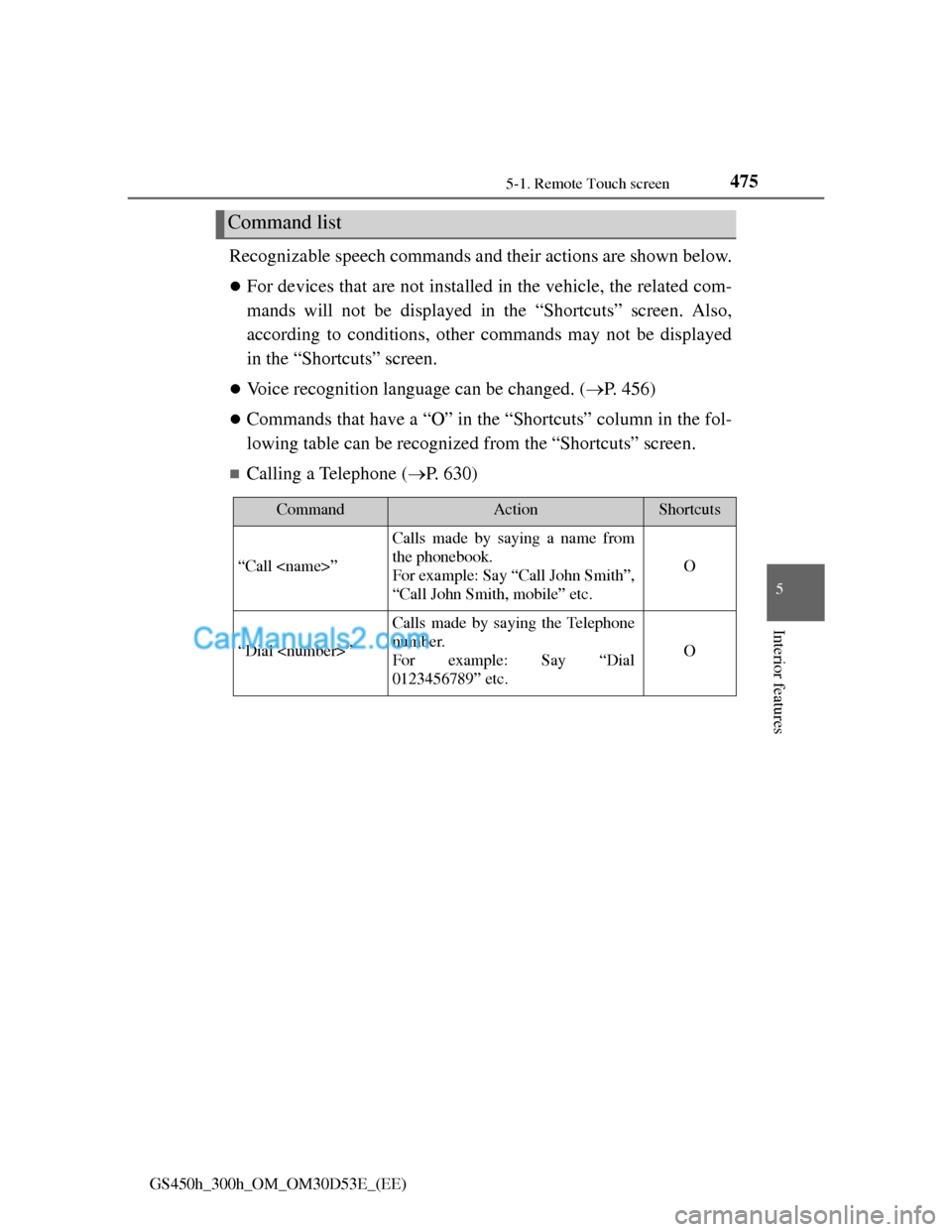

Recognizable speech commands and their actions are shown below.
For devices that are not installed in the vehicle, the related com-
mands will not be displayed in the “Shortcuts” screen. Also,
according to conditions, other commands may not be displayed
in the “Shortcuts” screen.
Voice recognition language can be changed. (P. 456)
Commands that have a “O” in the “Shortcuts” column in the fol-
lowing table can be recognized from the “Shortcuts” screen.
Calling a Telephone (P. 630)
Command list
CommandActionShortcuts
“Call ”
Calls made by saying a name from
the phonebook.
For example: Say “Call John Smith”,
“Call John Smith, mobile” etc.
O
“Dial ”
Calls made by saying the Telephone
number.
For example: Say “Dial
0123456789” etc.
O

4765-1. Remote Touch screen
GS450h_300h_OM_OM30D53E_(EE)

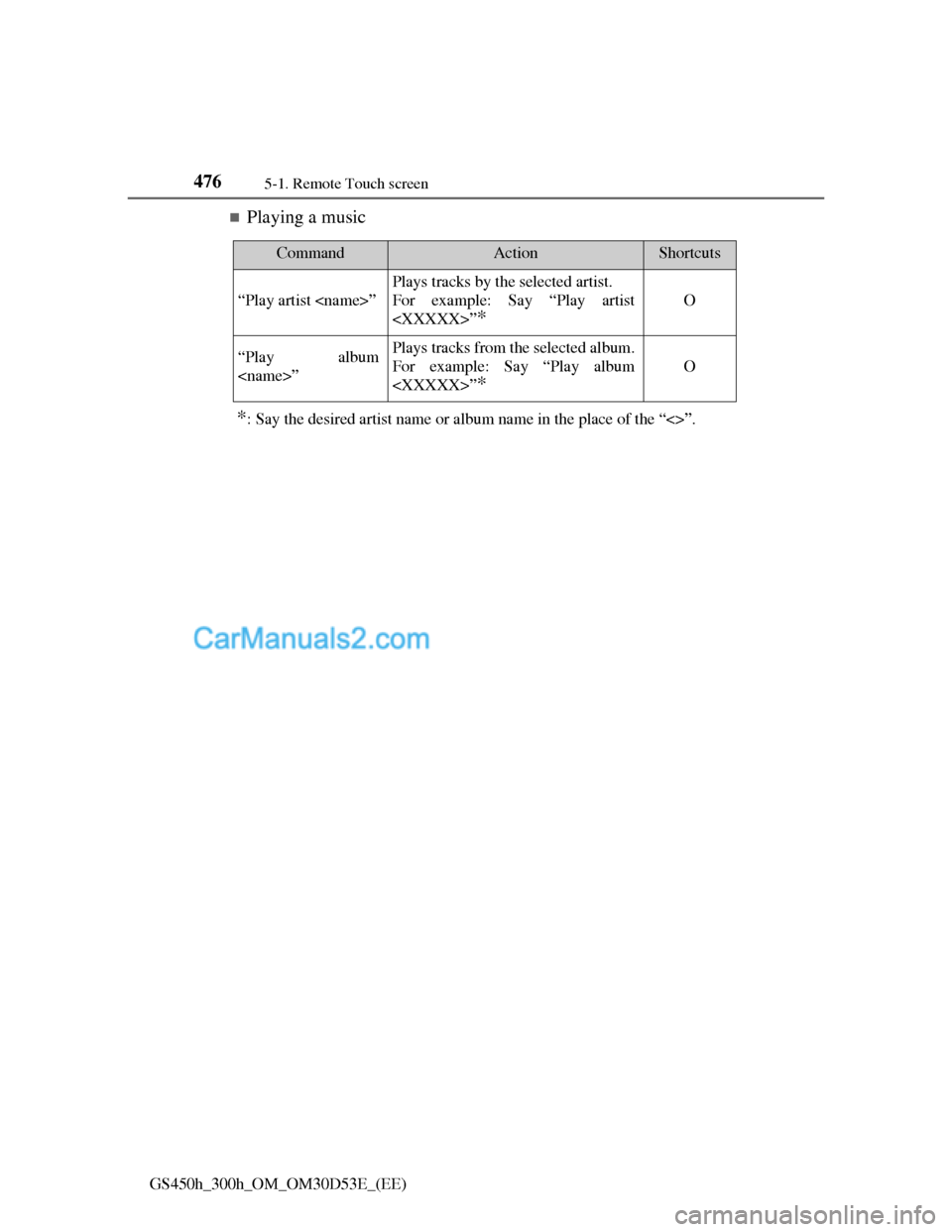

Playing a music
*: Say the desired artist name or album name in the place of the “<>”.
CommandActionShortcuts
“Play artist ”
Plays tracks by the selected artist.
For example: Say “Play artist
”
*
O
“Play album
”Plays tracks from the selected album.
For example: Say “Play album
”
*
O

4775-1. Remote Touch screen
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

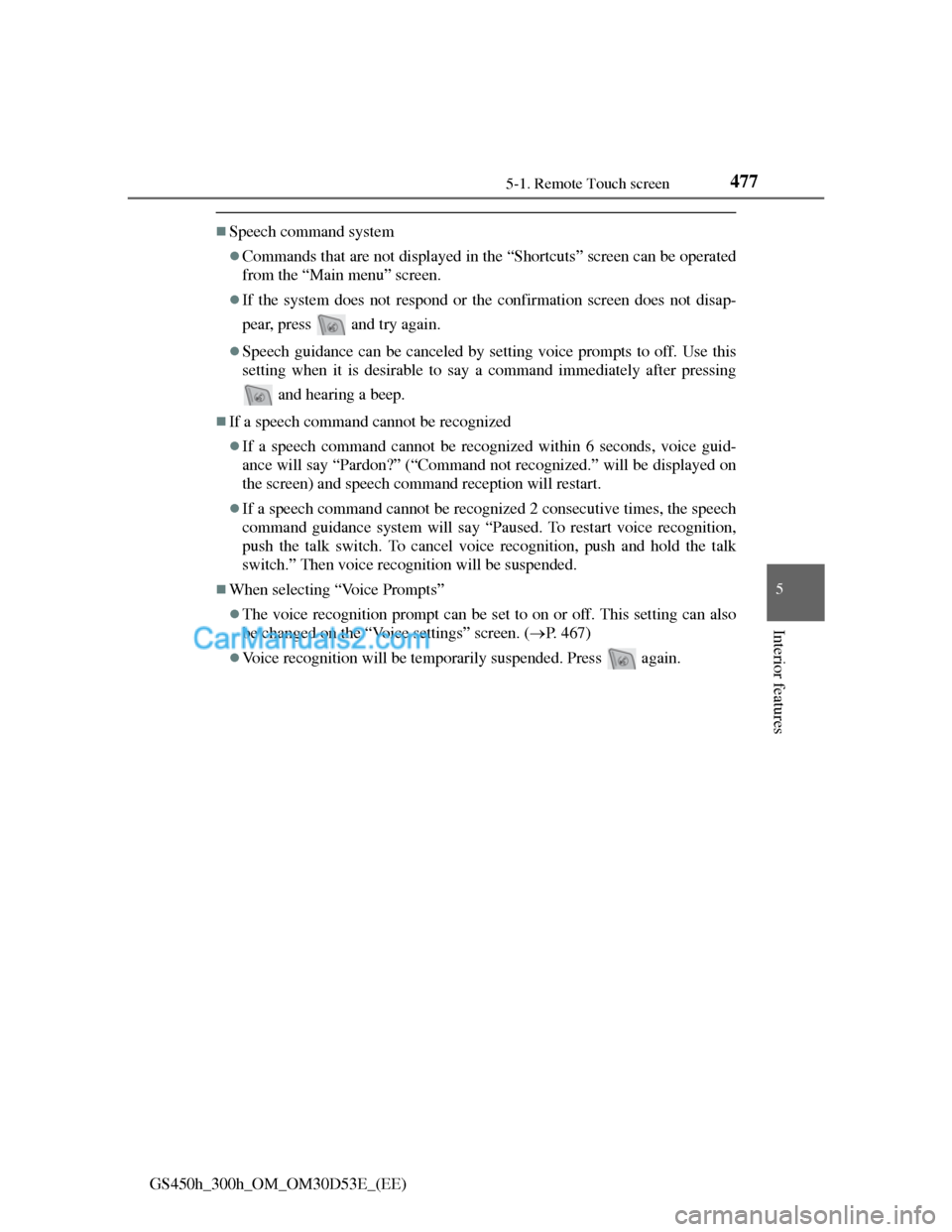

Speech command system
Commands that are not displayed in the “Shortcuts” screen can be operated
from the “Main menu” screen.
If the system does not respond or the confirmation screen does not disap-
pear, press and try again.
Speech guidance can be canceled by setting voice prompts to off. Use this
setting when it is desirable to say a command immediately after pressing
and hearing a beep.
If a speech command cannot be recognized
If a speech command cannot be recognized within 6 seconds, voice guid-
ance will say “Pardon?” (“Command not recognized.” will be displayed on
the screen) and speech command reception will restart.
If a speech command cannot be recognized 2 consecutive times, the speech
command guidance system will say “Paused. To restart voice recognition,
push the talk switch. To cancel voice recognition, push and hold the talk
switch.” Then voice recognition will be suspended.
When selecting “Voice Prompts”
The voice recognition prompt can be set to on or off. This setting can also
be changed on the “Voice settings” screen. (P. 467)
Voice recognition will be temporarily suspended. Press again.

4785-1. Remote Touch screen
GS450h_300h_OM_OM30D53E_(EE)

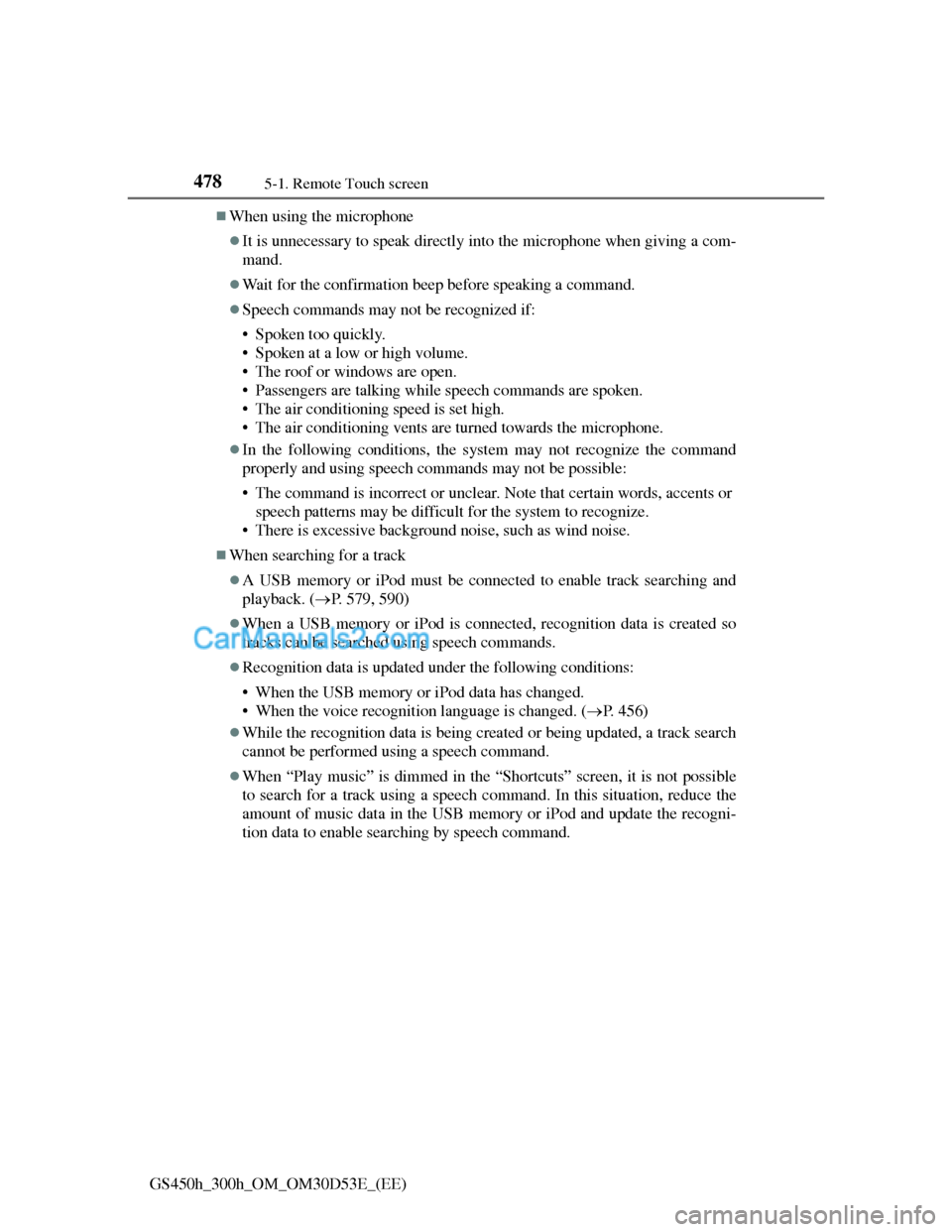

When using the microphone
It is unnecessary to speak directly into the microphone when giving a com-
mand.
Wait for the confirmation beep before speaking a command.
Speech commands may not be recognized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while speech commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
In the following conditions, the system may not recognize the command
properly and using speech commands may not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the system to recognize.
• There is excessive background noise, such as wind noise.
When searching for a track
A USB memory or iPod must be connected to enable track searching and
playback. (P. 579, 590)
When a USB memory or iPod is connected, recognition data is created so
tracks can be searched using speech commands.
Recognition data is updated under the following conditions:
• When the USB memory or iPod data has changed.
• When the voice recognition language is changed. (P. 456)
While the recognition data is being created or being updated, a track search
cannot be performed using a speech command.
When “Play music” is dimmed in the “Shortcuts” screen, it is not possible
to search for a track using a speech command. In this situation, reduce the
amount of music data in the USB memory or iPod and update the recogni-
tion data to enable searching by speech command.

4785-2. Using the air conditioning system and defogger
GS450h_300h_OM_OM30D53E_(EE)

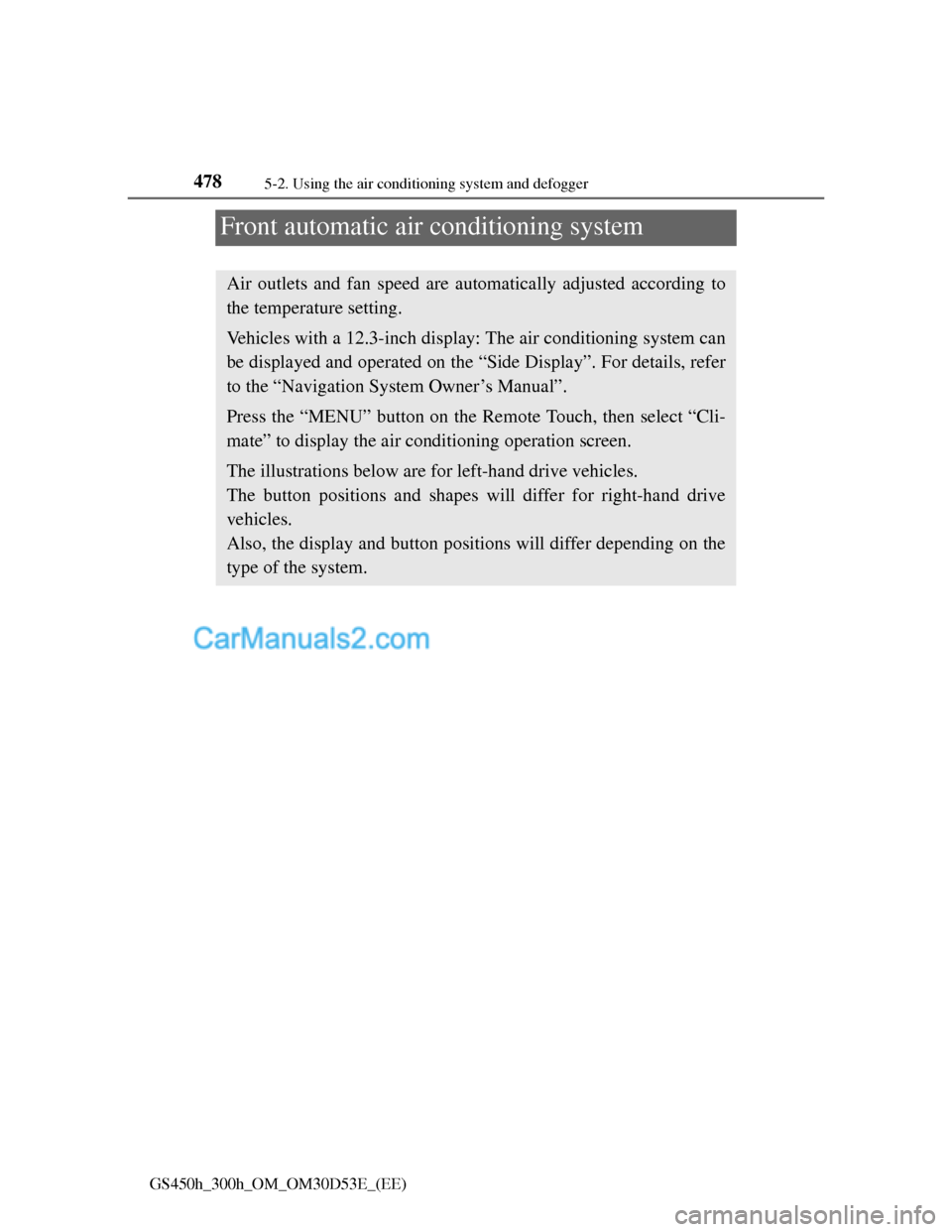

Front automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to
the temperature setting.
Vehicles with a 12.3-inch display: The air conditioning system can
be displayed and operated on the “Side Display”. For details, refer
to the “Navigation System Owner’s Manual”.
Press the “MENU” button on the Remote Touch, then select “Cli-
mate” to display the air conditioning operation screen.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive
vehicles.
Also, the display and button positions will differ depending on the
type of the system.

4795-2. Using the air conditioning system and defogger
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

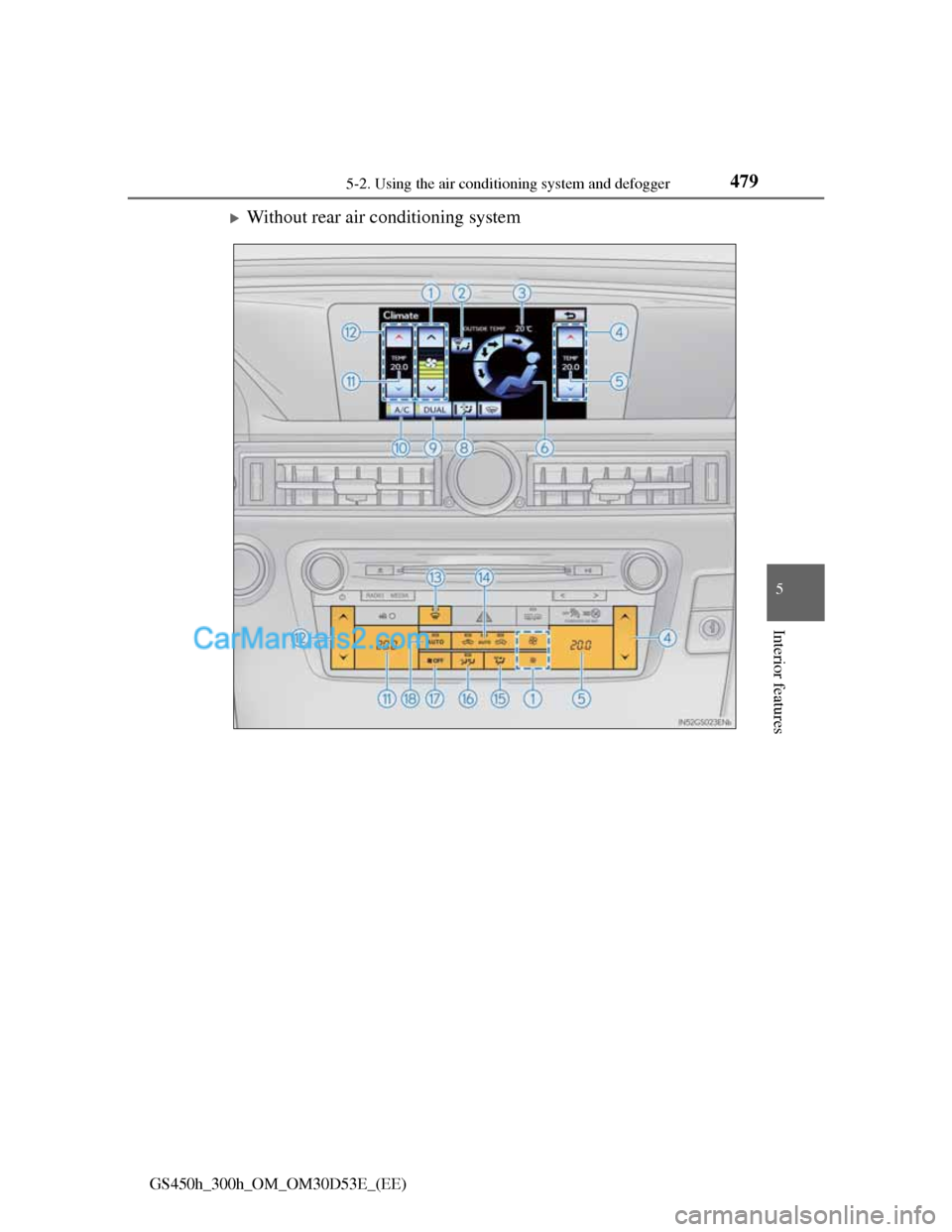

Without rear air conditioning system

4805-2. Using the air conditioning system and defogger
GS450h_300h_OM_OM30D53E_(EE)

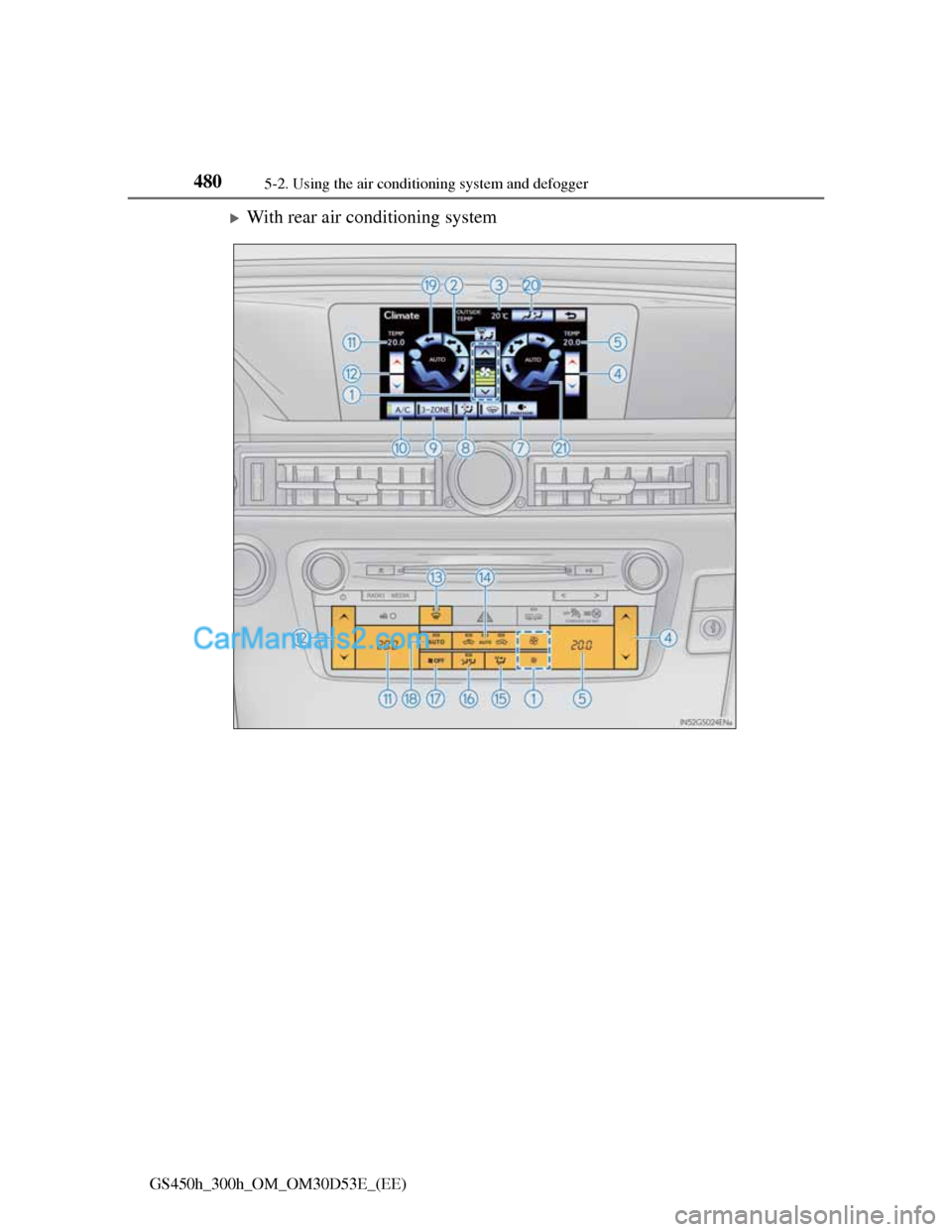

With rear air conditioning system

4815-2. Using the air conditioning system and defogger
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)
*: nanoe™ and the nanoe™ mark are trademarks of Panasonic Corporation.
Fan speed control
Air flows to the feet and the
windshield defogger operates
Outside temperature
Right-hand front seat side
temperature control
Right-hand front seat side
temperature display
Front seat air outlet selector
nanoe
* system (if
equipped)
Pollen removal mode
DUAL/3-ZONE mode
Cooling and dehumidifica-
tion function on/off
Left-hand front seat side tem-
perature displayLeft-hand front seat side tem-
perature control
Windshield defogger
Outside air or recirculated
mode
Air outlet selector
S-FLOW mode
Off
Automatic mode
Left-hand front seat side air
outlet selector
Rear air conditioning opera-
tion screen
Right-hand front seat side air
outlet selector
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

4825-2. Using the air conditioning system and defogger
GS450h_300h_OM_OM30D53E_(EE)

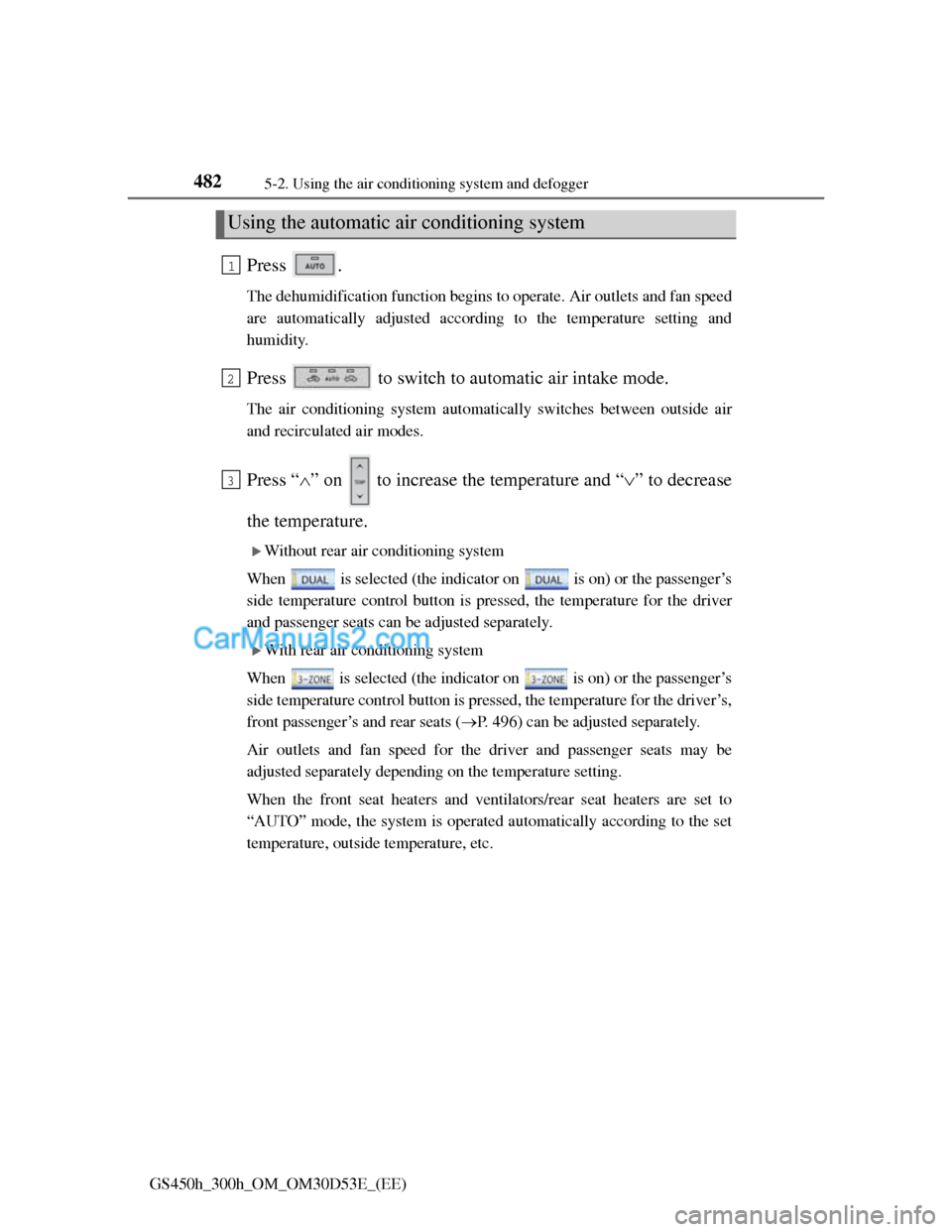

Press .
The dehumidification function begins to operate. Air outlets and fan speed
are automatically adjusted according to the temperature setting and
humidity.
Press to switch to automatic air intake mode.
The air conditioning system automatically switches between outside air
and recirculated air modes.
Press “” on to increase the temperature and “” to decrease
the temperature.
Without rear air conditioning system
When is selected (the indicator on is on) or the passenger’s
side temperature control button is pressed, the temperature for the driver
and passenger seats can be adjusted separately.
With rear air conditioning system
When is selected (the indicator on is on) or the passenger’s
side temperature control button is pressed, the temperature for the driver’s,
front passenger’s and rear seats (P. 496) can be adjusted separately.
Air outlets and fan speed for the driver and passenger seats may be
adjusted separately depending on the temperature setting.
When the front seat heaters and ventilators/rear seat heaters are set to
“AUTO” mode, the system is operated automatically according to the set
temperature, outside temperature, etc.
Using the automatic air conditioning system
1
2
3
