Lexus GS300h 2013 Owner's Manual

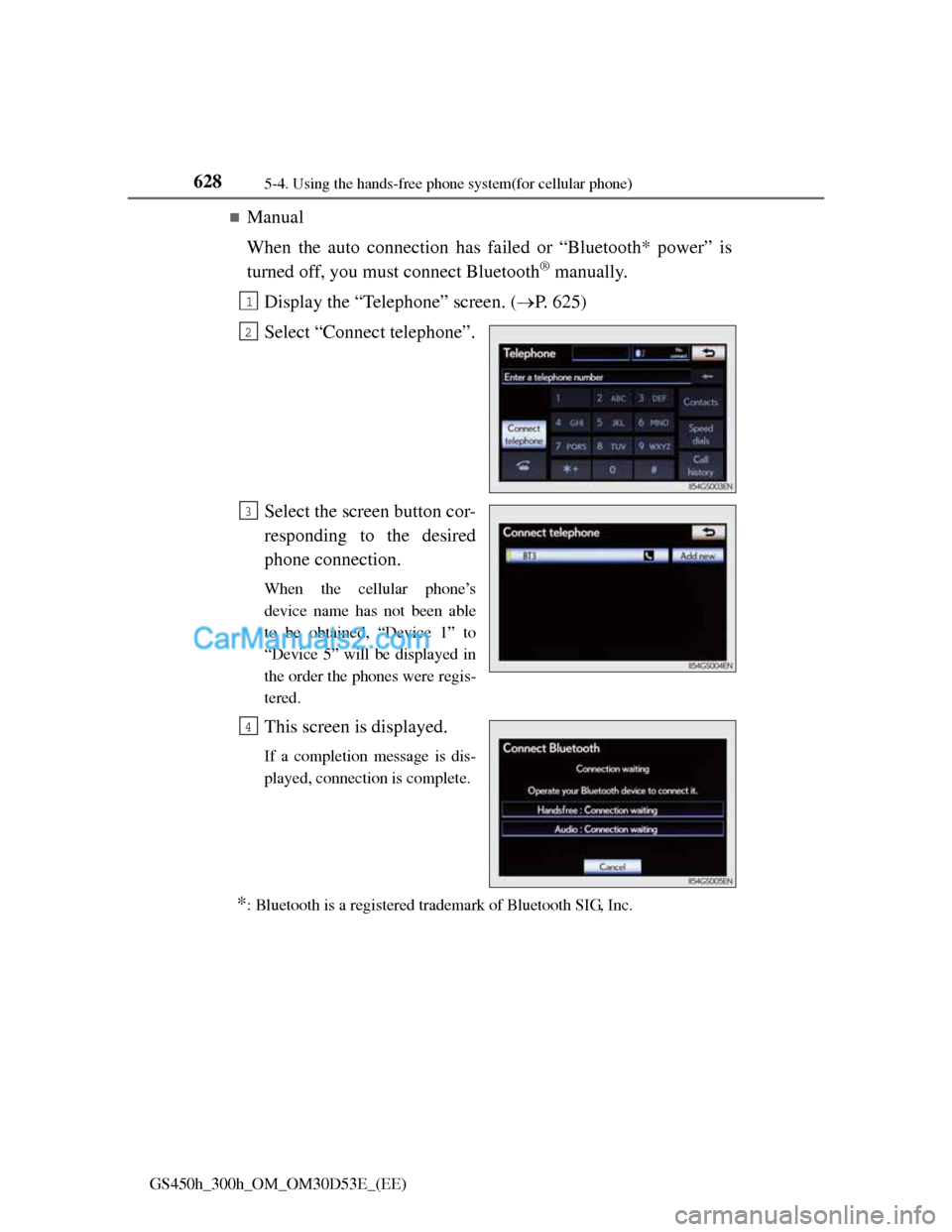

6285-4. Using the hands-free phone system(for cellular phone)
GS450h_300h_OM_OM30D53E_(EE)
Manual
When the auto connection has failed or “Bluetooth* power” is
turned off, you must connect Bluetooth
® manually.
Display the “Telephone” screen. (P. 625)
Select “Connect telephone”.
Select the screen button cor-
responding to the desired
phone connection.
When the cellular phone’s
device name has not been able
to be obtained, “Device 1” to
“Device 5” will be displayed in
the order the phones were regis-
tered.
This screen is displayed.
If a completion message is dis-
played, connection is complete.
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1
2
3
4

6295-4. Using the hands-free phone system(for cellular phone)
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

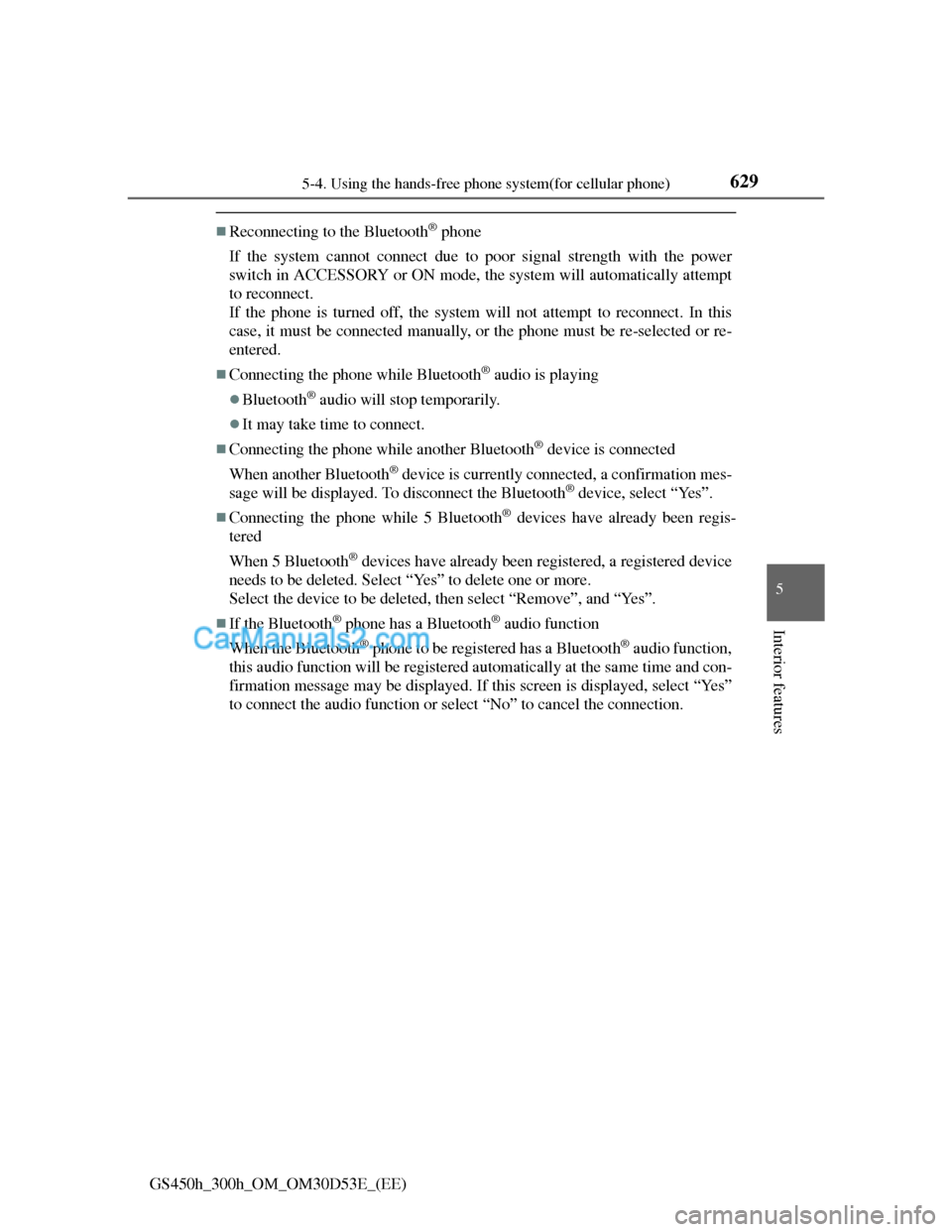

Reconnecting to the Bluetooth® phone
If the system cannot connect due to poor signal strength with the power
switch in ACCESSORY or ON mode, the system will automatically attempt
to reconnect.
If the phone is turned off, the system will not attempt to reconnect. In this
case, it must be connected manually, or the phone must be re-selected or re-
entered.
Connecting the phone while Bluetooth® audio is playing
Bluetooth® audio will stop temporarily.
It may take time to connect.
Connecting the phone while another Bluetooth® device is connected
When another Bluetooth
® device is currently connected, a confirmation mes-
sage will be displayed. To disconnect the Bluetooth® device, select “Yes”.
Connecting the phone while 5 Bluetooth® devices have already been regis-
tered
When 5 Bluetooth
® devices have already been registered, a registered device
needs to be deleted. Select “Yes” to delete one or more.
Select the device to be deleted, then select “Remove”, and “Yes”.
If the Bluetooth® phone has a Bluetooth® audio function
When the Bluetooth
® phone to be registered has a Bluetooth® audio function,
this audio function will be registered automatically at the same time and con-
firmation message may be displayed. If this screen is displayed, select “Yes”
to connect the audio function or select “No” to cancel the connection.

6305-4. Using the hands-free phone system(for cellular phone)
GS450h_300h_OM_OM30D53E_(EE)
Once the Bluetooth® phone is registered, you can make a call using
the following procedure:
Dialing
Display the “Telephone” screen. (P. 625)
Input the phone number.
To delete the inputted phone
number, select .
Select or press on the steering wheel.
Depending on the type of Bluetooth® phone being connected, it may be
necessary to perform additional steps on the phone.
Dialing from the phonebook
You can dial a number from the phonebook data imported from
your cellular phone. The system has one phonebook for each
telephone. Up to 1000 entries may be stored in each phonebook.
(P. 649)
Display the “Telephone” screen. (P. 625)
Select “Contacts” on the “Telephone” screen.
Choose the desired data to
call from the list.
, , : Select this screen
button to change between Latin,
Cyrillic and Greek characters.
Making a call
1
2
3
1
2
3

6315-4. Using the hands-free phone system(for cellular phone)
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

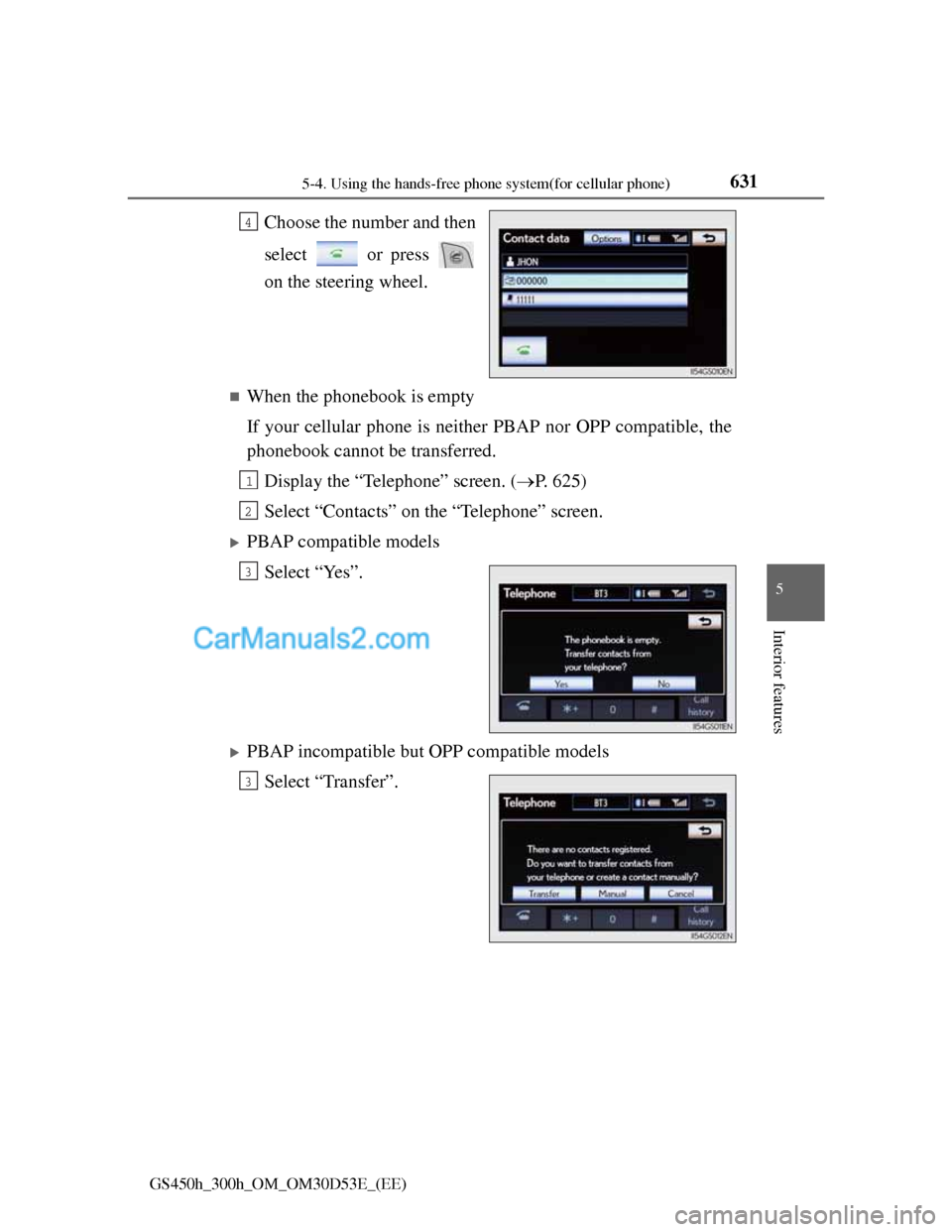

Choose the number and then
select or press
on the steering wheel.
When the phonebook is empty
If your cellular phone is neither PBAP nor OPP compatible, the
phonebook cannot be transferred.
Display the “Telephone” screen. (P. 625)
Select “Contacts” on the “Telephone” screen.
PBAP compatible models
Select “Yes”.
PBAP incompatible but OPP compatible models
Select “Transfer”.
4
1
2
3
3

6325-4. Using the hands-free phone system(for cellular phone)
GS450h_300h_OM_OM30D53E_(EE)

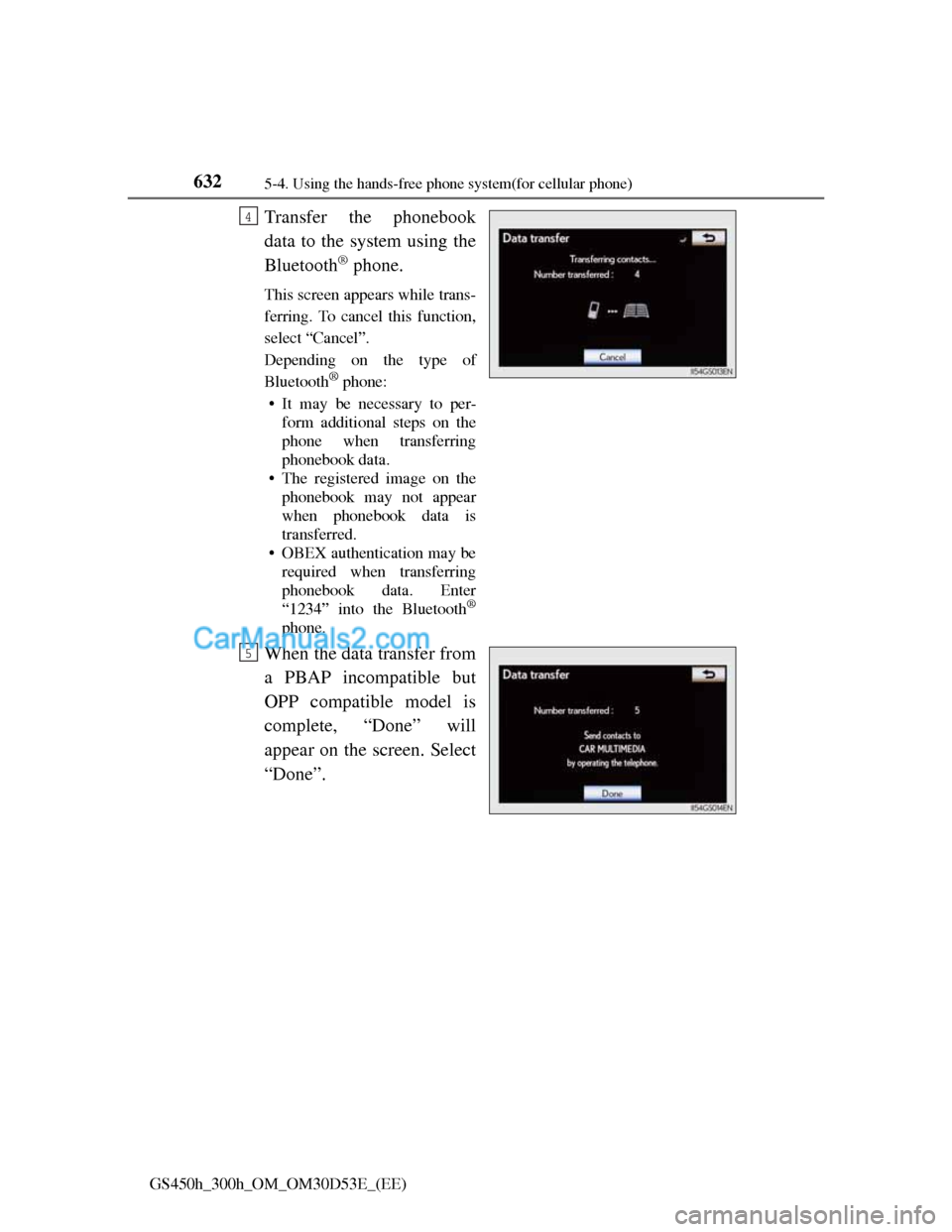

Transfer the phonebook
data to the system using the
Bluetooth
® phone.
This screen appears while trans-
ferring. To cancel this function,
select “Cancel”.
Depending on the type of
Bluetooth
® phone:
• It may be necessary to per-
form additional steps on the
phone when transferring
phonebook data.
• The registered image on the
phonebook may not appear
when phonebook data is
transferred.
• OBEX authentication may be
required when transferring
phonebook data. Enter
“1234” into the Bluetooth
®
phone.
When the data transfer from
a PBAP incompatible but
OPP compatible model is
complete, “Done” will
appear on the screen. Select
“Done”.
4
5

6335-4. Using the hands-free phone system(for cellular phone)
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

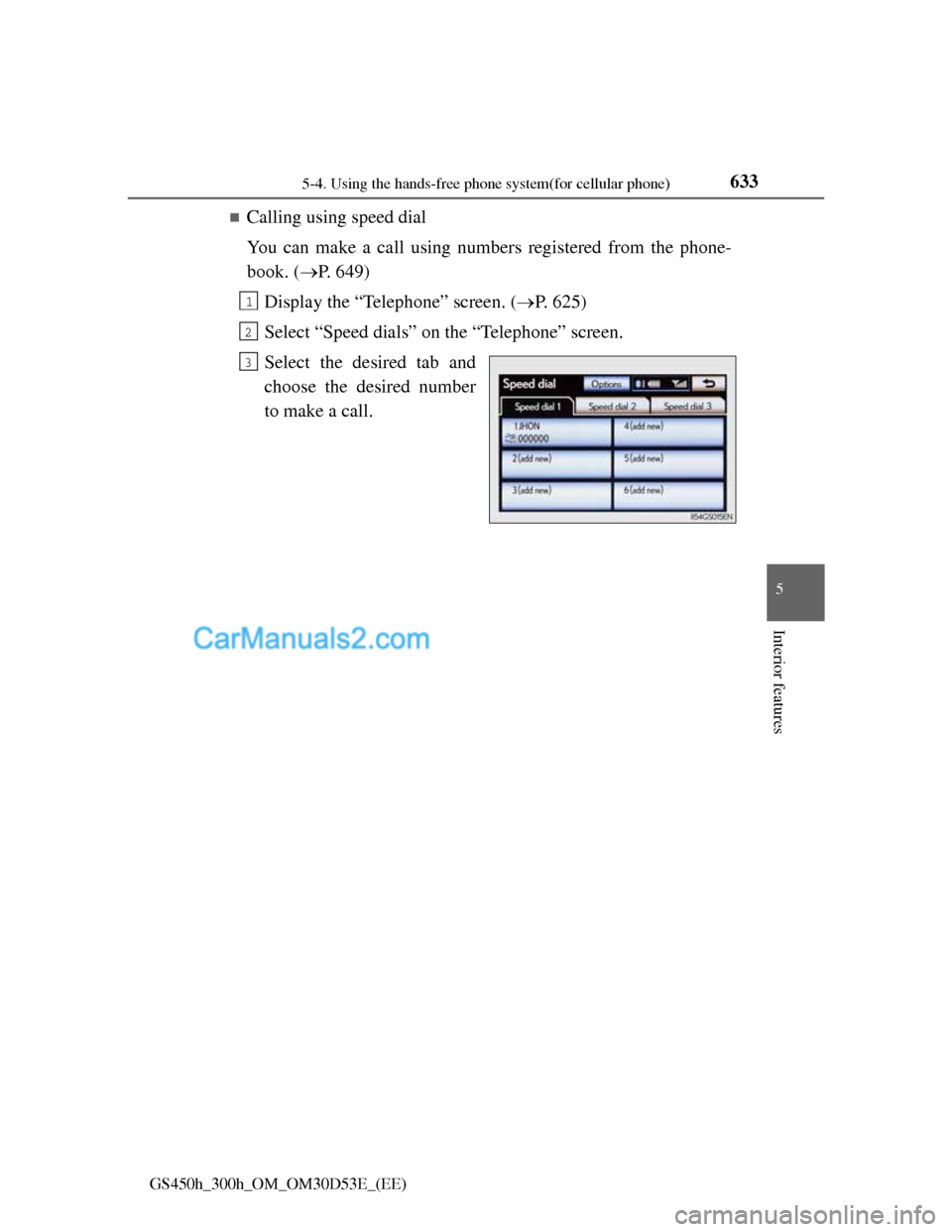

Calling using speed dial
You can make a call using numbers registered from the phone-
book. (P. 649)
Display the “Telephone” screen. (P. 625)
Select “Speed dials” on the “Telephone” screen.
Select the desired tab and
choose the desired number
to make a call.
1
2
3

6345-4. Using the hands-free phone system(for cellular phone)
GS450h_300h_OM_OM30D53E_(EE)

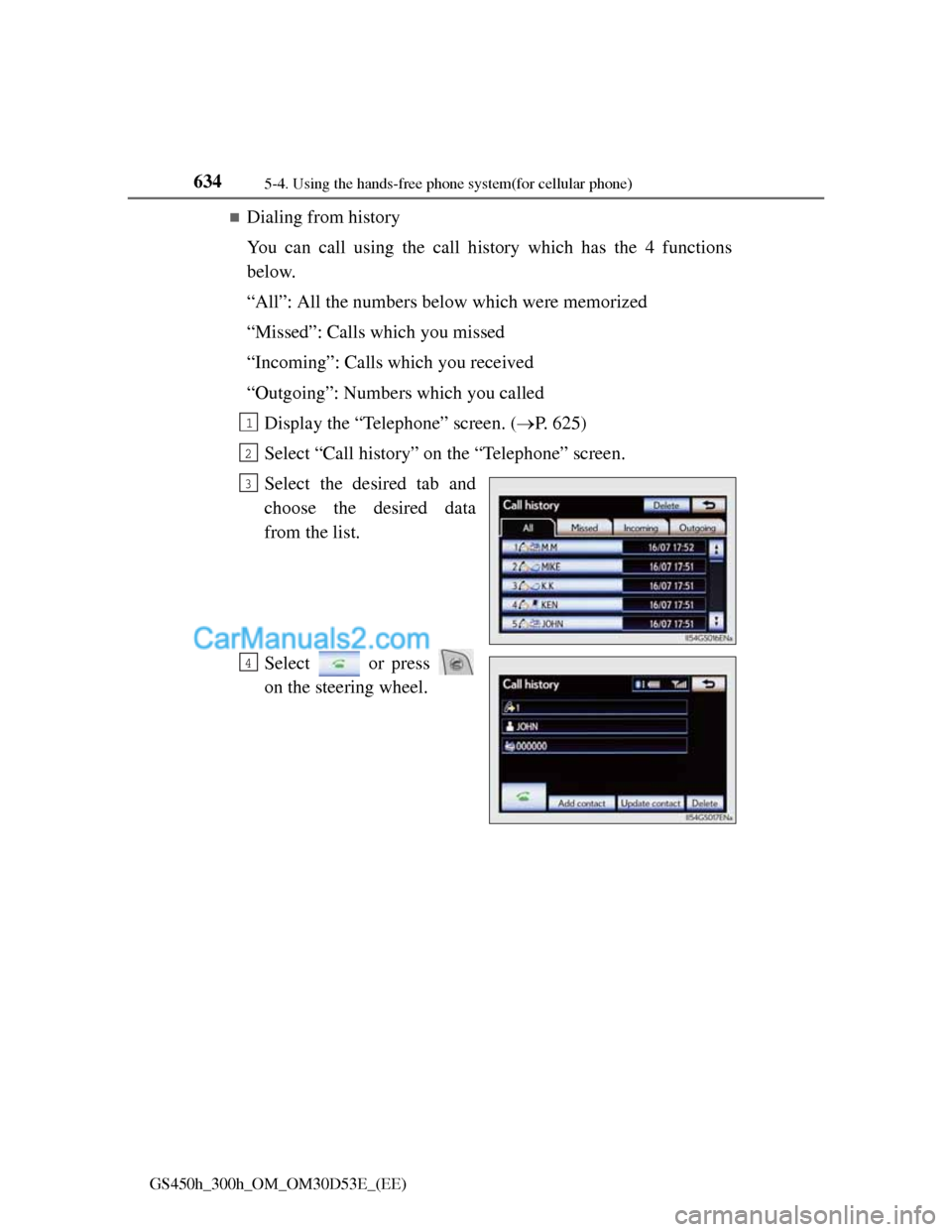

Dialing from history
You can call using the call history which has the 4 functions
below.
“All”: All the numbers below which were memorized
“Missed”: Calls which you missed
“Incoming”: Calls which you received
“Outgoing”: Numbers which you called
Display the “Telephone” screen. (P. 625)
Select “Call history” on the “Telephone” screen.
Select the desired tab and
choose the desired data
from the list.
Select or press
on the steering wheel.
1
2
3
4

6355-4. Using the hands-free phone system(for cellular phone)
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

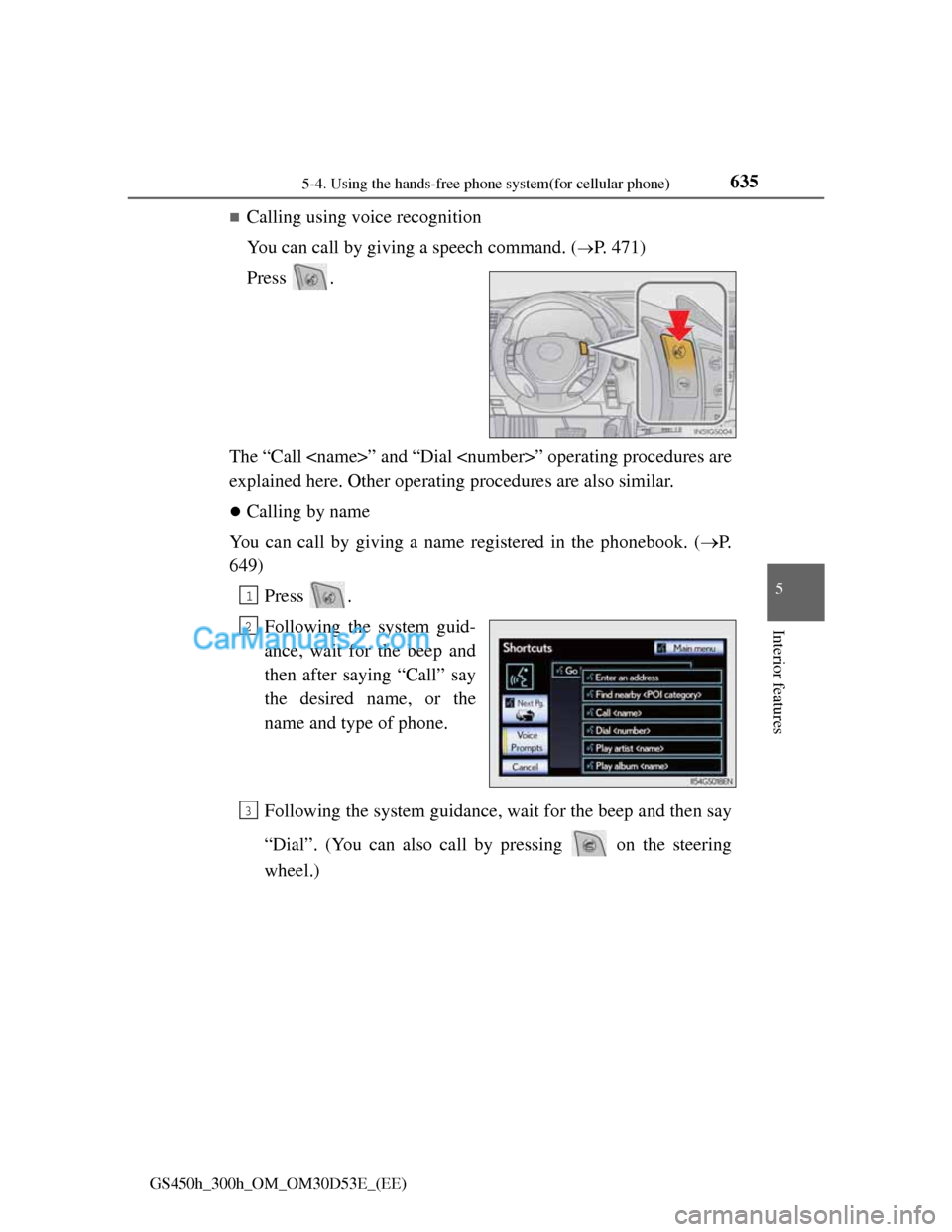

Calling using voice recognition
You can call by giving a speech command. (
P. 471)
Press .
The “Call ” and “Dial ” operating procedures are
explained here. Other operating procedures are also similar.
Calling by name
You can call by giving a name registered in the phonebook. (P.
649)
Press .
Following the system guid-
ance, wait for the beep and
then after saying “Call” say
the desired name, or the
name and type of phone.
Following the system guidance, wait for the beep and then say
“Dial”. (You can also call by pressing on the steering
wheel.)
1
2
3

6365-4. Using the hands-free phone system(for cellular phone)
GS450h_300h_OM_OM30D53E_(EE)

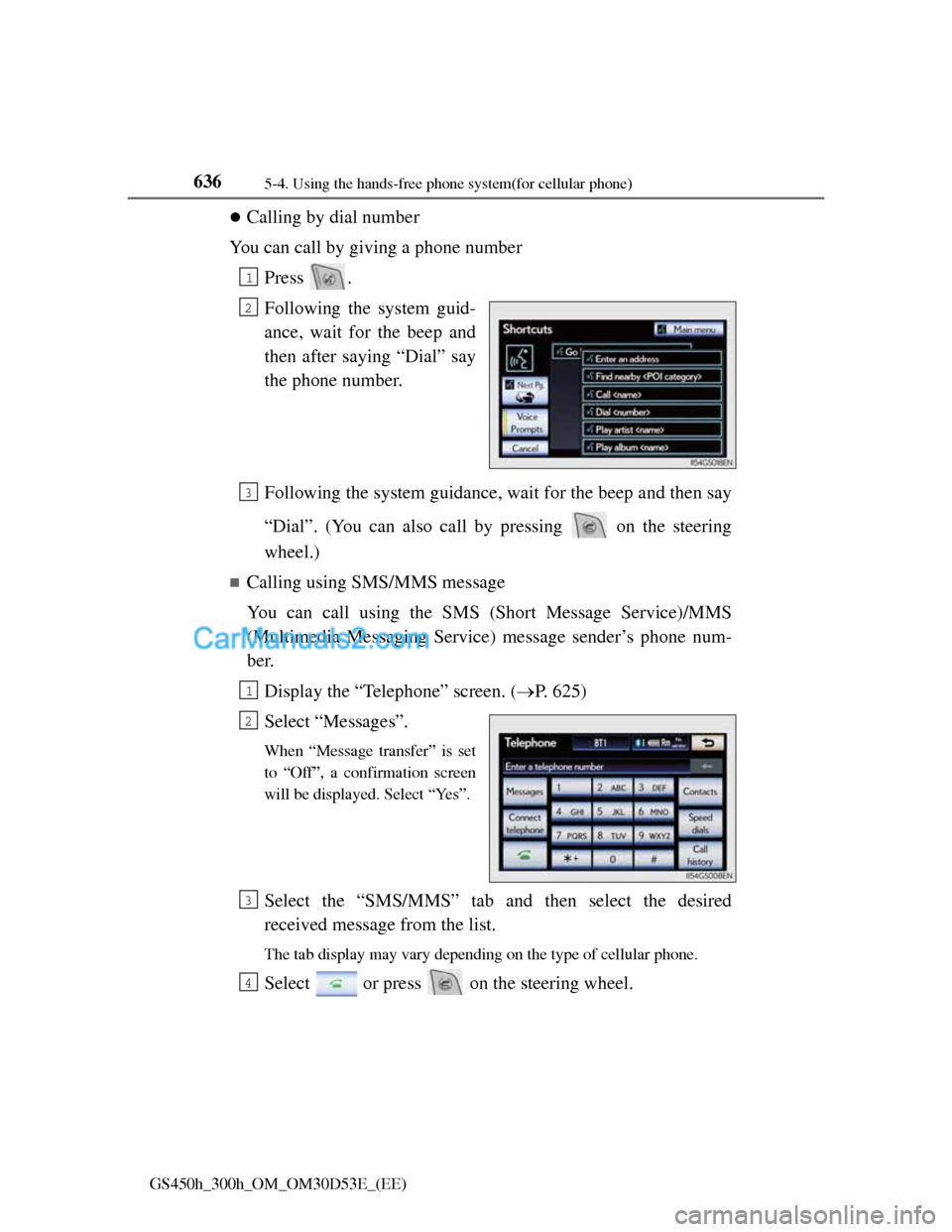

Calling by dial number
You can call by giving a phone number
Press .
Following the system guid-
ance, wait for the beep and
then after saying “Dial” say
the phone number.
Following the system guidance, wait for the beep and then say
“Dial”. (You can also call by pressing on the steering
wheel.)
Calling using SMS/MMS message
You can call using the SMS (Short Message Service)/MMS
(Multimedia Messaging Service) message sender’s phone num-
ber.
Display the “Telephone” screen. (P. 625)
Select “Messages”.
When “Message transfer” is set
to “Off”, a confirmation screen
will be displayed. Select “Yes”.
Select the “SMS/MMS” tab and then select the desired
received message from the list.
The tab display may vary depending on the type of cellular phone.
Select or press on the steering wheel.
1
2
3
1
2
3
4

6375-4. Using the hands-free phone system(for cellular phone)
5
Interior features
GS450h_300h_OM_OM30D53E_(EE)

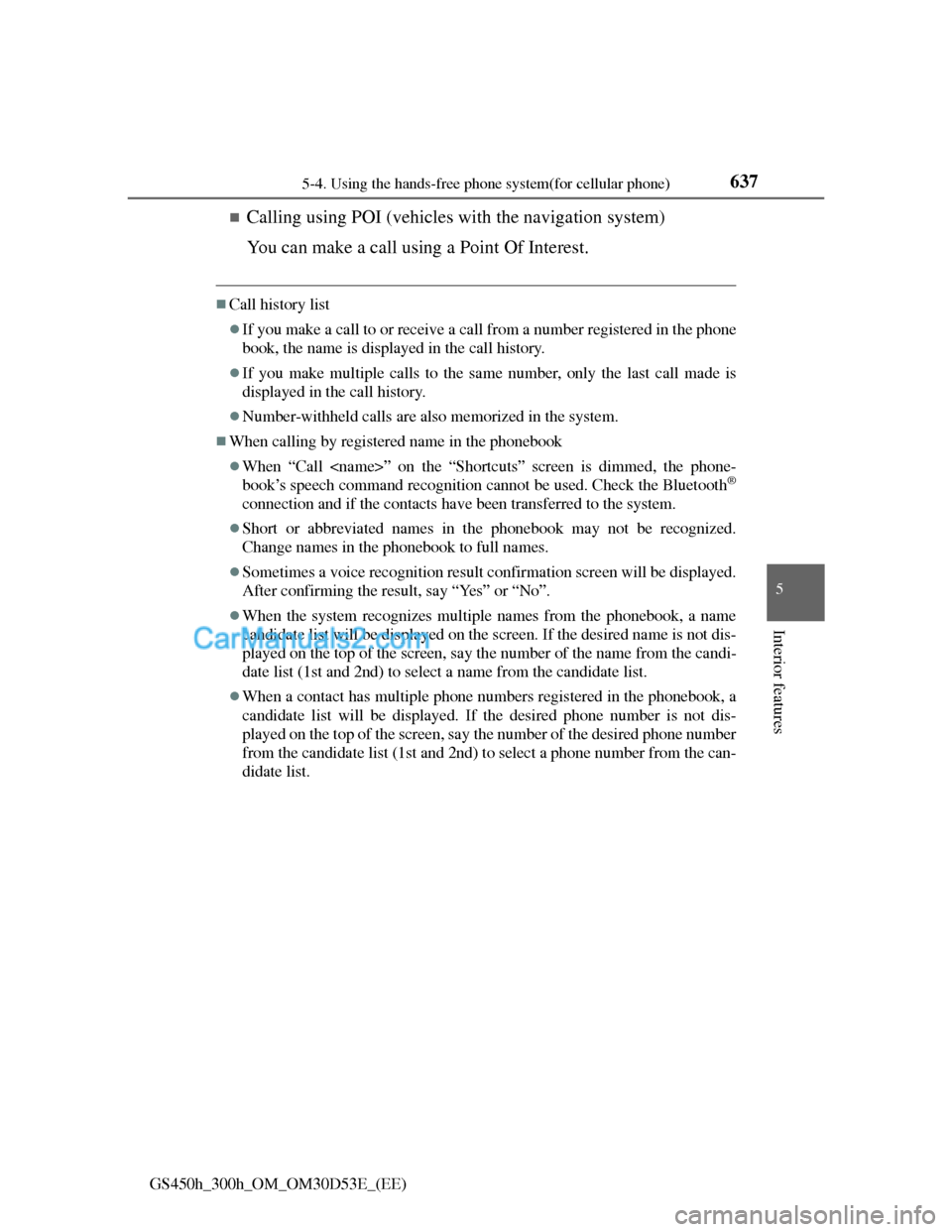

Calling using POI (vehicles with the navigation system)
You can make a call using a Point Of Interest.
Call history list
If you make a call to or receive a call from a number registered in the phone
book, the name is displayed in the call history.
If you make multiple calls to the same number, only the last call made is
displayed in the call history.
Number-withheld calls are also memorized in the system.
When calling by registered name in the phonebook
When “Call ” on the “Shortcuts” screen is dimmed, the phone-
book’s speech command recognition cannot be used. Check the Bluetooth®
connection and if the contacts have been transferred to the system.
Short or abbreviated names in the phonebook may not be recognized.
Change names in the phonebook to full names.
Sometimes a voice recognition result confirmation screen will be displayed.
After confirming the result, say “Yes” or “No”.
When the system recognizes multiple names from the phonebook, a name
candidate list will be displayed on the screen. If the desired name is not dis-
played on the top of the screen, say the number of the name from the candi-
date list (1st and 2nd) to select a name from the candidate list.
When a contact has multiple phone numbers registered in the phonebook, a
candidate list will be displayed. If the desired phone number is not dis-
played on the top of the screen, say the number of the desired phone number
from the candidate list (1st and 2nd) to select a phone number from the can-
didate list.
