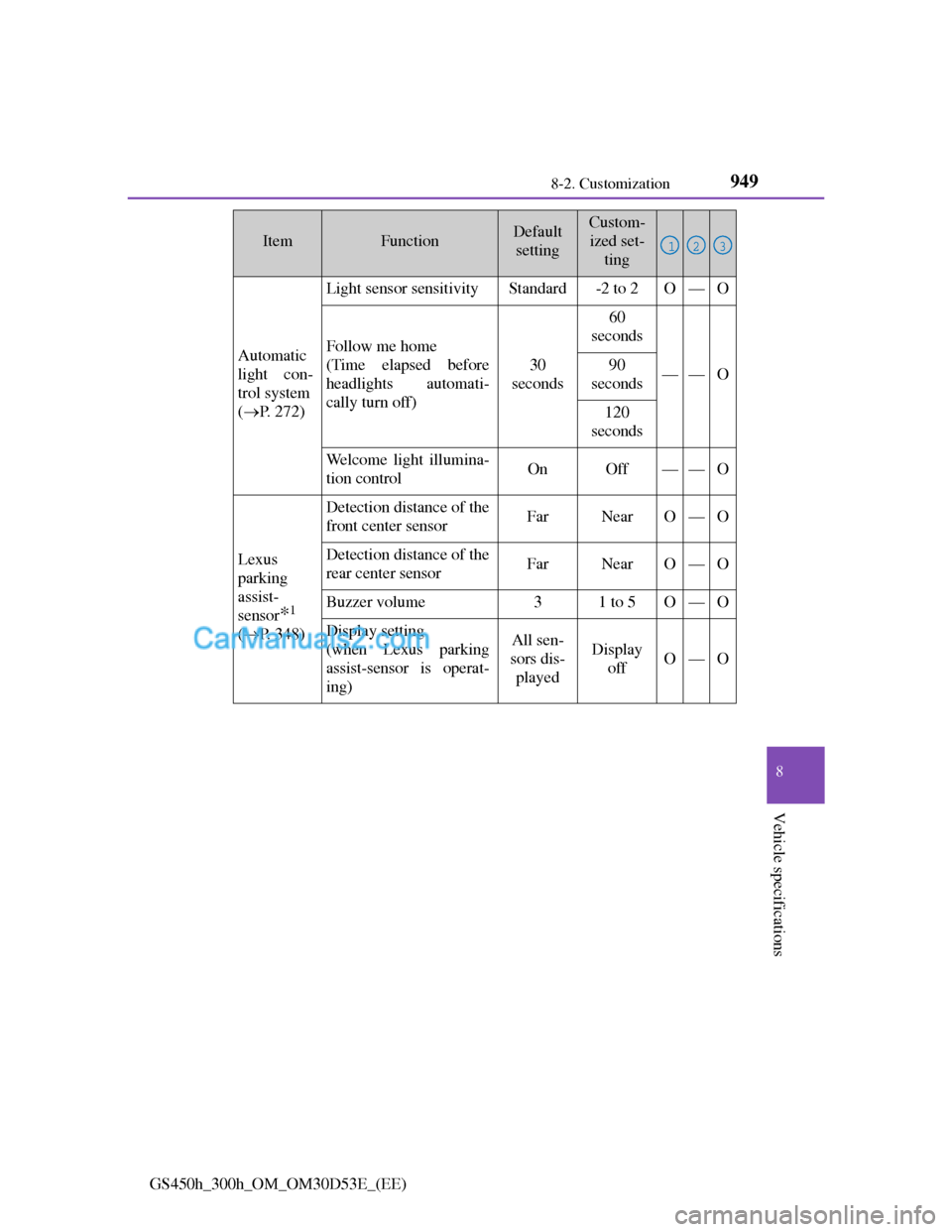

Page 981 of 1014

949
8 8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30D53E_(EE)
Automatic
light con-
trol system
(P. 272)
Light sensor sensitivityStandard-2 to 2O—O
Follow me home
(Time elapsed before
headlights automati-
cally turn off)
30
seconds
60
seconds
——O90
seconds
120
seconds
Welcome light illumina-
tion controlOnOff——O
Lexus
parking
assist-
sensor
*1
(P. 348)
Detection distance of the
front center sensorFarNearO—O
Detection distance of the
rear center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Lexus parking
assist-sensor is operat-
ing)All sen-
sors dis-
playedDisplay
offO—O
ItemFunctionDefault
settingCustom-
ized set-
ting
123

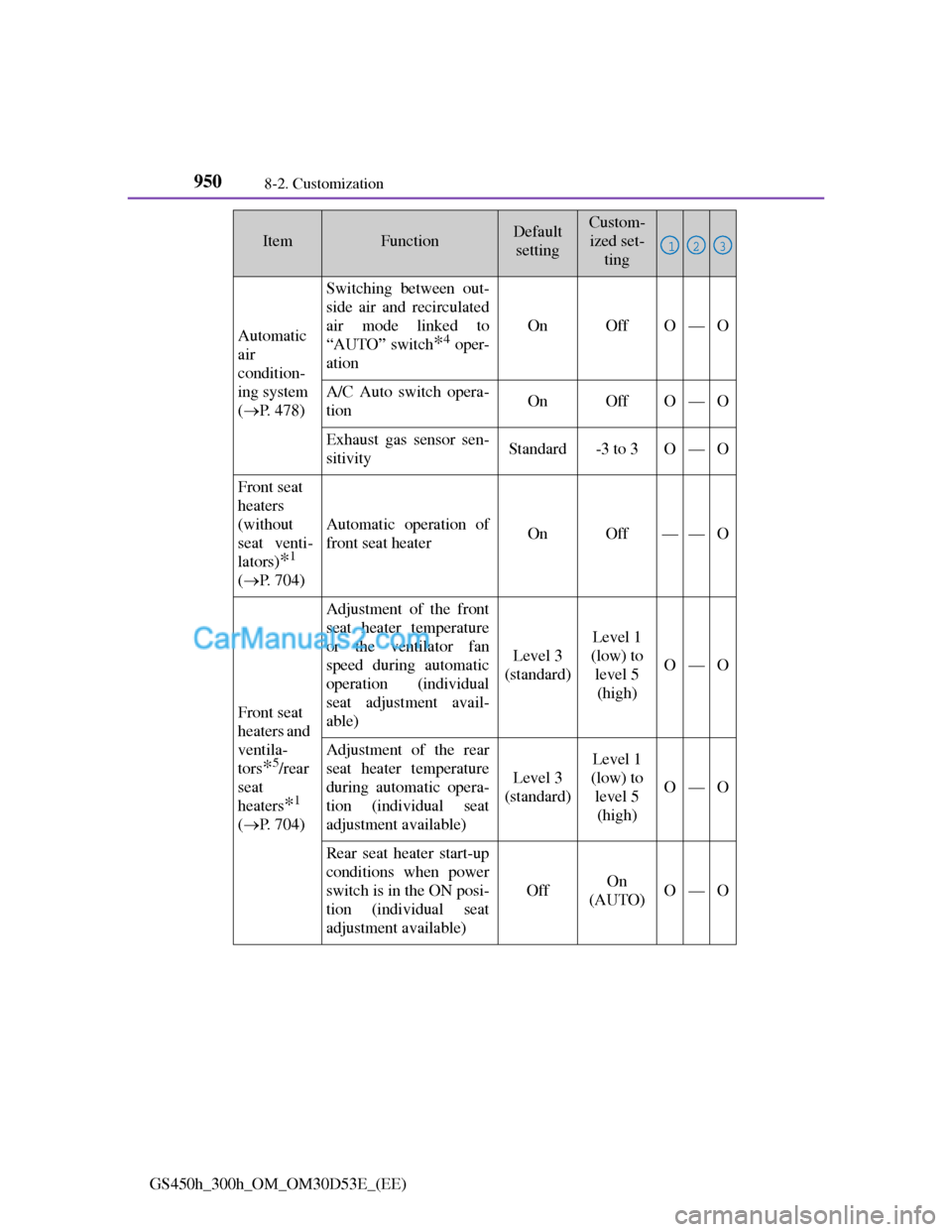

Page 982 of 1014

9508-2. Customization
GS450h_300h_OM_OM30D53E_(EE)
Automatic
air
condition-
ing system
(P. 478)
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch
*4 oper-
ation
OnOffO—O
A/C Auto switch opera-
tionOnOffO—O
Exhaust gas sensor sen-
sitivityStandard-3 to 3O—O
Front seat
heaters
(without
seat venti-
lators)
*1
(P. 704)
Automatic operation of
front seat heaterOnOff——O
Front seat
heaters and
ventila-
tors
*5/rear
seat
heaters
*1
(P. 704)
Adjustment of the front
seat heater temperature
or the ventilator fan
speed during automatic
operation (individual
seat adjustment avail-
able)
Level 3
(standard)
Level 1
(low) to
level 5
(high)
O—O
Adjustment of the rear
seat heater temperature
during automatic opera-
tion (individual seat
adjustment available)
Level 3
(standard)
Level 1
(low) to
level 5
(high)
O—O
Rear seat heater start-up
conditions when power
switch is in the ON posi-
tion (individual seat
adjustment available)
OffOn
(AUTO)O—O
ItemFunctionDefault
settingCustom-
ized set-
ting
123

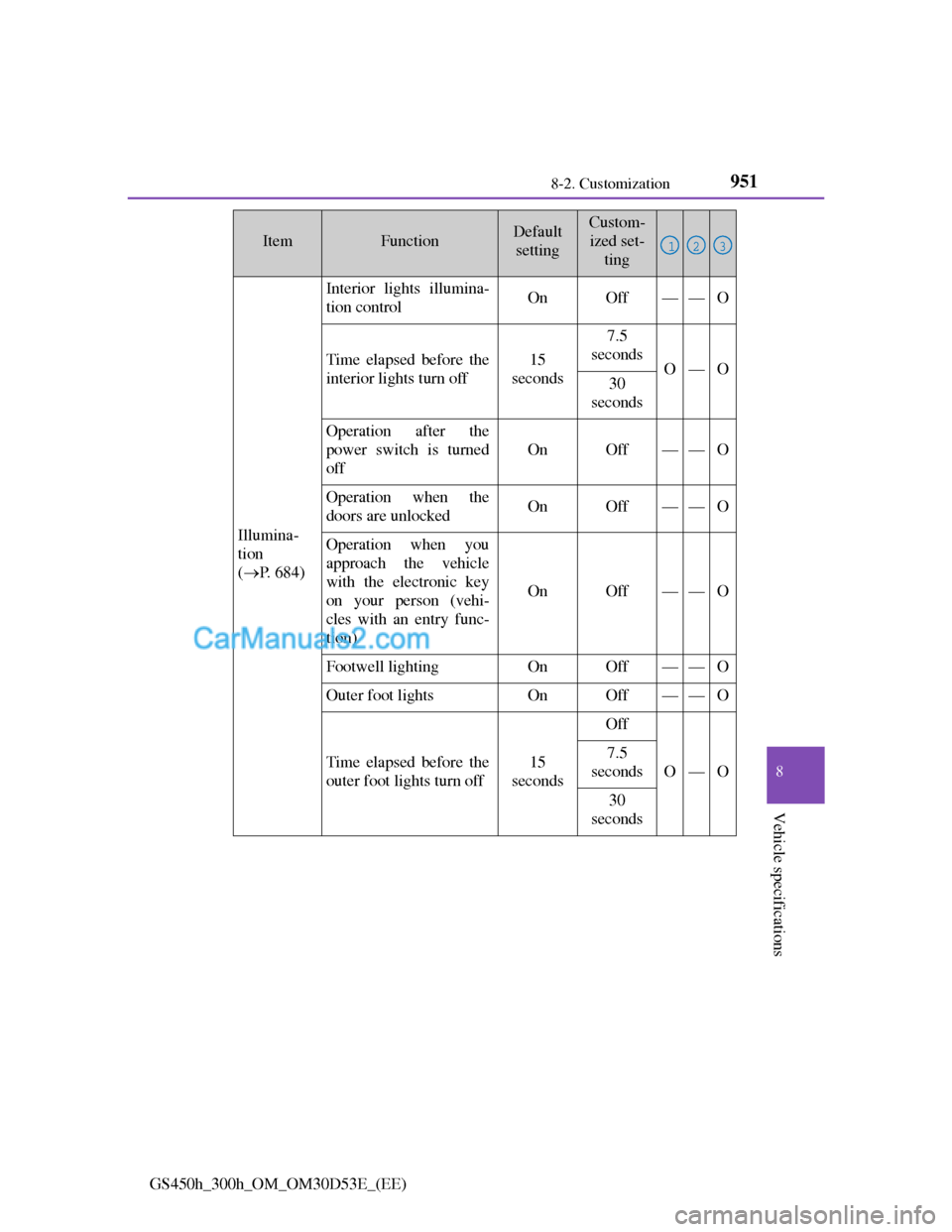

Page 983 of 1014

951
8 8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30D53E_(EE)
Illumina-
tion
(P. 684)
Interior lights illumina-
tion controlOnOff——O
Time elapsed before the
interior lights turn off15
seconds
7.5
seconds
O—O30
seconds
Operation after the
power switch is turned
off
OnOff——O
Operation when the
doors are unlockedOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person (vehi-
cles with an entry func-
tion)
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the
outer foot lights turn off15
seconds
Off
O—O
7.5
seconds
30
seconds
ItemFunctionDefault
settingCustom-
ized set-
ting
123

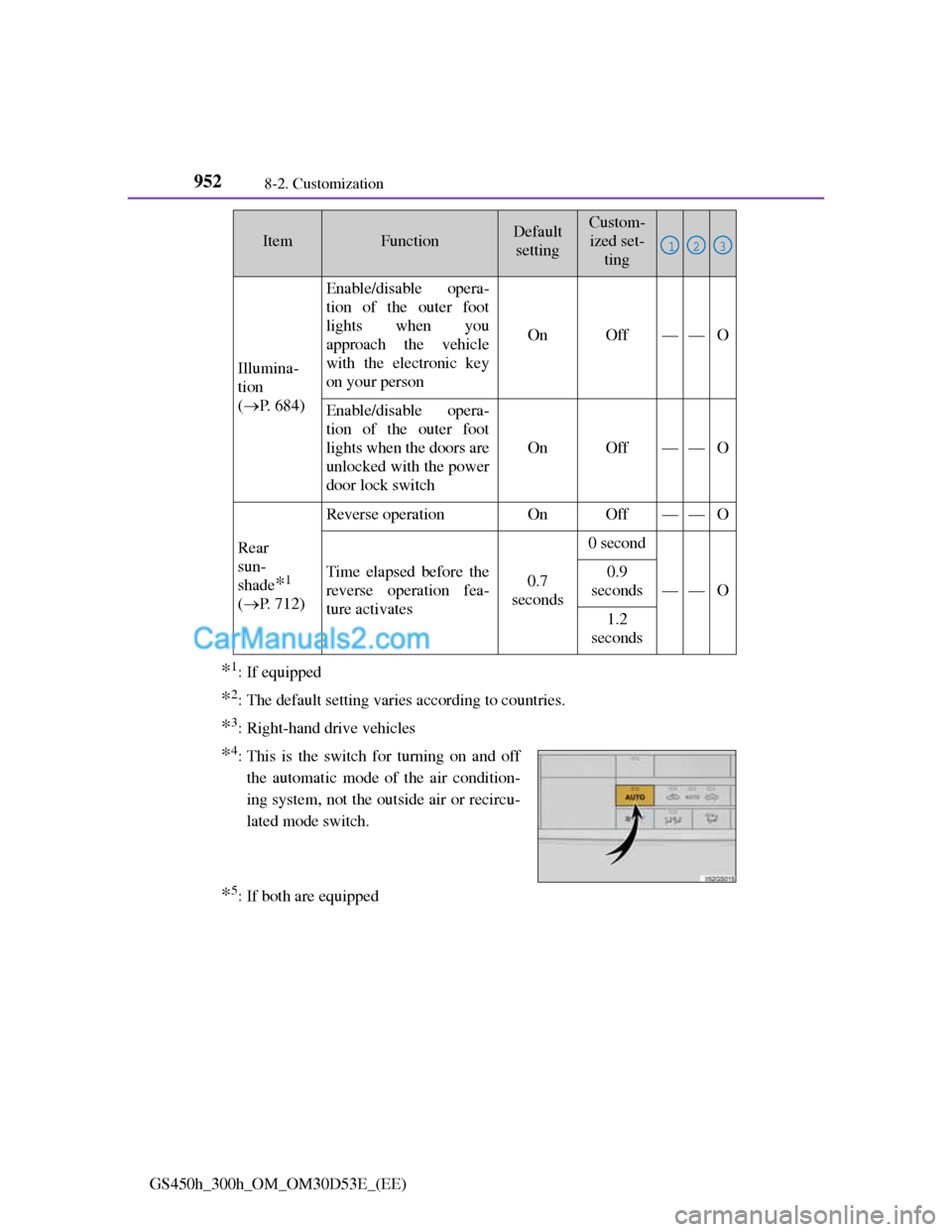

Page 984 of 1014

9528-2. Customization
GS450h_300h_OM_OM30D53E_(EE)
*1: If equipped
*2: The default setting varies according to countries.
*3: Right-hand drive vehicles
*5: If both are equipped
Illumina-
tion
(P. 684)
Enable/disable opera-
tion of the outer foot
lights when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Enable/disable opera-
tion of the outer foot
lights when the doors are
unlocked with the power
door lock switch
OnOff——O
Rear
sun-
shade
*1
(P. 712)
Reverse operationOnOff——O
Time elapsed before the
reverse operation fea-
ture activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
*4: This is the switch for turning on and off
the automatic mode of the air condition-
ing system, not the outside air or recircu-
lated mode switch.
ItemFunctionDefault
settingCustom-
ized set-
ting
123
Page 985 of 1014

953
8 8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30D53E_(EE)

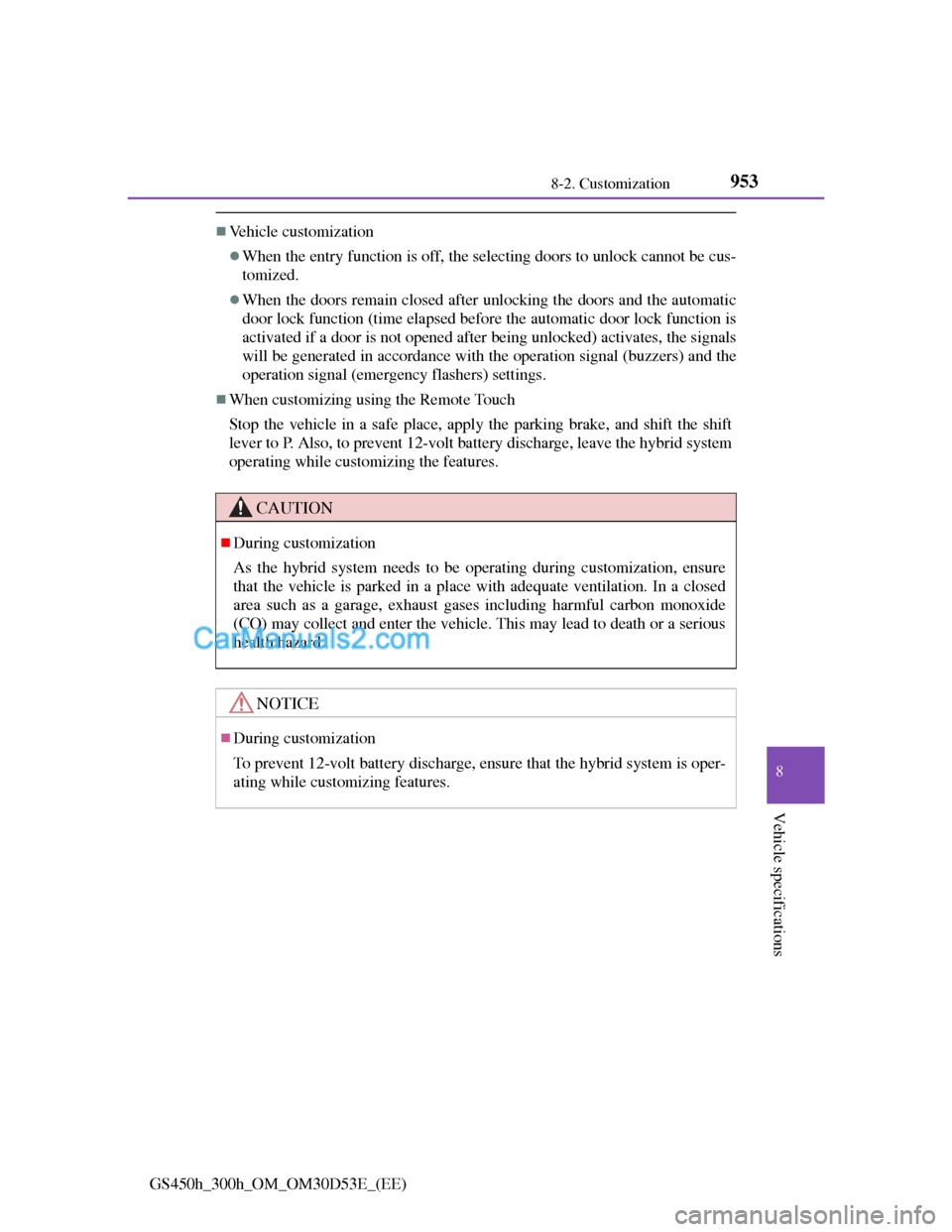

Vehicle customization
When the entry function is off, the selecting doors to unlock cannot be cus-
tomized.
When the doors remain closed after unlocking the doors and the automatic
door lock function (time elapsed before the automatic door lock function is
activated if a door is not opened after being unlocked) activates, the signals
will be generated in accordance with the operation signal (buzzers) and the
operation signal (emergency flashers) settings.
When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent 12-volt battery discharge, leave the hybrid system
operating while customizing the features.
CAUTION
During customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

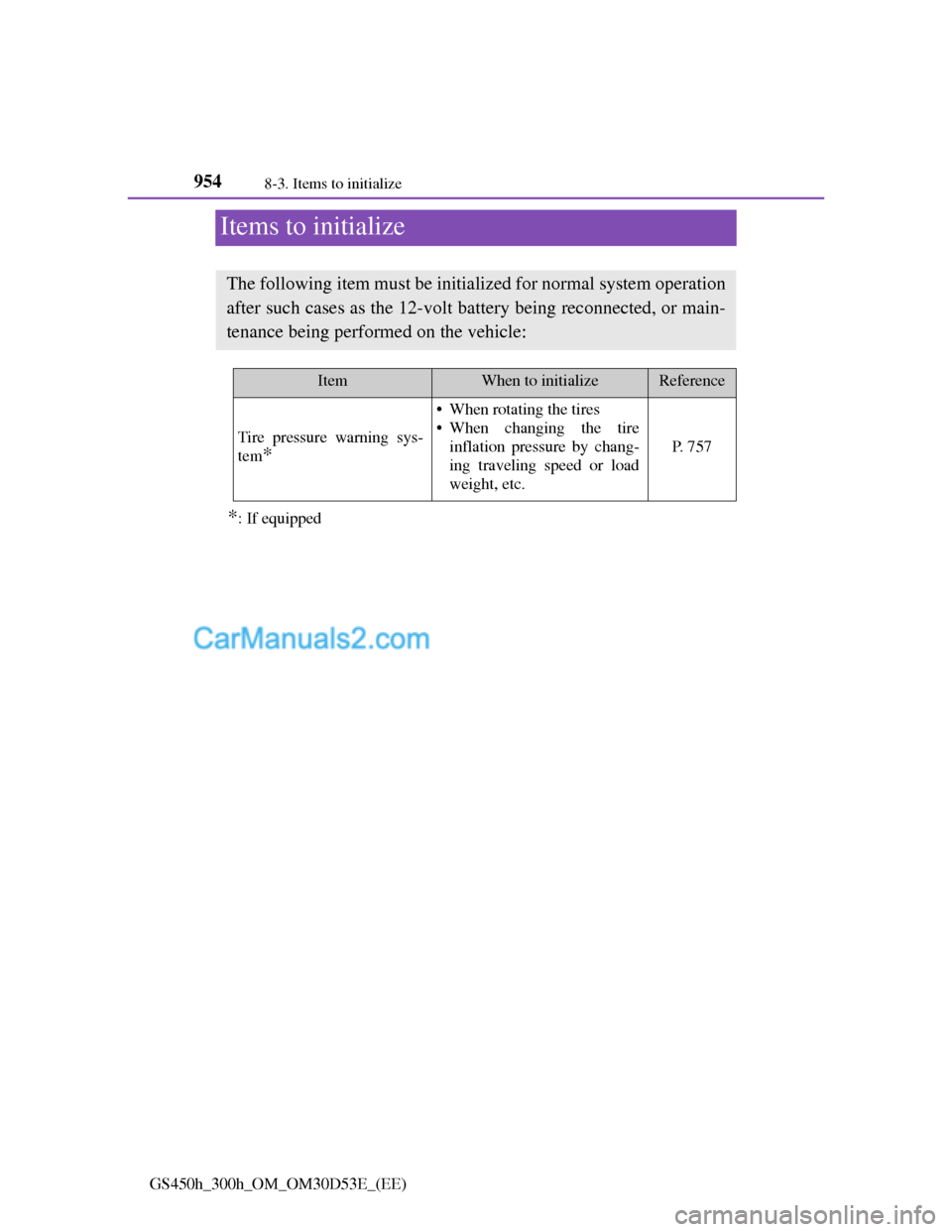

Page 986 of 1014

9548-3. Items to initialize
GS450h_300h_OM_OM30D53E_(EE)
Items to initialize
*: If equipped
The following item must be initialized for normal system operation
after such cases as the 12-volt battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Tire pressure warning sys-
tem
*
• When rotating the tires
• When changing the tire
inflation pressure by chang-
ing traveling speed or load
weight, etc.
P. 7 5 7

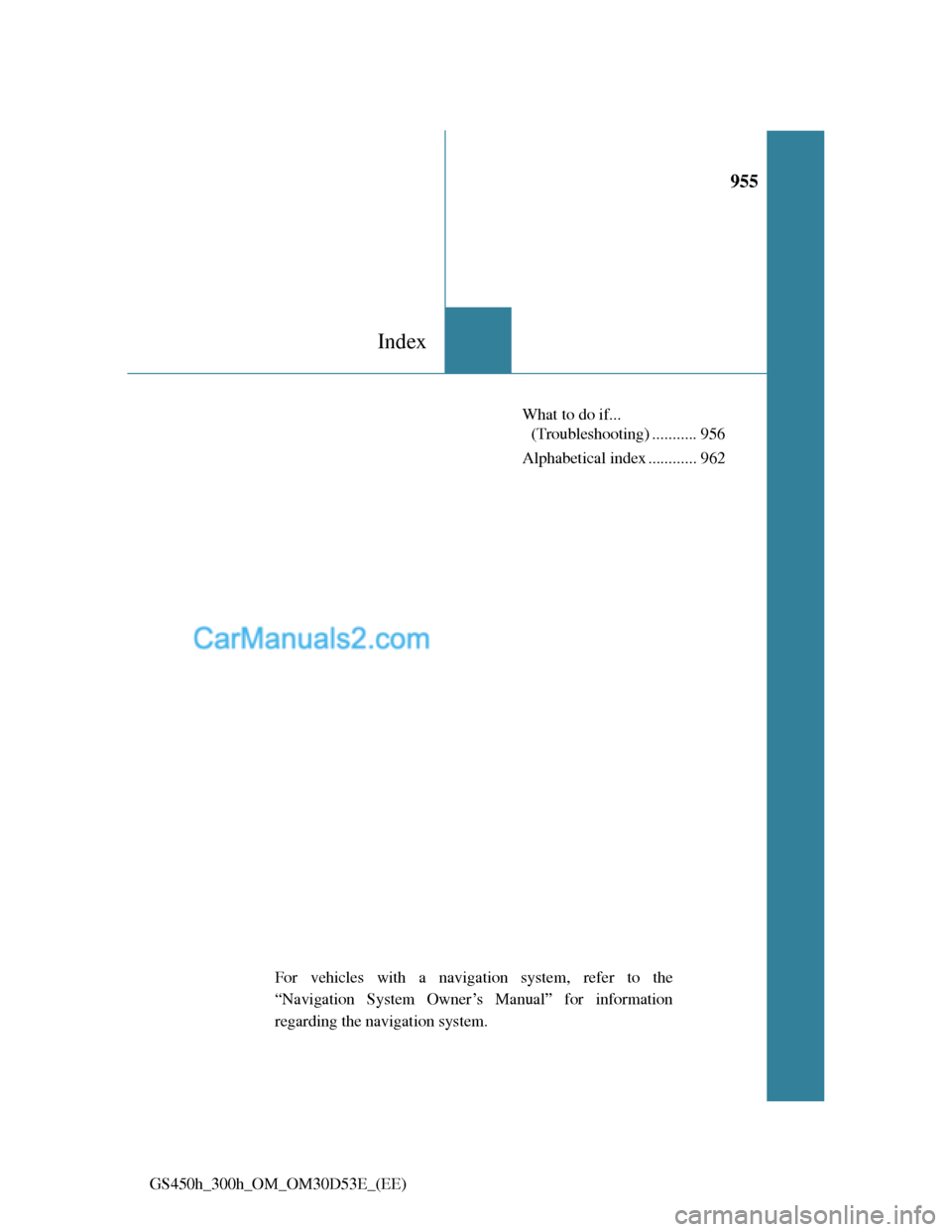

Page 987 of 1014

955
Index
GS450h_300h_OM_OM30D53E_(EE)What to do if...
(Troubleshooting) ........... 956
Alphabetical index ............ 962
For vehicles with a navigation system, refer to the
“Navigation System Owner’s Manual” for information
regarding the navigation system.

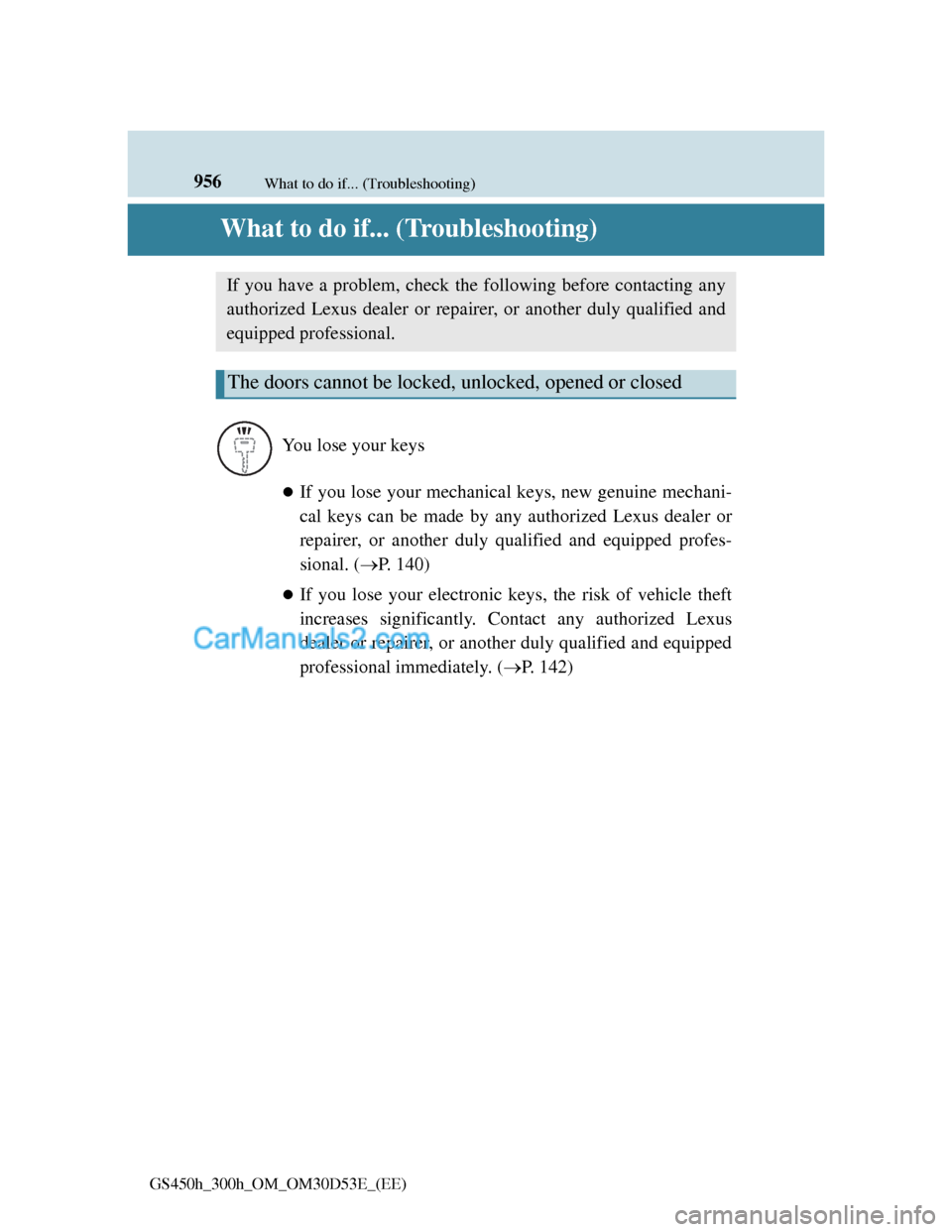

Page 988 of 1014

956What to do if... (Troubleshooting)
GS450h_300h_OM_OM30D53E_(EE)
What to do if... (Troubleshooting)
If you lose your mechanical keys, new genuine mechani-
cal keys can be made by any authorized Lexus dealer or
repairer, or another duly qualified and equipped profes-
sional. (P. 140)
If you lose your electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped
professional immediately. (P. 142)
If you have a problem, check the following before contacting any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys

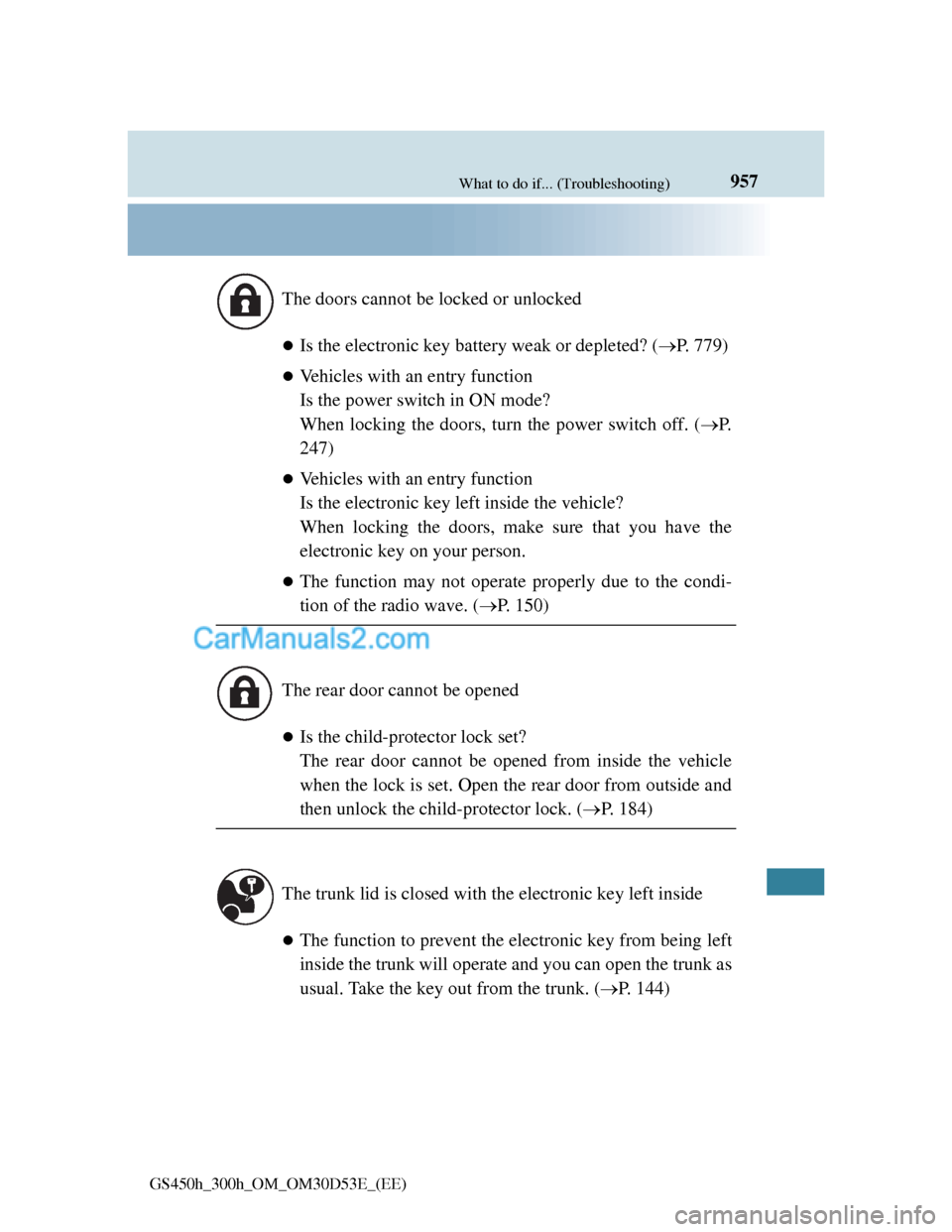

Page 989 of 1014

957What to do if... (Troubleshooting)
GS450h_300h_OM_OM30D53E_(EE)
Is the electronic key battery weak or depleted? (P. 779)
Vehicles with an entry function
Is the power switch in ON mode?
When locking the doors, turn the power switch off. (P.
247)
Vehicles with an entry function
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the
electronic key on your person.
The function may not operate properly due to the condi-
tion of the radio wave. (P. 150)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle
when the lock is set. Open the rear door from outside and
then unlock the child-protector lock. (P. 184)
The function to prevent the electronic key from being left
inside the trunk will operate and you can open the trunk as
usual. Take the key out from the trunk. (P. 144) The doors cannot be locked or unlocked
The rear door cannot be opened
The trunk lid is closed with the electronic key left inside
Page 990 of 1014

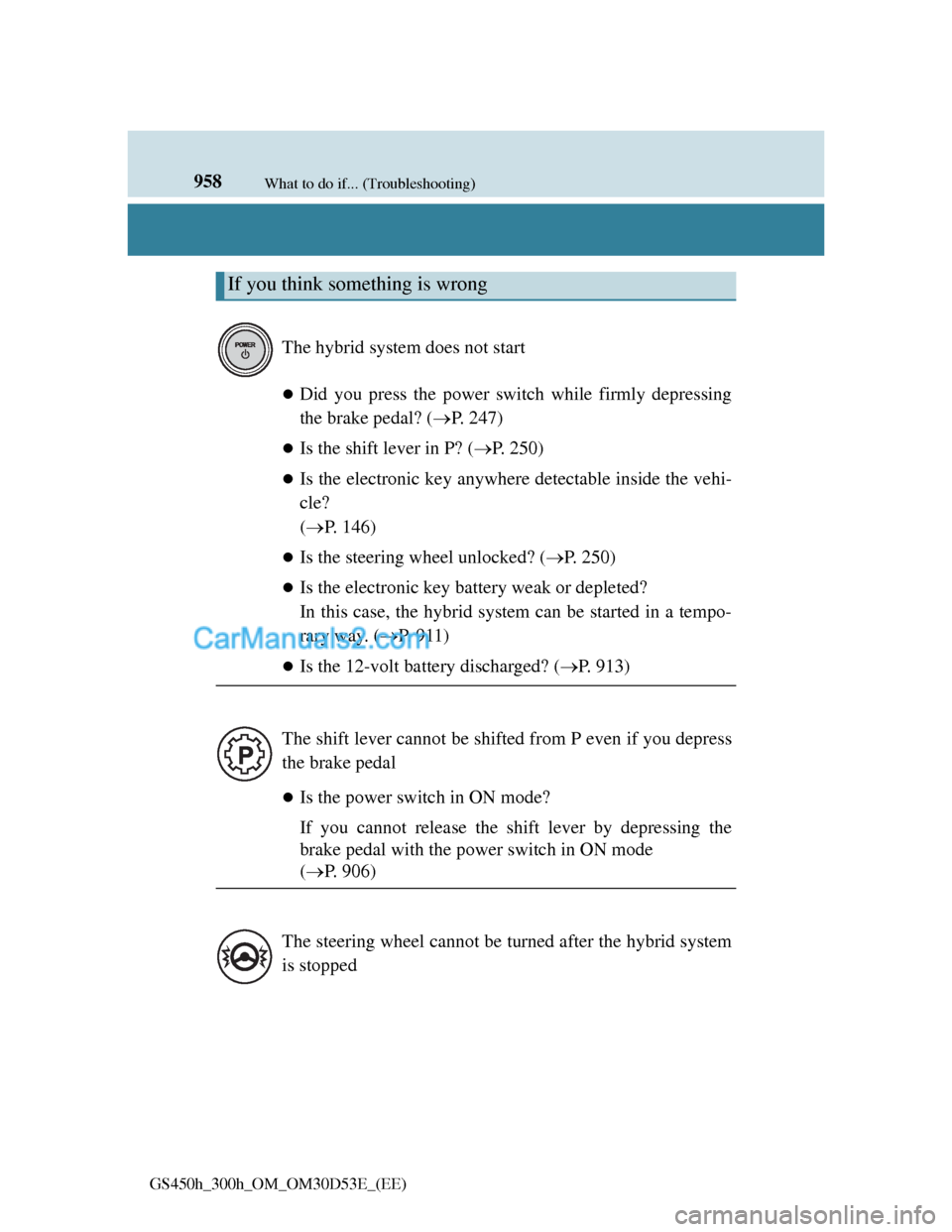

958What to do if... (Troubleshooting)
GS450h_300h_OM_OM30D53E_(EE)
Did you press the power switch while firmly depressing
the brake pedal? (P. 247)
Is the shift lever in P? (P. 250)
Is the electronic key anywhere detectable inside the vehi-
cle?
(P. 146)
Is the steering wheel unlocked? (P. 250)
Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a tempo-
rary way. (P. 911)
Is the 12-volt battery discharged? (P. 913)
Is the power switch in ON mode?
If you cannot release the shift lever by depressing the
brake pedal with the power switch in ON mode
(P. 906)
If you think something is wrong
The hybrid system does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the hybrid system
is stopped
