Lexus GS300h 2015 Owner's Manual

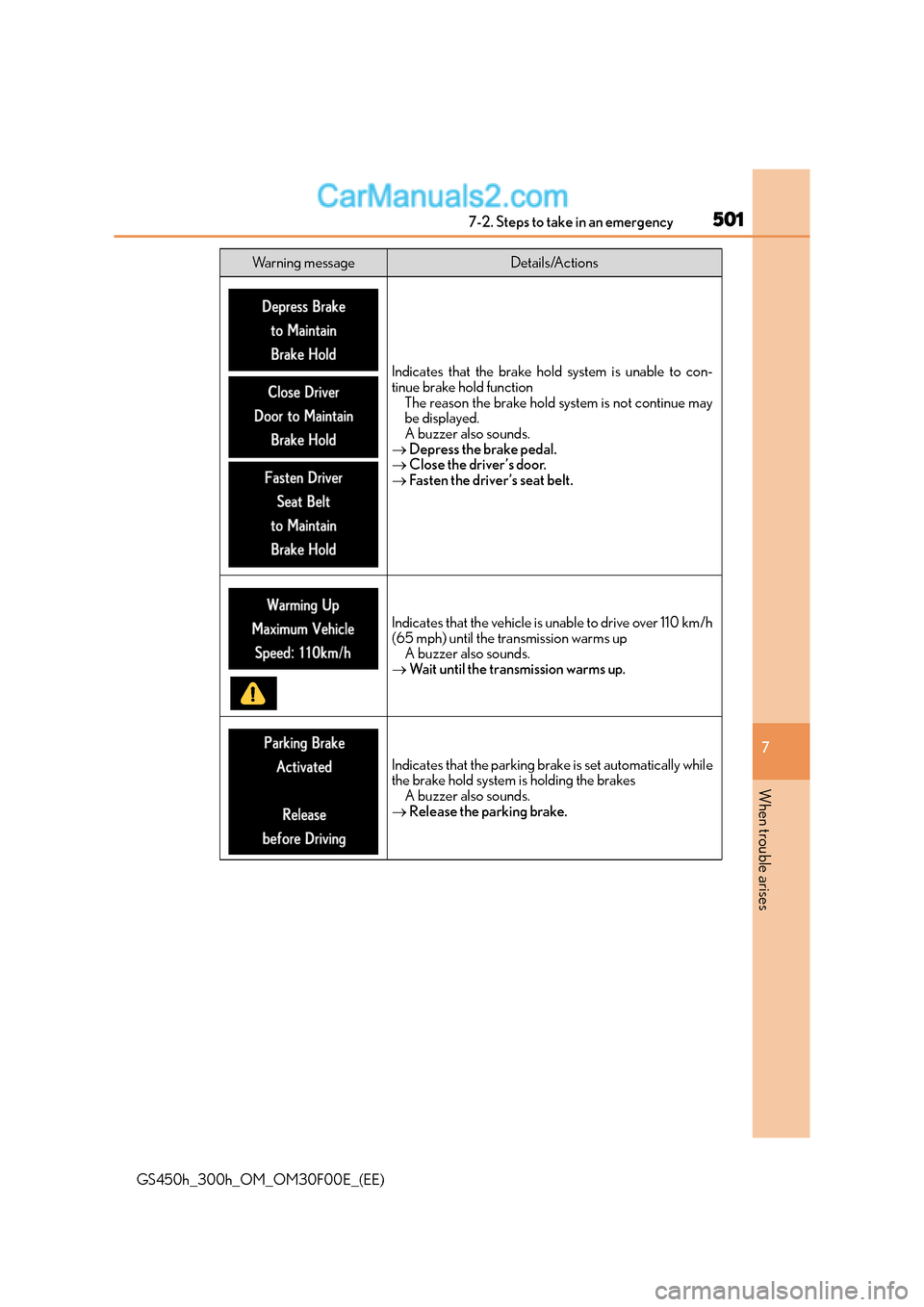

5017-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
Indicates that the brake hold system is unable to con-
tinue brake hold functionThe reason the brake hold system is not continue may
be displayed.
A buzzer also sounds.
→ Depress the brake pedal.
→ Close the driver’s door.
→ Fasten the driver’s seat belt.
Indicates that the vehicle is unable to drive over 110 km/h
(65 mph) until the transmission warms up
A buzzer also sounds.
→ Wait until the transmission warms up.
Indicates that the parking brake is set automatically while
the brake hold system is holding the brakes
A buzzer also sounds.
→ Release the parking brake.
Wa r n i n g m e s s a g eDetails/Actions

5027-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
Indicates a malfunction in the drive start control system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in the brake override system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that engine oil level is low
This message may appear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to
see if the message disappears.
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates that the hybrid system has overheated
This message may be displayed when driving under
severe operating conditions. (For example, when driv-
ing up a long steep hill.)
A buzzer also sounds.
→ Stop and check. ( →P. 5 5 6 )
Wa r n i n g m e s s a g eDetails/Actions

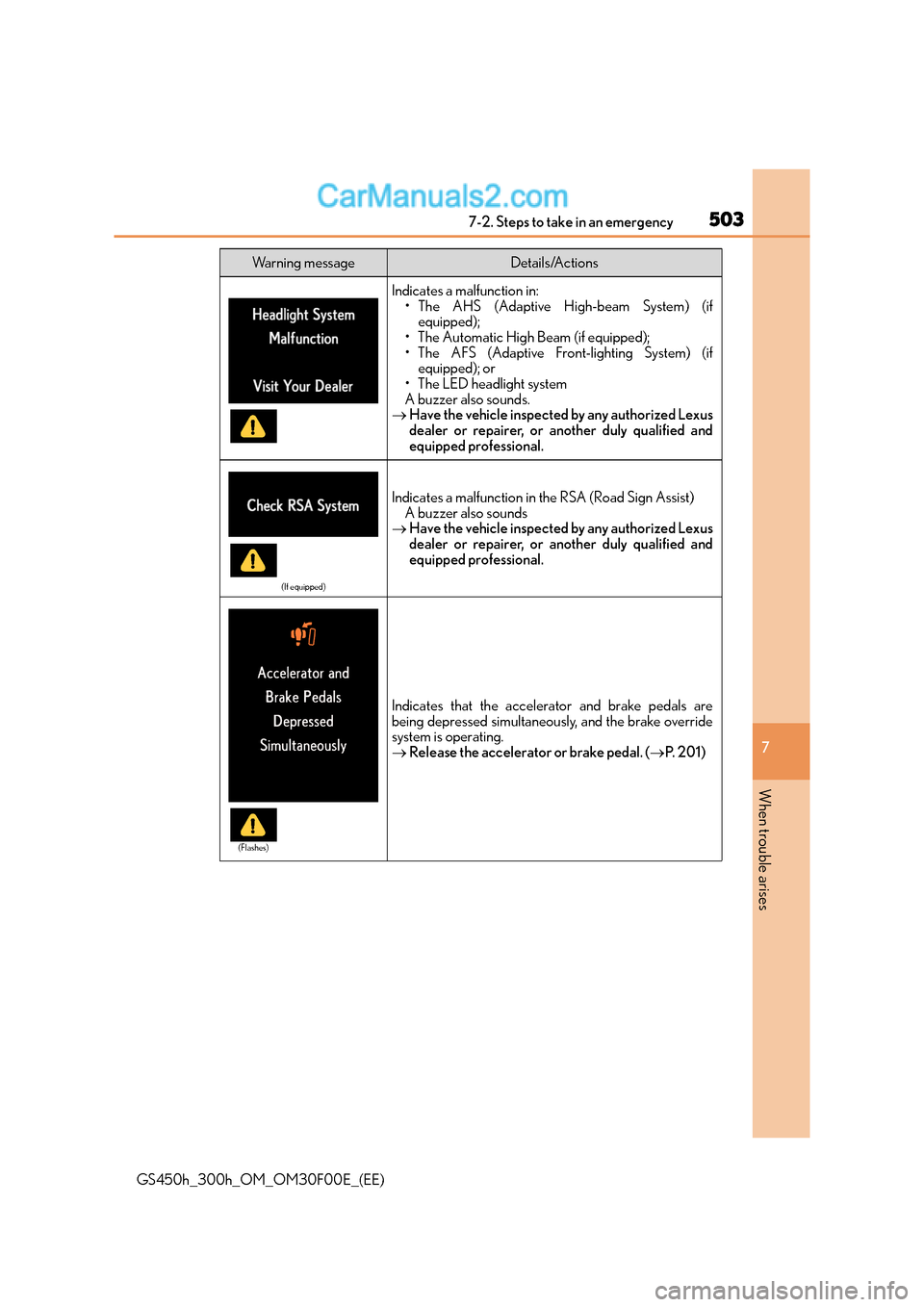

5037-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
Indicates a malfunction in:• The AHS (Adaptive High-beam System) (ifequipped);
• The Automatic High Beam (if equipped);
• The AFS (Adaptive Fron t-lighting System) (if
equipped); or
•The LED headlight system
A buzzer also sounds.
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
(If equipped)
Indicates a malfunction in the RSA (Road Sign Assist)
A buzzer also sounds
→ Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the accelerator and brake pedals are
being depressed simultaneously, and the brake override
system is operating.
→Release the accelerator or brake pedal. ( →P. 2 0 1 )
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

5047-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
(If equipped)
Indicates that the tire inflation pressure is low
→Check the tire inflation pressure, and adjust to the
appropriate level.
(If equipped)
Indicates a malfunction in th e tire pressure warning sys-
tem
→ Stop the vehicle in a safe place and turn the power
switch off then on again. If the tire pressure warning
indicator flashes for 1 minute then illuminates, there
is a malfunction in the system. Have the vehicle
inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped
professional.
(If equipped)
Indicates that the tire position information cannot be rec-
ognized
→Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If the tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the power switch off
then on again, and start driving. If the tire pressure is
still not displayed even after repeating this process
several times, have the vehicle inspected by any
authorized
Lexus dealer or repairer, or another duly qualified
and equipped professional.
Wa r n i n g m e s s a g eDetails/Actions

5057-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
Indicates that the washer fluid level is low
→Add washer fluid.
Indicates that remaining fuel is approximately 9.9 L
(2.6 gal., 2.2 Imp.gal.) or less
→Refuel the vehicle.
Indicates that the outside temperature is approximately
3°C (37 °F) or lower
A buzzer also sounds.
→ Drive carefully, as the road may be icy.
Indicates that the engine oil is scheduled to be changed
→ Check the engine oil and change if necessary. After
changing the engine oil, the oil change system
should be reset. ( →P. 4 2 2 )
(The indicator will not work properly unless the oil
maintenance data has been reset.)
(If equipped)
Indicates that the fuel in jectors require maintenance
soon
→ Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
replenish the injector cleaner to the fuel tank and
reset the message as necessary.
Indicates that the engine oil and oil filter should be
changed
→Have the engine oil and oil filter checked and/or
changed by any authorized Lexus dealer or
repairer, or another duly qualified and equipped
professional. After changing the engine oil, the oil
change system should be reset. ( →P. 4 2 2 )
Wa r n i n g m e s s a g eDetails/Actions

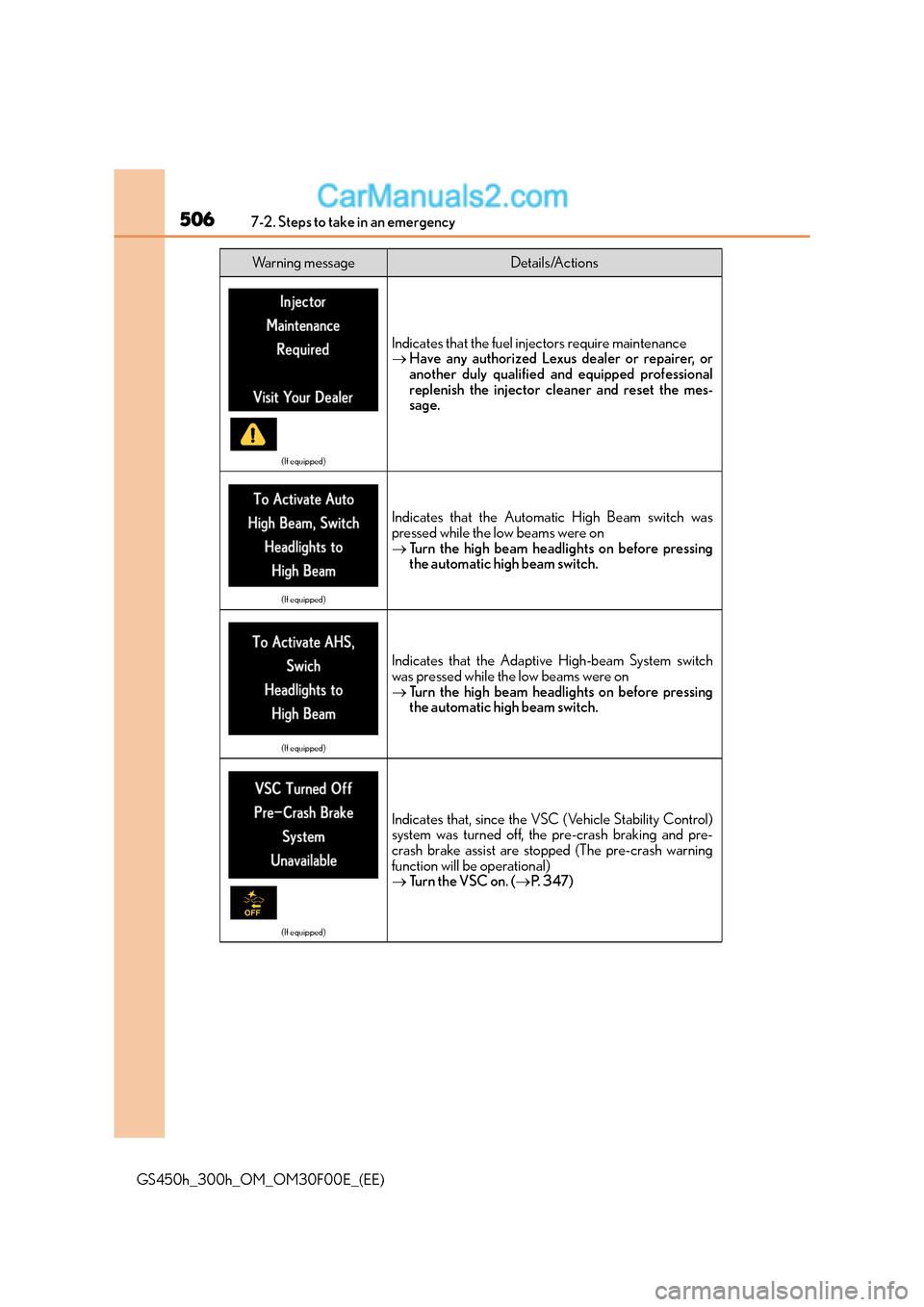

5067-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
(If equipped)
Indicates that the fuel injectors require maintenance
→Have any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional
replenish the injector cl eaner and reset the mes-
sage.
(If equipped)
Indicates that the Automatic High Beam switch was
pressed while the low beams were on
→ Turn the high beam headlights on before pressing
the automatic high beam switch.
(If equipped)
Indicates that the Adaptive High-beam System switch
was pressed while the low beams were on
→Turn the high beam headlights on before pressing
the automatic high beam switch.
(If equipped)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-crash braking and pre-
crash brake assist are stopped (The pre-crash warning
function will be operational)
→Tu r n t h e V S C o n . ( →P. 3 4 7 )
Wa r n i n g m e s s a g eDetails/Actions

5077-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is tem-
porarily unavailableA buzzer also sounds.
→ When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption
→ Turn off unnecessary electronic equipment to
reduce power consumption.
Please wait until the power supply returns to nor-
mal.
If this item is frequently displayed, have the vehicle
inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped
professional.
(If equipped)
Indicates that part of the PCS (Pre-Crash Safety system)
sensor is dirty, covered with ice, etc.
A buzzer also sounds.
→ Remove any dirt, ice, etc.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)
(Flashes)

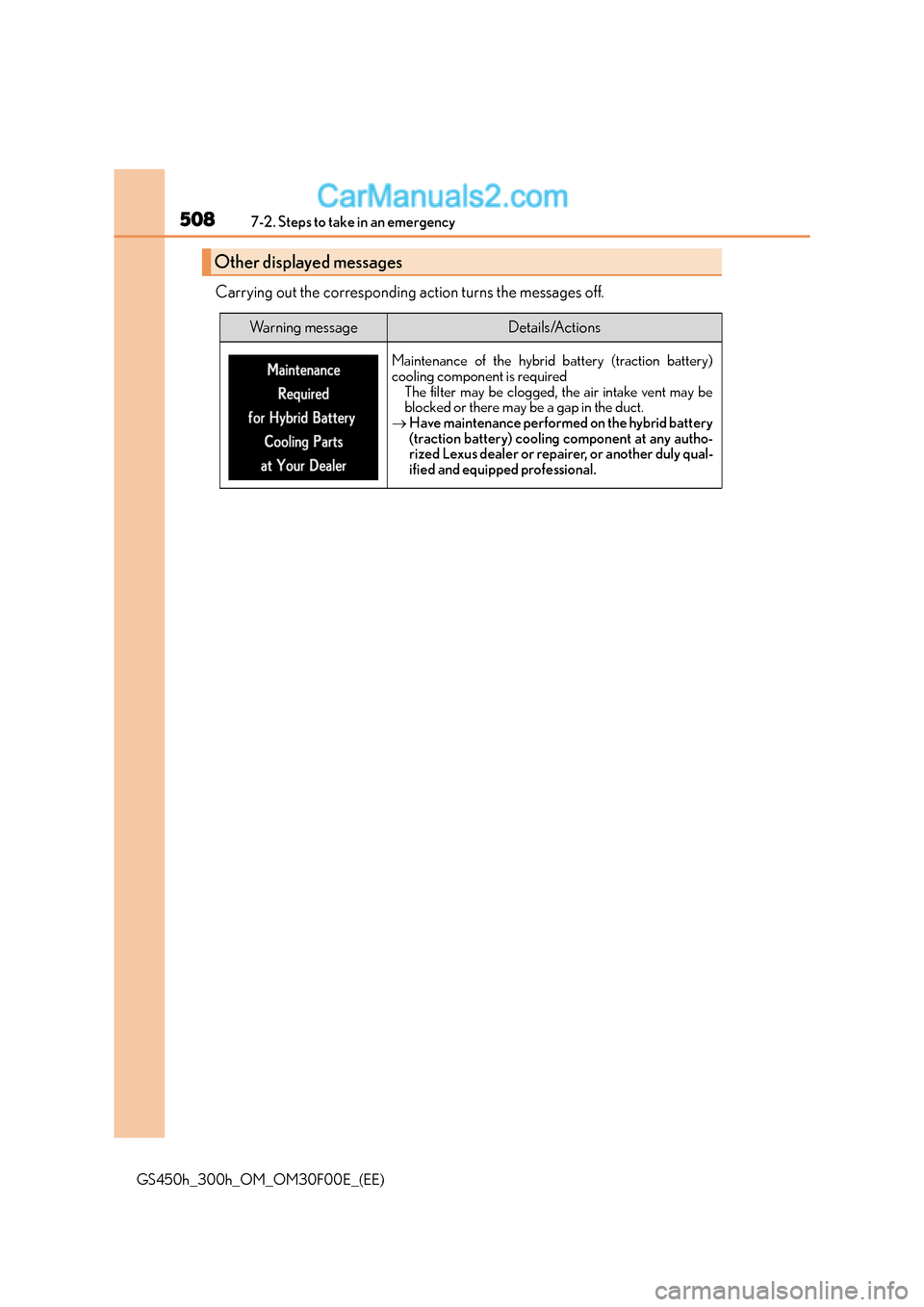

5087-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
Carrying out the corresponding action turns the messages off.
Other displayed messages
Wa r n i n g m e s s a g eDetails/Actions
Maintenance of the hybrid battery (traction battery)
cooling component is requiredThe filter may be clogged, the air intake vent may be
blocked or there may be a gap in the duct.
→ Have maintenance performed on the hybrid battery
(traction battery) cooling component at any autho-
rized Lexus dealer or repairer, or another duly qual-
ified and equipped professional.

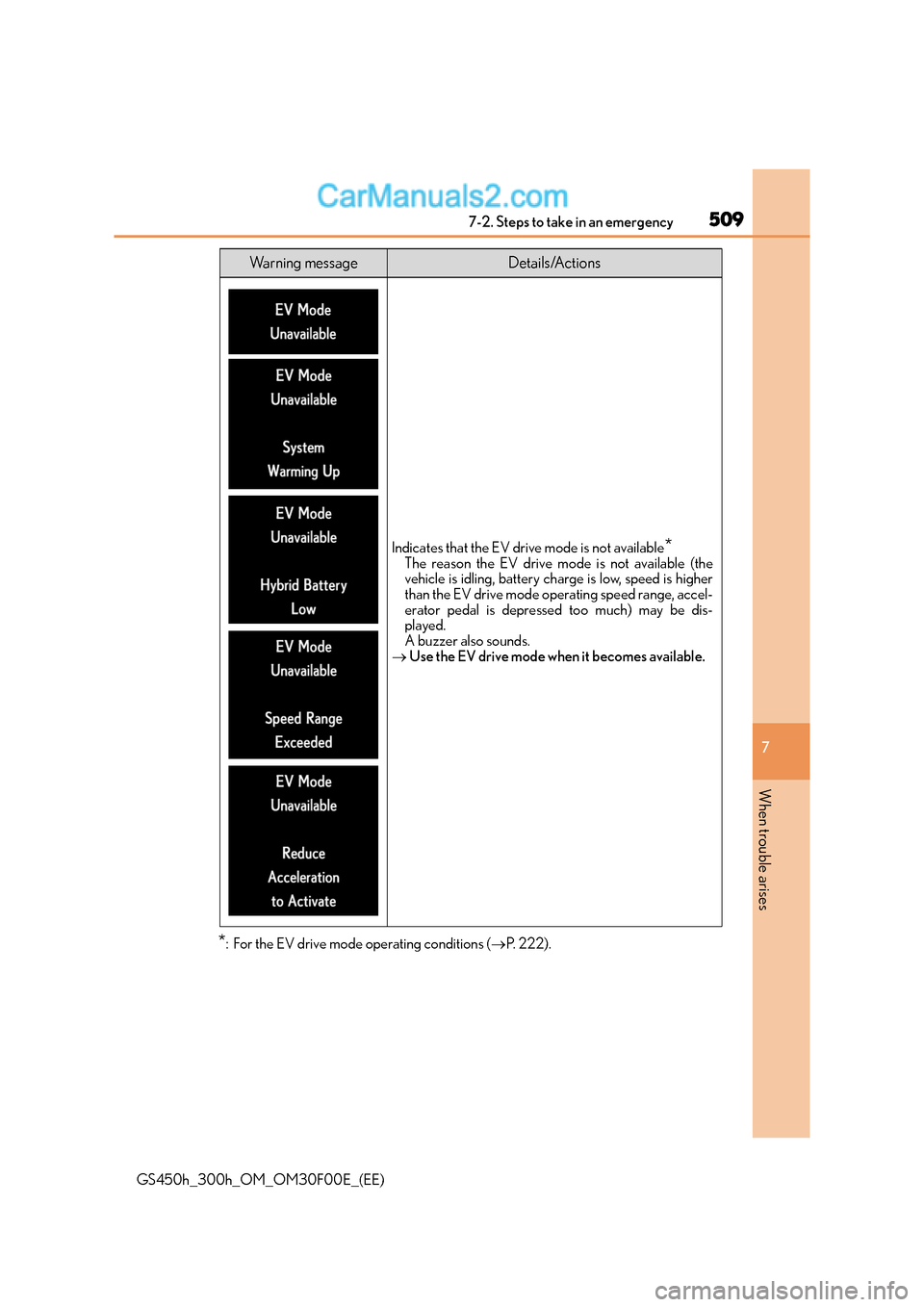

5097-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
*: For the EV drive mode operating conditions (→P. 222).
Wa r n i n g m e s s a g eDetails/Actions
Indicates that the EV drive mode is not available*The reason the EV drive mode is not available (the
vehicle is idling, battery charge is low, speed is higher
than the EV drive mode operating speed range, accel-
erator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
→ Use the EV drive mode when it becomes available.

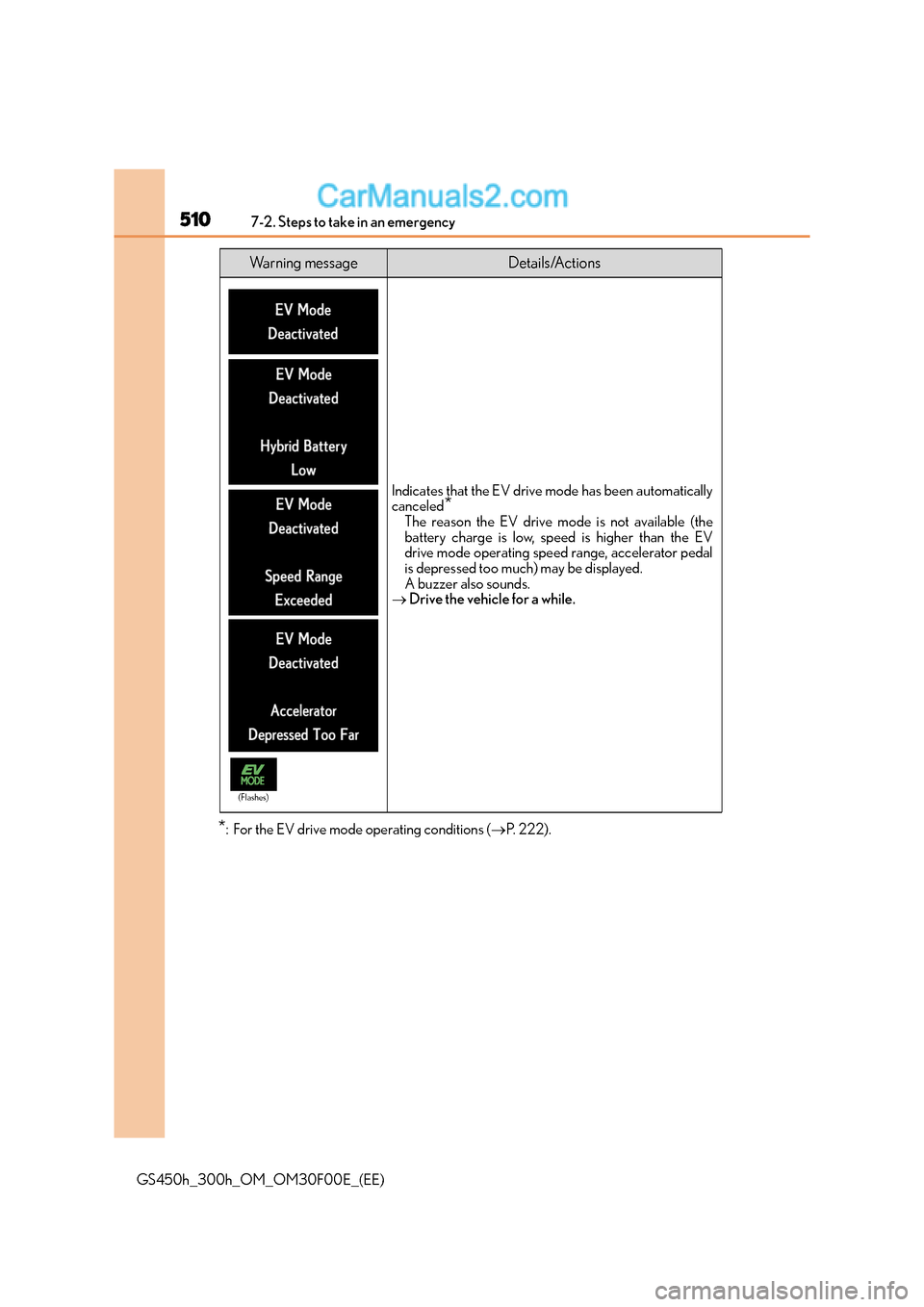

5107-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
*: For the EV drive mode operating conditions (→P. 222).
Wa r n i n g m e s s a g eDetails/Actions
Indicates that the EV drive mode has been automatically
canceled*
The reason the EV drive mode is not available (the
battery charge is low, speed is higher than the EV
drive mode operating speed range, accelerator pedal
is depressed too much) may be displayed.
A buzzer also sounds.
→ Drive the vehicle for a while.
(Flashes)
