4717-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.

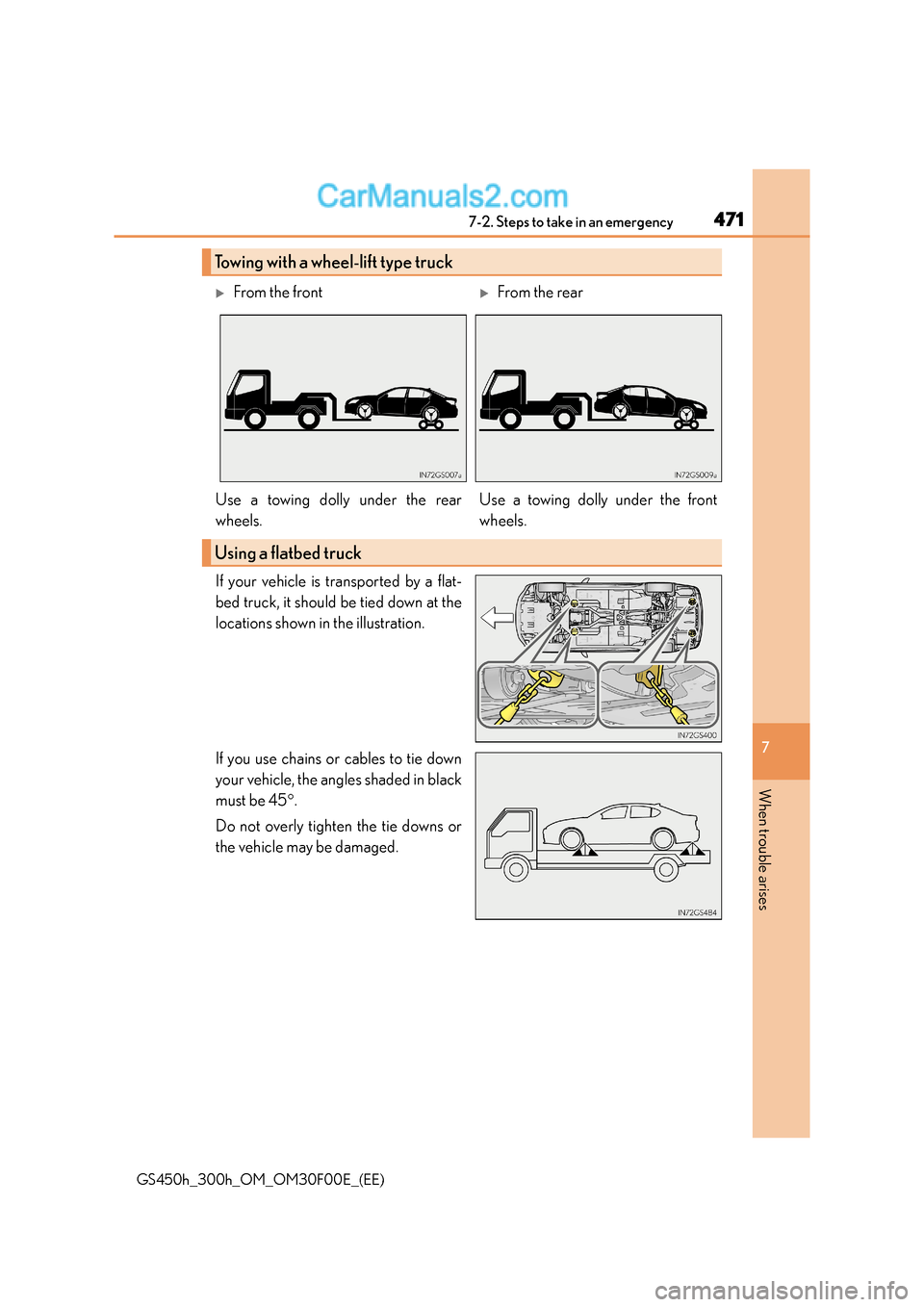

Towing with a wheel-lift type truck
XFrom the frontXFrom the rear
Use a towing dolly under the rear
wheels. Use a towing dolly under the front
wheels.
Using a flatbed truck

4727-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)

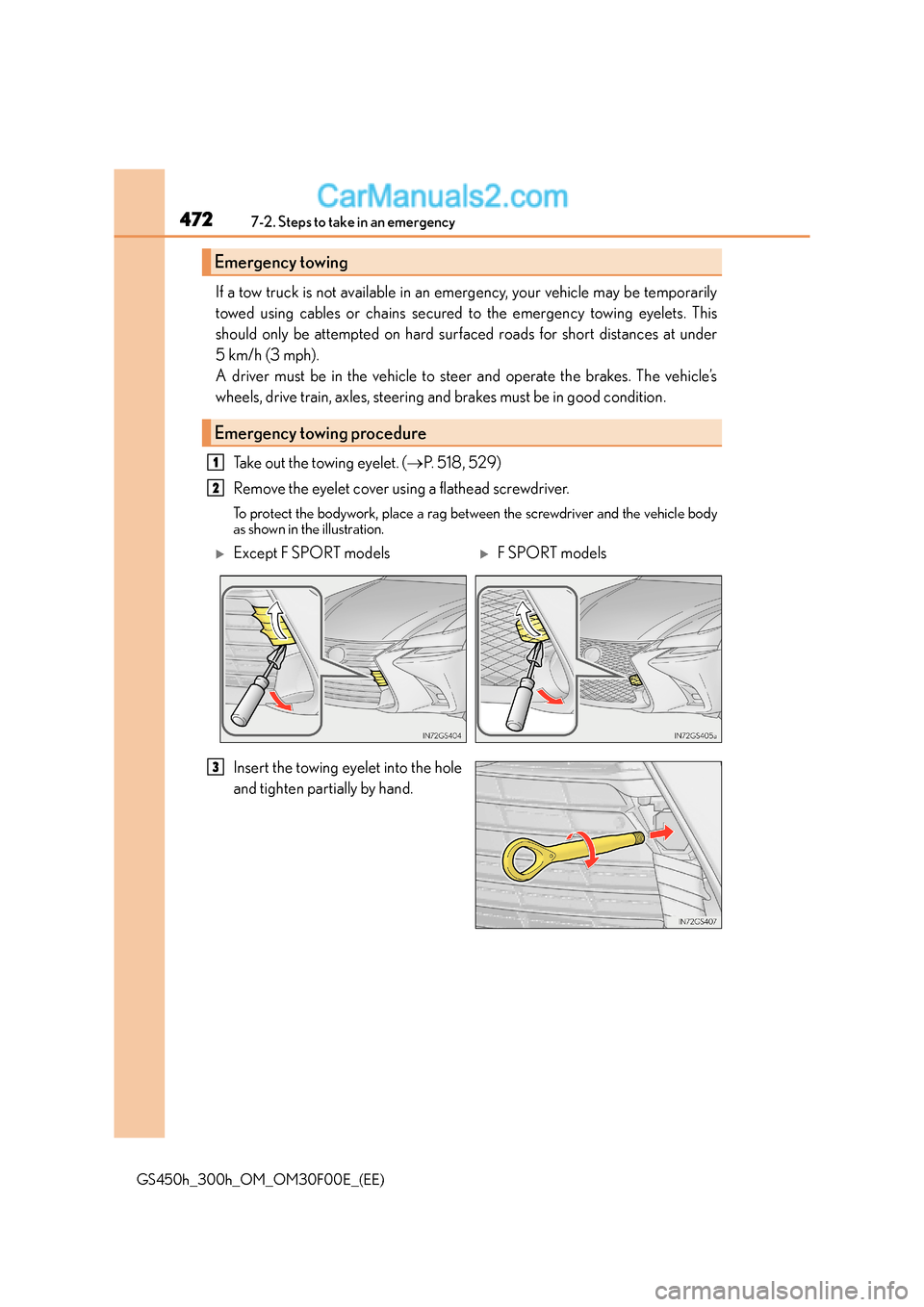

If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using cables or chains secured to the emergency towing eyelets. This
should only be attempted on hard surfaced roads for short distances at under
5 km/h (3 mph).
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.Take out the towing eyelet. ( →P. 5 1 8 , 5 2 9 )
Remove the eyelet cover using a flathead screwdriver.
To protect the bodywork, place a rag between the screwdriver and the vehicle body
as shown in the illustration.
Insert the towing eyelet into the hole
and tighten partially by hand.
Emergency towing
Emergency towing procedure
1
2
XExcept F SPORT modelsXF SPORT models
3

4737-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)

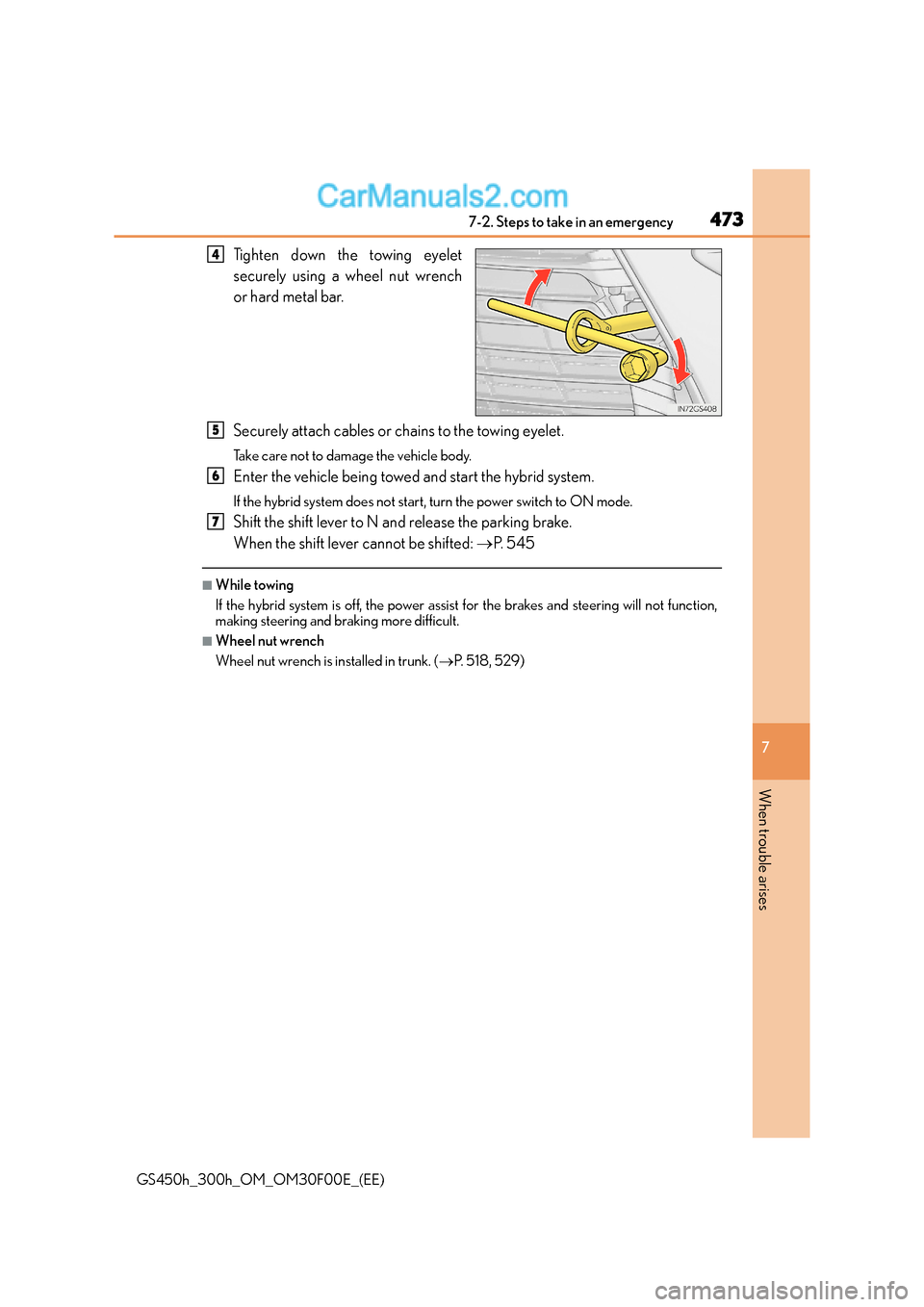

Tighten down the towing eyelet
securely using a wheel nut wrench
or hard metal bar.
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Enter the vehicle being towed and start the hybrid system.
If the hybrid system does not start, turn the power switch to ON mode.
Shift the shift lever to N and release the parking brake.
When the shift lever cannot be shifted: →P. 5 4 5
■While towing
If the hybrid system is off, the power assist for the brakes and steering will not function,
making steering and braking more difficult.
■Wheel nut wrench
Wheel nut wrench is installed in trunk. ( →P. 5 1 8 , 5 2 9 )
4
5
6
7

4747-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)

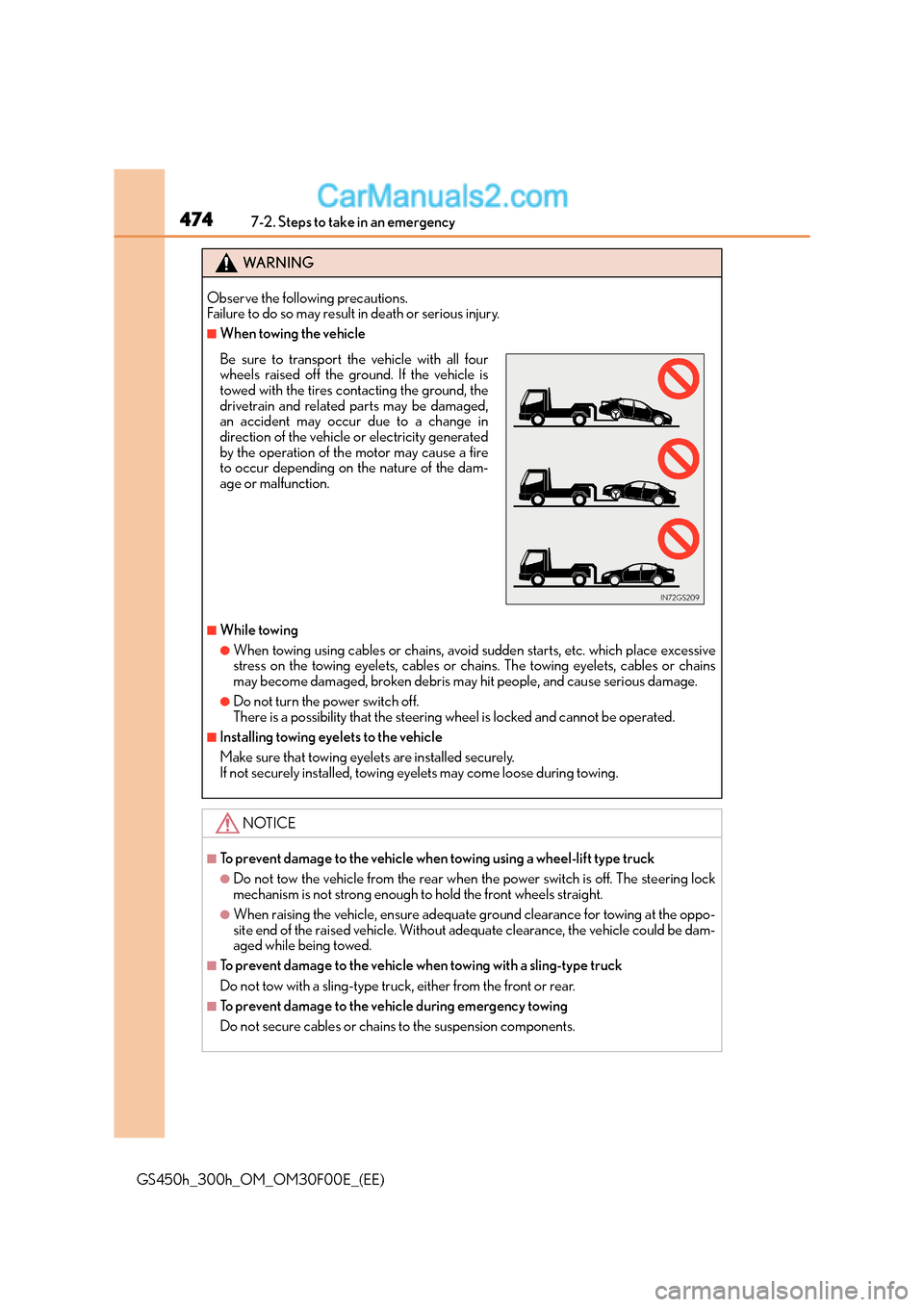

WA R N I N G
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■While towing
●When towing using cables or chains, avoid sudden starts, etc. which place excessive
stress on the towing eyelets, cables or chains. The towing eyelets, cables or chains
may become damaged, broken debris may hit people, and cause serious damage.
●Do not turn the power switch off.
There is a possibility that the steering wh eel is locked and cannot be operated.
■Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type truck
●Do not tow the vehicle from the rear when the power switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the oppo-
site end of the raised vehicle. Without adequate clearance, the vehicle could be dam-
aged while being towed.
■To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
Be sure to transport the vehicle with all four
wheels raised off the ground. If the vehicle is
towed with the tires contacting the ground, the
drivetrain and related parts may be damaged,
an accident may occur due to a change in
direction of the vehicle or electricity generated
by the operation of the motor may cause a fire
to occur depending on the nature of the dam-
age or malfunction.

475
7
7-2. Steps to take in an emergency
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)

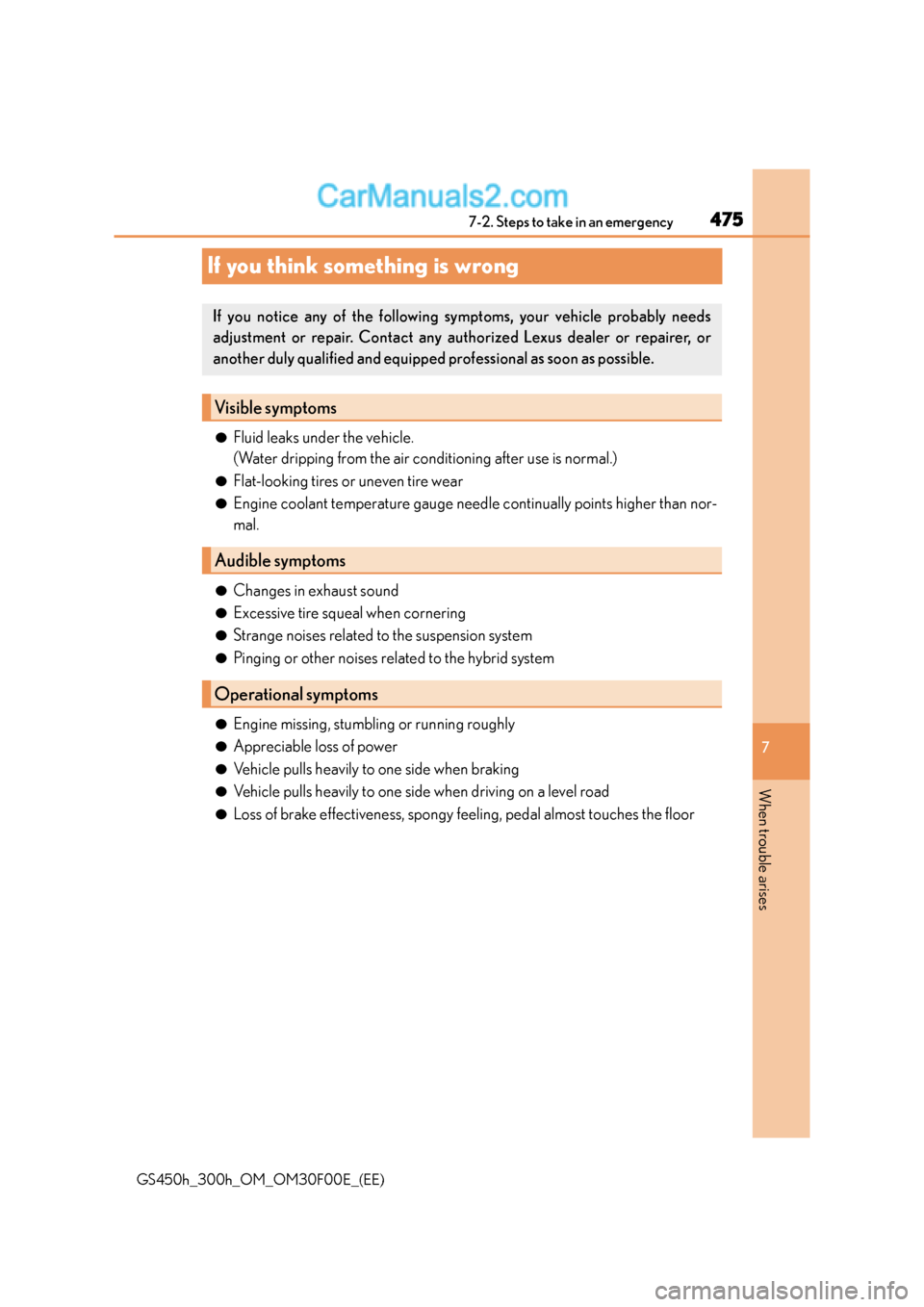

If you think something is wrong
●Fluid leaks under the vehicle.
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal.
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the hybrid system
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact any authorized Lexus dealer or repairer, or
another duly qualified an
d equipped professional as soon as possible.
Visible s ymp toms
Audible symptoms
Operational symptoms

4767-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)

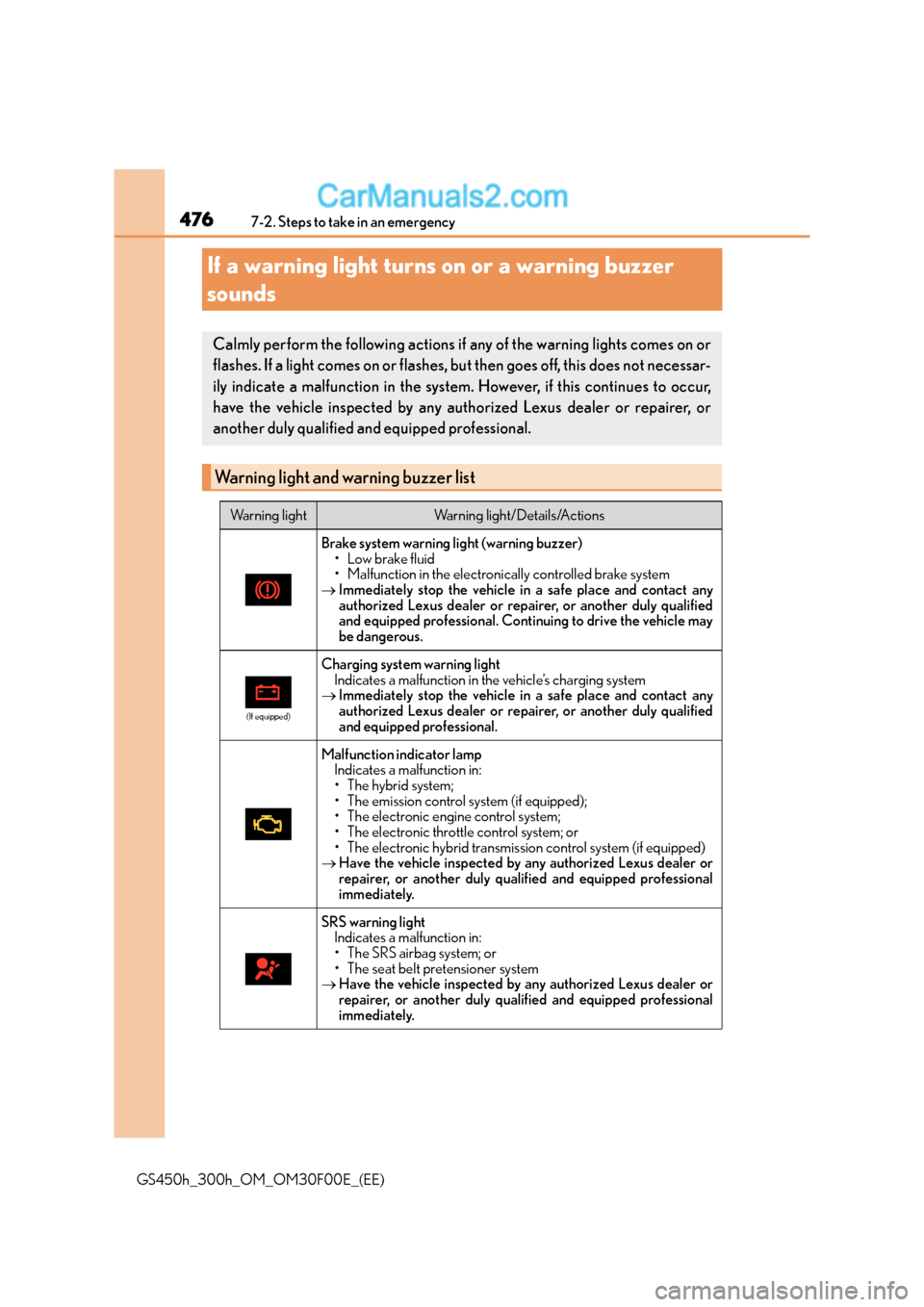

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by any authorized Lexus dealer or repairer, or
another duly qualified an d equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)
•Low brake fluid
• Malfunction in the electron ically controlled brake system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional. Continuing to drive the vehicle may
be dangerous.
(If equipped)
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The emission control system (if equipped);
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system (if equipped)
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.

4777-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
ABS warning lightIndicates a malfunction in:
•The ABS; or
• The brake assist system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
(If equipped)
PCS (Pre-Crash Safety system) warning light
●When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the PCS (Pre-Crash Safety system)
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
●When the warning light flashes (and a buzzer does not sound):
Indicates that the PCS (Pre-Crash Safety system) is temporarily
unavailable, possibly due to either of the following:
• An area around the radar sensor or camera sensor being dirty
or covered with condensation, ice, stickers, etc.
→ Clear the dirt, condensation, ice, stickers, etc.
(→ P. 263, 284, 292)
• Radar sensor or camera sensor being outside of its operational
condition range. (temperature etc.)
→ If operational condition (tempera ture etc.) is satisfied, PCS
(Pre-Crash Safety system) becomes to be available.
●When the warning light is illuminated:
Either the VSC (Vehicle Stability Control) system or PCS (Pre-
Crash Safety system) is disabled or both are disabled.
→ To enable the PCS (Pre-Crash Safety system), enable both
the VSC system and PCS (Pre-Crash Safety system).
(→ P. 2 8 0 , 3 4 7 )
Slip indicator
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
The light will flash when the VSC, TRC or ABS system is operating.
Warning lightWarning light/Details/Actions

4787-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
(Flashes)
(If equipped)

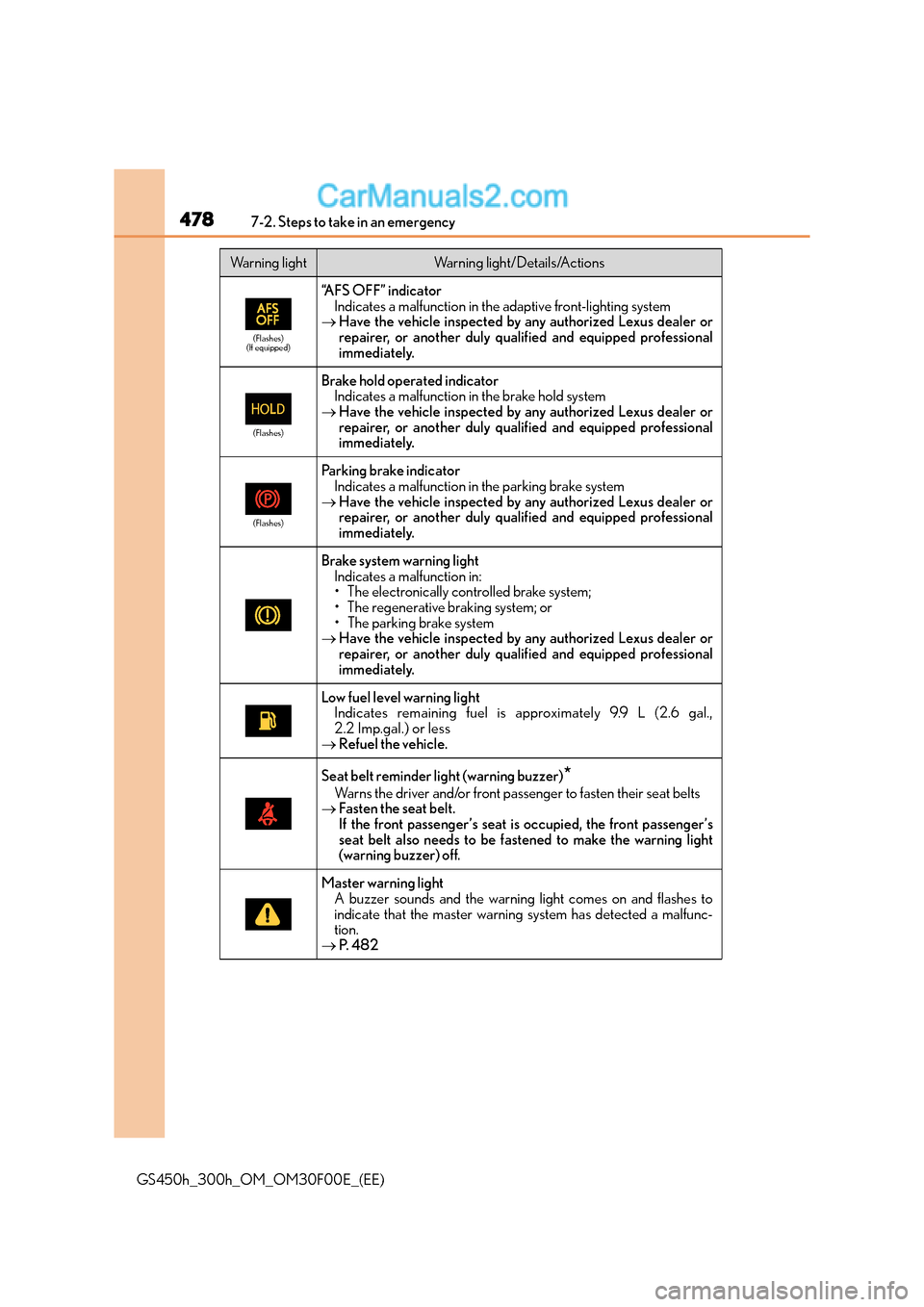

“AFS OFF” indicator Indicates a malfunction in the adaptive front-lighting system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
Brake hold operated indicator
Indicates a malfunction in the brake hold system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
Parking brake indicator
Indicates a malfunction in the parking brake system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Brake system warning light
Indicates a malfunction in:
• The electronically controlled brake system;
• The regenerative braking system; or
• The parking brake system
→ Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Low fuel level warning light
Indicates remaining fuel is approximately 9.9 L (2.6 gal.,
2.2 Imp.gal.) or less
→ Refuel the vehicle.
Seat belt reminder light (warning buzzer)*
Warns the driver and/or front passenger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s
seat belt also needs to be fastened to make the warning light
(warning buzzer) off.
Master warning light
A buzzer sounds and the warning light comes on and flashes to
indicate that the master warning system has detected a malfunc-
tion.
→ P. 4 8 2
Warning lightWarning light/Details/Actions

4797-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F00E_(EE)
*: Driver’s and front passenger’s seat belt buzzer:The driver’s and front passenger’s seat belt buzzer sounds to alert the driver and front
passenger that his or her seat belt is not fastened. The buzzer sounds intermittently for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the seat
belt is still unfastened , the buzzer will sound in a different tone for 90 more seconds.
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenge r seat, the front passenger detection sensor
may cause the warning light to flash and the warning buzzer to sound even if a passen-
ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-
ing light may not operate properly.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty.
If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insu fficient or the voltage temporarily drops,
the electric power steering system warning light may come on and the warning buzzer
may sound.
■When the tire pressure warning light comes on (if equipped)
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust to the appropriate level.
●If the warning light does not go out even after several minutes, check that the tire infla-
tion pressure is at the specifie d level and carry out initialization.
The warning light may come on again if the above operations are conducted without first
allowing the tire temperature to lower sufficiently.
(If equipped)
Tire pressure warning light When the light comes on:
Low tire inflation pressure such as
• Natural causes ( →P. 4 8 0 )
• Flat tire ( →P. 5 1 7 , 5 2 8 )
→ Adjust the tire inflation pre ssure to the specified level.
The light will turn off after a few minutes. In case the light does
not turn off even if the tire inflation pressure is adjusted, have the
system checked by any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system
→ Have the system checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Warning lightWarning light/Details/Actions

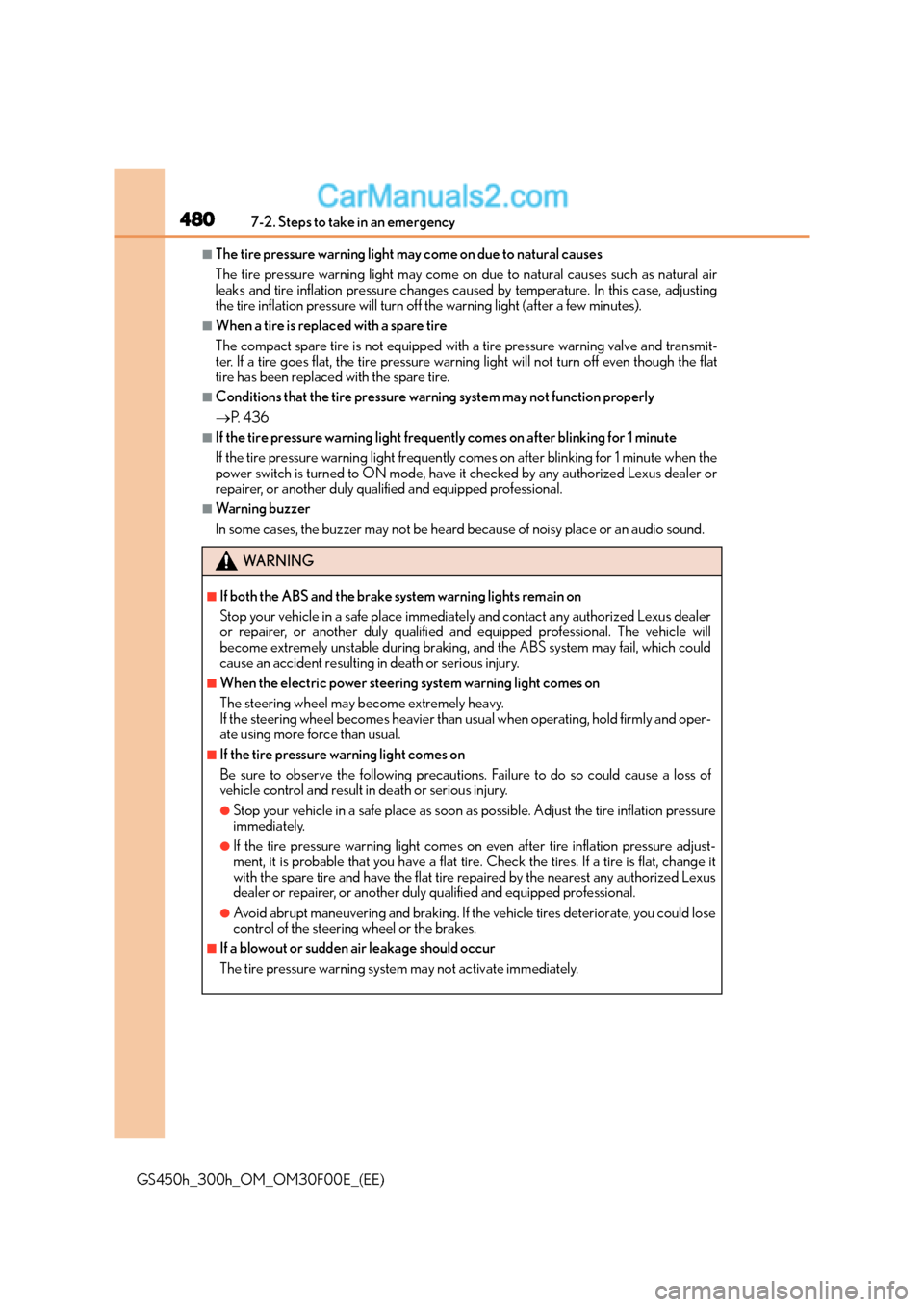

4807-2. Steps to take in an emergency
GS450h_300h_OM_OM30F00E_(EE)
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air
leaks and tire inflation pressure changes caused by temperature. In this case, adjusting
the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
The compact spare tire is not equipped with a tire pressure warning valve and transmit-
ter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat
tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→P. 4 3 6
■If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when the
power switch is turned to ON mode, have it checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.
WA R N I N G
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional. The vehicle will
become extremely unstable during braking, and the ABS system may fail, which could
cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than us ual when operating, hold firmly and oper-
ate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure
immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it
with the spare tire and have the flat tire repaired by the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
