Lexus GS300h 2017 Owner's Manual

541
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

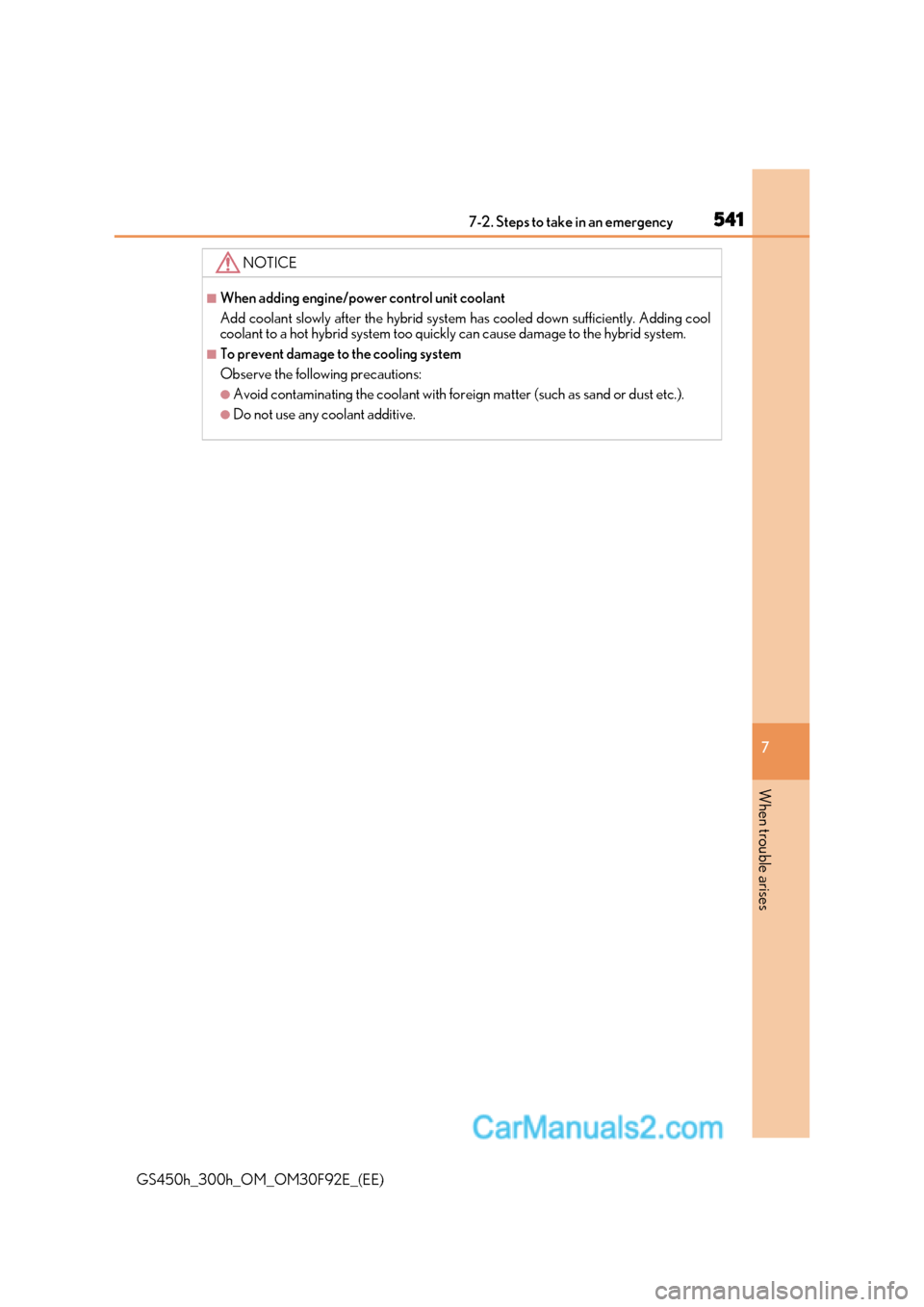

NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Adding cool
coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.

5427-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

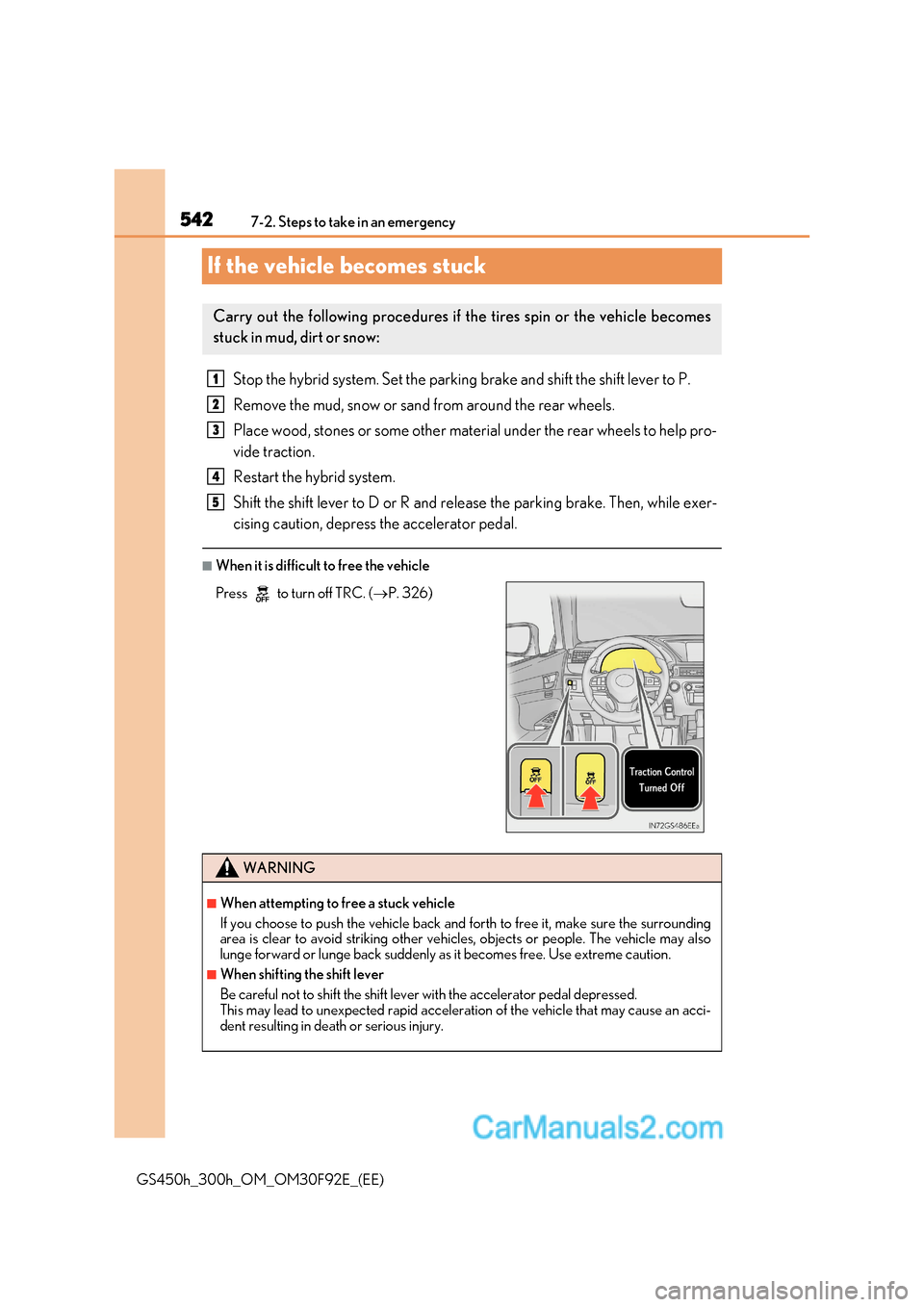

If the vehicle becomes stuck
Stop the hybrid system. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC. ( P. 326)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehi cles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in death or serious injury.
1
2
3
4
5

543
7-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec- essary.
●If the vehicle remains stuck even after these procedures are performed, the vehicle
may require towing to be freed.

5447-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

545

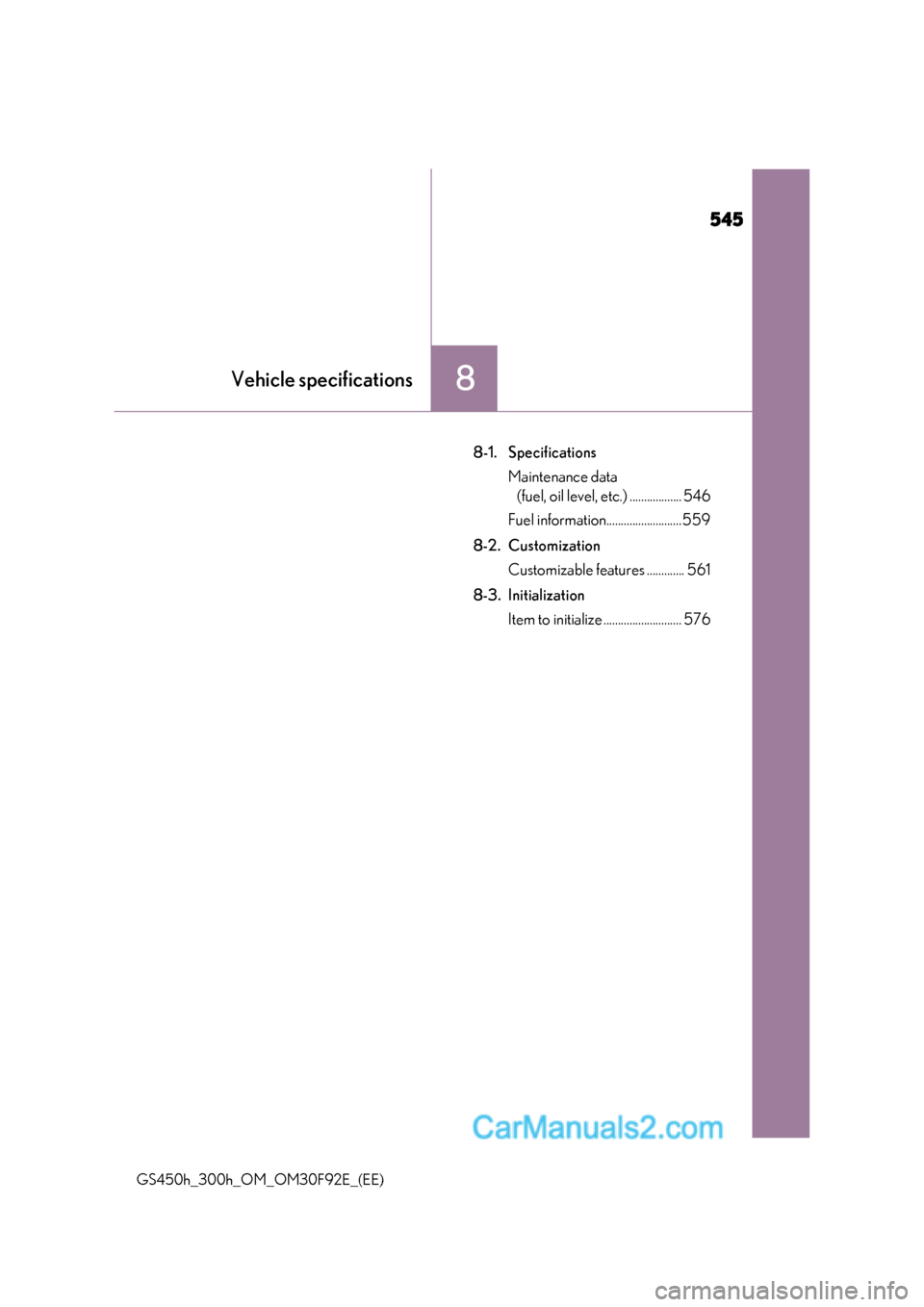

8Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE) 8-1. Specifications
Maintenance data (fuel, oil level, etc.) .................. 546
Fuel information..........................559
8-2. Customization Customizable features ............. 561
8-3. Initialization Item to initialize ........................... 576

5468-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)

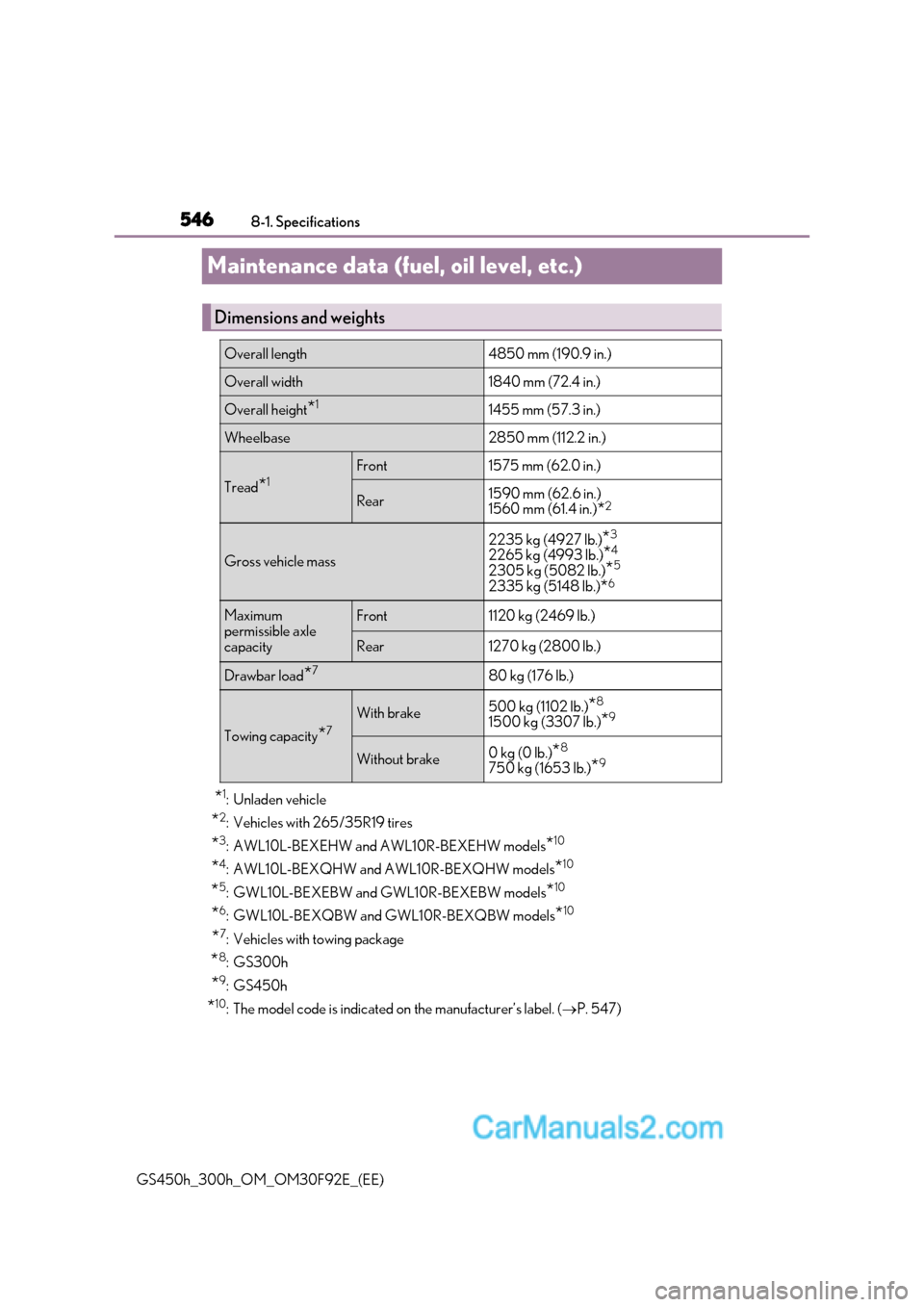

Maintenance data (fuel, oil level, etc.)
* 1
: Unladen vehicle
* 2
: Vehicles with 265/35R19 tires
* 3
: AWL10L-BEXEHW and AWL10R-BEXEHW models *10
* 4
: AWL10L-BEXQHW and AWL10R-BEXQHW models *10
* 5
: GWL10L-BEXEBW and GWL10R-BEXEBW models *10
* 6
: GWL10L-BEXQBW and GWL10R-BEXQBW models *10
* 7
: Vehicles with towing package
* 8
:GS300h
* 9
:GS450h
* 10
: The model code is indicated on the manufacturer’s label. (P. 547)
Dimensions and weights
Overall length 4850 mm (190.9 in.)
Overall width 1840 mm (72.4 in.)
Overall height *1
1455 mm (57.3 in.)
Wheelbase 2850 mm (112.2 in.)
Tread*1
Front 1575 mm (62.0 in.)
Rear 1590 mm (62.6 in.)
1560 mm (61.4 in.)
*2
Gross vehicle mass 2235 kg (4927 lb.)
*3
2265 kg (4993 lb.) *4
2305 kg (5082 lb.) *5
2335 kg (5148 lb.) *6
Maximum
permissible axle
capacityFront 1120 kg (2469 lb.)
Rear 1270 kg (2800 lb.)
Drawbar load
*7
80 kg (176 lb.)
Towing capacity*7
With brake 500 kg (1102 lb.)
*8
1500 kg (3307 lb.) *9
Without brake 0 kg (0 lb.)
*8
750 kg (1653 lb.) *9

547
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)

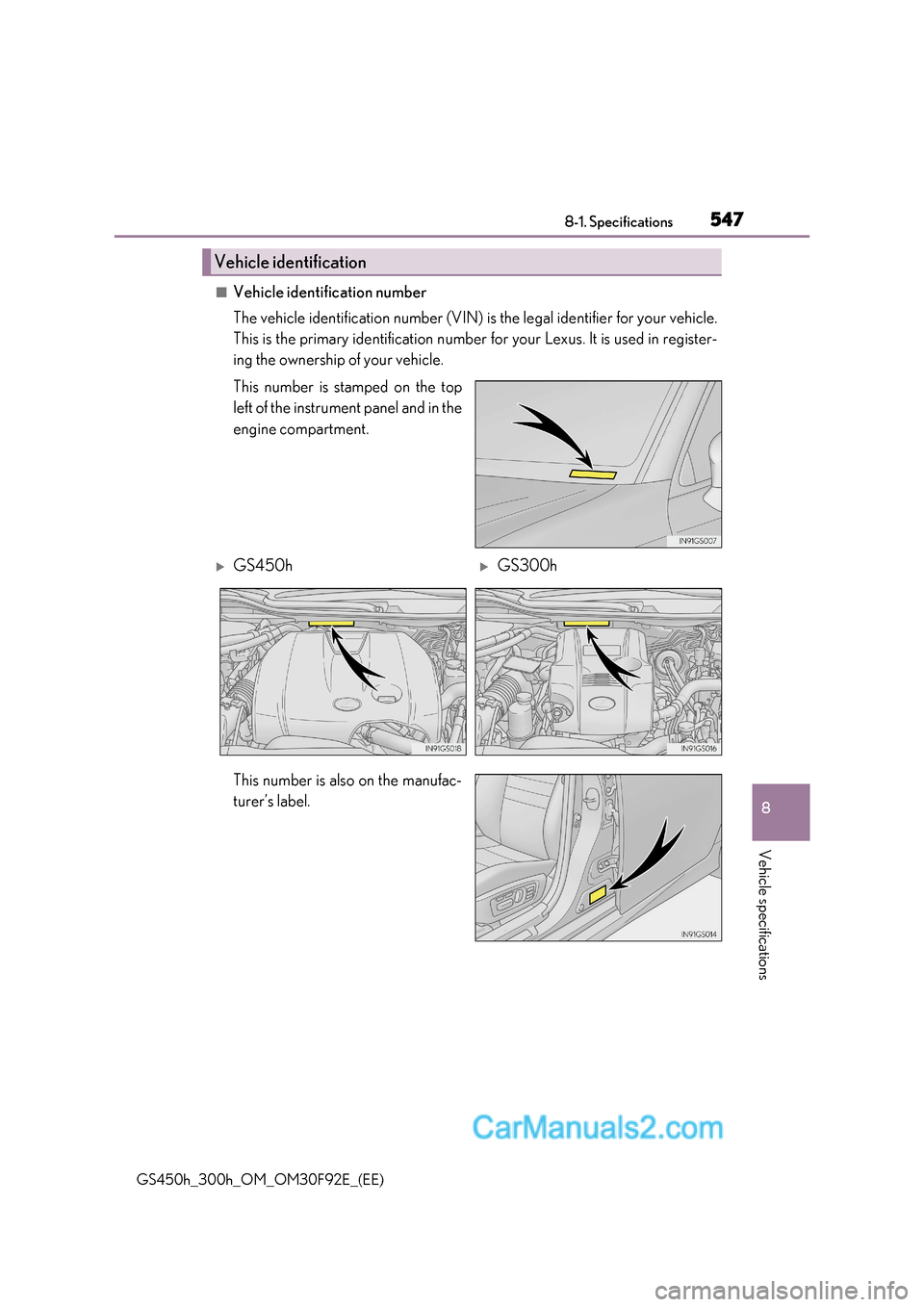

■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number for your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
Vehicle identification
GS450hGS300h

5488-1. Specifications
GS450h_300h_OM_OM30F92E_(EE)

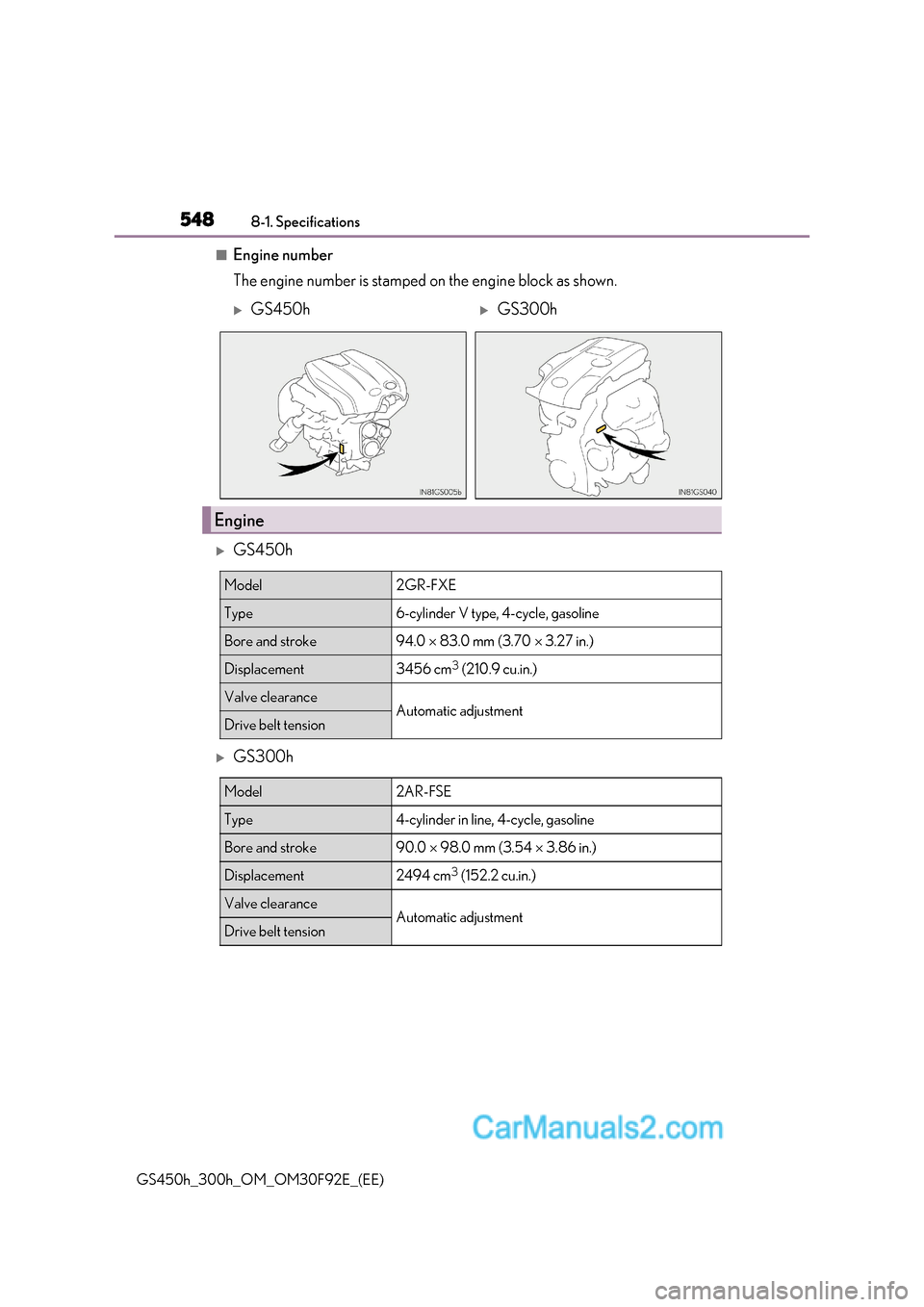

■Engine number
The engine number is stamped on the engine block as shown.
GS450h
GS300h
GS450hGS300h
Engine
Model2GR-FXE
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  83.0 mm (3.70  3.27 in.)
Displacement3456 cm 3
(210.9 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm 3
(152.2 cu.in.)
Valve clearanceAutomatic adjustmentDrive belt tension

549
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)

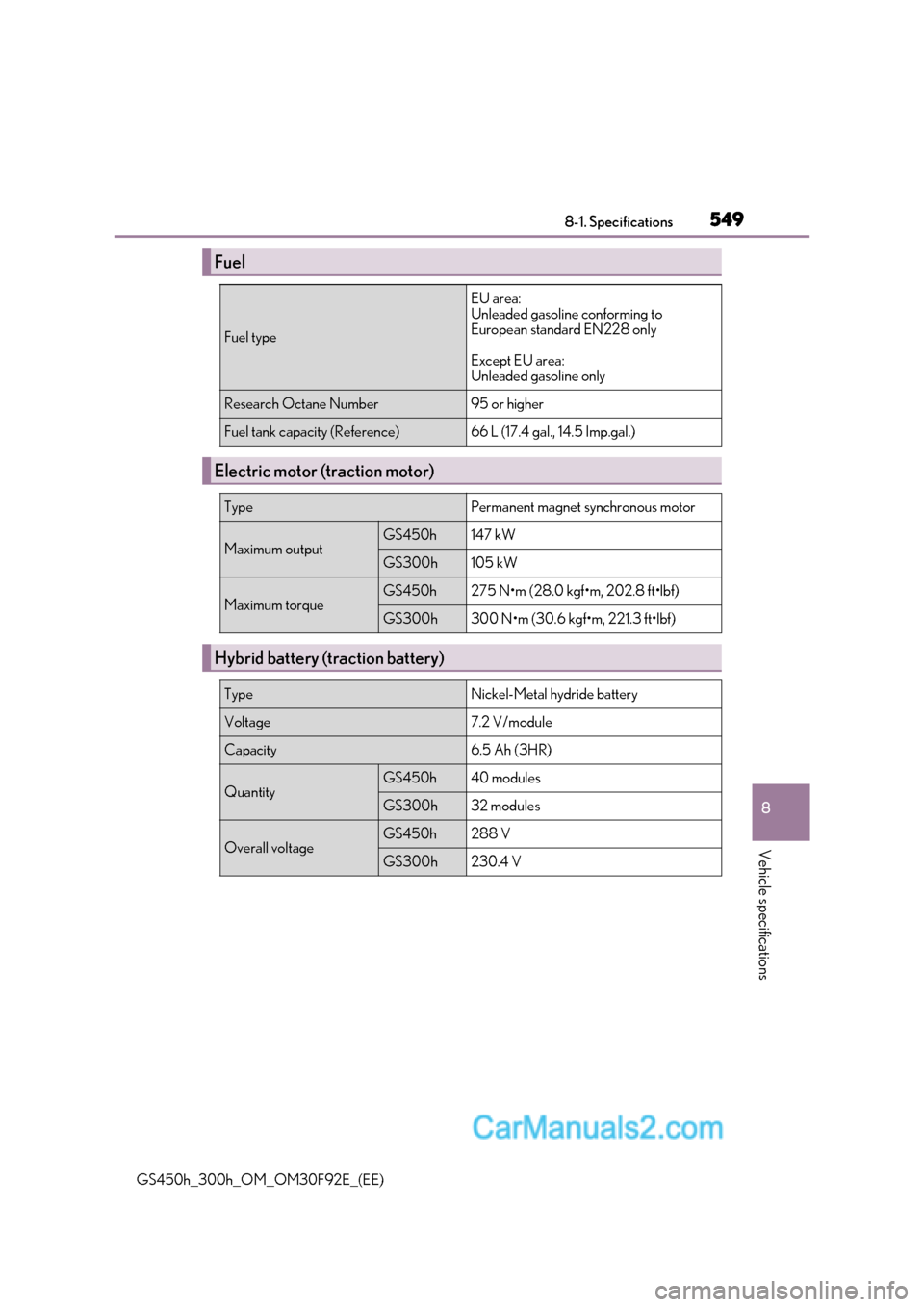

Fuel
Fuel type
EU area:
Unleaded gasoline conforming to
European standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp.gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum outputGS450h147 kW
GS300h105 kW
Maximum torqueGS450h275 N

5508-1. Specifications
GS450h_300h_OM_OM30F92E_(EE) *
: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Genuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
Oil capacity
(Drain and refill 
reference *)
With filter
Without filterGS450hGS300h
6.3 L (6.7 qt., 5.5 Imp.qt.)
5.9 L (6.2 qt., 5.2 Imp.qt.)4.5 L (4.8 qt., 4.0 lmp. qt.)
4.1 L (4.3 qt., 3.6 lmp. qt.)
Temperature range anticipated
before next oil change Preferred
