Lexus GS300h 2017 Owner's Manual

571
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
■Automatic air conditioning system (P. 346)
■Front seat heaters (without seat ventilators) * ( P. 363)
* : If equipped
FunctionDefault
settingCustomized setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch * oper-
ation
OnOffO—O
A/C Auto switch operationOnOffO—O
Exhaust gas sensor sensitivityStandard-3 to 3O—O
* : This is the switch for turning on and off the auto-
matic mode of the air conditioning system, not
the outside air or recirculated mode switch.
123
FunctionDefaultsettingCustomized setting
Automatic operation of front
seat heaterOffOn——O
123

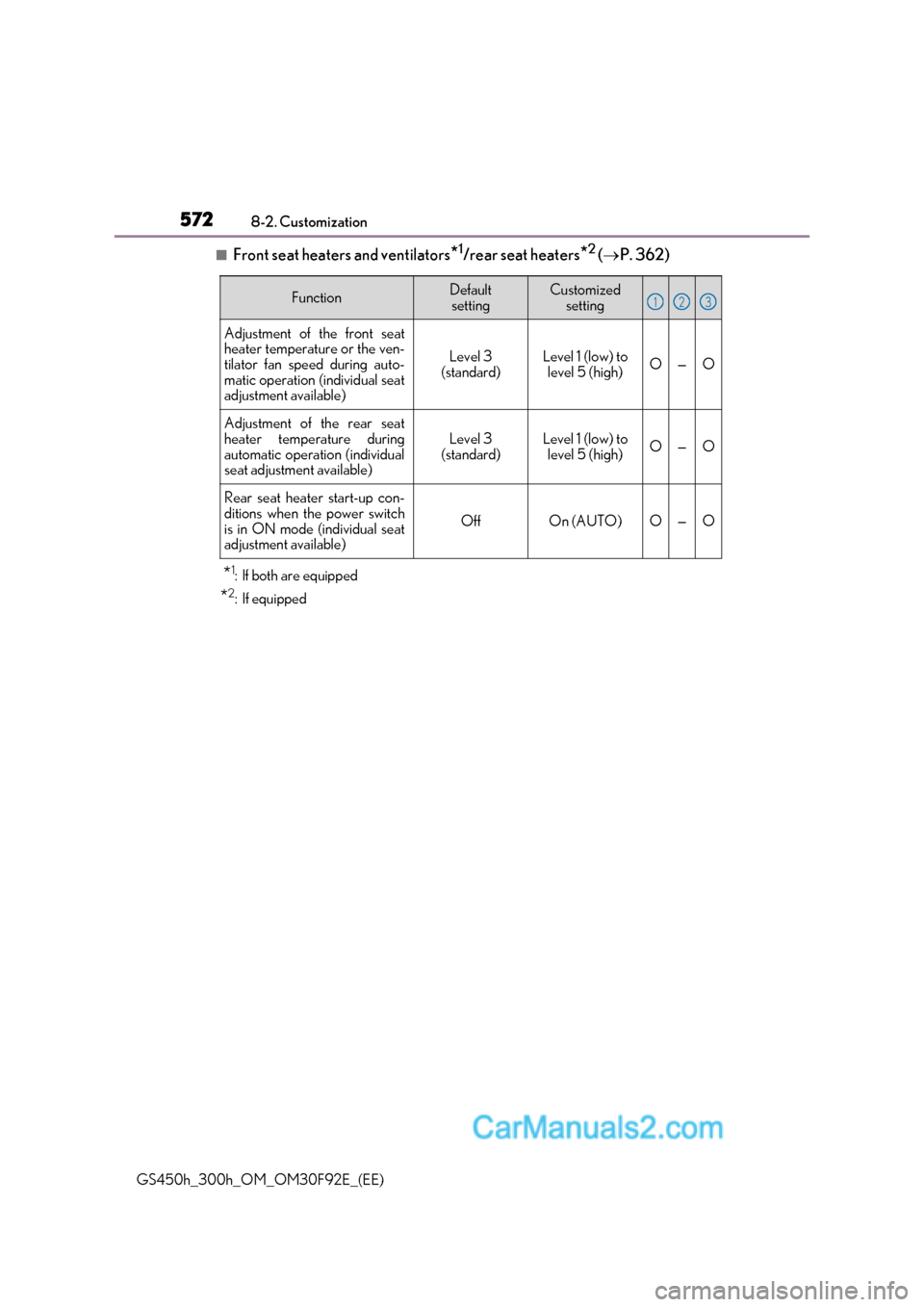

5728-2. Customization
GS450h_300h_OM_OM30F92E_(EE)
■Front seat heaters and ventilators *1
/rear seat heaters *2
( P. 362)
* 1
: If both are equipped
* 2
:If equipped
FunctionDefault
settingCustomized setting
Adjustment of the front seat
heater temperature or the ven-
tilator fan speed during auto-
matic operation (individual seat
adjustment available)
Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the rear seat
heater temperature during
automatic operation (individual
seat adjustment available)Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Rear seat heater start-up con-
ditions when the power switch
is in ON mode (individual seat
adjustment available)
OffOn (AUTO)O—O
123

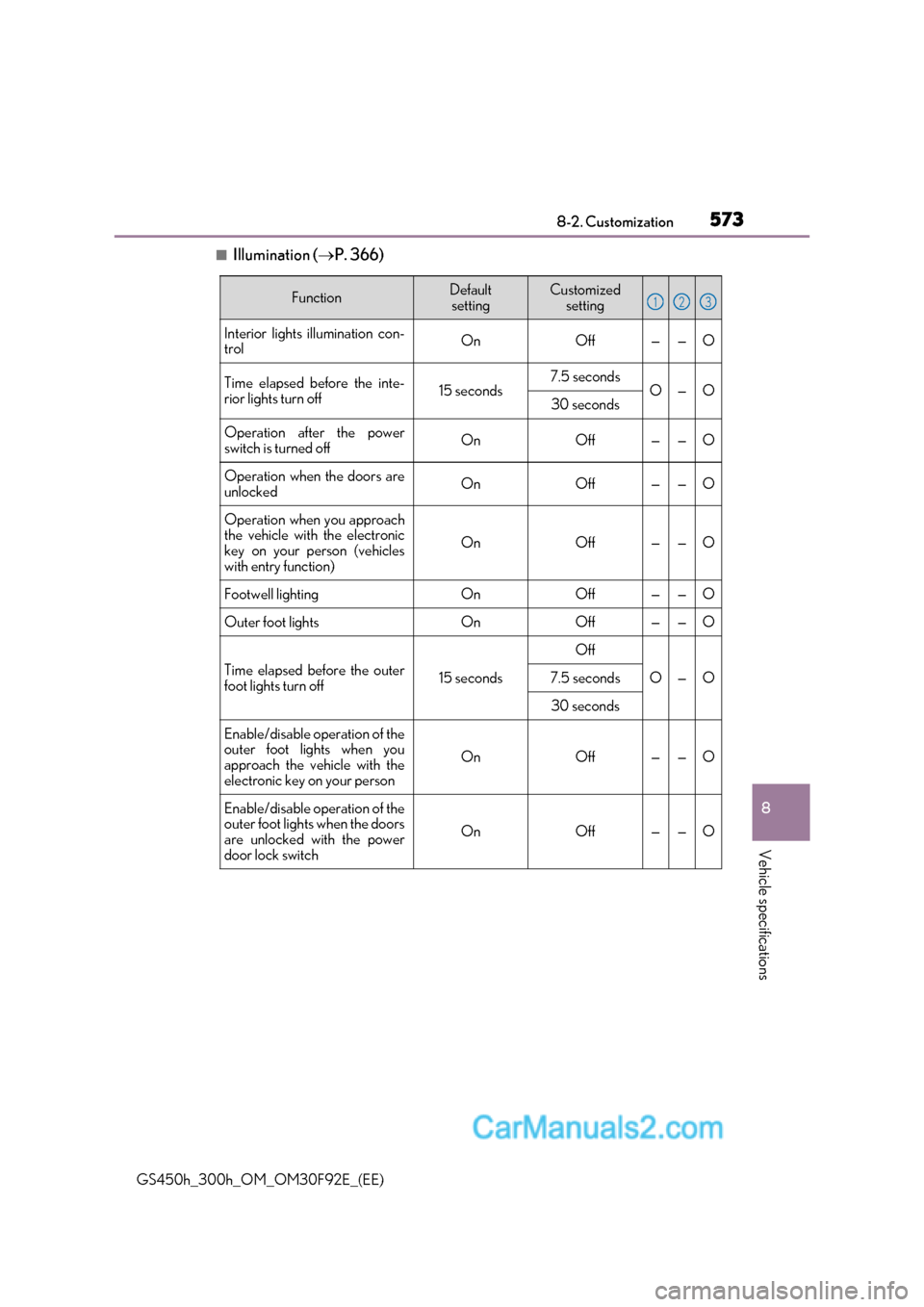

573
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
■Illumination (P. 366)
FunctionDefault
settingCustomized setting
Interior lights illumination con-
trolOnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds7.5 secondsO—O30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person (vehicles
with entry function)
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Enable/disable operation of the
outer foot lights when you
approach the vehicle with the
electronic key on your person
OnOff——O
Enable/disable operation of the
outer foot lights when the doors
are unlocked with the power
door lock switch
OnOff——O
123

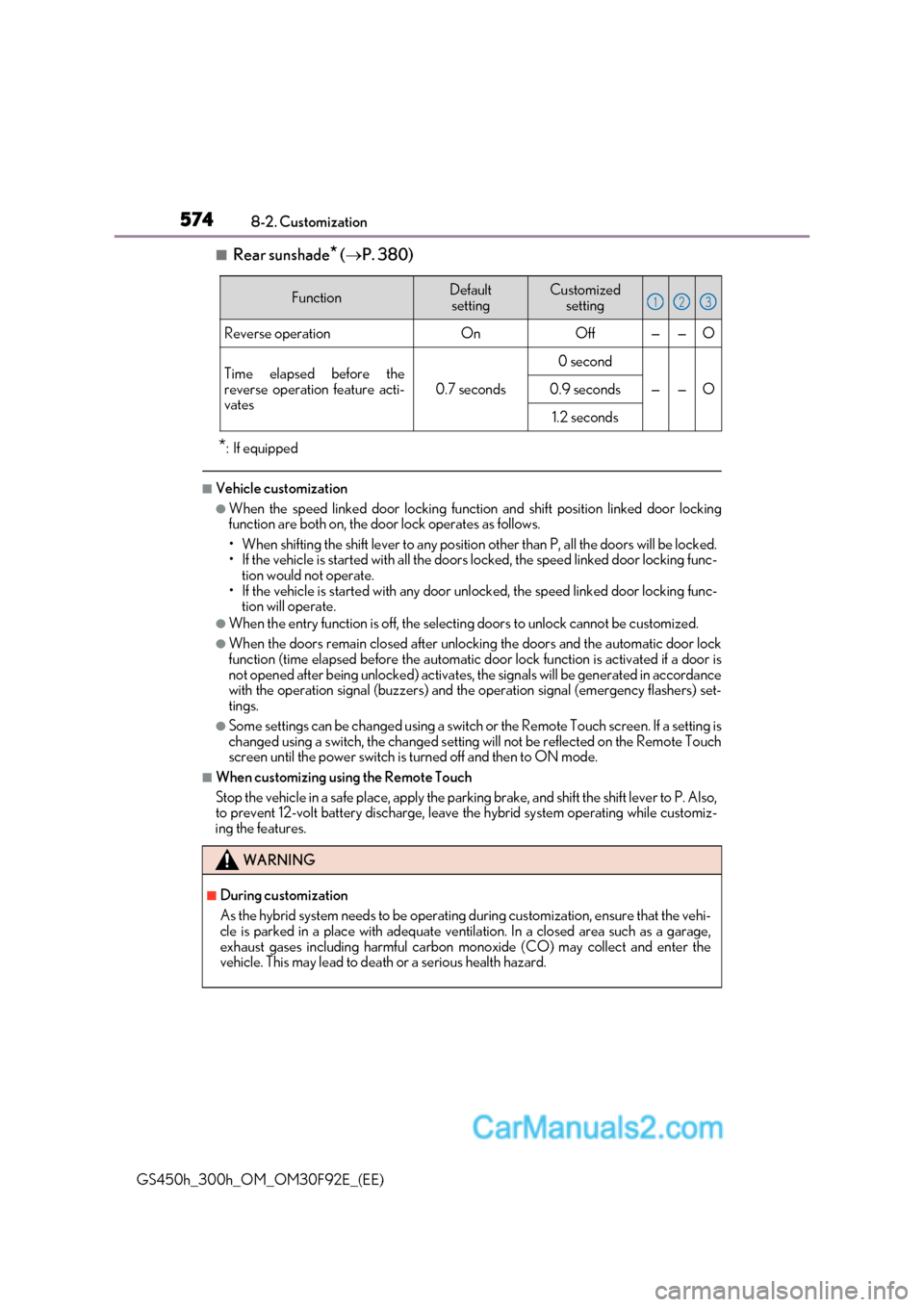

5748-2. Customization
GS450h_300h_OM_OM30F92E_(EE)
■Rear sunshade * ( P. 380)
* : If equipped
■Vehicle customization
●When the speed linked door locking functi on and shift position linked door locking
function are both on, the door lock operates as follows.

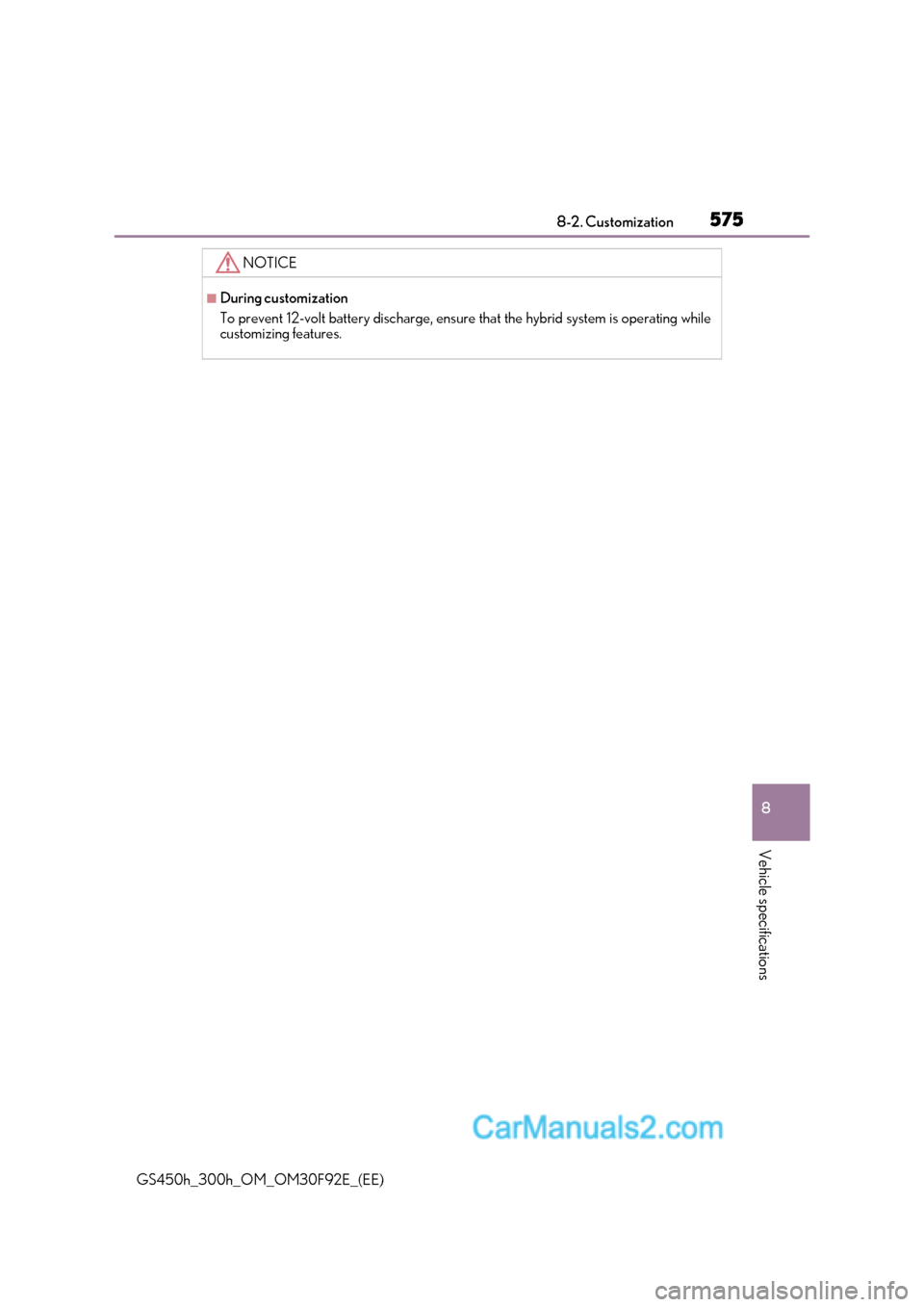

575
8
8-2. Customization
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
customizing features.

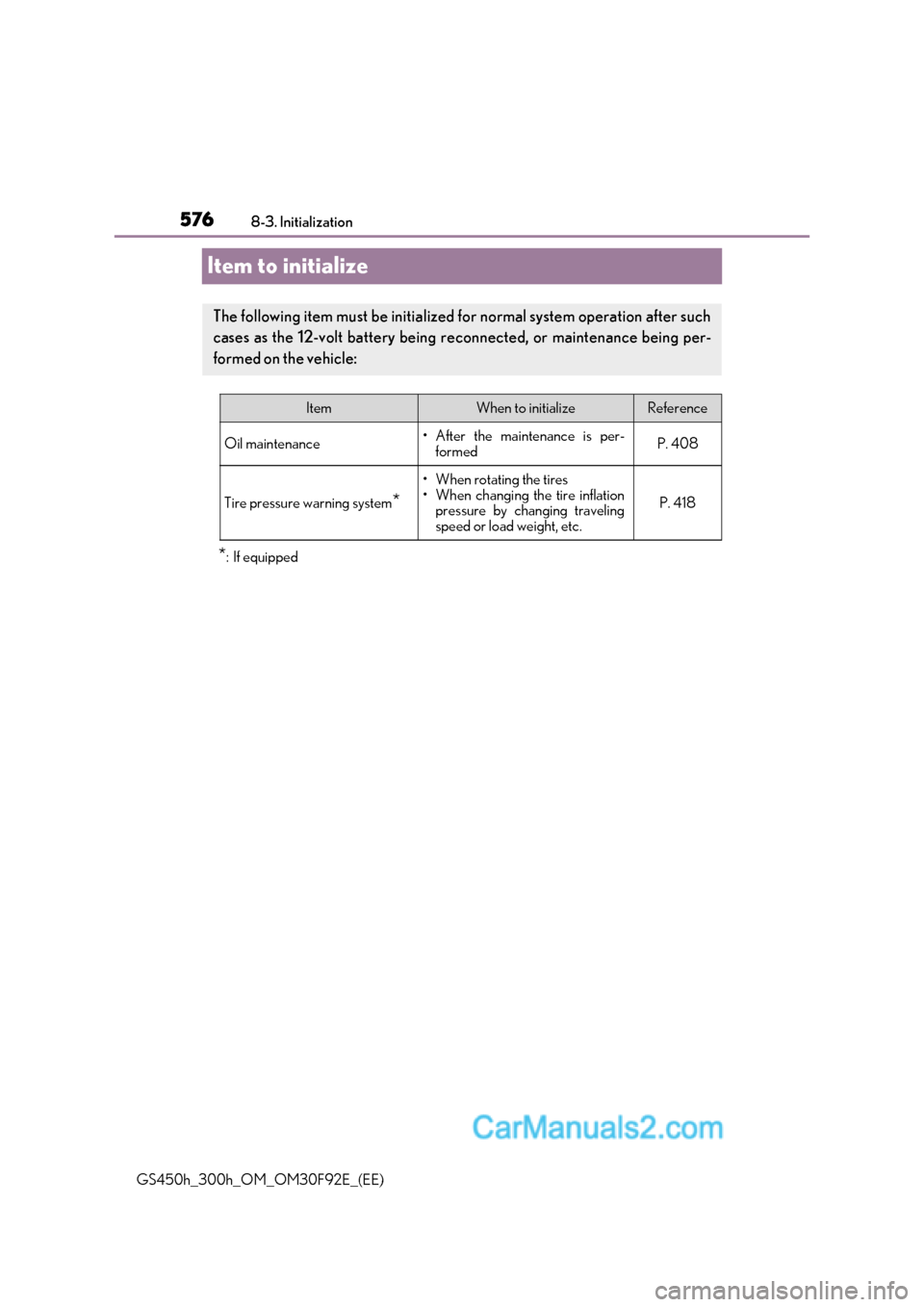

5768-3. Initialization
GS450h_300h_OM_OM30F92E_(EE)
Item to initialize
* : If equipped
The following item must be initialized for normal system operation after such
cases as the 12-volt battery being re connected, or maintenance being per-
formed on the vehicle:
ItemWhen to initializeReference
Oil maintenance

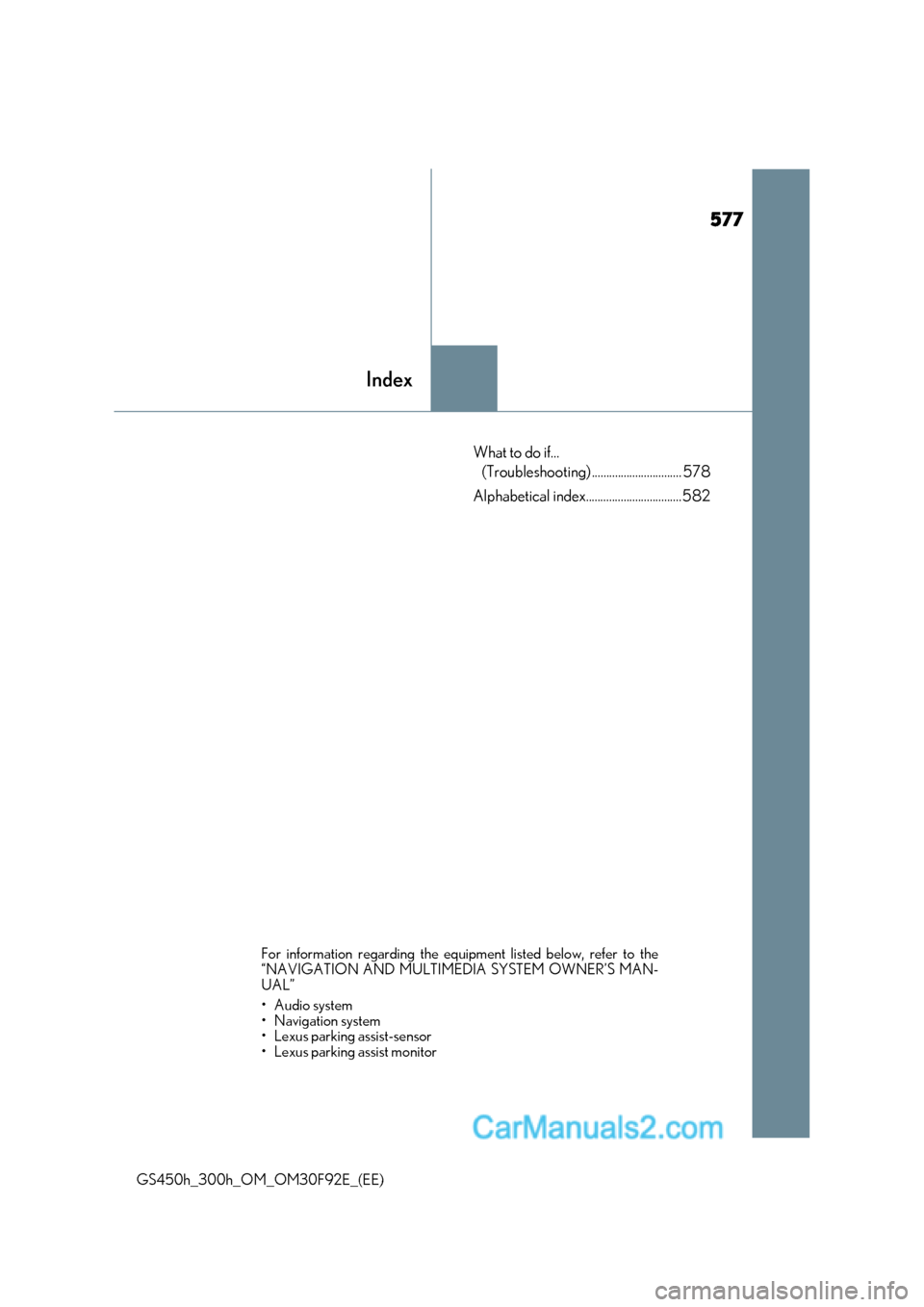

577
Index
GS450h_300h_OM_OM30F92E_(EE) What to do if...
(Troubleshooting) ............................... 578
Alphabetical index.................................582
For information regarding the equipment listed below, refer to the
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MAN-
UAL”

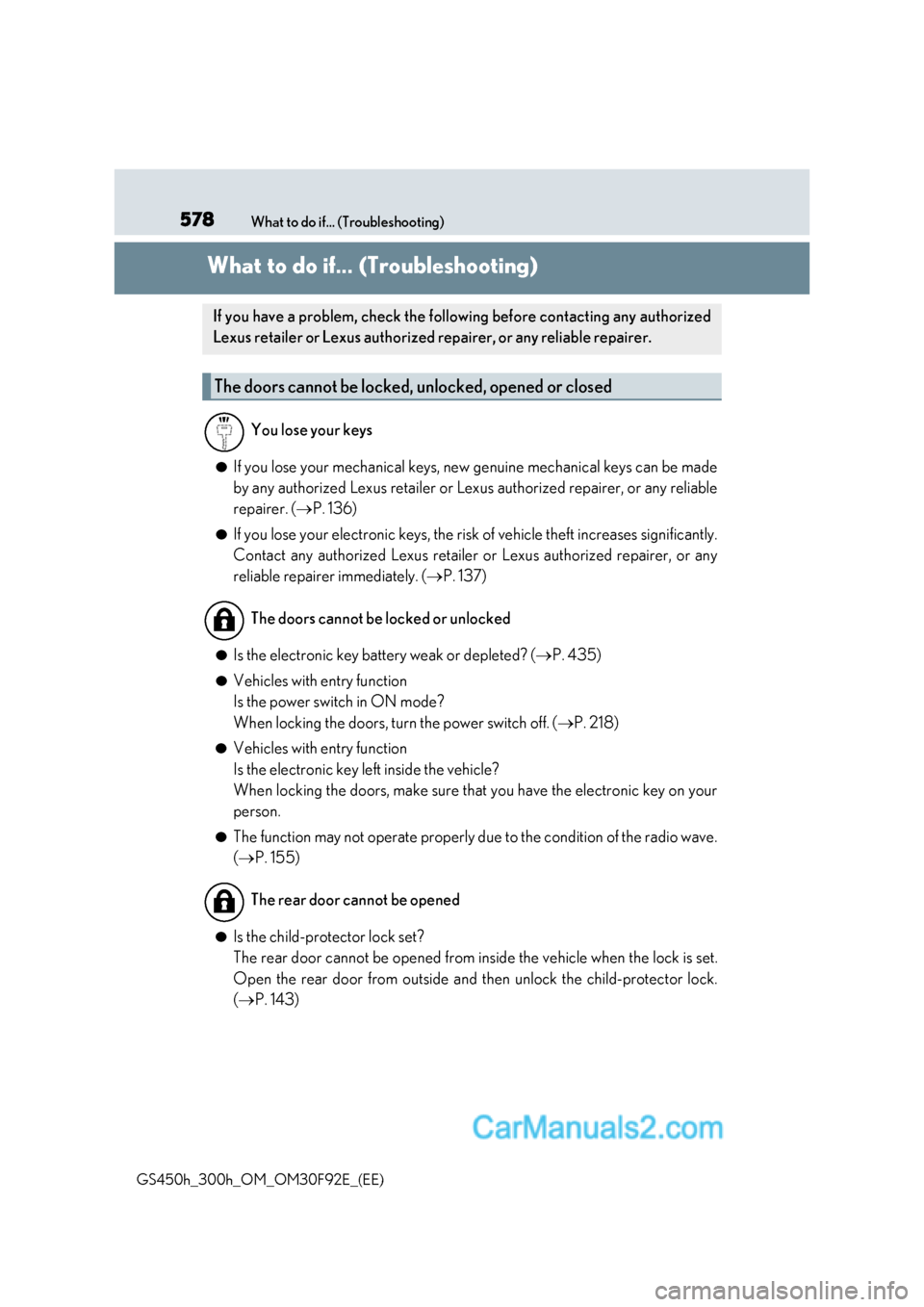

578What to do if... (Troubleshooting)
GS450h_300h_OM_OM30F92E_(EE)
What to do if... (Troubleshooting)
● If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer. ( P. 136)
● If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer immediately. ( P. 137)
● Is the electronic key battery weak or depleted? ( P. 435)
● Vehicles with entry function
Is the power switch in ON mode?
When locking the doors, turn the power switch off. ( P. 218)
● Vehicles with entry function
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your person.
● The function may not operate properly due to the condition of the radio wave.( P. 155)
● Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock. ( P. 143)
If you have a problem, check the following before contacting any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
The doors cannot be locked, un locked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

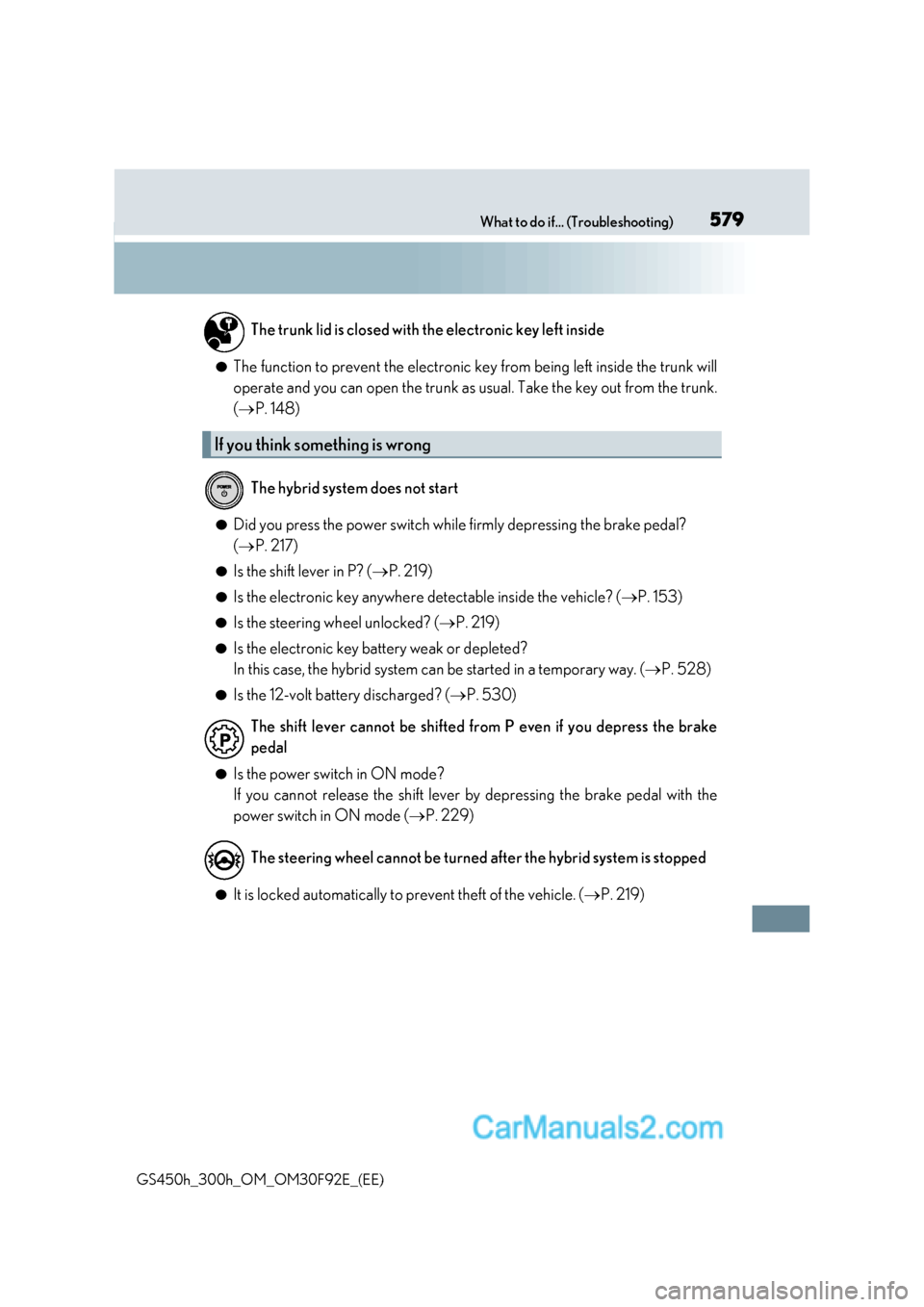

579
What to do if... (Troubleshooting)
GS450h_300h_OM_OM30F92E_(EE) ●
The function to prevent the electronic ke y from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk. (  P. 148)
● Did you press the power switch while firmly depressing the brake pedal? ( P. 217)
● Is the shift lever in P? ( P. 219)
● Is the electronic key anywhere detectable inside the vehicle? ( P. 153)
● Is the steering wheel unlocked? ( P. 219)
● Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way. ( P. 528)
● Is the 12-volt battery discharged? ( P. 530)
● Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode ( P. 229)
● It is locked automatically to prevent theft of the vehicle. ( P. 219)
The trunk lid is closed with the electronic key left inside
If you think som
ething is wrong
The hybrid system does not start
The shift lever cannot be shifted fr om P even if you depress the brake
pedal
The steering wheel cannot be turned after the hybrid system is stopped

580What to do if... (Troubleshooting)
GS450h_300h_OM_OM30F92E_(EE) ●
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( P. 193)
● The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of time.
(  P. 219)
● The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 462)
● The parking brake indicator is on
Is the parking brake released? ( P. 232)
Depending on the situation, other type s of warning buzzer may also sound.
(  P. 460, 466)
● Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. ( P. 91)
To stop the alarm, turn the power switch to ON mode or start the hybrid system. ● Is the electronic key left inside the vehicle or the moon roof opened (if
equipped)?
Check the message on the multi-information display. ( P. 466)
The windows do not open or close by operating the power window
switches
The power switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and th
e horn sounds (if equipped)
A warning buzzer sounds when leaving the vehicle
(vehicles with entry function)
