LEXUS GS300H 2019 Owners Manual

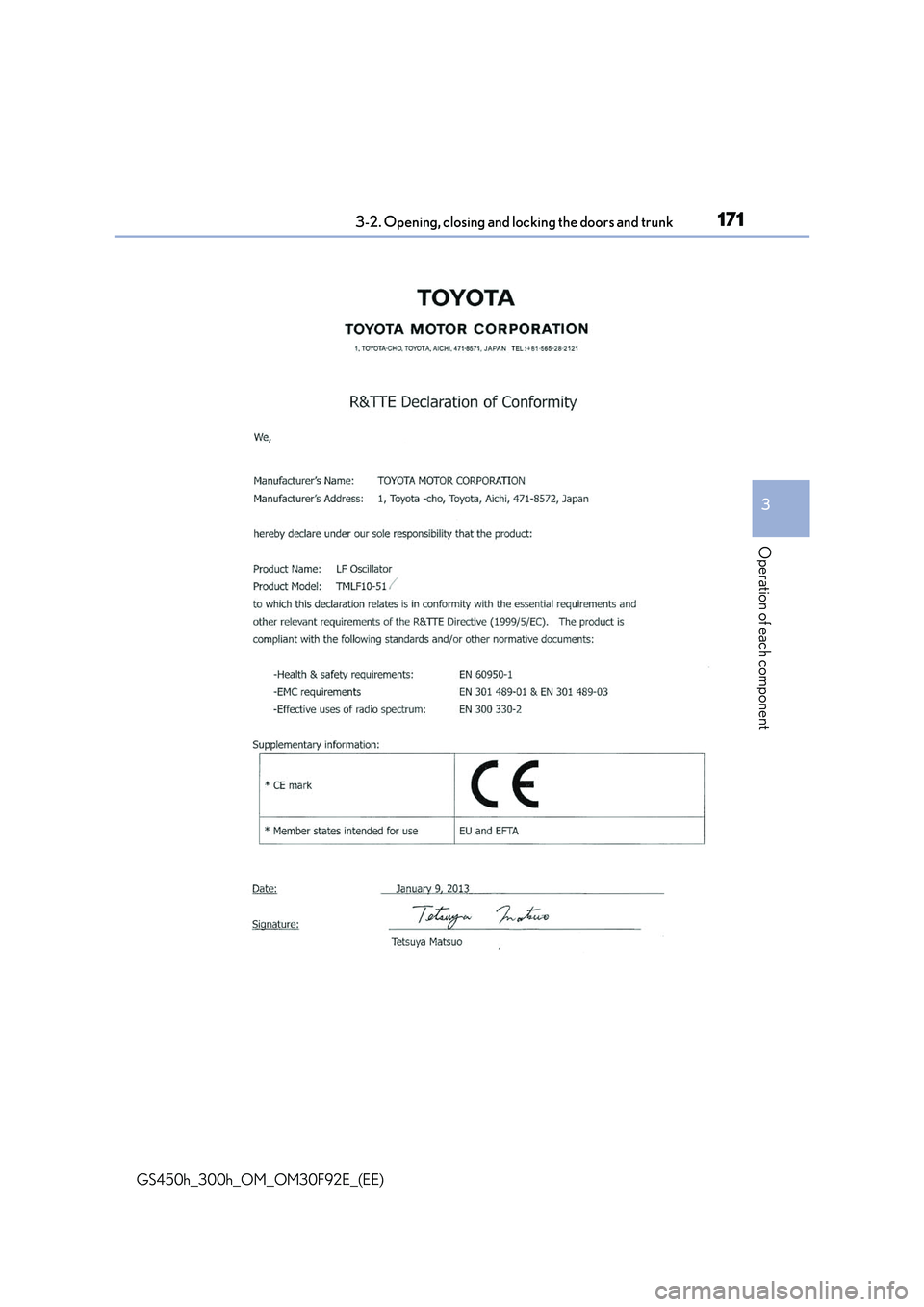

1713-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)

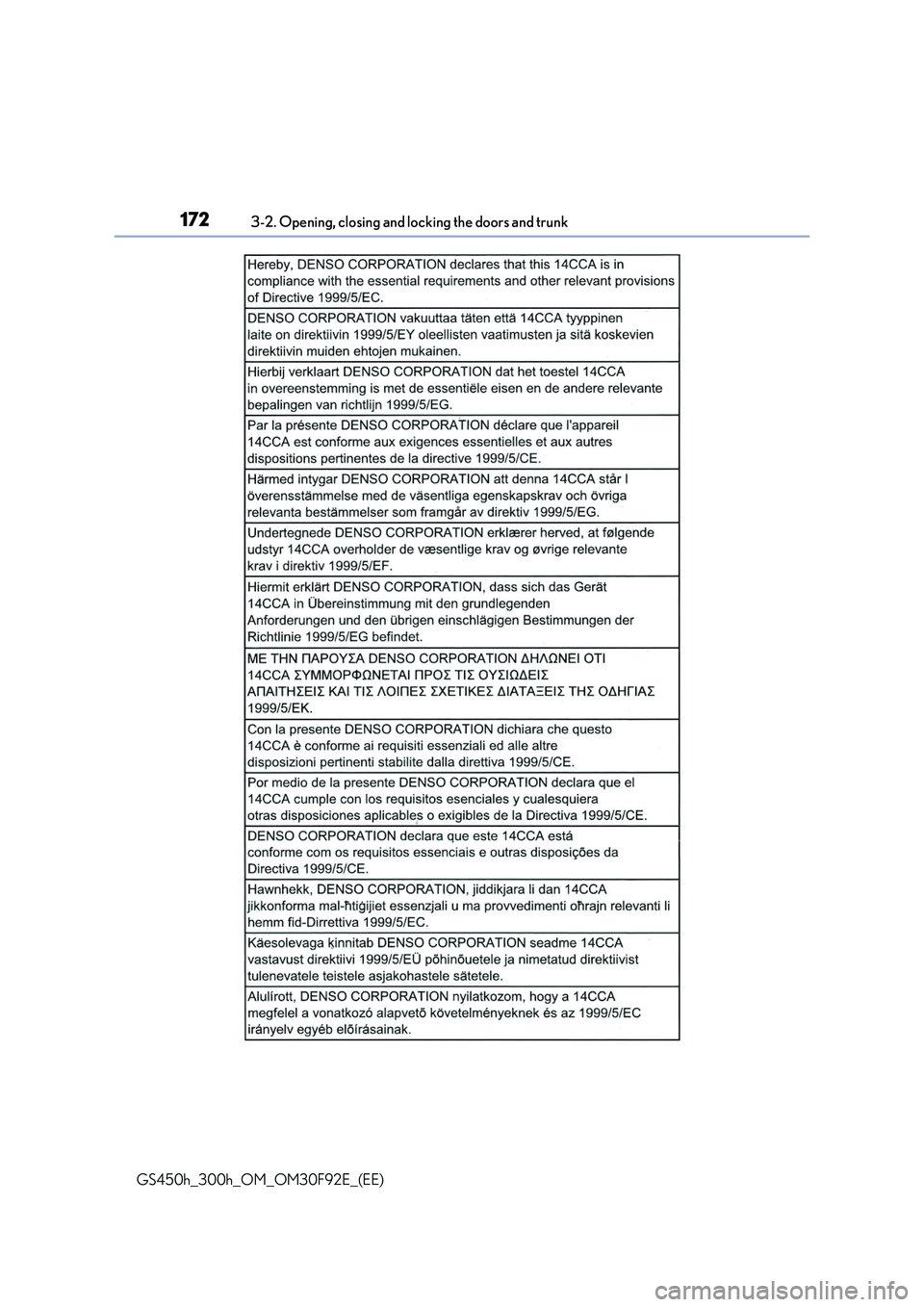

1723-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)

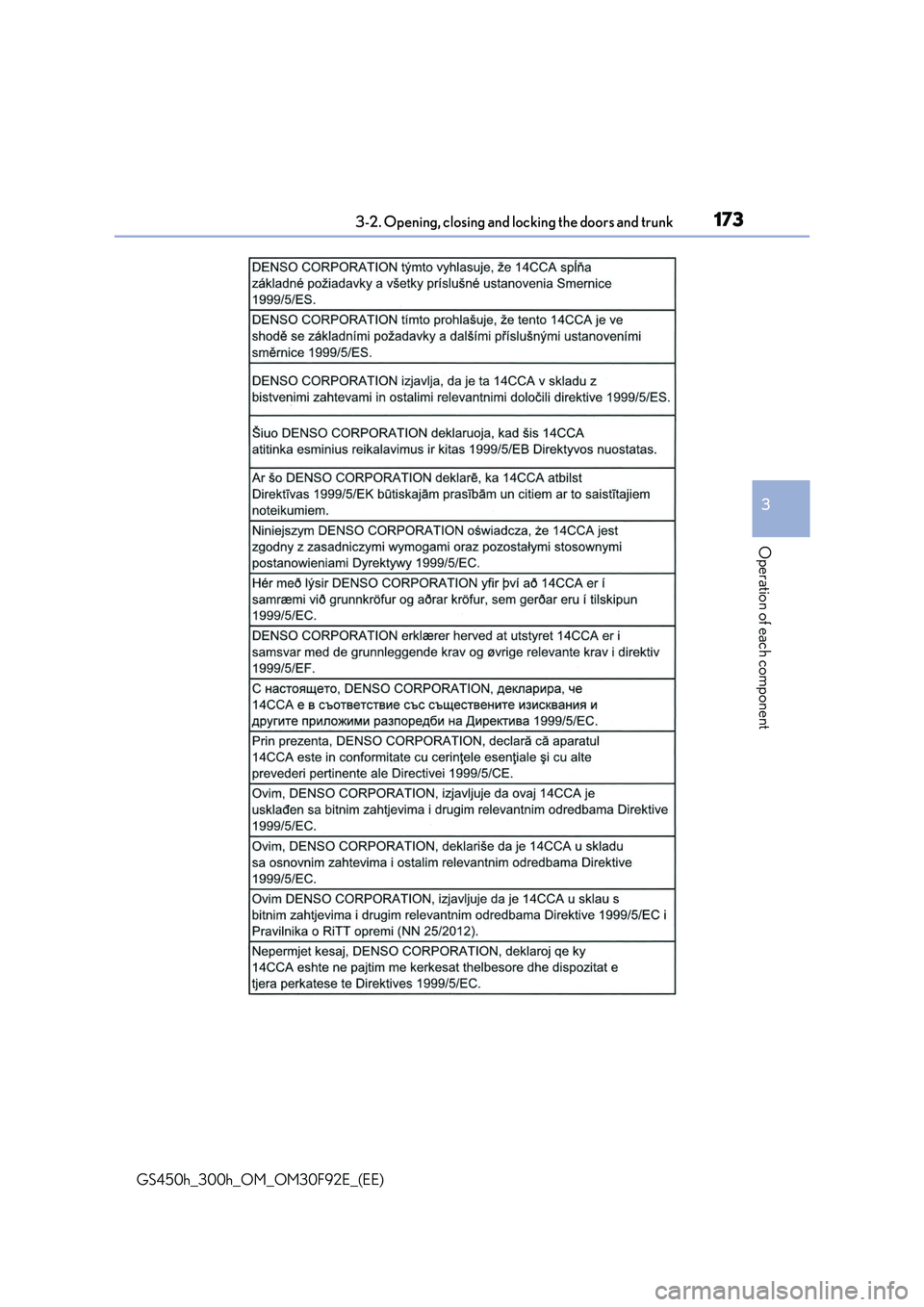

1733-2. Opening, closing and locking the doors and trunk
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)

1743-2. Opening, closing and locking the doors and trunk
GS450h_300h_OM_OM30F92E_(EE)

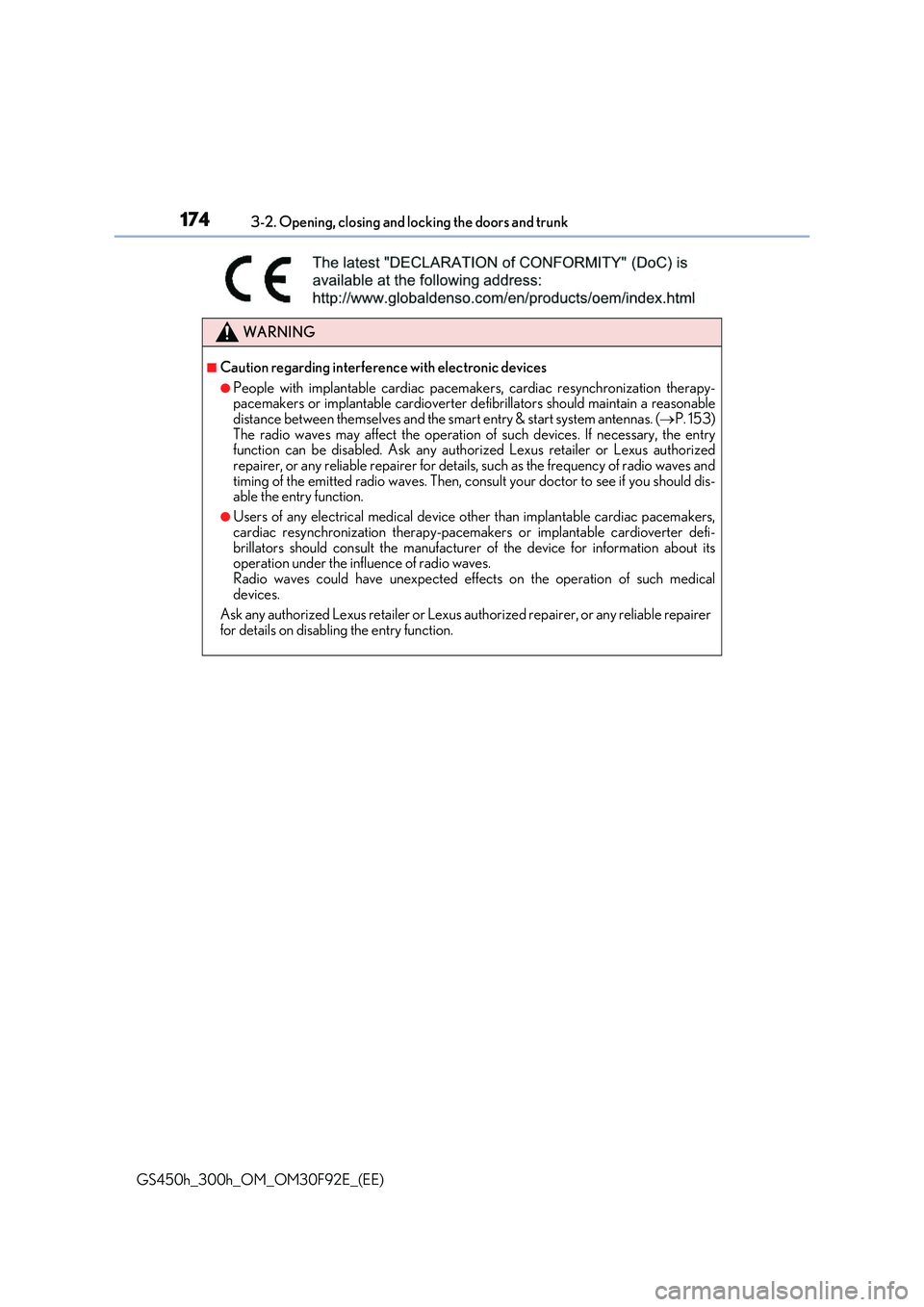

WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy- pacemakers or implantable cardioverter de fibrillators should maintain a reasonable distance between themselves and the smart entry & start system antennas. ( P. 153)
The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask any authorized Lexus retailer or Lexus authorizedrepairer, or any reliable repairer for details, such as the frequency of radio waves and
timing of the emitted radio waves. Then, consult your doctor to see if you should dis- able the entry function.
●Users of any electrical medical device other than implantable cardiac pacemakers,
cardiac resynchronization therapy-pacemakers or implantable cardioverter defi- brillators should consult the manufacturer of the device for information about itsoperation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical devices.
Ask any authorized Lexus retailer or Lexus au thorized repairer, or any reliable repairer
for details on disabling the entry function.

175
3
3-3. Adjusting the seats
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)

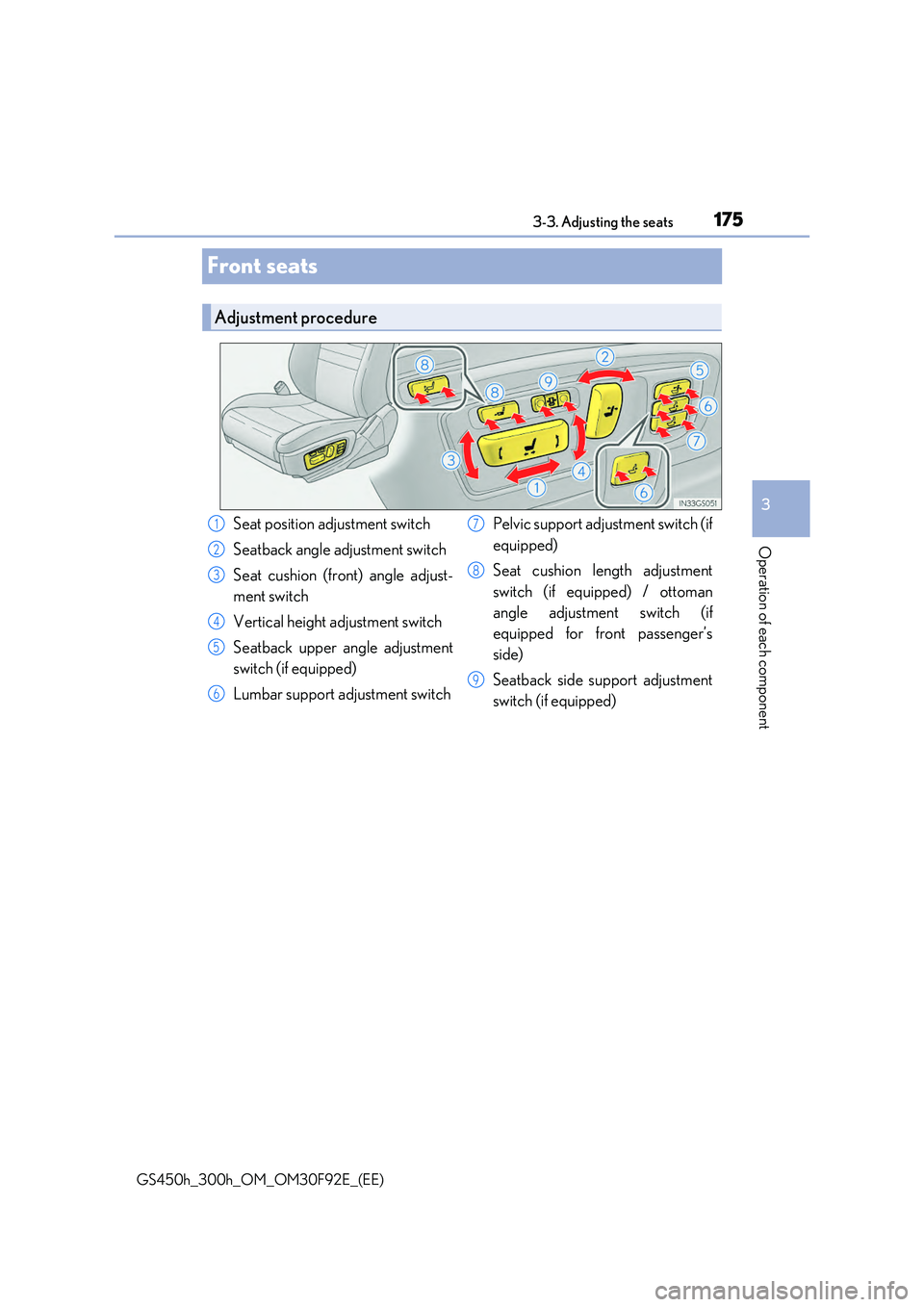

Front seats
Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback upper angle adjustment
switch (if equipped)
Lumbar support adjustment switch
Pelvic support adjustment switch (if
equipped)
Seat cushion length adjustment
switch (if equipped) / ottoman
angle adjustment switch (if
equipped for front passenger’s
side)
Seatback side support adjustment
switch (if equipped)
1
2
3
4
5
6
7
8
9

1763-3. Adjusting the seats
GS450h_300h_OM_OM30F92E_(EE)
Tilts the seatback forward
Tilts the seatback backward
Moves the seat forward
Moves the seat backward
■When adjusting the seat
Take care when adjusting the seat so that the head restraint does not touch the ceiling.
■Power easy access system
The driver’s seat and steering wheel move in accordance with power switch mode and the driver’s seat belt condition. The passeng er’s seat moves when the passenger’s door is
opened. ( P. 178)

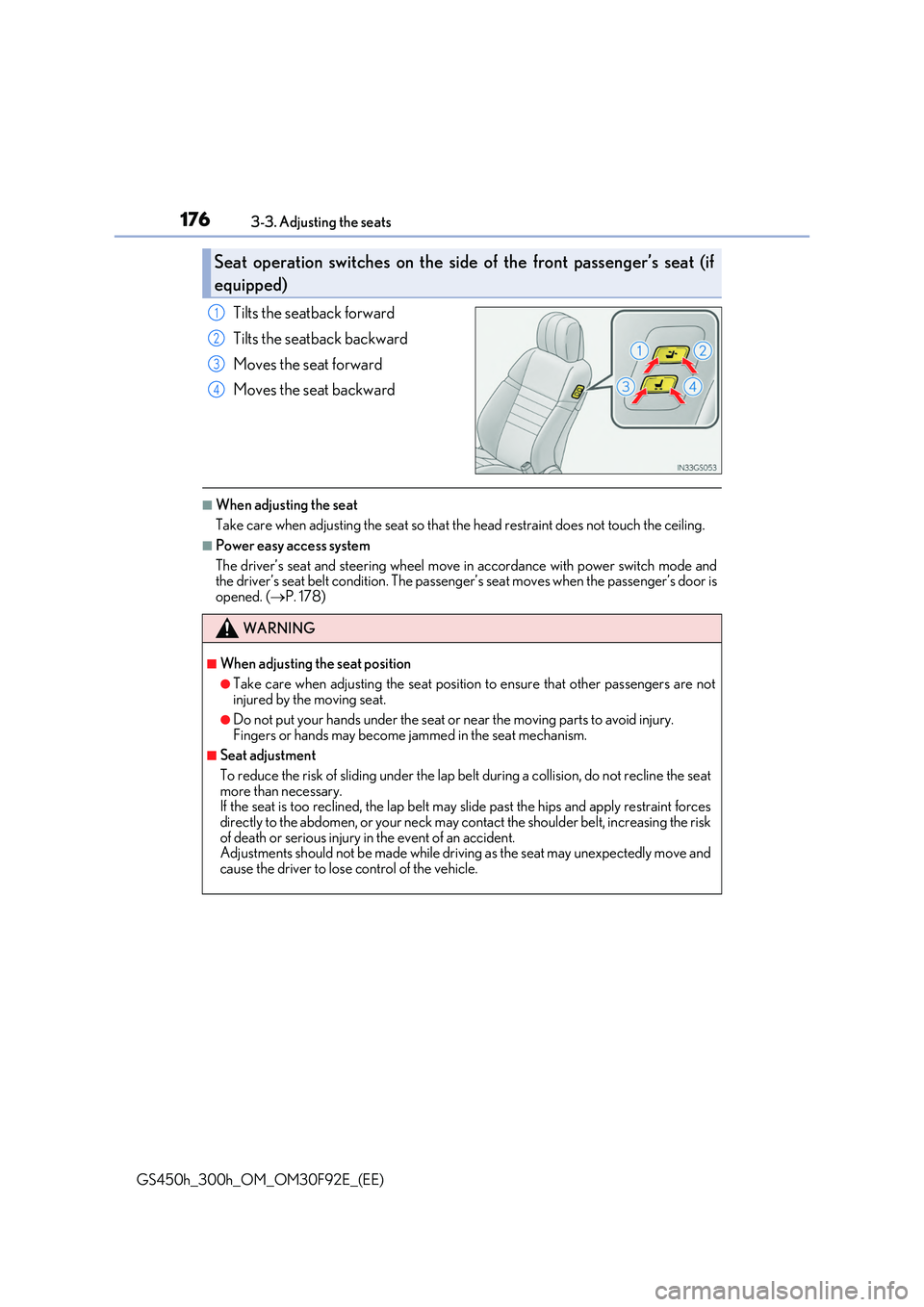

Seat operation switches on the side of the front passenger’s seat (if
equipped)
1
2
3
4
WARNING
■When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.Fingers or hands may become jammed in the seat mechanism.
■Seat adjustment
To reduce the risk of sliding under the lap be lt during a collision, do not recline the seat more than necessary.If the seat is too reclined, th e lap belt may slide past the hips and apply restraint forces
directly to the abdomen, or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.Adjustments should not be made while driving as the seat may unexpectedly move and
cause the driver to lose control of the vehicle.

1773-3. Adjusting the seats
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)

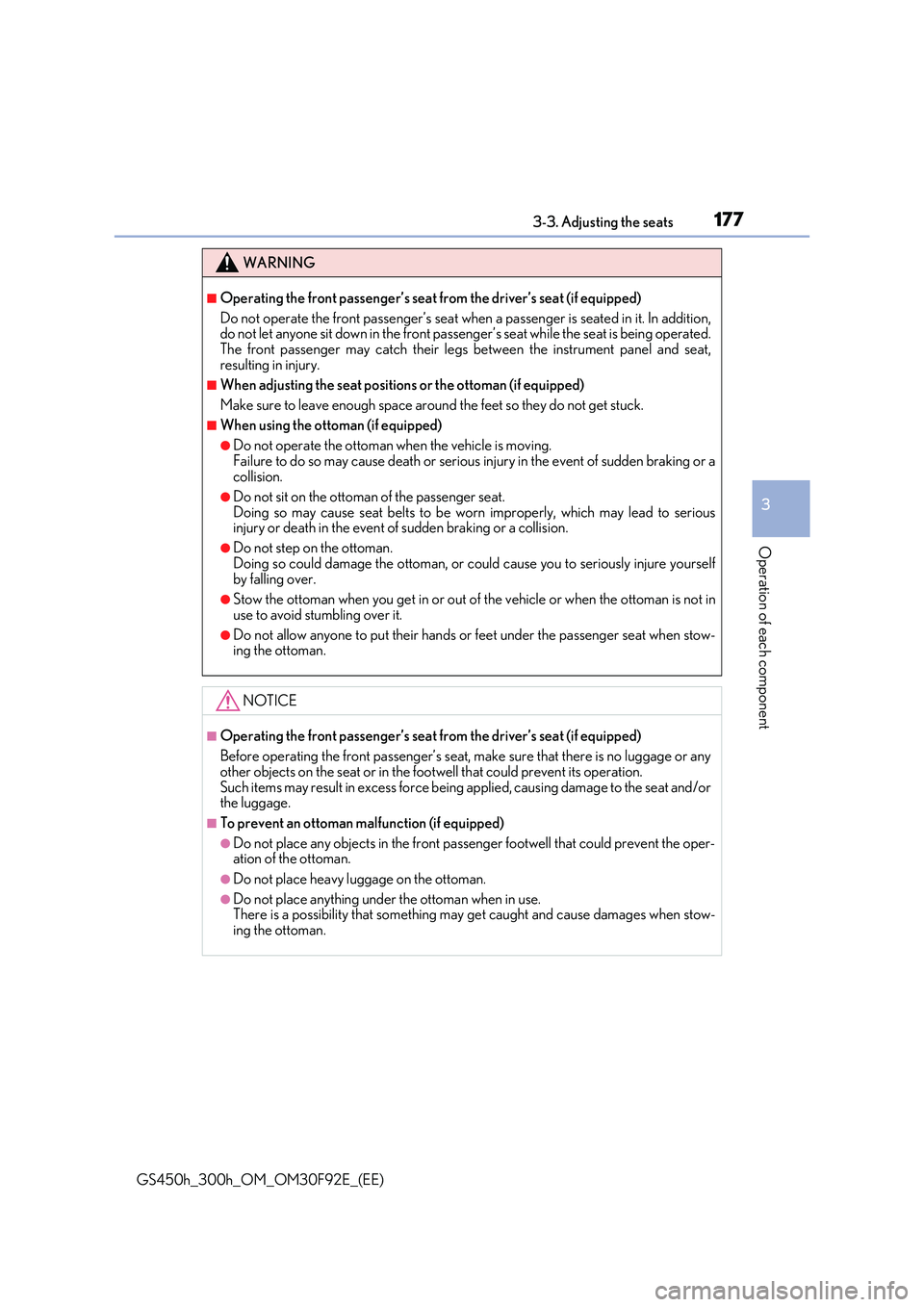

WARNING
■Operating the front passenger’s seat from the driver’s seat (if equipped)
Do not operate the front passenger’s seat when a passenger is seated in it. In addition, do not let anyone sit down in the front passeng er’s seat while the seat is being operated.
The front passenger may catch their legs between the instrument panel and seat, resulting in injury.
■When adjusting the seat positions or the ottoman (if equipped)
Make sure to leave enough space around the feet so they do not get stuck.
■When using the ottoman (if equipped)
●Do not operate the ottoman when the vehicle is moving.
Failure to do so may cause death or serious injury in the event of sudden braking or a collision.
●Do not sit on the ottoman of the passenger seat.
Doing so may cause seat belts to be worn improperly, which may lead to serious injury or death in the event of sudden braking or a collision.
●Do not step on the ottoman.
Doing so could damage the ottoman, or co uld cause you to seriously injure yourself by falling over.
●Stow the ottoman when you get in or out of the vehicle or when the ottoman is not in
use to avoid stumbling over it.
●Do not allow anyone to put their hands or feet under the passenger seat when stow- ing the ottoman.
NOTICE
■Operating the front passenger’s seat from the driver’s seat (if equipped)
Before operating the front passenger’s seat, make sure that there is no luggage or any
other objects on the seat or in the f ootwell that could prevent its operation. Such items may result in excess force being applied, causing damage to the seat and/or the luggage.
■To prevent an ottoman malfunction (if equipped)
●Do not place any objects in the front passenger footwell that could prevent the oper-ation of the ottoman.
●Do not place heavy luggage on the ottoman.
●Do not place anything under the ottoman when in use.There is a possibility that something may get caught and cause damages when stow-
ing the ottoman.

1783-3. Adjusting the seats
GS450h_300h_OM_OM30F92E_(EE)

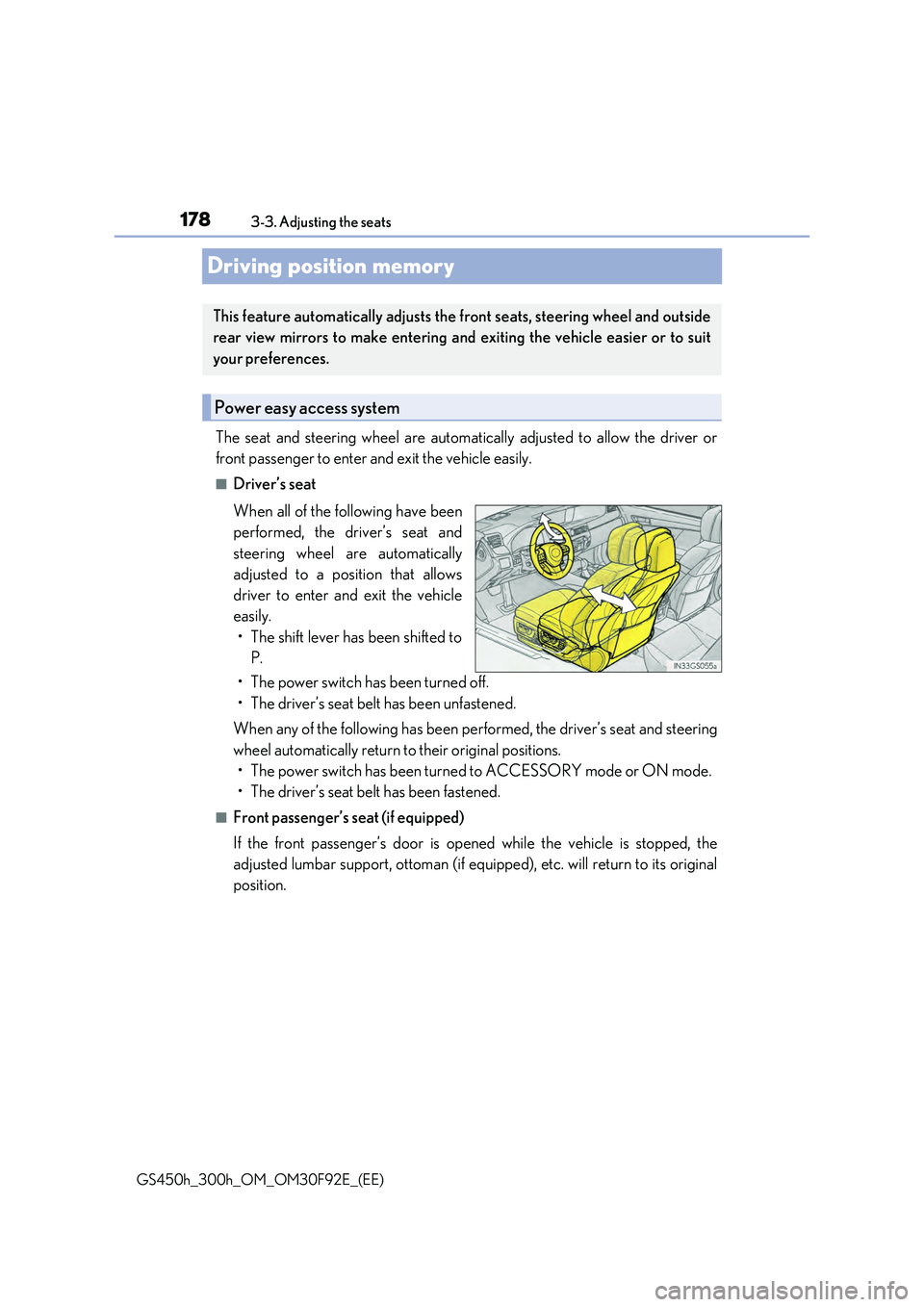

Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver or
front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have been
performed, the driver’s seat and
steering wheel are automatically
adjusted to a position that allows
driver to enter and exit the vehicle
easily.
• The shift lever has been shifted to
P.
• The power switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and steering
wheel automatically return to their original positions.
• The power switch has been turned to ACCESSORY mode or ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is opened while the vehicle is stopped, the
adjusted lumbar support, ottoman (if equipped), etc. will return to its original
position.
This feature automatically adjusts the front seats, steering wheel and outside
rear view mirrors to make entering and exiting the vehicle easier or to suit
your preferences.
Power easy access system

1793-3. Adjusting the seats
3
Operation of each component
GS450h_300h_OM_OM30F92E_(EE)

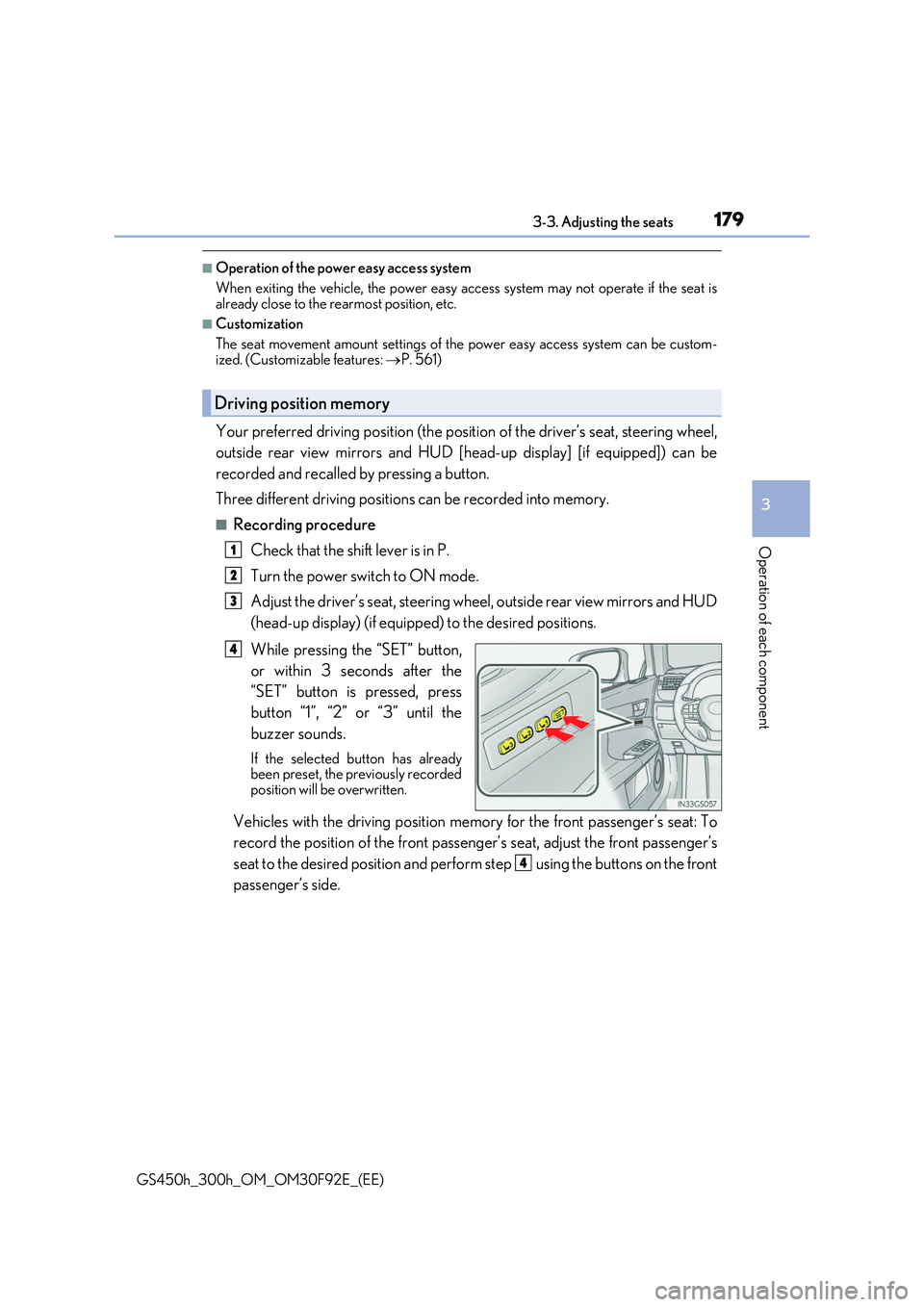

■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be custom- ized. (Customizable features: P. 561)
Your preferred driving position (the position of the driver’s seat, steering wheel,
outside rear view mirrors and HUD [head-up display] [if equipped]) can be
recorded and recalled by pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and HUD
(head-up display) (if equipped) to the desired positions.
While pressing the “SET” button,
or within 3 seconds after the
“SET” button is pressed, press
button “1”, “2” or “3” until the
buzzer sounds.
If the selected button has already been preset, the previously recordedposition will be overwritten.
Vehicles with the driving position memory for the front passenger’s seat: To
record the position of the front passeng er’s seat, adjust the front passenger’s
seat to the desired position and perfor m step using the buttons on the front
passenger’s side.
Driving position memory
1
2
3
4
4

1803-3. Adjusting the seats
GS450h_300h_OM_OM30F92E_(EE)

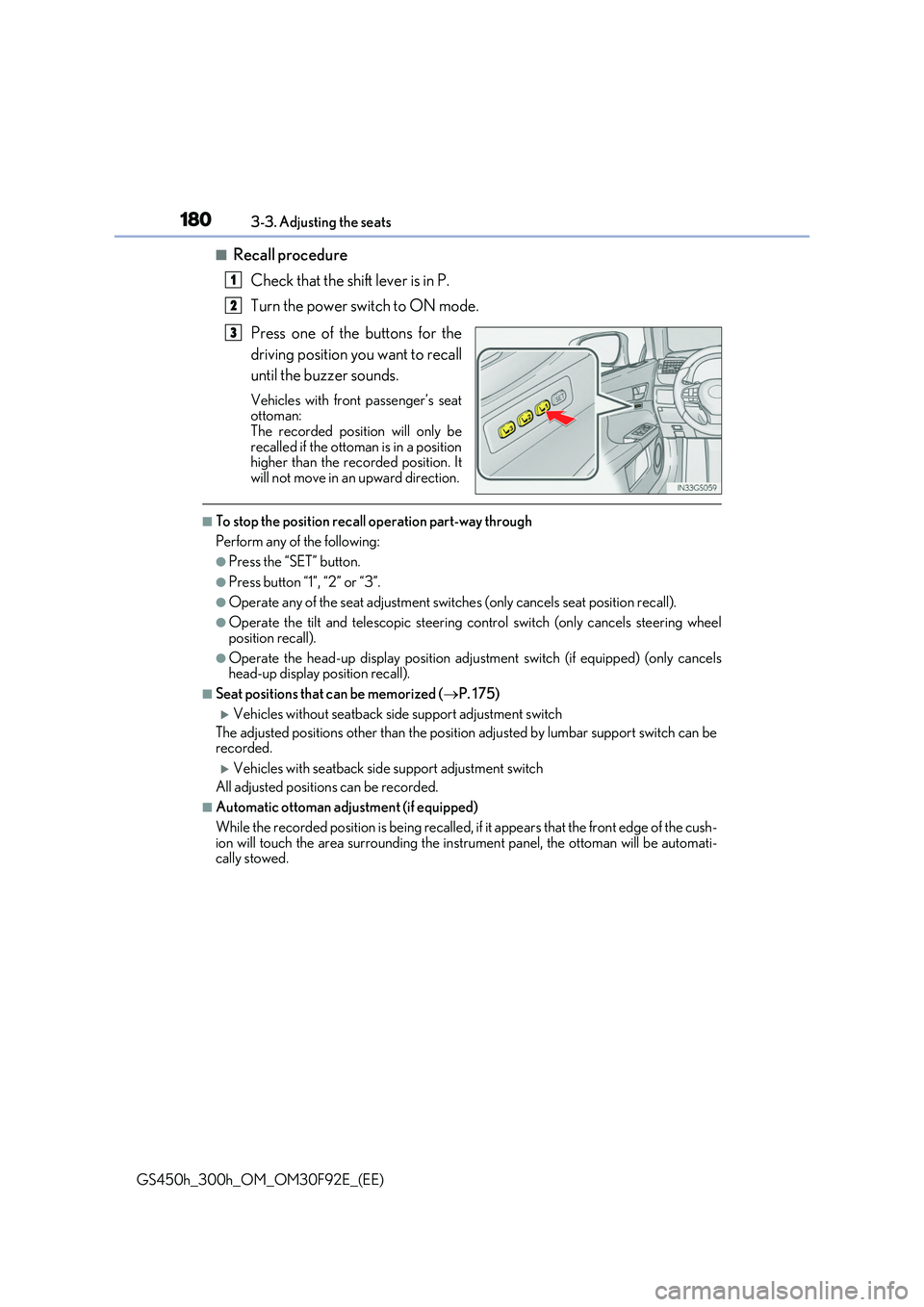

■Recall procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
Vehicles with front passenger’s seat ottoman:
The recorded position will only be recalled if the ottoman is in a positionhigher than the recorded position. It
will not move in an upward direction.
■To stop the position recall operation part-way through
Perform any of the following:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
●Operate the head-up display position adju stment switch (if equipped) (only cancels head-up display position recall).
■Seat positions that can be memorized ( P. 175)
Vehicles without seatback side support adjustment switch
The adjusted positions other than the position adjusted by lumbar support switch can be recorded.
Vehicles with seatback side support adjustment switch
All adjusted positions can be recorded.
■Automatic ottoman adjustment (if equipped)
While the recorded position is being recalled, if it appears that the front edge of the cush-
ion will touch the area surrounding the instrument panel, the ottoman will be automati- cally stowed.
1
2
3
