Lexus GS350 2007 Other interior features / LEXUS 2007 GS430/350 QUICK REFERENCE MANUAL

Topic 3
When Driving
21
Intuitive Parking Assist (If Equipped)
nTurning the system on and off
The system can be turned on and off using the
intuitive parking assist switch.
nScreen display
Multi-information display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the dual sen-
sors
Indicates the steering maneuvers required to
avoid an obstacle.
Indicates obstacles detected by the rear cor-
ner sensors
Indicates obstacles detected by the back sen-
sors To u c h s c r e e n
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2
3
4

Topic 3
When Driving
22
Entering and Exiting
Before DrivingBefore Driving
When DrivingWhen Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Cruise Control
nSetting the speed
Press the ON-OFF button.
The system will turn on.
Accelerate or decelerate to the desired
speed, and then push the lever down.
This sets the speed in the cruise control
memory.
nAdjusting the speed setting
To i n c r e a s e s p e e d: push the lever up.
To decrease speed: push the lever down.
Release the lever when the desired speed is
reached.
nCanceling
To temporarily cancel the cruise control, pull the
lever.
To turn the system off, press the ON-OFF button.
Cruise control allows the driver to maintain a constant speed without having to operate the
accelerator pedal.
Use for highway driving or when traveling at a constant speed for long periods of time.

Topic 3
When Driving
23
Dynamic Radar Cruise Control (If Equipped)
nCruise control display
Cruise control settings are shown on the multi-
information display.
Vehicle ahead indicator
Vehicle-to-vehicle distance
Preset speed
nVehicle-to-vehicle distance control mode
Press the ON-OFF button.
Accelerate or decelerate to the desired
speed, and then push the lever down.
Following distance can be adjusted using the
vehicle-to-vehicle distance control switch.
nConventional (constant speed) cruise control mode
Press the ON-OFF button.
Push the lever forward and hold for at least
one second.
Accelerate or decelerate to the desired
speed, and then push the lever down.
nAdjusting the speed setting
To increase speed: push the lever up.
To d e c r e a s e s p e e d: push the lever down.
Release the lever when the desired speed is
reached
nCanceling
To temporarily cancel the dynamic radar cruise
control, pull the lever.
To turn the system off, press the ON-OFF button.
Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-
vehicle distance control mode.
1
2
3
The vehicle-to-vehicle distance control mode maintains the preset cruising speed as long
as no vehicle is detected ahead.

Topic 3
When Driving
24
Entering and Exiting
Before DrivingBefore Driving
When DrivingWhen Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
AVS (Adaptive Variable Suspension)
(If Equipped)
Sports mode
Suitable for meandering mountainous driv-
ing or high speed driving.
Normal mode
Suitable for normal driving.
TRAC/VSC Off Mode
To turn off TRAC: Push the VSC OFF switch
briefly. The slip indicator light will come on.
To turn off VSC: Push and hold the VSC OFF
switch for 3 seconds when the vehicle is not mov-
ing. The slip indicator light and VSC OFF indica-
tor light will come on.
Push the button again to turn the system back on.
AVS controls the suspension and steering wheel operation according to the road and
driving conditions.
ILYQ3A005
1
2
This switch turns off the traction control system or vehicle stability control system.
Use this switch if the wheels get stuck in snow, mud etc.
ILYQ3A006

Topic 3
When Driving
25

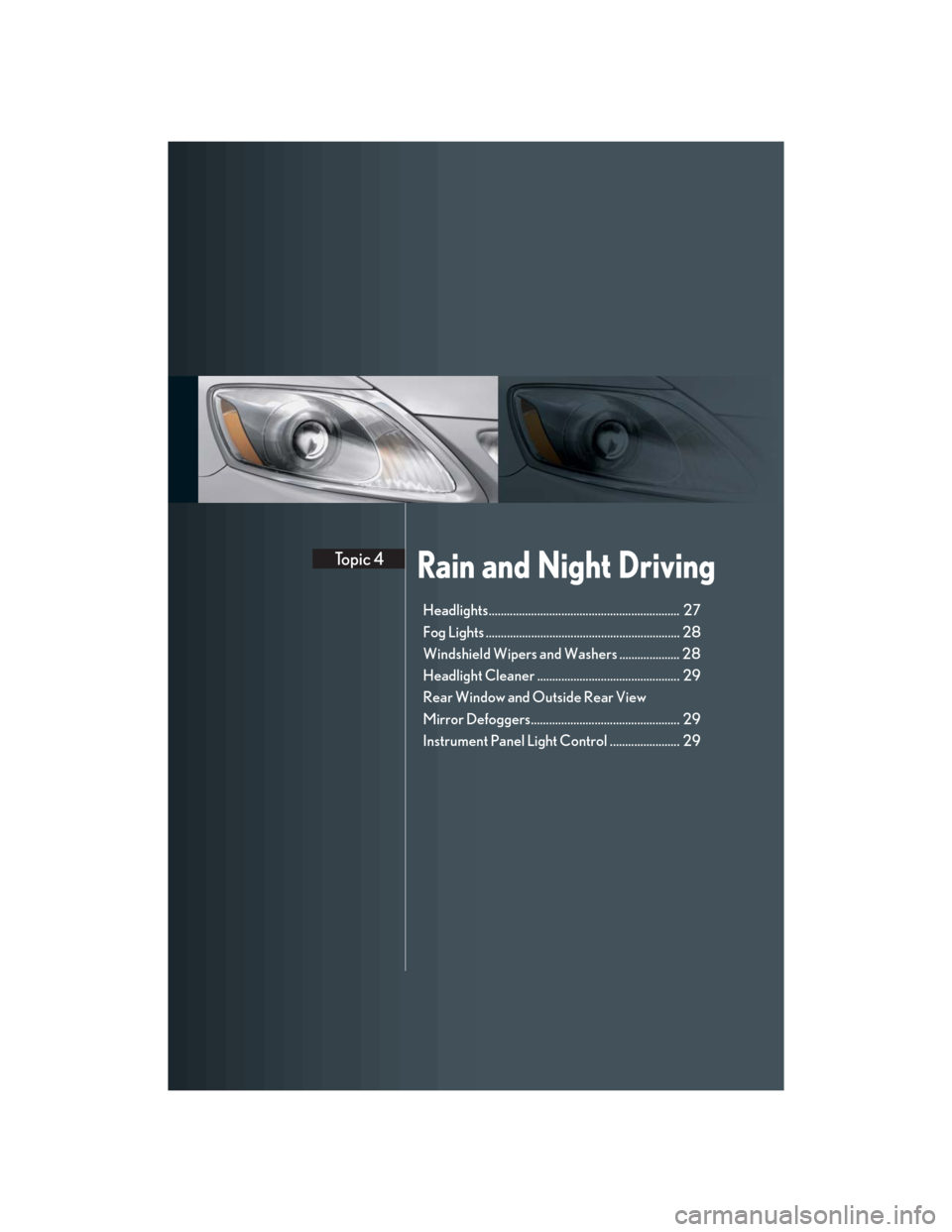

Rain and Night DrivingTopic 4
Headlights............................................................... 27
Fog Lights ................................................................ 28
Windshield Wipers and Washers .................... 28
Headlight Cleaner ............................................... 29
Rear Window and Outside Rear View
Mirror Defoggers................................................. 29
Instrument Panel Light Control ....................... 29

Topic 4
Rain and Night Driving
27
Headlights
The side marker, parking, tail, license plate and
instrument panel lights turn on.
The headlights and all lights listed above turn on.
The headlights and parking lights turn on/off
automatically in accordance with ambient light
levels.
To engage the high beams, push the lever forward.
To flash the high beams, pull the lever and hold.
nAFS (Adaptive Front lighting System)
AFS improves visibility on curves by automatically adjusting the horizontal orientation of the
headlights in accordance with vehicle speed and the degree of the tire angle that are con-
trolled by steering input.
The system can be turned on and off using the
AFS OFF switch.
1
2
3

Topic 4
Rain and Night Driving
28
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night DrivingRain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Fog Lights
The fog lights can be used only when the head-
lights (low beam) are on.
Windshield Wipers and Washers
nIntermittent wiper with interval adjuster (if equipped)
MIST: operates once
INT: intermittent operation*
LO: low speed
HI: high speed
*: Wiper interval can be adjusted by turning the
band.
To spray washer fluid, pull the lever.
The wipers will operate automatically.
nRain-sensing windshield wipers (if equipped)
MIST: operates once
AUTO: automatic operation*
LO: low speed
HI: high speed
*: Sensitivity can be adjusted by turning the band.
To spray washer fluid, pull the lever.
The wipers will operate automatically

Topic 4
Rain and Night Driving
29
Headlight Cleaner
The headlight cleaner can be used only when the
engine switch is in IG-ON mode and the headlights
are on.
Rear Window and Outside Rear View
Mirror Defoggers
To defog the rear window and outside mirrors,
press the button.
Press again to cancel.

Instrument Panel Light Control
Brighter
Darker
Maximum brightness
Changes the cluster glass tint
The system turns off automatically after 15 minutes.
1
2
3
4

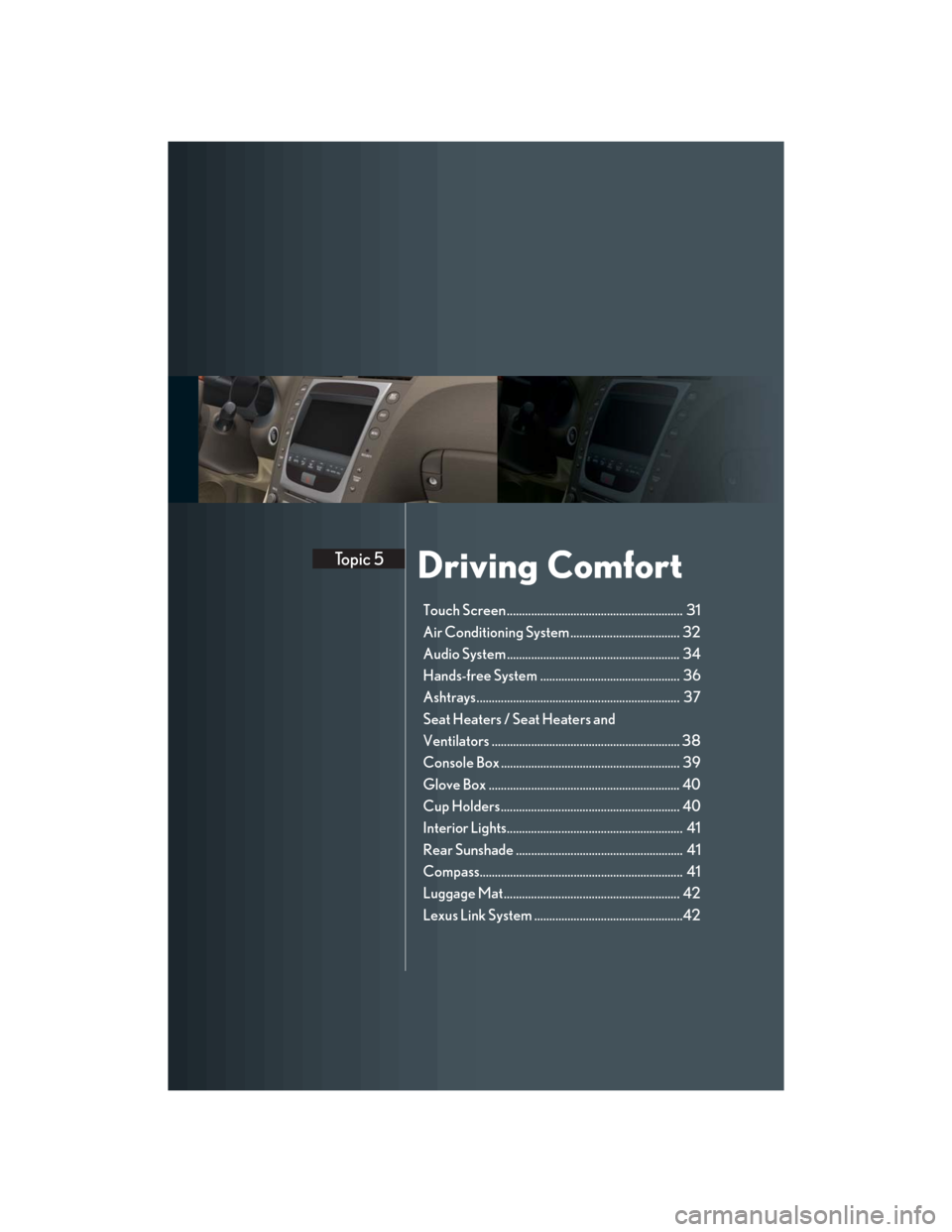

Driving ComfortTopic 5
Touch Screen .......................................................... 31
Air Conditioning System .................................... 32
Audio System ......................................................... 34
Hands-free System .............................................. 36
Ashtrays................................................................... 37
Seat Heaters / Seat Heaters and
Ventilators .............................................................. 38
Console Box ........................................................... 39
Glove Box ............................................................... 40
Cup Holders........................................................... 40
Interior Lights.......................................................... 41
Rear Sunshade ....................................................... 41
Compass................................................................... 41
Luggage Mat.......................................................... 42
Lexus Link System .................................................42
