Lexus GS350 2007 Other interior features / LEXUS 2007 GS430/350 QUICK REFERENCE MANUAL

What to do if ...
51

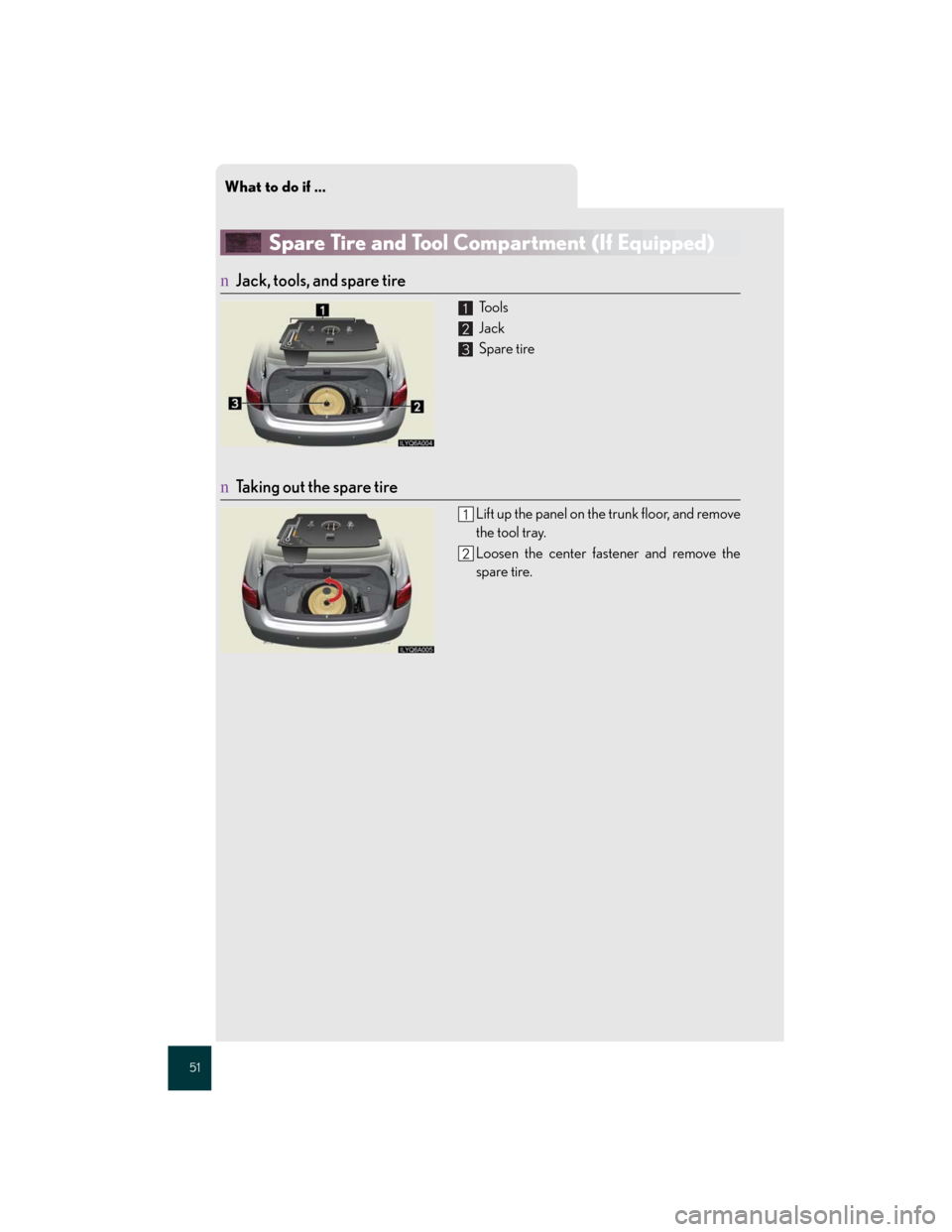

Spare Tire and Tool Compartment (If Equipped)
nJack, tools, and spare tire
To o l s
Jack
Spare tire
nTaking out the spare tire
Lift up the panel on the trunk floor, and remove
the tool tray.
Loosen the center fastener and remove the
spare tire.
1
2
3

52
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
If the electronic key battery becomes
discharged
nUnlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key. The mechanical key is stored inside the elec-
tronic key.
Unlocks
Locks
nStarting the engine
Depress the brake pedal.
Hold the electronic key close to the engine
switch (within 0.4 in. [10 mm]), making sure that
the button side of the key is facing toward you.
Press the engine switch within 5 seconds after
the buzzer sounds, keeping the brake pedal
depressed.
1
2
ILYQ0A005
For instructions on replacing the electronic key battery, refer to the Owner's Manual. If you
need further assistance, contact your Lexus dealer.

What to do if ...
53

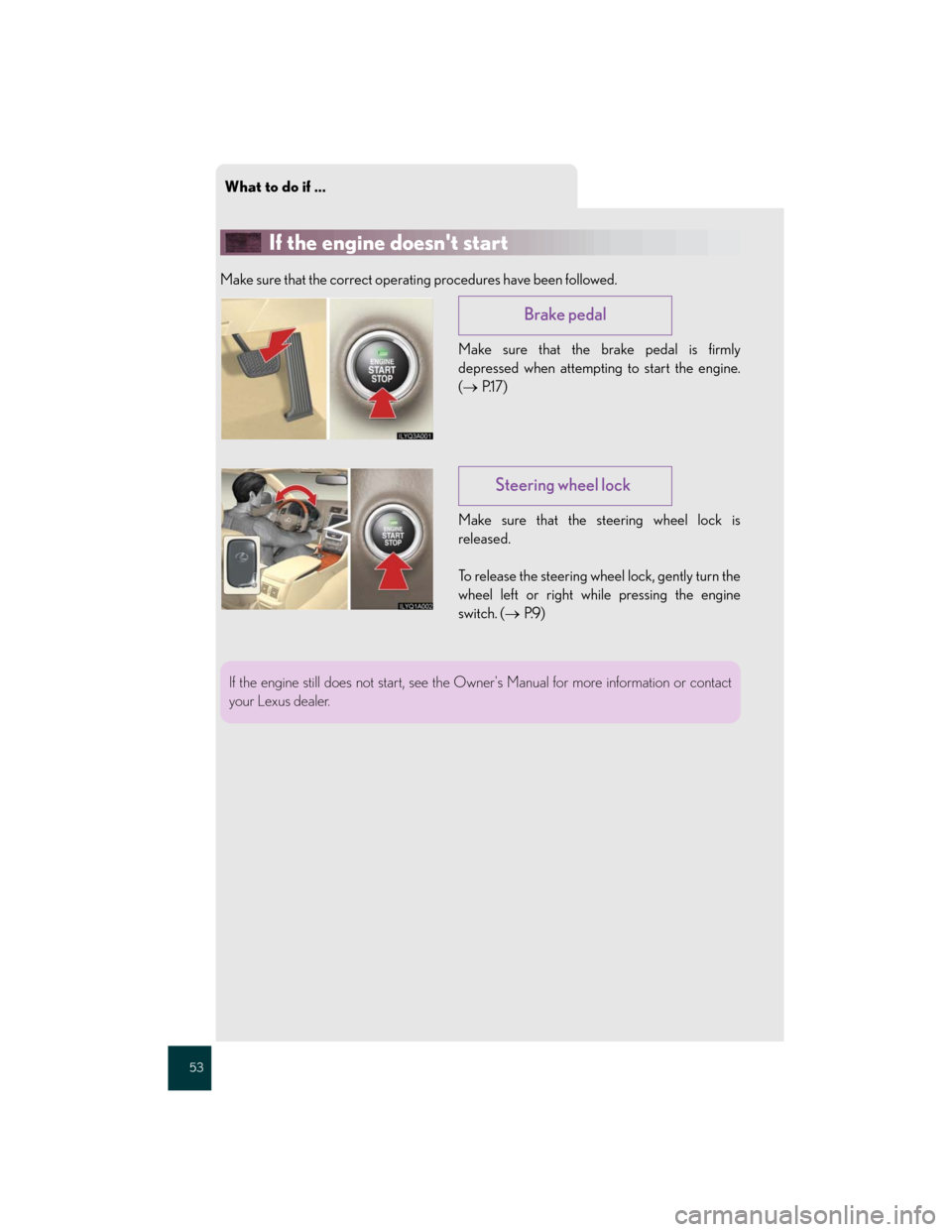

If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
(P.1 7 )
u
Make sure that the steering wheel lock is
released.
To release the steering wheel lock, gently turn the
wheel left or right while pressing the engine
switch. (P.9 )
ILYQ3A00
Brake pedal
ILYQ1A00
Steering wheel lock
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.

54
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartmentRetrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the engine switch
OFF
Tu r n t h e e n g i n e s w i t c h
OFF and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is openClose all of the doors and
lock the doors again.
Interior alarm sounds
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to P
Shift the shift lever to P.
Interior alarm rings
continuously
Switched to ACC mode
while the driver's door is
open (Opened the driver's
door when the engine
switch is in ACC mode.)
Tu r n t h e e n g i n e s w i t c h
OFF and close the driver's
door.
Turned the engine switch
OFF while the driver's
door is still open
Close the driver's door.

Customizing Your Lexus
55
Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
ItemFunctionDefault
settingCustomized
setting
Smart access
system with
push-button start
Smart access system with
push-button startONOFF
Operation signal
(Emergency flashers)ONOFF
Operation signal
(Buzzer)ONOFF
Wireless remote
control
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step.
Time elapsed before auto-
matic door lock function is
activated if door is not opened
after being unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation indicator
(Emergency flashers)ONOFF
Operation indicator
(Buzzer)ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and hold Push twice
One short push
Panic functionONOFF

56
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
*: Vehicles sold outside Canada

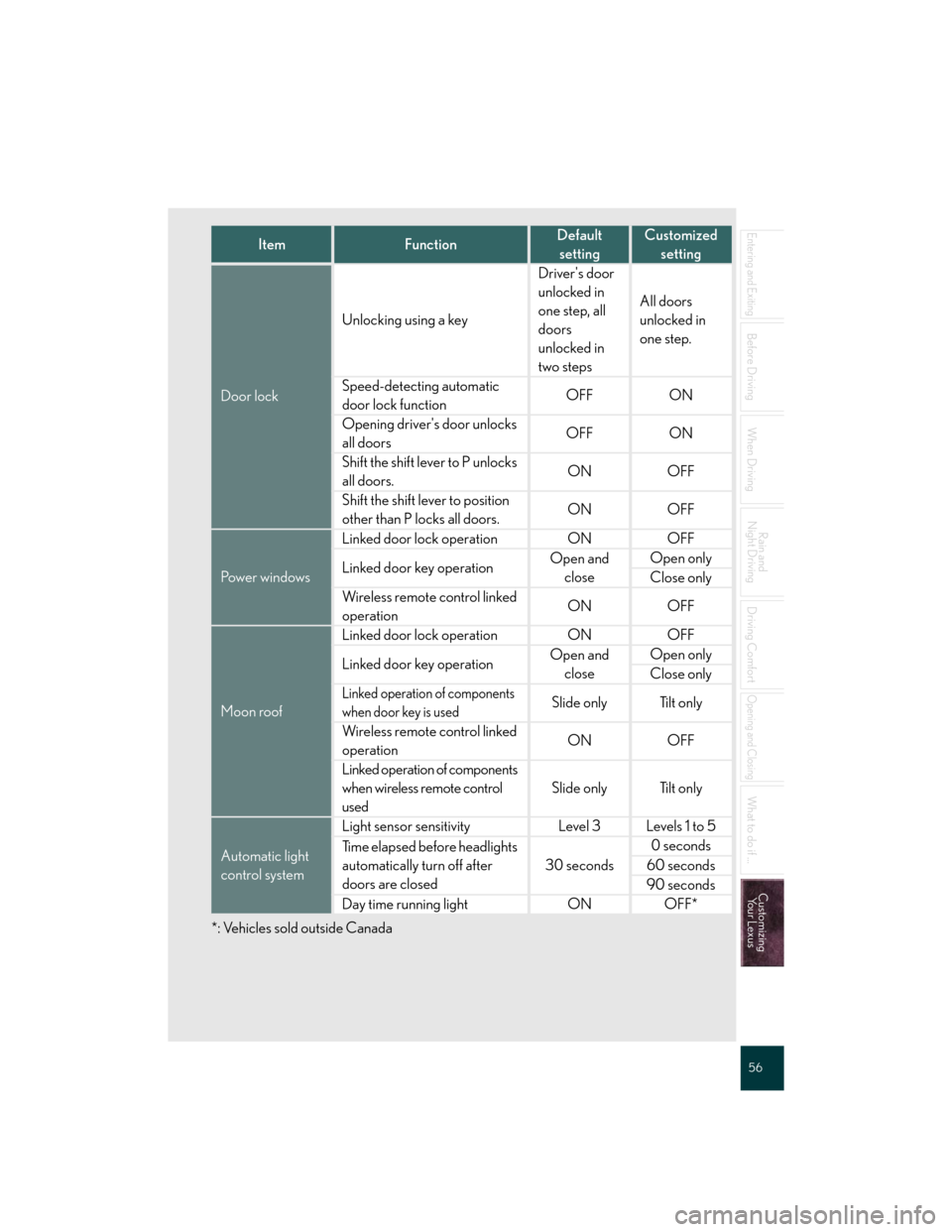

ItemFunctionDefault
settingCustomized
setting
Door lock
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step.
Speed-detecting automatic
door lock functionOFFON
Opening driver's door unlocks
all doors OFFON
Shift the shift lever to P unlocks
all doors.ONOFF
Shift the shift lever to position
other than P locks all doors.ONOFF
Pow e r w i n d o w s
Linked door lock operationONOFF
Linked door key operationOpen and
closeOpen only
Close only
Wireless remote control linked
operationONOFF
Moon roof
Linked door lock operationONOFF
Linked door key operationOpen and
closeOpen only
Close only
Linked operation of components
when door key is usedSlide onlyTi l t o n l y
Wireless remote control linked
operationONOFF
Linked operation of components
when wireless remote control
used
Slide onlyTi l t o n l y
Automatic light
control system
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
Day time running lightONOFF*

57
Customizing Your Lexus
ItemFunctionDefault
settingCustomized
setting
Windshield
wipers and
washer
Switching operation when the
vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the drip
prevention function operates
Va r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
Time elapsed before lights turn
off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the doors are
unlockedONOFF
Operation after the engine
switch turned OFFONOFF
Foot lightsONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Rear sunshade
Time elapsed before the
reverse operation feature acti-
vates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds

58

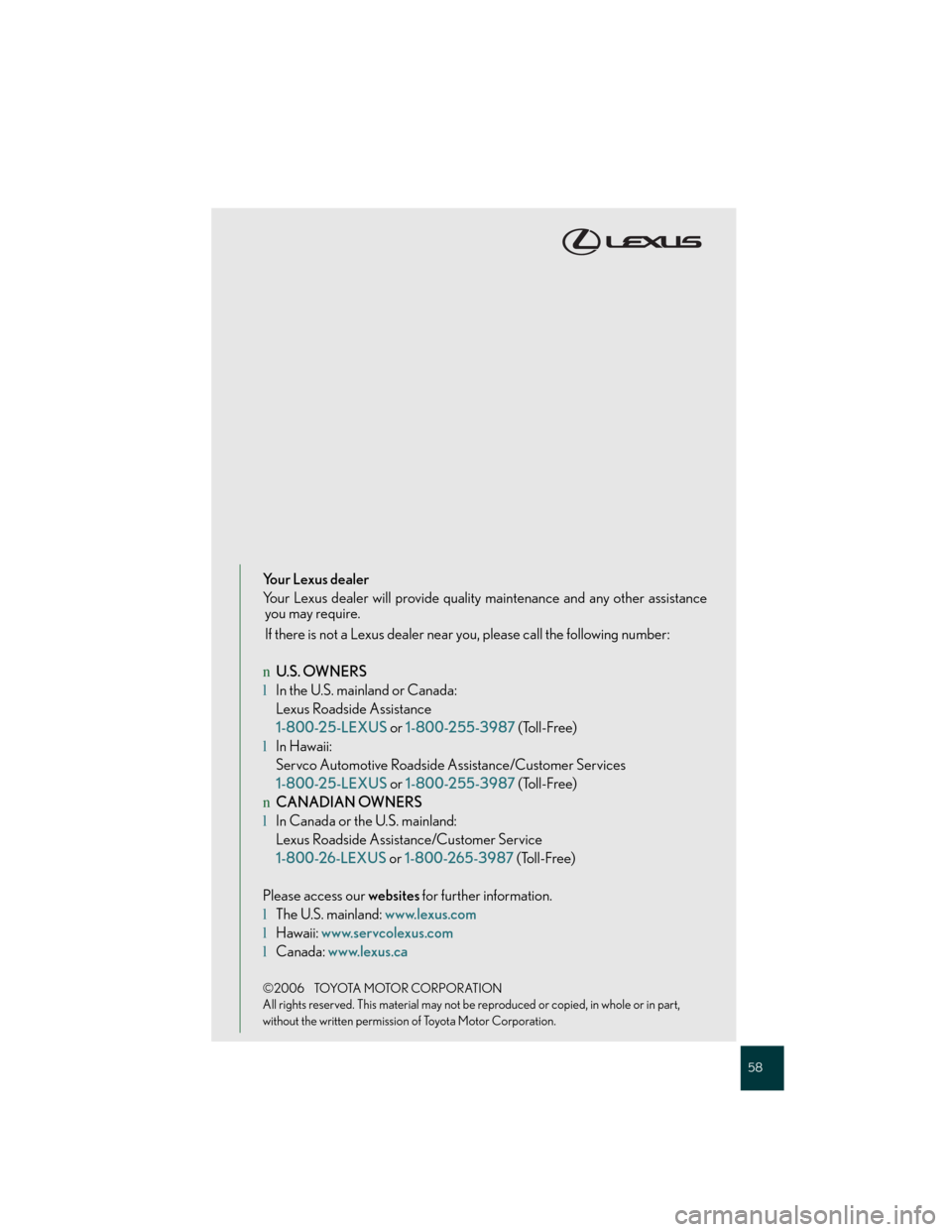

Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
nU.S. OWNERS
lIn the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
lIn Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
nCANADIAN OWNERS
lIn Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
lThe U.S. mainland: www.lexus.com
lHawaii: www.servcolexus.com
lCanada: www.lexus.ca
