Lexus GS350 2007 Other interior features / LEXUS 2007 GS430/350 QUICK REFERENCE MANUAL

Topic 5
Driving Comfort
41
Interior Lights
ON
OFF
The light comes on if a door is opened.
Rear Sunshade
To raise the rear sunshade, press the switch.
Press the switch again to lower it.
The sunshade automatically lowers to ensure visi-
bility when reversing.
Compass (If Equipped)
To display the compass, press and hold the AUTO
button for 3 or more seconds.
To cancel the display, press and hold the AUTO
button again for 3 or more seconds.
1
2
3

Topic 5
Driving Comfort
42
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.
Lexus Link System (If equipped)
nButtons
Vo i c e k e y p a d b u t t o n
Sends number tones to an automated phone
system for example to access voicemail, dur-
ing a phone call
Vo l u m e c o n t r o l
Adjusts your Lexus Link System audio volume
Phone button
• Makes or answers a phone call using the
hands-free personal calling service
• Ends a call
SERVICES button
• Contacts the Lexus Link Call Center for
information, directions or other services
• Records a conversation for later playback
The Lexus Link System is a communication service that uses the GPS (Global Position-
ing System) data and cellular service to provide you with safety, security and conve-
nience. Button operation and voice commands are used to operate the system. To
operate the system, follow the voice guidance instructions.
1
2
3
4

Topic 5
Driving Comfort
43
Emergency button
Makes a priority call to the Lexus Link Call
Center
nServices
The Lexus Link System offers the following services. For details about the services and sub-
scription, refer to the Owner’s Manual or call the Lexus Link Call Center at 1-800-25-
LEXUS (1-800-255-3987) (toll-free).
lAirbag deployment notification
If an airbag deploys, an emergency call is automatically placed to the Lexus Link Call
Center with your vehicle’s location. You do not need to press any buttons.
lEmergency assistance
When you press the Emergency button, a priority call is placed to the Lexus Link Call
Center with your vehicle’s location. At the Call Center, the Lexus Link Advisor can deter-
mine your vehicle’s location, communicate with you, and, if appropriate, contact the near-
est emergency service provider.
lStolen vehicle location assistance
If you vehicle is stolen, call the Lexus Link Call Center and then select the option for
Lexus Link.
lRemote horn/light and remote
door lock/unlock
The remote operations are performed by contacting the Lexus Link Call Center from the
outside of the vehicle. When necessary, call the Lexus Link Call Center and the select
the option for Lexus Link.
lAdvisor record
You can record a conversation with the Lexus Link Advisor.
lPersonal calling
A hands-free personal calling feature can be added to the Lexus Link System as an
option.
lOther services
Press the SERVICES button in the vehicle or call the Lexus Link Call Center and then
select the option for Lexus Link. The services provided will depend on the service plan
level.
5
The system is only operational in GPS (Global Positioning System) and cellular coverage
areas.

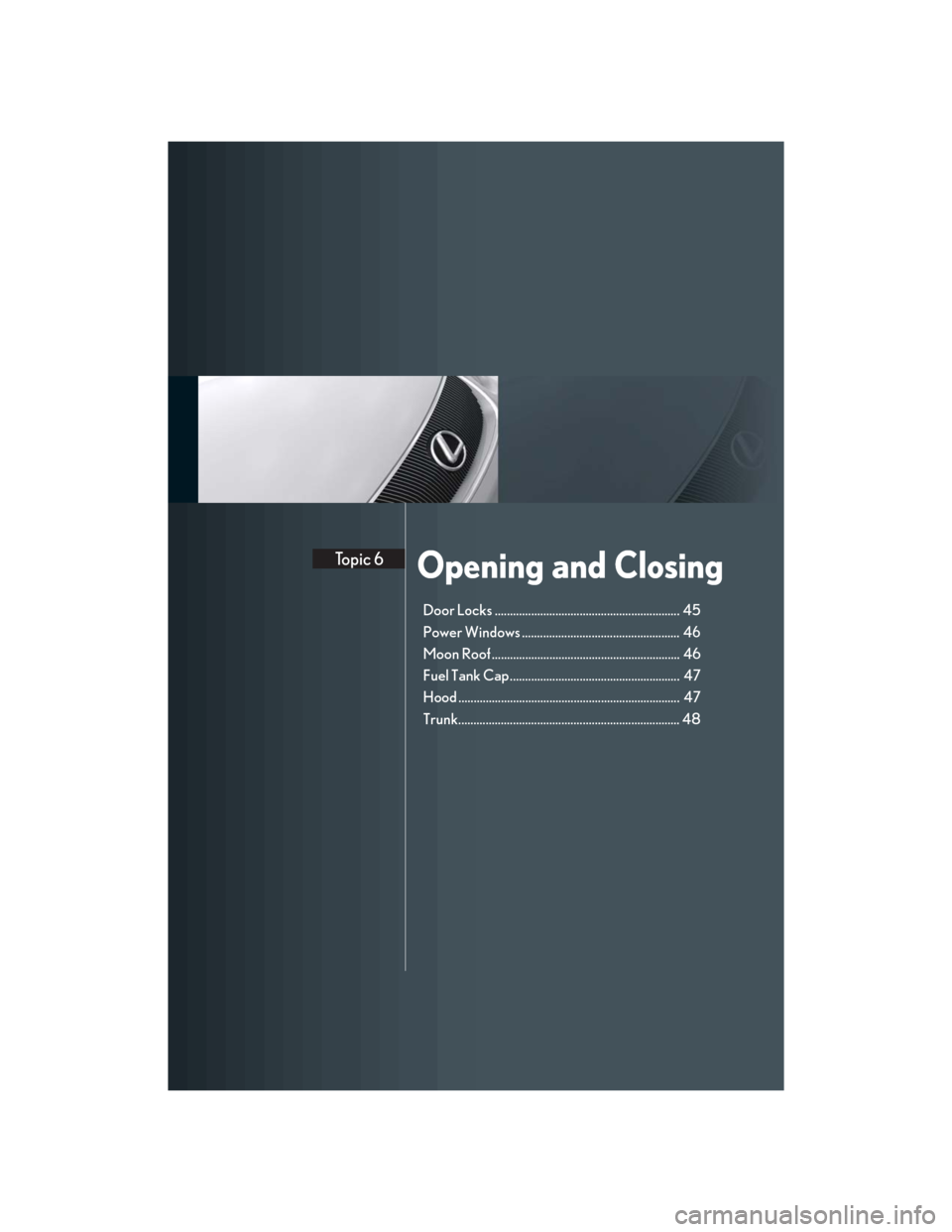

Opening and ClosingTopic 6
Door Locks ............................................................. 45
Power Windows .................................................... 46
Moon Roof .............................................................. 46
Fuel Tank Cap........................................................ 47
Hood ......................................................................... 47
Trunk......................................................................... 48

Topic 6
Opening and Closing
45
Door Locks
nLocking the vehicle from inside
Inside lock button
Locks
Unlocks
Door lock switch
Operates all door locks.
Locks
Unlocks
nLocking the vehicle from outside
Using the entry function or wireless remote control (P. 7 , 8 )
nRear door child-protector lock
Setting the switch to the LOCK position prevents
the rear doors from being opened from the inside.
1
2
1
2

Topic 6
Opening and Closing
46
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Powe r Wi n d ows
Powe r w i n d ow s w i t c h e s
To o p e n : press the switch.
To c l o s e : pull the switch up.
Fully pulling up and releasing the switches
causes the windows to close fully. Fully
pressing down and releasing the switches
causes the windows to open fully.
Window lock switch
The window lock switch disables the opera-
tion of all windows other than the driver’s
door window.
Moon Roof (If Equipped)
nOpening and closing
Open
Stops just before it is opened fully. Press the
switch again to fully open.
Close
To stop partway, press the switch lightly.
nTilt up and down
Tilt up
Tilt down
To stop partway, press the switch lightly.
1
2
1
2
1
2

Topic 6
Opening and Closing
47
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counter-
clockwise.
Hood
Pull the hood release lever.
Insert your fingers under the hood, pull the
hood catch and lift the hood.

Topic 6
Opening and Closing
48
Entering and Exiting
Before DrivingBefore Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and ClosingOpening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Tr u n k
nTrunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn OFF the main
switch in the glove box.
ON
OFF
When the trunk opener is disabled, the trunk can-
not be opened using the entry function or the
wireless remote control.
nEntry function and wireless remote control
P. 7 , 8
1
2

What to do if ...
49

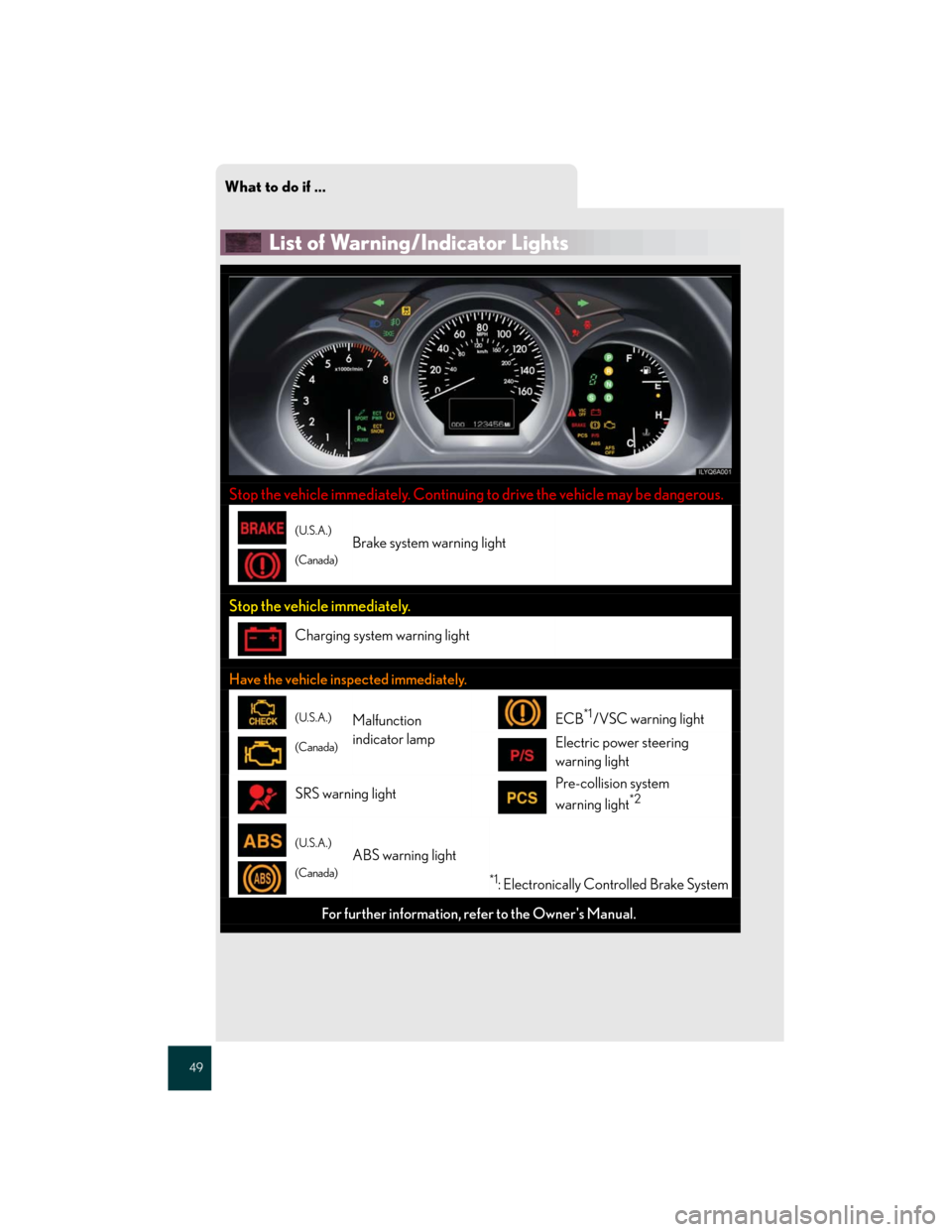

List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)Malfunction
indicator lampECB*1/VSC warning light
Electric power steering
warning light
SRS warning lightPre-collision system
warning light*2
(U.S.A.)
(Canada)ABS warning light
*1: Electronically Controlled Brake System
For further information, refer to the Owner's Manual.
ILYQ6A00

50
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s

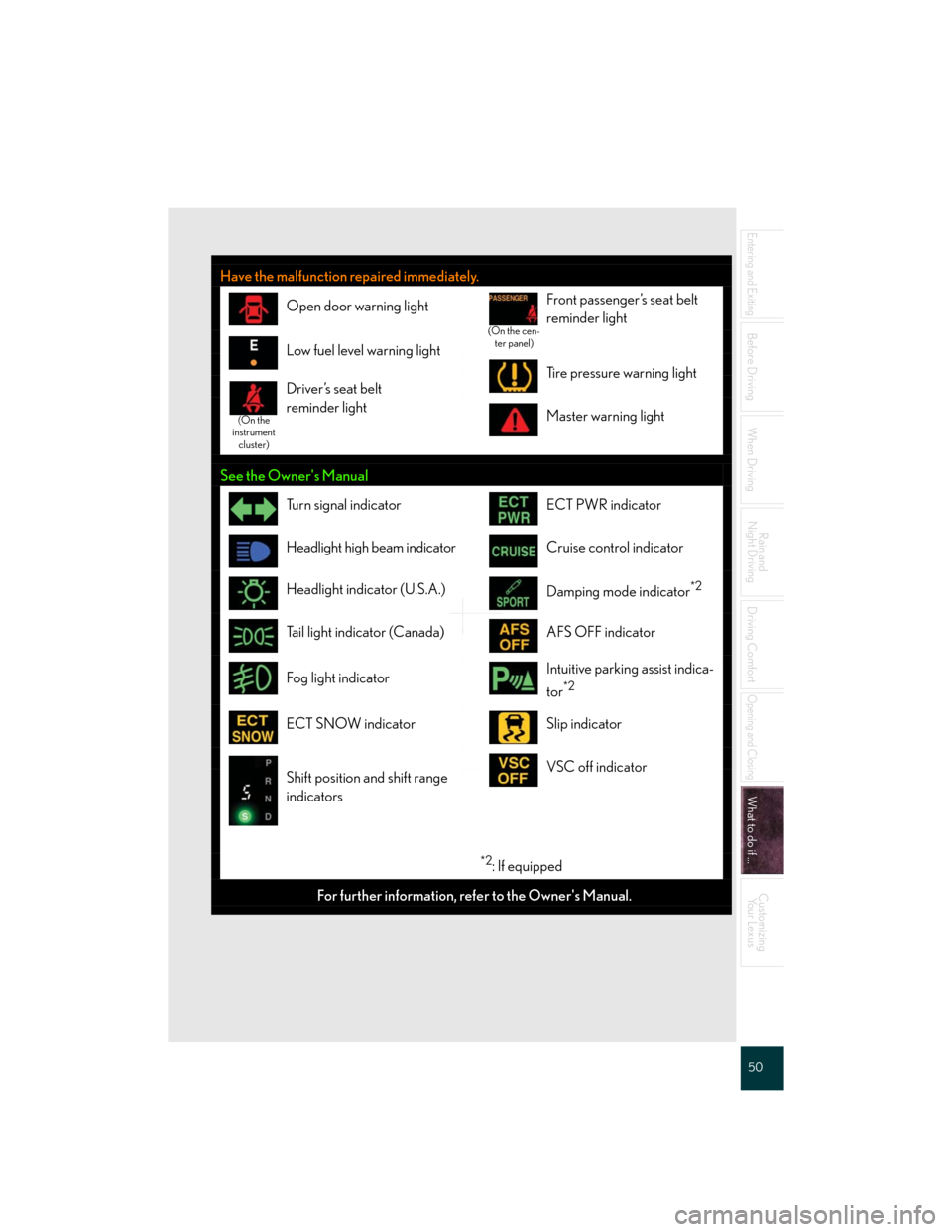

Have the malfunction repaired immediately.
Open door warning light
(On the cen-
ter panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
Tire pressure warning lighta
(On the
instrument
cluster)
Driver’s seat belt
reminder light
Master warning light
See the Owner's Manual
Tu r n s i g n a l i n d i c a t o rECT PWR indicator
Headlight high beam indicatorCruise control indicator
Headlight indicator (U.S.A.)Damping mode indicator*2
Tail light indicator (Canada)AFS OFF indicator
Fog light indicatorIntuitive parking assist indica-
tor
*2
ECT SNOW indicatorSlip indicator
Shift position and shift range
indicatorsVSC off indicator
*2: If equipped
For further information, refer to the Owner's Manual.
