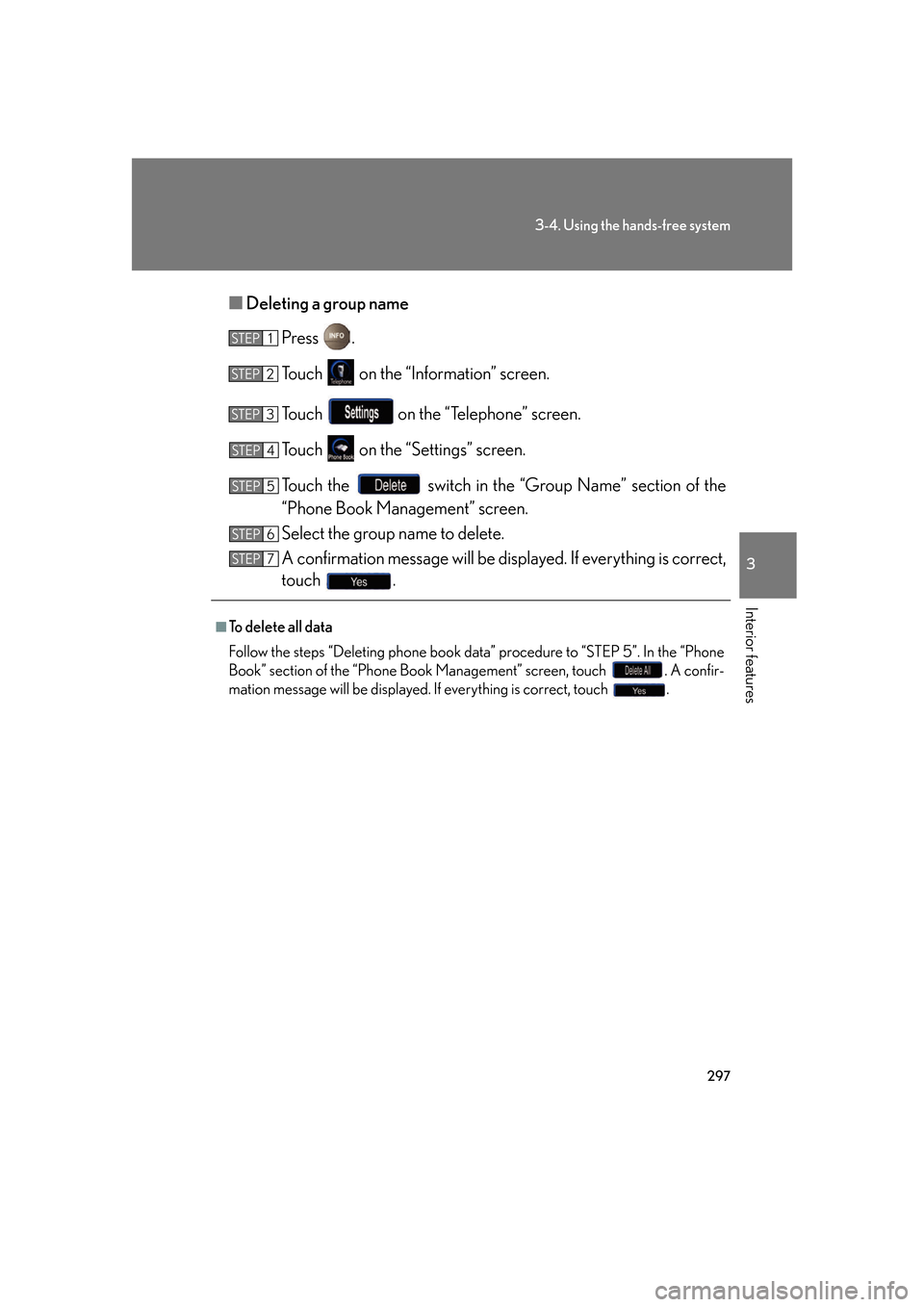

297
3-4. Using the hands-free system
3
Interior features
■Deleting a group name
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
Touch the switch in the “Group Name” section of the
“Phone Book Management” screen.
Select the group name to delete.
A confirmation message will be disp lay
ed. If everything is correct,
touch .
■To delete all data
Follow the steps “Deleting phone book data” procedure to “STEP 5”. In the “Phone
Boo

k” section of the “Phone Book Management” screen, touch . A confir-
mation message will be displayed. If everything is correct, touch .
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7

298
3-4. Using the hands-free system
Deleting the history
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
Select the data to delete from the list.
To delete data from the received calls history, touch , then
select the data to delete.
To u c h .
Check that everything is correct, then touch .
Changing the security settings
You can disable certain hands-free system functions. Use the security set-
tings when you do not wish other peop le to see the r
egistered data, for
example when having the vehi cle valet parked at a hotel.
To enable or disable security, the secu rity code (4 digits) is r
equired. The
default code is “0000”. Be sure to ch ange the security code before use.
STEP1
STEP2
STEP3
STEP4
STEP5
■To delete all data
Follow the steps “Deleting a group name” to “STEP 4”. Touch on the “Out-
going Calls” screen. To delete all received call history data, touch , then
touch . Check that everything is correct, then touch .
STEP6

299
3-4. Using the hands-free system
3
Interior features
■Changing the security code
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h in the “Secu-
rity Code” section.
Input the current security code,
and touch .
Input the new security code, and touch .
A confirmation message will appear . If e
verything is correct,
touch .
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
STEP8

300
3-4. Using the hands-free system
■Enabling security
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h in the “Phone Book Lock” section of the “P
hone
Book Lock” screen.
Input the security code, and touch .
■ Setting the security code to default
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h on the “Phone Book Lock” screen.
Input the security code on the “Security Code” screen, then
touch .
A confirmation message will appear . If e
verything is correct,
touch .
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7

301
3-4. Using the hands-free system
3
Interior features
■If the “Phone Book Lock” is set
If the security code is input and the “Phone Book Lock” set, the following functions
ar
e locked.
●Display of the phone book screen and transferring, registering, editing, deleting
the phone book data.
●Display of speed dial screen , registering, deleting the speed dial and speed dial -
ing.
●Display of the other party's name for calls being received or made.
●Displayed of dialed numbers screen and received calls screen, deleting dialed
numbers and received numbers.
●Display of phone information screen.
●Changing the security code.
The speed dial screen is not displa
yed while driving.
■When changing the security code
●Be sure to choose a number difficult for strangers to guess.
●Do not forget the security code. Even your Lexus dealer will be unable to dis -
able the security. If you do forget the code, initialize all personal data. ( P. 1 8 7 )

302
3-4. Using the hands-free system
Setting a Bluetooth® phone
■ Selecting a Bluetooth
® phone
If multiple Bluetooth
® phones are registered, follow the below proce -
dure to select the Bluetooth® phone to be used. You may only use one
phone at a time.
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h .
Select the phone to be use, then
touch .
If no phones are registered,
“Empty” will be displayed.
If “Bluetooth* connection success -
ful” is displayed, registration was
succes
sful.
If another Bluetooth
® phone is
already connected, a confirmation
message is displayed. Touch or .
*: Bluetooth is a registered trade -
mark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
STEP4
STEP5

303
3-4. Using the hands-free system
3
Interior features
■Displaying Bluetooth® information
You can check the device address and device name.
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
On the “Select Telephone” screen, select the desir
ed phone and
touch .
To change the device name, touch
in the “Device Name”
section, and input the name on the
“Name” scr
een (max. 20 charac -
ters).
■ T
o change the Bluetooth® settings
You can change the device name and passkey.
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP1
STEP2
STEP3
STEP4

304
3-4. Using the hands-free system
To change the device name, touch in the “Device Name”
section, and input the name on the
“Name” scr
een (max. 20 charac -
ters).
To change the passkey, touch
in the “Passkey” section,
and input 4 - 8 digits on the “Pass -
key” screen.
■ Setting the Bluetooth® settings to default
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h on the “Bluetooth* Settings” screen.
A confirmation message is display
ed. If everything is correct,
touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

305
3-4. Using the hands-free system
3
Interior features
■To delete the Bluetooth® settings
Press .
To u c h on the “Information” screen.
To u c h on the “Telephone” screen.
To u c h on the “Settings” screen.
To u c h in the “Bluetooth* Telephone” section of the 
“Bluetooth* Settings” screen.
On the “Delete Telephone” screen, select the phone to delete.
To check the device address, touch .
If you touch , a confirmation message is display ed. If every-
thing is correct, touch .
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7

343
3-7. Other interior features
3
Interior features
Lexus Link System (if equipped)
The Lexus Link System is a communication service that uses Global Posi-
tioning System (GPS) data and cellular service to provide you with safety,
s
ecurity and convenience. This system is only operational in GPS and cellu-
lar coverage areas. Button operation and voice commands are used to
ope
rate the system. To operate the system, follow the voice guidance
instructions. For details about service and subscription, call the Lexus Link
Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free).
■ Buttons
Voice keypad button
Volume control
Phone button
“SERVICES” button
Emergency button
■ Ser
vices
The Lexus Link System offers the follo
wing services.
● Airbag deplo
yment notification ( P. 3 4 5 )
● Emer
gency assistance ( P. 3 4 5)
● Stolen v
ehicle location assistance ( P. 3 4 6 )
● R
emote horn/lights and remote door lock/unlock ( P. 3 4 6)
● Ad
visor record ( P. 3 4 7 )
● P
ersonal calling ( P. 3 4 7 )
● Other ser
vices ( P. 3 4 6 )
Operating the Lexus Link Sy stem during a Bluetooth phone call will ter-
minate the Bluetooth phone call.
