Lexus GS350 2008 Owner's Manual

120
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm
NOTICE
■If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
●It may be difficult to control your vehicle.
●The vehicle will make abnormal sounds.
●The vehicle will behave abnormally.
Replace a flat tire with a new one. ( →P. 5 1 5 )
■When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may cause the
following serious damage to the vehicle.
●Engine stalling
●Short in electrical components
●Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be sure to
have your Lexus dealer check the following.
●Brake function
●Changes in quantity and quality of oil and fluid used for the engine, automatic
transmission, transfer (4WD models), differentials, etc.
●Lubricant condition for the propeller shaft (4WD models), bearings and suspen-
sion joints (where possible) and the function of all joints, bearings, etc.
GS_U_G.book Page 120 Thursday, June 19, 2008 12:54 PM

121
2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Engine (ignition) switch
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 121 Thursday, June 19, 2008 12:54 PM

122
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm
■Changing “ENGINE STAR T STOP” switch mode
Modes can be switched by pressing the “ENGINE START STOP” switch
when carrying the electronic key on your person. (The engine can be
started in any mode by operating the switch at the same time as depressing
the brake pedal.)
OFF*
Emergency flashers can be
used.
ACCESSORY mode
Some electrical components
such as the audio system can be
used.
The “ENGINE START STOP”
switch indicator turns amber.
IGNITION ON mode
All electrical components can
be used.
The “ENGINE START STOP”
switch indicator turns amber.
*: The power cannot be switched to
OFF unless the shift lever is in “P”.
GS_U_G.book Page 122 Thursday, June 19, 2008 12:54 PM

123
2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm
■If the engine does not start
The immobilizer system may not have been deactivated. (→P. 7 3 )
■When the steering lock cannot be released
■When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■Auto power OFF function
If the vehicle is left in the ACCESSORY mode for more than an hour with the shift
lever in “P”, the “ENGINE START STOP” switch will automatically turn OFF.
■Electronic key battery depletion
→P. 2 8
■When the electronic key battery is discharged
→P. 4 4 0
■Conditions affecting operation
→P. 2 6
■Leak detection pump
Several hours after the engine is turned off, you may hear a sound coming from
underneath the luggage compartment for several minutes. This is normal operation
and does not indicate a malfunction. The green indicator light on the “ENGINE
START STOP” switch will flash and a mes-
sage will be shown on the multi-information
display. Press the “ENGINE START STOP”
switch again while turning the steering wheel
left and right.
GS_U_G.book Page 123 Thursday, June 19, 2008 12:54 PM

124
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the accelera-
tor pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Stopping the engine in an emergency
If you want to stop the engine in an emergency while driving the vehicle, push and
hold the “ENGINE START STOP” switch for more than 3 seconds.
However, do not touch the “ENGINE START STOP” switch while driving except in
an emergency. If the engine stops while the vehicle is being driven, this could lead to
an unexpected accident.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNITION
ON mode for long periods if the engine is not running.
■When starting the engine
●Do not race the engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
GS_U_G.book Page 124 Thursday, June 19, 2008 12:54 PM

125
2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm

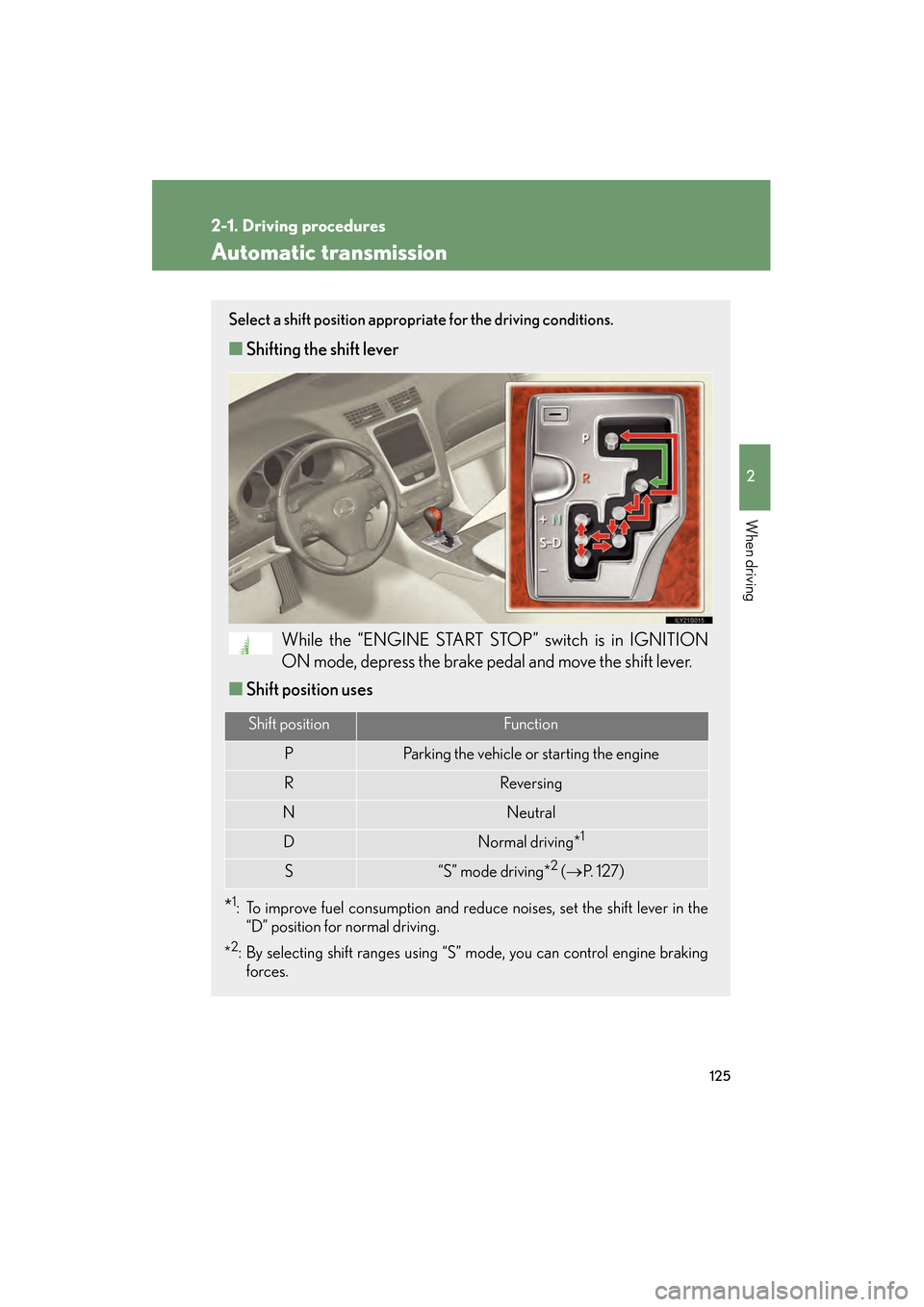

Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the “ENGINE START STOP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift lever.
■ Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
*
2: By selecting shift ranges using “S” mode, you can control engine braking forces.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*1
S“S” mode driving*2 ( → P. 1 2 7 )
GS_U_G.book Page 125 Thursday, June 19, 2008 12:54 PM

126
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm

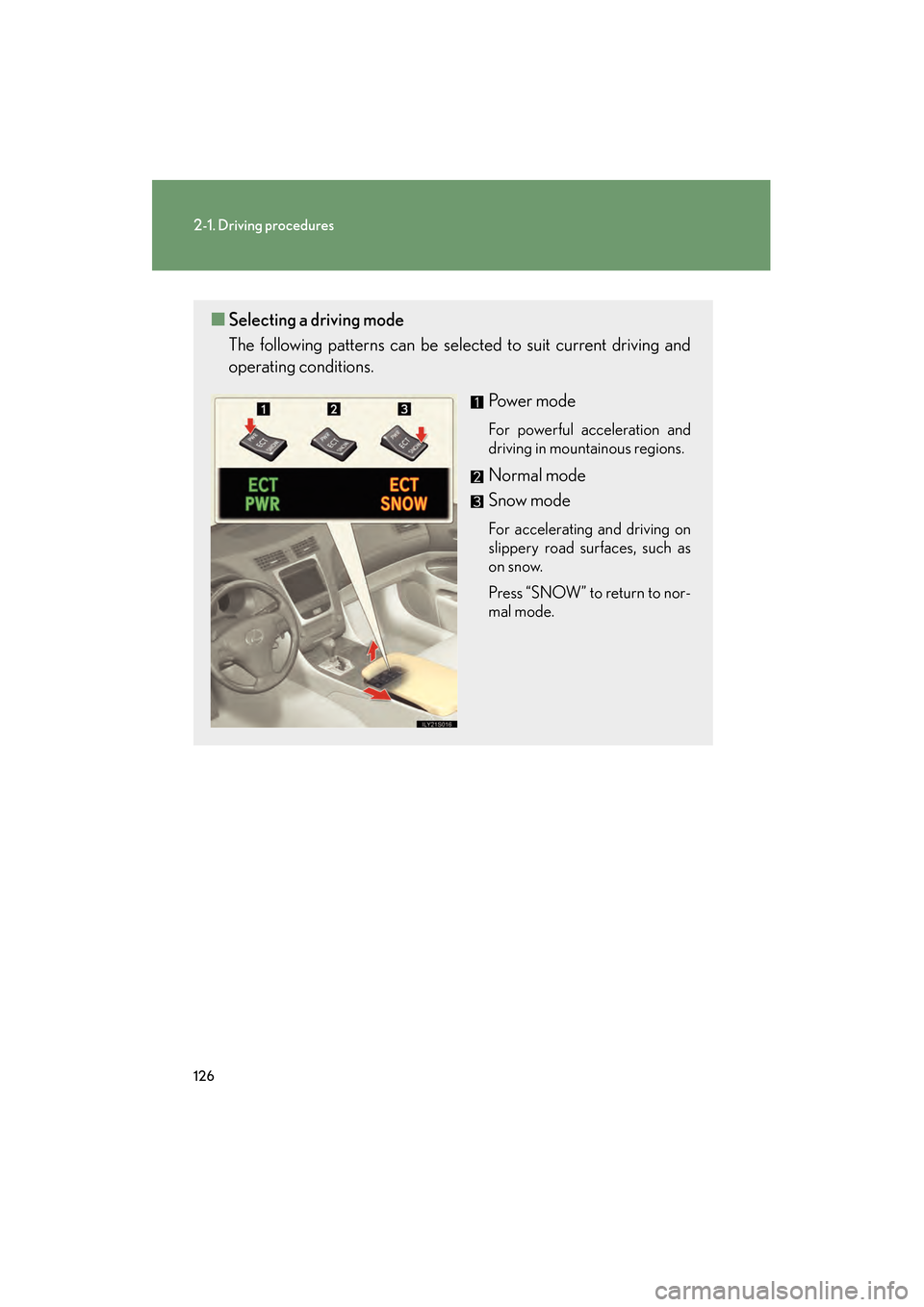

■Selecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous regions.
Normal mode
Snow mode
For accelerating and driving on
slippery road surfaces, such as
on snow.
Press “SNOW” to return to nor-
mal mode.
GS_U_G.book Page 126 Thursday, June 19, 2008 12:54 PM

127
2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm

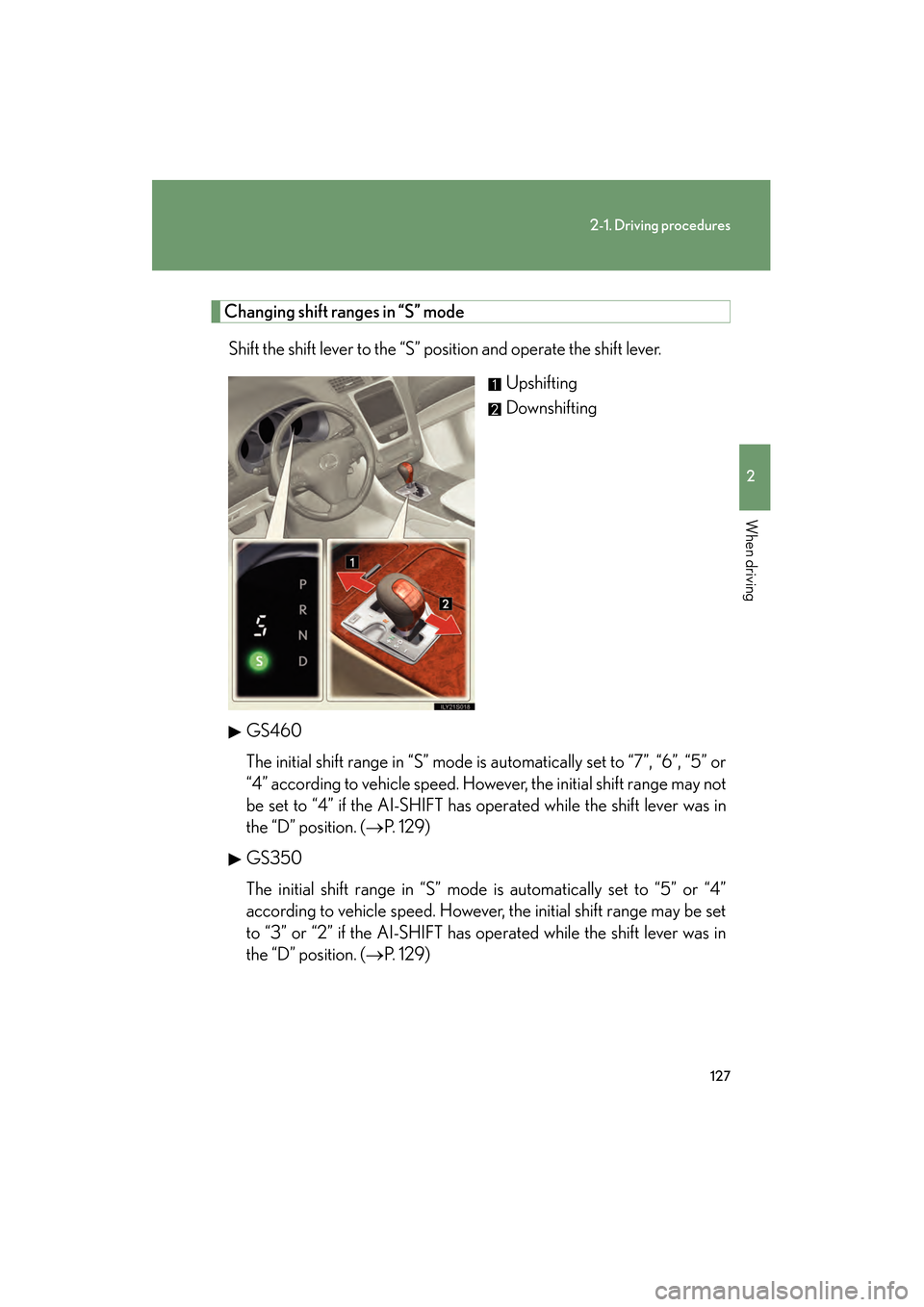

Changing shift ranges in “S” modeShift the shift lever to the “S” position and operate the shift lever. Upshifting
Downshifting
GS460
The initial shift range in “S” mode is automatically set to “7”, “6”, “5” or
“4” according to vehicle speed. However, the initial shift range may not
be set to “4” if the AI-SHIFT has operated while the shift lever was in
the “D” position. ( →P. 129)
GS350
The initial shift range in “S” mode is automatically set to “5” or “4”
according to vehicle speed. However, the initial shift range may be set
to “3” or “2” if the AI-SHIFT has operated while the shift lever was in
the “D” position. ( →P. 129)
GS_U_G.book Page 127 Thursday, June 19, 2008 12:54 PM

128
2-1. Driving procedures
GS_G_U
June 19, 2008 12:54 pm

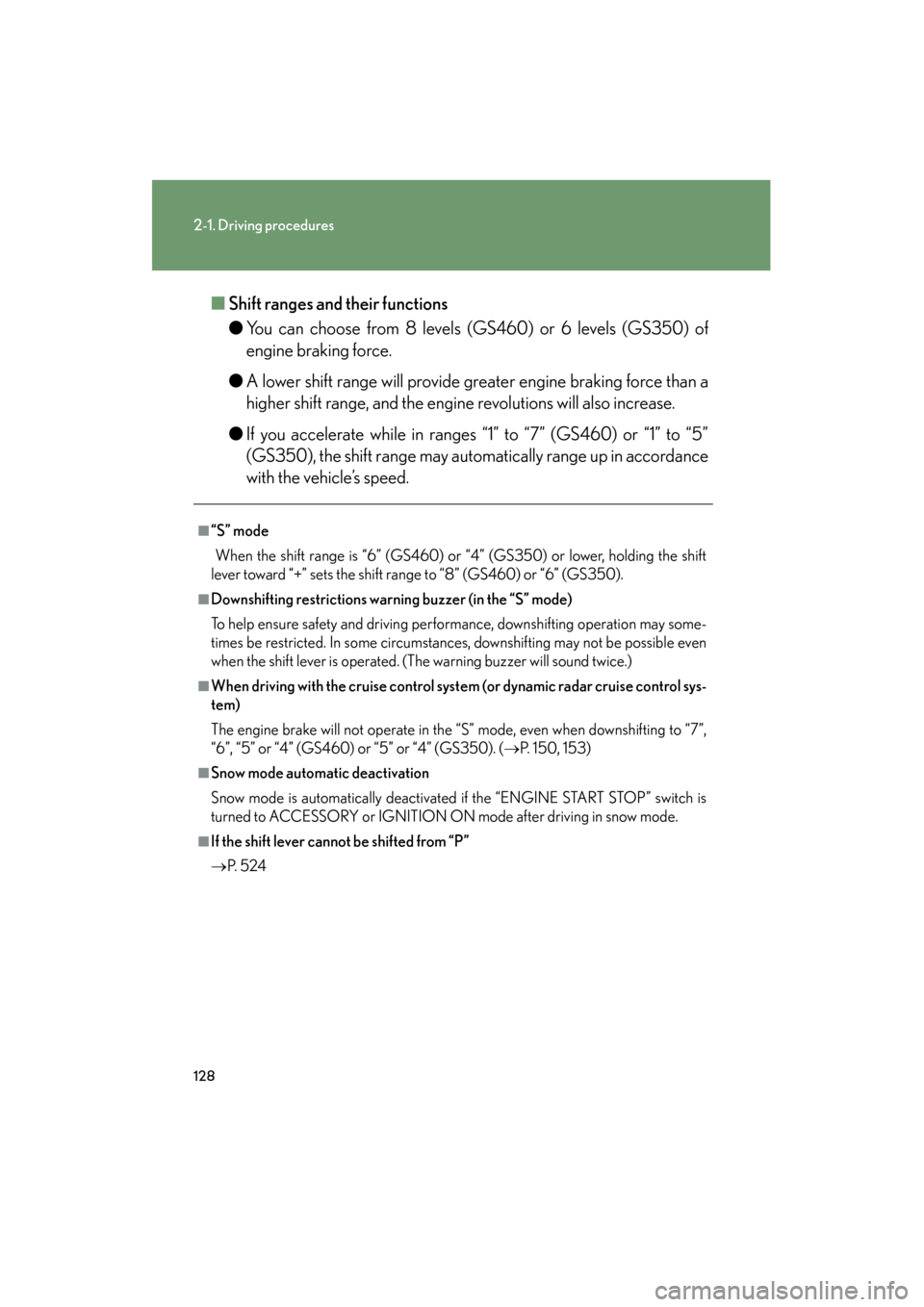

■Shift ranges and their functions
●You can choose from 8 levels (GS460) or 6 levels (GS350) of
engine braking force.
● A lower shift range will provide greater engine braking force than a
higher shift range, and the engine revolutions will also increase.
● If you accelerate while in ranges “1” to “7” (GS460) or “1” to “5”
(GS350), the shift range may automatically range up in accordance
with the vehicle’s speed.
■“S” mode
When the shift range is “6” (GS460) or “4” (GS350) or lower, holding the shift
lever toward “+” sets the shift range to “8” (GS460) or “6” (GS350).
■Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (The warning buzzer will sound twice.)
■When driving with the cruise control syst em (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “7”,
“6”, “5” or “4” (GS460) or “5” or “4” (GS350). ( →P. 150, 153)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the “ENGINE START STOP” switch is
turned to ACCESSORY or IGNITION ON mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
→ P. 5 2 4
GS_U_G.book Page 128 Thursday, June 19, 2008 12:54 PM

129
2-1. Driving procedures
2
When driving
GS_G_U
June 19, 2008 12:54 pm

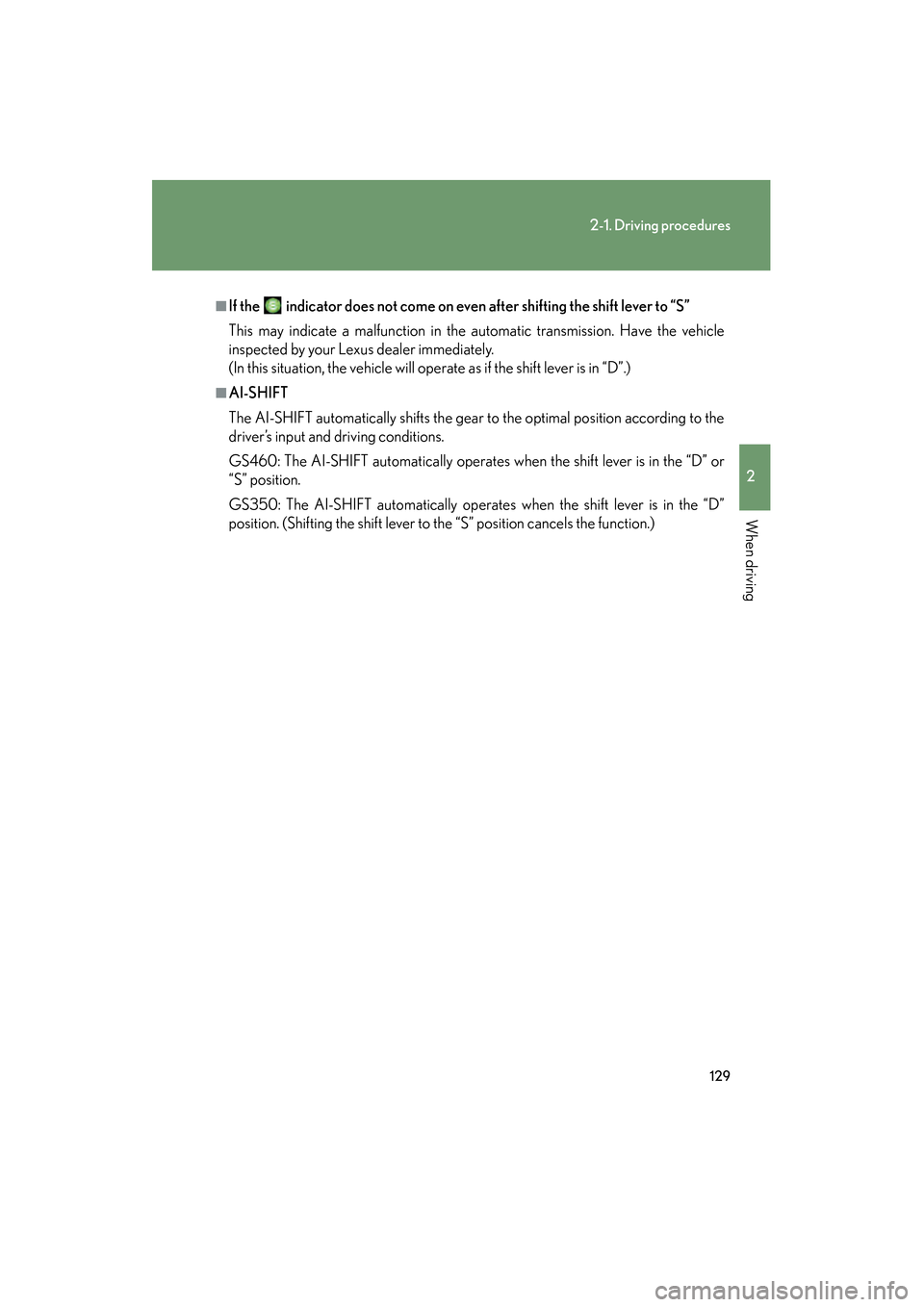

■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the automatic transmission. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
■AI-SHIFT
The AI-SHIFT automatically shifts the gear to the optimal position according to the
driver’s input and driving conditions.
GS460: The AI-SHIFT automatically operates when the shift lever is in the “D” or
“S” position.
GS350: The AI-SHIFT automatically operates when the shift lever is in the “D”
position. (Shifting the shift lever to the “S” position cancels the function.)
GS_U_G.book Page 129 Thursday, June 19, 2008 12:54 PM
