140
2-2. Instrument cluster
GS_G_U
June 19, 2008 12:54 pm

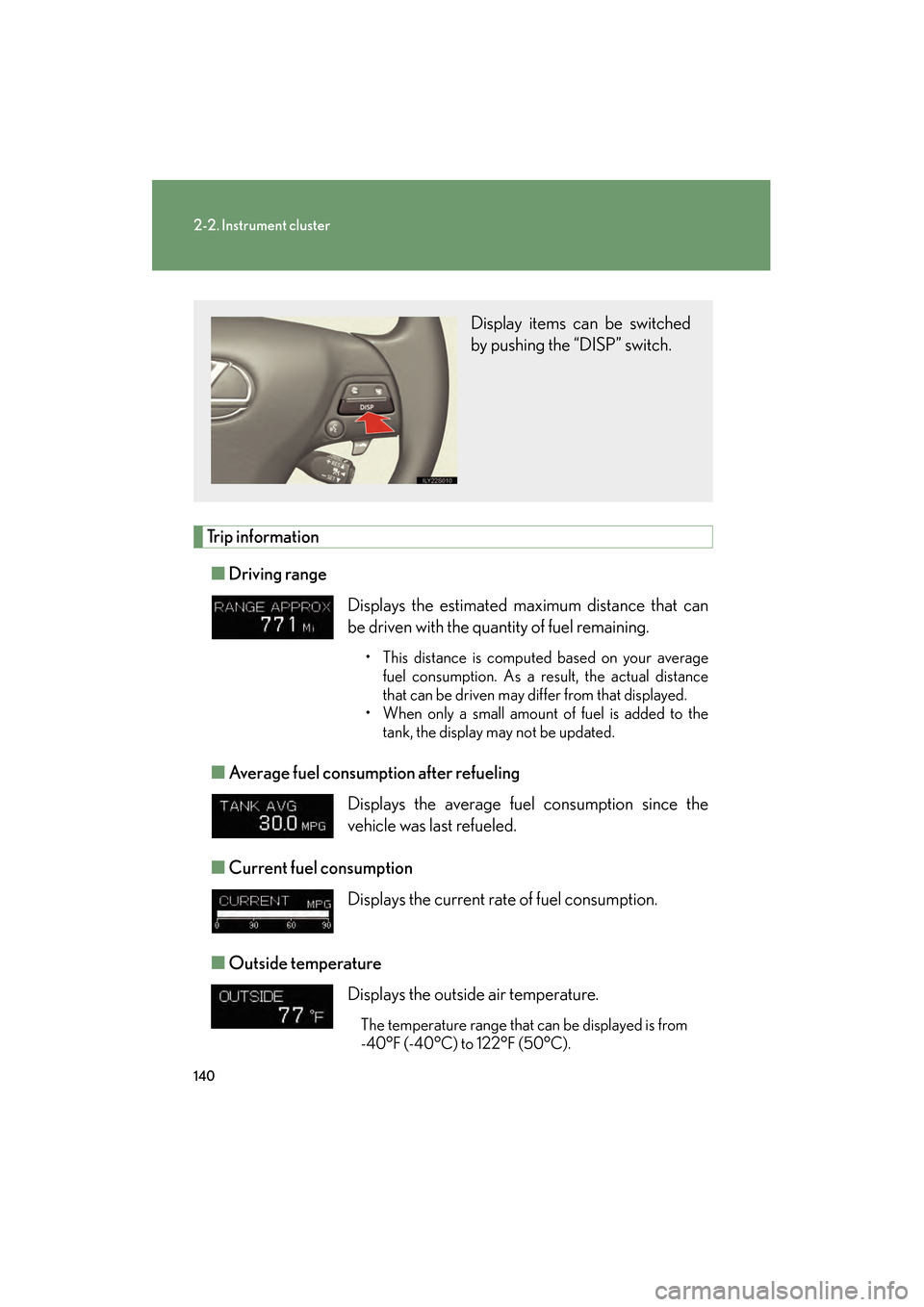

Trip information■ Driving range
■ Average fuel consumption after refueling
■ Current fuel consumption
■ Outside temperature
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
vehicle was last refueled.
Displays the current rate of fuel consumption.
Displays the outside air temperature.
The temperature range that can be displayed is from
-40°F (-40°C) to 122°F (50°C).
Display items can be switched
by pushing the “DISP” switch.
GS_U_G.book Page 140 Thursday, June 19, 2008 12:54 PM

141
2-2. Instrument cluster
2
When driving
GS_G_U
June 19, 2008 12:54 pm
■System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECK” is displayed while system operation is checked. When the system check
is complete, “COMPLETED” is displayed before returning to the normal screen.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
GS_U_G.book Page 141 Thursday, June 19, 2008 12:54 PM

142
GS_G_U
June 19, 2008 12:54 pm
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,tail, license plate and
instrument panel lights
turn on.
The headlights and all lights listed above turn
on.
The headlights and all the lights listed above turn
on and off automatically.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
U.S.A .
Canada
GS_U_G.book Page 142 Thursday, June 19, 2008 12:54 PM

143
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 19, 2008 12:54 pm
AFS (Adaptive Front lighting System) (if equipped)AFS improves visibility at intersections and on curves by automatically
adjusting the level of the headlights according to vehicle speed and the
degree of the tire angle that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the switch to turn it off.
The indicator turns on when
the AFS is deactivated.
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS_U_G.book Page 143 Thursday, June 19, 2008 12:54 PM

144
2-3. Operating the lights and windshield wipers
GS_G_U
June 19, 2008 12:54 pm
■Automatic light off system
The headlights and tail lights turn off 30 seconds after all doors are closed if the
“ENGINE START STOP” switch has been switched to ACCESSORY mode or
turned OFF while the headlights are turned on. (The lights turn off immediately if
the button on the key is pressed after all doors are locked.)
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to the or position.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes...
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 5 7 2 )
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary when the engine is off.
GS_U_G.book Page 144 Thursday, June 19, 2008 12:54 PM

145
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 19, 2008 12:54 pm

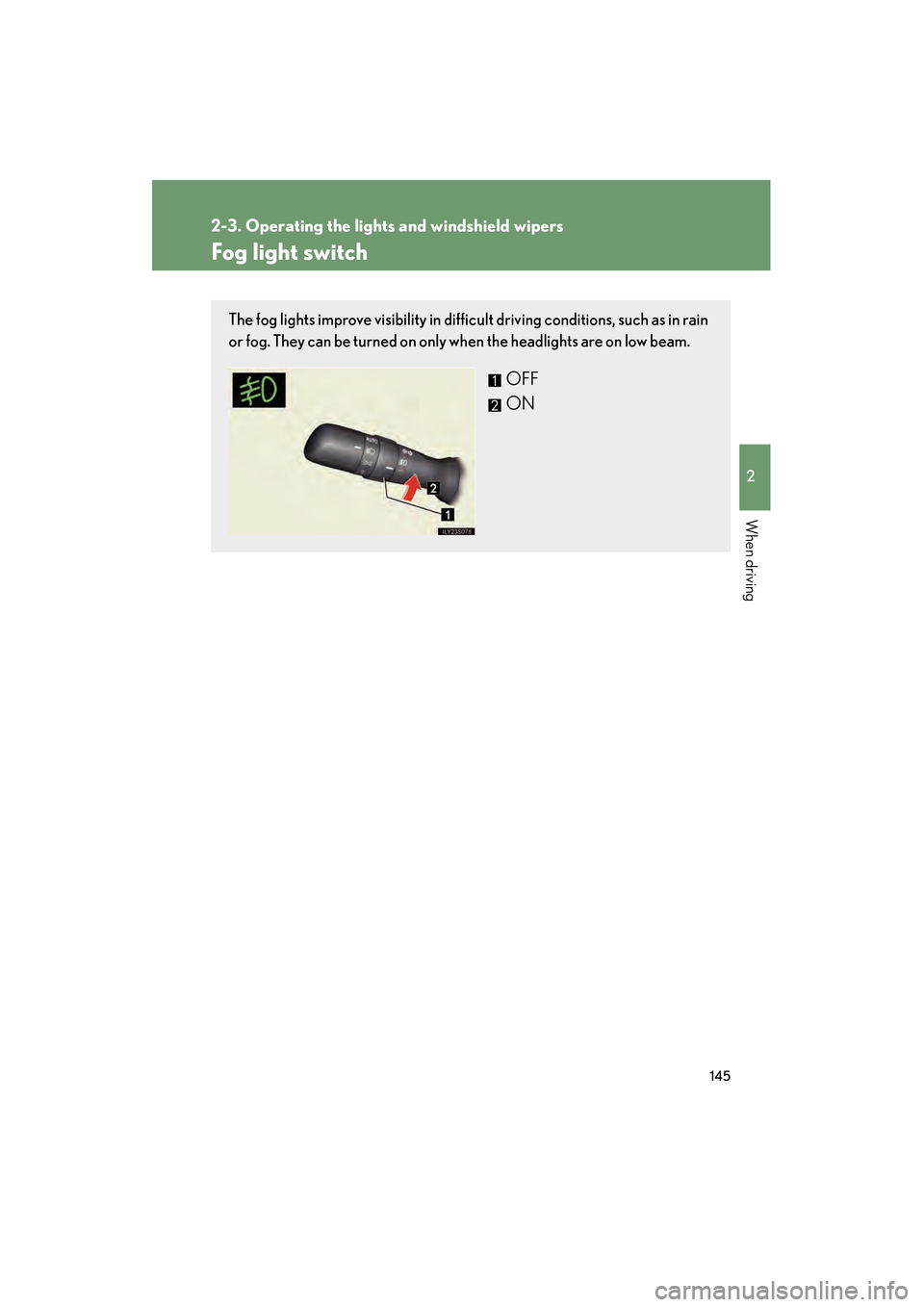

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON
GS_U_G.book Page 145 Thursday, June 19, 2008 12:54 PM

146
2-3. Operating the lights and windshield wipers
GS_G_U
June 19, 2008 12:54 pm
Windshield wipers and washer
■Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Decreases the intermittent
windshield wiper frequency
Increases the intermittent
windshield wiper frequency
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation
■ Rain-sensing windshield wipers
With “AUTO” selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Sensor sensitivity (low)
Sensor sensitivity (high)
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Wash/wipe operation
GS_U_G.book Page 146 Thursday, June 19, 2008 12:54 PM

147
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 19, 2008 12:54 pm
■The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more
time after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■Effects of vehicle speed on wiper operation
Vehicle speed affects the following even when the wipers are not “AUTO” mode.
●Intermittent wiper interval ( mode)
●Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
With selected, wiper operation will be switched from low speed to intermit-
tent wiper operation only when the vehicle is stationary.
■Rain drop sensor (vehicles equipped with rain-sensing windshield wipers)
The sensor judges the amount of raindrops.
GS_U_G.book Page 147 Thursday, June 19, 2008 12:54 PM

148
2-3. Operating the lights and windshield wipers
GS_G_U
June 19, 2008 12:54 pm
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
■In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than 176°F
[80 °C]) or cold (at less than 14 °F [-10 °C]).
■Customization that can be configured at Lexus dealer
Settings (e.g. drip prevention function) can be changed.
(Customizable features →P. 5 7 3 )
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
GS_U_G.book Page 148 Thursday, June 19, 2008 12:54 PM

149
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U
June 19, 2008 12:54 pm
Headlight cleaner switch (if equipped)
■The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the headlight
switch is turned ON.
NOTICE
■When the washer fluid tank is empty
Do not use this function, as the washer fluid pump may overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
GS_U_G.book Page 149 Thursday, June 19, 2008 12:54 PM
