Lexus GS350 2008 Owner's Manual

100
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm

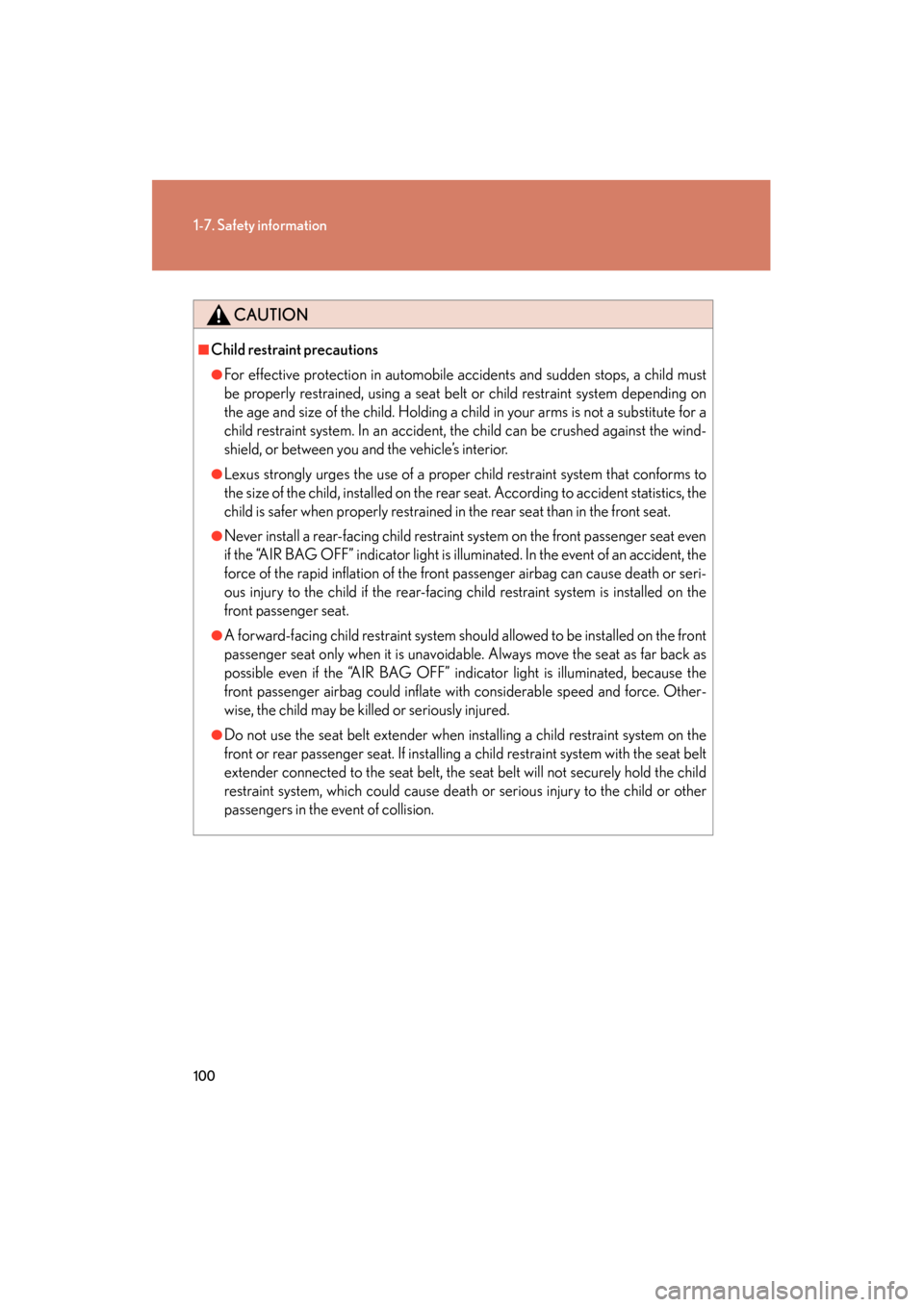

CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illuminated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or seri-
ous injury to the child if the rear-facing child restraint system is installed on the
front passenger seat.
●A forward-facing child restraint system should allowed to be installed on the front
passenger seat only when it is unavoidable. Always move the seat as far back as
possible even if the “AIR BAG OFF” indicator light is illuminated, because the
front passenger airbag could inflate with considerable speed and force. Other-
wise, the child may be killed or seriously injured.
●Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of collision.
GS_U_G.book Page 100 Thursday, June 19, 2008 12:54 PM

101
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm

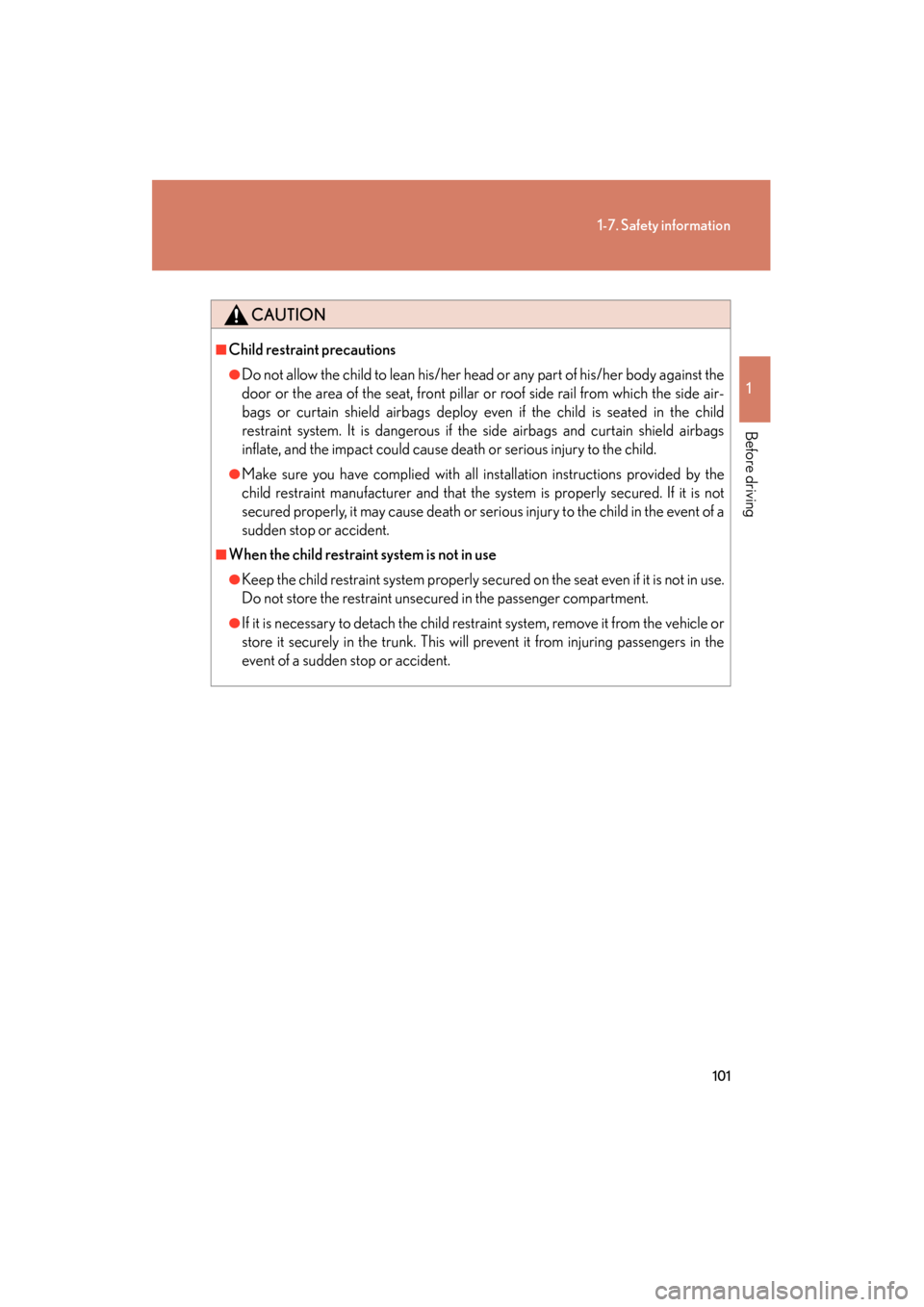

CAUTION
■Child restraint precautions
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillar or roof side rail from which the side air-
bags or curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags and curtain shield airbags
inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the restraint unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop or accident.
GS_U_G.book Page 101 Thursday, June 19, 2008 12:54 PM

102
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outboard rear seats using a seat belt or a child
restraint lower anchors belt. Attach the top strap when installing a child
restraint.
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt)
Child restraint lower anchors
Lower anchors are provided for
the outboard rear seats. (But-
tons displaying the location of
the anchors are attached to the
seats.)
Anchor bracket
(for top strap)
Anchor brackets are provided
for all rear seats.
GS_U_G.book Page 102 Thursday, June 19, 2008 12:54 PM

103
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm

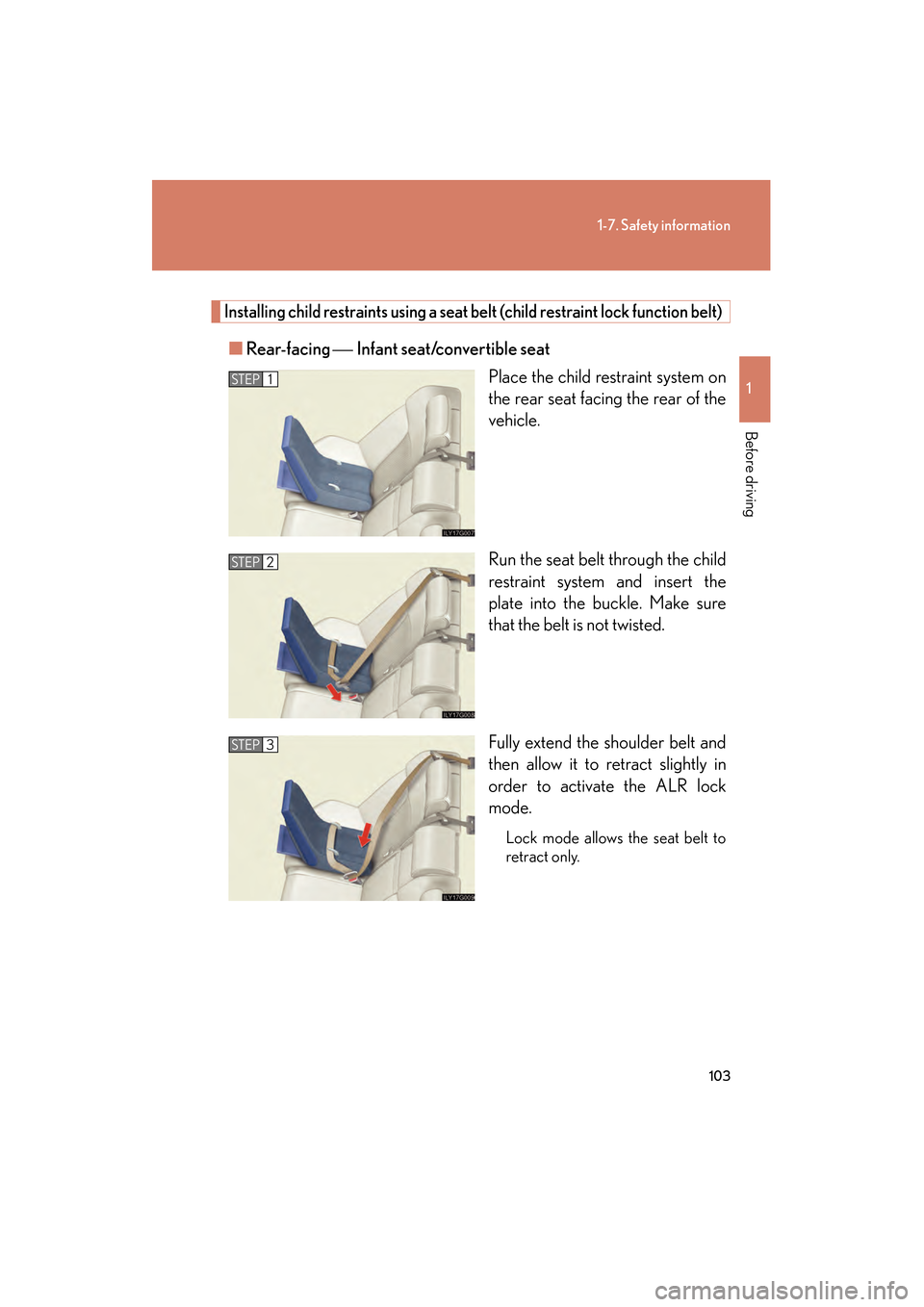

Installing child restraints using a seat belt (child restraint lock function belt)
■Rear-facing  Infant seat/convertible seat
Place the child restraint system on
the rear seat facing the rear of the
vehicle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder belt and
then allow it to retract slightly in
order to activate the ALR lock
mode.
Lock mode allows the seat belt to
retract only.
STEP1
STEP2
STEP3
GS_U_G.book Page 103 Thursday, June 19, 2008 12:54 PM

104
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing  Convertible seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder strap and
then allow it to retract slightly into
the ALR lock mode.
Lock mode allows the seat belt to
retract only.
STEP4
STEP1
STEP2
STEP3
GS_U_G.book Page 104 Thursday, June 19, 2008 12:54 PM

105
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm

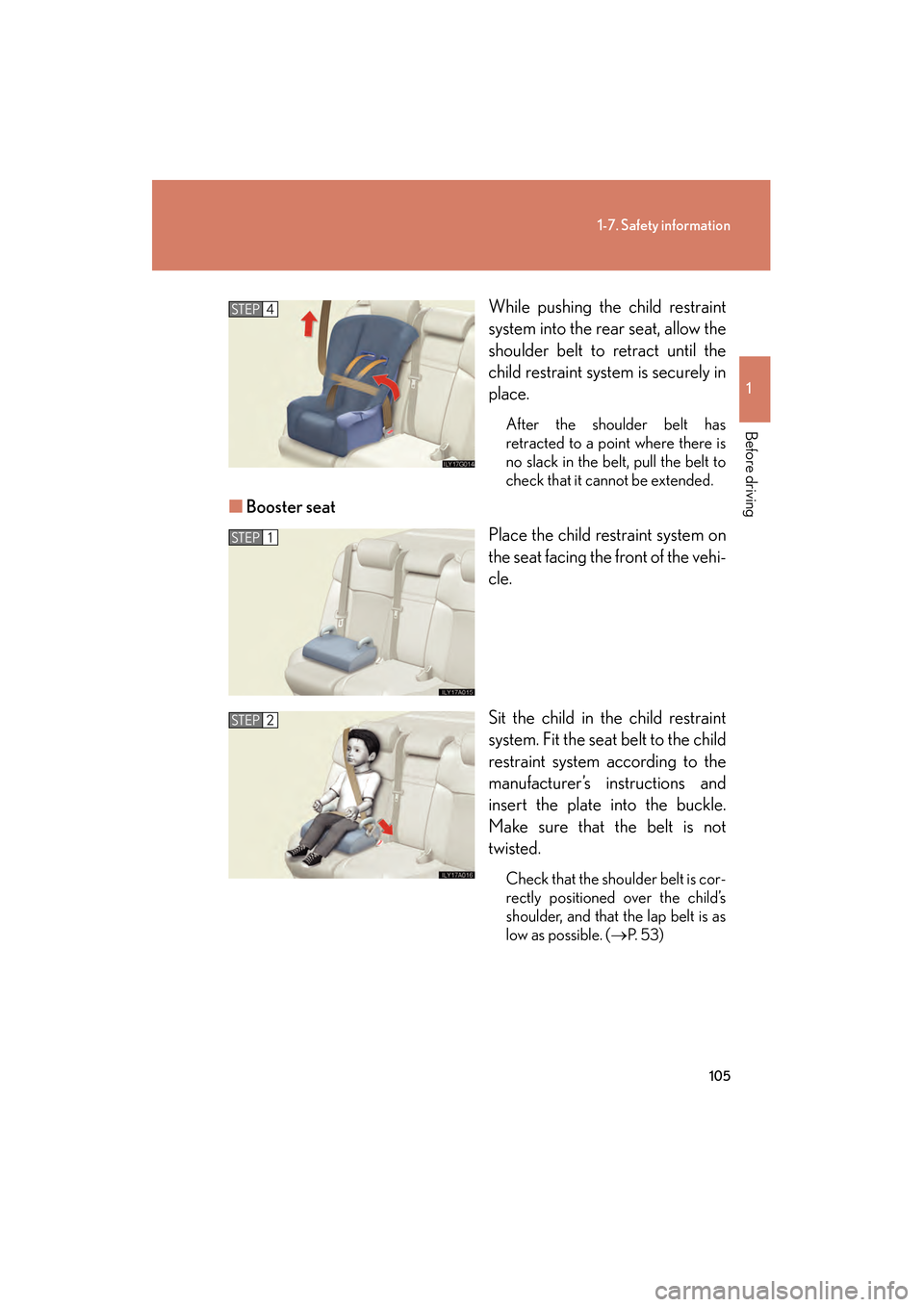

While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Booster seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder, and that the lap belt is as
low as possible. (→
P. 5 3)
STEP4
STEP1
STEP2
GS_U_G.book Page 105 Thursday, June 19, 2008 12:54 PM

106
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm

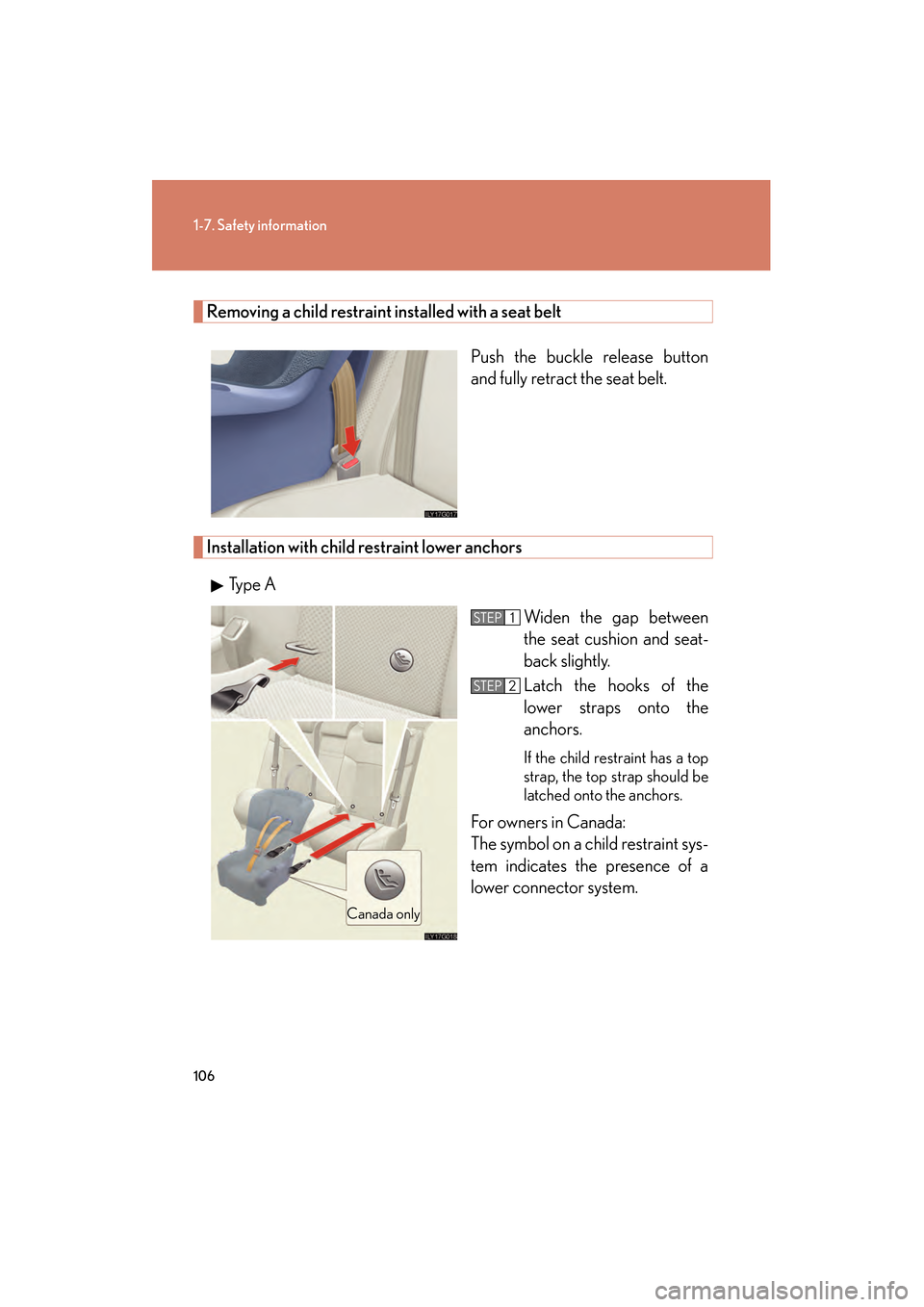

Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Installation with child restraint lower anchors
Type A Widen the gap between
the seat cushion and seat-
back slightly.
Latch the hooks of the
lower straps onto the
anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Canada only
STEP1
STEP2
GS_U_G.book Page 106 Thursday, June 19, 2008 12:54 PM

107
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm

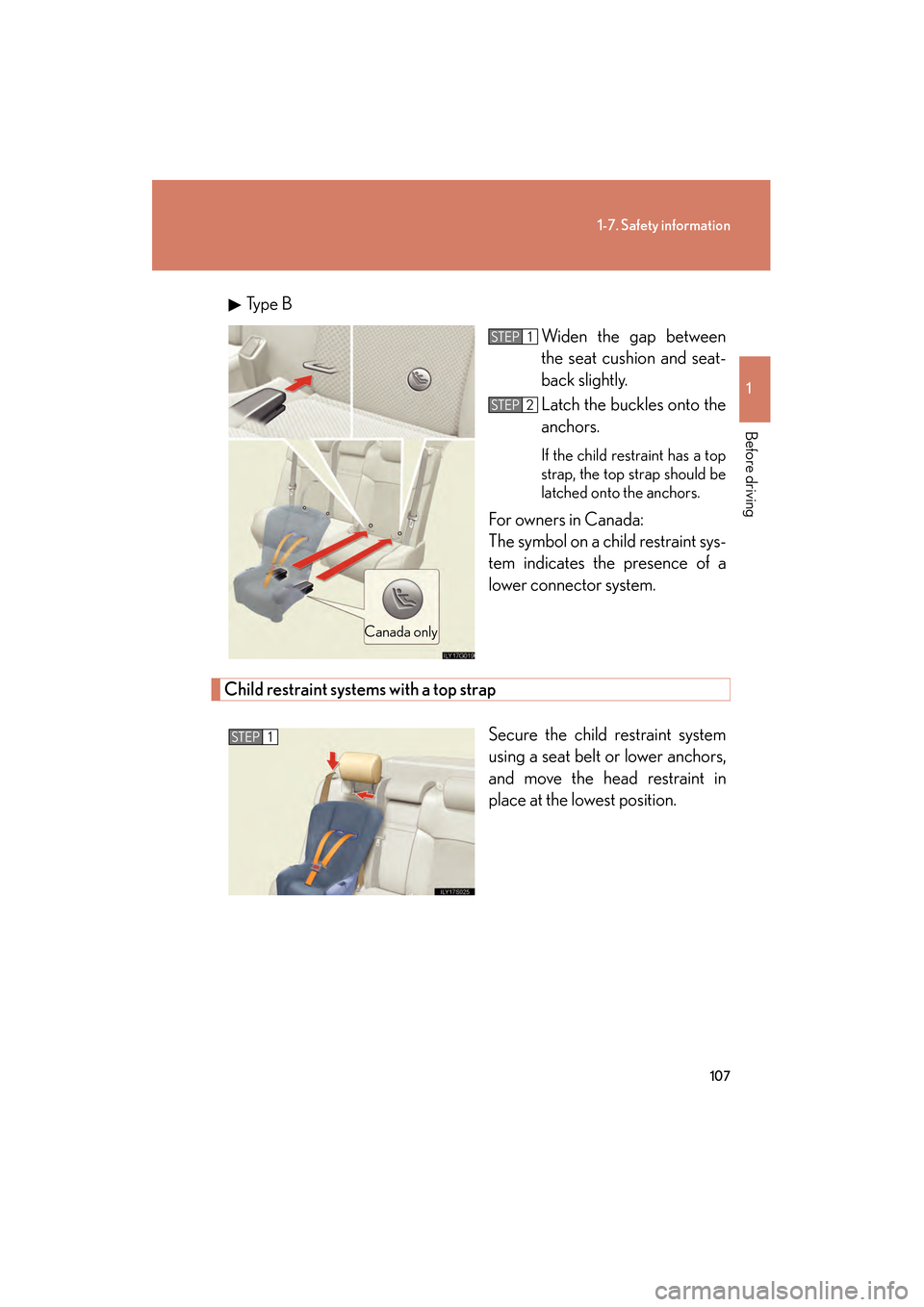

Ty p e BWiden the gap between
the seat cushion and seat-
back slightly.
Latch the buckles onto the
anchors.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
For owners in Canada:
The symbol on a child restraint sys-
tem indicates the presence of a
lower connector system.
Child restraint systems with a top strap
Secure the child restraint system
using a seat belt or lower anchors,
and move the head restraint in
place at the lowest position.
Canada only
STEP1
STEP2
STEP1
GS_U_G.book Page 107 Thursday, June 19, 2008 12:54 PM

108
1-7. Safety information
GS_G_U
June 19, 2008 12:54 pm

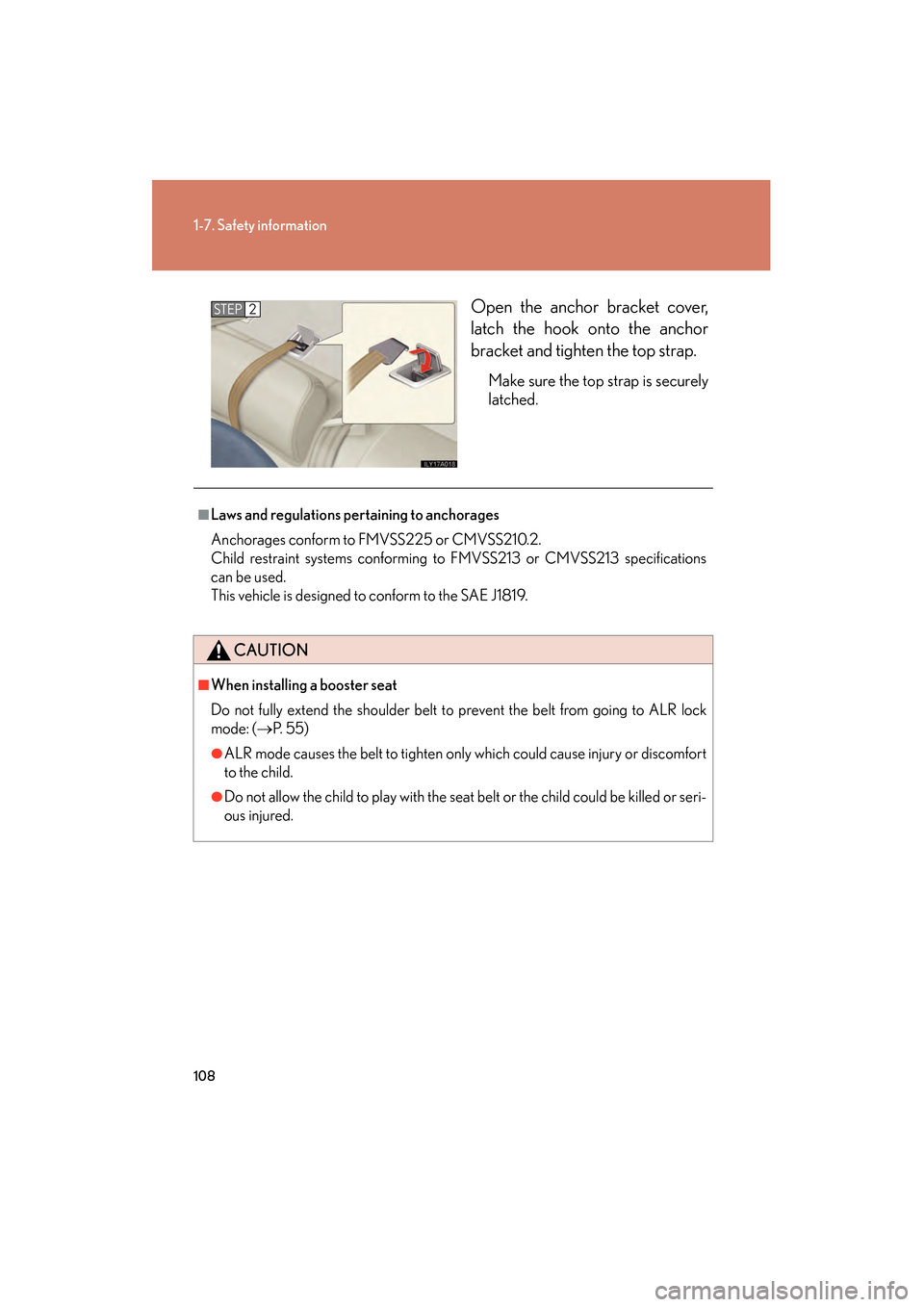

Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP2
■Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: (→P. 5 5 )
●ALR mode causes the belt to tighten only which could cause injury or discomfort
to the child.
●Do not allow the child to play with the seat belt or the child could be killed or seri-
ous injured.
GS_U_G.book Page 108 Thursday, June 19, 2008 12:54 PM

109
1-7. Safety information
1
Before driving
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of an accident or sudden braking.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint on the front passenger seat, move
the seat as far back as possible even if the
“AIR BAG OFF” indicator light is illumi-
nated. Failing to do so may result in death
or serious injury if the airbags deploy
(inflate).
