4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure given in these sections.
ItemsParts and tools
12 volt battery condition ( →P. 4 1 7)
•Grease
•Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 4 1 6 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake fluid)
Engine coolant level
(→ P. 4 1 4 )
• “Toyota Super Long Life Coolant”
or similar high quality ethylene gly-
col based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding cool- ant)
GS_U_G.book Page 400 Thursday, June 19, 2008 12:54 PM

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

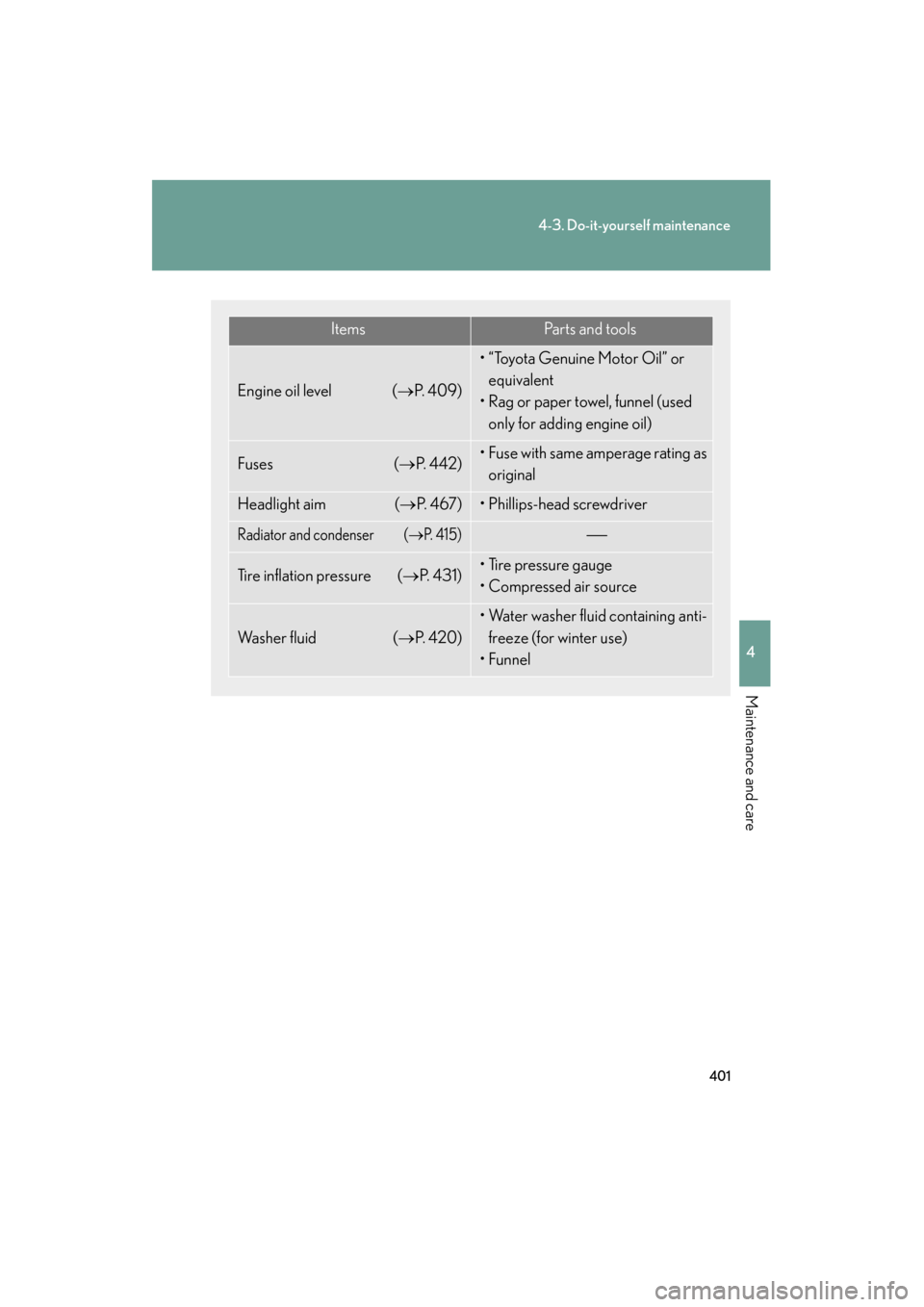

ItemsParts and tools
Engine oil level (→P. 4 0 9 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 4 4 2 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 4 6 7 )• Phillips-head screwdriver
Radiator and condenser (→P. 4 1 5 )
Tire inflation pressure ( →P. 4 3 1 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 4 2 0 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel
GS_U_G.book Page 401 Thursday, June 19, 2008 12:54 PM

402
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

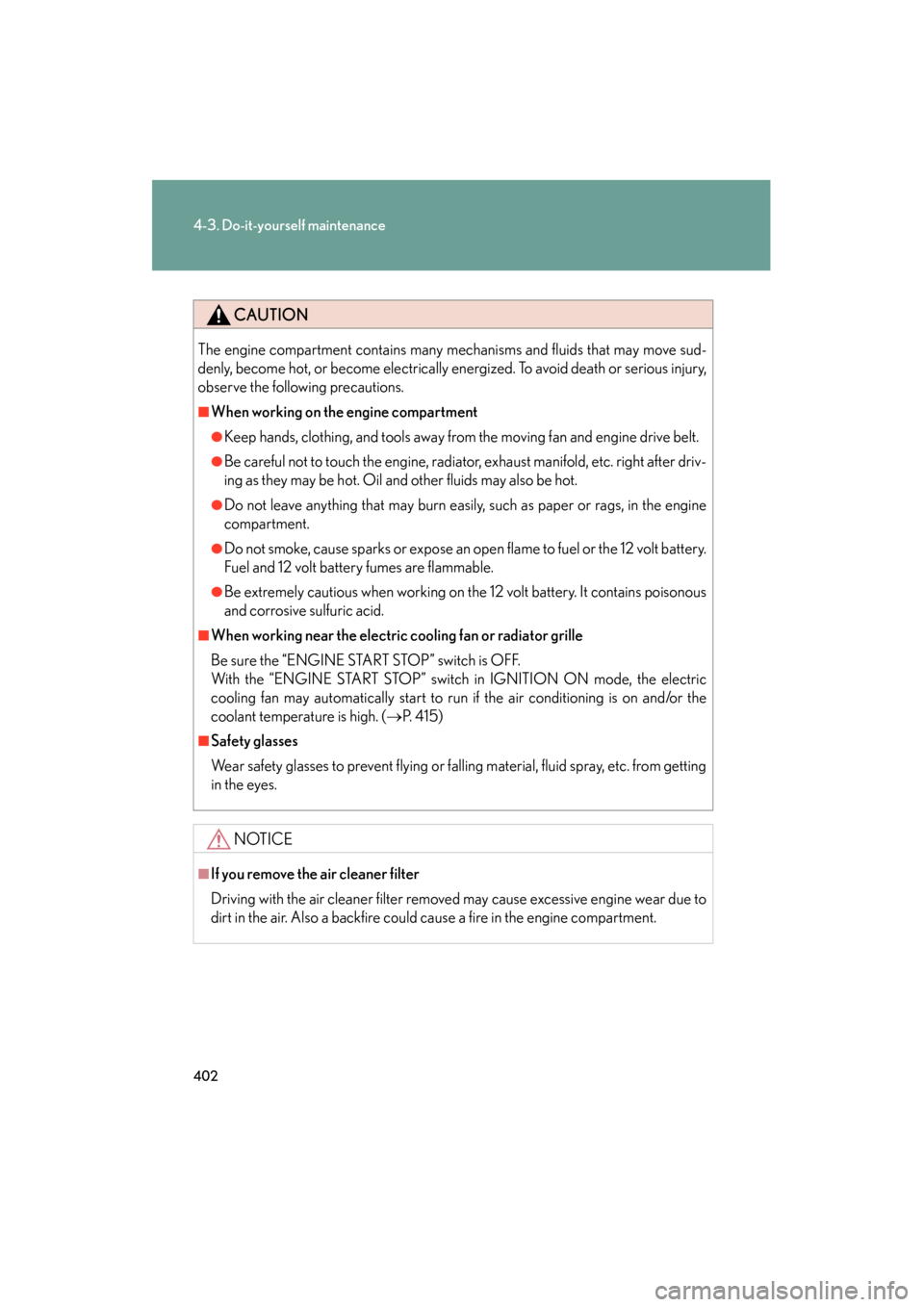

CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the 12 volt battery.
Fuel and 12 volt battery fumes are flammable.
●Be extremely cautious when working on the 12 volt battery. It contains poisonous
and corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 4 1 5 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.
GS_U_G.book Page 402 Thursday, June 19, 2008 12:54 PM

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
STEP1
STEP2
GS_U_G.book Page 403 Thursday, June 19, 2008 12:54 PM

404
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

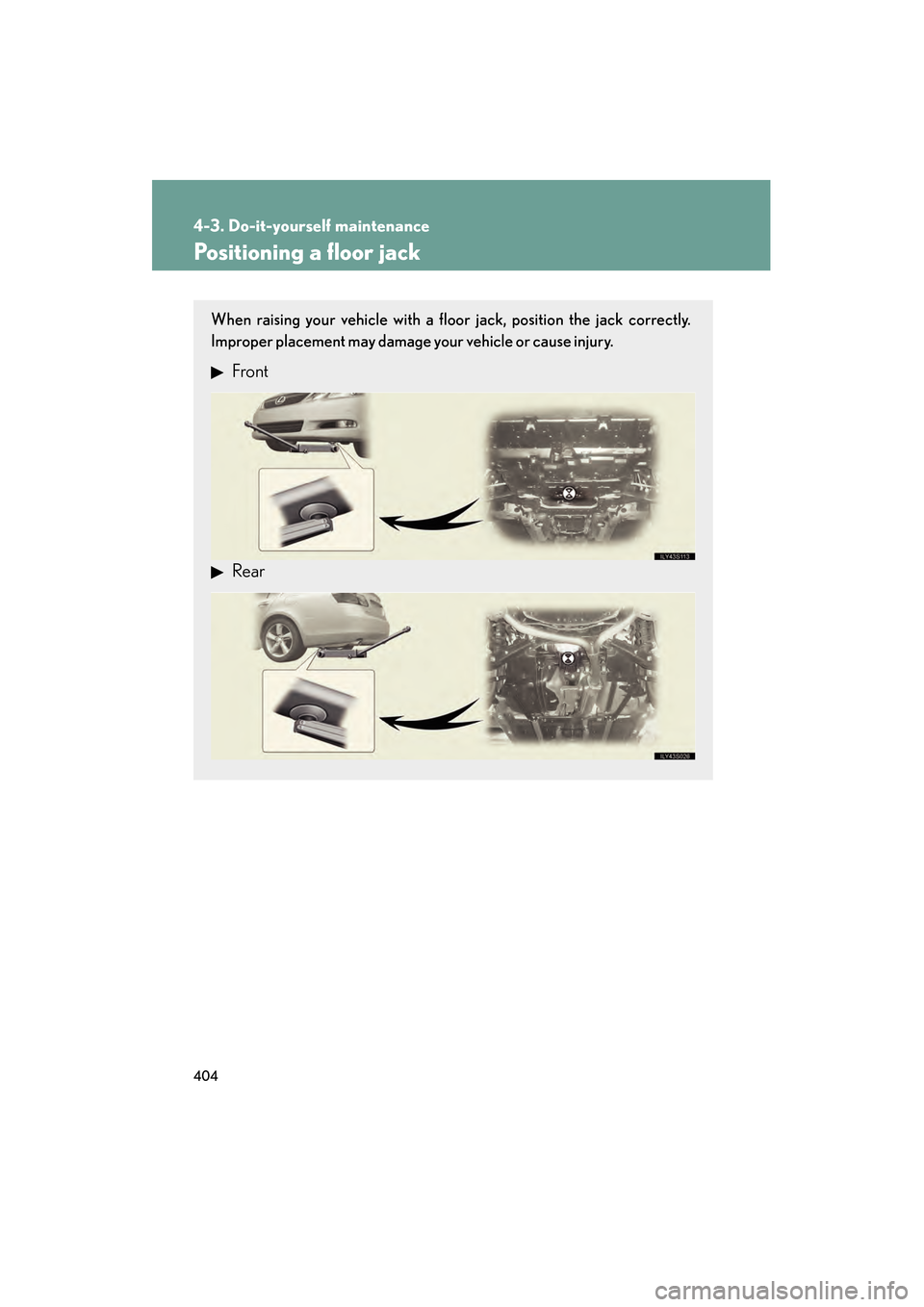

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
Front
Rear
GS_U_G.book Page 404 Thursday, June 19, 2008 12:54 PM

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
CAUTION
■When raising your vehicle
Make sure to observe the following to reduce the possibility of death or serious
injury.
●Do not use the jack that was supplied with your vehicle.
●Do not put any part of your body or get underneath the vehicle supported only by
the floor jack.
Always use automotive jack stands or a solid, level surface.
●Do not start the engine while the vehicle is supported by the floor jack.
●Stop the vehicle on level firm ground, firmly set the parking brake and put the shift
lever in “P”.
●Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage the vehi-
cle and may cause the vehicle to fall off the floor jack.
●Do not raise the vehicle while someone is in the vehicle.
●When raising the vehicle, do not place any objects on top of or underneath the
floor jack.
●Lift up the vehicle using a floor jack such as
the one shown in the illustration.
GS_U_G.book Page 405 Thursday, June 19, 2008 12:54 PM

406
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm
Engine compartment
GS460
Engine oil level dipstick(→P. 4 0 9 )
Engine oil filler cap (→P. 4 1 0 )
Brake fluid reservoir (→P. 4 1 6 )
Fuse box ( →P. 4 4 2 )
Washer fluid tank (→P. 4 2 0 )Engine coolant reservoir
(→P. 4 1 4 )
Electric cooling fans
Condenser ( →P. 415)
Radiator ( →P. 415)
Fuse box ( →P. 4 4 2 )
12 volt battery ( →P. 417)
GS_U_G.book Page 406 Thursday, June 19, 2008 12:54 PM

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
GS350
Engine oil level dipstick(→P. 4 0 9 )
Engine oil filler cap (→P. 4 1 0 )
Brake fluid reservoir (→P. 4 1 6 )
Fuse box ( →P. 4 4 2 )
Washer fluid tank (→P. 4 2 0 )Engine coolant reservoir
(→P. 4 1 4 )
Electric cooling fans
Condenser ( →P. 415)
Radiator ( →P. 415)
Fuse box ( →P. 4 4 2 )
12 volt battery ( →P. 417)
GS_U_G.book Page 407 Thursday, June 19, 2008 12:54 PM

408
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

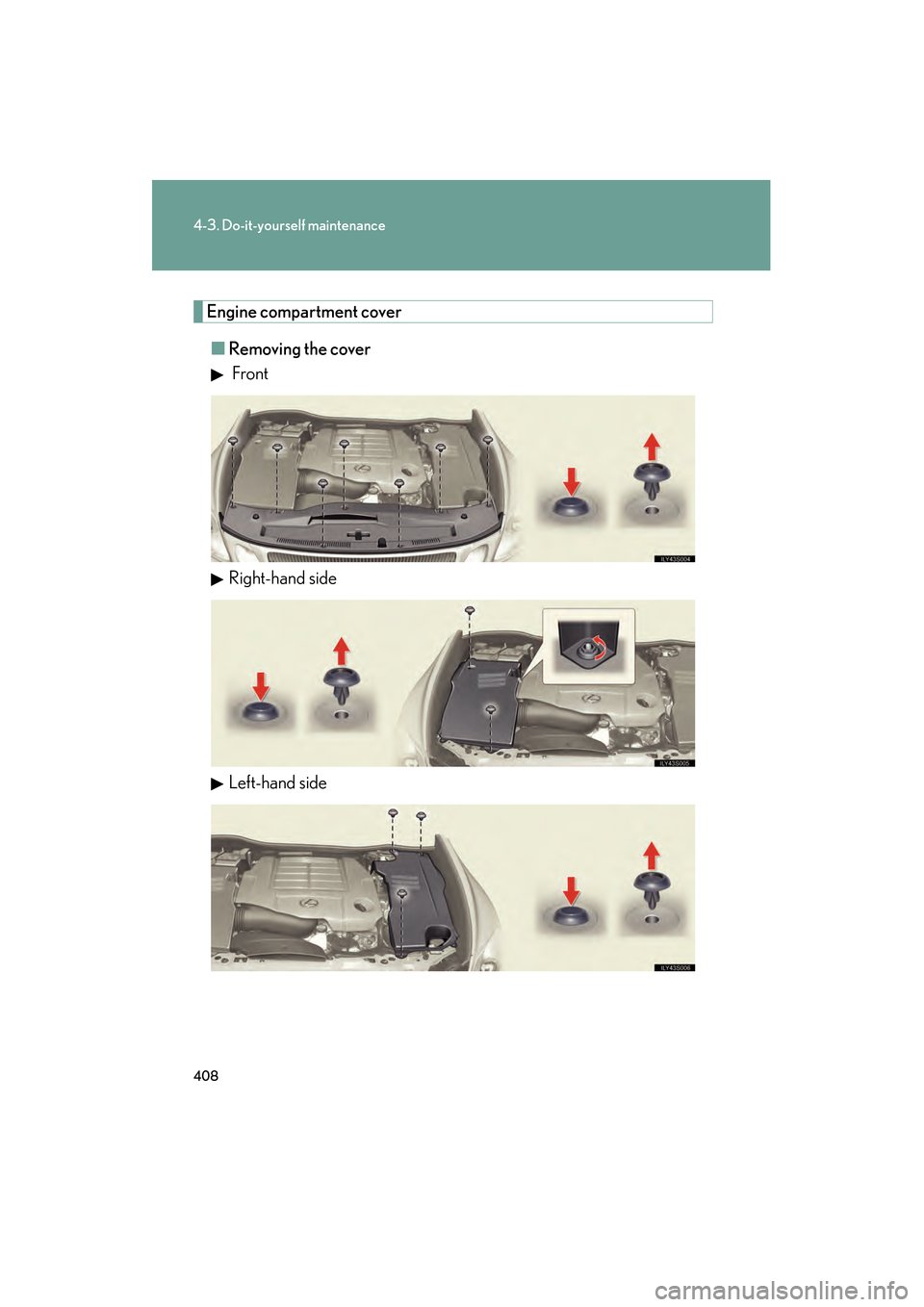

Engine compartment cover■ Removing the cover
Front
Right-hand side
Left-hand side
GS_U_G.book Page 408 Thursday, June 19, 2008 12:54 PM

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm
■Installing the clips
Push up center portion
Insert
Press
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5
