Lexus GS350 2008 Owner's Manual

360
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm

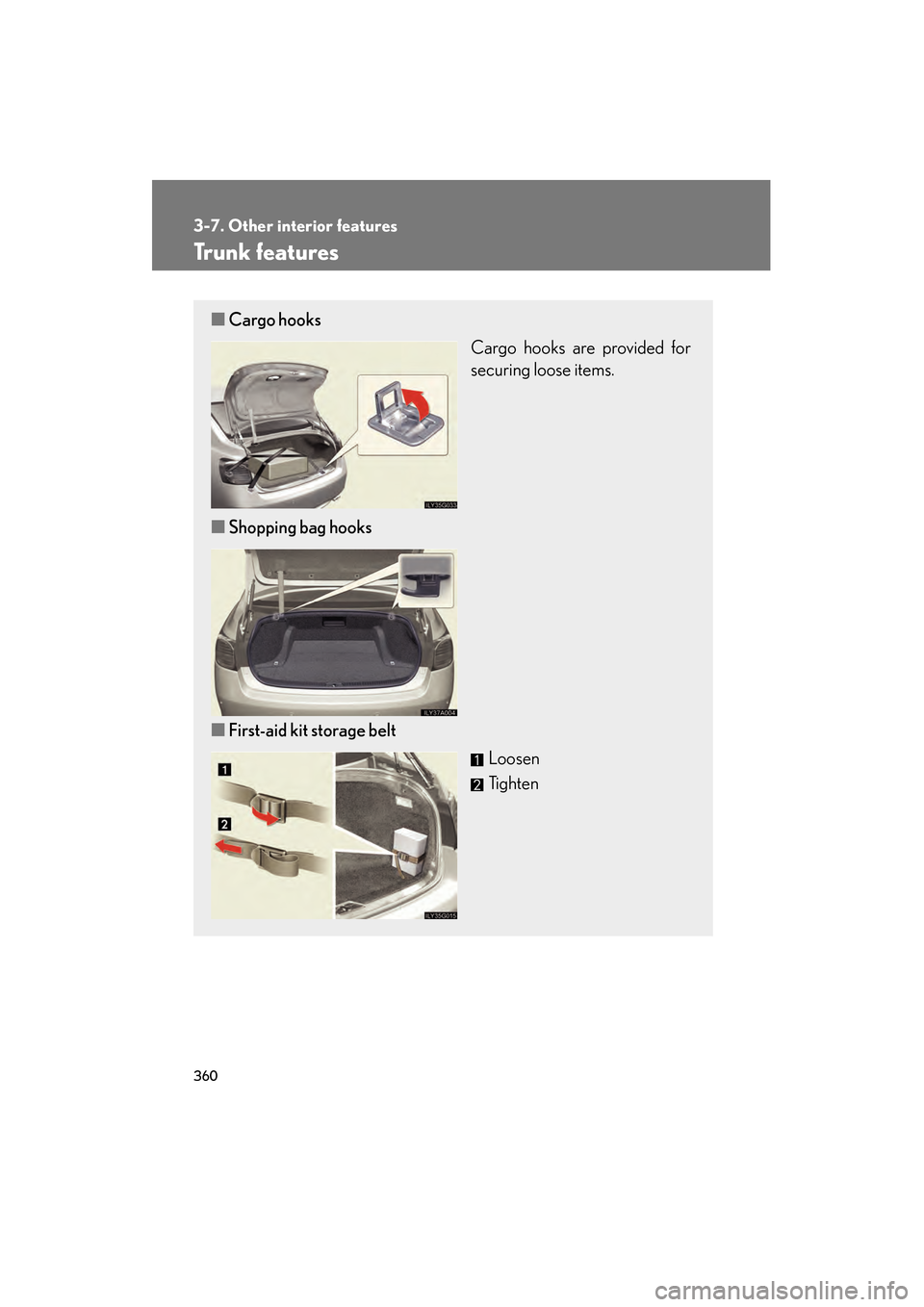

Trunk features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Shopping bag hooks
■ First-aid kit storage belt
Loosen
Tighten
GS_U_G.book Page 360 Thursday, June 19, 2008 12:54 PM

361
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm
Trunk storage extensionPull down the rear armrest.Open (push down the handle)
Unlock with the mechanical key
Lock with the mechanical key
■Luggage mat
Pull the lever upwards when lift-
ing the luggage mat up.
The lever can be hooked on the
edge of the trunk.
GS_U_G.book Page 361 Thursday, June 19, 2008 12:54 PM

362
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm

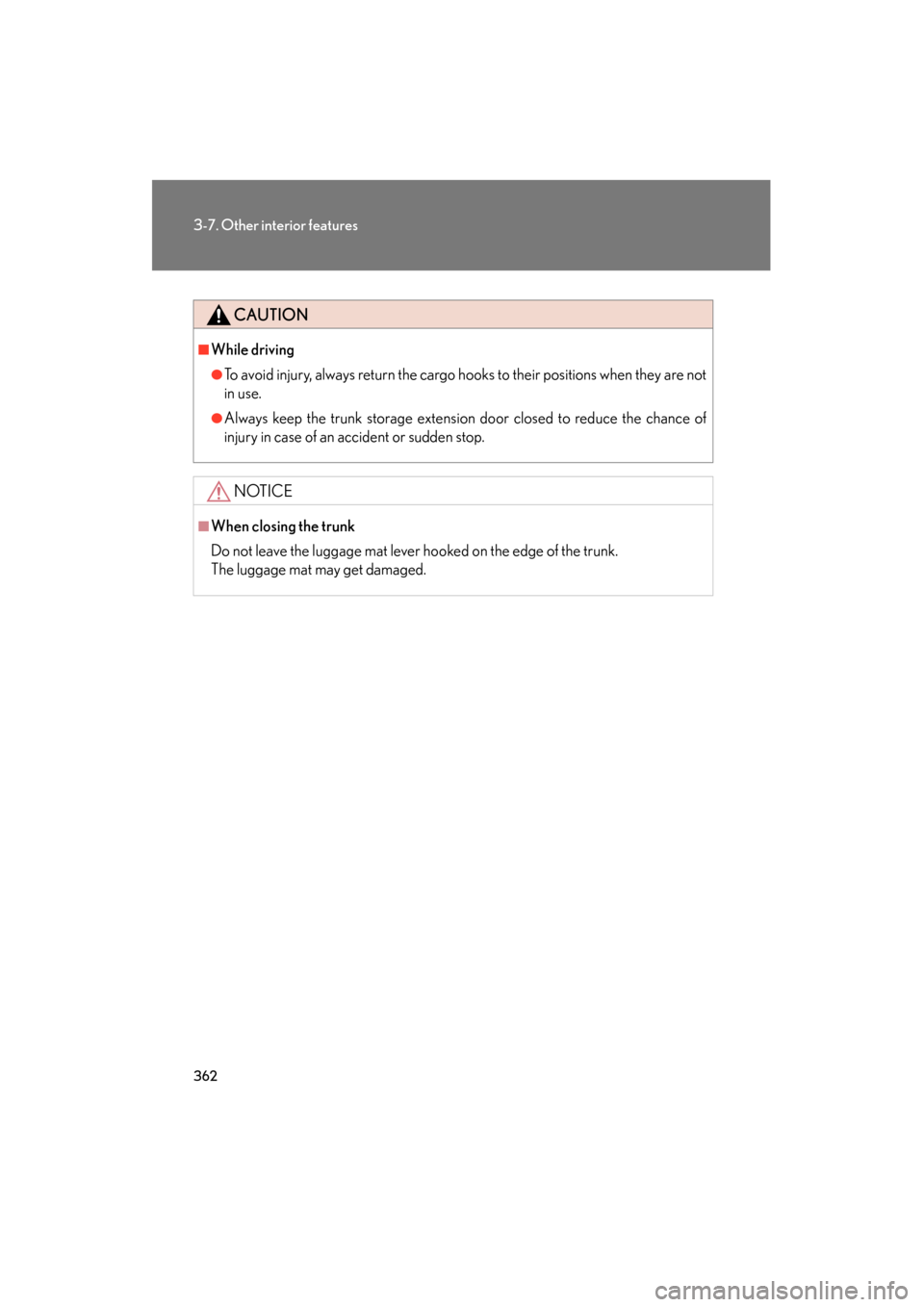

CAUTION
■While driving
●To avoid injury, always return the cargo hooks to their positions when they are not
in use.
●Always keep the trunk storage extension door closed to reduce the chance of
injury in case of an accident or sudden stop.
NOTICE
■When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk.
The luggage mat may get damaged.
GS_U_G.book Page 362 Thursday, June 19, 2008 12:54 PM

363
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm

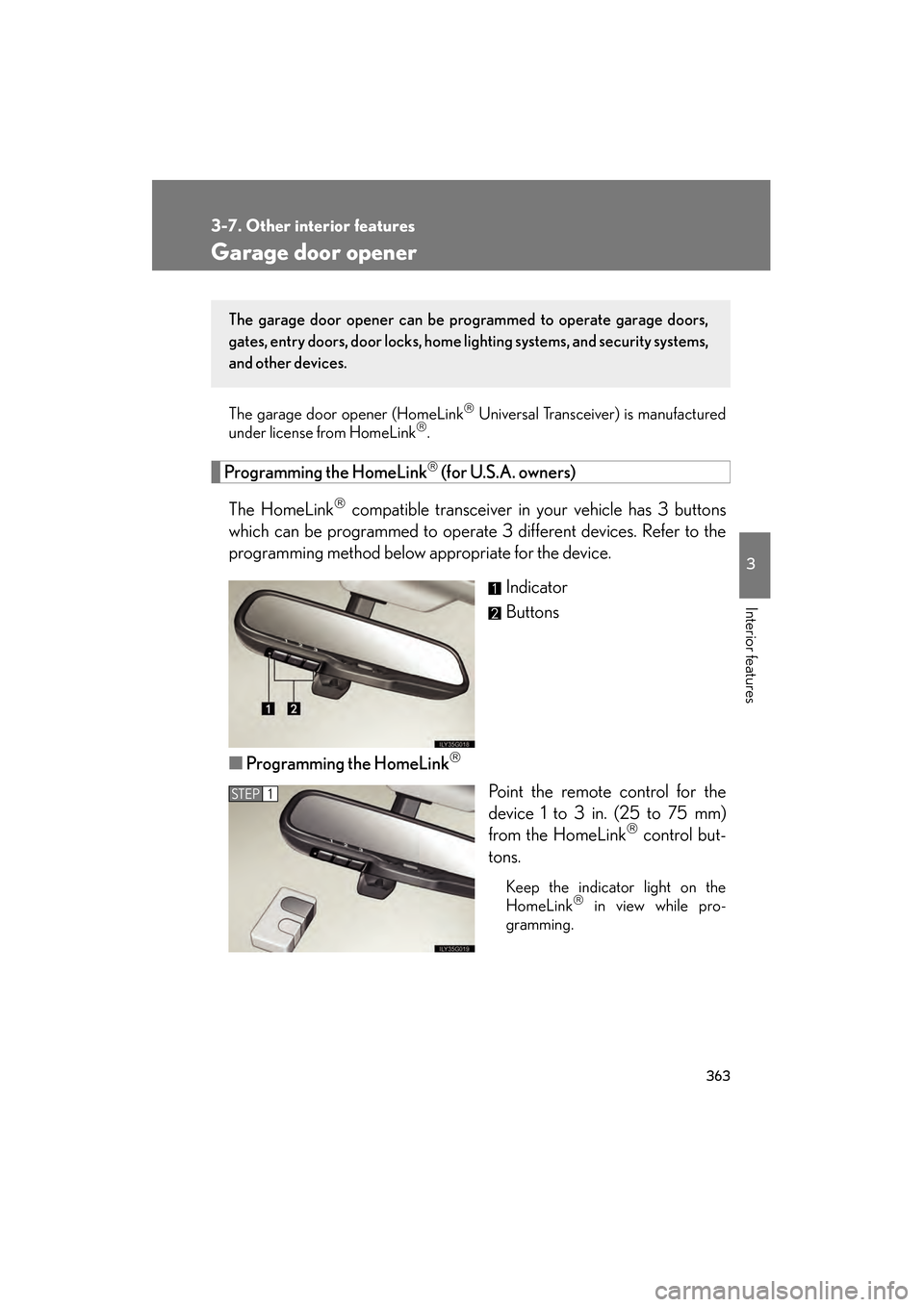

Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
 compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink

Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
 control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be pr ogrammed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
STEP1
GS_U_G.book Page 363 Thursday, June 19, 2008 12:54 PM

364
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm
Press and hold one of the buttons
on the HomeLink and the button
on the transmitter. When the indi-
cator light on the HomeLink

changes from a slow to a rapid
flash after 20 seconds, you can
release both buttons.
Test the operation of the
HomeLink
 by pressing the newly
programmed button.
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate, see
if your garage transmitter is of the
Rolling Code type. Press and hold
the programmed HomeLink
 but-
ton. The garage door has the roll-
ing code feature if the indicator
light (on the HomeLink
) flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is the
Rolling Code type, proceed to the
heading “Programming a rolling
code system”.
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
STEP2
STEP3
STEP4
GS_U_G.book Page 364 Thursday, June 19, 2008 12:54 PM

365
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm

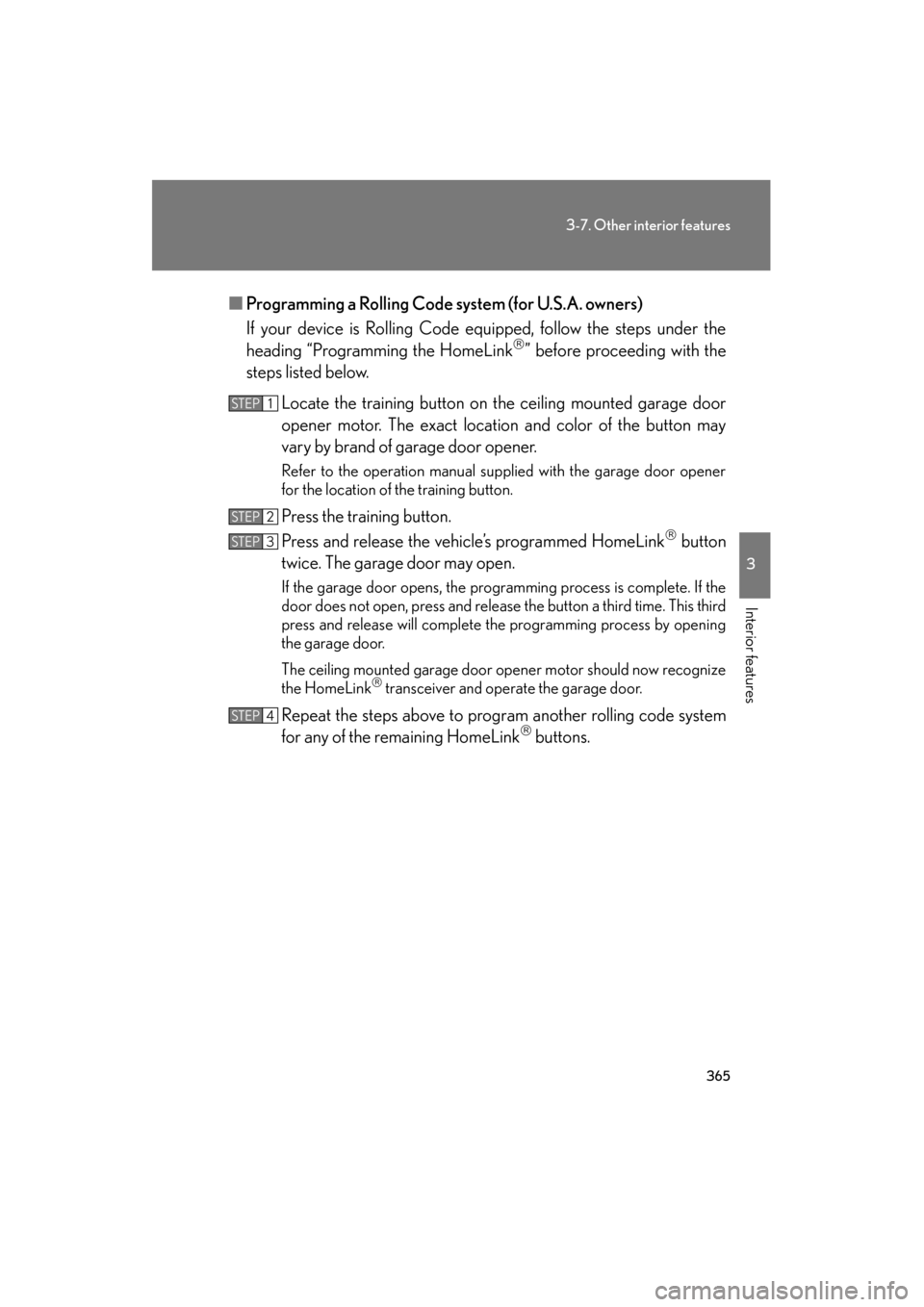

■Programming a Rolling Code sy stem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
Press the training button.
Press and release the vehicle’s programmed HomeLink
 button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 365 Thursday, June 19, 2008 12:54 PM

366
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm
■Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmitter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the indicator light on the HomeLink in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is completed.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts to flash rapidly, release the buttons.
Test the operation of the HomeLink
 by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
 buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your authorized Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
 buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic program-
ming” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GS_U_G.book Page 366 Thursday, June 19, 2008 12:54 PM

367
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm

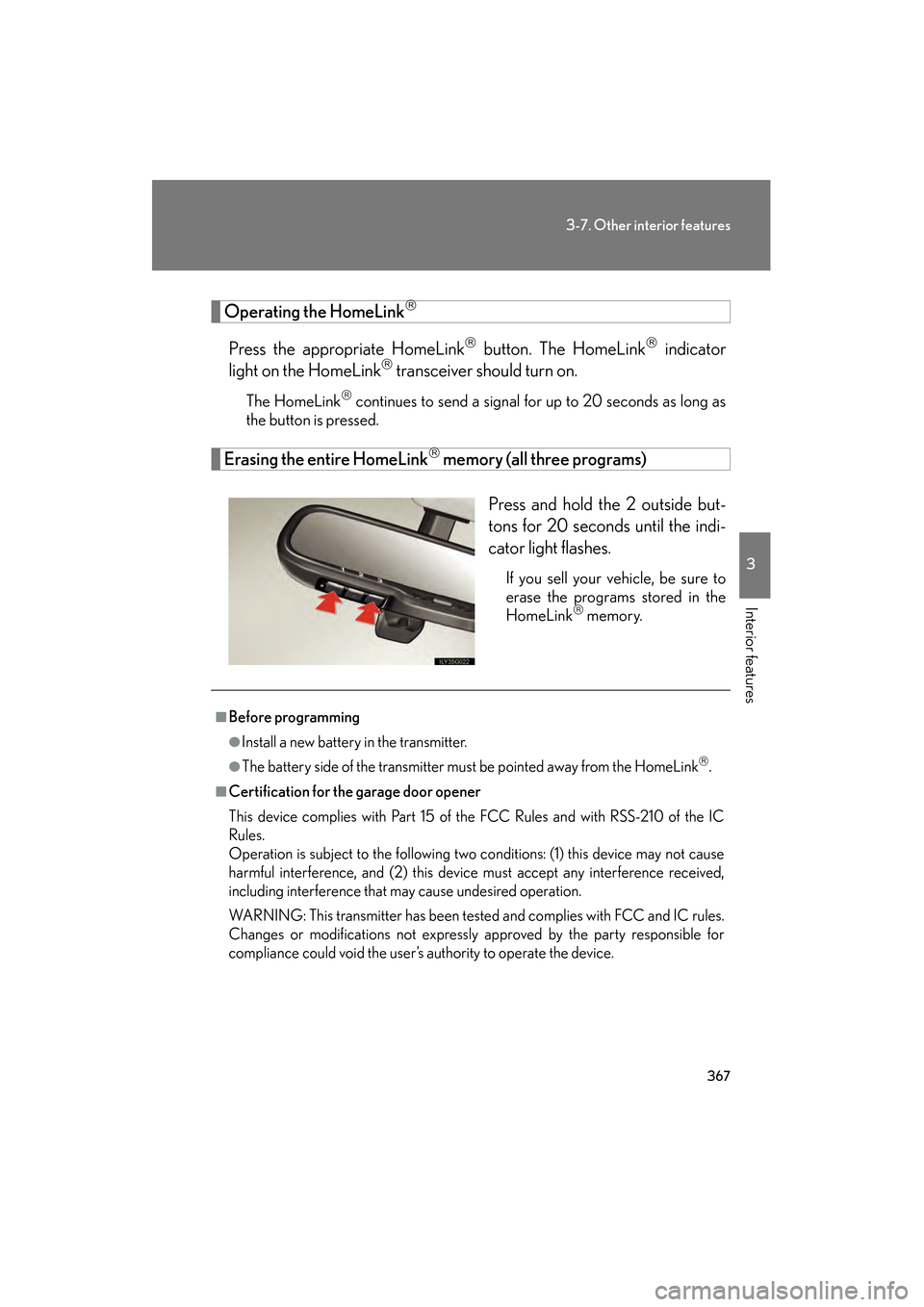

Operating the HomeLink
Press the appropriate HomeLink button. The HomeLink indicator
light on the HomeLink transceiver should turn on.
The HomeLink continues to send a signal for up to 20 seconds as long as
the button is pressed.
Erasing the entire HomeLink memory (all three programs)
Press and hold the 2 outside but-
tons for 20 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
 memory.
■Before programming
●Install a new battery in the transmitter.
●The battery side of the transmitter must be pointed away from the HomeLink.
■Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the device.
GS_U_G.book Page 367 Thursday, June 19, 2008 12:54 PM

368
3-7. Other interior features
GS_G_U
June 19, 2008 12:54 pm

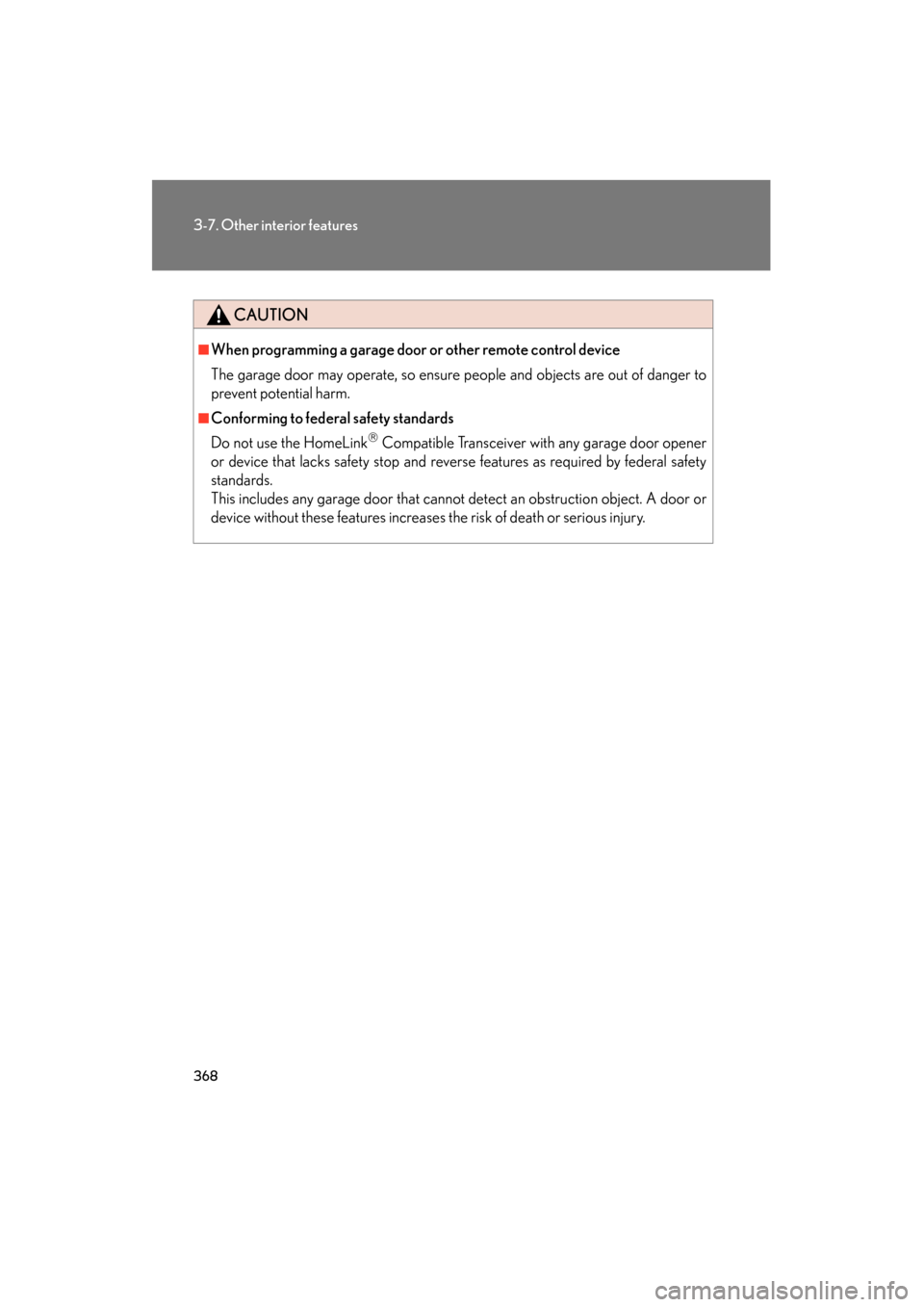

CAUTION
■When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink
 Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these features increases the risk of death or serious injury.
GS_U_G.book Page 368 Thursday, June 19, 2008 12:54 PM

369
3-7. Other interior features
3
Interior features
GS_G_U
June 19, 2008 12:54 pm

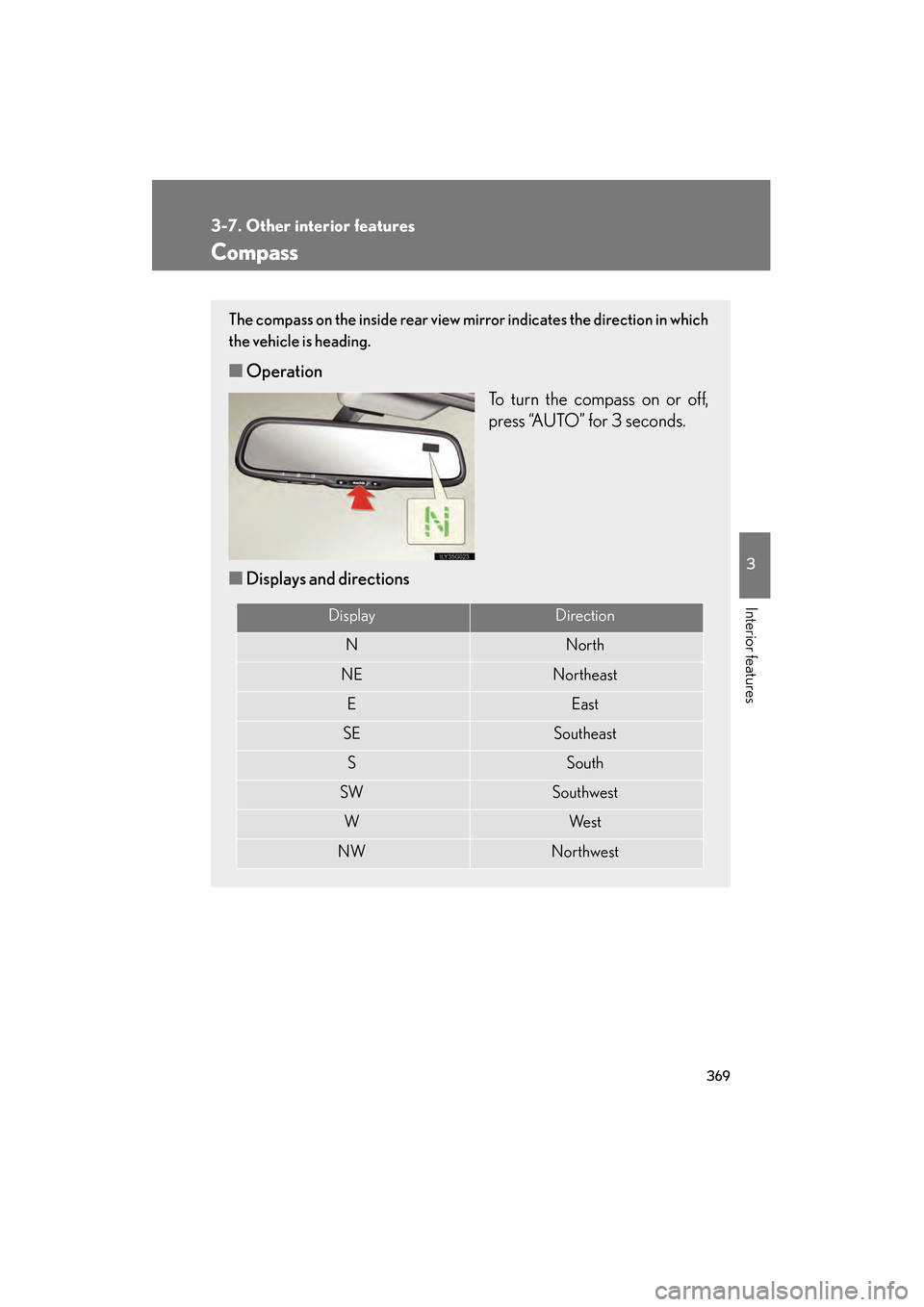

Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■Operation
To turn the compass on or off,
press “AUTO” for 3 seconds.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest
