key Lexus GS350 2009 Owner's Guide

47
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode, or the electronic key is left in the vehicle. (How-
ever, depending on the key’s location, the system may not be able to detect it. In
these instances the door lock protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( →P. 545)
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features → P. 5 9 1 )
GS_U_G.book Page 47 Monday, April 27, 2009 10:50 AM

50
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

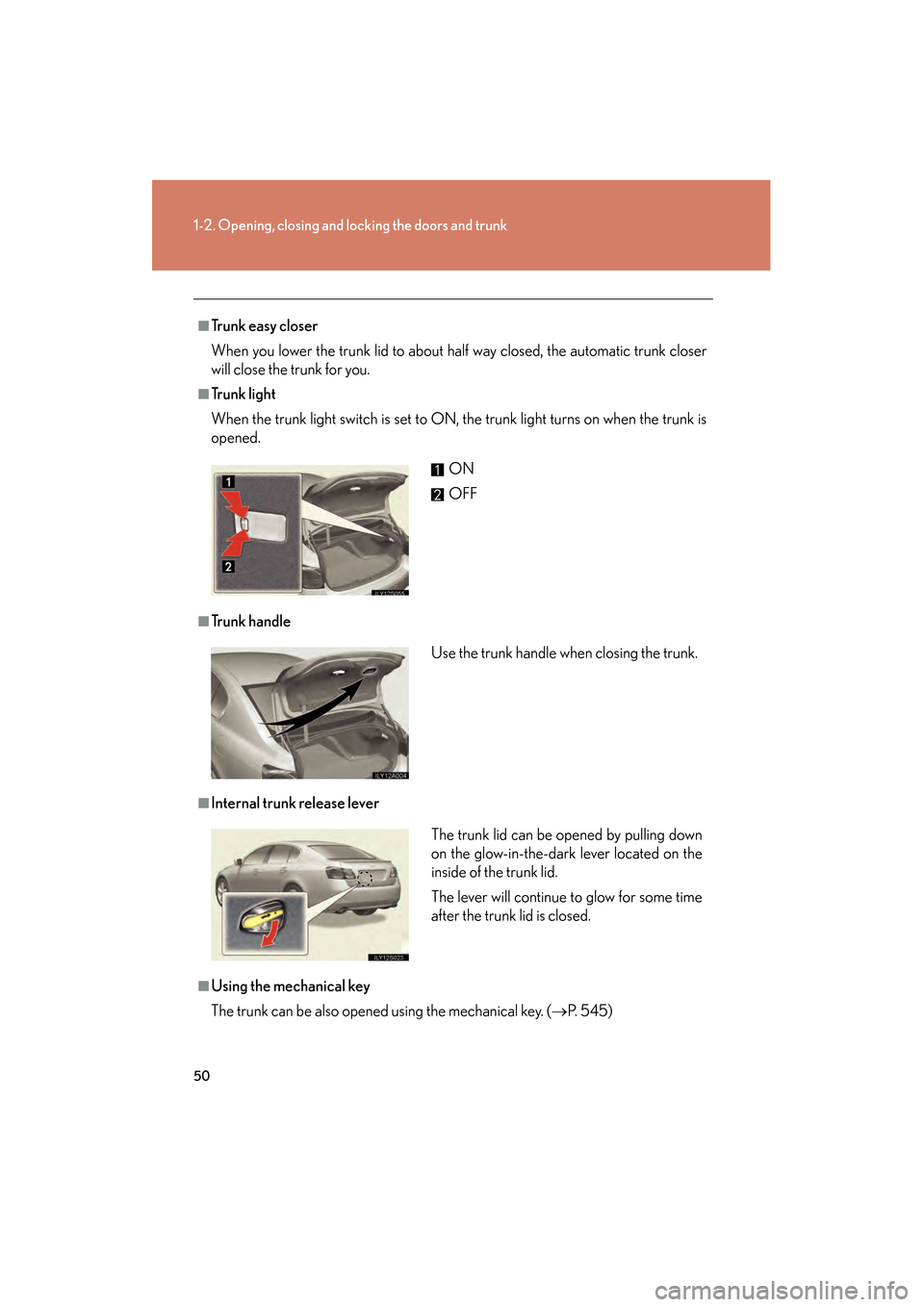

■Tr u n k e a s y c l o s e r
When you lower the trunk lid to about half way closed, the automatic trunk closer
will close the trunk for you.
■Tr u n k l i g h t
When the trunk light switch is set to ON, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( →P. 545)
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.
GS_U_G.book Page 50 Monday, April 27, 2009 10:50 AM

58
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Open one of the doors.
If a door is not opened within 60 seconds after is pushed,
the doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(
→P. 8 6 )
Using the door lock switch
Carry only the key (including the card key) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the “ENGINE START STOP” switch to OFF mode and close
the driver’s door. While pushing the desired button
(“1”, “2” or “3”), push the lock or
unlock side on the door lock
switch (either the driver or passen-
ger side) until the signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
STEP3
STEP1
STEP2
GS_U_G.book Page 58 Monday, April 27, 2009 10:50 AM

76
1-4. Opening and closing the windows and moon roof
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 545)
●The power windows can be opened using the wireless remote control.
(→ P. 4 1 )
■Operating the power windows after turning the “ENGINE START STOP” switch
OFF
The power windows can be operated for ap proximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. They cannot, however, be operated once the driver’s or front passenger’s door
is opened.
■Jam protection function
If an object becomes caught between th e window and the window frame, window
travel is stopped and the window is opened slightly.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 9 1 )
GS_U_G.book Page 76 Monday, April 27, 2009 10:50 AM

79
1-4. Opening and closing the windows and moon roof
1
Before driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 545)
●The moon roof can be opened using the wireless remote control. ( →P. 4 1 )
■Operating the moon roof after turning the “ENGINE START STOP” switch OFF
The moon roof can be operated for ap proximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automati cally ( just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■Customization that can be configured at Lexus dealer
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 5 9 1 )
GS_U_G.book Page 79 Monday, April 27, 2009 10:50 AM

84
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm
1-6. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type of immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
FCC ID: NI4TMIMB-1
GS_U_G.book Page 84 Monday, April 27, 2009 10:50 AM

86
1-6. Theft deterrent system
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations.
●A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened while the vehicle is locked.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
●Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to the ACCESSORY or
IGNITION ON mode. (The alarm will be deactivated or stopped
after a few seconds.)
GS_U_G.book Page 86 Monday, April 27, 2009 10:50 AM

124
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■ Starting the engine ( →P. 1 3 3 )
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. (→P. 1 3 7 )
Release the parking brake. (→P. 143)
Gradually release the brake peda l and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P”. (
→P. 1 3 7 )
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (→ P. 143)
Shift the shift lever to “P”. (→P. 1 3 7 )
Stop the engine.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
GS_U_G.book Page 124 Monday, April 27, 2009 10:50 AM

133
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Engine (ignition) switch
Performing the following operations when carrying the electronic key on
your person starts the engine or changes “ENGINE START STOP” switch
modes.
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
The “ENGINE START STOP” switch indicator turns green.
Press the “ENGINE START
STOP” switch.
The engine can be started
from any mode.
STEP1
STEP2
STEP3
STEP4
GS_U_G.book Page 133 Monday, April 27, 2009 10:50 AM

135
2-1. Driving procedures
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■If the engine does not start
The immobilizer system may not have been deactivated. (→P. 8 4 )
■When the steering lock cannot be released
■When the “ENGINE START STOP” switch indicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Lexus
dealer immediately.
■Auto power OFF function
If the vehicle is left in the ACCESSORY mode for more than an hour with the shift
lever in “P”, the “ENGINE START STOP” switch will automatically turn OFF.
■Electronic key battery depletion
→P. 3 5
■When the electronic key battery is discharged
→P. 4 5 8
■Conditions affecting operation
→P. 3 3 The green indicator light on the “ENGINE
START STOP” switch will flash and a mes-
sage will be shown on the multi-information
display. Press the “ENGINE START STOP”
switch again while turning the steering wheel
left and right.
GS_U_G.book Page 135 Monday, April 27, 2009 10:50 AM
