Lexus GS350 2009 Owner's Manual

570
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Tires and wheelsTy p e A
Ti r e s i z e245/40R18 93Y, P245/40R18 93V,
245/40ZR18, T155/70D17 110M (spare)
Tire inflation
pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions
Front: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 9 psi (60 kPa, 0.6 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18 × 8 J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
GS_U_G.book Page 570 Monday, April 27, 2009 10:50 AM

571
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

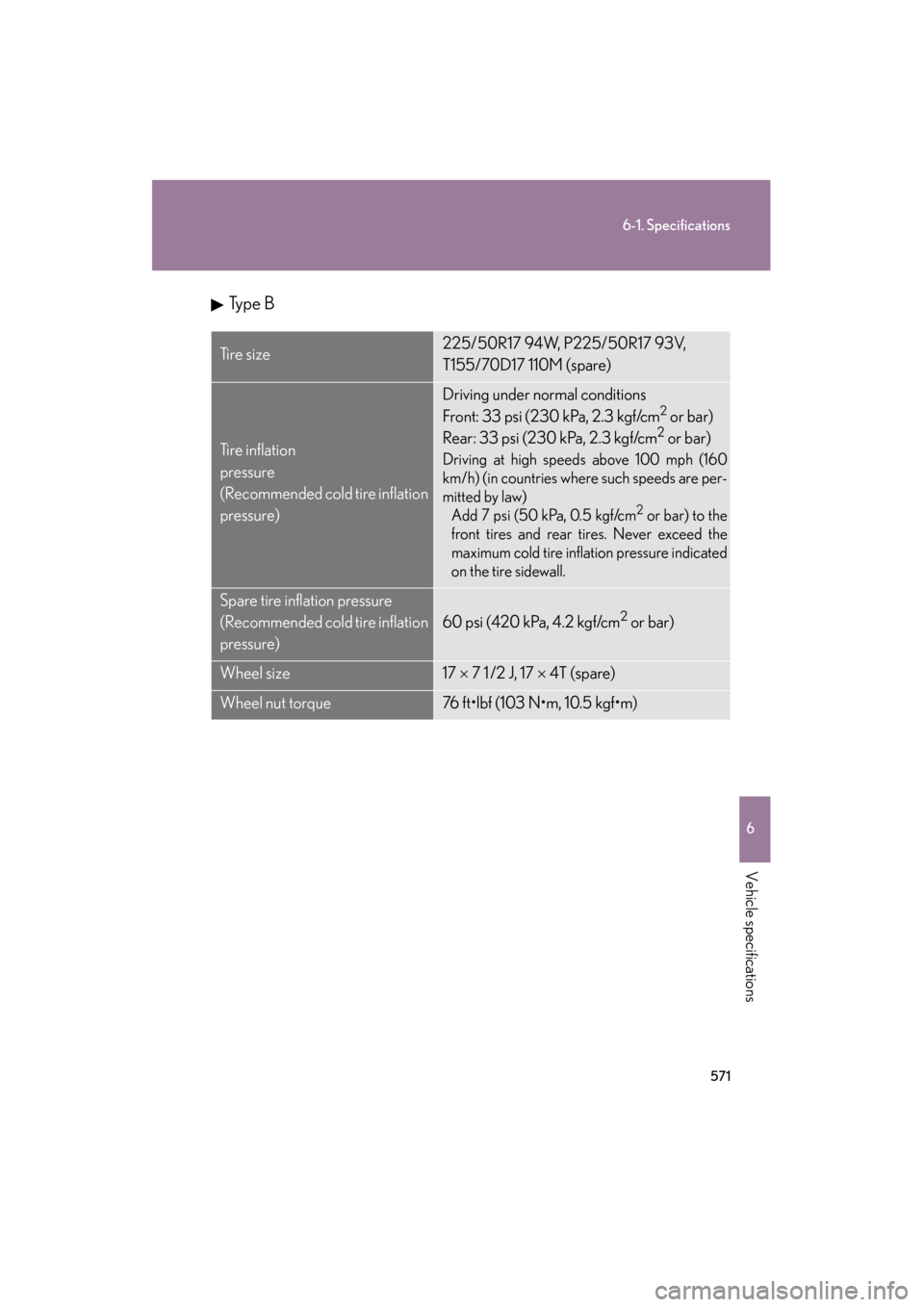

Type B
Ti r e s i z e225/50R17 94W, P225/50R17 93V,
T155/70D17 110M (spare)
Tire inflation
pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions
Front: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear: 33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7 psi (50 kPa, 0.5 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17 × 7 1 /2 J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
GS_U_G.book Page 571 Monday, April 27, 2009 10:50 AM

572
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

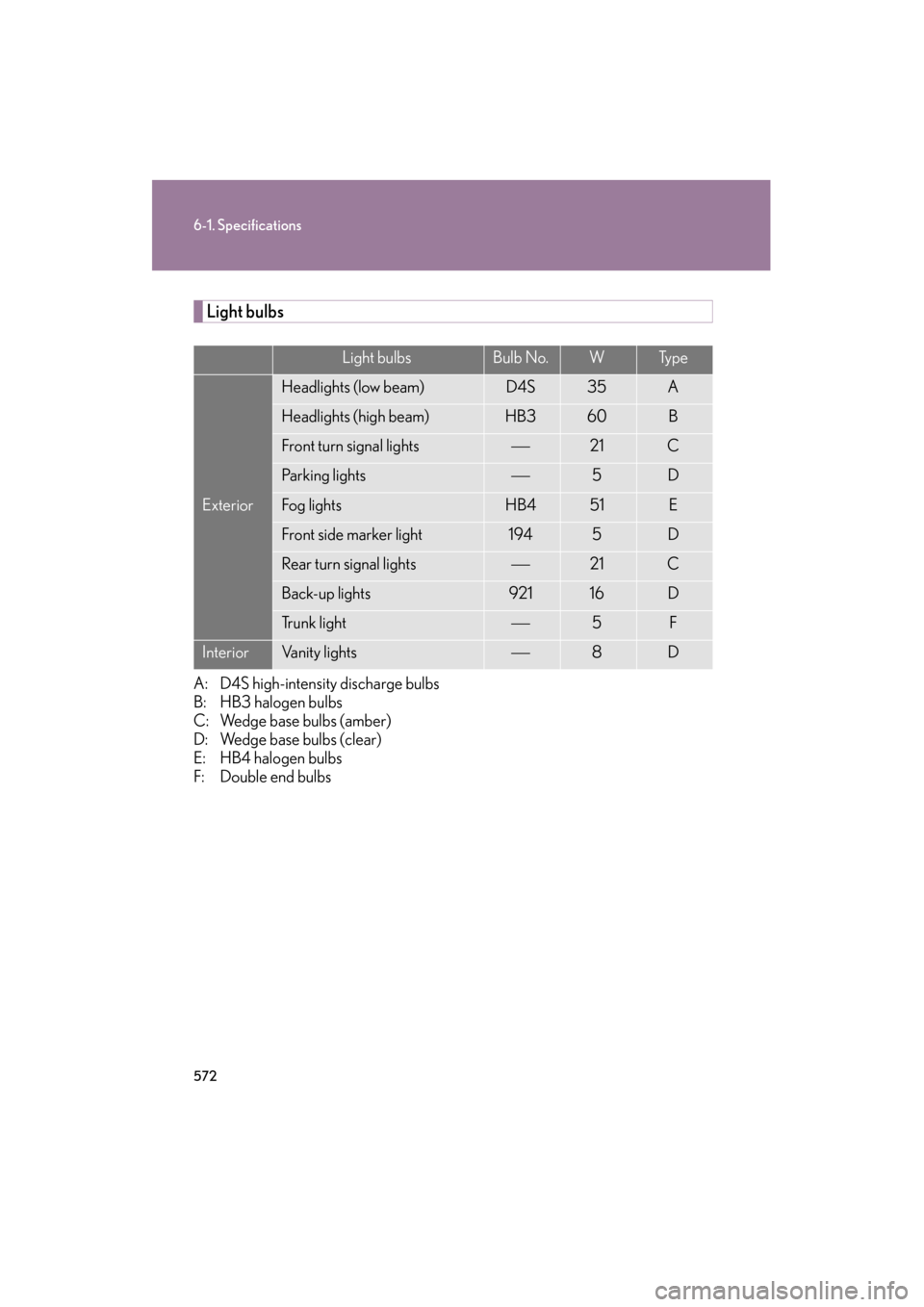

Light bulbs
A: D4S high-intensity discharge bulbs
B: HB3 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: HB4 halogen bulbs
F: Double end bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights (low beam)D4S35A
Headlights (high beam)HB360B
Front turn signal lights21C
Parking lights5D
Fog lightsHB451E
Front side marker light1945D
Rear turn signal lights21C
Back-up lights92116D
Trunk light5F
InteriorVanity lights8D
GS_U_G.book Page 572 Monday, April 27, 2009 10:50 AM

573
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

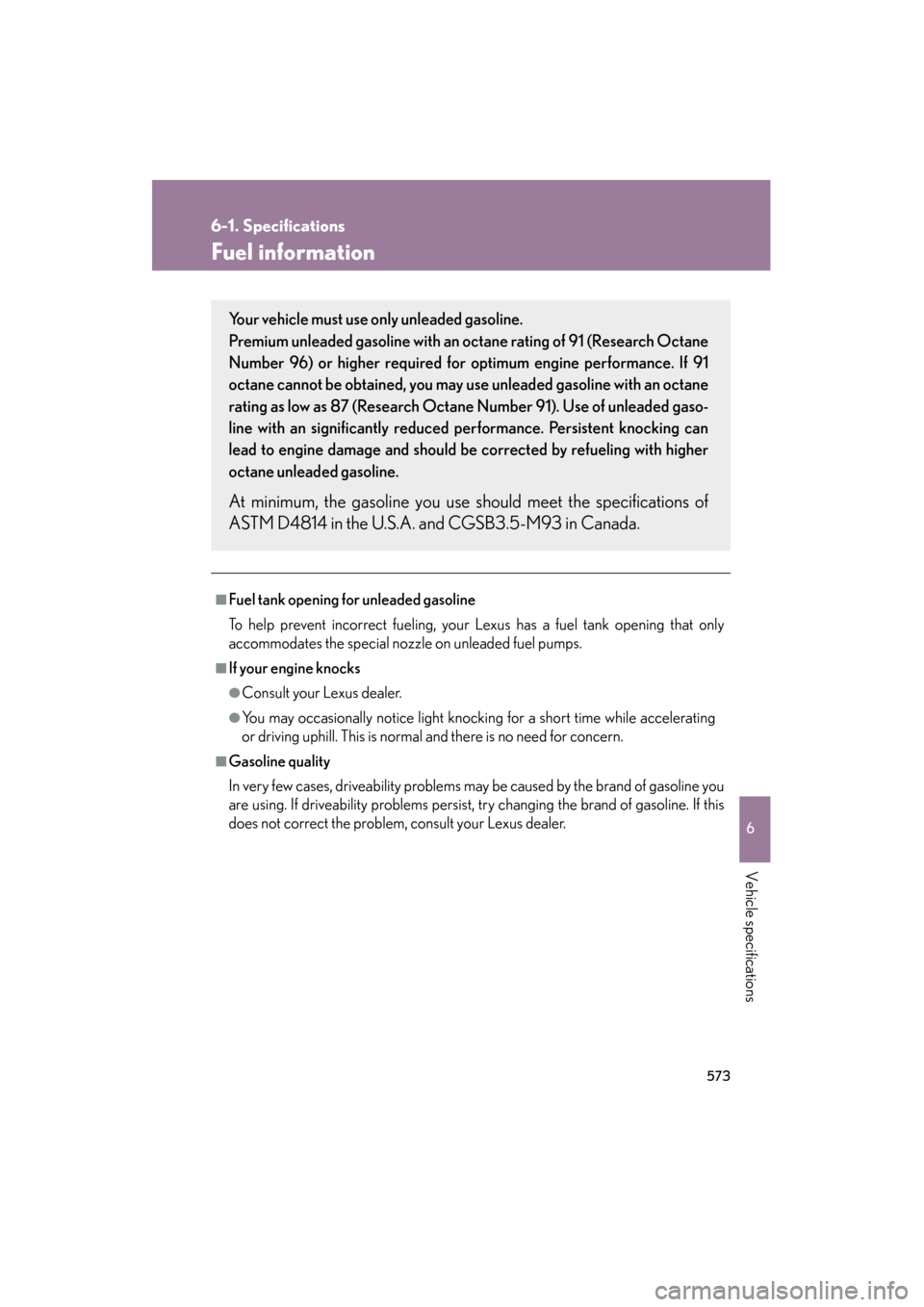

Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use on ly unleaded gasoline.
Premium unleaded gasoline with an oc tane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may us e unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an significantly reduced performance. Persistent knocking can
lead to engine damage and should be corrected by refueling with higher
octane unleaded gasoline.
At minimum, the gasoline you us e should meet the specifications of
ASTM D4814 in the U.S.A. an d CGSB3.5-M93 in Canada.
GS_U_G.book Page 573 Monday, April 27, 2009 10:50 AM

574
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

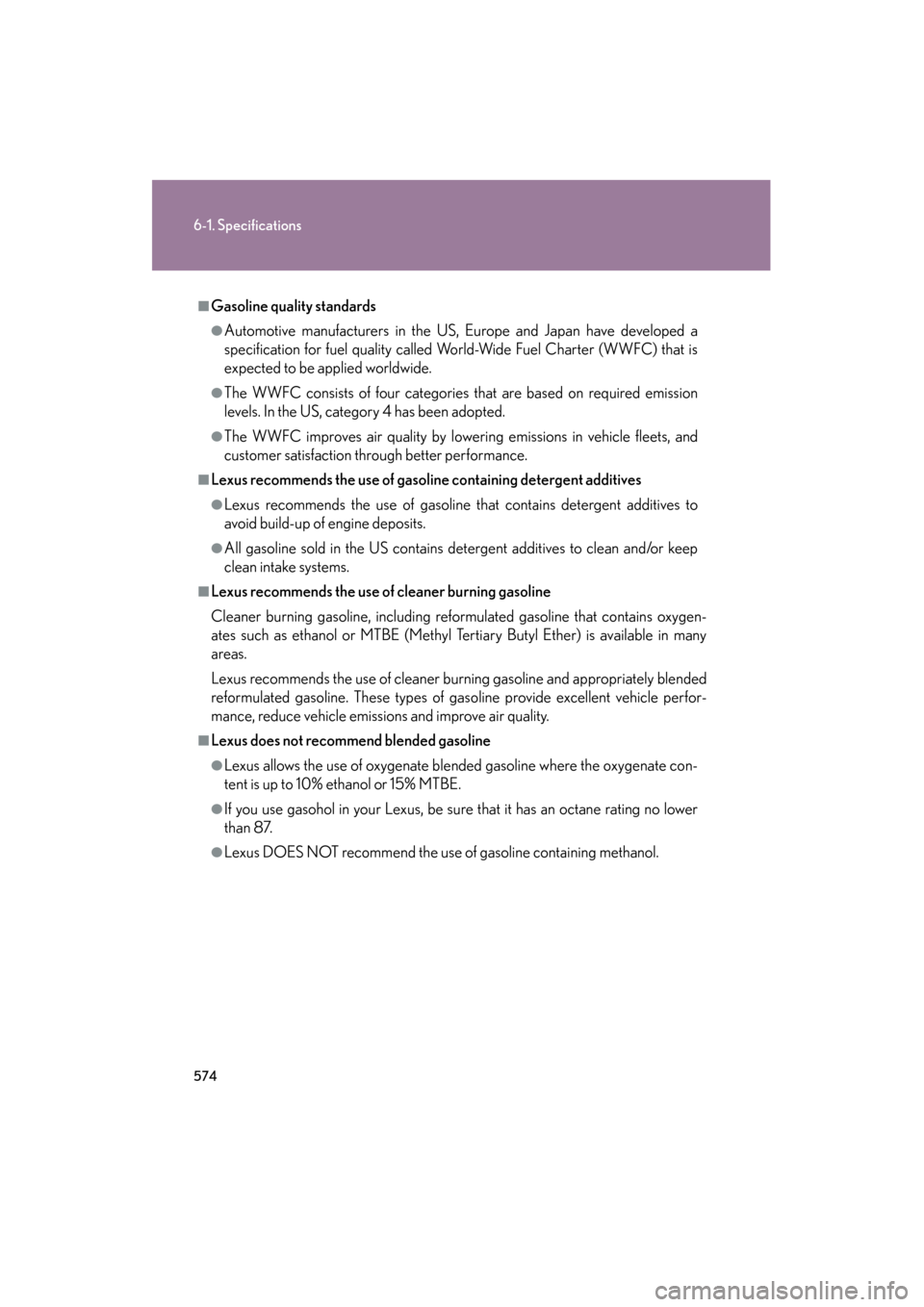

■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction th rough better performance.
■Lexus recommends the use of gasoline containing detergent additives
●Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
●All gasoline sold in the US contains de tergent additives to clean and/or keep
clean intake systems.
■Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reform ulated gasoline that contains oxygen-
ates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle perfor-
mance, reduce vehicle emissions and improve air quality.
■Lexus does not recommend blended gasoline
●Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
●If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
●Lexus DOES NOT recommend the use of gasoline containing methanol.
GS_U_G.book Page 574 Monday, April 27, 2009 10:50 AM

575
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

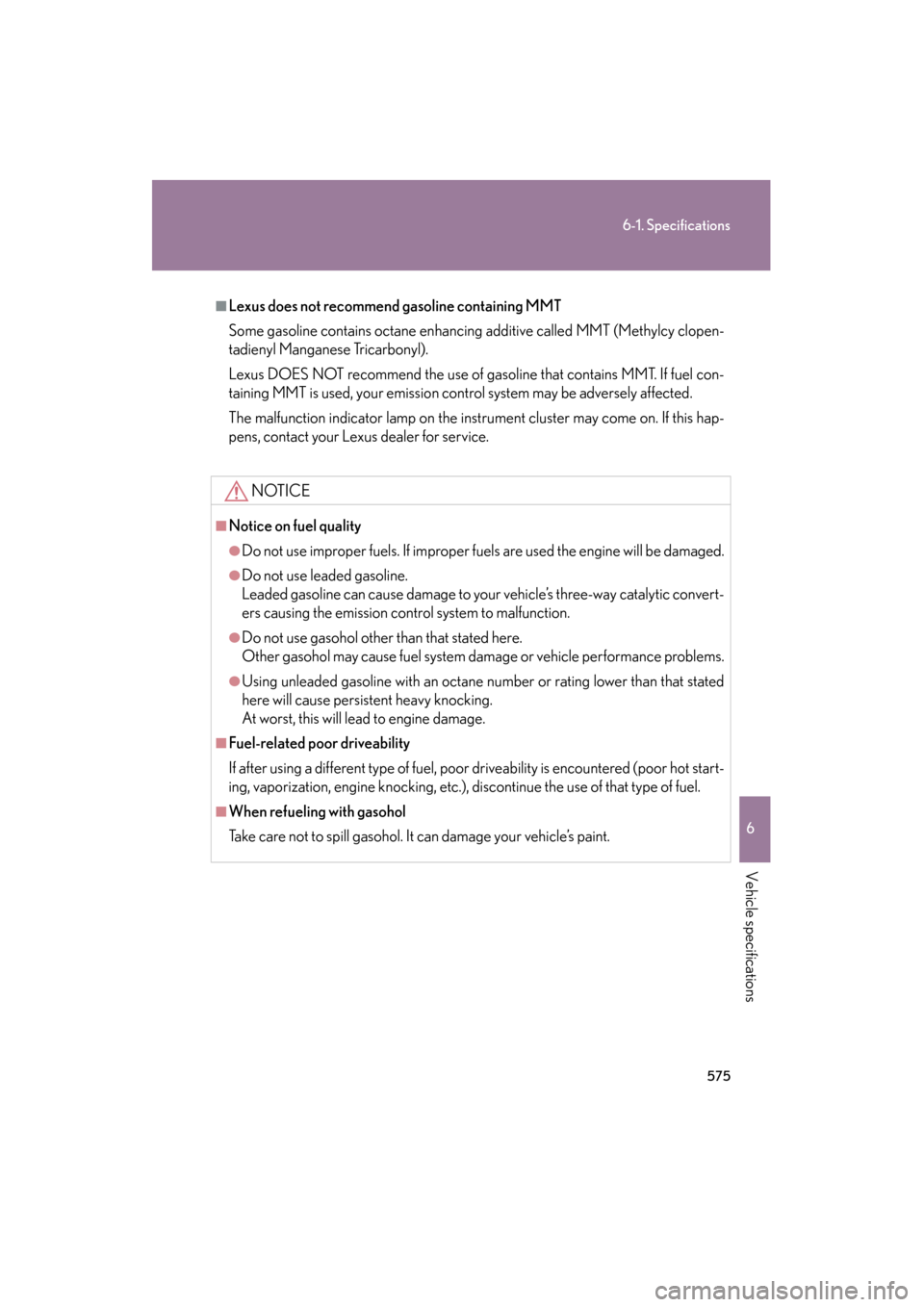

■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancin g additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the inst rument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knoc king, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GS_U_G.book Page 575 Monday, April 27, 2009 10:50 AM

576
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

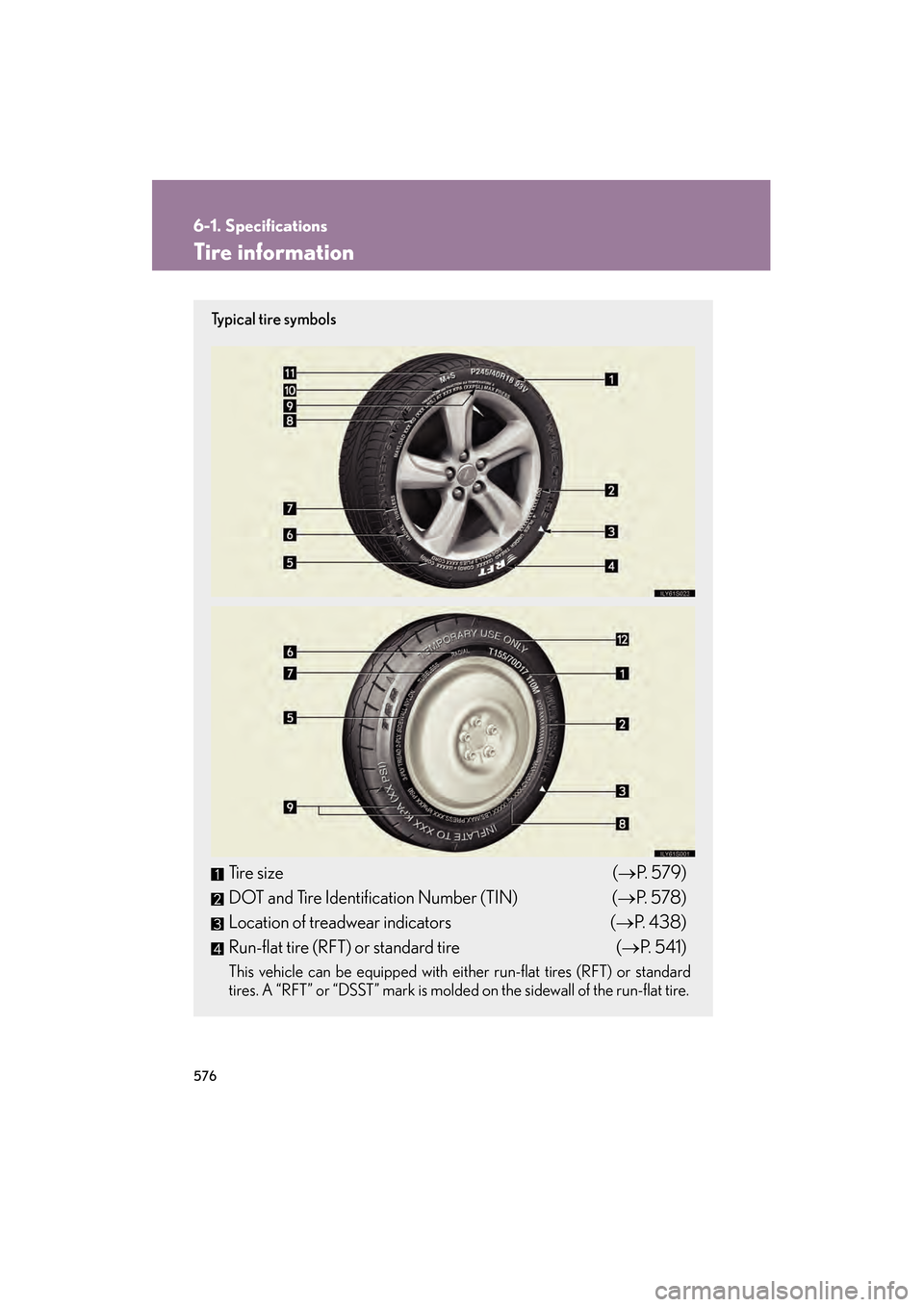

Tire information
Ty p i c a l t i r e s y m b o l s
Tire size(→ P. 5 7 9 )
DOT and Tire Identification Number (TIN) (→ P. 5 7 8 )
Location of treadwear indicators (→ P. 4 3 8 )
Run-flat tire (RFT) or standard tire (→ P. 541)
This vehicle can be equipped with either run-flat tires (RFT) or standard
tires. A “RFT” or “DSST” mark is molded on the sidewall of the run-flat tire.
GS_U_G.book Page 576 Monday, April 27, 2009 10:50 AM

577
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

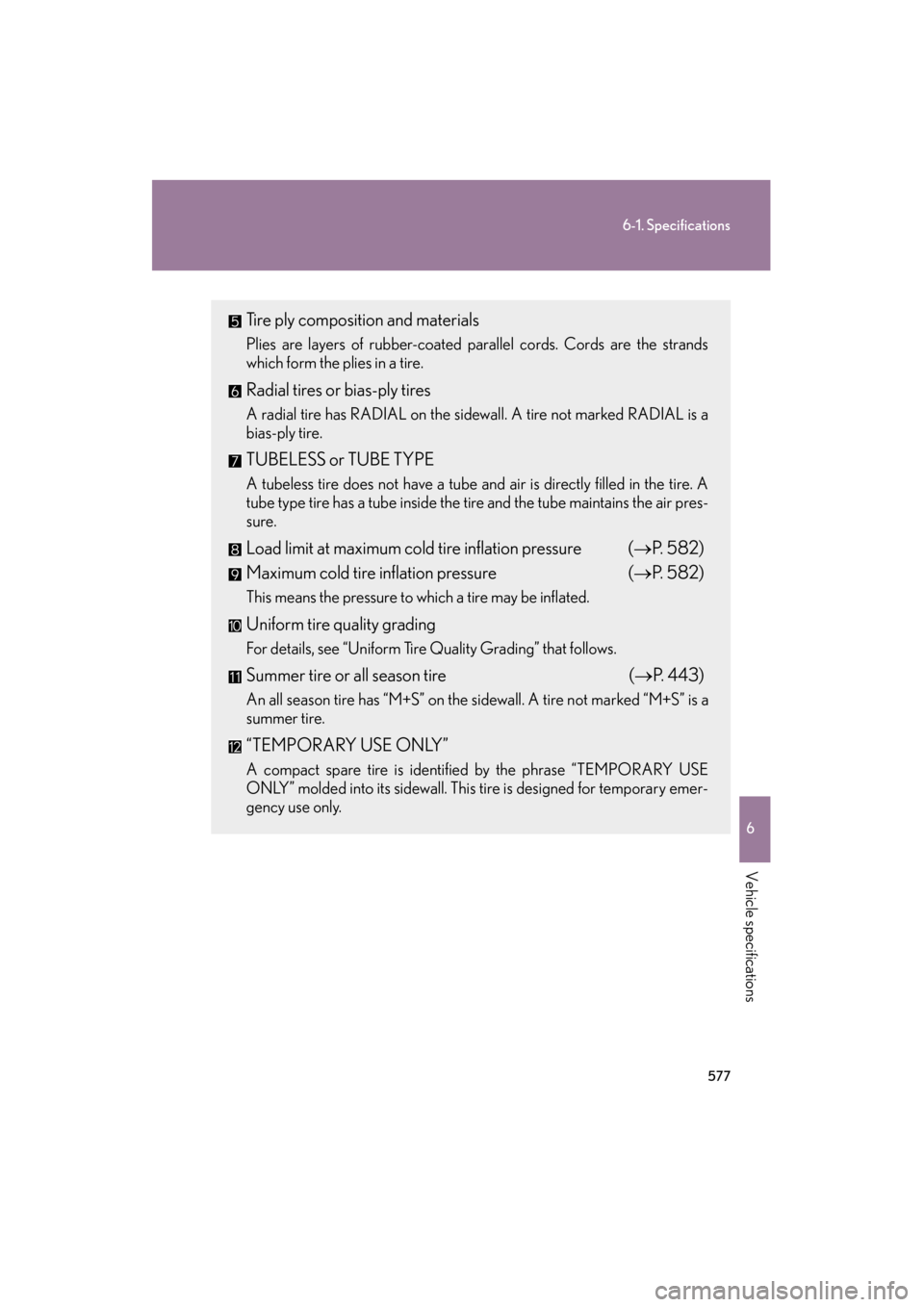

Tire ply composition and materials
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the tire. A
tube type tire has a tube inside the ti re and the tube maintains the air pres-
sure.
Load limit at maximum cold tire inflation pressure ( →P. 582)
Maximum cold tire inflation pressure ( →P. 582)
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
Summer tire or all season tire (→ P. 443)
An all season tire has “M+S” on the si dewall. A tire not marked “M+S” is a
summer tire.
“TEMPORARY USE ONLY”
A compact spare tire is identified by the phrase “TEMPORARY USE
ONLY” molded into its sidewall. This tire is designed for temporary emer-
gency use only.
GS_U_G.book Page 577 Monday, April 27, 2009 10:50 AM

578
6-1. Specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

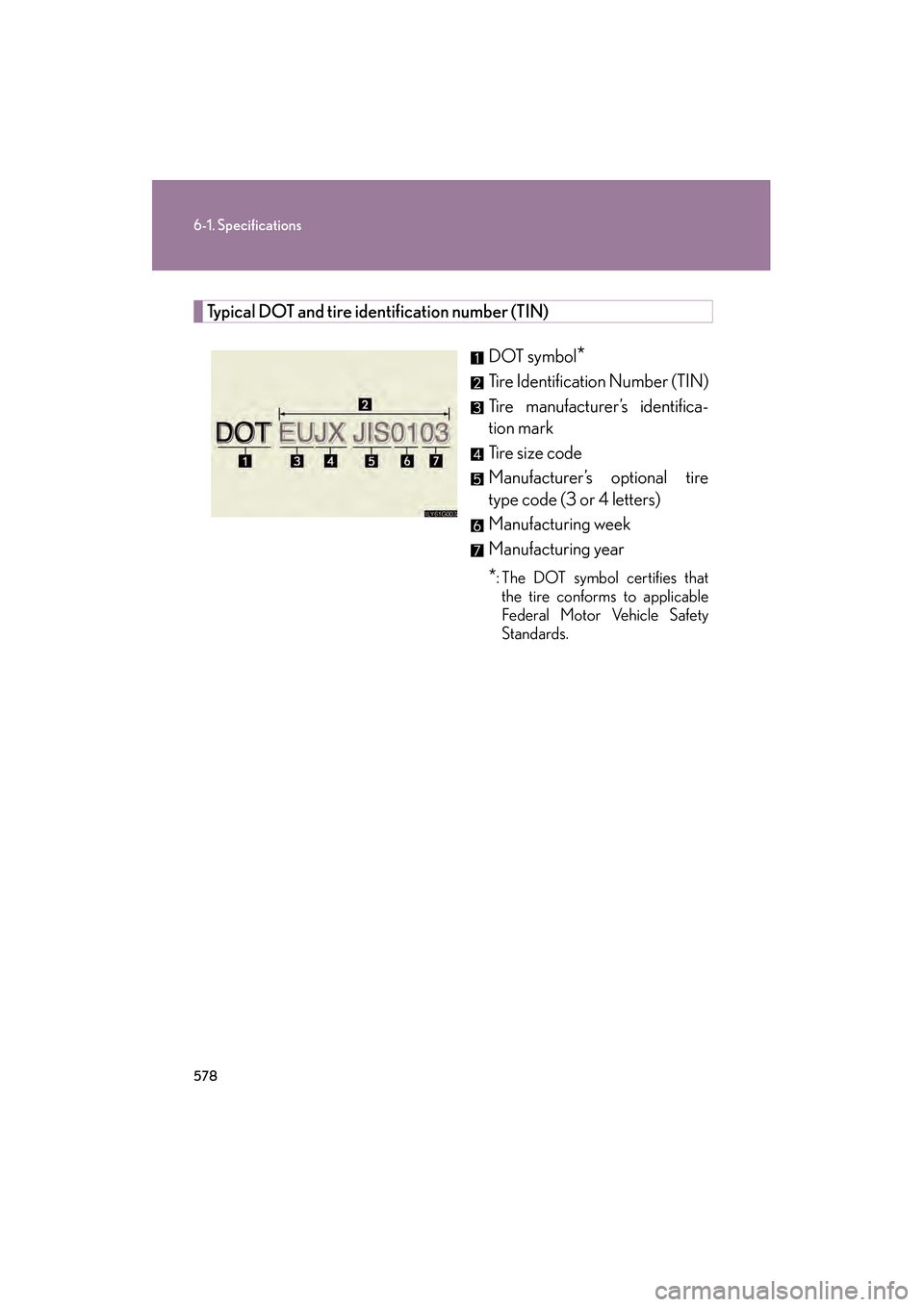

Typical DOT and tire identification number (TIN)DOT symbol
*
Tire Identification Number (TIN)
Tire manufacturer’s identifica-
tion mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies thatthe tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
GS_U_G.book Page 578 Monday, April 27, 2009 10:50 AM

579
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Tire size■ Typical tire size information
Ty p e A
The illustration indicates typical
tire size.
Ti r e u s e
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol
(alphabet with one letter)
Speed category
(alphabet with one letter)
■ Tire dimensions
Section width
Ti r e h e i g h t
Wheel diameter
Ty p e B
