control Lexus GS350 2010 Owner's Manual

550
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
• Clean the grille and the sensor.
• This message appears when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
GS_U_G.book Page 550 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
551
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

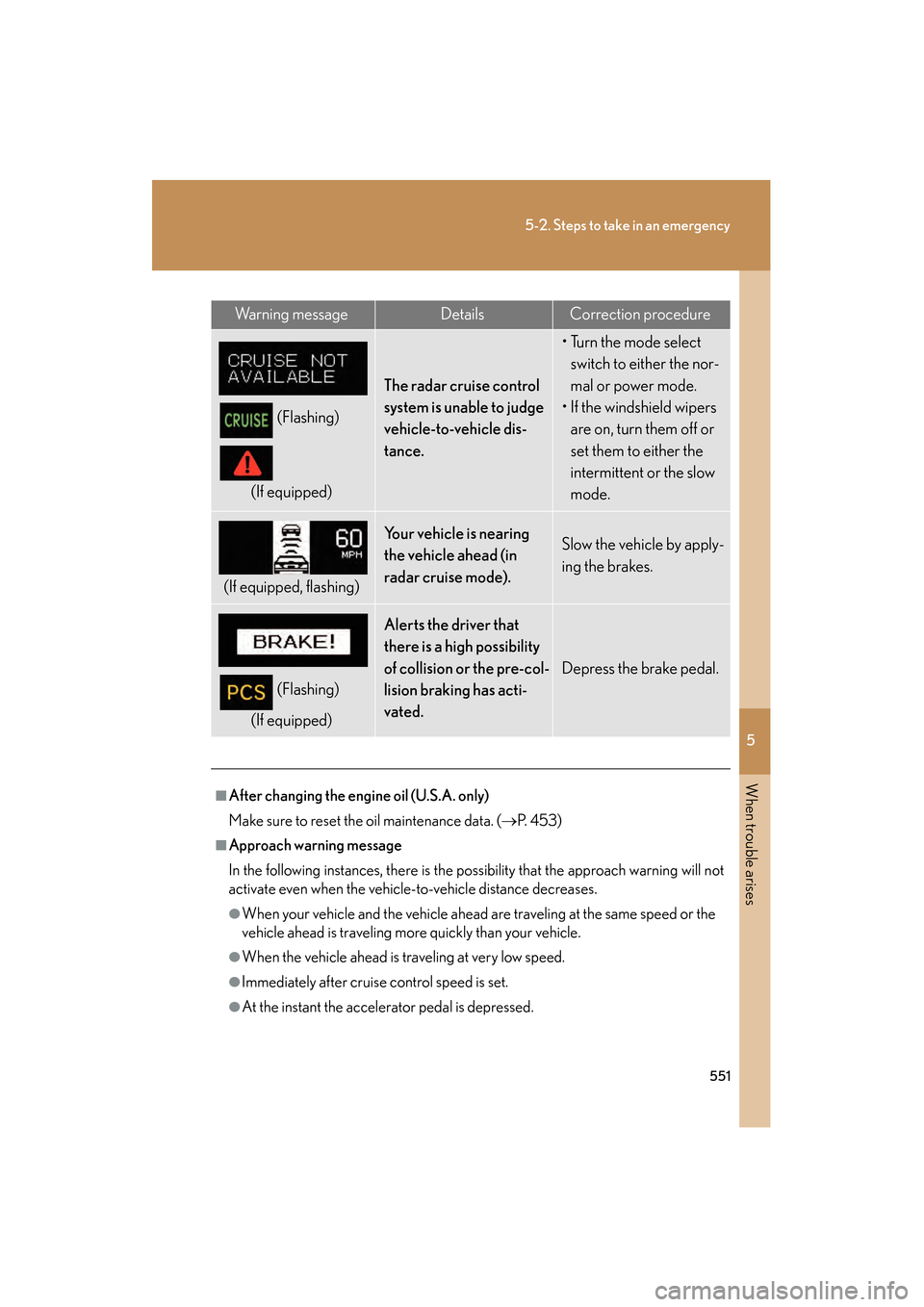

Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
•Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Your vehicle is nearing
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
(Flashing)
(If equipped)
Alerts the driver that
there is a high possibility
of collision or the pre-col-
lision braking has acti-
vated.
Depress the brake pedal.
■After changing the engi ne oil (U.S.A. only)
Make sure to reset the oil maintenance data. (→ P. 4 5 3 )
■Approach warning message
In the following instances, there is the possibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.
GS_U_G.book Page 551 Wednesday, January 27, 2010 4:48 PM

564
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■When using the compact spare tire
●Remember that your spare tire is specifically designed for use with your vehicle.
Do not use your spare tire on another vehicle.
●Do not use two spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS
●Brake assist
●Enhanced VSC
●TRAC
●EPS
●VGRS (GS460)
●VDIM
●Cruise control (if equipped)
●Dynamic radar cruise control (if equipped)
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Rear view monitor system (if equipped)
●Active stabilizer suspension system (if equipped)
●AVS (if equipped)
GS_U_G.book Page 564 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
571
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked
functions
Doors Using the mechanical key (
→P. 2 5 )
in order to perform the following
operations:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door.
Turning the key once again unlocks
the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(
→P. 33) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
GS_U_G.book Page 571 Wednesday, January 27, 2010 4:48 PM

603
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy clopen-
tadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con-
taining MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used the engine will be damaged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than that stated
here will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GS_U_G.book Page 603 Wednesday, January 27, 2010 4:48 PM

609
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Uniform Tire Quality GradingThis information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the U.S.
Department of Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehi-
cles with information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read
this information.
■ DOT quality grades
All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A
■Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one and a half (1 - 1 /2) times as
well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use, however, and may depart sign ificantly from the norm due to varia-
tions in driving habits, service practices and differences in road characteris-
tics and climate.
GS_U_G.book Page 609 Wednesday, January 27, 2010 4:48 PM

610
6-1. Specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

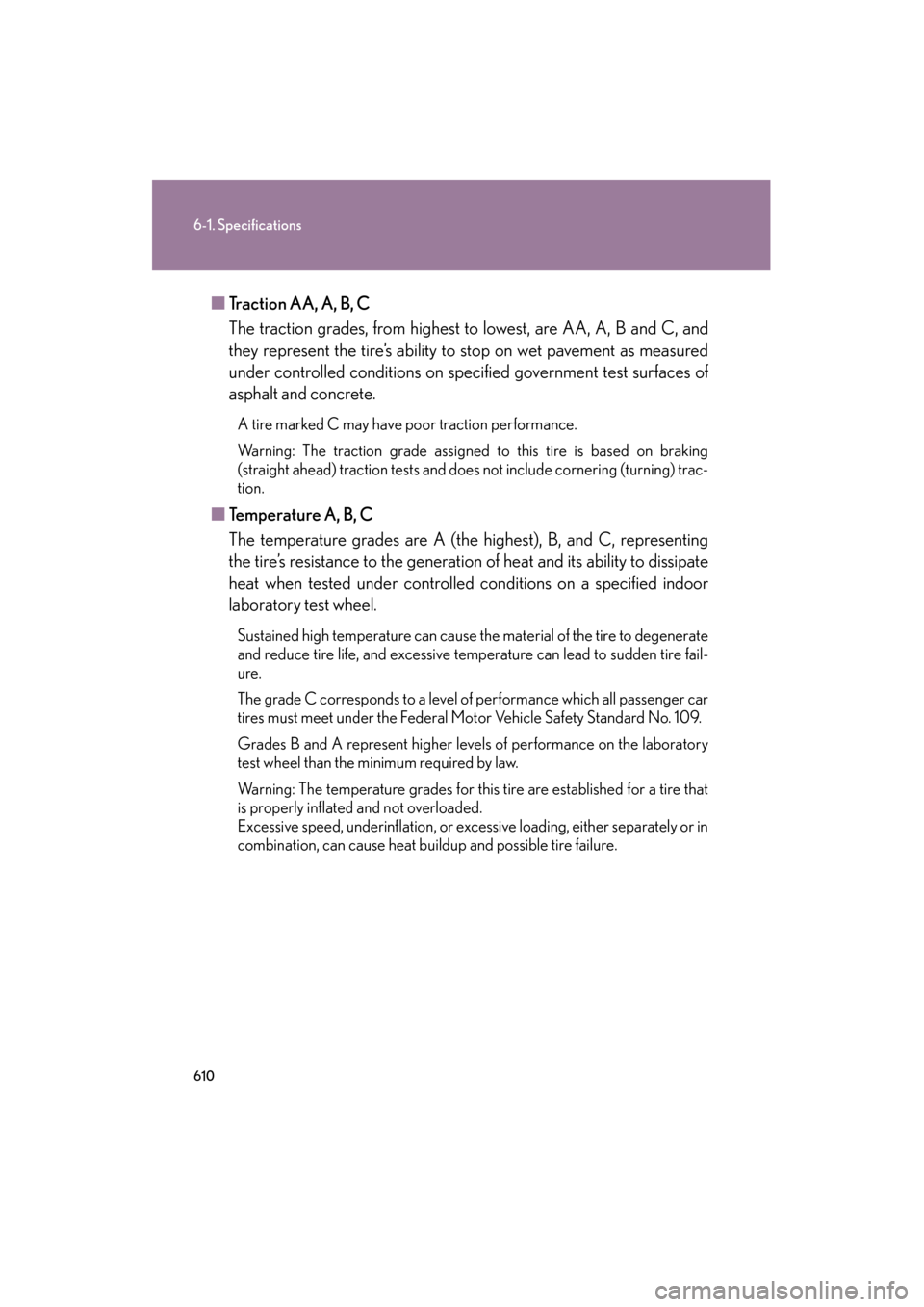

■Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
GS_U_G.book Page 610 Wednesday, January 27, 2010 4:48 PM

620
6-2. Customization
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
ItemFunctionDefault settingCustomizedsetting
Door lock
(
→P. 4 3 )
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-step
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver’s door
unlocks all doors OFFON
Shifting the shift lever to
“P” unlocks all doorsONOFF
Shifting the shift lever to
position other than “P”
locks all doors
ONOFF
Power win-
dows (
→P. 7 5 )
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationOFFOpen
GS_U_G.book Page 620 Wednesday, January 27, 2010 4:48 PM

621
6-2. Customization
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
*1: This function cannot be customized unless power window operationusing the wireless remote control is enabled.
*2: Vehicles sold outside Canada
ItemFunctionDefault settingCustomized
setting
Moon roof
(
→P. 7 8 )
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operation
*1OFFOpen
Linked operation of com-
ponents when wireless
remote control used
*1OFF
Slide only
Tilt only
Automatic
light control
system
(
→P. 1 5 7 )
Light sensor sensitivityLevel 3Levels 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*2
GS_U_G.book Page 621 Wednesday, January 27, 2010 4:48 PM

630
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
A/CAir Conditioning
ABSAnti-Lock Brake System
AFSAdaptive Front-lighting System
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
Enhanced VSCEnhanced Vehicle Stability Control
EPSElectric Power Steering
GAWRGross Axle Weight Ratings
GPSGlobal Positioning System
I/MEmission inspection and maintenance
INFOInformation
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcy clopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
GS_U_G.book Page 630 Wednesday, January 27, 2010 4:48 PM
