486
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

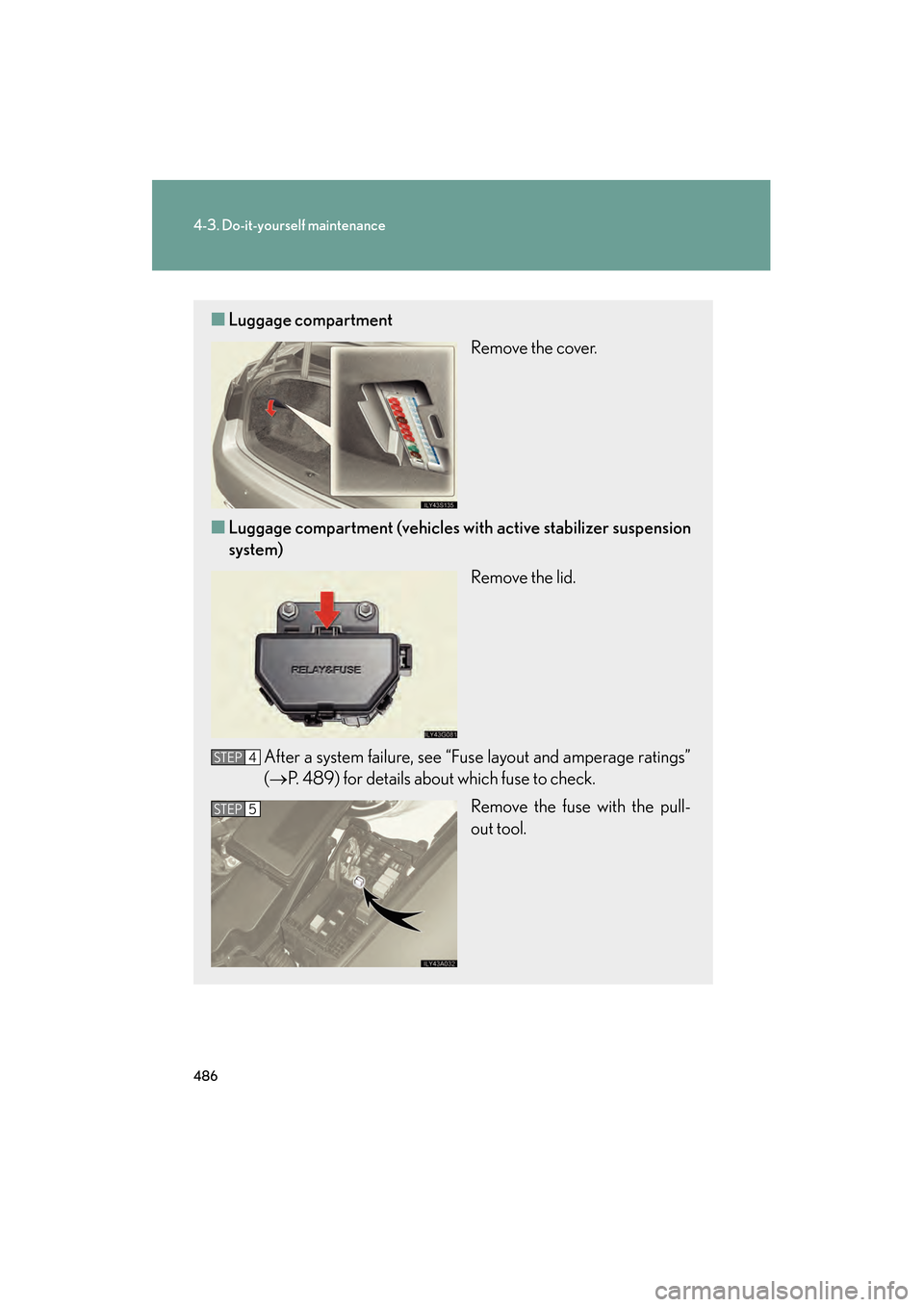

■Luggage compartment
Remove the cover.
■ Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(→ P. 489) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5
GS_U_G.book Page 486 Wednesday, January 27, 2010 4:48 PM

487
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP6
GS_U_G.book Page 487 Wednesday, January 27, 2010 4:48 PM

488
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

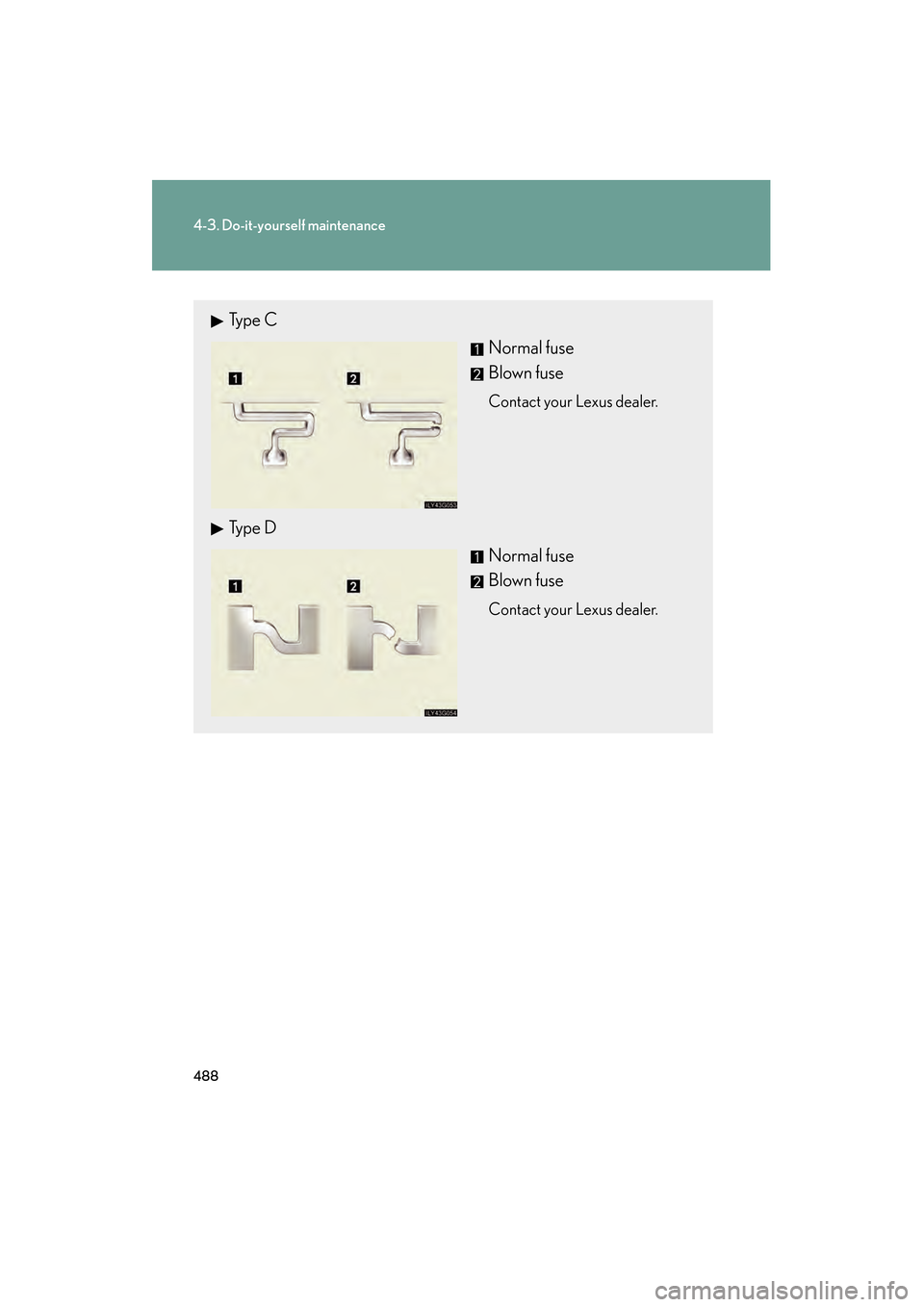

Ty p e CNormal fuse
Blown fuse
Contact your Lexus dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Lexus dealer.
GS_U_G.book Page 488 Wednesday, January 27, 2010 4:48 PM

489
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
February 1, 2010 9:49 am
Fuse layout and amperage ratings■ Engine compartment (Type A)
GS460
FuseAmpereCircuit
1ECU-B10VGRS, EPS, driver’s seat switch
module
2ABS MAIN310Electronically controlled
brake system
3TURN-HAZ15Turn signal lights, emergency flashers
4IG2 MAIN20IG2, GAUGE and IGN
5RAD NO.230Audio system
6D/C CUT20DOME and MPX-B
7RAD NO.130Audio system
sec_04_03.fm Page 489 Monday, February 1, 2010 9:50 AM

490
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit
8MPX-B10
Multiplex communication system,
front controller, door control system
(power door lock system, door cour-
tesy lights, power windows, power
rear view mirror control system, out-
side rear view mirror heaters), power
seat system, steering sensors, elec-
tronically controlled brake system, tilt
and telescopic steering wheel,
gauges and meters, combination
switch
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination, rear personal
lights, automatic transmission selec-
tor lever spot light, front personal
lights
10CDS10Noise filter
11ABS MAIN210Electronically controlled
brake system
12ABS MOTOR30ABS
13ABS MAIN110Capacitor
14E/G-B60FR CTRL BATT, ETCS, ALT-S,
A/F HTR and INJ2
15P/ I - B60EFI NO.1, F/PMP and INJ
16ABS150VDIM
17RH J/B-B30AM2, DOOR FR and DOOR RR
GS_U_G.book Page 490 Wednesday, January 27, 2010 4:48 PM

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit
18VGRS40VGRS
19MAIN30H-LP R LWR and H-LP L LWR
20STARTER30Starting system
21LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
22VVT40Electronic engine control system
23EPS80EPS
24ALT180
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR,
ABS MAIN1, and ABS MAIN2
25RH J/B-AM80
AM1, OBD, STOP SW, TI & TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
26FA N 380Electric cooling fans
27LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
28ABS230ABS
29DEFFOG50Rear window defogger, noise filter
30CDS40CDS
GS_U_G.book Page 491 Wednesday, January 27, 2010 4:48 PM

492
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

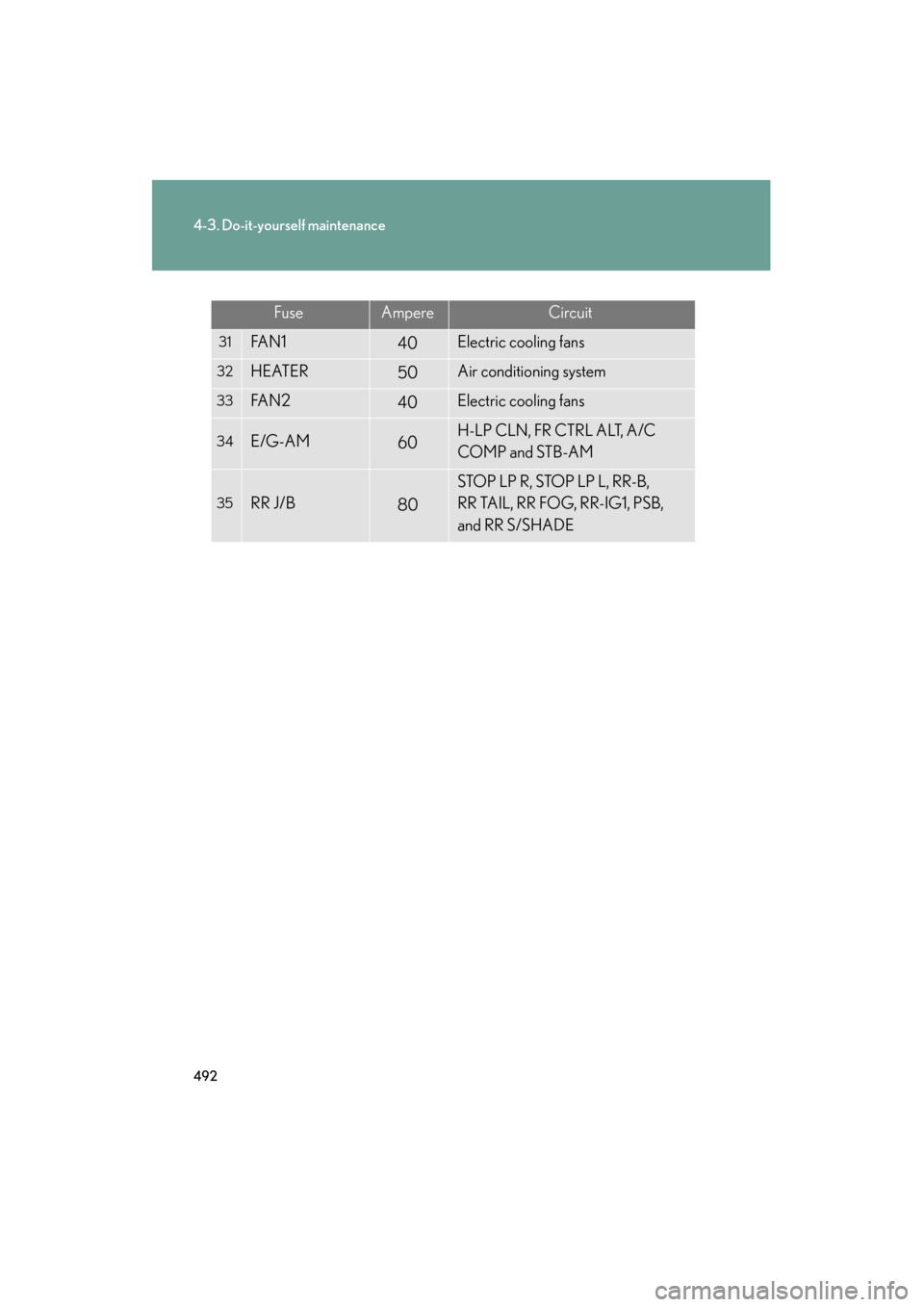

FuseAmpereCircuit
31FA N 140Electric cooling fans
32HEATER50Air conditioning system
33FA N 240Electric cooling fans
34E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
35RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/SHADE
GS_U_G.book Page 492 Wednesday, January 27, 2010 4:48 PM

493
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
February 1, 2010 9:50 am
GS350
FuseAmpereCircuit
1ECU-B10VGRS, EPS, driver’s seat switch
module
2ABS MAIN325Electronically controlled
brake system
3TURN-HAZ15Turn signal lights, emergency flashers
4IG2 MAIN20IG2, GAUGE and IGN
5RAD NO.230Audio system
6D/C CUT20DOME and MPX-B
7RAD NO.130Audio system
8MPX-B10
Multiplex communication system,
front controller, door control system
(power door lock system, door cour-
tesy lights, power windows, power
rear view mirror control system, out-
side rear view mirror heaters), power
seat system, steering sensors, elec-
tronically controlled brake system, tilt
and telescopic steering wheel,
gauges and meters, combination
switch
sec_04_03.fm Page 493 Monday, February 1, 2010 9:51 AM

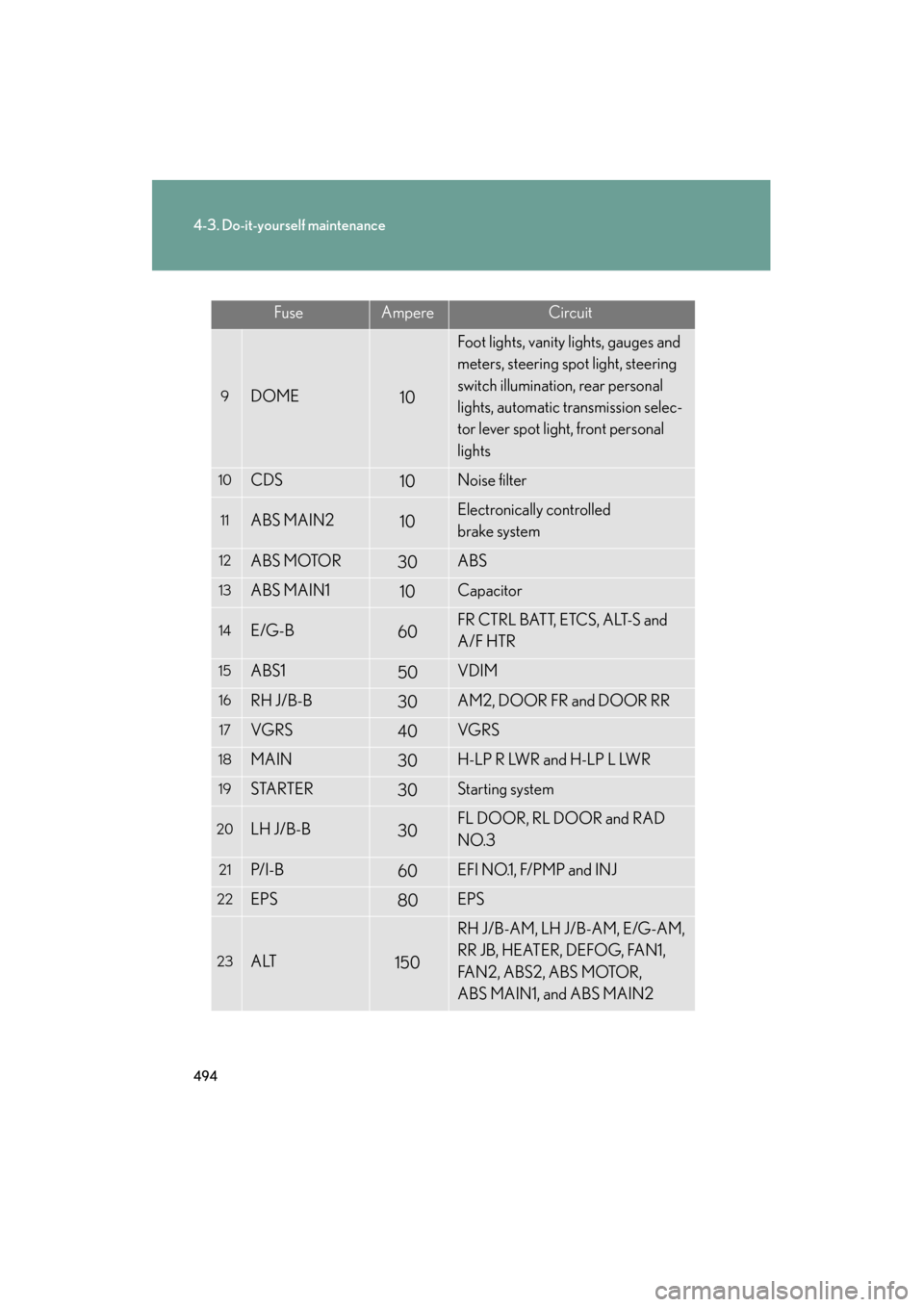

494
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit
9DOME10
Foot lights, vanity lights, gauges and
meters, steering spot light, steering
switch illumination, rear personal
lights, automatic transmission selec-
tor lever spot light, front personal
lights
10CDS10Noise filter
11ABS MAIN210Electronically controlled
brake system
12ABS MOTOR30ABS
13ABS MAIN110Capacitor
14E/G-B60FR CTRL BATT, ETCS, ALT-S and
A/F HTR
15ABS150VDIM
16RH J/B-B30AM2, DOOR FR and DOOR RR
17VGRS40VGRS
18MAIN30H-LP R LWR and H-LP L LWR
19STARTER30Starting system
20LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
21P/ I - B60EFI NO.1, F/PMP and INJ
22EPS80EPS
23ALT150
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR,
ABS MAIN1, and ABS MAIN2
GS_U_G.book Page 494 Wednesday, January 27, 2010 4:48 PM

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit
24RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/SHADE
25GLW PLG150Starting system
26RH J/B-AM80
AM1, OBD, STOP SW, TI & TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
27ABS230ABS
28DEFFOG50Rear window defogger, noise filter
29CDS40CDS
30FA N 140Electric cooling fans
31HEATER50Air conditioning system
32GLW PLG250Starting system
33E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
34LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
35FA N 260Electric cooling fans
GS_U_G.book Page 495 Wednesday, January 27, 2010 4:48 PM
