fuse Lexus GS350 2010 Owner's Guide

496
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Engine compartment (Type B)
GS460
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electronic throttle control system
4ALT-S7. 5 Charging system
5INJ225
Multiport fuel injection system/
sequential multiport fuel injection
system
6H-LP CLN30Headlight cleaner
7STB-AM30
8DEICER25
9FR CTRL-AM30FR TAIL, FR FOG and WASHER
GS_U_G.book Page 496 Wednesday, January 27, 2010 4:48 PM

497
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit
10IG210Ignition system, noise filter and ECT
ECU
11EFI NO.210
Fuel system, exhaust system, multi-
port fuel injection system/sequential
multiport fuel injection system, elec-
tronic engine control system, leak
detection pump
12H-LP R LWR15Headlight low beam (right)
13H-LP L LWR15Headlight low beam (left)
14F/ P M P25Fuel system
15EFI25
Multiport fuel injection system/
sequential multiport fuel injection
system, ECT ECU
16INJ25
Multiport fuel injection system/
sequential multiport fuel injection
system
17H-LP UPR15Headlight high beams
18HORN10Horns
19WA S H E R20Windshield wipers and washer
20FR TAIL10Parking lights, side marker light
21FR FOG15Front fog lights
GS_U_G.book Page 497 Wednesday, January 27, 2010 4:48 PM

498
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

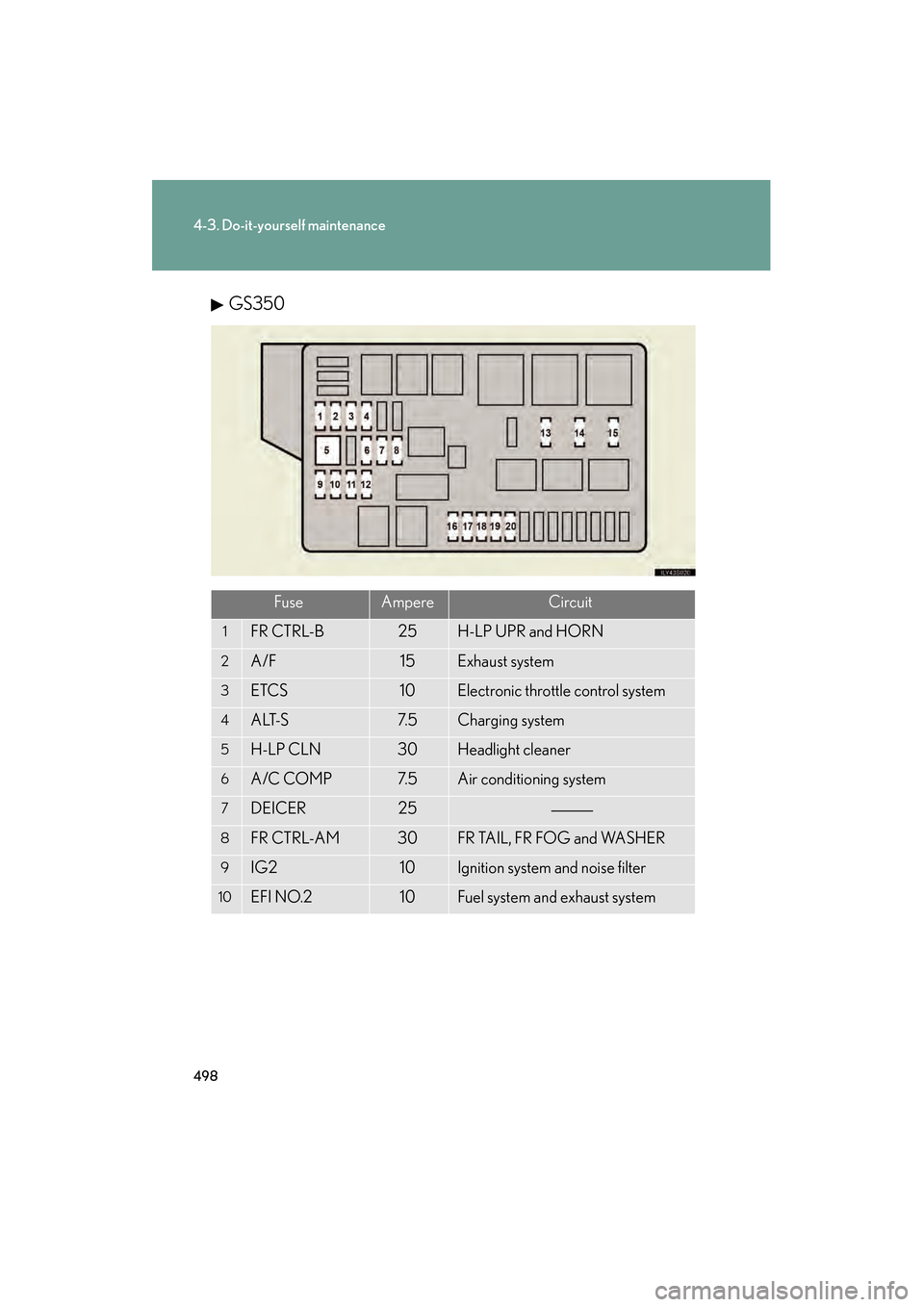

GS350
FuseAmpereCircuit
1FR CTRL-B25H-LP UPR and HORN
2A/F15Exhaust system
3ETCS10Electronic throttle control system
4ALT-S7. 5 Charging system
5H-LP CLN30Headlight cleaner
6A/C COMP7. 5 Air conditioning system
7DEICER25
8FR CTRL-AM30FR TAIL, FR FOG and WASHER
9IG210Ignition system and noise filter
10EFI NO.210Fuel system and exhaust system
GS_U_G.book Page 498 Wednesday, January 27, 2010 4:48 PM

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit

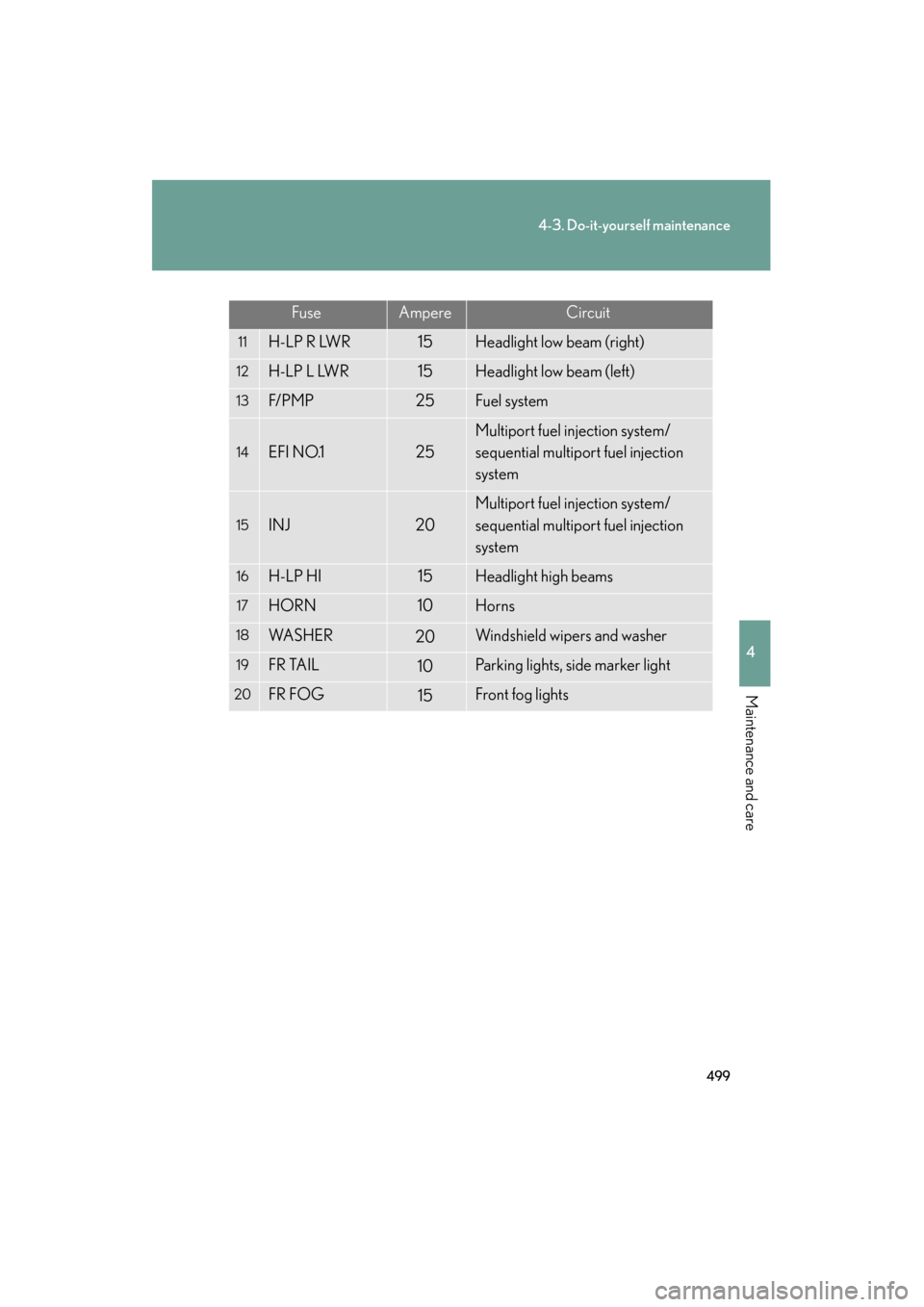

11H-LP R LWR15Headlight low beam (right)
12H-LP L LWR15Headlight low beam (left)
13F/ P M P25Fuel system
14EFI NO.125
Multiport fuel injection system/
sequential multiport fuel injection
system
15INJ20
Multiport fuel injection system/
sequential multiport fuel injection
system
16H-LP HI15Headlight high beams
17HORN10Horns
18WA S H E R20Windshield wipers and washer
19FR TAIL10Parking lights, side marker light
20FR FOG15Front fog lights
GS_U_G.book Page 499 Wednesday, January 27, 2010 4:48 PM

500
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
February 1, 2010 9:50 am

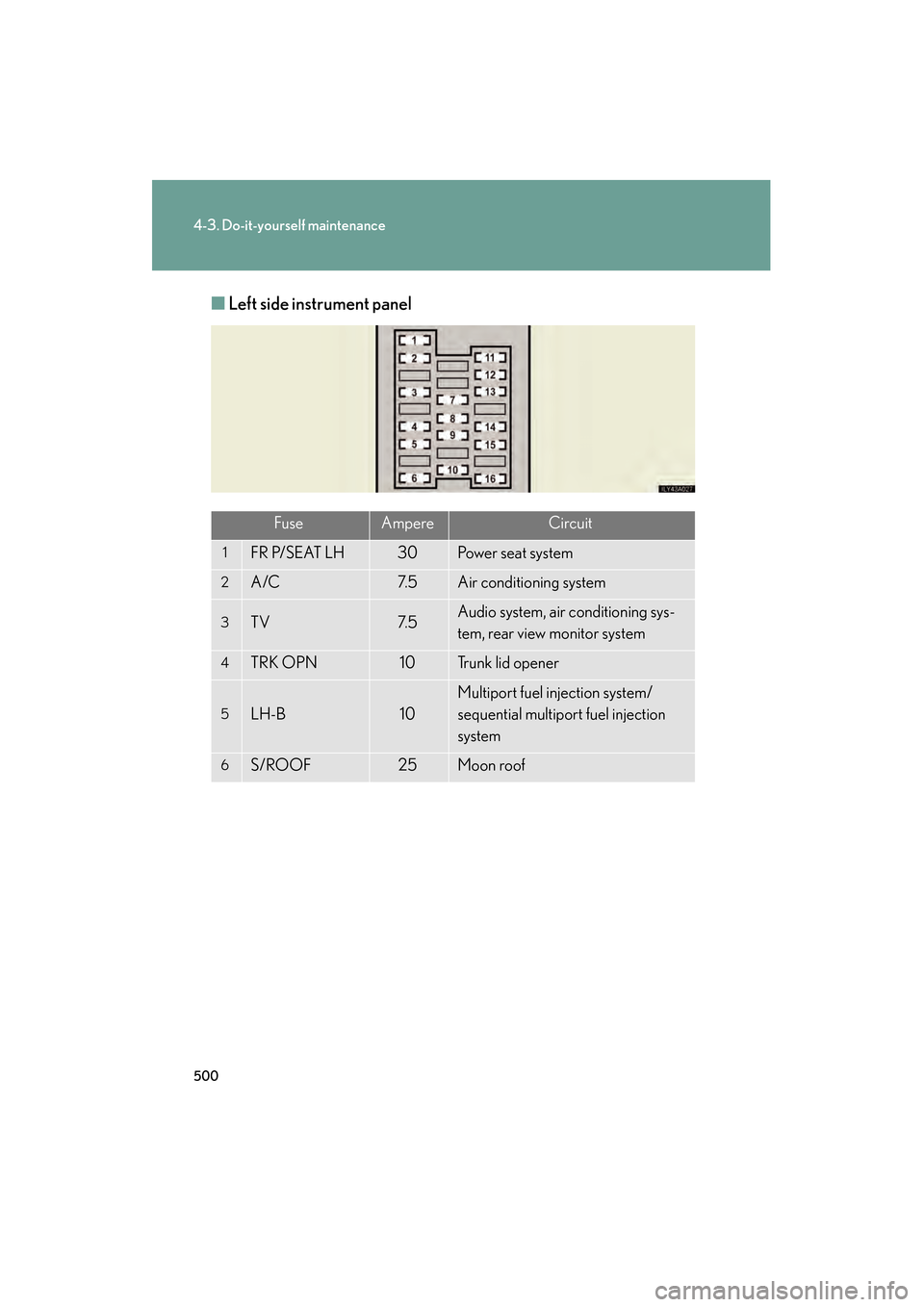

■Left side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30Power seat system
2A/C7. 5Air conditioning system
3TV7. 5Audio system, air conditioning sys-
tem, rear view monitor system
4TRK OPN10Tr u n k l i d o p e n e r
5LH-B10
Multiport fuel injection system/
sequential multiport fuel injection
system
6S/ROOF25Moon roof
sec_04_03.fm Page 500 Monday, February 1, 2010 9:55 AM

501
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
February 1, 2010 9:50 am
FuseAmpereCircuit
7PA N E L7. 5
Steering switch illumination, audio
system, glove box light, automatic
transmission selector lever illumina-
tion, console box light, adaptive vari-
able suspension switch illumination,
cigarette lighter illumination, air con-
ditioning system, VSC OFF switch
illumination, driving pattern selector
switch, seat heater or heated and
ventilated seat switches, register ILL
RH, register ILL LH, fuel filler door
and trunk lid opener switch illumina-
tion, D-SW module
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electronically controlled
brake system, yaw rate and G sensor,
steering sensor, cruise control sys-
tem, dynamic radar cruise control
system, EPS, VGRS, rear view moni-
tor system, four-wheel drive system,
front controller, moon roof, rain sen-
sor
10FR S/HTR LH15Seat heaters and ventilators
11RR DOOR LH20
Rear left door control system (power
door lock system, door courtesy light,
power window)
sec_04_03.fm Page 501 Monday, February 1, 2010 9:55 AM

502
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
February 1, 2010 9:50 am
FuseAmpereCircuit
12FR DOOR LH20
Front left door control system (power
door lock system, power rear view
mirror control system, door courtesy
light, outside rear view mirror heater,
power window)
13RAD NO.310Audio system
14H-LP LVL7. 5AFS, automatic headlight leveling
control system
15LH-IG10
Charging system, headlight cleaners,
exhaust gas sensor, rear window
defogger, electric cooling fans, rear
left door control system, front left
door control system, emergency
flashers, automatic transmission, seat
belt pretensioners, Intuitive parking
assist, power window
16FR WIP30Windshield wipers and washer
sec_04_03.fm Page 502 Monday, February 1, 2010 9:55 AM

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Right side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30Power seat system
2OBD7. 5On-board diagnosis system
3STOP SW7. 5
Stop/tail lights, multi-port fuel injec-
tion system/sequential multiport fuel
injection system, starting system,
electronically controlled brake sys-
tem, Enhanced VSC system, shift
lock system, ECT ECU
4AM17. 5
5TI & TE20Tilt and telescopic steering wheel,
multiplex communication system
6SECURITY7. 5Smart access system with push-but-
ton start
7STR LOCK25Steering lock system
8GAUGE7. 5Gauges and meters
GS_U_G.book Page 503 Wednesday, January 27, 2010 4:48 PM

504
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
February 1, 2010 9:50 am
FuseAmpereCircuit
9IGN10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, stop/tail
lights, steering lock system, electroni-
cally controlled brake system, occu-
pant classification system ECU
10ACC7. 5
Multiplex communication system,
smart access system with push-but-
ton start, rear view monitor system,
audio system, air conditioning system
11CIG15Cigarette lighter
12PWR OUTLET15Po w e r o u t l e t
13AIR SUS20Adaptive variable suspension system
14RR DOOR RH20
Rear right door control system
(power door lock system, door cour-
tesy light, power window)
15FR DOOR RH20
Front right door control system
(power door lock system, power rear
view mirror control system, door
courtesy light, outside rear view mir-
ror heater, power window), multiplex
communication system
sec_04_03.fm Page 504 Monday, February 1, 2010 9:56 AM

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
FuseAmpereCircuit

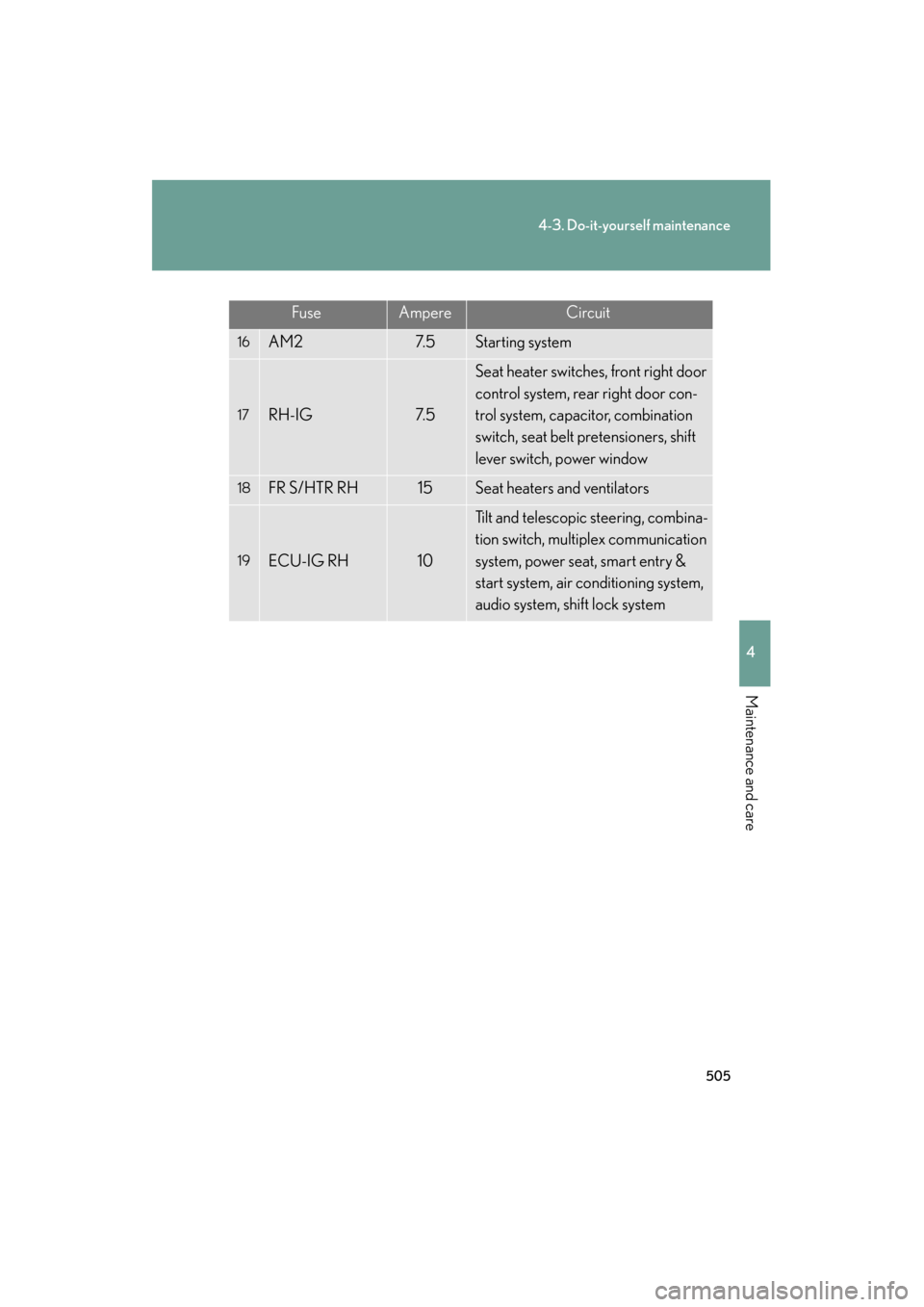

16AM27. 5Starting system
17RH-IG7. 5
Seat heater switches, front right door
control system, rear right door con-
trol system, capacitor, combination
switch, seat belt pretensioners, shift
lever switch, power window
18FR S/HTR RH15Seat heaters and ventilators
19ECU-IG RH10
Tilt and telescopic steering, combina-
tion switch, multiplex communication
system, power seat, smart entry &
start system, air conditioning system,
audio system, shift lock system
