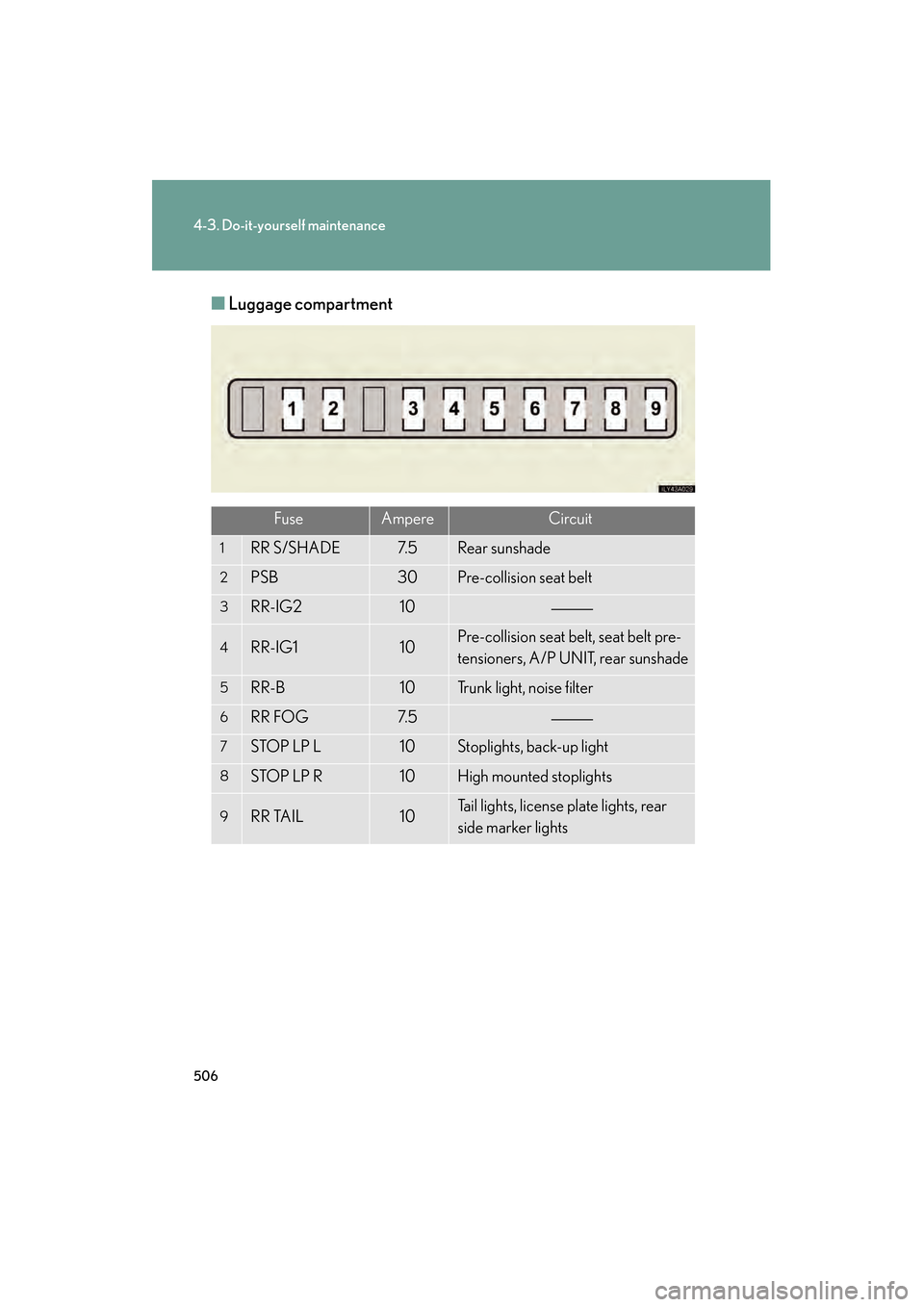

■Luggage compartment
FuseAmpereCircuit
1RR S/SHADE7. 5Rear sunshade
2PSB30Pre-collision seat belt
3RR-IG210
4RR-IG110Pre-collision seat belt, seat belt pre-
tensioners, A/P UNIT, rear sunshade
5RR-B10Trunk light, noise filter
6RR FOG7. 5
7STOP LP L10Stoplights, back-up light
8STOP LP R10High mounted stoplights
9RR TAIL10Tail lights, license plate lights, rear
side marker lights
GS_U_G.book Page 506 Wednesday, January 27, 2010 4:48 PM

507
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

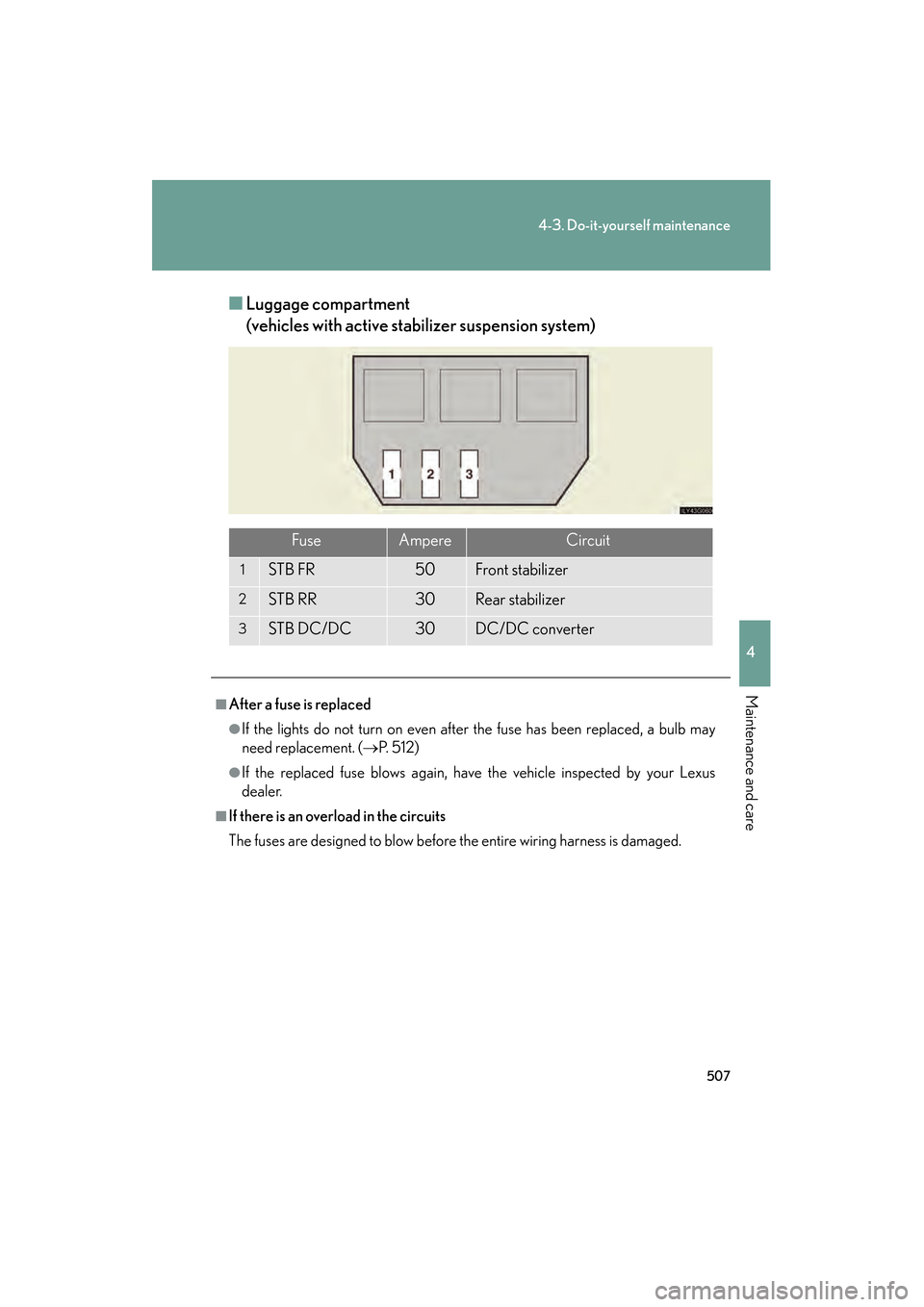

■Luggage compartment
(vehicles with active stab ilizer suspension system)
FuseAmpereCircuit
1STB FR50Front stabilizer
2STB RR30Rear stabilizer
3STB DC/DC30DC/DC converter
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 5 1 2 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
GS_U_G.book Page 507 Wednesday, January 27, 2010 4:48 PM

508
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
GS_U_G.book Page 508 Wednesday, January 27, 2010 4:48 PM
