Lexus GS350 2010 Owner's Manual

550
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
• Clean the grille and the sensor.
• This message appears when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
GS_U_G.book Page 550 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
551
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
•Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Your vehicle is nearing
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
(Flashing)
(If equipped)
Alerts the driver that
there is a high possibility
of collision or the pre-col-
lision braking has acti-
vated.
Depress the brake pedal.
■After changing the engi ne oil (U.S.A. only)
Make sure to reset the oil maintenance data. (→ P. 4 5 3 )
■Approach warning message
In the following instances, there is the possibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.
GS_U_G.book Page 551 Wednesday, January 27, 2010 4:48 PM

552
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minutes on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, the steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
GS_U_G.book Page 552 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
553
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning message and light turn off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 10 seconds)
(Flashing)
The electronic key
is not detected
when attempting
to start the
engine.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACC ESSO RY o r
IGNITION ON
mode.
Confirm the
location of
the elec-
tronic key.
GS_U_G.book Page 553 Wednesday, January 27, 2010 4:48 PM

554
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once3 times
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed with
the shift lever in P
without turning off
the “ENGINE
START STOP”
switch.Tu r n t h e
“ENGINE
START
STOP”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
“ENGINE START
STOP” switch.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
Once(Comes on for 10 seconds)
(Flashing)
The electronic key
battery is low.Replace the
battery.
(→ P. 4 8 2 )
GS_U_G.book Page 554 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
555
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure

An open door has
been closed and
the “ENGINE
START STOP”
switch has been
turned twice to
the ACCES-
SORY mode from
OFF.
Press the
“ENGINE
START
STOP”
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.
The “ENGINE
START STOP”
switch indicator
will flash green for
15 seconds.Press the
“ENGINE
START
STOP”
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.
Once
(Comes on for 60 seconds)The electronic key
does not operate
properly.
→ P. 5 7 1

(Comes on for 10 seconds)
GS_U_G.book Page 555 Wednesday, January 27, 2010 4:48 PM

556
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If you have a flat tire (Vehicles with standard tires)
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Wheel nut wrench Jack
Jack handle
Spare tireTi g h t e n
Loosen
Tools
Towing eyelet
GS_U_G.book Page 556 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
557
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

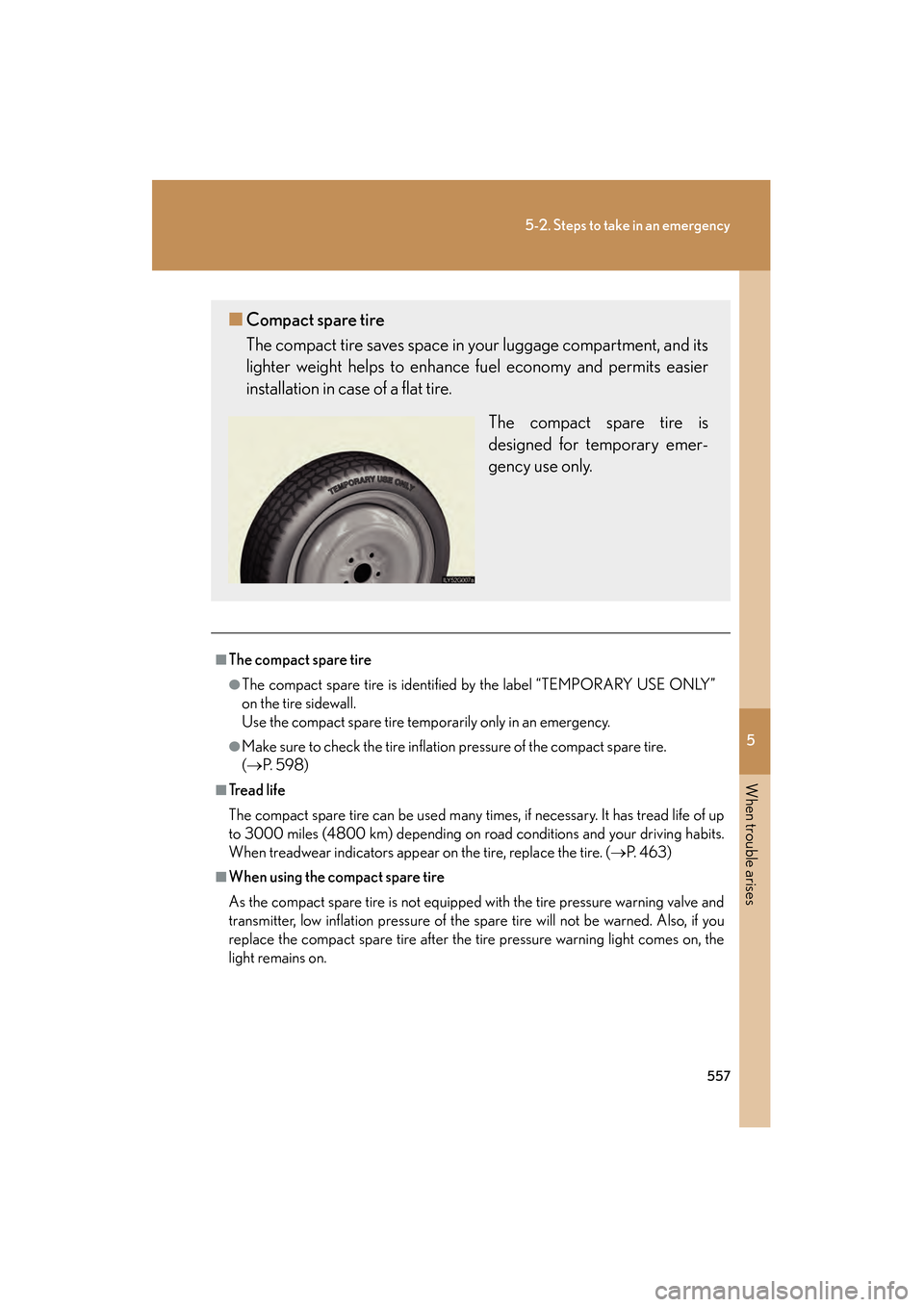

■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 5 9 8 )
■Tr e a d l i f e
The compact spare tire can be used many times, if necessary. It has tread life of up
to 3000 miles (4800 km) depending on road conditions and your driving habits.
When treadwear indicators appear on the tire, replace the tire. ( →P. 4 6 3 )
■When using the compact spare tire
As the compact spare tire is not equipped with the tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be warned. Also, if you
replace the compact spare tire after the tire pressure warning light comes on, the
light remains on.
■Compact spare tire
The compact tire saves space in your luggage compartment, and its
lighter weight helps to enhance fuel economy and permits easier
installation in case of a flat tire.
The compact spare tire is
designed for temporary emer-
gency use only.
GS_U_G.book Page 557 Wednesday, January 27, 2010 4:48 PM

558
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

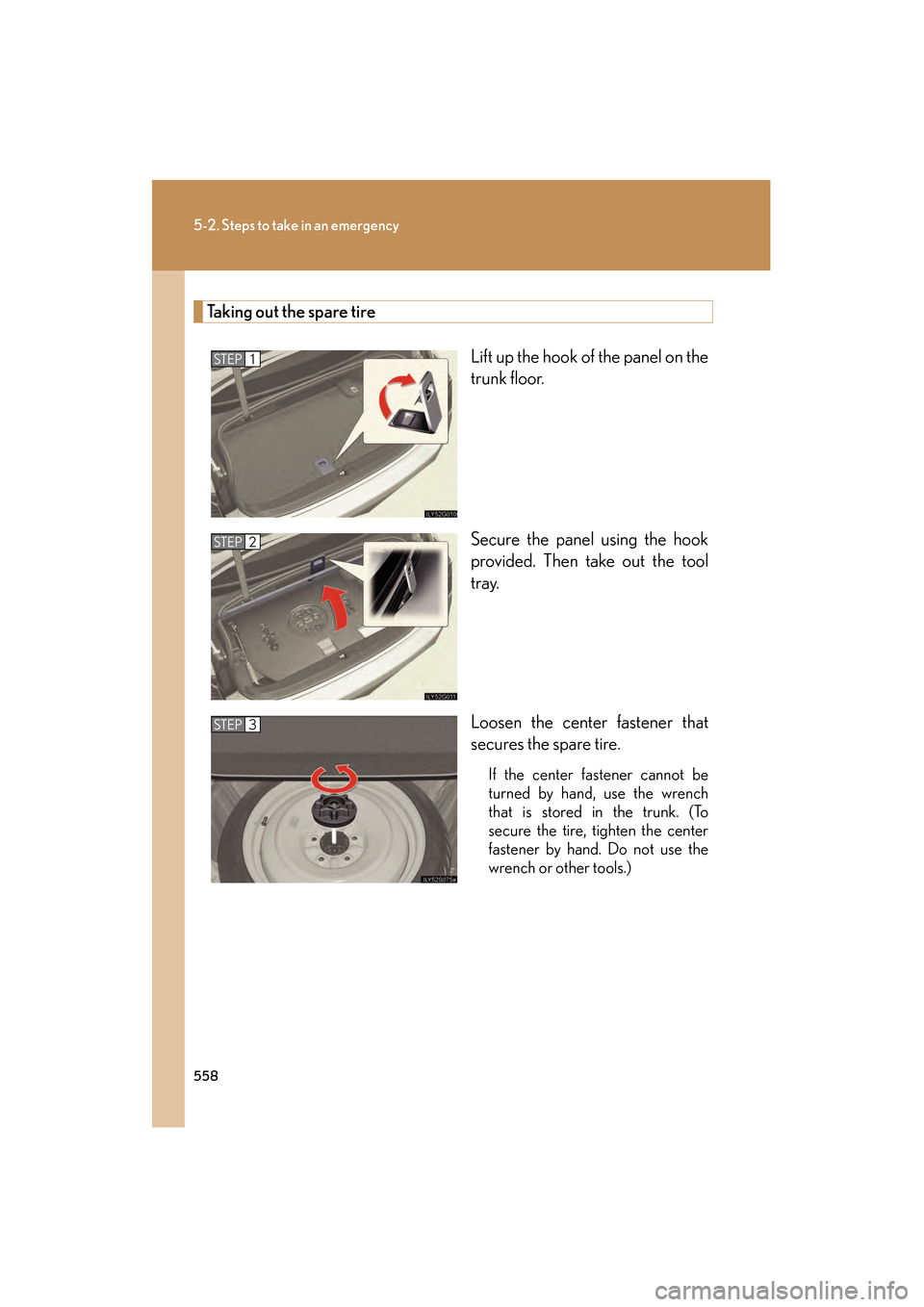

Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided. Then take out the tool
tray.
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be
turned by hand, use the wrench
that is stored in the trunk. (To
secure the tire, tighten the center
fastener by hand. Do not use the
wrench or other tools.)
STEP1
STEP2
STEP3
GS_U_G.book Page 558 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
559
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

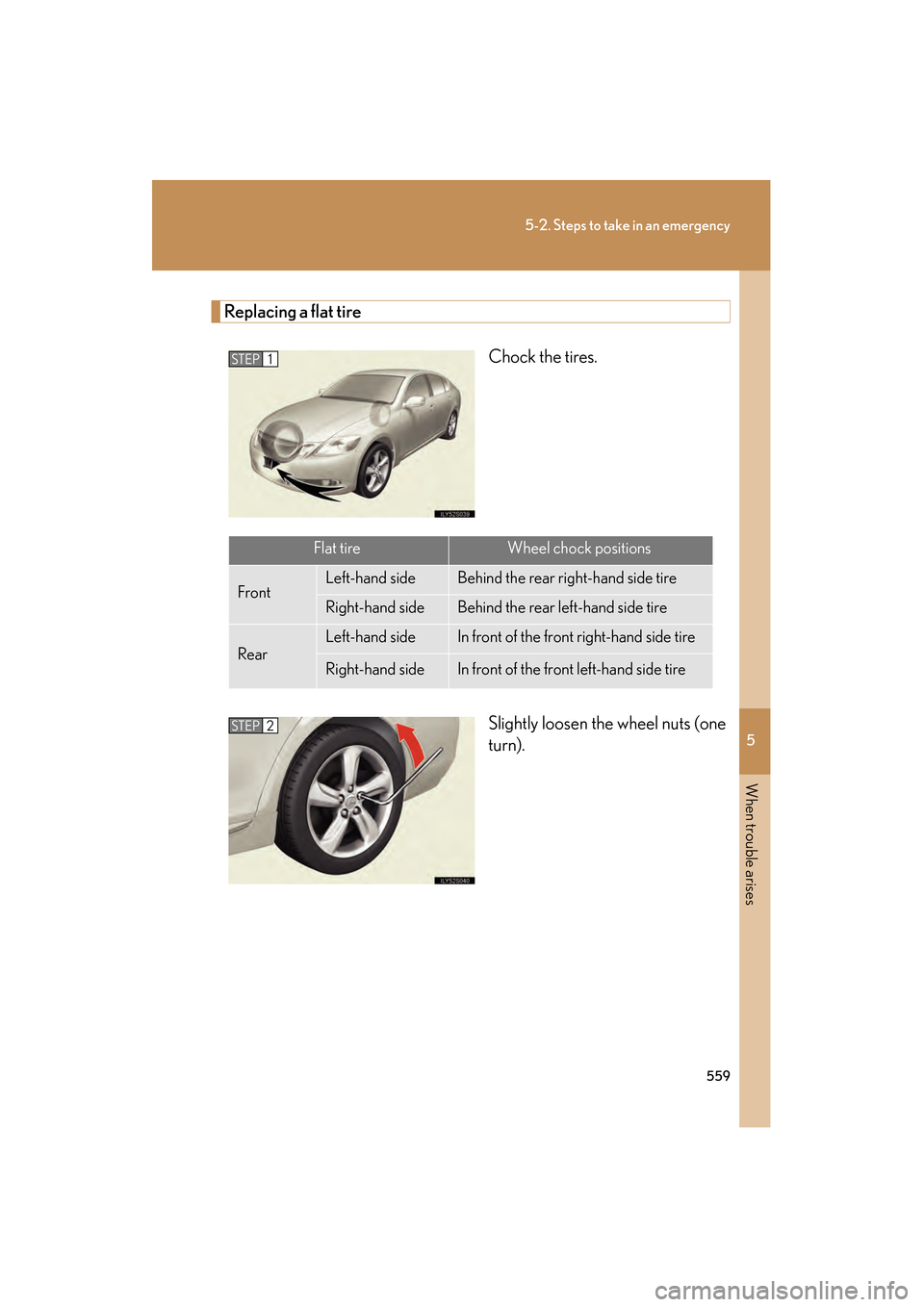

Replacing a flat tireChock the tires.
Slightly loosen the wheel nuts (one
turn).
STEP1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
Rear
Left-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
STEP2
GS_U_G.book Page 559 Wednesday, January 27, 2010 4:48 PM
