Lexus GS350 2010 Owner's Manual

580
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
NOTICE
■When adding coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.
GS_U_G.book Page 580 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
581
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/Enhanced VSC if these functions are hampering
your attempts to free the vehicle. (→P. 202)
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 581 Wednesday, January 27, 2010 4:48 PM

582
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
NOTICE
■To avoid damaging the automatic transmission and other components
●Avoid spinning the wheels and racing the engine.
●If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
GS_U_G.book Page 582 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
583
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N” After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to “N” Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
Stop the engine by pressing and
holding the “ENGINE START
STOP” switch for 3 consecutive
seconds or more.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 3 seconds or more
STEP4
STEP5
GS_U_G.book Page 583 Wednesday, January 27, 2010 4:48 PM

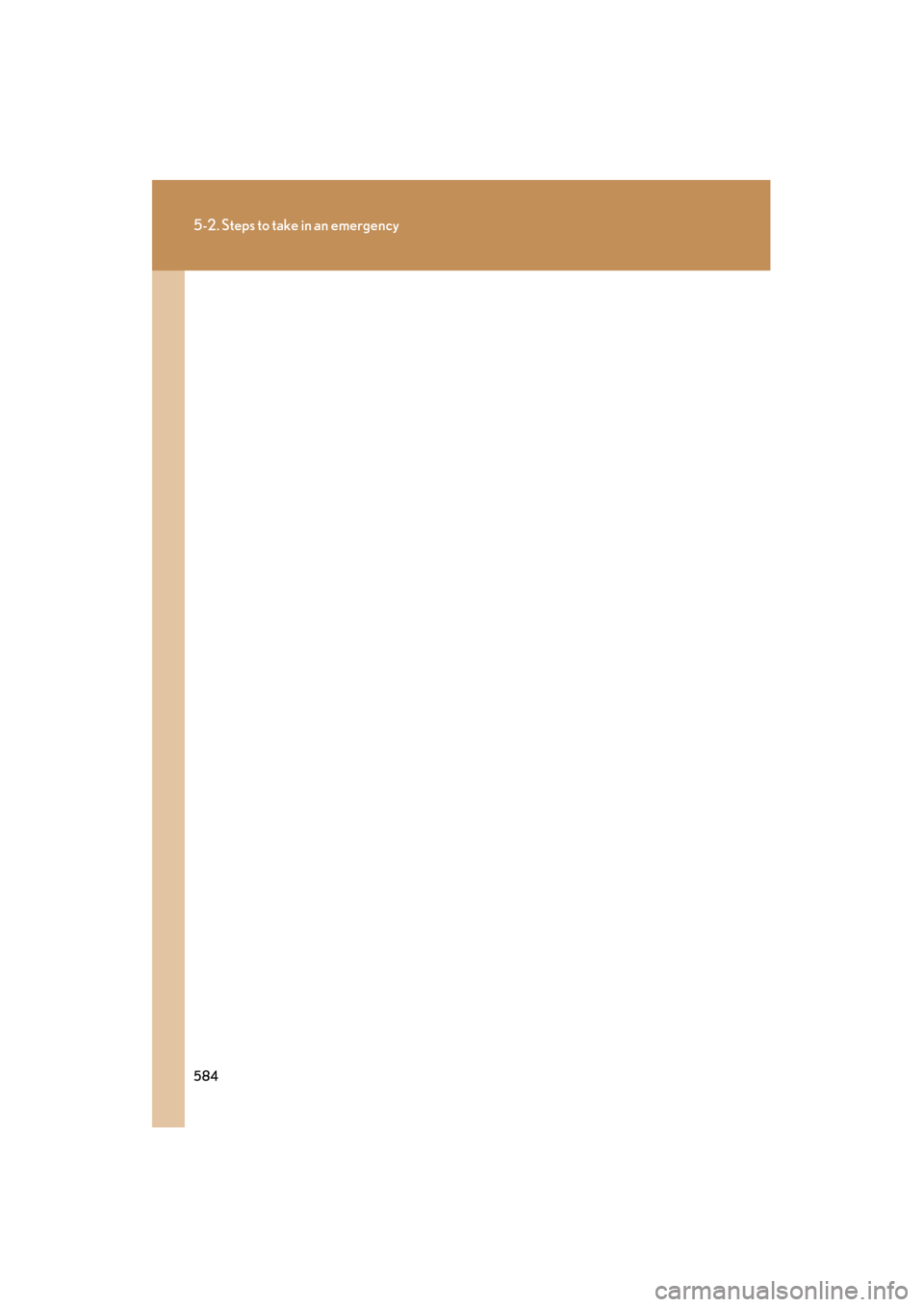

584
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
GS_U_G.book Page 584 Wednesday, January 27, 2010 4:48 PM

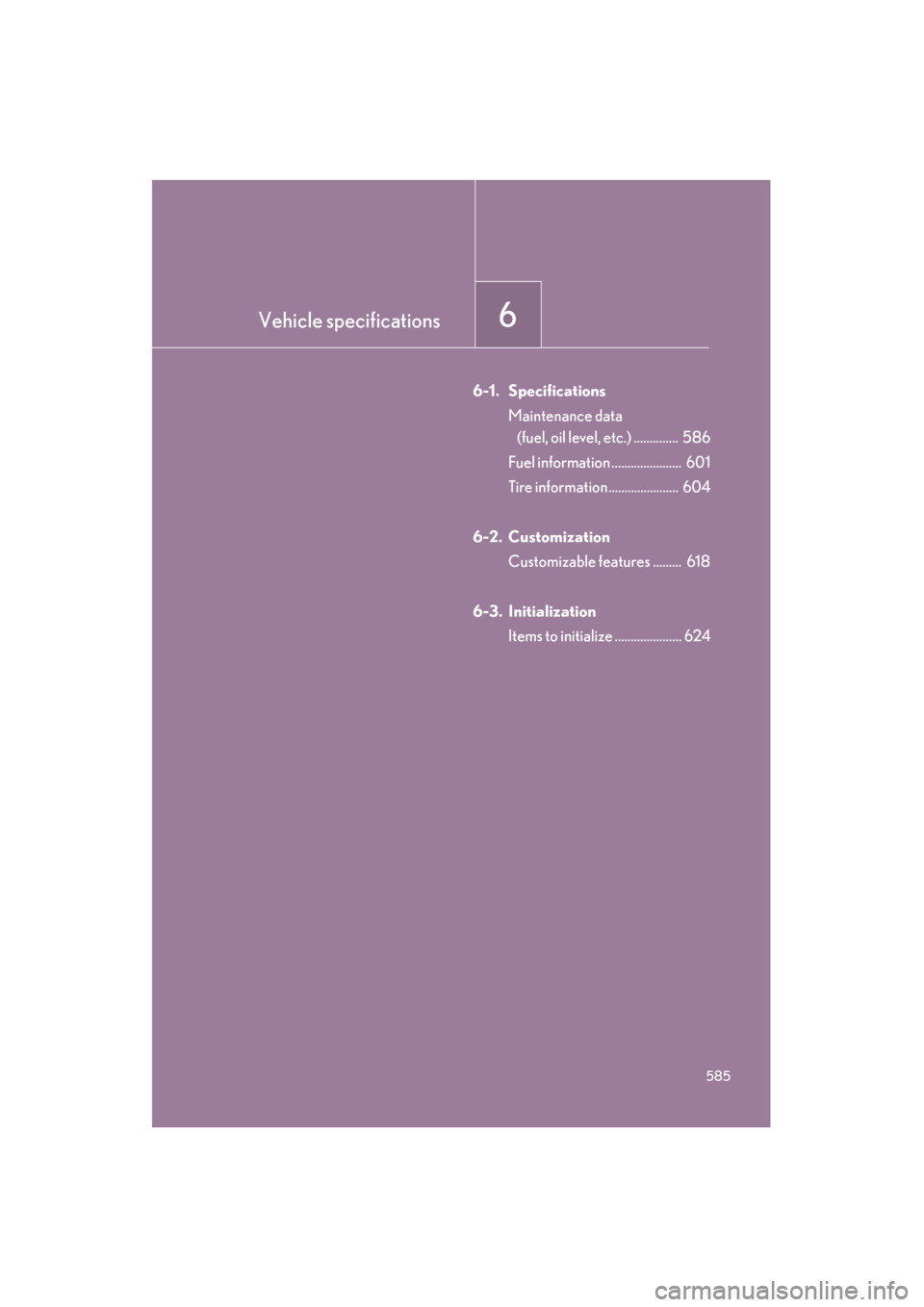

Vehicle specifications6
585
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 586
Fuel information ...................... 601
Tire information...................... 604
6-2. Customization Customizable features ......... 618
6-3. Initialization Items to initialize ..................... 624
GS_U_G.book Page 585 Wednesday, January 27, 2010 4:48 PM

586
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length190.7 in. (4845 mm)
Overall width71.6 in. (1820 mm)
Overall height*2WD56.1 in. (1425 mm)
4WD56.4 in. (1435 mm)
Wheelbase112.2 in. (2850 mm)
Tr e a d
Front60.4 in. (1535 mm)
Rear2WD
4WD
60.6 in. (1540 mm)
60.4 in. (1535 mm)
Vehicle capacity weight
(Occupants + luggage)815 lb. (370 kg)
GS_U_G.book Page 586 Wednesday, January 27, 2010 4:48 PM

587
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Vehicle identificationThe vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the Certifi-
cation Label.
GS_U_G.book Page 587 Wednesday, January 27, 2010 4:48 PM

588
6-1. Specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Engine number
GS460
GS350
The engine number is stamped on the location as shown.
GS_U_G.book Page 588 Wednesday, January 27, 2010 4:48 PM

589
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Engine
Fuel
GS460GS350
Model1UR-FSE2GR-FSE
Ty p e8-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
GS_U_G.book Page 589 Wednesday, January 27, 2010 4:48 PM
