engine Lexus GS350 2010 Owner's Manual

1
2
3
4
5
6
7
3
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
2-1. Driving proceduresDriving the vehicle ........................ 126
Engine (ignition) switch .............. 135
Automatic transmission.............. 139
Turn signal lever ............................ 144
Parking brake ................................. 145
Horn.................................................... 146
2-2. Instrument cluster Gauges and meters ..................... 147
Indicators and warning lights................................................... 151
Multi-information display ........... 154
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 157
Fog light switch .............................. 160
Windshield wipers and washer............................................... 161
Headlight cleaner switch ........... 166 2-4. Using other driving systems
Cruise control ................................. 167
Dynamic radar cruise control............................................... 171
Intuitive parking assist ................. 183
Rear view monitor system ......... 196
AVS (Adaptive Variable Suspension System) .................. 199
Driving assist systems................ 200
PCS (Pre-Collision System) ........... 207
2-5. Driving information Cargo and luggage ...................... 214
Vehicle load limits......................... 218
Winter driving tips ........................ 219
Trailer towing ................................. 224
Dinghy towing ............................... 225
3-1. Using the touch screen Touch screen ................................. 228
Setting the touch screen ........... 235
2When driving
3Interior features
GS_U_G.book Page 3 Wednesday, January 27, 2010 4:48 PM

1
2
3
4
5
6
7
5
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
4-1. Maintenance and careCleaning and protecting the vehicle exterior.................. 430
Cleaning and protecting the vehicle interior .................... 433
4-2. Maintenance Maintenance requirements............................... 436
General maintenance ............... 438
Emission inspection and maintenance (I/M)
programs ....................................... 441 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions .................................. 442
Hood ................................................. 445
Positioning a floor jack............... 446
Engine compartment.................. 448
Tires ................................................... 463
Tire inflation pressure................. 473
Wheels ............................................. 477
Air conditioning filter.................. 479
Electronic key battery ................ 482
Checking and replacing fuses ................................................ 484
Headlight aim ............................... 509
Light bulbs ........................................ 512
5-1. Essential information Emergency flashers ................... 520
If your vehicle needs to be towed ................................... 521
If you think something is wrong ............................................ 530
Fuel pump shut off system ......... 531
Event data recorder.................... 532
4Maintenance and care
5When trouble arises
GS_U_G.book Page 5 Wednesday, January 27, 2010 4:48 PM

TABLE OF CONTENTSIndex
6
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
5-2. Steps to take in an emergencyIf a warning light turns on or a warning buzzer
sounds... ......................................... 534
If a warning message is displayed ....................................... 543
If you have a flat tire (Vehicles with standard tires) .................. 556
If you have a flat tire (Vehicles with run-flat tires) ...................... 566
If the engine will not start ......... 568
If the shift lever cannot be shifted from “P”.......................... 569
If you lose your keys .................... 570
If the electronic key does not operate properly ................ 571
If the 12 volt battery is discharged ................................... 574
If your vehicle overheats ........... 578
If the vehicle becomes stuck................................................. 581
If your vehicle has to be stopped in an emergency ....................... 583 6-1. Specifications
Maintenance data (fuel, oil level, etc.).................... 586
Fuel information ............................. 601
Tire information............................ 604
6-2. Customization Customizable features................ 618
6-3. Initialization Items to initialize ........................... 624
Reporting safety defects for U.S. owners........................... 626
Seat belt instructions for Canadian owners
(in French) .................................... 627
Abbreviation list........................ 630
Alphabetical index ................... 632
What to do if... ............................ 642
6Vehicle specifications
7For US owners
Index
GS_U_G.book Page 6 Wednesday, January 27, 2010 4:48 PM

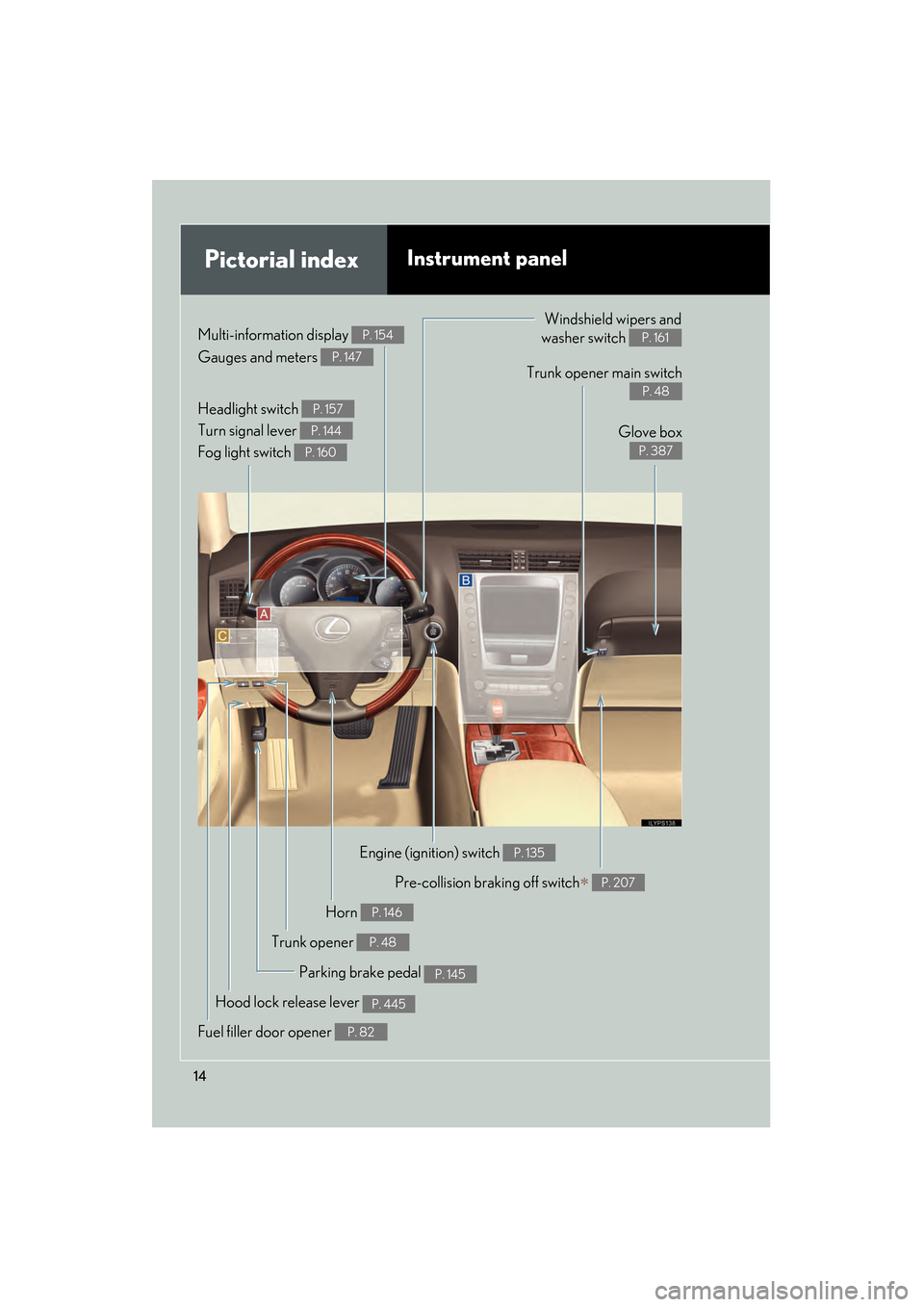

14
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 157
P. 144
P. 160
Gauges and meters P. 147
Multi-information display P. 154Windshield wipers and
washer switch
P. 161
Parking brake pedal P. 145
Trunk opener main switch
P. 48
Glove box
P. 387
Hood lock release lever P. 445
Engine (ignition) switch P. 135
Trunk opener P. 48
Fuel filler door opener P. 82
Horn P. 146
Pre-collision braking off switch∗ P. 207
GS_U_G.book Page 14 Wednesday, January 27, 2010 4:48 PM

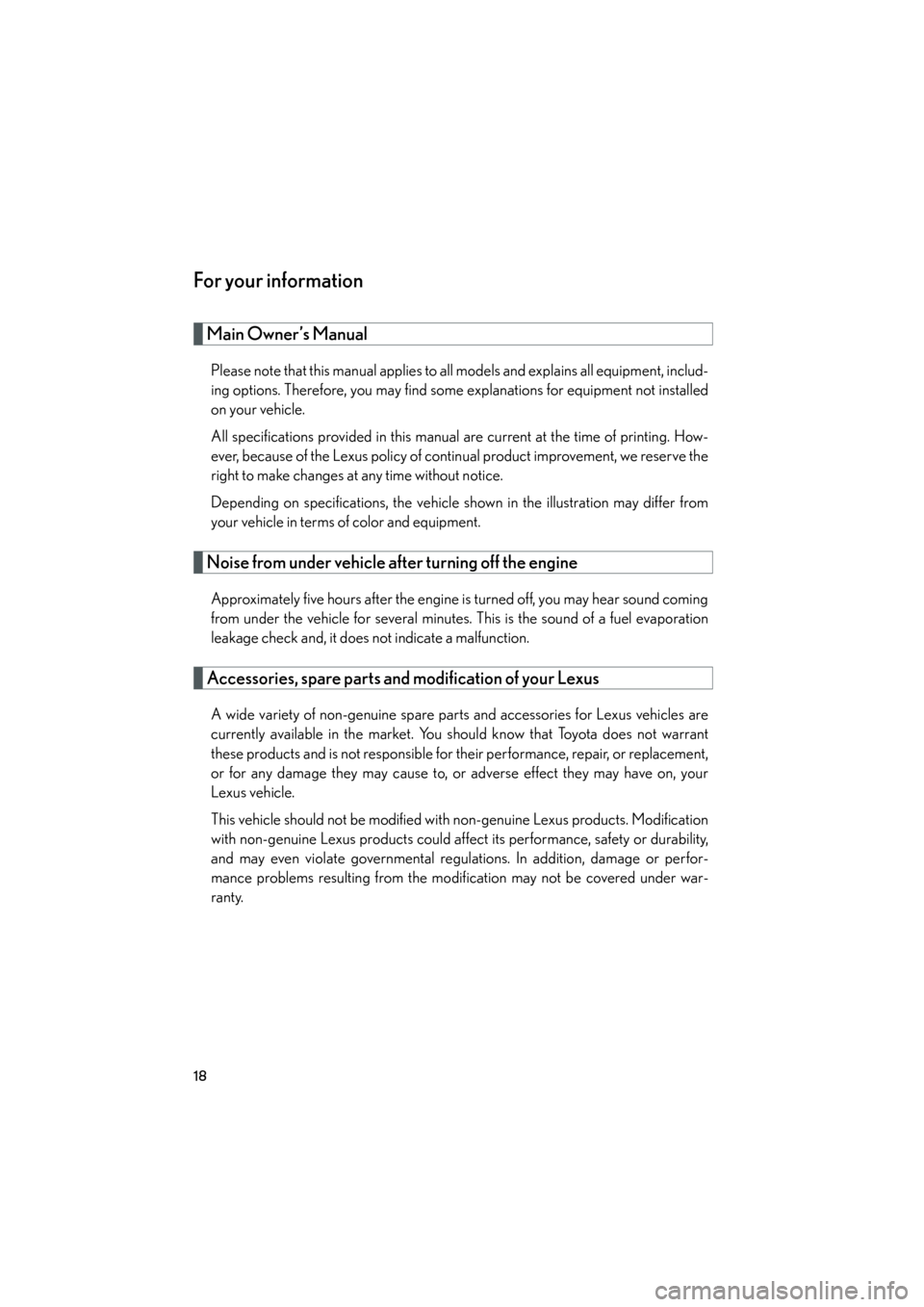

18
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
GS_U_G.book Page 18 Wednesday, January 27, 2010 4:48 PM

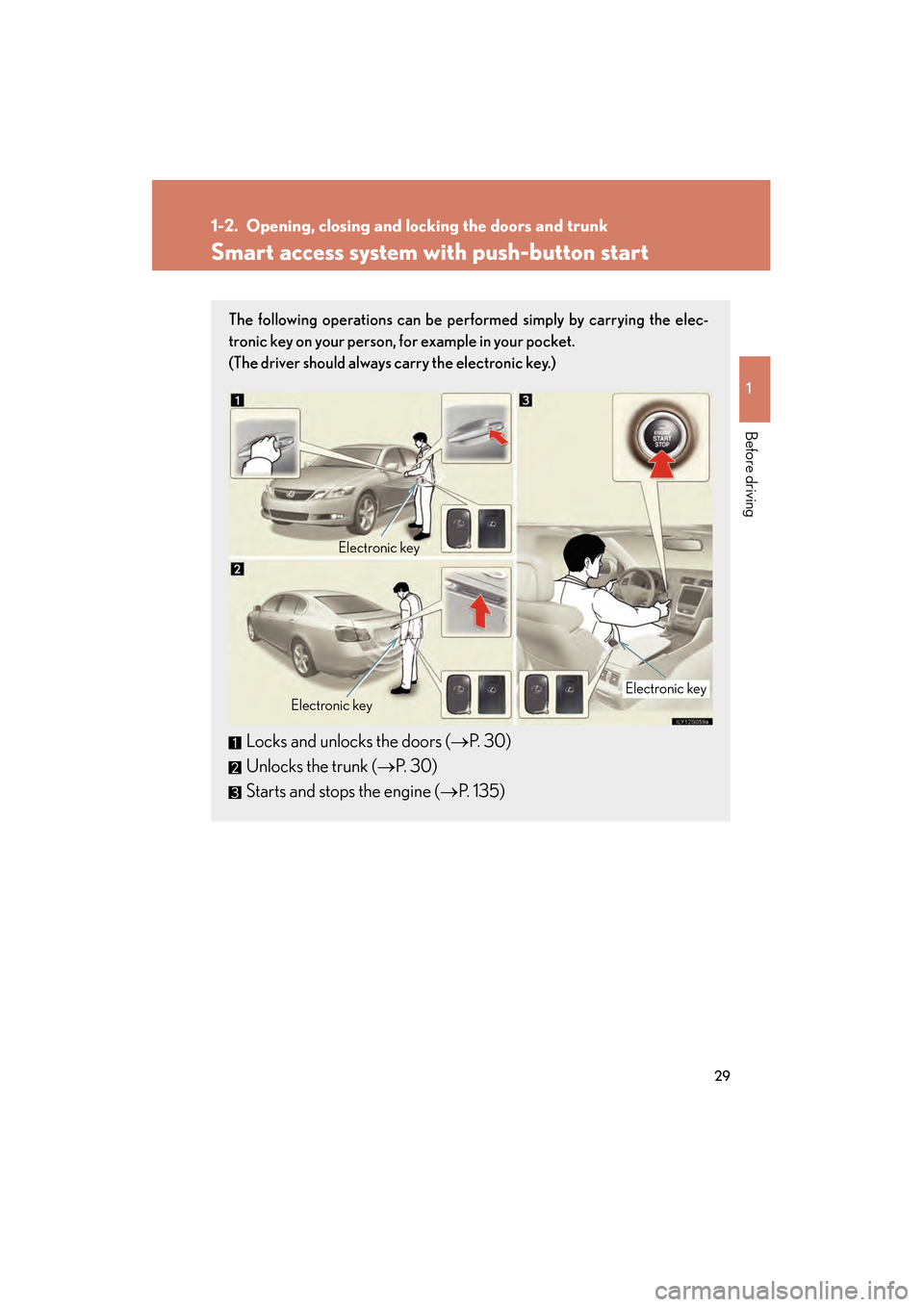

29
1
Before driving
GS_G_U (OM30C80U)
January 29, 2010 1:54 pm
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (→P. 30)
Unlocks the trunk ( →P. 30)
Starts and stops the engine ( →P. 135)
Electronic key
Electronic key
Electronic key
sec_01-02.fm Page 29 Friday, January 29, 2010 1:54 PM

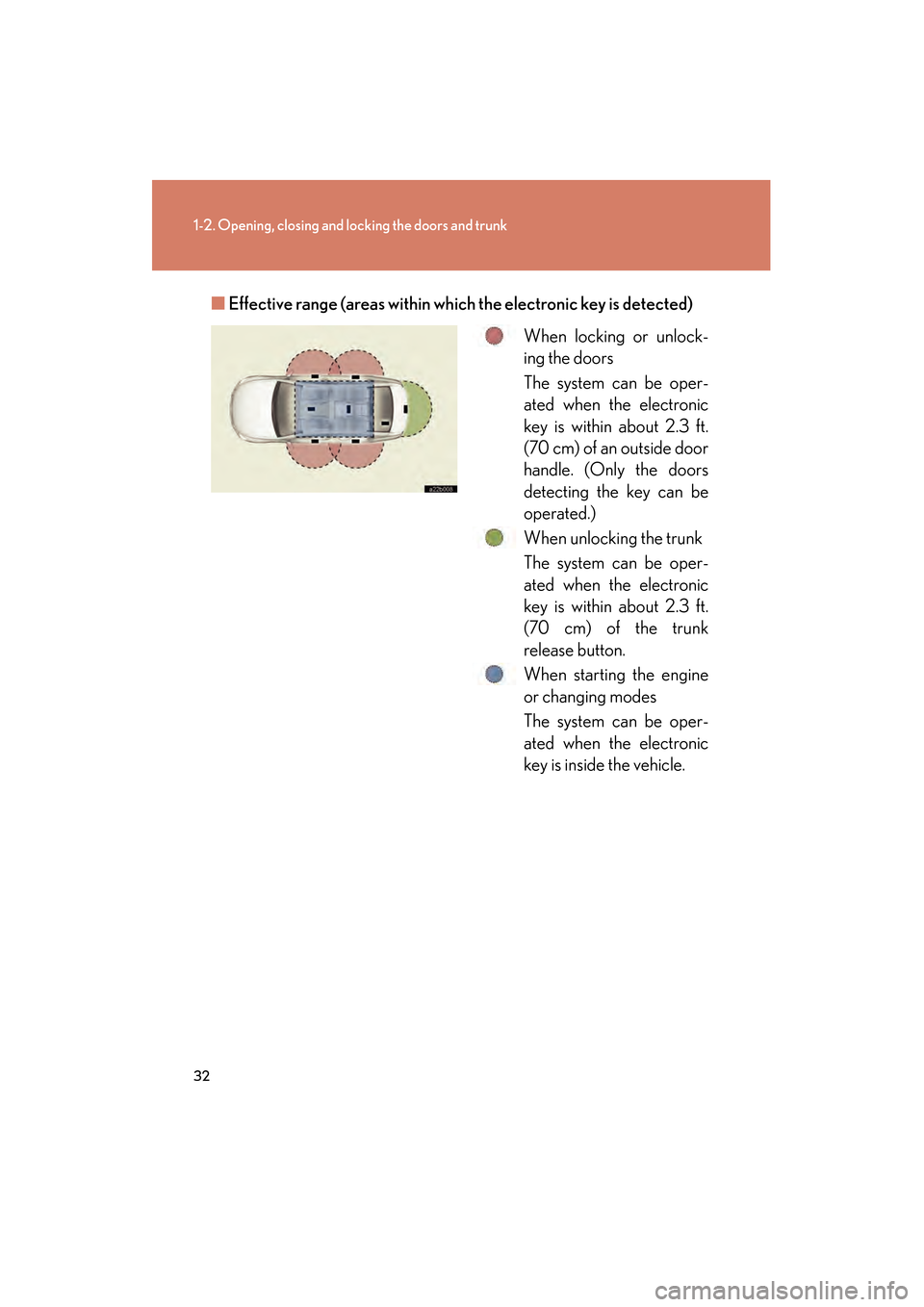

32
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Effective range (areas within wh ich the electronic key is detected)
When locking or unlock-
ing the doors
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(70 cm) of an outside door
handle. (Only the doors
detecting the key can be
operated.)
When unlocking the trunk
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(70 cm) of the trunk
release button.
When starting the engine
or changing modes
The system can be oper-
ated when the electronic
key is inside the vehicle.
GS_U_G.book Page 32 Wednesday, January 27, 2010 4:48 PM

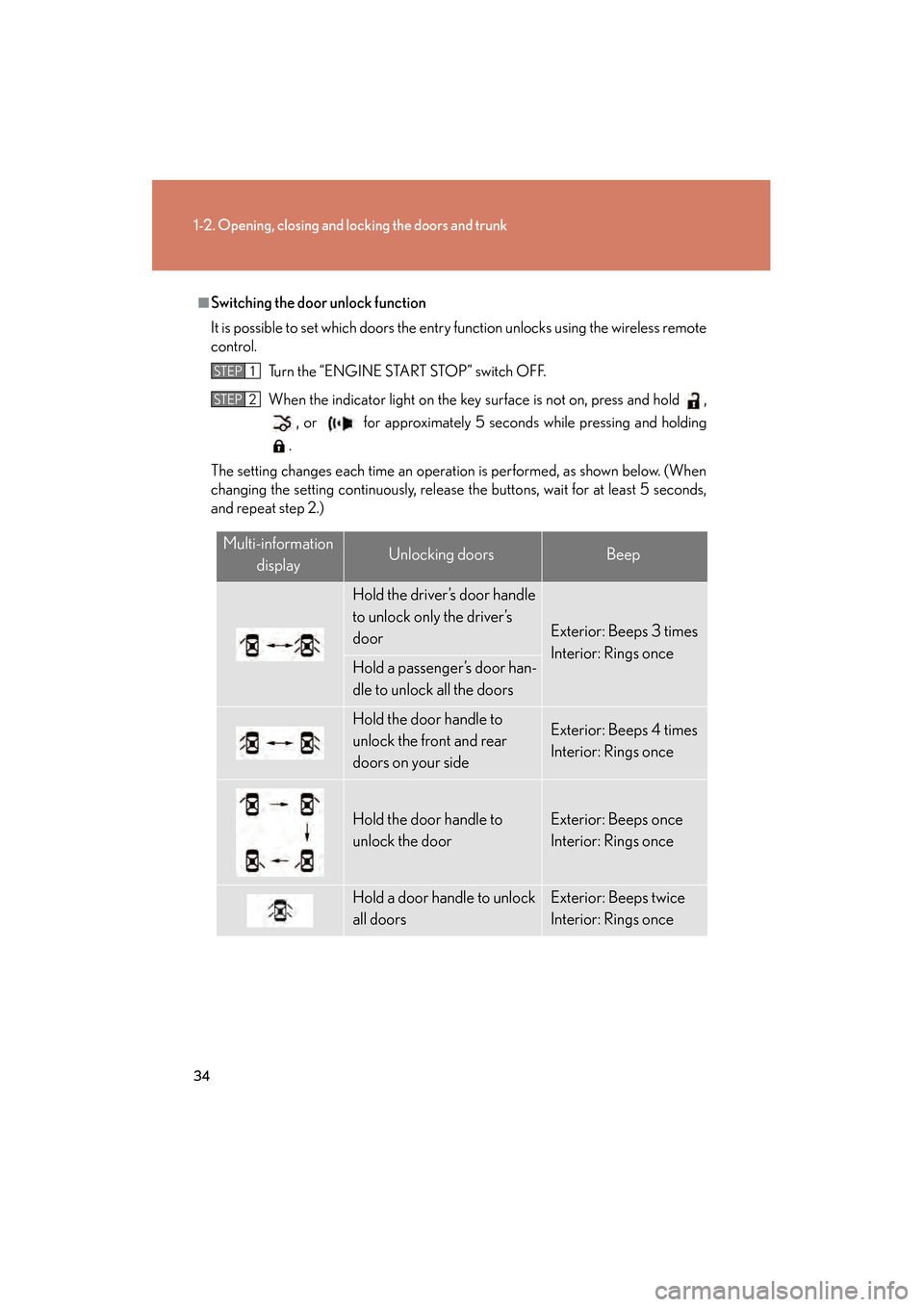

34
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless remote
control. Turn the “ENGINE START STOP” switch OFF.
When the indicator light on the key surface is not on, press and hold ,, or for approximately 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
STEP1
STEP2
Multi-information displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door
Exterior: Beeps 3 times
Interior: Rings once
Hold a passenger’s door han-
dle to unlock all the doors
Hold the door handle to
unlock the front and rear
doors on your sideExterior: Beeps 4 times
Interior: Rings once
Hold the door handle to
unlock the doorExterior: Beeps once
Interior: Rings once
Hold a door handle to unlock
all doorsExterior: Beeps twice
Interior: Rings once
GS_U_G.book Page 34 Wednesday, January 27, 2010 4:48 PM

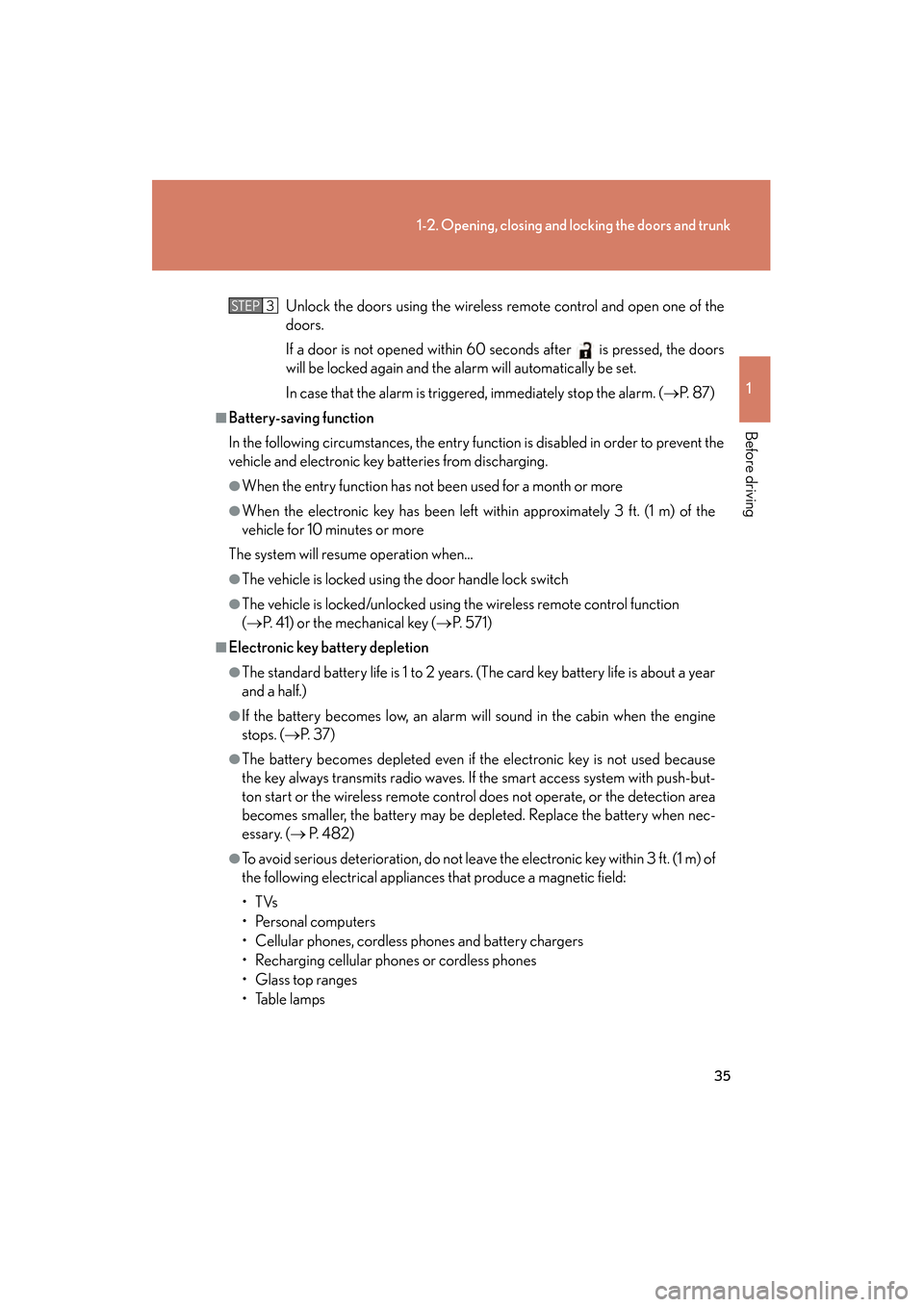

35
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm. (→P. 8 7 )
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for a month or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch
●The vehicle is locked/unlocked using the wireless remote control function
( → P. 41) or the mechanical key ( →P. 5 7 1 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. ( →P. 3 7 )
●The battery becomes depleted even if the electronic key is not used because
the key always transmits radio waves. If the smart access system with push-but-
ton start or the wireless remote control does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( → P. 4 8 2 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps
STEP3
GS_U_G.book Page 35 Wednesday, January 27, 2010 4:48 PM

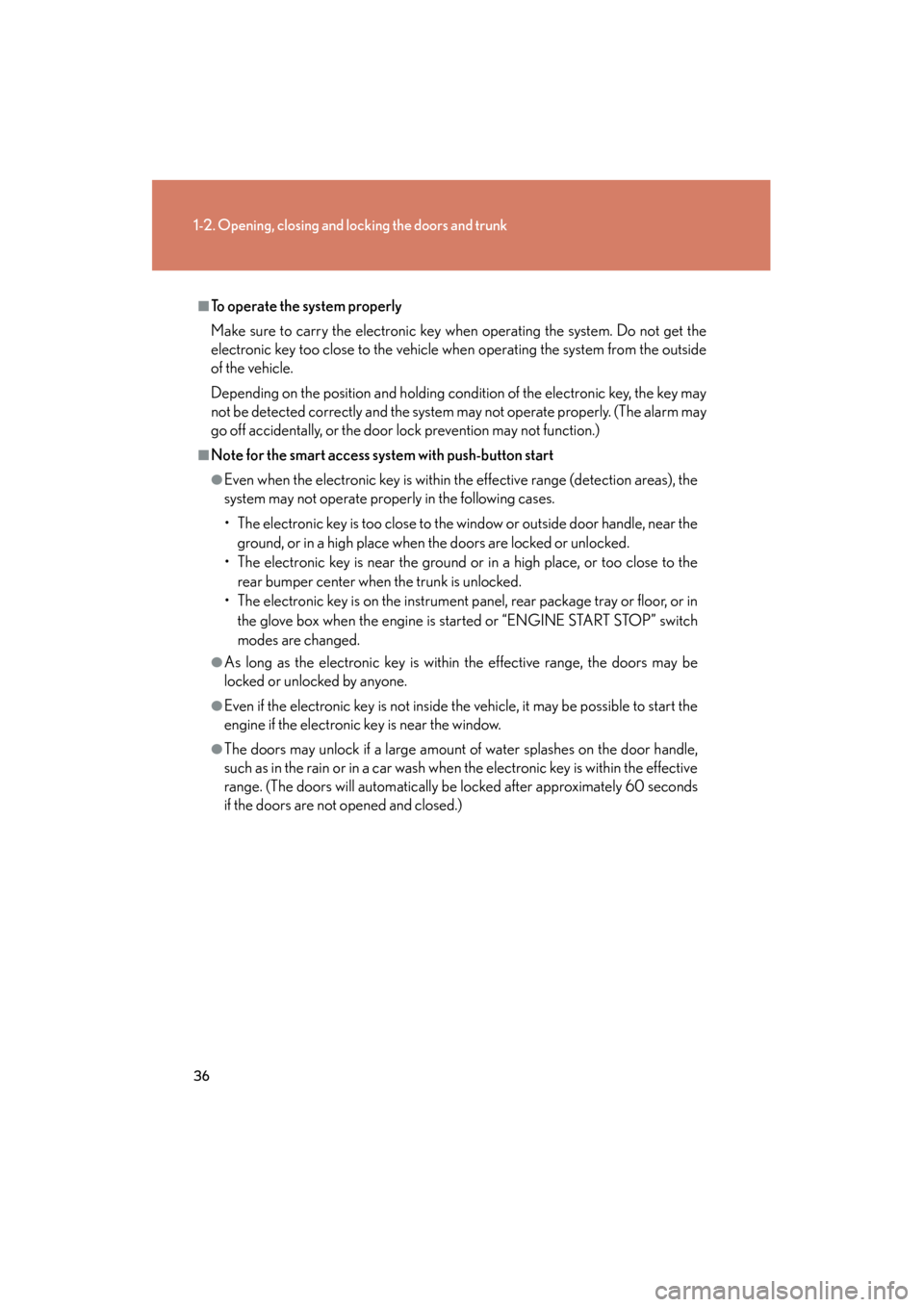

36
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)
■Note for the smart access system with push-button start
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near theground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the engine is started or “ENGINE START STOP” switch
modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The doors will automatically be locked after approximately 60 seconds
if the doors are not opened and closed.)
GS_U_G.book Page 36 Wednesday, January 27, 2010 4:48 PM
