Lexus GS350 2014 Navigation manual

281
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
ERROR MESSAGES
ModeMessageExplanation
CD/DVD
“No disc found.”It indicates that there is no disc in the DVD player.
“Check disc”
It indicates that the disc is dirty, damaged, or it was
inserted upside down. Clean the disc or insert it
correctly.
It indicates a disc which is not playable is inserted.
“DISC error”There is a trouble inside the system.
Eject the disc.
“Region code error”It indicates that the DVD region code is not set
properly.
USB
“USB error”This indicates a problem in the USB memory or its
connection.
“No music files found.”This indicates that no MP3/WMA/AAC files are
included in the USB memory.
“No video files found.”This indicates that no video files are included in the
USB memory.
“No image files found.”This indicates that no image files are included in the
USB memory.
iPod
“iPod error.”This indicates a problem in the iPod or its connec-
tion.
“No music files found.”This indicates that there is no music data in the iPod.
“No video files found.”This indicates that no video files are included in the
iPod.
“Check the iPod firm-
ware version.”This indicates that the software version is not com-
patible. Perform the iPod firmware updates and try
again.
“iPod authorisation un-
successful.”This indicates that it failed to authorize the iPod.
Please check your iPod.
GS_Navi+MM_OM30E40E_(EE).book Page 281 Thursday, July 24, 201 4 3:57 PM

282
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
Bluetooth®
Audio“Music tracks not sup-
ported. Check your
portable player.”
This indicates a problem in the Bluetooth® device.
INFORMATION
●
If the malfunction is not rectified: Take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
ModeMessageExplanation
GS_Navi+MM_OM30E40E_(EE).book Page 282 Thursday, July 24, 201 4 3:57 PM

5
283
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
1. SPEECH COMMAND SYSTEM....... 284
USING THE SPEECH COMMAND SYSTEM .................................................................. 284
SPEECH COMMAND SYSTEM OPERATION ....................................................... 285
2. COMMAND LIST.................................... 292
1SPEECH COMMAND SYSTEM
OPERATION
SPEECH COMMAND SYSTEM *
*: Vehicles with navigation system
GS_Navi+MM_OM30E40E_(EE).book Page 283 Thursday, July 24, 201
4 3:57 PM

284
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. SPEECH COMMAND SYSTEM OPERATION
1. SPEECH COMMAND SYSTEM
Talk switch
zPress the talk switch to start the speech
command system.
z To cancel voice recognition, press and hold
the talk switch.
Back switch
zPress the back switch to return to the previ-
ous screen. z
It is unnecessary to speak directly into the
microphone when giving a command.
The speech command system enables
the navigation, audio/visual and hands-
free systems to be operated using
speech commands.
Refer to the command list for samples of
speech commands. ( →P.292)
INFORMATION
●
Commands that are not displayed in the
“Shortcuts” screen can be operated from
the “Main menu” screen.
USING THE SPEECH
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
INFORMATION
●
Wait for the confirmation beep before
speaking a command.
●Speech commands may not be recog-
nized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while speech commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following co nditions, the system
may not recognize the command prop-
erly and using speech commands may
not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
• There is excessive background noise, such as wind noise.
GS_Navi+MM_OM30E40E_(EE).book Page 284 Thursday, July 24, 201 4 3:57 PM

285
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
1Press the talk switch.
zAfter the “Shortcuts” screen has been dis-
played, voice guidance will commence.
2After a beep sounds, say or select the
desired command.
zSpeech commands are marked with .
Some commonly used commands are dis-
played on the screen.
3Say or select the command displayed on
the screen.SPEECH COMMAND SYSTEM
OPERATION
OPERATION FROM THE
SHORTCUTS
zVoice guidance for the speech command
system can be skipped by pressing the
talk switch.
zSaying “Help” or selecting “?” prompts
voice guidance to offer examples of
commands and operation methods.
GS_Navi+MM_OM30E40E_(EE).book Page 285 Thursday, July 24, 201 4 3:57 PM

286
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Press the talk switch.
2Say “Main menu” or select “Main
menu” .
3Say or select the desired function com-
mand.
4Say or select the desired command on
the screen.
zRegistered POIs, registered names in the
contacts list etc., can be said in the place of
the “ ” next to the commands. ( →P.292)
For example: Say “Find nearby Restau-
rants” , “Call John Smith” etc.
z If a desired outcome is not shown, or if no
selections are available, perform one of the
following to return to the previous screen:
•Say “Go back”
•Select “Go back”
• Press the back switch on the steering wheel.
z To cancel voice recognition, select
“Cancel” , or press and hold the talk switch.
OPERATION FROM THE
MAIN MENU
GS_Navi+MM_OM30E40E_(EE).book Page 286 Thursday, July 24, 201 4 3:57 PM

287
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
1Press the talk switch.
2Say “Go home” or select “Go home” .
zA confirmation screen will be displayed
showing the recognition results.
3Say “Yes” or select “Yes”.
zThe system starts se arching for a route to
your home.
z When the speech command is recognized,
the map of the area around the home
address will be displayed and route guid-
ance to the home address will begin.
INFORMATION
●
If the navigation system does not respond
or the confirmation screen does not dis-
appear, press the talk switch and try
again.
●If a speech command cannot be recog-
nized, voice guidance will say “Pardon?”
and speech command reception will
restart.
●If a speech command cannot be recog-
nized 2 consecutive times, the speech
command guidance system will say “To
restart voice recognition, push the talk
switch.”. Then voice recognition will be
suspended.
●The voice recognition prompt can be set
to on or off when “Voice prompts” is
selected. This setting can also be
changed on the “Voice settings” screen.
( → P. 8 6 )
●Voice guidance can be canceled by set-
ting voice prompts to off. Use this setting
when it is desirable to say a command
immediately after pressing the talk switch
and hearing a beep.
●The side display cannot be operated dur-
ing voice recognition. (Vehicles with
12.3-inch display)
SPEECH COMMAND
EXAMPLE: SEARCHING FOR
A ROUTE TO YOUR HOME
zIf a home address is not registered, voice
guidance will say “Your home is not set.”.
Please try again after setting a home
location. ( →P.1 5 3 )
GS_Navi+MM_OM30E40E_(EE).book Page 287 Thursday, July 24, 201 4 3:57 PM

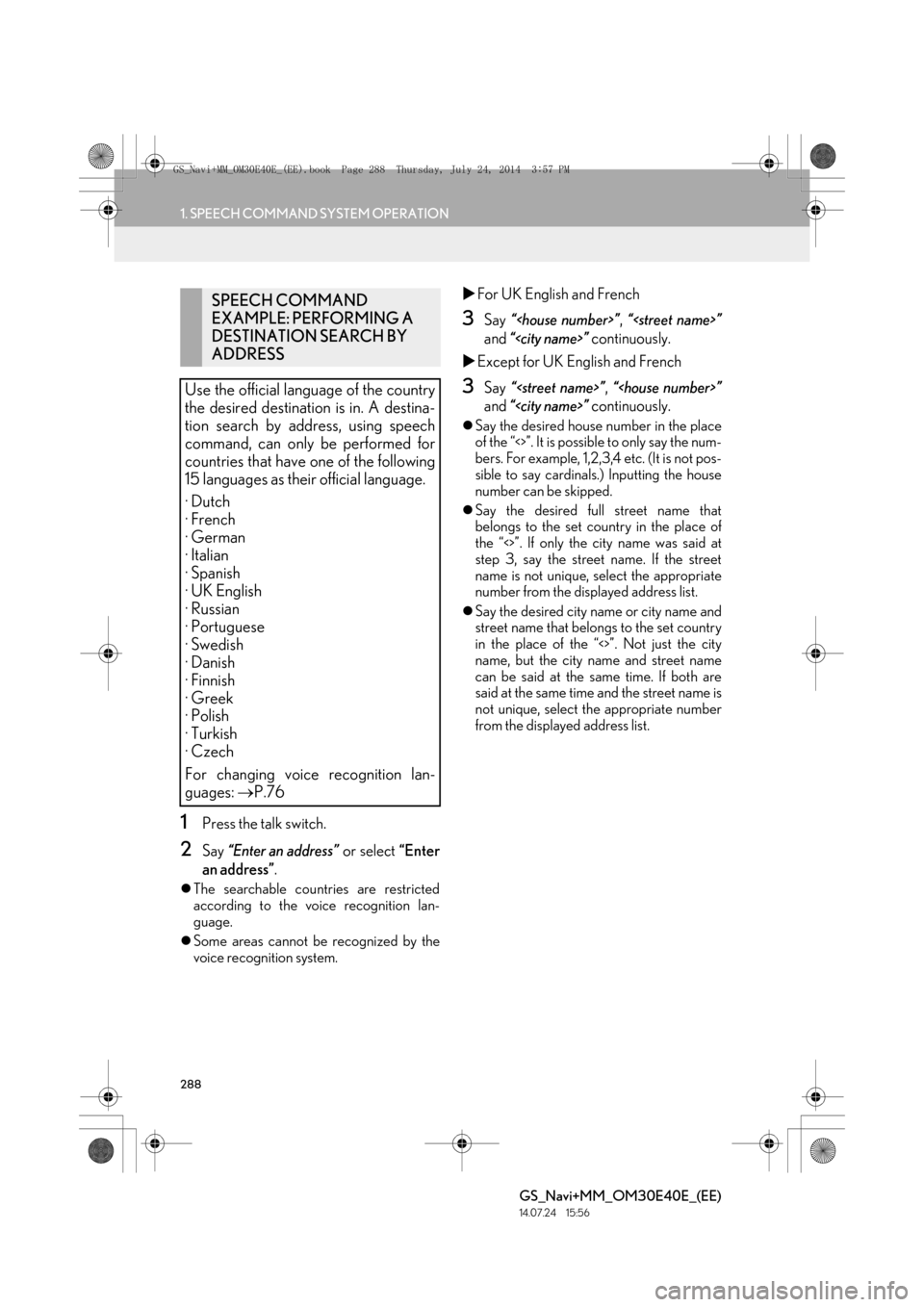

288
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Press the talk switch.
2Say “Enter an address” or select “Enter
an address” .
zThe searchable countries are restricted
according to the voice recognition lan-
guage.
z Some areas cannot be recognized by the
voice recognition system.
X For UK English and French
3Say “” , “”
and “” continuously.
X Except for UK English and French
3Say “” , “”
and “” continuously.
zSay the desired house number in the place
of the “<>”. It is possible to only say the num-
bers. For example, 1,2,3,4 etc. (It is not pos-
sible to say cardinals.) Inputting the house
number can be skipped.
z Say the desired full street name that
belongs to the set country in the place of
the “<>”. If only the city name was said at
step 3, say the street name. If the street
name is not unique, se lect the appropriate
number from the displayed address list.
z Say the desired city name or city name and
street name that belongs to the set country
in the place of the “<>”. Not just the city
name, but the city name and street name
can be said at the same time. If both are
said at the same time and the street name is
not unique, select the appropriate number
from the displayed address list.
SPEECH COMMAND
EXAMPLE: PERFORMING A
DESTINATION SEARCH BY
ADDRESS
Use the official language of the country
the desired destination is in. A destina-
tion search by address, using speech
command, can only be performed for
countries that have one of the following
15 languages as their official language.
· Dutch
· French
· German
· Italian
· Spanish
· UK English
· Russian
· Portuguese
· Swedish
· Danish
· Finnish
· Greek
· Polish
· Turkish
· Czech
For changing voice recognition lan-
guages: →P.76
GS_Navi+MM_OM30E40E_(EE).book Page 288 Thursday, July 24, 201 4 3:57 PM

289
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
4Say or select “Enter”.
zA map corresponding to the decided
address is displayed. To set the displayed
point as a destination, say “Enter”.
z If multiple points exist, the next point can be
displayed by saying “Next”.
1Press the talk switch.
z“Play artist ”, “Play album ”,
“Play song ” and “Play playlist
” are displayed in the “Shortcuts”
screen.
2Say or select “Play artist ” , “Play
album ” , “Play song ” or
“Play playlist ” .
zSay the desired name in the place of the
“<>”.
z A confirmation screen will be displayed
showing the recognition results. If multiple
matching items are found, a selection
screen will be displayed.
3Say “Play” or select “Play”.
zThe system starts playing music.
INFORMATION
●
To change the country to be searched,
say “Change country” when the screen to
say the city name is displayed and the
screen will change to the country input
screen.
●The house number voice recognition
conditions are outlined below:
• Numerals: 10 digits or less
• Cardinals cannot be recognized.
• Numerals are recognized as single dig-
its only.
SPEECH COMMAND
EXAMPLE: SEARCH FOR A
TRACK
GS_Navi+MM_OM30E40E_(EE).book Page 289 Thursday, July 24, 201 4 3:57 PM

290
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1Press the talk switch.
z“Call ” is displayed in the “Short-
cuts” screen.
z When “Call ” on the “Shortcuts”
screen is dimmed, the contact’s speech
command recognition cannot be used.
Check the Bluetooth
® connection and if
the contacts have been transferred to the
navigation system.
2Say or select a registered contact name.
z In the same manner as it is displayed on the
screen, “Call ”, after saying
“Call”
say the name of a contact.
For example: “Call”, “J o h n S m i t h”
z Short or abbreviated names in the contact
list may not be recognized. Change names
in the contact list to full names.
z Sometimes a voice recognition result con-
firmation screen will be displayed. After
confirming the result, say “Dial”.
z When the system recognizes multiple
names from the contact list, a name candi-
date list will be displayed on the screen. If
the desired name is not displayed on the
top of the screen, say the number of the
name from the candidate list to select a
name from the candidate list.
INFORMATION
●
A USB memory or iPod must be con-
nected to enable track searching and
playback. ( →P.225, 233)
●When a USB memory or iPod is con-
nected, recognition data is created so
tracks can be searched using speech
commands.
●Recognition data is updated under the
following conditions:
• When the USB memory or iPod data
has changed.
• When the voice recognition language is changed. ( →P. 76 )
●While the recognition data is being cre-
ated or being updated, a track search
cannot be performed using a speech
command.
●When “Play music” is dimmed in the
“Shortcuts” screen, it is not possible to
search for a track using a speech com-
mand. In this situation, reduce the amount
of music data in the USB memory or iPod
and update the recognition data to
enable searching by speech command.
SPEECH COMMAND
EXAMPLE: CALL NAME
GS_Navi+MM_OM30E40E_(EE).book Page 290 Thursday, July 24, 201 4 3:57 PM
