Lexus GS350 2014 Navigation manual

291
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
zWhen a contact has multiple telephone
numbers registered in the contact list, a
candidate list will be displayed. If the
desired telephone number is not displayed
on the top of the screen, say the number of
the desired telephone number from the
candidate list to select a telephone number
from the candidate list.
3Say or select “Dial” to call the telephone
number.
1Press the talk switch.
z “Dial ” is displayed in the “Short-
cuts” screen.
z When “Dial ” on the “Shortcuts”
screen is dimmed, the telephone number
voice recognition cannot be used. Check
the Bluetooth
® phone connection.
2Say the telephone number.
zIn the same manner as it is displayed on the
screen, “Dial ”, after saying “Dial”
say the telephone number.
z Say the telephone number one digit at a
time.
For example, if the telephone number is
2345678:
Say “two three four five six seven eight”
z As the system cannot recognize additional
numbers, say the complete number without
stopping.
z When the system recogn izes multiple tele-
phone numbers, a telephone number can-
didate list will be displayed on the screen. If
the desired telephone number is not dis-
played on the top of the screen, say the
number of the desired telephone number
from the candidate list to select a telephone
number from the candidate list.
3Say or select “Dial” to call the telephone
number.
SPEECH COMMAND
EXAMPLE: DIAL NUMBER
GS_Navi+MM_OM30E40E_(EE).book Page 291 Thursday, July 24, 201 4 3:57 PM

292
1. SPEECH COMMAND SYSTEM OPERATION
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
2. COMMAND LIST
zFrequently used commands are listed in the following tables.
z For devices that are not installed in the vehicle, the related commands will not be dis-
played in the “Shortcuts” screen. Also, according to conditions, other commands may
not be displayed in the “Shortcuts” screen.
z The functions available may vary according to the navigation system installed.
z Commands that have “O” in the shortcuts menu column can be recognized from the
“Shortcuts” screen.
XBasic
X Navi
*: For example; “Restaurant”, “Hospital” etc.
Recognizable speech commands and their actions are shown below.
z Voice recognition language can be changed. ( →P. 76 )
CommandAction
“Help”Prompts voice guidance to offer examples of commands
and operation methods
“Go back”Returns to the previous screen
CommandActionShortcuts
menu
“Find nearby ”Displays a list of near the cur-
rent positionO
“Enter an address”Enables setting a destination by saying the ad-
dressO
“Go home”Displays the route to homeO
GS_Navi+MM_OM30E40E_(EE).book Page 292 Thursday, July 24, 201 4 3:57 PM

293
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
XTelephone
X Audio
CommandActionShortcuts
menu
“Call ”Places a call to the said telephone type of the
contact from the contact listO
“Dial ”Places a call to the said telephone numberO
CommandActionShortcuts menu
“Play artist ”Plays tracks from the selected artistO
“Play album ”Plays tracks from the selected albumO
“Play song ”Plays the selected trackO
“Play playlist ”Plays tracks from the selected playlistO
GS_Navi+MM_OM30E40E_(EE).book Page 293 Thursday, July 24, 201 4 3:57 PM

294
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. LEXUS PARKING ASSIST MONITOR .............................................. 296
LEXUS PARKING ASSIST MONITOR ...... 296
DRIVING PRECAUTIONS .............................. 296
SCREEN DISPLAY ............................................... 298
USING THE SYSTEM WHEN
PERPENDICULAR PARKING.................... 300
USING THE SYSTEM WHEN PARALLEL PARKING................................................................ 301
SWITCHING THE PARKING MODE SCREEN.................................................................. 302
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE
DISPLAY MODE) ................................ 303
SCREEN DESCRIPTION .................................. 303
PARKING .................................................................. 304
1LEXUS PARKING ASSIST
MONITOR
GS_Navi+MM_OM30E40E_(EE).book Page 294 Thursday, July 24, 201 4 3:57 PM

6
295
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
8
9
3. PERPENDICULAR PARKING (PARKING ASSIST GUIDE LINE
DISPLAY MODE).................................305
SCREEN DESCRIPTION .................................. 305
PARKING .................................................................. 306
4. PARALLEL PARKING ........................... 307
VEHICLE MOVEMENT
PROCEDURE ...................................................... 307
PARKING .................................................................. 309
NARROW MODE .................................................. 314
5. LEXUS PARKING ASSIST MONITOR PRECAUTIONS..................................... 316
AREA DISPLAYED ON SCREEN.................. 316
THE CAMERA .......................................................... 317
DIFFERENCES BETWEEN THE SCREEN
AND THE ACTUAL ROAD ........................... 318
WHEN APPROACHING THREE-DIMENSIONAL OBJECTS .......... 319
6. THINGS YOU SHOULD KNOW ...... 321
IF YOU NOTICE ANY SYMPTOMS ........... 321
1. LEXUS PARKING ASSIST-SENSOR .................................. 324
TYPES OF SENSORS .......................................... 324
LEXUS PARKING ASSIST-SENSOR
SWITCH................................................................... 324
DISPLAY ..................................................................... 325
SENSOR DETECTION DISPLAY, OBSTACLE DISTANCE ................................. 327
DETECTION RANGE OF THE SENSORS .............................................................. 330
THE LEXUS PARKING ASSIST-SENSOR CAN BE OPERATED WHEN ....................... 331
LEXUS PARKING ASSIST-SENSOR DISPLAY .................................................................. 331
SENSOR DETECTION INFORMATION................................................... 331
LEXUS PARKING ASSIST-SENSOR FAILURE WARNING ...................................... 333
2. SETTING UP LEXUS PARKING ASSIST-SENSOR ..................................335
ALERT VOLUME SETTING ............................. 336
DISPLAY ON/OFF SETTING.......................... 336
ALERT DISTANCE SETTING .......................... 337
2LEXUS PARKING ASSIST-
SENSOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while driving.
GS_Navi+MM_OM30E40E_(EE).book Page 295 Thursday, July 24, 201 4 3:57 PM

296
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the view
behind the vehicle while backing up, for
example while parking.
The parking assist monitor assists with
the following 2 backing-up operations:
(1) Perpendicular parking (parking in agarage, etc.)
(2)Parallel parking (parking at the side of the road, etc.)
INFORMATION
●
The screen illustrations used in this text
are intended as examples, and may differ
from the image that is actually displayed
on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a supple-
mental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the parking assist mon-
itor.
CAUTION
●Never depend on the parking assist mon-
itor entirely when backing up. The image
and the position of the guide lines dis-
played on the screen may differ from the
actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing the
brake pedal to control vehicle speed.
●If you seem likely to hit nearby vehicles,
obstacles, people or mount the shoulder,
depress the brake pedal to stop the vehi-
cle, then disable the assist system by
selecting on the screen to cancel
the system.
GS_Navi+MM_OM30E40E_(EE).book Page 296 Thursday, July 24, 201 4 3:57 PM

297
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
6
CAUTION
●The instructions given are only guidelines.
When and how much to turn the steering
wheel will vary according to traffic condi-
tions, road surface conditions, vehicle
condition, etc. when parking. It is neces-
sary to be fully aware of this before using
the parking assist system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the parking assist monitor sys-
tem in the following cases:
• On icy or slick road surfaces, or in snow
• When using tyre chains or emergencytyres
• When the trunk is not closed com- pletely
• On roads that are not flat or straight, such as curves or slopes
CAUTION
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehicle
is moving, or you may become unable to
see the image on the screen. Be sure to
visually check all around the vehicle both
directly and using the mirrors before pro-
ceeding.
●If the tyre sizes are changed, the position
of the guide lines displayed on the screen
may change.
●The camera uses a special lens. The dis-
tances between objects and pedestrians
that appear in the image displayed on the
screen will differ from the actual dis-
tances. ( →P. 3 1 8 )
GS_Navi+MM_OM30E40E_(EE).book Page 297 Thursday, July 24, 201 4 3:57 PM

298
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
zThe parking assist monitor displays the last-used parking mode first.
XPerpendicular parking XParallel parking
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift lever is shifted to the “R”
position while the engine switch is in IGNITION ON mode.
No.DisplayFunction
Display mode switch screen but-
tonSwitches the display mode.
Parking mode switch screen but-
tonSwitches the parking mode (between perpendic-
ular parking and parallel parking assist screens)
Narrow mode screen on-off but-
tonSwitch the narrow mode on and off. ( →P.302)
*Lexus parking assist-sensorIf an obstacle is detected while the Lexus parking
assist-sensor is on, a display is shown in the top
right corner of the screen.
*: Vehicles without navigation system
GS_Navi+MM_OM30E40E_(EE).book Page 298 Thursday, July 24, 201 4 3:57 PM

299
1. LEXUS PARKING ASSIST MONITOR
PERIPHERAL MONITORING SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
6
zWhen the shift lever is shifted to the “R” position and any mode button (such as
“MENU” ) is pressed
¨The parking assist monitor is cancelled, an d the screen is switched to the mode of
the button that was pressed.

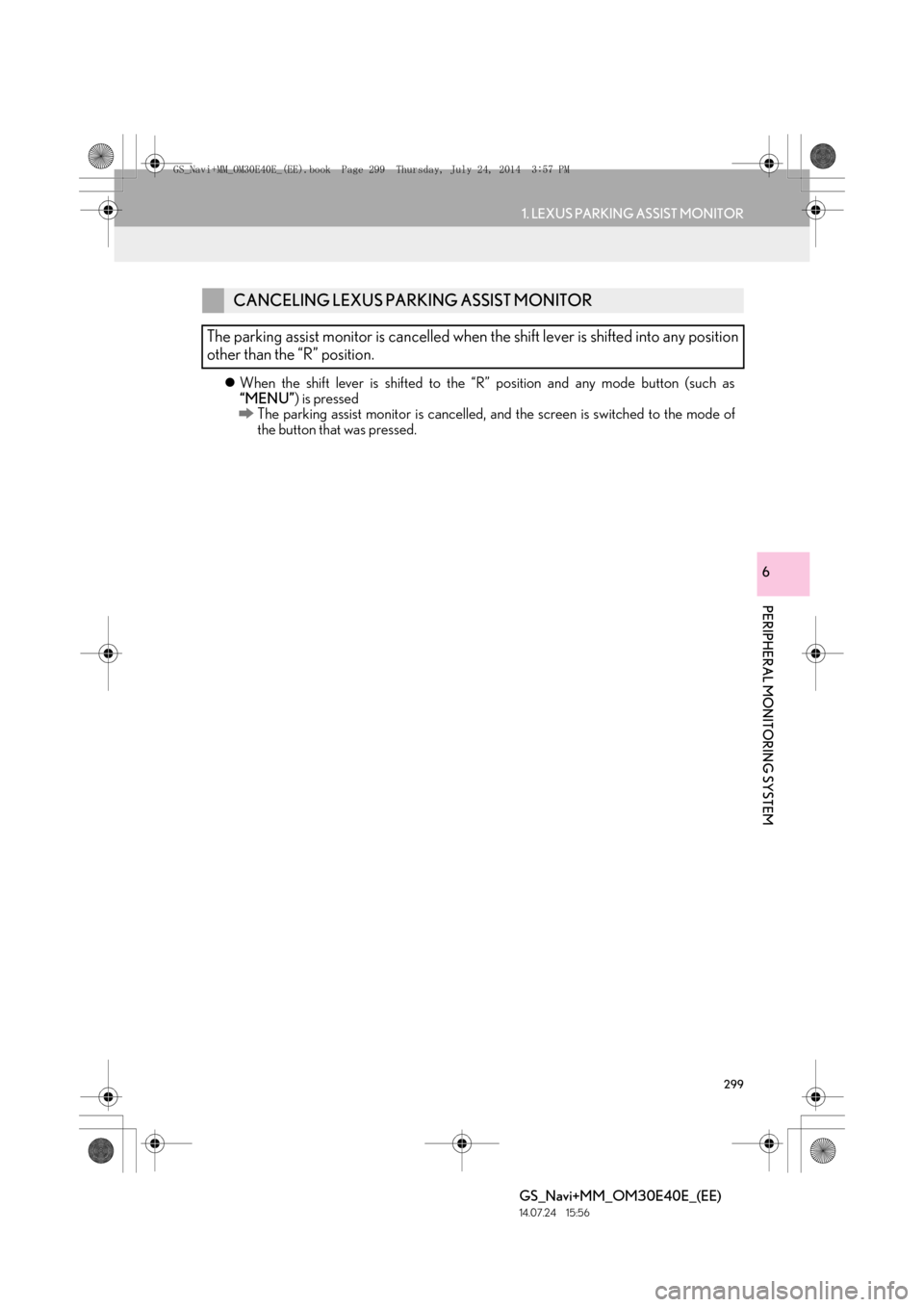

CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is cancelled when the shift lever is shifted into any position
other than the “R” position.
GS_Navi+MM_OM30E40E_(EE).book Page 299 Thursday, July 24, 201 4 3:57 PM

300
1. LEXUS PARKING ASSIST MONITOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
XEstimated course line display mode
(→ P.303) X
Parking assist guide line display mode
(→ P.305)
X Distance guide line display mode
USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes when
perpendicular parking (for example,
when parking in a garage).
Estimated course lines are displayed
which move in accordance with the op-
eration of the steering wheel.
The steering wheel return points (park-
ing assist guide lines) are displayed.
Distance guide lines only are displayed.
GS_Navi+MM_OM30E40E_(EE).book Page 300 Thursday, July 24, 201 4 3:57 PM
