Lexus GS350 2015 Owner's Manual

GS350_OM_OM30F69U_(U)
1994-3. Operating the lights and wipers
4
Driving
■Daytime running light system
●To make your vehicle more visible to other drivers during daytime driving, the day-
time running lights turn on automatically whenever the engine is started and the
parking brake is released with the headlight switch in the or “AUTO” position.
(Illuminate brighter than the parking lights.)
Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
●Compared to turning on the headlights, the daytime running light system offers
greater durability and consumes less electricity, so it can help improve fuel econ-
omy.
■Headlight control sensor
■Automatic light off system
When the light switch is in or : The headlights and tail lights turn off 30 sec-
onds after the engine switch is turned to ACCESSORY mode or turned off and a
door is opened and all of the doors and trunk are closed. (The lights turn off immedi-
ately if on the key is pressed twice after all the doors are closed.)
To turn the lights on again, turn the engine switch to IGNITION ON mode, or turn
the light switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off after 20
minutes.
■Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-
sengers and the loading condition of the vehi cle to ensure that the headlights do not
interfere with other road users. The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS350_OM_OM30F69U_(U).book Page 199 Monday, January 19, 2015 2:53 PM

200
GS350_OM_OM30F69U_(U)
4-3. Operating the lights and wipers
■If the “AFS OFF” indicator flashes
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: →P. 559)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
GS350_OM_OM30F69U_(U).book Page 200 Monday, January 19, 2015 2:53 PM

201
GS350_OM_OM30F69U_(U)4-3. Operating the lights and wipers
4
Driving

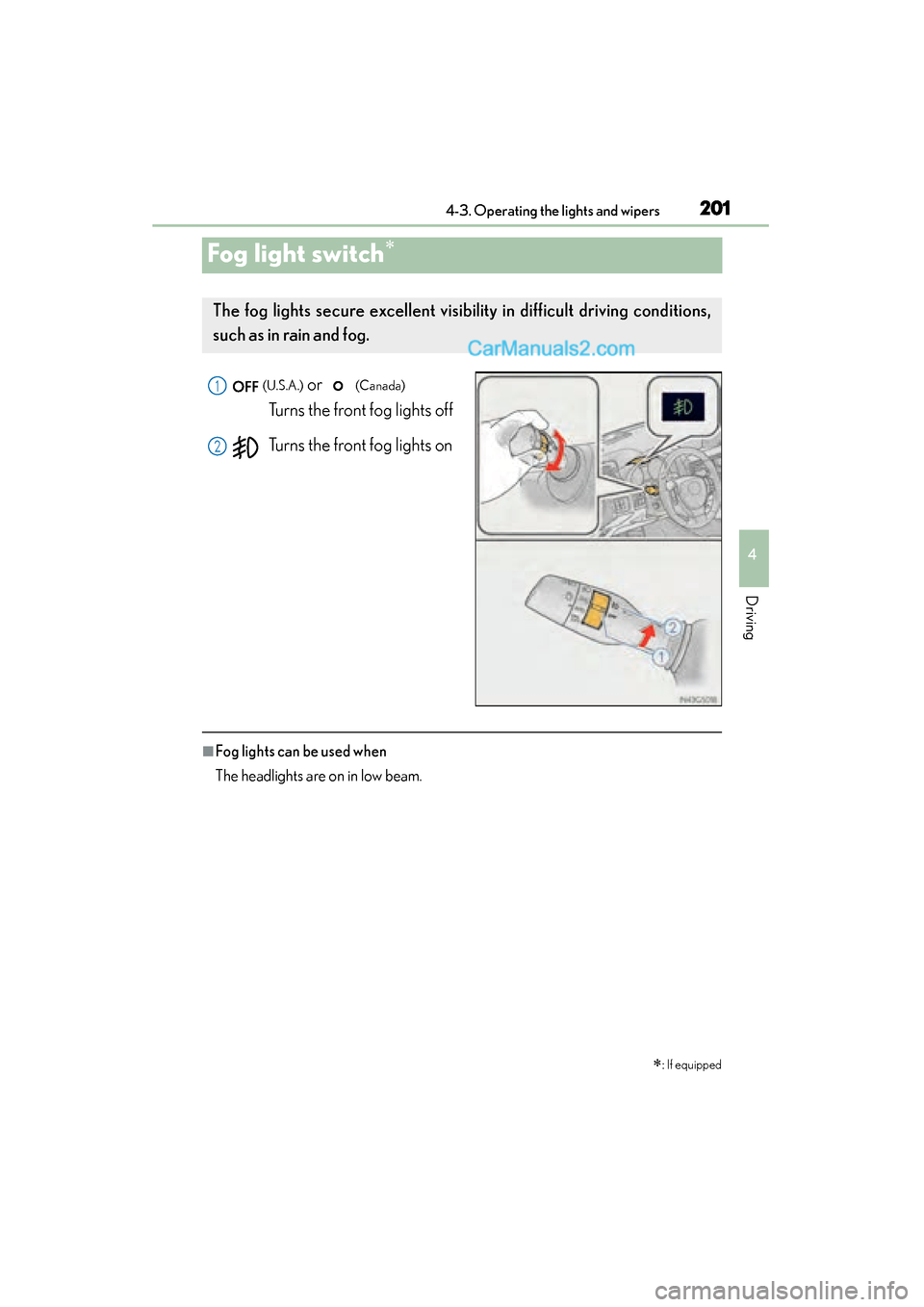

Fog light switch∗
(U.S.A.) or (Canada)
Turns the front fog lights off
Turns the front fog lights on
■Fog lights can be used when
The headlights are on in low beam.
∗: If equipped
The fog lights secure excellent visibi lity in difficult driving conditions,
such as in rain and fog.
1
2
GS350_OM_OM30F69U_(U).book Page 201 Monday, January 19, 2015 2:53 PM

202
GS350_OM_OM30F69U_(U)
4-3. Operating the lights and wipers
Windshield wipers and washer
Operate the lever as follows to operate the wipers. The lever will return to
its original position immediately after operation.
XIntermittent windshield wipers with interval adjuster
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 lev-
els
Operating the wiper lever
1
2
3
4
or or or
OffTe m p o r a r y operationTe m p o r a r y operationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed operationOffIntermittent operationHigh speedoperationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation
GS350_OM_OM30F69U_(U).book Page 202 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2034-3. Operating the lights and wipers
4
Driving

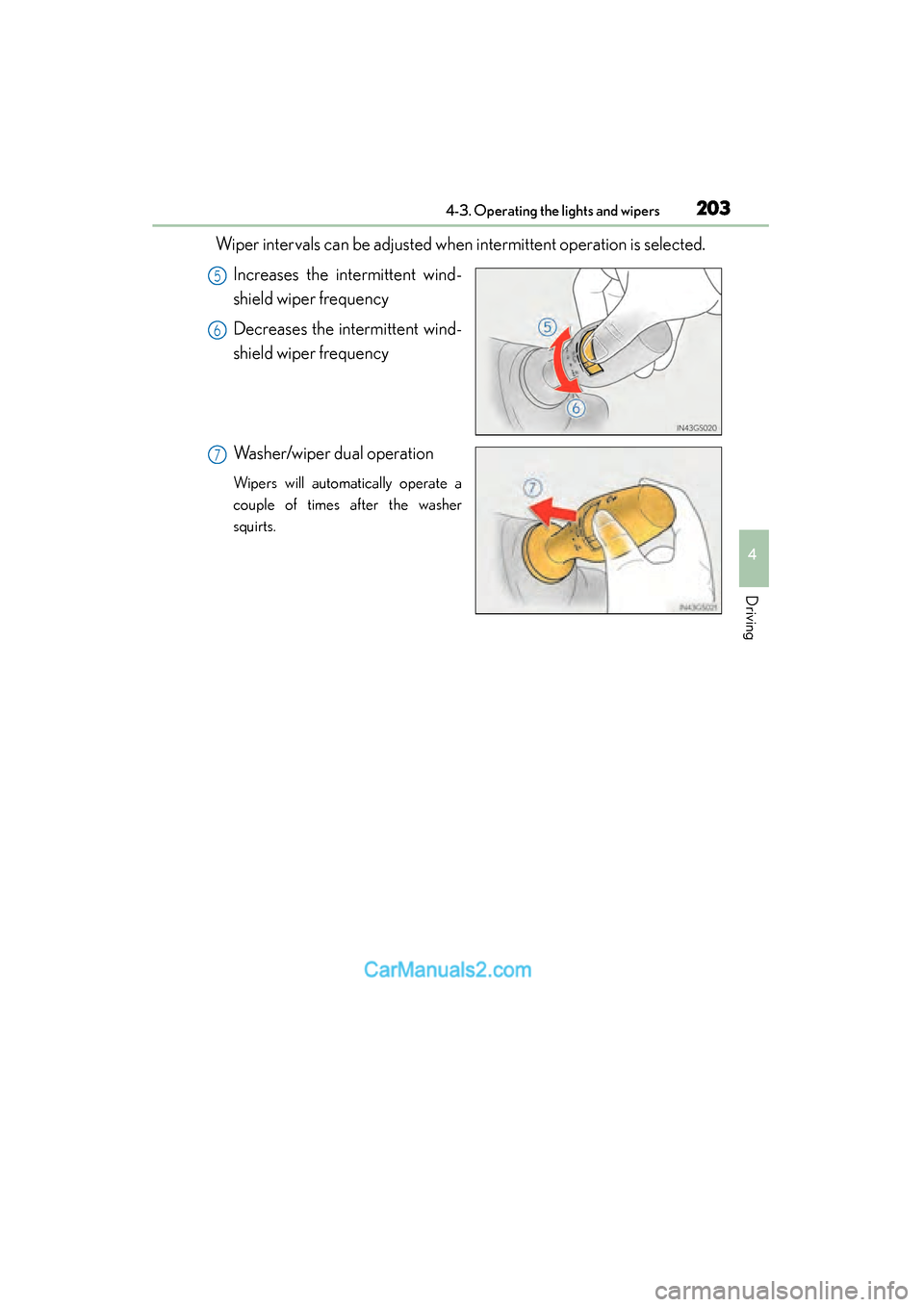

Wiper intervals can be adjusted when intermittent operation is selected.Increases the intermittent wind-
shield wiper frequency
Decreases the intermittent wind-
shield wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
5
6
7
GS350_OM_OM30F69U_(U).book Page 203 Monday, January 19, 2015 2:53 PM

204
GS350_OM_OM30F69U_(U)
4-3. Operating the lights and wipers
XRain-sensing windshield wipers
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 lev-
els
AUTO mode on/off switch
With AUTO mode selected, the wip-
ers will operate automatically when
the sensor detects falling rain. The sys-
tem automatically adjusts wiper timing
in accordance with rain volume and
vehicle speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
AUTO mode
indicator
1
2
3
4
5
GS350_OM_OM30F69U_(U).book Page 204 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2054-3. Operating the lights and wipers
4
Driving
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
When AUTO mode is selected, the sensor sensitivity can be adjusted by
turning the switch ring.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
or or
or
OffTe m p o r a r y operationTe m p o r a r y operationLow speed operationHigh speed operation
Low speed operationOffOffHigh speed operationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
AUTO modeIntermittent operation
Off
Te m p o r a r y
operation
*1Low speed
operation
*2High speed
operation
*2
ContinuouslyNo change
Operation
Status
before
operation
6
7
8
GS350_OM_OM30F69U_(U).book Page 205 Monday, January 19, 2015 2:53 PM

206
GS350_OM_OM30F69U_(U)
4-3. Operating the lights and wipers

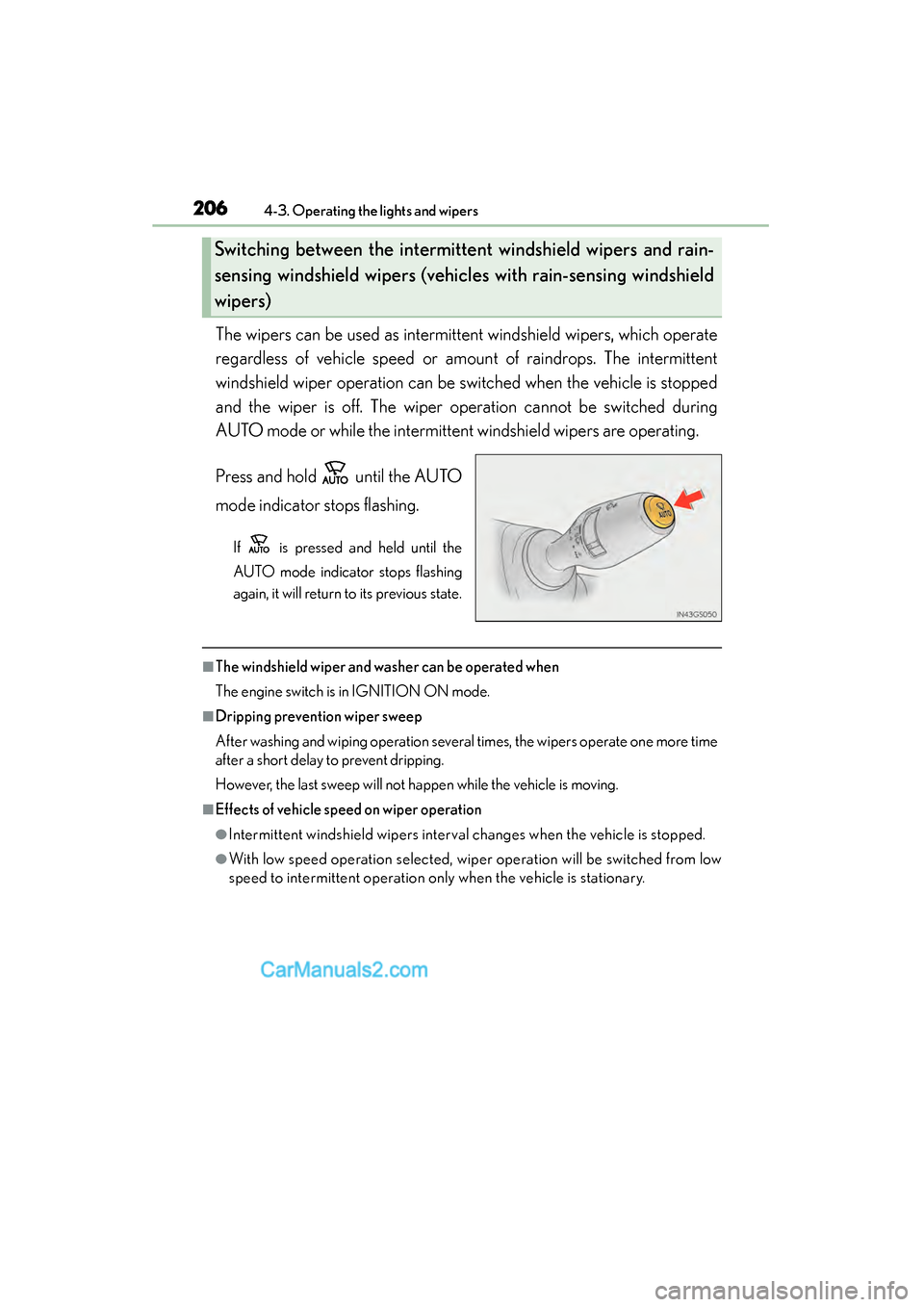

The wipers can be used as intermittent windshield wipers, which operate
regardless of vehicle speed or amount of raindrops. The intermittent
windshield wiper operation can be switched when the vehicle is stopped
and the wiper is off. The wiper operation cannot be switched during
AUTO mode or while the intermittent windshield wipers are operating.
Press and hold until the AUTO
mode indicator stops flashing.
If is pressed and held until the
AUTO mode indicator stops flashing
again, it will return to its previous state.
■The windshield wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more time
after a short delay to prevent dripping.
However, the last sweep will not happen while the vehicle is moving.
■Effects of vehicle speed on wiper operation
●Intermittent windshield wipers interval changes when the vehicle is stopped.
●With low speed operation selected, wiper operation will be switched from low
speed to intermittent operation only when the vehicle is stationary.
Switching between the intermittent windshield wipers and rain-
sensing windshield wipers (vehicles with rain-sensing windshield
wipers)
GS350_OM_OM30F69U_(U).book Page 206 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
2074-3. Operating the lights and wipers
4
Driving
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If AUTO mode is selected while the engine switch is in IGNITION ON mode, the
wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 185°F (85°C) or higher, or -22°F
(-30°C) or lower, automatic operation may not occur. In this case, operate the
wipers in any mode other than AUTO mode.
■When the windshield wipers are in temporary operation
AUTO mode cannot be activated even if is pressed.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.
●The raindrop sensor judges the amount of
raindrops.
An optical sensor is adopted. It may not
operate properly when sunlight from the
rising or setting of the sun intermittently
strikes the windshield, or if bugs etc. are
present on the windshield.
CAUTION
■Caution regarding the use of windshield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in AUTO mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes warm.
The fluid may freeze on the windshield and cause low visibility. This may lead to an
accident, resulting in death or serious injury.
GS350_OM_OM30F69U_(U).book Page 207 Monday, January 19, 2015 2:53 PM

208
GS350_OM_OM30F69U_(U)
4-3. Operating the lights and wipers

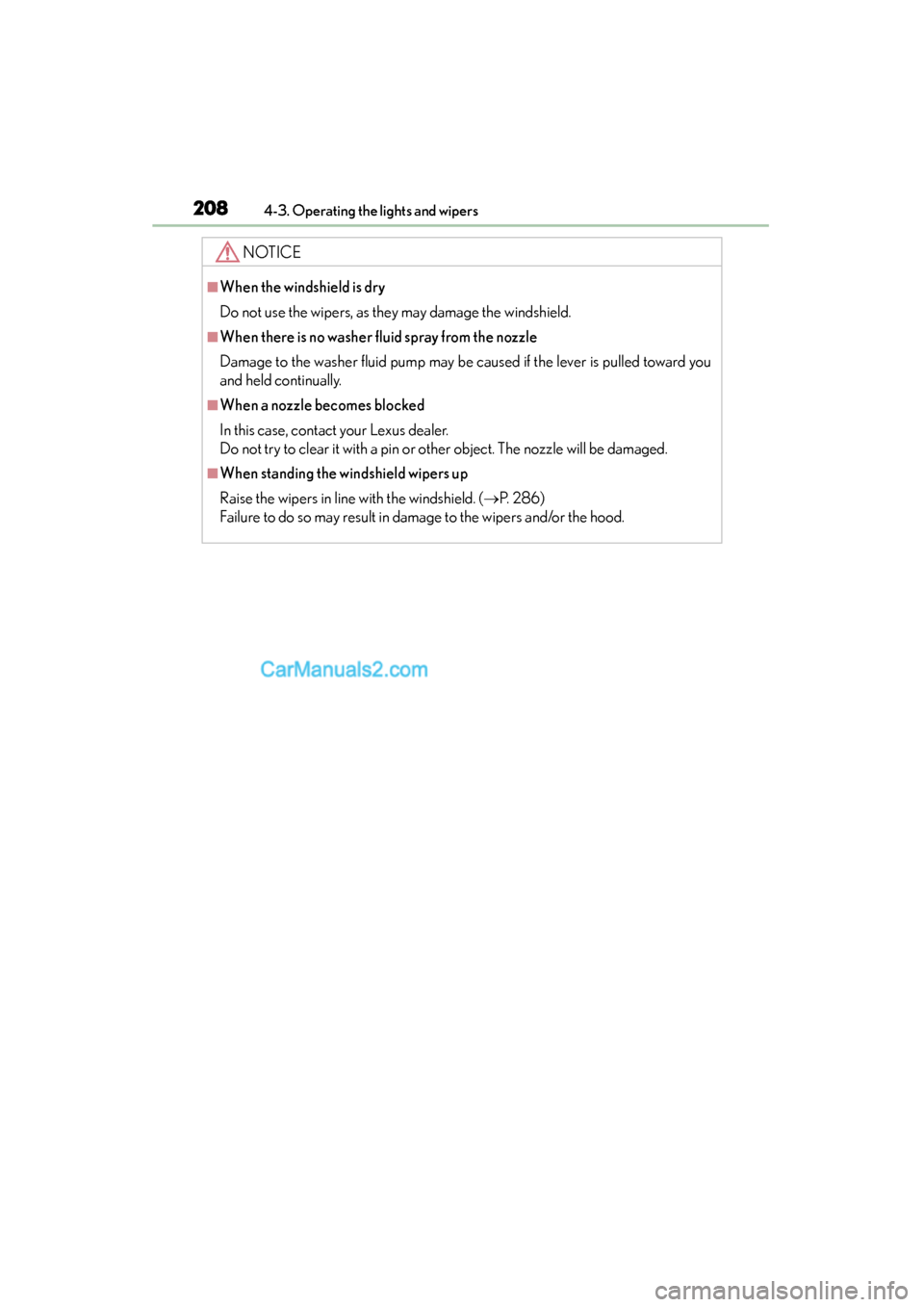

NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
■When a nozzle becomes blocked
In this case, contact your Lexus dealer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.
■When standing the windshield wipers up
Raise the wipers in line with the windshield. (→P. 2 8 6 )
Failure to do so may result in damage to the wipers and/or the hood.
GS350_OM_OM30F69U_(U).book Page 208 Monday, January 19, 2015 2:53 PM
